Moen INS2321B User manual

INS2321B - 10/25
连体陶瓷坐便器（墙排水）
安装使用说明书
One-Piece Ceramic Toilet
(Wall Drainage)
INSTALLATION INSTRUCTIONS
如需安装支持，配件丢失等，请联系MOEN。
(中国) 400-630-8866
www.moen.cn
PLEASE CONTACT MOEN FIRST
For Installation Help, Missing or Replacement
Parts
(China) 400-630-8866
www.moen.cn
Record Purchased Model Number:
(Save instruction sheet for future reference)
Image is for reference only
(Style varies by model)
图片仅供参考
（款式因型号而异）
记录购买的型号：
（保存安装说明书以备将来参考）
Adjustable Pliers Adjustable Wrench Flathead Screwdriver Phillips Screwdriver
Safety Glasses Sealant Thread Seal TapeTape Measure
推荐工具
为了安全和让安装和替换变得容易，Moen建议
您使用以下工具：
HELPFUL TOOLS
For safety and ease of replacement, Moen rec-
ommends the use of these helpful tools.
硅胶 活动扳手 一字螺丝刀 卷尺
护目镜 生胶带 美工刀
Silica gel
Safety Glasses
Adjustable Wrench
Teflon Tape
Tape Measure
Art Knife
Flathead Screwdriver
冲击钻
Percussion Drill
锉刀
Rasp
记号笔
Marker Pen

随附
Supplied
自购
Self-Purchased
D
E
F
B
C
A
2
零件清单
Parts List
A. 陶瓷坐便器本体
B. 排污连接直管
C. 地脚固定配件包
D. 供水角阀
E. 供水连接管
F. 坐便器盖板
A. Toilet Base
B. Waste Pipe
C. Screw Package
D. Angle Valve
E. Supply Hose
F. Toilet Seat
·安装前请仔细阅读此安装说明书，以便准备和熟悉所需要
的安装工具、材料、安装步骤和注意事项，避免由于安装不
当导致的不必要的损失。
·安装前，卫生间墙、地砖应已完成施工，且预留了坑管和
给水管路。
·请核对您选购的产品坑距尺寸与预留坑距相符（本产品要
求墙面预留排污口中心离地高度180mm）
·如果有旧的坐便器，先关闭水源再拆除旧坐便器并清洁地
面。如果是新安装坐便器，请关闭供水并清洁地面。
注意：
·地面应平整，否则可能导致坐便器安装后开裂。
·在安装之前和过程中，请用干净的物品堵住地面排污口，
防止工具、水泥、油泥等杂物掉落坑管内，堵塞管路。
Checklist before Installation
·Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. This will help you avoid costly mistakes.
·Final wall and Ceramic tiles are finished and the suggested
water supply and drain are reserved before installation.
·Ensure that the drain has the correct roughing-in dimension.
This product requires the wall height of the reserved sewage
outlet center to be 180mm above the ground.
·If the toilet is installed from scratch, turn off the water supply
and clean floor. If the toilet is to replace old toilet, turn off the
water supply and then remove the old toilet and clean floor.
Note:
·Ensure the floor is smooth, or it will cause toilet damage.
·Before and during the installation, block the drain with clean
objects, to prevent tools, cement, sludge and other debris
from falling into the pit pipe and blocking the pipe.
安装前确认

2
a. Cut the waste pipe according to actual size.
b. Use a rasp to smooth edges to prepare pipe for connecting.
c. Install a seal ring on the end of the waste pipe.
a. 根据实际情况切割直管以达到所需尺寸。
b. 用锉刀将排污管口磨平，以备连接。
c. 安装一个密封圈到排污连接直管尾部。
根据现场的排污管和供水角阀的安装尺寸调整并安装坐便器
Adjust and install the toilet according to the installation size of the sewage pipe and water supply angle valve on site
排污连接直管
Waste pipe
密封圈 (墙排污管) (需自购)
Seal ring for drain pipe (Self-purchased)
3
1

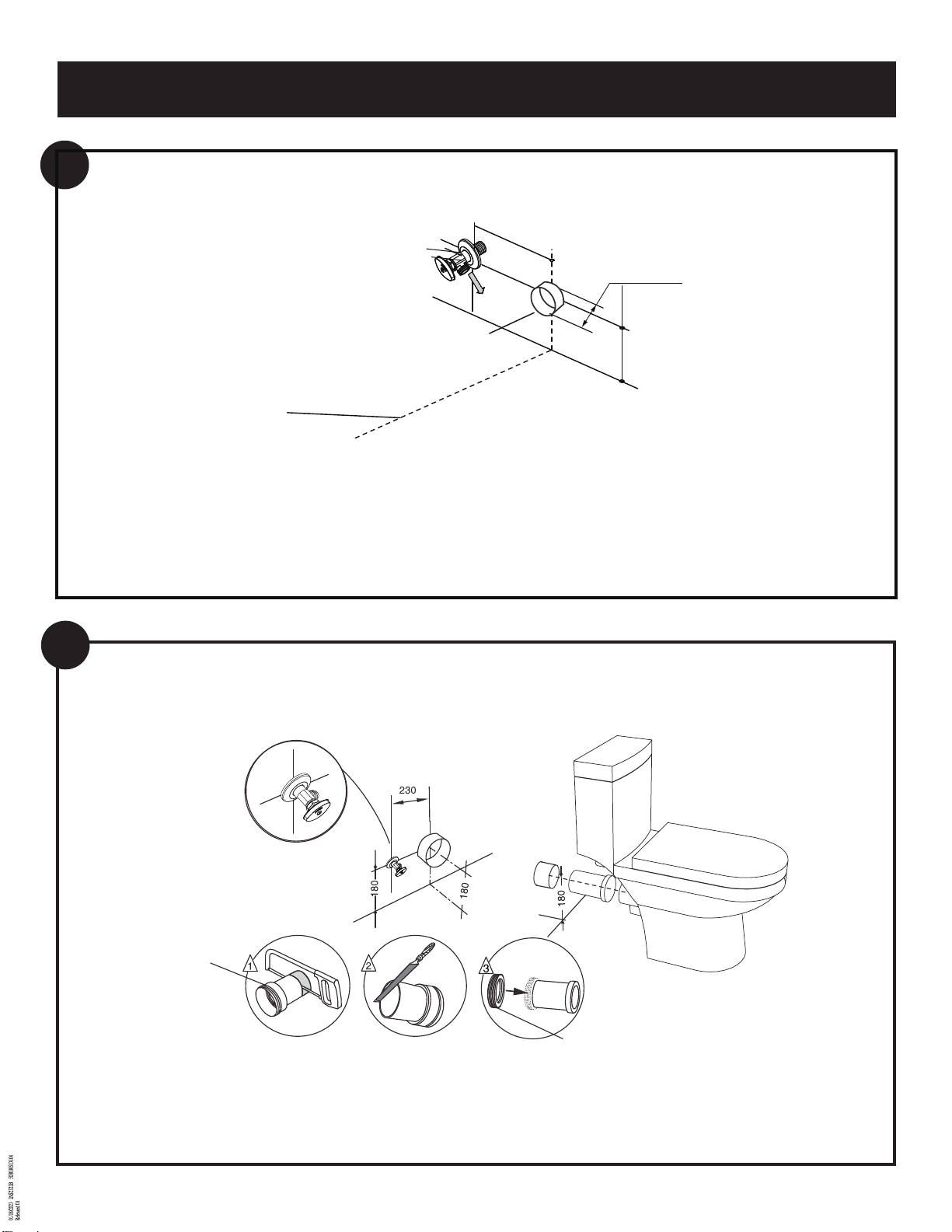

确认供水角阀及排污口预留尺寸
* Angle valve
180mm
Toilet center
Toward to toilet
* 供水角阀为自购件，不包含在马桶产品包装里。
* 排污口孔径请参考相关建筑标准，通常为
110mm。
* 排污管的高度应该为180mm，高度不符合将导
致密封失效甚至无法安装。
凸出墙面
80mm Min
坐便器中心线
*供水角阀
* Drain pipe
*墙面排污管
至坐便器方向
230mm
Check angle valve and drain pipe dimension
Protruding wall
* Angle valve is self-purchased part, not included in
toilet product package.
* Drain pipe diameter need to comply with building
standard specification, which is 110mm generaly.
* The height of the sewage pipe should be 180mm. If
the height is not consistent, the seal will fail or even
be unable to be installed.

预安装

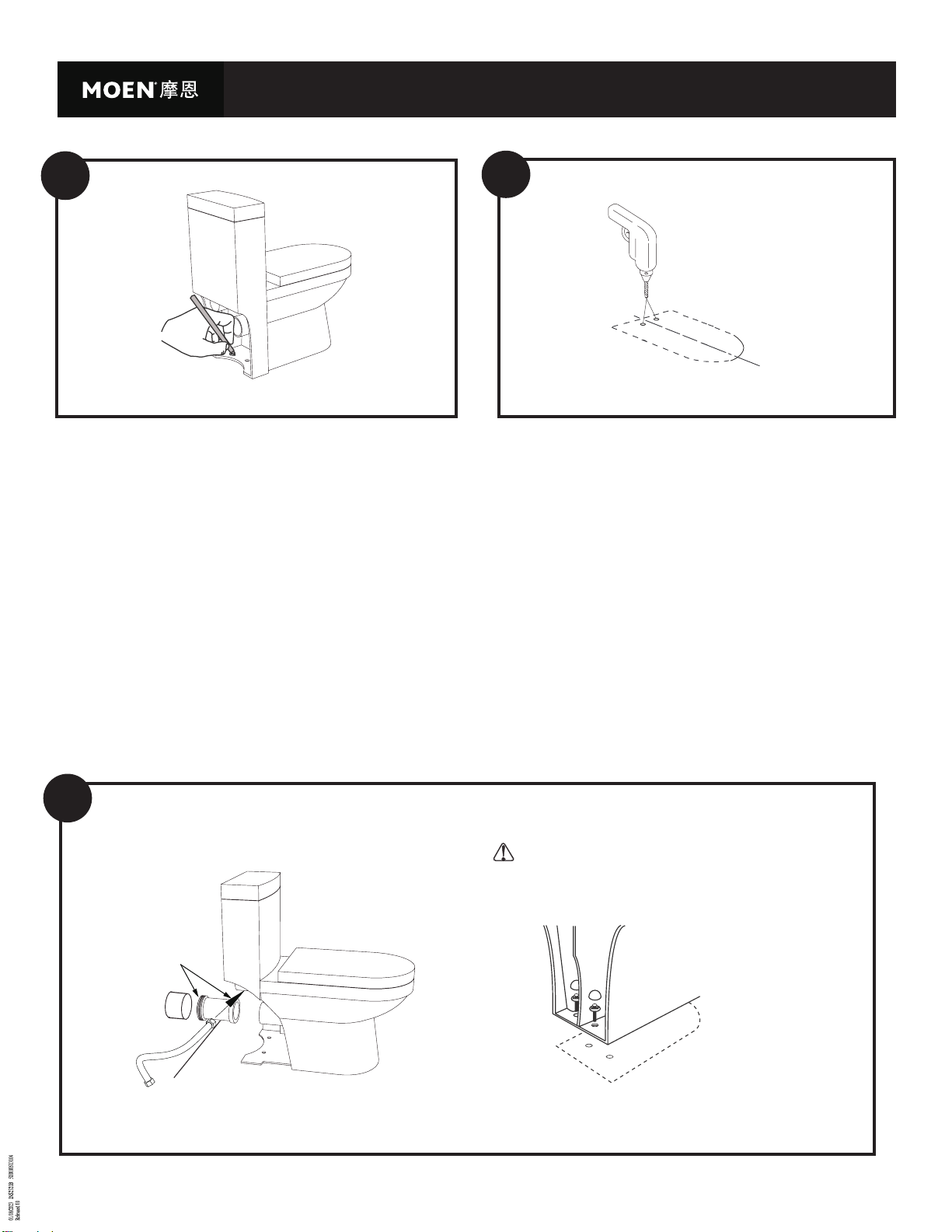

1. 用排污连接直管连接坐便器的排污孔，再与墙面
的排污管连接。
2. 整好坐便器的位置，用记号笔在安装孔的位置做
标记，并描出马桶底面轮廓。
Preinstallation
1. Connect the waste pipe with the drain hole of the
toilet, and then connect it with the drain pipe on the
wall.
2. Adjust the position of the toilet, mark the position of
installation hole with a marker, and trace the outline
of the toilet bottom.
3
4
4
5
安装排污连接直管，并将供水软管一端与进水阀连接
Connect the waste pipe, and connect supply hose to
inlet valve of toilet
安装塑料膨胀管，螺栓和螺帽。
Install expansion tubes, screw bolts, and screw caps.
*在密封圈上涂抹硅脂。
*Apply silicon grease
on seal ring.
螺丝切勿锁太紧，防止陶瓷开裂。
Do not overtighten the screws to prevent the
ceramic from cracking.
用电钻在安装孔的标记处钻孔。
警告：请佩戴防护镜并注意安全。确保钻孔的地方没有隐藏的
电缆或管路！
Drill hole according to the position of the installation hole
marked by the marker pen.
Warning: Please wear protective goggles. Make sure there is
no pipeline or cable buried in any position that needs to be
punched.

5
6

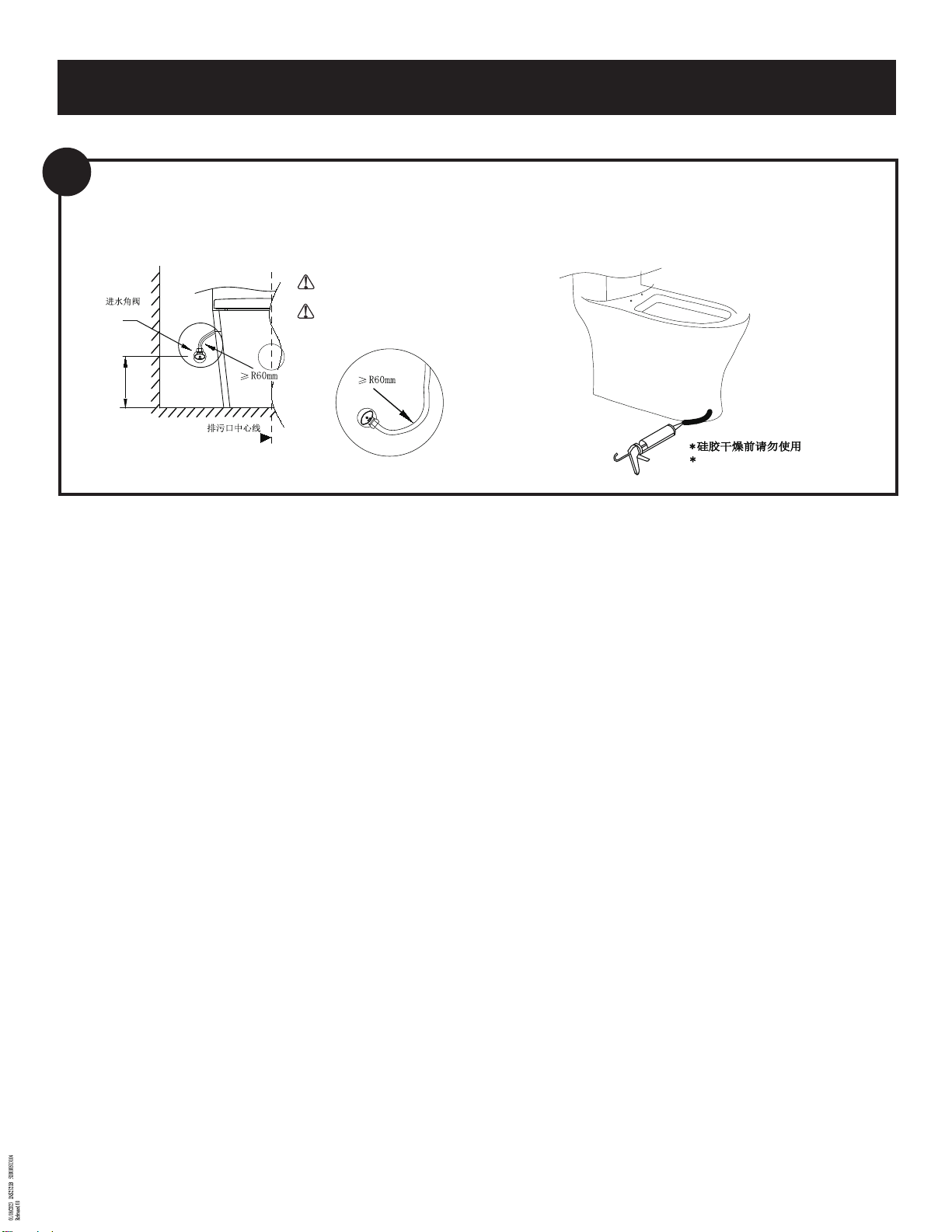

Connect the supply hose to angle valve
连接供水软管到供水角阀
Angle valve Ensure the minimum radius of
supply hose is R60mm.
确保供水软管不会弯折影响供
水，最小转弯半径不小于R60mm。
180mm
Center line of waste hole
Apply silicone caulk around the toilet base
在坐便器底部涂抹适量硅胶
*Do not use the toilet until caulk is
dried.
·The water fittings have been installed. If you need help
during installation, please contact MOEN local dealer or
MOEN hot line: 400-630-8866.
·The toilet seat is purchased by the customer. Please refer
to the installation instruction provided for the installation
steps.
·水件已经安装，如在安装过程有需要问题可以咨询摩
恩当地经销商或者拨打摩恩热线电话：400-630-8866。
·坐便器盖板是客户自购件，它的安装步骤请参考盖板配
套的说明书。
注意： Note:

6
用户须知
Notice: Clean the outside surfaces of your vitreous china
fixture with mild soap and warm water. Wipe the entire
surface completely dry with a clean and soft cloth. Do not use
those cleaners which contain harsh chemicals, such as
ammonia, which can damage the finish.
注意：用柔软的肥皂和温水清洗釉面陶瓷洁具的外表面。用一
块清洁软布将整个表面彻底擦干。许多清洁剂中含有较强化学
成份，诸如氨，这些物质会损坏釉面。不要使用这类清洁剂。
Water supply pressure is 0.02Mpa~0.8Mpa; The recommended
pressure is 0.05Mpa~0.5Mpa. A protection valve should be
equipped if the supply pressure exceeds 0.5Mpa.
可适用的供水压力范围为0.02Mpa～0.8Mpa；推荐工作供水水
压为0.05Mpa～0.5Mpa，如果水压超过0.5Mpa，请加装减压阀
。
如果你居住地方的水质是硬性，你必须保持冲水孔清洁，以确
保坐便器冲水正常。每星期应最少使用坐便器清洁剂清洁一次
。用长把手的刷子清洁冲水孔，并尽量伸入排污管洗刷，防止
矿物质聚集。
大多数坐便器清洁剂对坐便器表面是无害的。请认真遵循坐便
器清洁剂制造商的指引来操作。
警告：提防楼宇受损或损坏产品。请勿在水箱内使用冲
洗剂。这些长期使用于坐便器、水箱内的冲洗剂（通常
为蓝色固体）因含氯（次氯酸钙）会严重破坏水箱内的
配件（如：橡皮、镀铬），从而引起渗漏，或对楼宇结
构造成损坏。
警告：在安装本坐便器时切勿使用任何水泥。因为水
泥的热膨胀可能使坐便器的脚部挤破或损坏。我司对
所有因为水泥安装而引起的坐便器破裂恕不负责。
Moen shall not be responsible or liable for any damage to
these tank fittings caused by the use of cleaners containing
chlorine (calcium hypochlorite).
Heat expansion of the toilet may damage
the feet of the toilet. Moen will not e responsible for
any damage because of using cement.
Please do not use hard materials (like
scouring pad) to clean product surface,especially the
product logo.
请勿使用钢丝球等硬质材料擦洗产品表面，特别是产
品商标处。
All information in this instructioin sheet is based upon the latest
product information available at the time of publication. Moen
reserves the right to make changes in product characteristices,
packaging, or availability at any time without notice.
本指引所记载的一切资料，均以印刷时所有的最新产品情况为
基础，摩恩保留权利随时更改产品特性、包装或供应情况，恕
不另行通知。
Important Consumer Information
If the water in the place where you live is hard, keep the flush
hole clean to ensure that the toilet flushes normally. Use toilet
cleaner at least once a week. Use a brush with a long handle to
clean the flushing hole, and extend it into the drain pipe as
much as possible to prevent mineral accumulation.
Most toilet cleaners are harmless to the surface of the toilet.
Please follow the instructions provided by the cleaner manufac-
turer carefully.
请勿使用磨蚀性清洁剂或溶剂。

.A
B.
C.
D.
A.
B.
C.
D.
A.
B.
C.
D.
A.
B.
A.
B.
进水阀无法关闭，水不断
溢入水箱
进水阀浮桶受阻没有浮到位。
补水管安装不正确。
排水阀漏水。
进水阀水位超过排水阀溢流管。
.A
B.
C.
D.
检查浮桶是否卡涩，能不能上下浮动自如。
按照补水管安装附图将补水管安装正确。
确认排水阀没有漏水。
重新调整进水阀水位及安装高度。
常见故障处理表
坐便器排污管或冲水孔堵塞。
注意：请定期清洗过滤器
Note: Please clearn filter regularly.

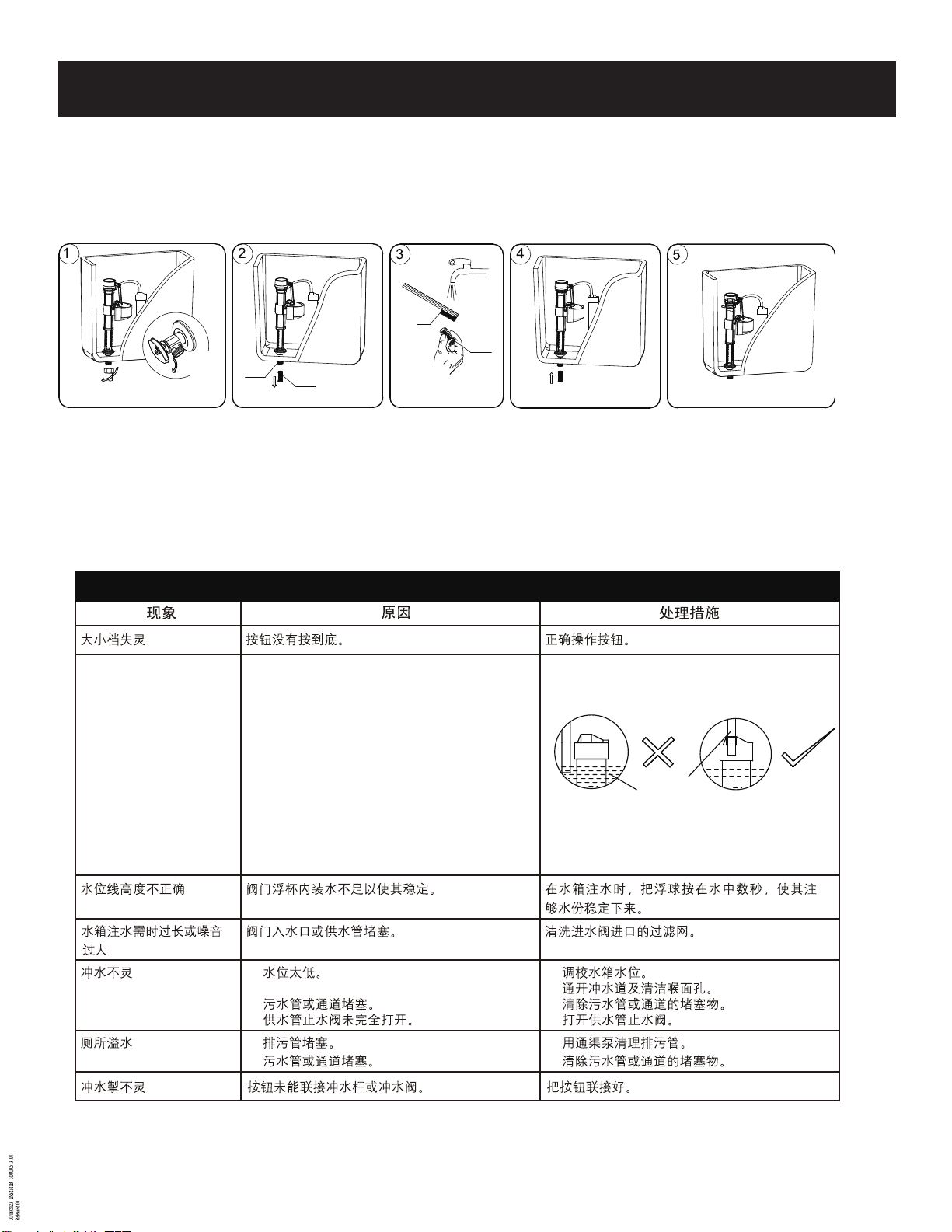

Clean the Filter of Tank Fitting
清洗水箱水件的过滤器
Close angle valve and unthread
nut of the supply hose.
Close Filter
Brush
Filter
Connecter
Pull out the filter from
connector.
Wash the filter. Re-assembly the filter into
fitting connector.
Connect supply hose to the fitting
connector, open the angle valve.
关闭供水开关，将供水管螺母旋出进水阀接头。 从进水接头中取下过滤器。 将过滤器冲刷干净。 将过滤器重新装回进水管。
水面 补水管
补水管插入溢水管不可低于水面
将供水管螺母重新旋入进水阀接头上，打开开关。
进水接头 过滤器
过滤器
刷子
关闭供
水角阀
7

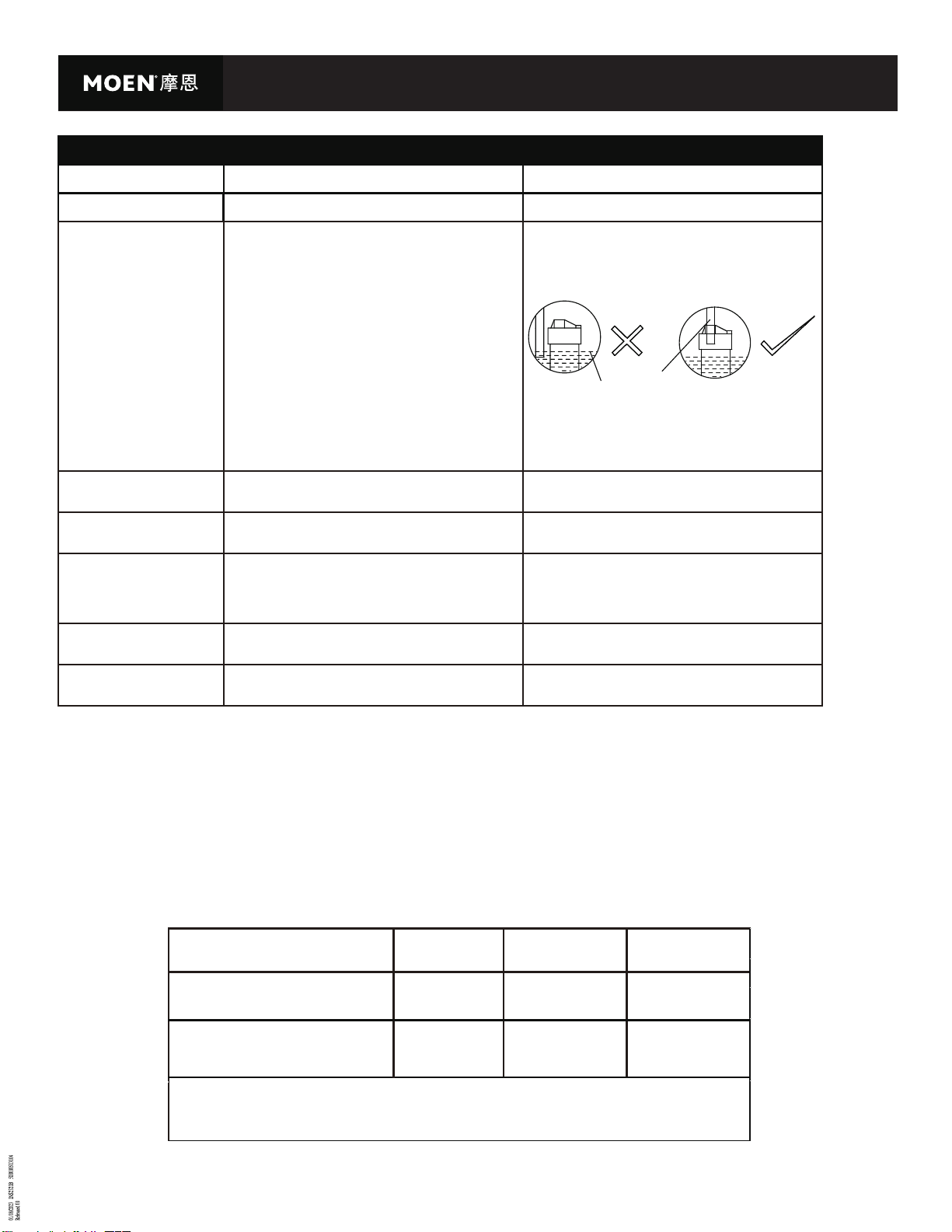

General Troubleshooting
常见故障处理

8
Operate push button correctly.Dual flush fail Push button do not touch seat.
During fill cycle, hold float under waterafew
seconds to allow it to fill with water ballast.
Valve float cup does not contain enough water
to provide required ballast.
Long or noisy tank fill
cycle
Clean the filter ofinlet valve.Plugged valve inlet or supply line.
A. Adjust tank water level.
B. Unclog trapway; clean rim holes.
C. Clear obstruction from soil pipe or vent.
D. Open supply shut-off valve.
A. Water level is too low.
B. Trapway or rim holes are obstructed.
C. Soil pipe or vent is obstructed.
D. Supply shut-off valve not fully open.
Poor flush
A. Toilet trapway is obstructed.
B. Soil pipe or vent is obstructed.
A. Use plunger to unclog.
B. Clear obstruction from soil pipe or vent pipe.
Toilet overflows
Toilet does not activate Reconnect the push button.Push button is not connected to lift rod or
flush valve.
Fill valve continues to run,
tank
allowing water to enter
Incorrect water level
height
A. Valve float cup does not float in place.
B. Water replenishing pipe install in wrong way.
C. Water leaking past drain valve.
D. Water level of fill valve height than overflow
hole.
A. Check fill valve float cup can move up and
down smothly, does not jam fault.
B. Install water replenishing pipe in right way
according to belowing diagram.
C. Ensure drain valve seal well.
D. Adjust fill valve water level to make sure lower
than overflow hole.
Water level
Water replenishing pipe
Note: Water replenishing pipe shall above water level.
Symptoms Probable Causes Corrective Action
Troubleshooting Chart
单位:升
坐便器水效等级 1级 2级 3级
坐便器平均用水量 ≤4.0 ≤5.0 ≤6.4
双冲坐便器全冲用水量 ≤5.0 ≤6.0 ≤8.0
注意：每个水效等级中双冲坐便器的半冲平均用水量不大于其全冲用水量最大限定值的70%。
Unit: Liter
Water efficiency grades Grade 1 Grade 2 Grade 3
Average water consumption
Full water consumption of dual
flush
NOTE: For dual flush toilet, half flush water consumption shall not be more than 70%
of full flush water consumption.
用水效率等级
敬告：本产品符合GB25502《坐便器用水效率限定值
及用水效率等级》规定，具体用水量及水效等级请看
粘贴在产品上的水效标识的标贴，其中水效等级划分
指标如下：
Notice: This product complies with GB25502 “Limited value
of toilet water efficiency and water efficiency grade”. For
the specific water consumption and water efficiency
grades, please refer to the water efficiency label on the
product. The water efficiency grade classification are
shown in the table below.
Water Efficiency Grades

©2021 Moen Incorporated
We offer limited warranty and lifetime maintenance
for Moen products, which are all manufactured with
high standards of workmanship.
The period of warranty shall start from the date of
purchase of the product (according to the invoice or
receipt issued by Moen distributors) and shall cover
a period of the following: the warranty period for
ceramic parts is 5 years, non-ceramic parts, such as
water fittings, flush valve, toilet seat, etc. is 3 years.
This warranty is your coverage against material
and workmanship malfunction or defects in Moen
products or components (Pipe kit etc.). During the
warranty period, we offer free maintenance and
changing of malfunctioned products or product
components. Moen’s after sales service liability is
limited to the maintenance of faulty items and does
not cover your other losses caused by product
malfunction, except for otherwise stipulated by law.
Cosmetic damages (scratches, dents, etc.) and
malfunction or defects caused by abuse or improper
maintenance is not covered by this warranty.
Although the warranty period remains valid, in case
of the following conditions (1) - (5), the maintenance
cost (material cost and labor cost) shall still be
charged as the case may be:
1. Corresponding warranty card and valid invoice
cannot be presented;
2. Faults were caused by the incompliance with
the instructions and precautions provided in the
user’s manual;
3. Damages and faults were caused by self-actuated
dismantling, repair and refit;
4. Faults and damages were caused by external
factors such as force majeure;
5. Damages were caused by transportation,
unloading and extrusion, etc.
This warranty is valid for the original consumers
only (including hotel use), and excludes industrial
and commercial use of the product (except for hotel
use). This card is only responsible for product
maintenance rather than any other liabilities.
In the event that the product requires maintenance
but exceeds the warranty period, or that the product
is not covered by this warranty, labor cost and
material cost shall be charged as the case may be.
Please call 400-630-8866 or contact local dealer for
any question.
摩恩产品是在高质量标准及生产工艺下制造的，摩恩承诺
为消费者购买的洁具产品提供有期限免费保修及终身维修
服务。
材质为陶瓷的部件免费保修期为5年，非陶瓷材质部件，
如水箱内的水件、冲洗阀、坐便器盖板等免费保修期为3
年。均自消费者购买日（以摩恩产品分销商开具的发票或
收据上载明日期为准）起计。
免费保修范围为产品及产品配件（落水以及溢水等）由于
材质及工艺原因而造成的故障或损坏。免费保修期内，我
们将无偿为您提供修理服务及更换发生故障的产品或产品
配件。摩恩的售后服务责任仅限于对故障产品的修理，而
不延及您因产品故障而发生的其他损失，法律另有规定的
除外。
您需了解：产品外观碰伤、刻划痕迹，以及滥用及不正当
保养所导致的故障或损坏，均不属于免费保修范围。即使
在免费保修期内，属下列（1）-（5）情况之一的，需酌
情收取修理费用：
1. 不能出示相符的保修卡和有效购买凭证情况的，
2. 未按使用说明书告知的使用方法和注意事项造成的故
障，
3. 自行拆卸、维修、改装所造成的故障和损坏，
4. 由于不可抗力等外部原因引起的故障和损坏，
5. 由于运输、搬卸、挤压等造成的损坏。
对于保修期外或不在保修范围内的产品，如需维修，摩恩
将酌情收取上门费、人工费及材料费。
本保修条款仅对原始消费者和酒店行业的购买者有效，并
不适用于本产品在工业，商业，贸易和非酒店行业的使
用。
如对本保修条款内容有任何疑问，请拨打400 630 8866
咨询热线，或向当地分销商咨询。
产品售后保修条款 MOEN LIMITED WARRANTY
One-Piece Ceramic Toilet
(Wall Drainage)
连体陶瓷坐便器（墙排水）
合格证
产品名称
检验员
生产日期
摩恩（上海）厨卫有限公司
MOEN (SHANG HAI)KITCHEN&BATH PRODUCTS CO.,LTD
No. 399 Fute North RD, China (Shanghai) Pilot Free Trade Zone,
Shanghai 200131 P.R. China
中国（上海）自由贸易试验区富特北路399号
邮编：200131
Compliance Certification
Inspector
Product Name
Date of Production
