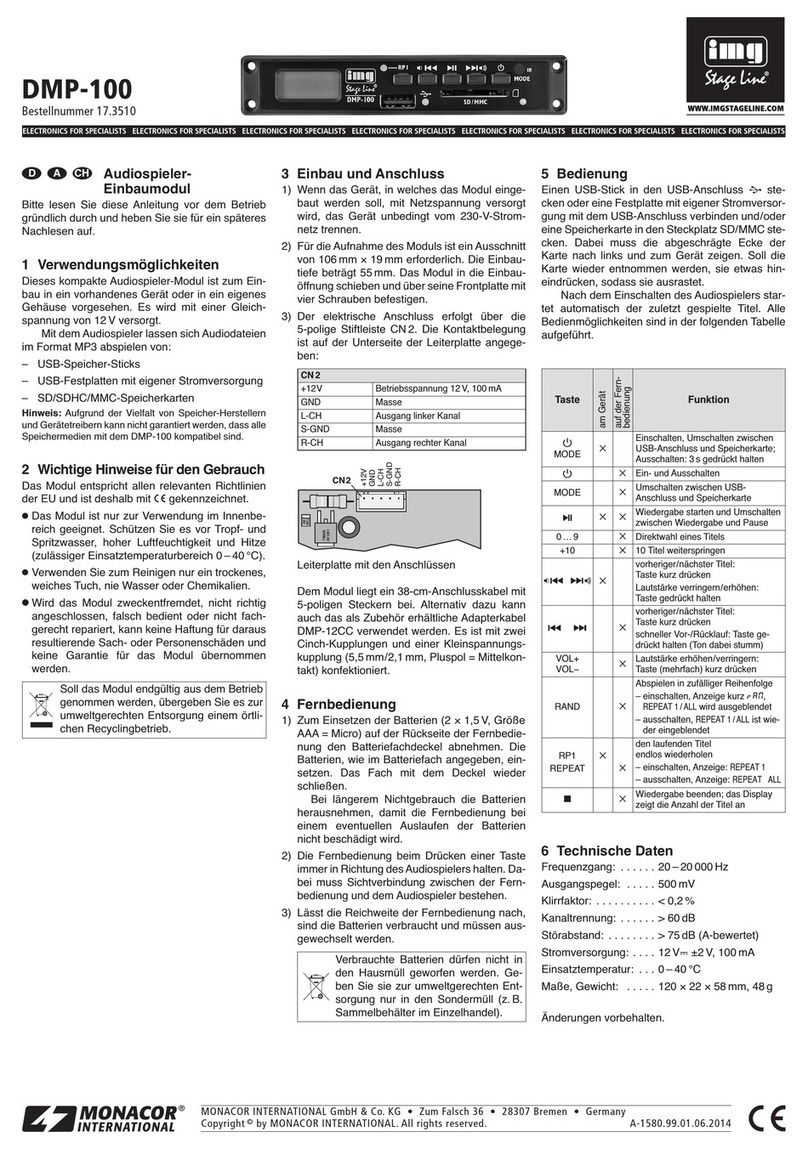

Monacor IMG Stageline DMP-100 User manual

DMP-100
1. Basic specifications
Items
Specifications
Product type
Digital audio system SD/MMC CARD and USB MP3 available
Product No.
DMP-100
Supply voltage
DC 12V (10~14V)
Power consumption
Within 2W
Dimensions
120mm(W) ×56.6mm(D) ×22mm(H)
Weight
(approximate)
47.5g
2. Electrical performance
Items
Condition
Specifications
1. Output level
1KHz 0dB
500mV±2dB
2. Output level difference between
channels
1KHz 0dB
Less than 2dB
3. Frequency response (using 1KHz
0dB as reference)
20Hz
100Hz
10KHz
±1dB
±1dB
±2dB
4. Separation
1KHz
More than 60dB
5. THD
1KHz
Less than 0.2%
6. S/N ration
1KHz
More than 75 dB
* Addition: regarding items 4,5use 20KHz low-pass filter.
Regarding item 6 use 20KHz low-pass filter and IHF-A curve filter.

3. Function explanation
Keys
Explanation
In MP3 mode:
Press this key, the set will start to play. When the set is in pause or stop state.
Press this key, the set will pause. When the set is playing.
In MP3 mode:
Press this key, the set will change to backward track.
Long press this key, the volume will increase.
In MP3 mode:
Press this key, the set will change to forward track.
Long press this key, the volume will decrease.
RP1
In MP3 mode:
Press this key, to change the set into REPEAT 1 and REPEAT ALL mode.
MODE
When press this key shortly, the set will change the mode between USB and
CARD. Press this key over 3 seconds, will turn off the set.

. OUTLOOK & DIME
4
SIONS
N
DMP-100
