MONOPRICE
Maker Select i3 3D Printer
Model 13860
Quick Installation Guide
PACKAGE CONTENTS
Please take an inventory of the package contents to
ensure you have all the items listed below. If anything is
missing or damaged, please contact Monoprice
Customer Service for a replacement.
1x Monoprice 3D printer tower assembly with
attached MK10 single step extruder
1x Monoprice 3D printer base assembly
1x Monoprice 3D printer power supply & LCD display
1x Spool holder
1x Filament stand
1x 4mm hex wrench
6x Hex bolts
1x Putty knife
1x 2GB Micro SD card with sample 3D model files
2x Sheets of platform tape
1x Sample roll of PLA filament (10m/32ft)
1x AC power cord (NEMA 5-15 to IEC 60320 C13)
1x USB cable (A to B)
Note that the printer Tower, Base, and Power Supply are
connected with cables.
1. Place the Power Supply, Base, and Tower Frame on a
clean, flat, level surface (e.g., table or workbench) as
shown. Carefully remove the zip tie that holds the X-axis
gantry.
2. Insert the Base length-wise between the legs of the
Tower Frame. Align the two holes on each side of the
Tower Frame with the corresponding holes on each side
of the base. On each side of the Tower Frame, insert one
screw from outside the Frame into the exposed screw
hole and tighten slightly. Then, insert one screw into
each Tower Frame leg from inside the Base and tighten
slightly. Using the included 4mm Hex Wrench, tighten
each screw to secure the Frame to the Base.
3. The cable assembly on the left side of the base has
three cables coiled and secured with a zip tie. Carefully
remove the zip tie, then insert the white connector on
the longest of the three cables into the white connector
on the bottom of the X-axis stepper motor.
4. Mate the two-pin black cable connector in the cable
bundle with the corresponding black connector on the
cable attached to the stop switch.
5. Insert the white connector on the shortest of the
three cables into the corresponding white connector on
the left side Z-axis stepper motor.
6. Insert the white connector on the short cable on the
right side of the base into the corresponding white
connector of the right side Z-axis stepper motor.
7. Remove the outer plastic nut from the Spool Holder,
then insert the threaded end of the Spool Holder into
the large hole on the Filament Stand, from the side
opposite the base support. Thread the plastic nut over
the Spool Holder and tighten the plastic nuts on each
side of the Filament Stand.
8. Position the Filament Holder on top of the Tower
Frame with the Spool Holder on the left side, so that it
extends above the center of the Frame. Insert two
screws and tighten them using the included 4mm Hex
Wrench.
9. Ensure that the power switch is in the OFF position (O
side depressed). Plug the C13 end of the included AC
Power Cable into the C14 panel connector on the Power
Supply, then plug the other end into a nearby AC power
outlet. Depress the Iside of the power switch to power
the printer ON.

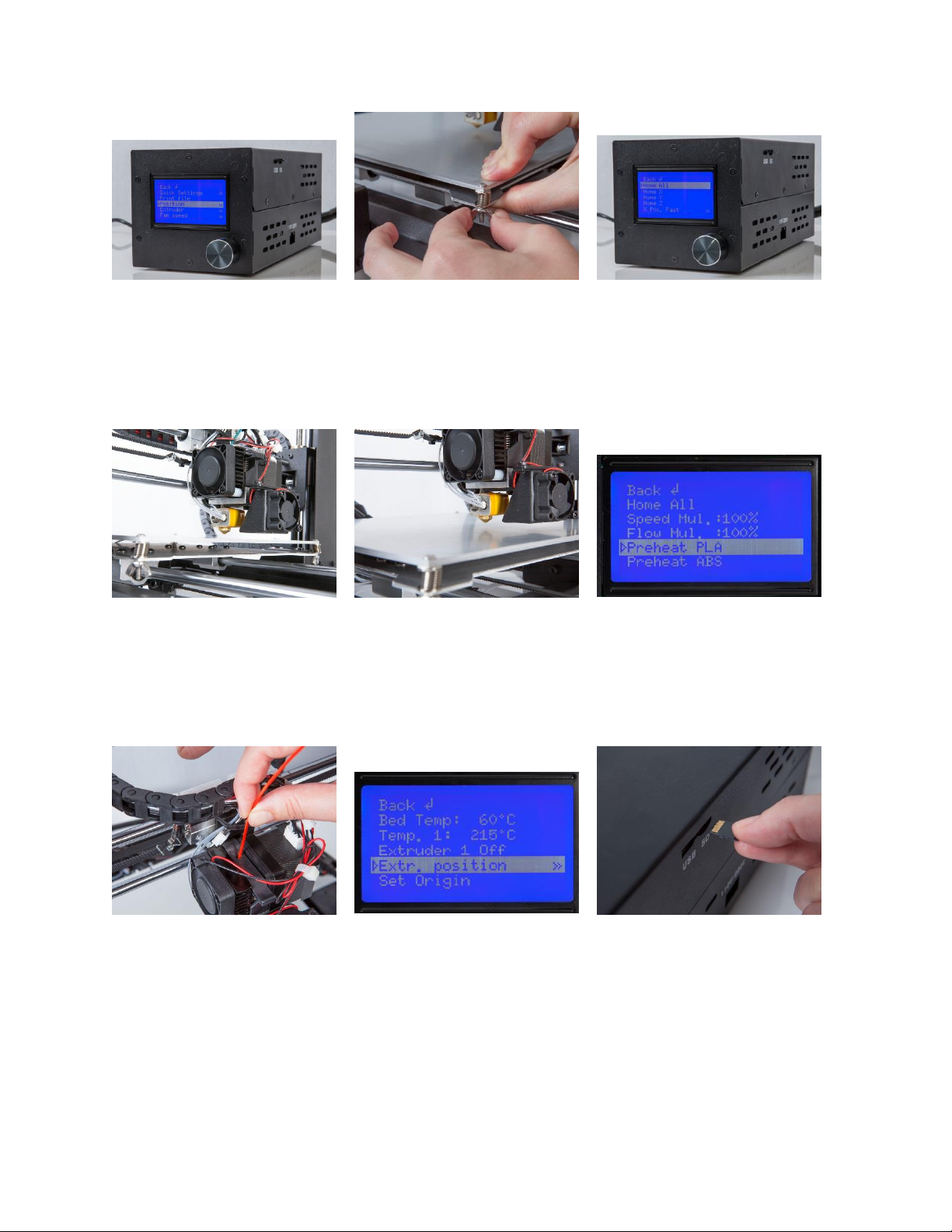

10. Wait for the printer to warm up and initialize. When
it is ready, it will show Printer ready at the bottom of
the LCD display. Press the knob to activate the menu
system. Rotate the knob until the Position entry is
highlighted, then press the knob to select it. Rotate the
knob again until Z. Pos. Fast is displayed, then press the
knob to select it. Turn the knob clockwise to raise the
extruder so that you can easily access the plate. Once
you can easily access the plate, depress the Oside of
the power switch to turn the printer OFF.
11. One by one, squeeze each corner of the plate and
tighten the wingnut to compress the spring and reduce
the distance between plates to the minimum. Next,
wipe the top of the plate with a clean, lint-free cloth to
ensure no dust particles or other objects are on the
plate. Peel the backing from one of the sheets of
platform tape and carefully apply it to the top of the
plate, taking care to ensure that no air bubbles exist.
12. Depress the Iside of the power switch to turn the
printer ON. Once the printer is ready, press the knob to
open the menu system. Rotate the knob to highlight the
Position entry, then press the knob to select it. Rotate
the knob to highlight the Home All entry, then press the
knob to select it. Once the extruder has reached the
home position, press the Oside of the power switch to
turn the printer OFF.
13. With the printer powered OFF, physically move the
extruder to one of the corners of the platform. Slowly
loosen the wingnut on that corner to raise the platform
until it almost touches the nozzle. The proper distance is
achieved when you can slide a single sheet of paper
between the nozzle and the platform.
14. Move the extruder to each other corner and repeat
the process. Move the extruder to the center of the
plate and test the gap with a sheet of paper. Test the
gap distance at various points around the plate and
adjust the wingnuts on each corner as necessary to
create the proper gap and level the plate. Keep
adjusting and testing until the proper gap is present at
all points.
15. Depress the Iside of the power switch to turn the
printer ON. Once it has initialized and is ready, press the
knob to open the menu system. Raise the extruder by
following the instructions in step 10 above. Rotate the
knob to highlight the Quick Settings entry, then press
the knob to select it. Rotate the knob again to highlight
the Preheat PLA entry, then press the knob to select it.
Note that the screen will not change immediately, but
will return to the home screen and display Preheat PLA
at the bottom after about 15-30 seconds.
16. Check the temperatures of the extruder and plate on
the LCD display. When the temperatures reach to within
a few degrees of the targets, you are ready to insert
filament. (Note that the display will still show Preheat
PLA , even after the temperatures have reached the
target values.) Carefully insert the included filament
sample into the hole on the extruder, as shown.
17. While holding the filament in place with one hand,
press the knob on the Power Supply to activate the
menu system. Turn the knob to highlight the Extruder
entry, then press the knob to select it. Turn the knob
again to highlight the Extr. Position entry, then press the
knob to select it. Push gently downward on the filament
while turning the knob clockwise. You will feel the
filament being pulled into the extruder. Continue until a
few inches of filament material extrudes out of the
nozzle. Carefully clean the extruded filament material
off the plate and nozzle.
18. Insert the included MicroSD card into the slot on the
side of the Power Supply. Press the knob to open the
menu system. Rotate the knob to highlight the SD Card
entry, then press the knob to select it. Rotate the knob
to highlight the Mount Card entry, then press the knob
to select it. Rotate the knob to the Print file entry, then
press the knob to select it. Finally rotate the knob to
select one of the sample 3D model files, then press the
knob to start printing.
To obtain the full manual, please visit
www.monoprice.com, type 13860 into the search field,
then download the pdf manual from the product page.
