Monoprice MP Mini Delta User manual

MONOPRICE
MP Mini Delta 3D Printer
P/N 21666
User's Manual

2
CONTENTS
SAFETY WARNINGS AND GUIDELINES.......................................................................................................................................3
INTRODUCTION................................................................................................................................................................................................4
FEATURES..............................................................................................................................................................................................................4
CUSTOMER SERVICE....................................................................................................................................................................................5
PACKAGE CONTENTS.................................................................................................................................................................................5
PRODUCT OVERVIEW.................................................................................................................................................................................6
USING THE MENU SYSTEM....................................................................................................................................................................6
PRINTER SETUP................................................................................................................................................................................................. 7
WI-FI SETUP.........................................................................................................................................................................................................9
SOFTWARE INSTALLATION AND SETUP..................................................................................................................................10
Installing Cura for Windows.........................................................................................................................................................10
Repetier-Host............................................................................................................................................................................................ 17
TECHNICAL SUPPORT...............................................................................................................................................................................19
REGULATORY COMPLIANCE..............................................................................................................................................................19
Notice for FCC ..........................................................................................................................................................................................19
Notice for Industry Canada...........................................................................................................................................................19

3
SAFETY WARNINGS AND GUIDELINES
Be careful not to damage the yellow film on the build plate.
Do not remove the insulating tape on the extruder nozzle.
Take care to avoid touching hot parts, including heat blocks, extruder nozzle,
extruded filament, and the heated build plate.
Do not wear gloves when operating or repairing to avoid entanglement.
Keep the printer and all accessories out of reach of children.
Do not remove or disconnect the USB cable when printing from a computer.
Do not pull or twist the black cable at any time.
Do not force or tear anything when during unpacking and setup. This may cause
damage to the printer and/or its accessories.
Do not reach inside the printer during operation.
Always allow the printer and extruded filament to cool before reaching inside.
Ensure that the printer is turned off and unplugged from its power source before
making repairs or performing service.
Do not install this device on an unstable surface where it could fall and cause either
personal injury or damage to the device and/or other equipment.
Do not subject the product to extreme force, shock, or fluctuations in temperature
or humidity.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not touch the device, the power cord, or any other connected cables with wet
hands.
Use only in a well-ventilated area. Do not use in close, confined spaces.

4
Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
Unplug this device from the power source when not in use.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
INTRODUCTION
Thank you for purchasing this 3D printer from Monoprice! This printer features a single
extruder, which is capable of printing in PLA, ABS, and other materials. You can print from a
Windows® or Mac® PC using a USB connection or can print from 3D model files stored on a
microSD™card, without the need for a PC connection of any kind. This printer is easy to
setup and easy to use following the instructions in this manual.
FEATURES
Single extrusion print head
Can print PLA, ABS, and other materials
Open frame design for ease of use and maintenance
Includes 256MB microSD™card with Cura, Repetier-Host, and a sample 3D model

5
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at [email protected]
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x 3D printer
1x Filament holder
1x Plastic scraper
1x USB cable
1x MicroSD™card
1x Hex wrench
1x Power adapter
1x AC power cord (NEMA 5-15 to IEC 60320 C13)

6

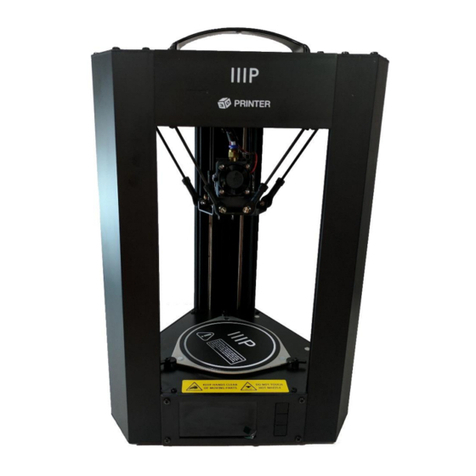

PRODUCT OVERVIEW
1. Feed Mechanism
2. Extruder
3. Micro USB Port
4. DC Power Connector
5. Power LED Indicator
6. MicroSD™ Card Slot
7. Filament Holder Slots
USING THE MENU SYSTEM
The menu system is displayed on a lighted LCD screen.
The menu selection highlight or pointer is moved by pressing the top and bottom
buttons to the right of the display.
Pressing the top button moves the highlight/pointer to the left and up.
Pressing the bottom button moves the highlight/pointer to the right and down.
Pressing the top button while editing a value increases that value.
Pressing the bottom button while editing a value decreases that value.
Press the center button to activate the selected menu item or to save an edited
value.

7
PRINTER SETUP
Warning! Take care not to remove or damage the black PEI build mat on the build platform.
This mat is essential to ensure the 3D model properly adheres to the build platform during
printing. If this mat becomes damaged or wears out, replace it with painter's tape, Kapton®
tape, or ordinary masking tape.
Perform the following steps to prepare the printer for use.
1. Remove the printer from its packaging and place it on a flat, stable surface with
plenty of ventilation and a nearby AC power outlet.
2. Open the Accessories box and remove the Filament Holder. Slide
the tab at the flat end into the Filament Holder Slots (7) on the
rear of the printer frame.
3. Insert the included microSD™card into the MicroSD™ Card Slot (6)
on the side of the printer.
4. Plug the DC barrel connector on the included AC power adapter into the power
connector on the side of the printer. Next, plug the C13 end of the included AC
Power Cable into the C14 panel connector on the AC Power Adapter, then plug the
other end into a nearby AC power outlet.
5. Press the bottom button once to highlight the Temperature entry, then press the
center button to select it.
6. Press the center button to select the temperature value, then use the top and
bottom buttons to set the target temperature. Set it to 230°C for ABS filament or
set it to 195°C for PLA filament. Press the center button to save the target
temperature and begin heating the extruder.

8
7. While the printer is heating, open your filament. Using a pair of scissors or side
cutters, diagonally snip the end of the filament to make a point, as shown in the
images below. Place the spool on the Filament Holder.
8. Once the target temperature is reached, press the bottom button twice to select
the Back option, then press the center button to return to the previous menu page.
9. Press the bottom button to highlight the Move option, then press the center
button to enter the Move menu.
10. Press the bottom button three times to highlight the Extruder option, then press
the center button to select it. The Extruder option will have a red outline around it,
indicating that it is active.
11. While squeezing the lever on the Feed Mechanism, insert the
filament and push it into opening. Keep pushing until you feel
resistance. Release the lever on the Feed Mechanism.
12. Press the top button to feed filament into the printer. Allow the
motor to run until it stops feeding. Repeat this process until
filament starts to extrude out of the nozzle.
13. Using the included plastic scraper, clean the extruded filament from the nozzle and
build platform.
14. Press the center button to deselect the Extruder entry.
15. Press the bottom button twice to highlight the Exit entry, then press the center
button to return to the previous menu.

9
16. Press the top button twice to highlight the Print option, then press the center
button. The printer will read the contents of the microSD™card and display them on
screen.
17. Use the top and bottom buttons to highlight the cat.gcode file, then press the
center button to start printing the model.
Congratulations, your 3D printer is setup and you are printing your first model!
WI-FI SETUP
You can connect the printer wirelessly to a 2.4Ghz Wi-Fi® network to print models from
your Android™ or iOS® phone or tablet. Perform the following steps to setup the Wi-Fi
connection for your device.
1. Download the free MP 3D Printer WiFi Connect app from the Google Play Store or
from iTunes, depending on which type of mobile device you have.
2. Disconnect the USB cable from the printer. You cannot use USB and Wi-Fi
connections at the same time.
3. Power on the printer.
4. Start the MP 3D Printer WiFi Connect app.
5. The SSID of your Wi-Fi network should be displayed on screen. If a different SSID is
displayed, open your device's Wi-Fi settings and select the appropriate Wi-Fi
network.
6. Enter your wireless password.
7. Use the printer's buttons to navigate to the Move menu.
8. Press and hold the center button for 3 seconds. Release the button when Smart
config started is displayed on screen.
9. Press the Connect to WiFi button on your mobile device. The connection will be
completed within 10 ~ 60 seconds and the message MP Mini Delta is now
connected to Wi-Fi will be displayed on your device's screen and the IP address will
be displayed at the top of the printer's LCD screen.

10
Note that you may have difficulty connecting to the Wi-Fi network if you have a 2.4GHz
and 5GHz network with the same SSID. Try changing the SSID of the 5GHz network if this
occurs. For best results, move the printer to a location closer to the Wi-Fi router or access
point.
SOFTWARE INSTALLATION AND SETUP
As you've seen, you can print a model directly from a gcode file on a microSD™card and
this is the preferred method, as it does not require a continuous connection to your
computer. You can download gcode files to the microSD card and print them without
having to build any model files.
However, you can create your own gcode files using an open source program, such as Cura
or Repetier-Host, which are pre-installed on the microSD card that comes with the printer.
These programs use M200 models (typically .STL or .OBJ files) and, using machine specific
information, generate a gcode file with detailed instructions for the printer to create the
selected model. We recommend you start with Cura, since it includes a Slicing Engine.
Installing Cura for Windows
1. Use a card reader to read the contents on the
included microSD™card. Locate and double-
click the Cura_15.04.2.exe file to start the setup
program.
2. You may choose a new location for the
program files or accept the default
(recommended). Click Next to continue.

11
3. Ensure that all boxes are checked, then click Install to continue.
4. Once the files have been extracted and the Cura installation is complete, the driver
installation wizard will launch. Click Next to continue.
5. Click Finish to complete the driver installation.

12
6. Click Next to continue.
7. Ensure that the box next to the Start Cura 15.04.2 option is checked, then click Finish
to complete the installation and launch the program.
8. Wait for Cura to finish launching. If this is the first time you have run Cura on this
machine, Cura will automatically launch the First time run wizard. Otherwise, you
will need to select Machine > Add new machine.

13
9. Click the button next to the Other option, then click the Next button to continue.
10. Select the Custom... option, then click Next to continue.

14
11. Click the button to the left of the Other entry, then click Next to continue.
12. Change the settings to match those shown in the images below, then click Finish to
continue.
13. The program will finish launching and leave you on the main screen. Select the Basic
tab, then change the settings to match those in the accompanying image for PLA
filament.

15
Note that the Fill density, Support type, and
Platform adhesion type options should be set
according to the needs of the model you are
printing.
The Fill density will determine the overall
strength of the finished object. If printing a
decorative object, a low fill density is
appropriate. However, if printing an object that
will be used as a tool or part (e.g., a gear), a
high fill density will impart maximum structural
strength to the finished object.
If printing something with no overhang, such
as a cube, you can set the Support type to
None. If the model has areas that overhang the
build plate, but which are not overhanging a lower section, you can use the
Touching buildplate option. The Everywhere option is usually only necessary for
very complex models with parts that overhang other parts.
In most cases, the Brim option for the Platform
adhesion type is sufficient and is easier to
remove and clean up. The Raft option builds a
flat layer on which the model is then built and
will need to be removed once the print is
complete.
Feel free to experiment with these options to
achieve the best possible print.
14. Click the Advanced tab, then change the
settings to match those in the accompanying
image. Note that if you have a very high fill
density (from the previous step), you will want
to increase the Cool down time (Minimal layer
time) to 10 seconds.

16
15. Click the Start/End-GCode tab.
16. Add the following line to the start.gcode code, after the 2nd G28 line (the new line
is highlighted in the image below):
G29 Z0.4 ;auto-levels the build plate with a vertical offset of 0.4mm
The models on the included microSD™ card have this line already inserted, but if
you will be making your own model files, you will need this line to instruct the
printer to activate the auto-leveling feature. The 0.4 value represents the amount of
vertical offset intended to compensate for the thickness of the build plate mat. If
the first layer is too tight, you can increase this value, while if the first layer is too
loose, you can decrease it. This value has a 0.1mm tolerance.

17
17. Finally, using the included Micro USB cable, plug one end into the USB port on the
printer, then plug the other end into an available USB port on your computer.
Watch the right hand corner of the screen. A bubble will appear in the lower right
corner of your desktop, which is telling you that Windows is installing the necessary
printer drivers. Click the bubble and verify that the drivers have been properly
installed.
Congratulations, you have installed Cura and connected your PC to your new 3D printer.
Refer to Cura's documentation for operating details and information on the various
options.
Repetier-Host
You can also install Repetier-Host from the file on the included microSD™card or from a
download from the internet. The screenshots below show the proper settings to use for
this printer in Repetier-Host.

18

19
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to [e-mail]
REGULATORY COMPLIANCE
Notice for FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

20
Microsoft® and Windows® are registered trademarks of Microsoft Corporation in the United States
and/or other countries.
Apple®, Mac®, and OS X® are trademarks of Apple Inc., registered in the U.S. and other countries.
SD® and microSD® are registered trademarks of SD-3C, LLC in the United States, other countries, or
both.
DuPont™ and Kapton® are trademarks or registered trademarks of E.I. du Pont de Nemours and
Company.
Wi-Fi ®is a registered trademark of Wi-Fi Alliance.
