Introduction
This is the user’s manual for Moore Industries’
THZ2and TDZ2(TPRG: RTD, T/C, Ohms, mV and
Potentiometer inputs) Programmable Smart HART
Temperature Transmitter and Display. It contains all of
the information needed to configure, install, operate
and maintain the instruments.
About this Manual
Pay particular attention wherever you see a “Note”,
“Caution” or “WARNING ”.
Note– Information that is helpful for a procedure,
condition or operation of the unit.
Caution– Hazardous procedure or condition that
could damage or destroy the unit.
WARNING– Hazardous procedure or condition that
could injure the operator.
The THZ2and TDZ2
The THZ2and TDZ2are 2-wire (loop-powered), user-
configurable, HART®-based temperature transmitters.
Their size, accuracy and compatibility make them the
ideal solution when measurements must be made in
remote or otherwise difficult-to-access locations.
The THZ2and TDZ2allow for configuration through
two methods. You may use your PC’s RS-232
serial port or USB port and Moore Industries’ PC
Configuration Software (once installed onto your PC).
All configuration parameters are available through the
PC Configuration Software.
The second method is to connect a HART
Communicator and HART modem into your process
loop. You must ensure that your communicator is
configured with the THZ2and TDZ2Device Description
(DD). You may then configure most parameters
through the Communicator. Custom Curve variables
cannot be entered using the Communicator. They
must be configured using the PC Configuration
Software.
Model and Serial Numbers
Moore Industries uses the model and serial numbers
of our instruments to track information regarding each
unit that we sell and service. If a problem occurs with
your instrument, check for a tag affixed to the unit
listing these numbers. Supply the Customer Support
representative with this information when calling.
Default/Factory Configurations
The following are the default factory settings for your
unit.
THZ2
Input: 4W RTD Pt3850-100Ohms, 0-100degC
Broken Wire: Enabled
Filter: 60Hz
Running Average: Disabled
PV Damping: Disabled
AO: 4-20mA
Under Range Minimum Value: 3.8
Over Range Maximum Value: 21.6
Fail Mode: Low, 3.6mA
TDZ2
Input: 4Wire RTD Pt3850-100Ohms, 0-100deg C
Broken Wire: Enabled
Filter: 60Hz
Running Average Filter: DISABLED, 1
PV Damping: DISABLED, 0s
Display Source: PV
Decimal Places: 3
Output: 4-20mA
Under Range Min Value: 3.8
Over Range Max Value: 21.6
Sensor Fail Mode: Low, 3.6mA

The Interface Solution Experts 5
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Specifications and information subject to change without notice.
Specifications
HART
Specifications
Performance
Address Range: 0-15
(1-15 are for multidrop loops)
Transmission Speed:
1200 bps
Character Format:
1 Start Bit - 8 Data Bits -
1 Odd Parity Bit - 1 Stop Bit
Input Accuracy: Refer to
Table 1
Output Range: 4-20mA
Analog Output Accuracy:
3µA (0.01875% of 4-20mA
span)
Overall Accuracy: The
overall accuracy of the unit is
the combined input and out-
put accuracy. It includes the
combined effects of linearity,
hysteresis, repeatability and
adjustment resolution. It
does not include ambient
temperature effect. For T/C
input only, add the Reference
Junction Compensation error
Reference (Cold) Junction
Compensation: ±0.25°C
(±0.45°F)
Stability: Refer to Table 2
Isolation: THZ2: HPP,
1500Vrms between input
and output continuous; DIN,
500Vrms between input and
output continuous;
TDZ2: 500Vrms input-to-
output continuous, and will
withstand a 500Vac dielectric
strength test for one minute
with no breakdown
Response (Rise) Time:
100msec maximum for the
output to change from 10%
to 90% for an input step
change of 0% to 100%
Step Response Time:
500msec maximum,
256msec typical from the
time an input is applied until
the output reaches 90% of its
final value
Ripple: 10mVp-p
measured across a
250 ohm load resistor at
frequencies up to 120Hz
Over-voltage Protection:
±5Vdc peak, maximum
Digital Input Filter: User-
programmable; 50/60Hz
Power Supply Effect:
±0.002% of span per 1V
change
Load Effect: Negligible
within specified power limits
Load Capability:
(500 ohms@24V)
Burnout Protection: User-
programmable, Upscale 20
to 23.6mA; Downscale 3.6 to
4.0mA
Output Current Limiting:
User-programmable, 3.6 to
4.0mA and 20 to 23.6mA
for input under/over range;
25mA, maximum (hardware
limit)
T/C Input Impedance:
40Mohms, nominal
RTD & Ohms Excitation:
250 microamps, ±10%
RTD Lead Wire Resistance
Maximum: RTD resistance
+ 2X lead wire resistance
< 4000 ohms; Recommend-
ed lead wire resistance for
three wire connections: <35
ohms/wire; 10 ohms copper
sensor <5 ohms
Sensor Lead Resistance
Effect: 2-wire sensors: Error
= 1.0 ohm in reading/ohm of
lead resistance;
3-wire sensors:
Error = 1.0 ohm in reading/
ohm of unbalanced resis-
tance; 4-wire sensors: No
effect
Damping:
User set; 0-30 seconds
Resolution:
Input, 20-bit; Output, 16-bit
Power Supply
Requirement: 12-30Vdc
for I.S. version; 12-42Vdc for
standard version
Type: TDZ2; Top Row, 10mm
(0.4 in) high black digits on
a reflective background;
Bottom Row, 6mm (0.225
in) high digits on a reflective
background; Two-digit HART
address indicator
Format: Two rows of five
alphanumeric characters
Decimal Points:
Can be user-set to enable
automatic adjustment of
decimal point to 2 decimal
places; Allowed decimal
places: Auto, 1, 2 or 3
Range: -99999 to 99999
Minimum Display Span:
1.00
Operating Range:
-40°C to +85°C
(-40°F to +185°F)
Storage Range:
-40°C to +85°C
(-40°F to +185°F)
Relative Humidity:
0-95%, non-condensing
Ambient Temperature Ef-
fect: See Table 3
Effect on Reference (Cold)
Junction Compensation:
±0.005°C per °C change of
ambient temperature
Startup Time:
<0.5sec, maximum
Noise Rejection: Common
mode, 100dB@50/60Hz;
Normal Mode: Refer to
Table 4
RFI/EMI Immunity:
THZ2: HPP and DIN
10V/m@80-1000MHz, 1kHz
AM, when tested according
to IEC 61326;
With -RF DIN Option:
20V/m@80-1000MHz, 1kHz
AM, when tested according
to IEC 61326;
TDZ2: 20V/m when tested
according to IEC 61326
THZ2DIN: 221g (7.9 oz)
THZ2HPP: 91g (3.2 oz)
THZ2HPP in LH1:
423g (15.1 oz)
THZ2HPP in LH2:
644g (22.9 oz)
TDZ2HP:
182g (6.4 oz)
TDZ2HP in BH:
1.4kg (50.2 oz)
TDZ2HP in D-Box:
672g (23.4 oz)
Display
(TDZ2only,
continued)
Ambient Tem-
perature
Weight
Performance
(Continued)
Display
(TDZ2only)
Supply Voltage - 12V
0.024A
= Ohms

6 The Interface Solution Experts
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
-200 to 850°C
-328 to 1562°F
-100 to 650°C
-148 to 1202°F
-200 to 510°C
-328 to 950°F
-80 to 320°C
-112 to 608°F
-50 to 250°C
-58 to 482°F
0-4000 ohms
0-100%
-180 to 760°C
-292 to 1400°F
-150 to 1370°C
-238 to 2498°F
-170 to 1000°C
-274 to 1832°F
-170 to 400°C
-274 to 752°F
0 to 1760°C
32 to 3200°F
0 to 1760°C
32 to 3200°F
400 to 1820°C
752 to 3308°F
-130 to 1300°C
-202 to 2372°F
0 to 2300°C
32 to 4172°F
-50 to 1000mV
Table 1. THZ2and TDZ2 Input and Accuracy Table
100
200
300
400
500
1000
100
200
400
500
1000
100
120
9.035
0-4000 ohms
125, 250, 500, 1k,
2k, 4k ohms
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
-240 to 960°C
-400 to 1760°F
-150 to 720°C
-238 to 1328°F
-240 to 580°C
-400 to 1076°F
-100 to 360°C
-148 to 680°F
-65 to 280°C
-85 to 536°F
0-4095 ohms
0-100%
-210 to 770°C
-346 to 1418°F
-270 to 1390°C
-454 to 2534°F
-270 to 1013°C
-454 to 1855.4°F
-270 to 407°C
-454 to 764.6°F
-50 to 1786°C
-58 to 3246.8°F
-50 to 1786°C
-58 to 3246.8°F
200 to 1836°C
392 to 3336.8°F
-270 to 1316°C
-454 to 2400.8°F
0 to 2338°C
32 to 4240.4°F
-50 to 1000mV
RTD
T/C
Direct Resistance
Potentiometer
J
K
E
T
R
S
B
N
C
DC
Input Type α Ohms Conformance
Range
Minimum
Span
Input
Accuracy
Maximum
Range
10°C
(18°F)
10 ohms
10%
35°C
63°F
40°C
72°F
35°C
63°F
35°C
63°F
50°C
90°F
50°C
90°F
75°C
135°F
45°C
81°F
100°C
180°F
4mV
Ohms
Platinum
Nickel
Copper
0.003850
0.003902
0.003916
0.00672
0.00427
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
±0.1°C
(±0.18°F)
±0.85°C
(±1.53°F)
±0.4 ohms
±0.1%
±0.25°C
(±0.45°F)
±0.3°C
(±0.54°F)
±0.2°C
(±0.36°F)
±0.25°C
(±0.45°F)
±0.55°C
(±0.99°F)
±0.55°C
(±0.99°F)
±0.75°C
(±1.35°F)
±0.4°C
(±0.72°F)
±0.8°C
(±1.44°F)
15 microvolts
Sensor-to-
Transmitter
Matching
Up to ±0.014°C
(±0.025°F) system
accuracy*.
*High-accuracy
measurements are
achieved by using a 4-wire,
1000 ohm platinum RTD
with a span of 100°F (50°F
minimum) calibrated in our
sensor-matching calibration
bath.
Millivolts

The Interface Solution Experts 7
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Figure 1. THZ2Hockey-Puck (HPP Housing) Dimensions
30mm
TOPBOTTOMSIDE
C
LC
L
C
L
C
L
(1.1 in)
25mm
(1.0 in)
52mm
(2.0 in)
49mm
(1.9 in)
27mm
(1.0 in)
4 X 40
0.125 in depth
2 Places
33mm
(1.3 in)
L
C
33mm
(1.3 in)
+PS
2
3
4
1
–PS
Table 4. Normal Mode Rejection Ratio Table
Table 2. Long-Term Stability Table
Sensor Type Max. p-p Voltage Injection for
70dB at 50/60Hz
150mV
80mV
250mV
1V
500mV
100mV
1V
250mV
100mV
T/C: J, K, N, C, E
T/C: T, R, S, B
Pt RTD: 100, 200, 300 ohms
Pt RTD: 400, 500, 1000 ohms
Ni: 120 ohms
Cu: 9.03 ohms
mV
250-1000
62.5-250
31.25-62.5
Resistance
1-4kohms
0.25-1kohms
0.125-0.25kohms
5 yrs
0.019
0.104
Stability (%
of maximum
span)
T/C, mV
RTD, Ohm,
Potentiometer
1 yr
0.08
0.09
Input to Output Input to HART
3 yrs
0.14
0.16
5 yrs
0.18
0.21
1 yr
0.008
0.047
3 yrs
0.015
0.081
Table 3. Ambient Temperature Effects Table
Sensor
Type
RTD
T/C
Millivolt
Ohm
Analog Accuracy per 1°C (1.8°F)
change in Ambient
0.004% of span (16mA)
0.004% of span (16mA)
0.004% of span (16mA)
0.004% of span (16mA)
Digital Accuracy per 1°C (1.8°F)
change in Ambient
0.003°C
0.003°C + 0.005% of reading
0.005mV + 0.005% of reading
0.002 ohms + 0.005% of reading

8 The Interface Solution Experts
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Figure 2. TDZ2Hockey-Puck (HP Housing) Dimensions
FRONT VIEW SIDE VIEW
61mm
(2.4 in)
+PS -PS 1234 5 COM
TDZ
83mm
(3.2 in)
62mm
(2.4 in)
64mm
(2.5 in)
66mm
(2.5 in)
76mm
(3.0 in)
43mm
(1.7 in)
18mm
(0.70 in)
2
Figure 3. THZ2 DIN Dimensions
138mm
(5.4 in)
When Installed 133mm
(5.2 in)
When Installed
80mm
(3.1 in)
43mm
(1.6 in)
113mm
(4.4 in)
110mm
(4.3 in)
25mm
(1.0 in)
1234
+PS –PS
C
L
THZ
COM
2

The Interface Solution Experts 9
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Figure 4. BH Housing Dimensions (For use with the TDZ2)
+PS COM-PS 12345
TDZ
ADDR
0
602.78
D E G C
68mm
(2.6 in )
GND
1/2 NPT
102mm
(4.0 in )
84mm
(3.3 in )
68mm
(2.6 in )
64mm
(2.5 in )
10mm
(0.3 in )
124mm
(4.8 in )
25mm
(1.0 in)
102mm
(4.0 in )
119mm
(4.6 in )
76mm
(2.9 in )
57mm
(2.2 in ) 22mm
(0.8 in )
SIDE VIEW
TOP VIEW
2

10 The Interface Solution Experts
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display

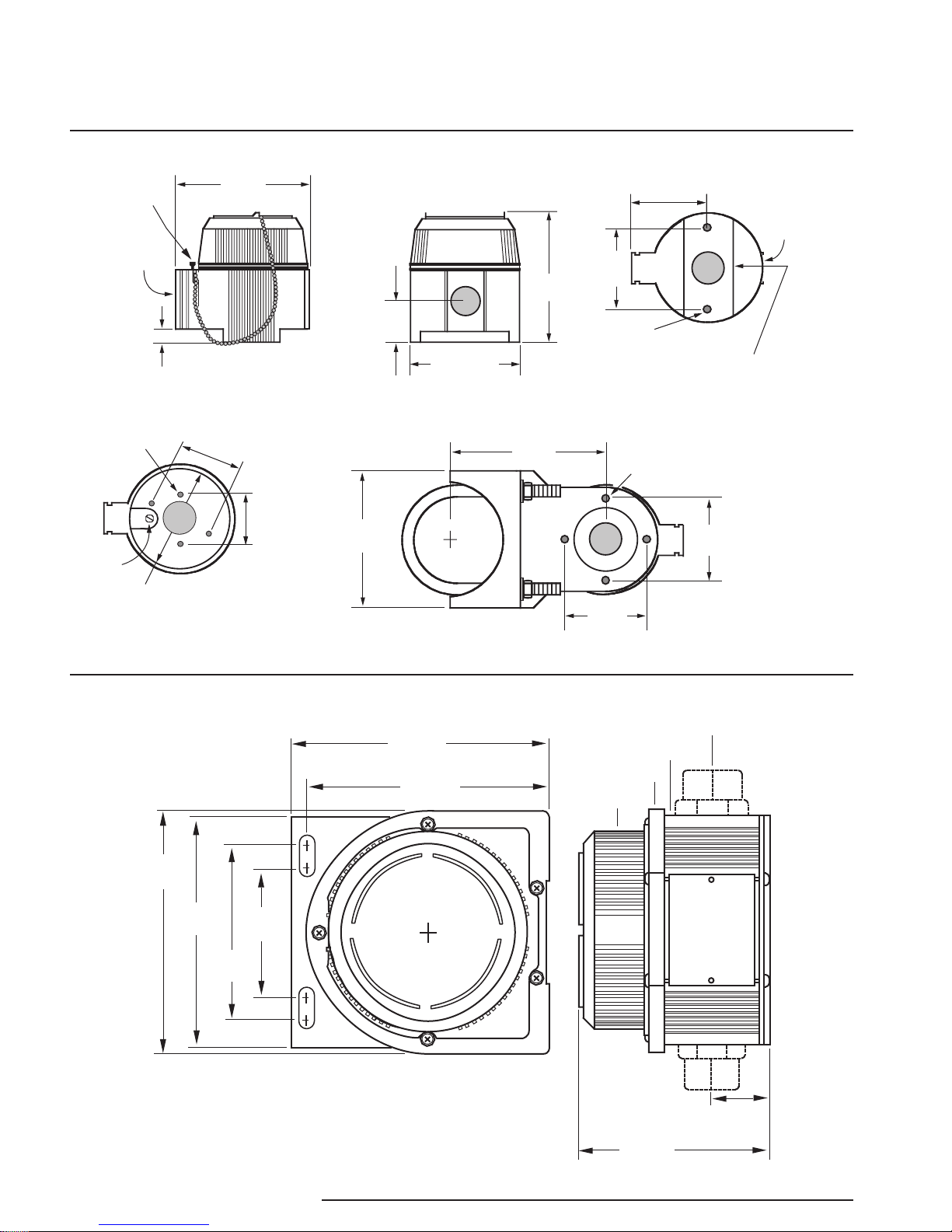

Figure 5. LH Housing Dimensions (For use with the THZ2HPP)
92mm
(3.62 in)
9mm
(0.3 in)
87mm
(3.4 in)
Conduit
Entry Port
89mm
(3.5 in)
84mm
(3.3 in)
C
L
61mm
(2.4 in)
2-in Pipe Bracket
Mounting Holes (4)
61mm
(2.4 in)
Process Connection
1/2-in NPT (N and M models) or
G½ (BSP) (C models)
61mm
(2.4 in)
10-32
Mounting
Holes (2)
51mm
(2.0 in)
Safety Lock
(LH2 only)
Metal Tag
BOTTOM
INSIDE 2-INCH PIPE MOUNTING HARDWARE
30mm
(1.1 in)
DIA. 72mm
(DIA. 2.8 in)
Instrument
Mounting Holes
40mm (1.5 in)
Instrument
Mounting
Holes
33mm
(1.3 in)
I.D. 62mm x 19mm Deep
(2.4 in x 0.75 in Deep)
Ground
M4.0 x 0.7
(4 places)
FRONT
SIDE
Figure 6. D-BOX Housing Dimensions (For use with the TDZ2)
84mm
(3.3 in)
118mm
(4.6 in)
130mm
(5.1 in)
112mm
(4.4 in)
83mm
(3.2 in)
64mm
(2.5 in)
C
L
Interior Diameter
81mm (3.2 in)
Instrument
Tag
116mm
(4.5 in)
27mm
(1.0 in)
Conduit
Fitting
Cover
Body
Bezel

The Interface Solution Experts 11
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Configuring the THZ2and
TDZ2
One of the benefits of these transmitters is that there
are no internal or external controls to adjust or settings
to change. All operating parameters are set using
either a HART Communicator or a PC and Moore
Industries’ Intelligent PC Configuration software.
The software settings are downloaded to the
transmitter in the form of a Configuration File and
stored in the instrument’s memory. You can save
a backup copy of the file on your PC hard drive or
external media. The transmitter communicates with
the PC through an RS-232 port or USB port. A HART
modem connection to the PC’s serial port may also be
used.
You can configure the THZ2or TDZ2with either a
standard HART Communicator or our PC software.
Figures 7 and 8 (depending upon your instrument’s
housing) and Table 5 provide the information you need
to configure your unit.
Using a PC
If you are going to use a PC to configure your unit,
first install the software as described on the next page,
then setup the hardware as shown in Figures 7 or 8
(depending upon your instrument’s housing).
Installing the Configuration Software
Refer to Table 5 for the equipment needed.
1. Insert the Moore Industries Interface Solution
PC Configuration Software CD into the CD
drive of the PC. Access the CD and open
the THZ2_TDZ2 PC Configuration Software
folder.
2. Double-click the installation program located
in the folder. Follow the prompts to correctly
install the program.
Once the Configuration Program is installed on the
PC, the THZ2or TDZ2can be connected to equipment
to simulate input and monitor output. You can then
change the transmitter’s operating parameters.

12 The Interface Solution Experts
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Table 5. Necessary Equipment Table
Variable Input Simulator for Thermocouple,
RTD, Millivolt, Potentiometer, or Decade
Resistance Box
Power Supply
Precision Load Resistor
Multimeter (optional)
Personal Computer
(Required only if
using a PC for setup)
Moore Industries Interface Cables
HART Modem Cable
(Required only if using a PC)
Moore Industries PC
Configuration Software
(Required only if using a PC)
HART Communicator
(Required only if NOT using a PC)
Variable; Accurate to ±0.05% of unit span
24Vdc, ±10%
250 ohms, ±0.01% HART specifies that total loop resistance is to be maintained between
250 ohms and 1100 ohms.
Accurate to ±0.025% of span; e.g., Fluke Model 87
Microsoft Windows based PC;
16Mb free RAM; 20MB free disk space on hard drive
Microsoft Windows XP, Vista or 7
1 (one) serial port or one available USB port
803-040-26, Isolated Interface Cable 803-039-26, USB cable 208-236-00
or Fuse Protected USB cable 804-030-26
Moore Industries part number 803-048-26, or equivalent
Version 1.0 or greater, successfully installed to the hard drive
Fisher-Rosemount Model 375/475 or equivalent
(with THZ2/TDZ2Device Description loaded)
Device Specifications
No Transmitter Needed
It is not necessary to connect the transmitter to a PC
to create configuration files using the software. The
Configuration Program can be run without connecting
a transmitter, and most parameters can be set without
benefit of input from a sensor or transmitter.
This makes it easy to create a set of operating
parameters, save them to external media, and
download them to one or more transmitters at a later
time.
The THZ2or TDZ2must be connected to the PC in
order to: trim input, trim output, assign a tag, perform
a loop test, receive (via download) a configuration file
and save the configuration file from the transmitter’s
memory.
Connecting the THZ2or TDZ2to the PC
To set any of the options, you must first connect the
unit to the PC. The THZ2and TDZ2all have the same
terminal designations regardless of housing style, and
all can be setup using the connections shown in
Figures 7 and 8 (depending upon your instrument’s
housing).
Establish a simple current loop for the transmitter
by connecting a 24 Volt power supply, a 250 ohm
resistor and the transmitter in series. See Table 5 for
information on the necessary equipment.
Connect your instrument to the PC via the RS-232
serial port using Moore Industries Interface cable or
USB cables listed in Table 5.
A HART modem may also be used to connect your
unit to the PC. Connect the RS-232 end of the
modem to the PC’s COM port, then connect the
HART output end of the modem (two hook-up wires)
across the transmitter or the load resistor. For hook-
up diagrams, refer to Figures 7 or 8 (depending upon
your instrument’s housing).

The Interface Solution Experts 13
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display

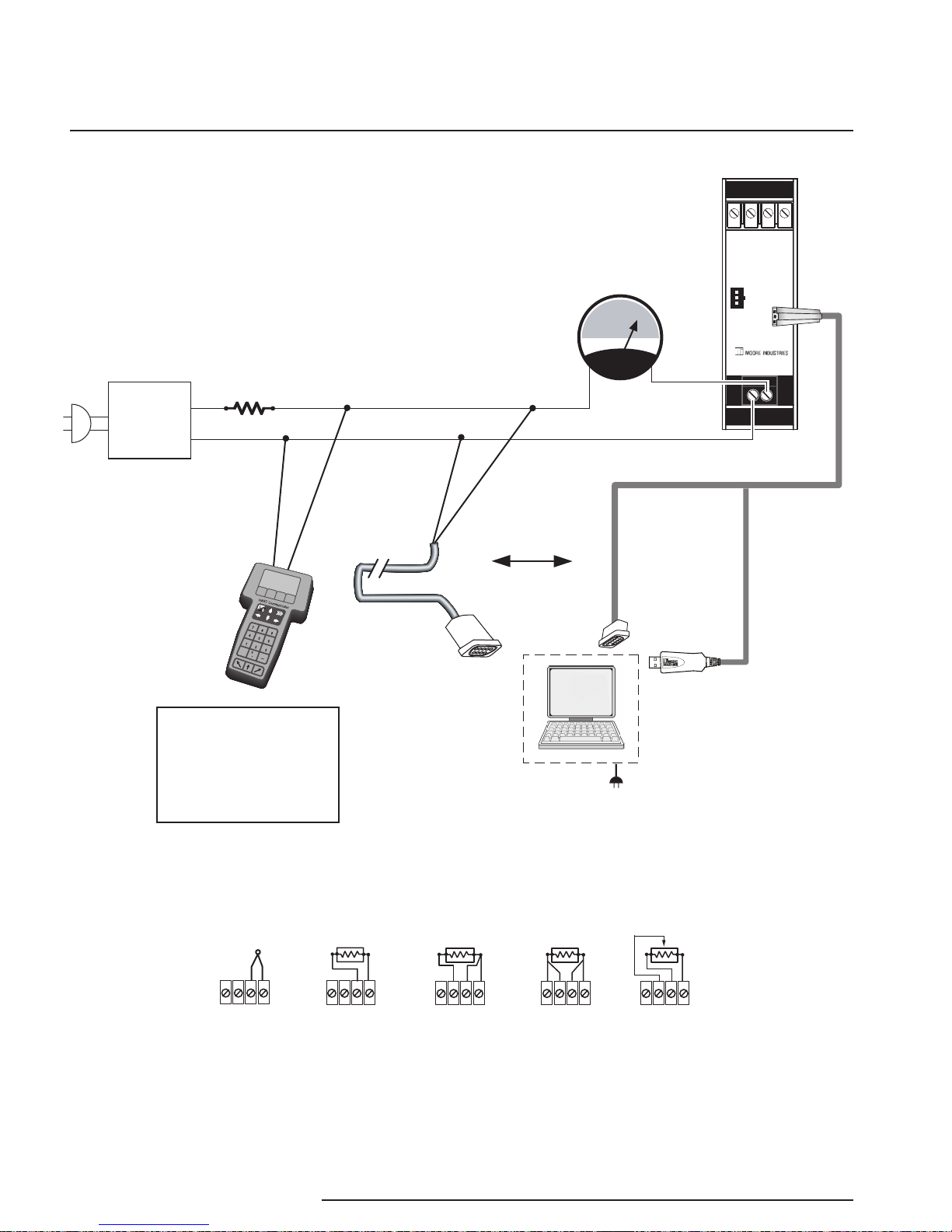

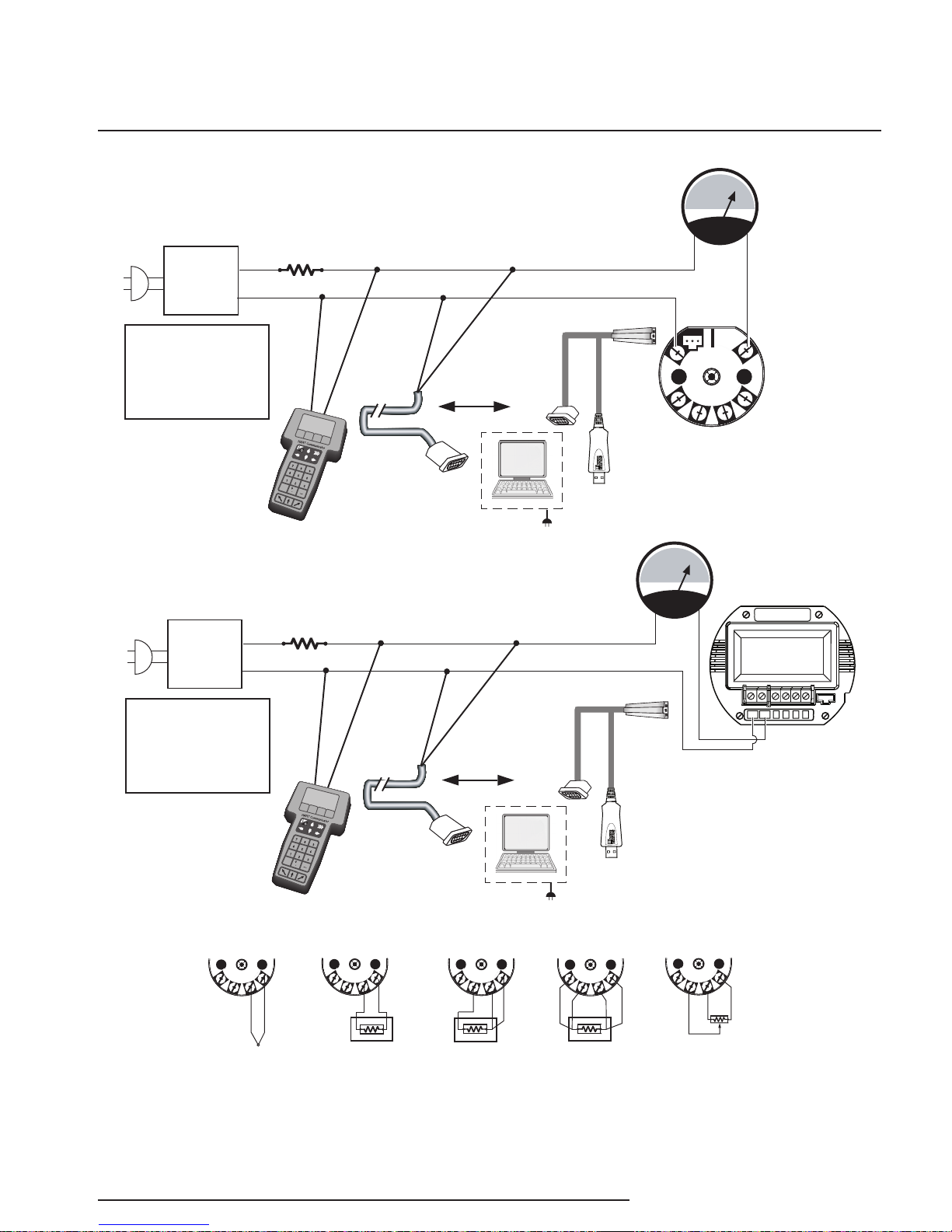

Figure 7. THZ2(HPP) and TDZ2(HP) Hook-Up Diagrams
+
–
12-24Vdc
Power
Supply
THE HART Communicator
or the PC can be connected
at any point on the output
side of the loop. Total loop
resistance must equal between
250 and 1100 ohms for proper
HARTcommunications.
Current Meter
Load=250 ohms
+
–
+PS
2
3
4
1
–PS
PC
OR
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
+–
2-Wire RTD
or Decade
Resistance Box
Thermocouple
and Millivolt Input
3-Wire RTD
or Decade
Resistance Box
4-Wire RTD
or Decade
Resistance Box
Potentiometer
Input
2
3
4
1
Input Hook-Up Connections
HART Modem
connects to
serial (COM)
port of PC
+
–
12-24Vdc
Power
Supply
THE HART Communicator
or the PC can be connected
at any point on the output
side of the loop. Total loop
resistance must equal between
250 and 1100 ohms for proper
HARTcommunications.
Current Meter
Load=250 ohms +
–
PC
OR
HART Modem
connects to
serial (COM)
port of PC
+PS -PS1 234
TDZ2
THZ (HPP) Hook-Up
2
TDZ (HP) Hook-Up
2
NOTE:
1. Te rminal blocks can accommodate 14-22 AWG (2.0-0.3mm ) solid wiring.
2. HP Housing terminals utilize M2.6 screws. Tighten terminals to 2.8 in lb (0.31Nm) (maximum).
3. HPP Housing terminals utilize #4 screws. Tighten terminals to 4.7 in lb (0.53Nm) (maximum).
2
To serial
(COM) port
of PC
To USB
(COM)
Port of PC
OR
To serial
(COM) port
of PC
To USB
(COM)
Port of PC
OR

14 The Interface Solution Experts
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
1234
+PS –PS
THZ
COM
2
PC
To serial
(COM) port
of PC
Input Hook-Up Connections
+–
143214321432
Thermocouple
and Millivolt
Input
2-Wire RTD
or Decade
Resistance Box
143
2
3-Wire RTD
or Decade
Resistance Box
4-Wire RTD
or Decade
Resistance Box
1432
Potentiometer
Input
+
–
12-24Vdc
Power
Supply
THE HART Communicator
or the PC can be connected
at any point on the output
side of the loop. Total loop
resistance must equal between
250 and 1100 ohms for proper
HARTcommunications.
Current Meter
Load = 250 ohms
OR
HART Modem
connects to
serial (COM)
port of PC
–+
NOTE:
1. Te rminal blocks can accommodate 14-22 AWG (2.0-0.3mm ) solid wiring.
2. DIN Housing terminals on TPRG input instruments utilize #6 screws. Tighten terminals to 7.9 in lb (0.89Nm) (maximum).
2
To USB
(COM)
Port of PC
OR
Figure 8. THZ2DIN Hook-Up Diagram

The Interface Solution Experts 15
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Figure 9-A. THZ2/TDZ2PC Configuration Software Main Screen
PC Configuration Software Summary
To utilize a longer Tag identifier (up to 32 characters,
maximum) you may access the Long Tag feature
located in the View dropdown menu. Enter the
desired information and click Set. To view the Long
Tag, click Read.
5. THZ2/TDZ2 Device Info– This “read-only” display
indicates instrument configuration and device
identification.
6. Communications– Notifies user of current PC
connection/communications status. The address
displayed in the Address box must match the address
of the unit if HART Communciations are being used.
7. Input/Display/Scaling/Custom Curve/Analog
Output Tabs–These tabs change the right side of
the screen to allow you to set the appropriate part
of the THZ2’s and the TDZ2’s configuration. See
corresponding sections of this manual for additional
information regarding these tabs.
Once the default configuration has been saved to
your PC or external media, it is safe to program other
parameters. The PC Software is made up of these
sections:
1. Menu Bar/Tool Bar– Dropdown menus and
corresponding icons allow you to perform various
functions throughout the PC Configuration Program.
Refer to the Menu and Tool Bar Legend for a complete
description.
2. Program Status– This portion of the program
displays the activity of the connected unit. It will
display such messages as: Idle, Monitoring, Uploading
and Downloading.
3. Devive Status– Indicates if there are problems or
faults with the instrument.
4. Identification Parameters– Use this parameter to
place an identifying Ta g (8 alphanumeric characters,
maximum), Descriptor (16 alphanumeric characters,
maximum) or Message (32 alphanumeric characters,
maximum). Use the Address box to change the unit’s
address (0-15).
1
2
6
4
3
5
7

16 The Interface Solution Experts
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Menu and Tool Bar Legend
Allows such functions as New,
Open, Save and Print functions
Allows you to Upload and
Download configurations and
perform an Address Search
Allows selection of PC COM ports
as well as Communcation Method
(Auto, RS232 or HART)
Allows you to Monitor and
Stop monitoring processes
Provides functions specific to
your Custom Curve table
Controls whether Tool and Status
Bars are viewed on the screen as
well as Additional Status
Information, Long Tag and
Device Information
Displays the version of the
PC Configuration Program
Allows you to enable Burst Mode
Configuration Screens
Note:
Unless otherwise noted, ensure that the PC
Configuration Program is idle before making any
selections or configuration changes to the program.
Also, when attempting to download or upload,
monitoring must be stopped. To do this, click Stop
in the Monitoring dropdown menu, or click the Stop
Monitoring icon on the Tool Bar.
Input
Figure 10. Input Tab
Input Type– Select your input type and the
respective range of your input.
Temperature / SV Temperature– Use this section to
select the temperature unit you wish to view.
If the selected Input Type is an RTD or T/C, this sec-
tion is displayed as Temperature.
If a mV, Resistance or Potentiometer input is selected,
this section is displayed as SV Temperature.
Filter– This setting is used to configure the input filter.
The filter is designed to reduce the effects of mains-
induced noise. The input filter frequency value should
be set to the frequency of the local AC supply–either
50Hz or 60Hz.
Input Type section.
Figure 9-B. THZ2/TDZ2PC Configuration Software Main Screen
When Monitoring is selected the Process Variable
window will appear and display the present Process
Variable readings along with Device Status and Output
Current.
Note:
When Monitoring user is unable to make any
changes to configuration.

The Interface Solution Experts 17
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Sensor Trimming– Sensor Trimming increases the
measurement accuracy of your instrument by match-
ing the reading of its actual input, to either a calibrated
source or the device to which it is connected. This veri-
fies that the input to the transmitter is being interpreted
correctly.
You may trim any point between 0% and 100% along
the scale. Note that one-point trimming applies an
offset to the sensor reading, while two-point trimming
applies both an offset and a gain.
Follow the steps below in order to perform sensor
trimming.
1. Select either 1 Point (one-point trimming) or
2 Points (two-point trimming) by clicking the
appropriate button. Each pair consists of Set
Value and Tr i m fields.
2. Enter the values that require trimming into
the Set Value field and click Set.
3. Apply the targeted signal to the input, wait
until it settles, and click Tr i m to capture the
measured value. If you chose 2 Points,
repeat the step above for the second point.
Note:
Once you have configured all parameters, download
to the unit by selecting Download in the Transfer
dropdown menu located in the Menu Bar. Or, click
the button in the Tool Bar.
Broken Wire Detection– During operation, the THZ2
and TDZ2 send random microamp pulses through input
wiring to check for broken wiring or a burned out sen-
sor.
To utilize Broken Wire Detection, check the Enabled
box. If a failure is detected, a message will appear in
the THZ2/TDZ2 Status box.
Running Average Filter Settings– This function is for
filtering the input signal. The THZ2and TDZ2 provide
this filter with a user-selected range between 1 and 16.
Factory default is 1.
Note:
A higher Running Average Filter setting provides
smoother output transitions; however, reduces
response time. Conversely, a lower setting provides
a faster response time, but may seem more unstable.
PV Damping–PV Damping allows you to introduce a
delay into the response of your unit in order to stop
short-lived spikes from initiating faults and generating
fault messages.
The configured damping period will determine the time
response that the analog output will take to achieve a
66% change in output in response to a stepped input.
To enable PV Damping, select the Enabled button.
Use the arrows to select a value between 1sec and
30sec.
Sensor Range– Allows you to set your upper and
lower range values within the range chosen in the
Input Type section.
The desired Upper and Lower Range settings can be
entered via your PC keyboard or captured. To capture
an input, follow the steps below.
1. Apply the desired Upper Range input and
press the corresponding Capture button.
2. Next, apply the desired Lower Range input
and press the corresponding Capture
button.

18 The Interface Solution Experts
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Display (TDZ2Only) Scaling
Note:
Using the Scaling feature will disable the Custom
Curve capability. Since both are scaling features
used to manipulate the appearance of your process
variable, only one of these functions may be used at
a time.
Scaling– This allows you to customize your display
for your application. By example, if your process is
sending a -200°C to 850°C signal to the THZ2or TDZ2
and you wish to view the input as 0-100% then this
can be accomplished with the Scaling feature.
To scale your instrument, perform the following steps:
1. Check the Enabled box. The Sensor Range
boxes will display the range selected in the
Input Type section of the Input screen.
2. In the Scaled to text boxes, enter the values
you wish displayed when your input is at its
Zero Range and Full Range.
Once downloaded, your unit will display the scaled
values on its LCD and through HART communication.
Scaling PV Units of Measure– Use this to select
a preset HART EGU process variable display for
your scaled values. These HART EGU codes are
compatible with HART Revision 5, and earlier,
communications.
To customize your display and set your own EGU,
open the Display screen and use the Custom Label
feature.
Note:
Once you have configured all parameters, download
to the unit by selecting “Download” in the Transfer
dropdown menu located in the Menu Bar. Or, click
the button in the Tool Bar.
Figure 11. Display Tab Figure 12. Scaling Tab
Display Source– Select how your reading is
displayed.
Primary Variable–The reading will be displayed as the
Primary Variable value.
Output Current–Your reading will be displayed as the
output current value.
Toggle PV / mA– Every four seconds your display will
toggle between the primary variable and mA (current)
reading.
Percent of Range– Selecting this allows your
instrument to display its output in the percent of the
range at which the output current is transmitting (
0-100%).
Custom Label– The Custom Label is used to display a
calculated or scaled variable. Clicking the Use custom
label box causes the instrument to always display the
custom label as Engineering Units (EGU).
1. Check the Use custom label box.
2. Enter the label you wish viewed into the text
box. This value is limited to five characters.
Precision– Select the number of decimal places (up to
three) of your display.
Note:
Once you have configured all parameters, download
to the unit by selecting Download in the Transfer
dropdown menu located in the Menu Bar. Or, click
the button in the Tool Bar.

The Interface Solution Experts 19
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Custom Curve
Note:
Using the Custom Curve feature will disable the
Scaling capability. Since both are scaling features
used to manipulate the appearance of your process
variable, only one of these functions may be used at
a time.
Custom Curve–The Custom Curve feature allows you
to set up your own custom curve table. This allows
you to tell the transmitter what it should output when it
receives a certain input. This feature also allows you
the ability to write a table in Microsoft®Excel, save it
in a .csv format, and import it into the Configuration
Software. This makes it simple to save the custom
table for downloading to multiple units or for backup
purposes.
To create a custom curve:
1. Click the Enabled box.
2. Select the number of points for your curve
(128 points maximum) and enter it into the
No Of Points text box.
3. In the Custom Curve (Y) Range text boxes,
enter the values you wish displayed, and
represented as your 4-20mA span, when
your input is at its upper and lower ranges.
4. Type your individual values in the X data
and Ydata columns. Source variables
are inserted into the X Column, while the
corresponding data is inserted into the Y
Column.
5. After all of your data has been entered, you
must use the Custom Curve dropdown menu
to save your newly created custom table
(Save Custom Curve) and to download it to
your instrument (Download Custom Curve).
Custom Curve PV Units of Measure– Use this to
select a preset HART EGU process variable display for
your custom curve values. These HART EGU codes
are compatible with HART Revision 5, and earlier,
communications.
To customize your display and set your own EGU,
open the Display screen and use the Custom Label
feature.
Note:
Once you have configured all parameters, download
to the unit by selecting “Download” in the Transfer
dropdown menu located in the Status Bar. Or, click
the button in the Tool Bar.
Figure 13. Custom Curve Tab

20 The Interface Solution Experts
THZ2& TDZ
2
Programmable Smart HART
Temperature Transmitter and Display
Analog Output
Process Variable Range– Displays the selected
process variable range.
Output Range– Sets your output limits. Default value
is 4-20mA.
1. Enter your low and high limit values into the text
boxes.
2. In the Under Range Min. Value box, enter
the lowest limit your output can reach before
indicating a failure. The allowed limits are
3.6mA to 4.0mA. Default is 3.8mA.
3. In the Over Range Max. Value box, enter the
highest limit your output can reach before
indicating a failure. The allowed limits are
20.0mA to 23.6mA. Default is 21.8mA.
Fail Mode– In the case of an input failure, you have
the ability to set an indicator to alert of the failure.
High– Selecting High will send the output to a user-
selected high value between 20.0mA and 23.6mA.
Default is 23.6mA.
Low– By selecting Low, the failure indication value will
be driven to a user-selectable value between 3.6mA
and 4.0mA. Default is 3.6mA.
Note:
When setting Fail Mode to Low on the THZ2while
it is operating at temperatures below -30 Degree C,
set the Output Fail Current to 3.8mA, or higher, to
ensure full HART communication functionality.
To select a value other than the default setting for High
and Low fail mode, enter the value into the Sensor
Error Value text box.
Hold Last– This will maintain the last value present
before the failure.
Note:
Once you have configured all parameters, download
to the unit by selecting Download in the Transfer
dropdown menu located in the Menu Bar. Or, click
the button in the Tool Bar.
Output Current– While in monitoring mode, this dis-
plays the present output value.
Trimming– Output Trimming increases the accuracy of
your instrument by calibrating its analog output to the
device that is receiving the output. This ensures that
the instruments are matched to each other.
1. Click the Lower button to fix the lower output
range.
2. To “fine tune” trimmed values, place the
value read on the external ammeter in the
Measured Loop Current text box and click
Tr i m .
3. Click the Upper button and repeat Step 2 to
trim the upper output range.
4. Once you have perfomed your output
trimming, click Unfix.
Note:
Do not click the Reset button in the Trimming menu
unless you want to disregard your trimmed values
and return to the manufacturer’s trim values.
Output Test– This test may be performed in order to
check output performance and accuracy and to trim
other instruments in your setup. Your output will be a
current value, in mA, equal to the value you enter into
the text box. You can check the other devices on the
system and calibrate them to this signal.
This feature is independent of the input. If you find
that the output requires adjustment, you may perform
the Trimming function.
1. Ensure that THZ2/TDZ2monitoring is
stopped. In the Fix current text box, enter a
value between 3.6mA and 23.6mA and click
the Fix button.
2. Return to monitoring the THZ2/TDZ2. You
will see the “fixed” value in the Output
Current display and on the external ammeter
connected to the output.
3. Once you have finished, stop monitoring your
instrument and click Unfix.
Figure 14. Analog Output Tab
