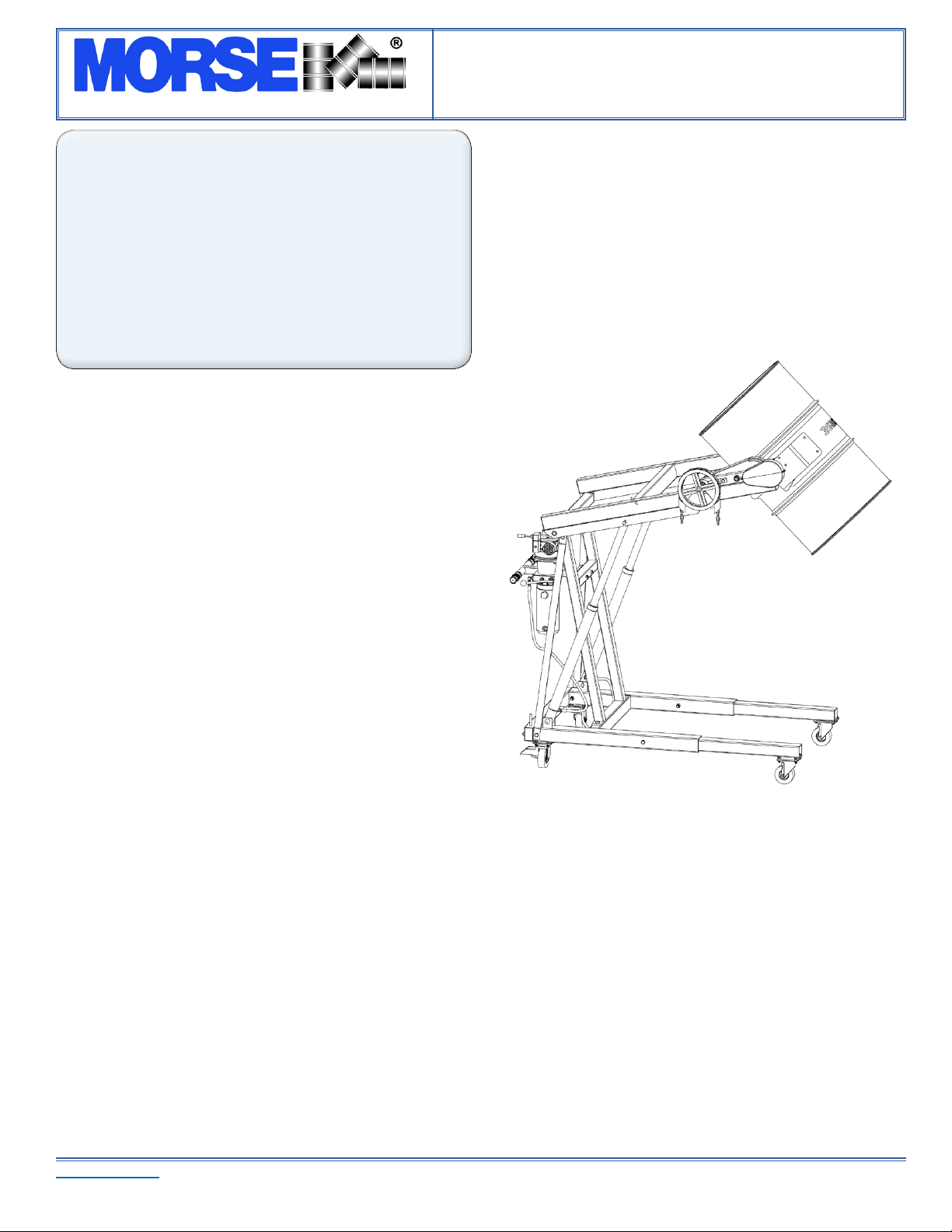

morse 410-124 User manual

The Specialist In Drum Handling Equipment
Model 410-124
Heavy-Duty Hydra-Lift, 72”, Air Power Lift, Manual Tilt
MorseDrum.com
Copyright 2013 - Morse Mfg. Co., Inc. Form OM410-124 (1210-____) (Updated December 11, 2013 4:01 PM) 1
Contents
Page
Receiving Procedures. . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4
Operating Instructions. . . . . . . . . . . . . . . . . . . 4 - 5
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineered for safety and efciency, a high degree of respon-
sibility must be placed upon the machine operator to follow
safe practices, based primarily on common sense, upon which
true safety depends.
Failure to follow the safety precautions in this manual can
result in personal injury or property damage. Observe the
same precautions as with similar machinery where careless-
ness in operating or maintenance is hazardous to personnel.
Carefully read the safety precautions below and throughout
this manual.
Receiving Procedures
Every Morse drum handler is inspected prior to shipping.
However, damage may be incurred during transit.
• Check for visible damage. If you choose to accept dam-
aged freight, always sign noting the damage on the BILL
OF LADING.
• Document the damage and have the truck driver sign. We
recommend keeping a digital camera at your receiving dock
for this purpose.
• Open packages expeditiously to check the condition of the
goods. There is only a 24 hour window to notify the carrier
of any concealed damage.
• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING
COMPANY! Then you may contact Morse for assistance with
your freight claim.
• Morse Manufacturing will not be held responsible for any
damaged freight that is not signed for as damaged.
Delivery to non-business addresses without a loading dock
result in additional freight charges. Residential delivery fees,
inside delivery fees, re-delivery charges, and lift gate services
will be added by the truck line, and are non-negotiable.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects
in workmanship or materials for TWO YEARS when used
properly within its rated capacity. Warranty does not cover
wear from normal use or damage from accident or abuse.
Motors and other purchased parts carry the warranties of their
manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice.
Return freight must be prepaid.
In all instances, liability is limited to the purchase price paid
or to repairing or replacing the product. Customer assumes
liability for any modications, unauthorized repairs or parts
substitution.
Operator’s Manual
for Morse
Heavy-Duty Hydra-Lift Drum Karrier
Model 410-124
Serial Number 1210 to ____ (MMYY)

The Specialist In Drum Handling Equipment
Model 410-124
Heavy-Duty Hydra-Lift, 72”, Air Power Lift, Manual Tilt
Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier Model 410-124
Serial Number 1210 to ____ (MMYY)
MorseDrum.com
Copyright 2013 - Morse Mfg. Co., Inc. Form OM410-124 (1210-____) (Updated December 11, 2013 4:01 PM) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in
serious injury or death. This signal word is limited to the most extreme
situations.
WARNING - Indicates a situation which, if not avoided, could result in
serious injury or death.
CAUTION - Indicates a situation which, if not avoided, can result in
damage to the machine.
CAUTION – Do Not Transport with Drum Raised
ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The unit
can become unstable when transporting with a raised load.
DANGER - Stay Clear of Power Lines
KEEP WELL CLEAR OF POWER LINES. Never approach a power line. Current in a high voltage line
may arc some distance from the wire to the steel framed, grounded machine.
WARNING
The Heavy-Duty Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page 3,
under 2. Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT
exceed the weight capacity of 1200 Lb.
WARNING - Level Floors Only
For operation only on clean, level oors of suitable bearing capacity. Do not use on sloped surfaces,
ramps, irregular or debris strewn oors.
WARNING - Do Not Modify the Unit
Under no circumstances should any modications be made to the Morse machinery without factory au-
thorization. Any modications may void the warranty. This machine was designed to perform a specic
job and alterations may result in injury to operator or machine.
WARNING - No Loose Fitting Clothing
Wear close-tting clothing and safety equipment appropriate to the job. Loose tting clothing may become
caught on the machinery and cause severe personal injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous
Escaping hydraulic uid under pressure can penetrate the skin, causing serious injury. Avoid the hazard
by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from pinholes
and nozzles, which eject uid under high pressure. Use a piece of cardboard to search for leaks. If an
accident occurs, see a doctor immediately and inform them of the nature of the accident.
CAUTION - Wear Safety Shoes
Wear safety shoes with non-slip soles and hard toe protection.

The Specialist In Drum Handling Equipment
Model 410-124
Heavy-Duty Hydra-Lift, 72”, Air Power Lift, Manual Tilt
Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier Model 410-124
Serial Number 1210 to ____ (MMYY)
MorseDrum.com
Copyright 2013 - Morse Mfg. Co., Inc. Form OM410-124 (1210-____) (Updated December 11, 2013 4:01 PM) 3
Machine Description
The Model 410-124 Heavy-Duty Hydra-Lift Karrier will pour a drum up
to 72” high, measured from the oor to the lowest point of a horizontal
drum. It is designed to lift, transport, and dispense a 55-gallon steel
or ber drum 22” to 23.5” in diameter.
The maximum full-drum capacity is 1200 Lb. The capacity is derated
to 600 Lb. for a half-full drum. The half-full rating is based on the
tilt mechanism’s capacity for handling an unbalanced bottom-heavy
drum.
Options
A smaller diameter drum can be handled with the correct size•
55/30 Series Diameter Adaptor installed (see Diameter Adaptor
literature).
The adjustable Bracket Assembly (Part # 4556-P) is • required
to handle a plastic drum without a top rim (see gure 2.1). The
Bracket Assembly is also recommended when handling a ber
drum. You can also use the Bracket Assembly when handling
a rimmed drum.
To handle a 55-gallon plastic drum with suitable top rim, you •
must install either the Bracket Assembly or the Top Rim Clamp
(Part # 4560-P) (see gure 2.2). You can use the Top Rim
Clamp to handle a 55-gallon plastic, steel or ber drum with
suitable top rim.
Controls
The Morse Heavy-Duty Hydra-Lift Karrier is manually propelled and steered.
The drum lift is powered by an air motor with an on/off valve. There are
two functions for the operator to control (Figure 2.3):
1. LIFT and Lower Function to raise and lower the drum
Plug your air line into the on/off air valve.•
Turn the motor on by holding the valve handle in the on position. The•
drum will lift.
Release the valve handle when the drum is at the desired height.•
To lower the drum: With the motor off, push in the LOWER handle.•
2. TILT Function to control the degree of rotation of the drum.
Pull down on one side of chain, rotating drum to angle required for •
pouring.
The drum handler is equipped with the MORStop Tilt-Brake, there is •
no need to hold tension on both sides of the chain loop. Braking is
immediate and self-actuating, without additional steps by the operator.
Figure 2.3
Figure 2.2
Plastic drum being lifted
with part number 4560-P
Top Rim Clamp Assembly
installed.
Figure 2.1
Plastic drum being lifted with
part number 4556-P Bracket
Assembly installed.

The Specialist In Drum Handling Equipment
Model 410-124
Heavy-Duty Hydra-Lift, 72”, Air Power Lift, Manual Tilt
Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier Model 410-124
Serial Number 1210 to ____ (MMYY)
MorseDrum.com
Copyright 2013 - Morse Mfg. Co., Inc. Form OM410-124 (1210-____) (Updated December 11, 2013 4:01 PM) 4

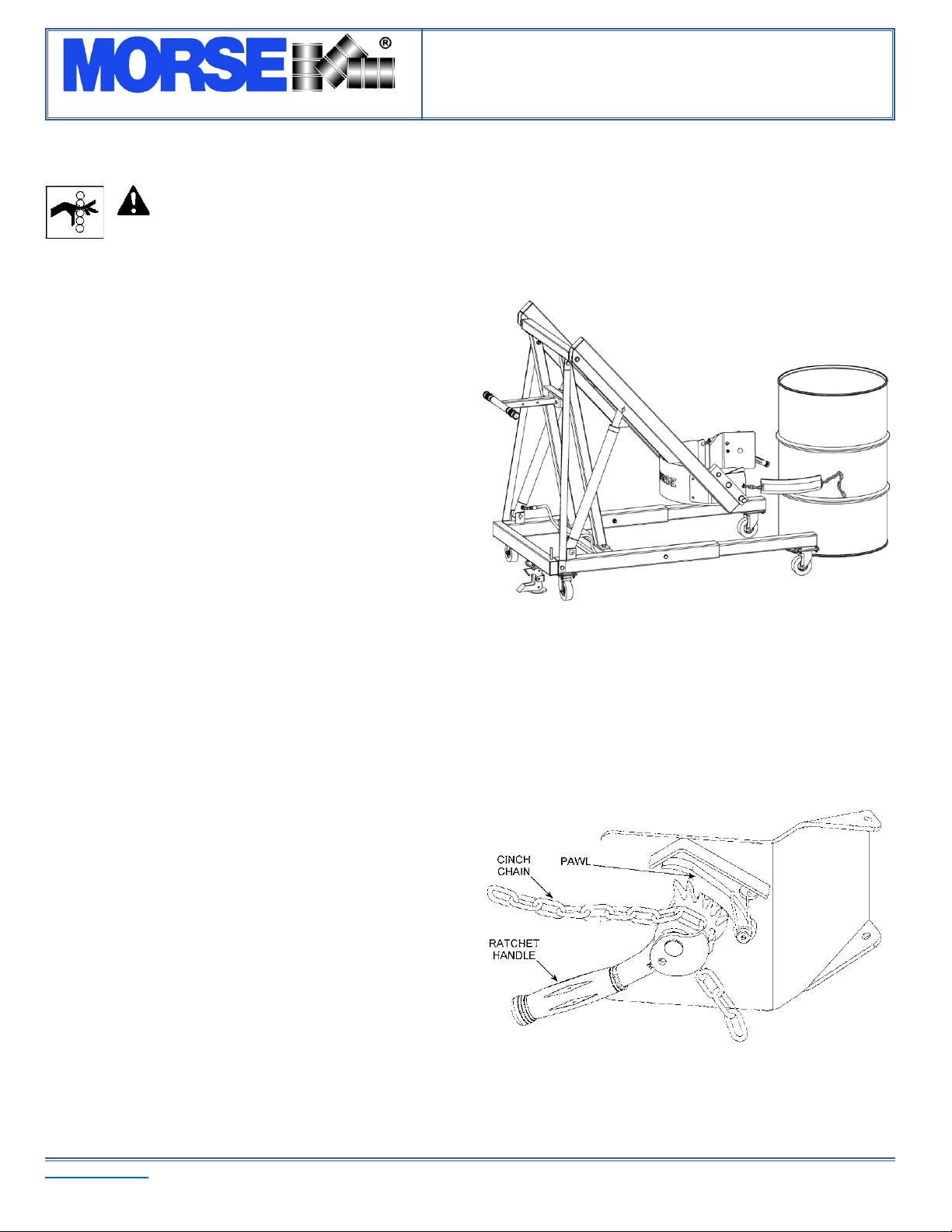

WARNING - Watch Out for Pinch Points
Stay clear of moving parts. Operator should remain behind the push handle during the lift operation.
Figure 3.2
Floor Lock
The step-down oor lock is located behind the base (gure
3.1). To activate, step down on the oor lock until it locks in
the down position. When the oor lock is activated it prevents
unwanted free wheeling of the unit. Floor conditions determine
the effectiveness of the oor lock. The operator should verify
its holding action before depending on it to hold.
MORcinch Drum Holder Assembly
The drum holder assembly (or “saddle assembly”) is the com-
ponent on the Heavy-Duty Hydra-Lift Karrier that is intended
to hold the drum. The MORcinch drum holder assembly is
designed to secure a standard ribbed 55-gallon steel drum
around it’s middle using a cinch chain and ratchet tightening
system. The MORcinch drum holder accepts accessories for
handling a plastic drum, a ber drum, or smaller diameter
drums (see Options on pg. 3).
Operating Instructions
1.) Push the Heavy-Duty Hydra-Lift Karrier to the drum.
2.) Using the “LIFT” control as described in “Machine De-
scription - Controls” (page 3) , position the drum holder
assembly with the back band at the middle of the drum.
(Figure 3.1). With the ratchet plate swung open and the
cinch chain hanging from the chain hook, push the unit
until the back band rests rmly against the drum. Some
adjustment to the tilt angle of the saddle may be necessary
to ensure band ts ush on the drum.
3.) Attaching the drum:
Drape the chain across the front of the drum and engage a
link into the slot in the ratchet (Figure 3.2). Turn the ratchet
clockwise to tighten chain. If ratchet turns until the pawl is
beyond the last ratchet tooth, turn the ratchet back and slide
the next link into the ratchet slot and try tightening again.
The chain must be held tightly against the drum with the
pawl engaged securely in the ratchet teeth.
4.) Operate the lift function to lift drum clear of oor. Roll to
dispensing location. NOTE: Do not allow the drum to
impact on oor, pouring station, etc. or a spill or damage
could occur.
Figure 3.1

The Specialist In Drum Handling Equipment
Model 410-124
Heavy-Duty Hydra-Lift, 72”, Air Power Lift, Manual Tilt
Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier Model 410-124
Serial Number 1210 to ____ (MMYY)
MorseDrum.com
Copyright 2013 - Morse Mfg. Co., Inc. Form OM410-124 (1210-____) (Updated December 11, 2013 4:01 PM) 5
CAUTION – Do Not Transport with Drum Raised
ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The
unit can become unstable when transporting with a raised load.
5.) Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” (page 3)
to adjust the drum attitude. This is especially important when lifting an open drum. The oor lock should be engaged while
dispensing / draining.
6.) When dispensing is complete, tilt drum back to upright position. Disengage the oor lock and lower the drum to transport-
ing height; about 6” off the oor.
WARNING - Stay Clear of Raised Drum
NEVER allow anyone to be below any part of a raised drum handler or drum. Remain behind the
push handle while handling a drum.
WARNING – Do NOT Disengage the Cinch Chain When Drum is off the Ground
When the drum is in the upright position, lower the drum to the oor before releasing the cinch
chain.
7.) Push the unit to the drum storage area and lower to the oor in an upright position. Release the cinch chain from the
ratchet by applying pressure to the ratchet handle in a clockwise direction with one hand and opening the pawl to free
the ratchet with the other hand. Remove the cinch chain link from the ratchet.
Maintenance
Periodic inspection for the general condition of structural and mechanical components is imperative for safe and efcient
operation.
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust,
or replace parts as necessary to prevent failure and maintain proper function.
Inspect the hydraulic system for oil drips, hose damage, or other signs of wear. Inspect the level and condition of the hydraulic
uid. Replace any parts that show signs of wear.
Grease wheel bearings periodically. Oil or grease all moving parts including: the clevis pins and the surfaces of the boom which
contact the inside of the mast cap, the gears and sprockets in the tilt drive, and the ratchet and pawl.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.
Hydraulic pump is shipped lled with Noco Premium plus automatic transmission uid d/m. Material safety data sheet
(msds) is available online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil
dte 24 or equivalent for indoor use (Mobil dte 13 for outdoor use).
