00. SAFETY INSTRUCTIONS
STANDARDS TO FOLLOW
00. SAFETY INSTRUCTIONS
STANDARDS TO FOLLOW
ATTENTION:
This product is certified in accordance with European Community
(EC) safety standards.
This product complies with Directive 2011/65/EU of the European
Parliament and of the Council, of 8 June 2011, on the restriction of
the use of certain hazardous substances in electrical and electronic
equipment.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the product
andelectronicaccessories(eg.Charger,USBcable,electronicmaterial,
controls, etc.) should not be disposed of as other household waste at
the end of its useful life. To avoid possible harm to the environment
or human health resulting from the uncontrolled disposal of waste,
separate these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material resources.
Home users should contact the dealer where they purchased this
product or the National Environment Agency for details on where and
how they can take these items for environmentally safe recycling.
Business users should contact their vendor and check the terms and
conditions of the purchase agreement. This product and its electronic
accessories should not be mixed with other commercial waste.
This marking indicates that the product and electronic accessories
(eg. charger, USB cable, electronic material, controls, etc.) are
susceptible to electric shock by direct or indirect contact with
electricity. Be cautious when handling the product and observe all
safety procedures in this manual.
• It is important for your safety that these instructions are followed.
• Keep these instructions in a safe place for future reference.
• The ELECTROCELOS S.A. is not responsible for the improper use of the product,
or other use than that for which it was designed.
• The ELECTROCELOS S.A. is not responsible if safety standards were not taken
into account when installing the equipment, or for any deformation that may
occur.
• The ELECTROCELOS S.A. is not responsible for insecurity and malfunction of the
product when used with components that were not sold by the them.
• This product was designed and manufactured strictly for the use indicated in
this manual.
• This control board is not appropriate for inflammable or explosive environments.
• Any other use not expressly indicated may damage the product and/or can
cause physical and property damages, and will void the warranty.
•Donotmakeanychangestotheautomationcomponentsand/ortheiraccessories.
• Control board for indoor use with 230V connection.
• Keep remote controls away from children, to prevent the automated system
from being activated involuntarily.
• The customer shall not, under any circumstances, attempt to repair or tune the
automatism. Must call qualified technician only.
• The installer must have certified professional knowledge at the level of
mechanical assemblies in doors and gates and control board programmation.
He should also be able to perform electrical connections in compliance with all
applicable regulations.
• The installer should inform the customer how to handle the product in an
emergency and provide him the manual.
• This device can be used by children 8 year old or older and persons whose
physical, sensory or mental capacities are reduced, or by persons without
experience or knowledge if they have received supervision or instructions on
the use of the device in a safe manner and understood the hazards involved.
Children should not play with the device. Cleaning and maintenance by the user
must not be carried out by unsupervised children.
• Before installing, the installer must verify that the temperature range indicated
on the automatism is appropriate to the location of the installation.
• When programming the control unit, pay particular attention to touching only
the location intended for that purpose. Failure to do so may result in electric
shock.

A EN

01. CONTENT
INDEX
3
4A
4A
4A
5B
4B
6A
4B
6B
5A
7A
7B
8
9
CONNECTION OF COMPONENTES TO THE CONTROL BOARD
TECHNICAL SPECIFICATIONS
03. CONTROL BOARD
02. CONNECTIONS SCHEME
PROGRAMMING REMOTE CONTROLS
ERASE REMOTE CONTROLS
04. REMOTE CONTROLS
FUNCTION’S CHART
PROGRAMMING AUTOMATIC CLOSING
OPENING AND CLOSING COURSE PROGRAMMING
ENABLE/DISABLE STOP
AUTOMATION SENSIBILITY PROGRAMMING
ENABLE/DISABLE CONDOMINIUM FUNCTION
ENABLE/DISABLE SAFETY PHOTOCELLS
INCREASE OR DECREASE DECELERATION
ENABLE/DISABLE FOLLOW ME
05. FUNCTIONS
INSTRUCTIONS FOR FINAL CONSUMERS/TECHNICIANS
06. TROUBLESHOOTING

A
230VAC
24AC + BAT - + FAN - MOT + LED -
1 2 3 4 5 6 7 8 9 10
V+ SEN
11 12 13 14 15
PUL BL DS
16 17 18 19
LIGHT
CN1
VR1
LIGHT SENSOR
+-
SEL SET
MONO TEMP. I.CMD
24 0 12
1 2 3 4 5
DV COM NC12/24V
~ ~
DV 12/24V
~ ~
M1 M2 FLH FC GND +24
1 2 3 4 5 6
B G R RGB GND +24
1 2 3 4 5 6
MCPL
MPIE
MSC
EN


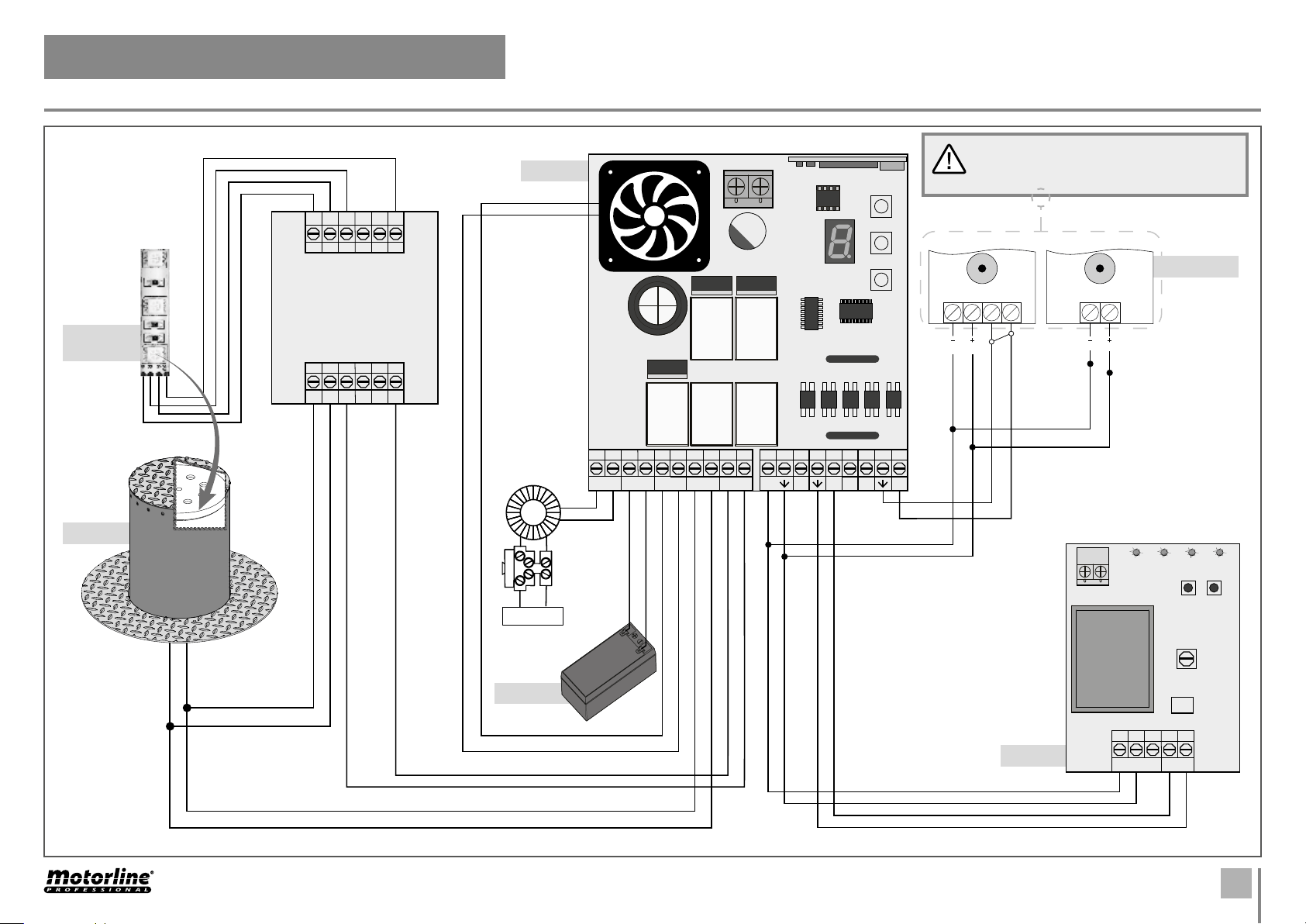

02. CONNECTIONS SCHEME
COMPONENTS CONNECTION TO THE CONTROL BOARD
LED
module
Battery
Photocell
The use of photocells or magnetic coil is
essential to ensure the safety in the use of
automation.

A B
CMD
SET
SEL
1s
CMD
SET
SEL
8s
CMD
SET
SEL
CMD
SET
SEL
5s
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
5s
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
ENEN
The control board MCPL has a menu that allows access to all automatic configurations.
A B
FUNCTION’S BOARD
05. FUNCTIONS
• Power supply 230Vac 50/60Hz
• Battery input 24Vdc - 7AH máx.
• Cooler output 24Vdc - 3W máx.
• Motor output 24Vdc -50W máx.
• LED output 12Vdc - 10W máx.
• Auxiliary accessories output 24Vdc - 3W máx.
• Working temperature -25°C a +55°C
• Incorporated Radio Receiver 433,92 Mhz
• Accepted codestype Rolling Code
• Central dimensions 99x104,5 mm
03. CONTROL BOARD
TECHNICAL SPECIFICATIONS
The control board MCPL has the capacity to memorize  remote controls (Rolling Code).
• Programming
 • Press the CMD button 
second and the point on the
LED display turns on.
 • Press a button of your choice from the remote control to
program and the point on the display will flash twice. Remote
control will be memorized after  seconds.
• Delete remote controls
Press CMD for  seconds (during this
time the point on the LED display will
stay ON). After this time, the point on
the LED display will flash twice and all
codes have been deleted from memory.
04. REMOTE CONTROLS
PROGRAMMING/ERASE REMOTE CONTROLS

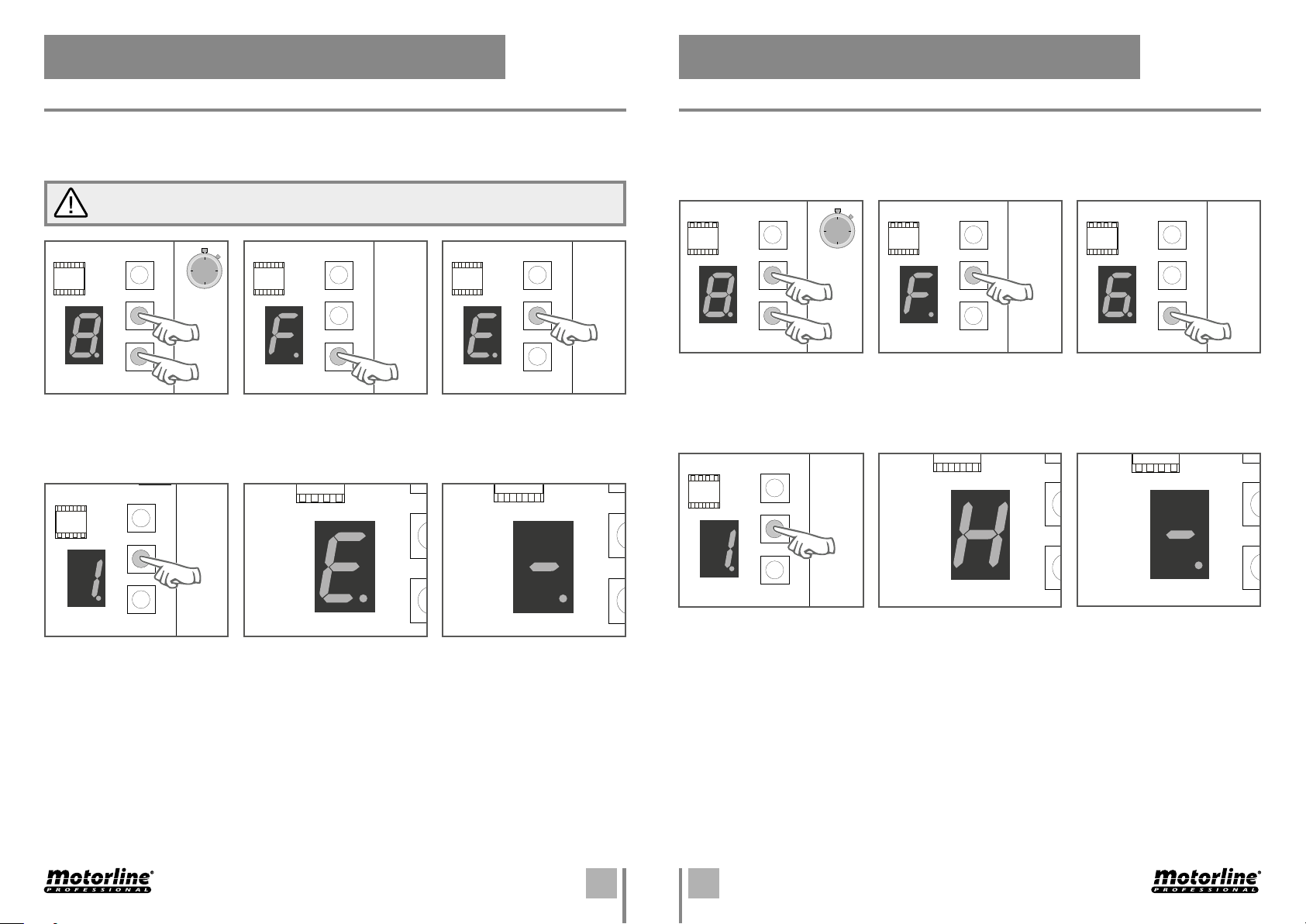

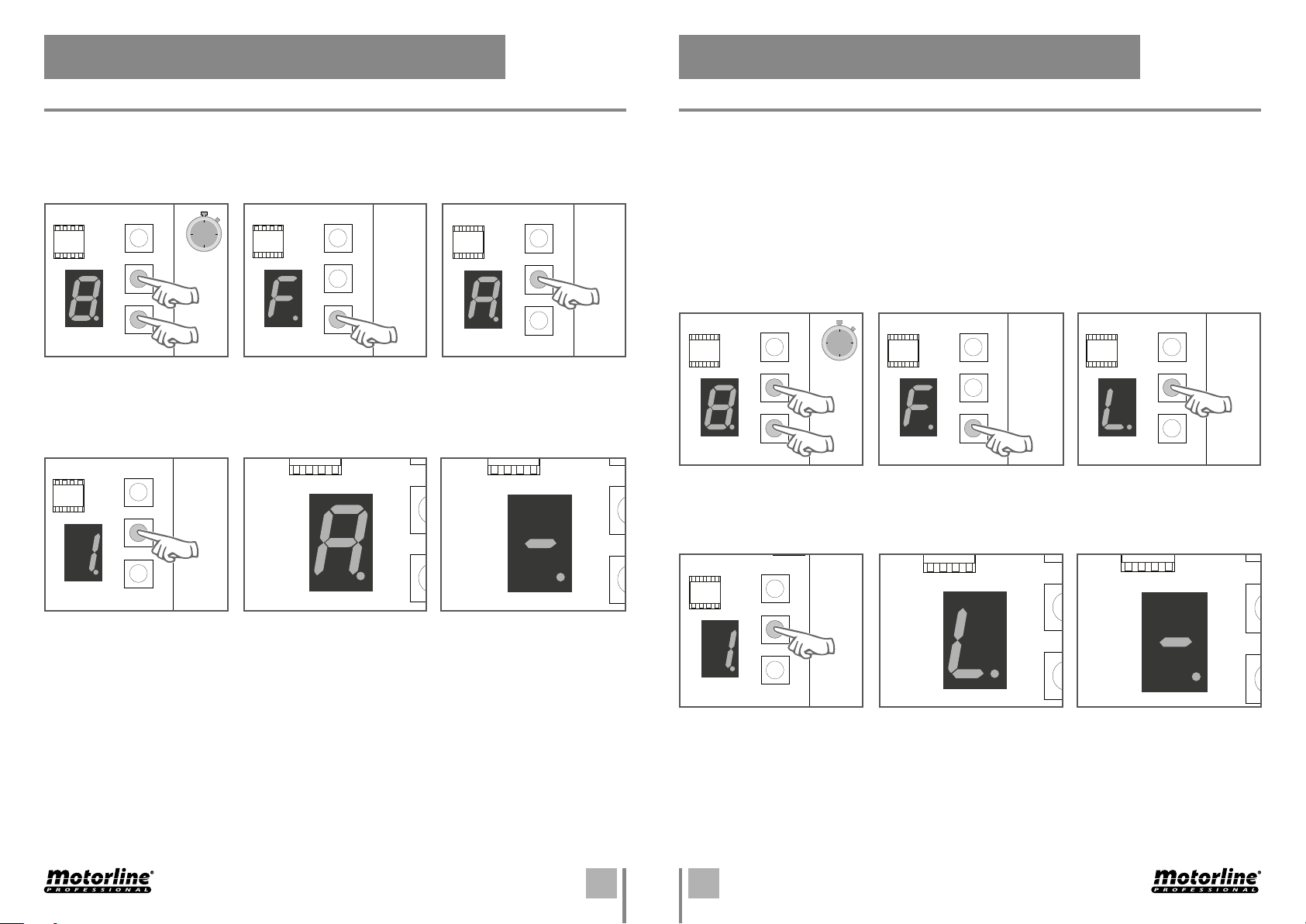

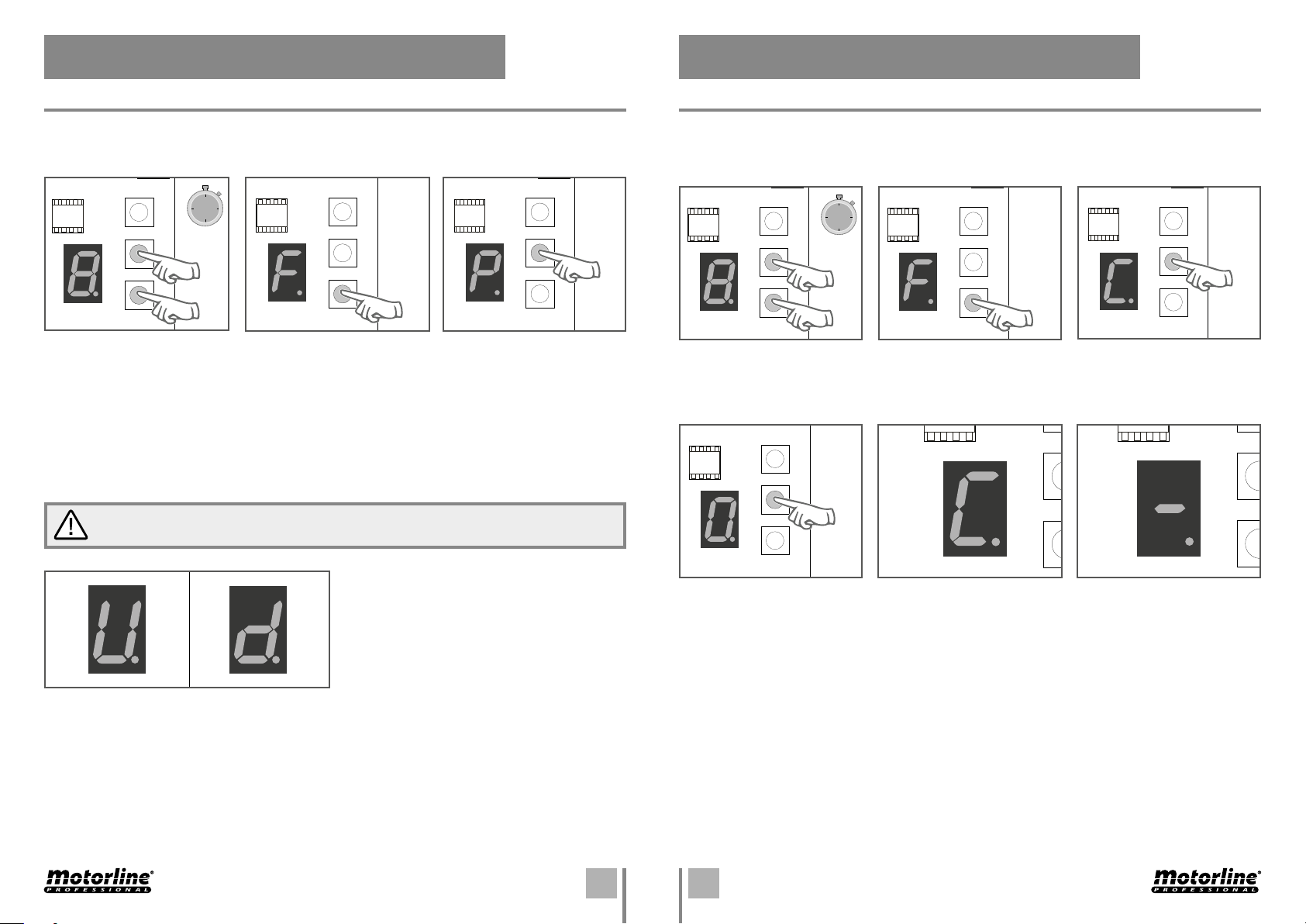

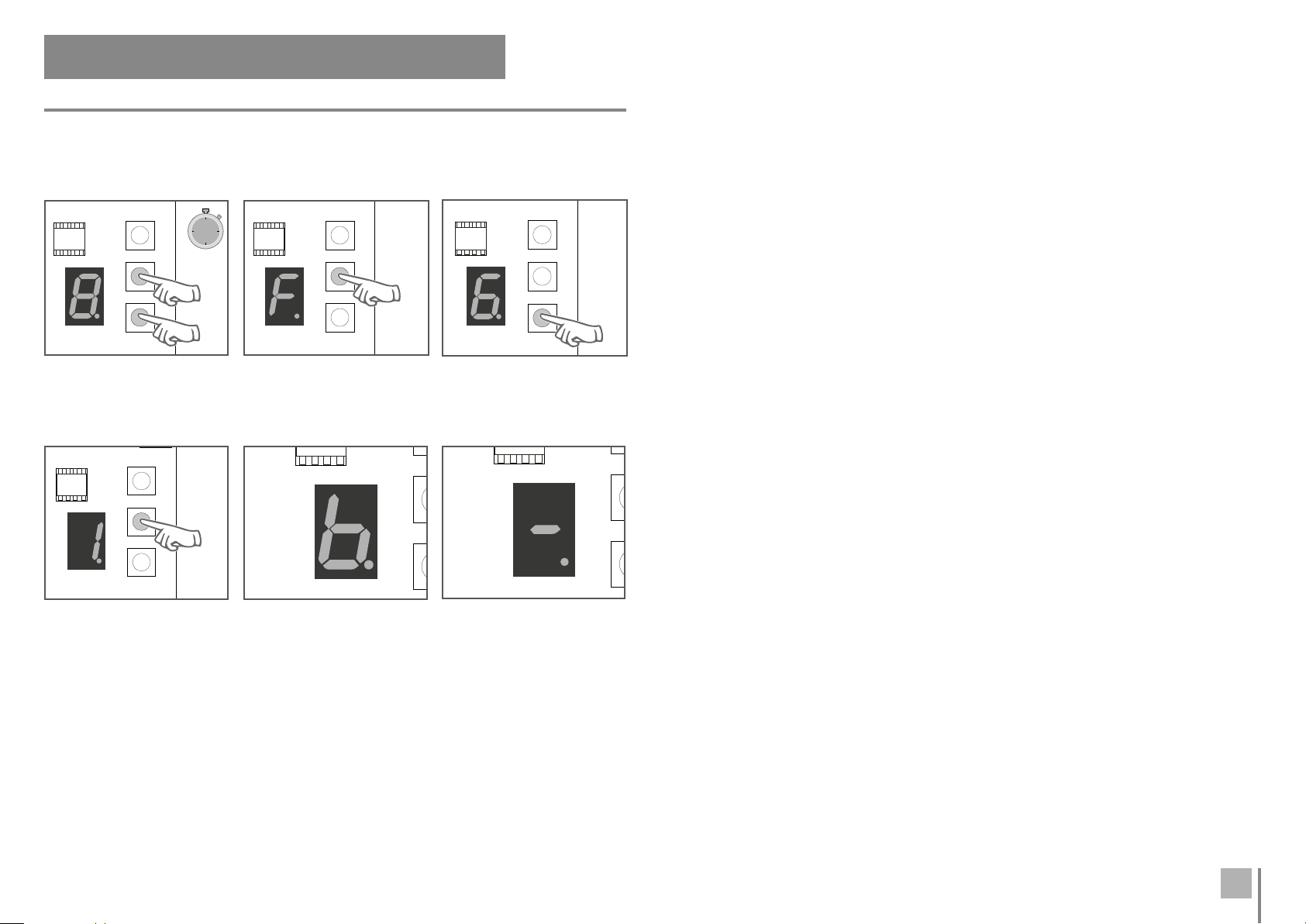

 • Press the SEL and SET
buttons simultaneously
for  sec. to access the
programming menu.
 • Press the SET button once
to save this option.
 • The display will show F .
Press SET button to access the
submenu.
 • The display will show
F and the configuration is
successfully done.
 • The display will show a value
between  and , indicating the
currently configured level. Use
SEL button to choose desired
option.
 • To exit the programming
mode wait  sec. until (–)
appears.
This menu allows to set the level of sensibility that you want in the motor operation.
Note • Any time you program the course, the sensitivity is automatically adjusted.
Maximum sensibility - 1 | Minimum sensibility - 9
AUTOMATION SENSIBILITY PROGRAMMING
Automation sensibility programming
Opening and closing course programming
Enable / disable safety photocells
Programming automatic closing
Enable/disable condominium function
Enable/disable stop
Increase or decrease deceleration
Enable/disable Follow Me
P B P B
P A P A
P B P B
P A P 

A B
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
5s
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
5s
ENEN
When photocells enabled, if any obstacle interrupt them (if the automatic bollard is closing), the
automatic bollard will reverse the direction.
0 - Disable | 1 - Enable
 • The automatic bollard will go up slowly until reaches the opening limit.
 • The automatic bollard will go down slowly for  seconds.
 • Will slowly go up again.
 • Will make a complete opening at normal speed.
 • Will make a complete closing at normal speed.
Opening indicator Closing indicator
A B
During the course recognition, display shows P.
Note • In the course programmation, batteries should be always connected. The automatic bollard
can be positioned at any point.
05. FUNCTIONS
OPENING AND CLOSING COURSE PROGRAMMING ENABLE/DISABLE SAFETY PHOTOCELLS
05. FUNCTIONS
 • Press the SEL and SET
buttons simultaneously
for  sec. to access the
programming menu.
 • The display will show F.
Press the SEL button as many
times as necessary until the
display shows P.
 • Press the SET button to
start the course recognition.
When you start the opening display shows Uand
when you start the closing display shows d.
 • Press the SEL and SET
buttons simultaneously
for  sec. to access the
programming menu.
 • The display will show the
value  or , which identifies
the option in which the
control board is currently
configured. Use SEL to cycle
betwen options and use the
SET button to choose the
desired option.
 • The display will show F.
Press the SEL button as many
times as necessary until the
display shows C.
 • The display shows C and
the configuration is successful.
 • Press the SET button to
access the submenu.
 • To exit the programming
mode wait  sec. until (–)
appears.

A B
CMD
SET
SEL
5s
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
5s
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
ENEN
Option  disables the automatic closing, and the gate will close only if it receives an order from a
configured device.
Any option between  and , multiplied by , sets the automatic closing time, the minimum is 
seconds (number ) and the maximum is  seconds (number ).
0-Disabled
• If you send an order to the bollard completely open, it will close.
• If pressing during the closure, the bollard reverses direction (it will open).
When disabled, you can control the opening or closing of the bollard whenever you want, and their
behavior is: open-stop-close-stop-open-stop - (...) for each time you press a remote control key.
1 - Enabled
• This function makes the control board ignore all the orders sent by configured devices during the course
of opening and during the pause time.
• Pressing the remote control during the opening, the order is rejected and the bollard continues to open.
• When activated, the condominium function activates the closing time in  seconds.
A B
PROGRAMMING AUTOMATIC CLOSING
05. FUNCTIONS
ENABLE/DISABLE CONDOMINIUM FUNCTION
05. FUNCTIONS
 • Press the SEL and SET
buttons simultaneously
for  sec. to access the
programming menu.
 • Use the SEL button to
select the desired option.
Press the SET button once to
save this option.
 • The display will show F.
Press the SEL button as many
times as necessary until the
display shows A.
 • The display will show A
and the configuration was
successful.
 • To exit the programming
mode wait  sec. until (–)
appears.
 • Press the SET button to
access the submenu.
 • Press the SEL and SET
buttons simultaneously
for  sec. to access the
programming menu.
 • The display will show the
value  or , which identifies
the option in which the
control board is currently
configured. Use the SEL button
to select the desired option.
Press the SET button once to
save this option.
 • The display will show F.
Press the SEL button as many
times as necessary until the
display shows L.
 • The display will show L
and the configuration was
successful.
 • Press the SET button to
access the submenu.
 • To exit the programming
mode wait  sec. until (–)
appears.

A B
CMD
SET
SEL
5s
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
5s
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
ENEN
• When this function is activated, the control board will only work if the bollard is closed. If the
bollard is open, the control board reject any opening or closing order.
0 - Disable | 1 - Enable
The deceleration reduce the motor speed in the final part of the course (opening or closing).
Without deceleration - select the value 0
Minimum deceleration – 1 second
Maximum deceleration – 9 seconds
A B
For this function, you must have installed a safety device N.C at the automatic bollard.
ENABLE/DISABLE STOP INCREASE OR DECREASE DECELERATION
 • Press the SEL and SET
buttons simultaneously
for  sec. to access the
programming menu.
 • The display will show the
value  or , which identifies
the option in which the
control board is currently
configured. Use the SEL button
to select the desired option.
Press the SET button once to
save this option.
 • The display will show F.
Press the SEL button as many
times as necessary until the
display shows E.
 • The display will show E
and the configuration was
successful.
 • Press the SET button to
access the submenu.
 • To exit the programming
mode wait  sec. until (–)
appears.
 • Press the SEL and SET
buttons simultaneously
for  sec. to access the
programming menu.
 • The display will show the
value  or . Use the SEL
button to select the desired
option. Press the SET button
once to save this option.
 • The display will show F.
Press the SEL button as many
times as necessary until the
display shows H.
 • The display will show H
and the configuration was
successful.
 • Press the SET button to
access the submenu.
 • To exit the programming
mode wait  sec. until (–)
appears.
05. FUNCTIONS 05. FUNCTIONS

A
CMD
SET
SEL
5s
CMD
SET
SEL
CMD
SET
SEL
CMD
SET
SEL
EN
With the “Follow Me” function activated, whenever the photocells detect the passage of a user/
obstacle, the control board will automatically start the closing maneuver  seconds later.
0 - Disable | 1 - Enable

ENABLE/DISABLE FOLLOW ME
05. FUNCTIONS
 • Press the SEL and SET
buttons simultaneously
for  sec. to access the
programming menu.
 • The display will show the
value  or , which identifies
the option in which the
control board is currently
configured. Use the SEL button
to select the desired option.
Press SET to save the option.
 • The display will show F.
Press the SEL button as many
times as necessary until the
display shows b.
 • The display will show b
and the configuration was
successful.
 • Press the SET button to
access the submenu.
 • To exit the programming
mode wait  sec. until (–)
appears.

A EN

06. TROUBLESHOOTING
INSTRUCTIONS FOR FINAL CONSUMERS/TECHNICIANS
Anomaly Procedure Behavior Procedure II Discovering the origin of the problem
• Automatic
bollard
doesn't work
• Make sure you
have 230V power
supply connected to
automation and if
the fusible working
properly.
• Still not working • Consult a qualified
MOTORLINE technician.
1• Open the control board box;
2• Measure the V output of the transformer to detect the fault location;
A) Has 24V:
1• Verify the control board supplies of the motor to detect if the fault is in the motor or in the control board. Replace the damaged component or send it
to the services for diagnosis and repair.
B) Has not 24V:
1• Verify the 230V input of the transformer. If have 230V the problem is in the transformer. If haven't 230V, the problem should be in the fusible, electric
cables or in the power supply. Verify all the systems.
• Check that the
safety features are
activated. • Still not working • Consult a qualified
MOTORLINE technician. • In the E menu, make sure the stop function is enabled (page A). If enabled and the circuit is not closed, the automatic bollard will not work.
• Automatic
bollard
doesn’t move
but makes
noise
• Unlock the
automatic bollard
and move by hand to
check for mechanical
problems.
• Automatic bollard
is stuck? • Consult a qualified technician. • Unlock the automatic bollard and move by hand to check if the movement is normal.
• Automatic bollard
moves easily? • Consult a qualified MOTORLINE technician.
• Turn off the motor from control board and test it on directly to a V battery to find out if it is damaged;
• If the motor runs, the problem is in the control board. Remove it and send it to the technical services for diagnosis;
• If the motor does not work, remove it and send to the technical services for diagnosis.
• Automatic
bollard
opens but
doesn’t
close
1 • Check if there is any
obstacle in front of the
photocells;
2 • Make sure if the
photocells are
working. Put your hand
in front and check that
the relay makes the
same noise.
3 • Check if any of the
control devices (key
selector, push button,
video intercom, etc.) of
the automatic bollard
are jammed and
sending permanent
signal to control unit;
• Automatic bollard
opened but didn’t
close again.
• Consult a qualified
MOTORLINE technician.
• Verify if the display is connected to confirm the existence of power supply;
• Verify if the photocells are powered in control board output;
• Access the menu on the display and disable the photocells and the stop function;
• Try to close;
A) Closed:
• Problem is in one of these two systems. Activate the photocells and check that the automatic bollard closes. If close, problem will be in stop
function. Ative tin the menu and try to close the automatic bollard to be sure.
B) Doesn't closed:
• Problem is in the motor or in the control board. Give an order to the automatic bollard close while measuring the control board power output to
the motor. If you have V, the control board is working and the problem is in the motor.
• If it has not current, the problem is in the control board.
• Automatic
bollard
doesn’t make
complete
route
• Unlock the
automatic bollard
and move by hand to
check for mechanical
problems.
• Encountered
problems? • Consult a qualified technician. • Unlock the automatic bollard and move by hand to check if the movement is normal.
• Automatic bollard
moves easily? • Consult a qualified MOTORLINE technician.
• Verify if the tests to the automatic bollard were well made;
• Change the strength of F menu until the motor move the automatic bollard without changing the direction;
• This adjustment should be made to in case the automatic bollard find an obstacle do an inversion;
• If even at maximum power level (F) is still the problem, test the motor directly connected to a V battery to see if it has the power to open/close
the automatic bollard completely;
• Change the strength in the F menu until the motor move the automatic bollard without changing the direction;
