Motorola T215 User manual

Quick Start Guide
motorola T215

1
congratulations
The Motorola T215 Bluetooth® Car Kit Speakerphone
delivers a satisfying invehicle handsfree conversation
experience in a sleek design. Perfect for receiving and
making calls wirelessly from your phone.
• Goodbye earpieces and wires —drive safely
with wireless control of your phone calls using
intuitive push buttons on your speakerphone.
•Stayconnected —allows for over 36 hours of
talk time in one charge; battery indicator prompts
your next charge.
• Clear conversations always —as good as
placing the phone next to your ear.

your speakerphone
2
your speakerphone
Take a moment to familiarize yourself with your new
T215 speakerphone.
Mute
Button
Speaker
Battery
Indicator
Light
Volume
Down
Button
Volume
Up
Button
Bluetooth
Indicator
Light
Call
Button
Microphone
Power
Switch
Charging
Port

charge it
3
charge it

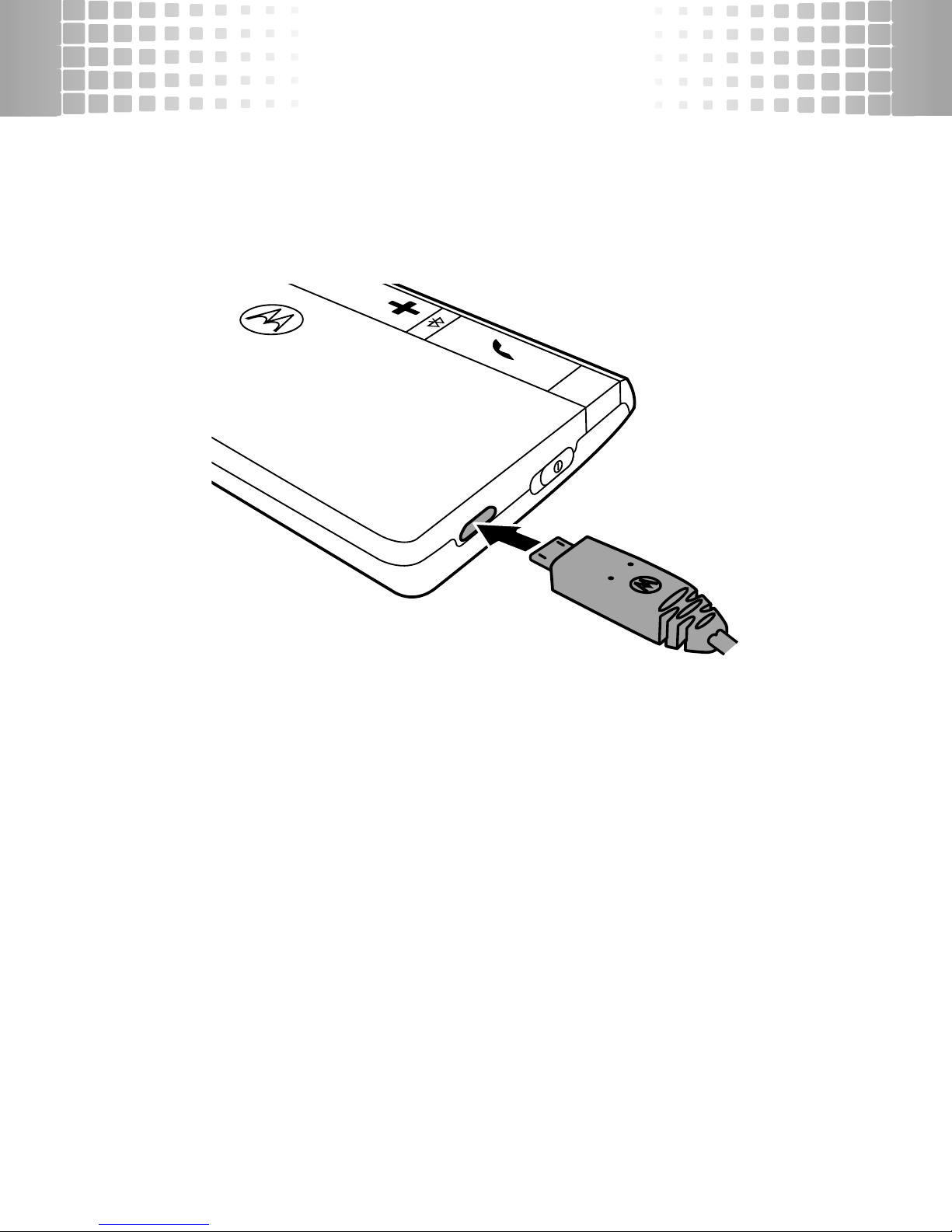

You’ll need to charge your speakerphone before you can
use it. While charging, the battery indicator light is red. It
turns green when the battery is fully charged.
Note: Speakerphone is functional while charging.
Note: Your battery is designed to last the life of your
product. It should only be removed by a recycling facility.
Any attempt to remove or replace your battery will
damage your speakerphone.

pair & connect
4
pair & connect
Let’s get your speakerphone paired and connected to
your Bluetooth phone.
initial pair & connect
1 Turn off any Bluetooth devices previously paired with
your speakerphone.
2 Turn on the Bluetooth feature on your phone.
3 Turn on your speakerphone (see page 7 for help).
The Bluetooth and Battery indicator lights alternately
flash to indicate the speakerphone is in discoverable
mode.
4 Set your phone to search for Bluetooth devices.
5 Select Motorola T215 from the search results on
your phone.
6 Select Ok or Ye s to pair your speakerphone with
your phone.
Note: When prompted for the passkey, enter 0000 .
The Bluetooth indicator light changes to solid blue for
1 minute to indicate successful pairing and connection.

pair & connect
5
test your connection
To test connection to your phone:
1 Slide the speakerphone onto your visor (see “install
in car” on page 6 for help).
2 On your phone, dial the number you want to call and
press the
Call/Send key.
If your phone and speakerphone are successfully
connected, you hear ringing on the speakerphone.
For daily use, make sure your speakerphone is turned on,
and your phone’s Bluetooth feature is on. Your
speakerphone and phone will connect automatically.
Note: For additional help with pairing and connecting
your speakerphone with specific phones, see
www.motorola.pairxusa.com.

install in car
6
install in car

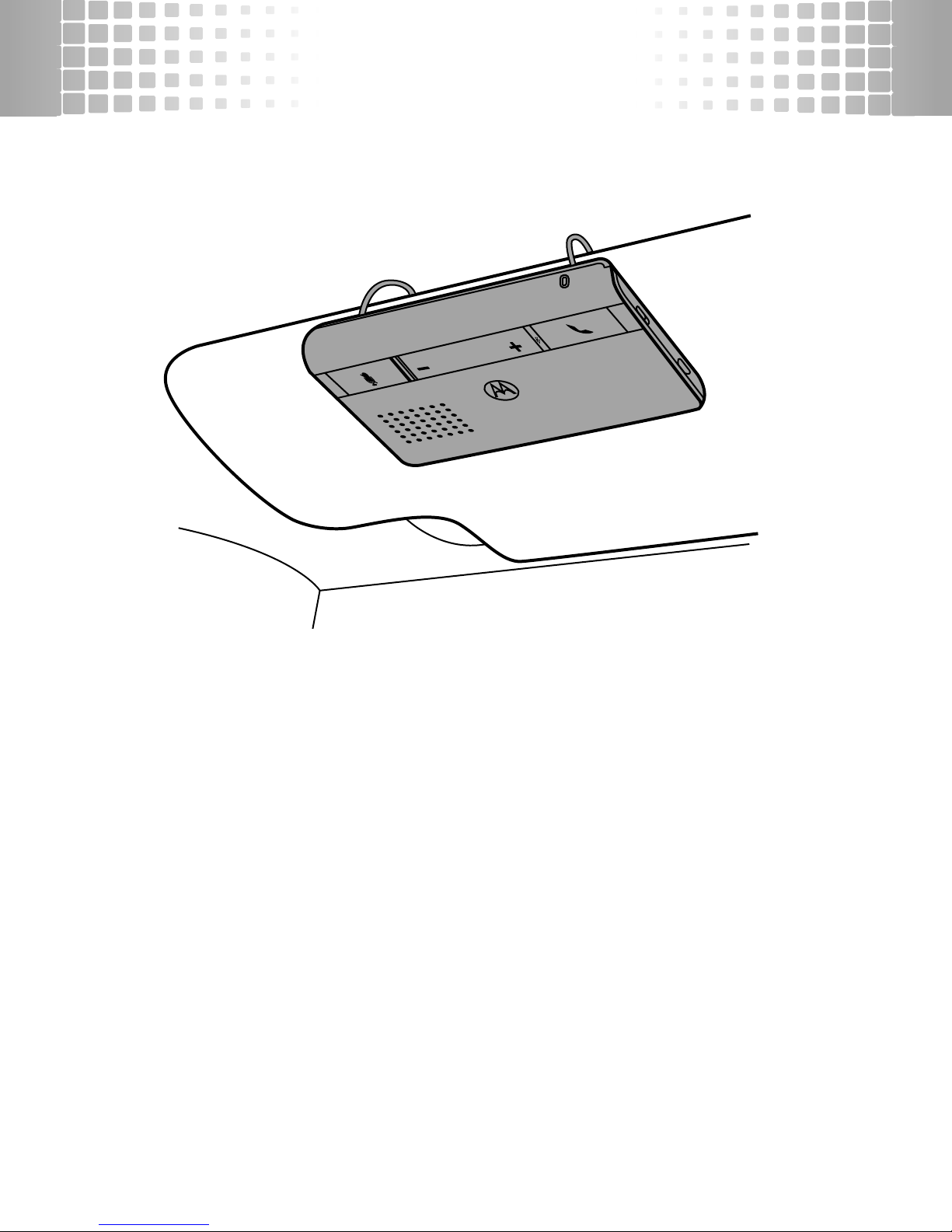

Slide the speakerphone onto your sun visor, as shown.

turn on & off
7
turn on & off
turn on
Slide ë switch to ON position. The Bluetooth indicator
light is pulsing (if connected with a device) or flashing
along with the Battery indicator light (if ready to be
paired).
turn off
Slide ë switch to OFF position. The indicator lights turn
off to indicate the speakerphone is off.
Battery
Indicator
Light
Bluetooth
Indicator
Light
Power
Switch

volume
8
volume
Tap th e 9 or Ï buttons to adjust the volume on your
speakerphone.
You’ll hear a tone as you increase or decrease volume.
When you reach maximum or minimum volume, you
hear two tones.
Volume
Down
Button
Volume
Up
Button

calls
9
calls
Note: Your T215 supports both Handsfree and Headset
Profiles. Accessing call functions depends upon which
profile your phone supports. See your phone’s user’s
guide for more information.
Note: Some features are phone/network dependent.
To …
answer a call press button
mute or unmute a call press button
reject a call press
Ï button
end a call press button
redial last call press and hold button until
you hear a dial tone
make a voice dial call press button and wait for
voice prompt
transfer call to/from
speakerphone and
phone
press button twice

status indicators
10
status i ndi cators
indicator lights (with charger
plugged in)
indicator lights (with charger
not plugged in)
Battery indicator light status
red battery charging
green charging complete
Bluetooth
indicator
light
Battery
indicator
light
status
off off power off
off green powering on
quick blue
flash
(alternating)
quick green
flash
(alternating)
pairing mode

status indicators
11
solid blue n/a pairing successful
quick blue
flash
n/a incoming/outgoing call
blue flash n/a standby (connected to
phone)/ connected (on
a call)
off red or green
pulse
idle (not connected to
phone)
n/a orange
pulse
connected call muted
n/a red pulse battery level low
n/a green pulse battery level OK
Bluetooth
indicator
light
Battery
indicator
light
status

tips & tricks
12
tips & tricks
restore to factory settings
Caution: This action erases all pairing information stored
in your speakerphone.
1 With your speakerphone turned on, press and hold
both and
Ï buttons until the Battery and
Bluetooth indicator lights begin flashing.
2 Press and hold , 9 , and buttons until the
indicator lights turn off.
3 Slide ë switch to OFF then ON position to restart
your speakerphone.

13
Safety & General Information
Safety Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ
THIS INFORMATION BEFORE USING YOUR DEVICE.
Approved Accessories
Use of accessories not approved by Motorola, including but not limited to batteries,
antennas, and convertible covers, may cause your mobile device to exceed RF
energy exposure guidelines and may void your mobile device’s warranty. For a list of
approved Motorola accessories, visit our Web site at:
www.motorola.com
Batteries & Chargers
Your battery, charger, or mobile device may contain symbols, defined as follows:
Use & Safety for Battery-Powered Accessories
• Do not store or use your battery-powered accessory (such as a Bluetooth®
headset or other device) in temperatures below -10°C (14°F) or above 60°C
(140°F).
• Do not recharge your accessory in temperatures below 0°C (32°F) or above 45°C
(113°F).
• Conditions inside a parked car can exceed this range. Do not store your
accessory in a parked car.
• Do not store your accessory in direct sunlight.
• Storing your fully charged accessory in high-temperature conditions may
permanently reduce the life of the internal battery.
• Battery life may temporarily shorten in low-temperature conditions.
Symbol Definition
Important safety information follows.
Do not let your battery, charger, or mobile device get wet.
032374o

14
Caution About High Volume Usage
Warning: Exposure to loud noise from any source for extended periods of time may
temporarily or permanently affect your hearing. The louder the volume sound level,
the less time is required before your hearing could be affected. Hearing damage
from loud noise is sometimes undetectable at first and can have a cumulative effect.
To protect your hearing:
• Start your volume control at a low setting and use as low a volume as possible.
• Limit the amount of time you use headsets or headphones at high volume.
• Where possible, use your headset in a quiet environment with low background
noise.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness
in your ears, ringing in your ears, or muffled speech, you should stop listening to the
device through your headset or headphones and have your hearing checked by your
doctor.
Smart Practices While Driving
Using a mobile device while driving may cause distraction. End a call if you can’t
concentrate on driving. Also, using a mobile device or accessory may be prohibited
or restricted in certain areas. Always obey the laws and regulations on the use of
these products.
Responsible driving practices can be found at
www.motorola.com/callsmart
(in English only).
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This device may not cause
interference and (2) This device must accept any interference, including interference
that may cause undesired operation of the device. See RSS-GEN 7.1.5.

15
FCC Notice to Users
FCC Notice
The following statement applies to all products that have received FCC
approval. Applicable products bear the FCC logo, and/or an FCC ID in the
format FCC-ID:xxxxxx on the product label.
Motorola has not approved any changes or modifications to this device by the user.
Any changes or modifications could void the user’s authority to operate the
equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

16
Motorola Limited Warranty for the
United States and Canada
Wa r r a nt y
What Does This Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its telephones,
pagers, messaging devices, and consumer and professional two-way radios
(excluding commercial, government or industrial radios) that operate via Family
Radio Service or General Mobile Radio Service, Motorola-branded or certified
accessories sold for use with these Products (“Accessories”) and Motorola software
contained on CD-ROMs or other tangible media and sold for use with these Products
(“Software”) to be free from defects in materials and workmanship under normal
consumer usage for the period(s) outlined below. This limited warranty is a
consumer’s exclusive remedy, and applies as follows to new Motorola Products,
Accessories and Software purchased by consumers in the United States or Canada,
which are accompanied by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and Accessories
as
defined above, unless otherwise
provided for below.
One (1) year from the date of purchase by
the first consumer purchaser of the product
unless otherwise provided for below.
Decorative Accessories and
Cases. Decorative covers,
bezels, PhoneWrap™ covers and
cases.
Limited lifetime warranty for the lifetime
of ownership by the first consumer
purchaser of the product.
Monaural Headsets. Ear buds
and boom headsets that transmit
mono sound through a wired
connection.
Limited lifetime warranty for the lifetime
of ownership by the first consumer
purchaser of the product.

17
Exclusions
Normal wear and tear. Periodic maintenance, repair and replacement of parts due
to normal wear and tear are excluded from coverage.
Batteries. Only batteries whose fully charged capacity falls below 80% of their
rated capacity and batteries that leak are covered by this limited warranty.
Abuse & misuse. Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (c) use of the Products or Accessories for commercial
purposes or subjecting the Product or Accessory to abnormal usage or conditions; or
(d) other acts which are not the fault of Motorola, are excluded from coverage.
Use of non-Motorola Products and Accessories. Defects or damage that result
from the use of Non-Motorola branded or certified Products, Accessories, Software
or other peripheral equipment are excluded from coverage.
Unauthorized service or modification. Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, or modification in
any way by someone other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered products. Products or Accessories with (a) serial numbers or date tags that
have been removed, altered or obliterated; (b) broken seals or that show evidence of
Consumer and Professional
Two-way Radio Accessories. Ninety (90) days
from the date of
purchase by the first consumer purchaser of
the product.
Products and Accessories
that are Repaired or
Replaced.
The balance of the original warranty or
for ninety (90) days from the date
returned to the consumer, whichever is
longer.
Products Covered Length of Coverage

18
tampering; (c) mismatched board serial numbers; or (d) nonconforming or
non-Motorola housings, or parts, are excluded from coverage.
Communication services. Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you may
subscribe to or use with the Products Accessories or Software is excluded from
coverage.
Software
Exclusions
Software embodied in physical media. No warranty is made that the software
will meet your requirements or will work in combination with any hardware or
software applications provided by third parties, that the operation of the software
products will be uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT embodied in physical media. Software that is not embodied in
physical media (e.g. software that is downloaded from the Internet), is provided “as
is” and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price
of any Products, Accessories or Software that does not conform to this warranty. We
may use functionally equivalent reconditioned/refurbished/pre-owned or new
Products, Accessories or parts. No data, software or applications added to your
Product, Accessory or Software, including but not limited to personal contacts,
Products Covered Length of Coverage
Software.
Applies only to physical defects in
the media that embodies the copy of the
software (e.g. CD-ROM, or floppy disk).
Ninety (90) days from the
date of purchase.
