1-1
Chapter 1,
General Information
This Diagnostic Kit manual is intended to supplement the SafEye Xenon
800 Open Path Gas Detection System Instruction Manual
(P/N 10055711). The Diagnostic Kits allow the use of a convenient
alternative to using a PC for installation, startup, and general diagnostic
evaluation of the SafEye System. There are two diagnostic kits offered:
• a general-purpose unit
• an intrinsically-safe unit for use in hazardous areas.
Each kit uses a PDA (personal digital assistant) as an interface.
The application software is described in this manual and is the same for
both kits.
SafEye System General-Purpose Diagnostic Kit

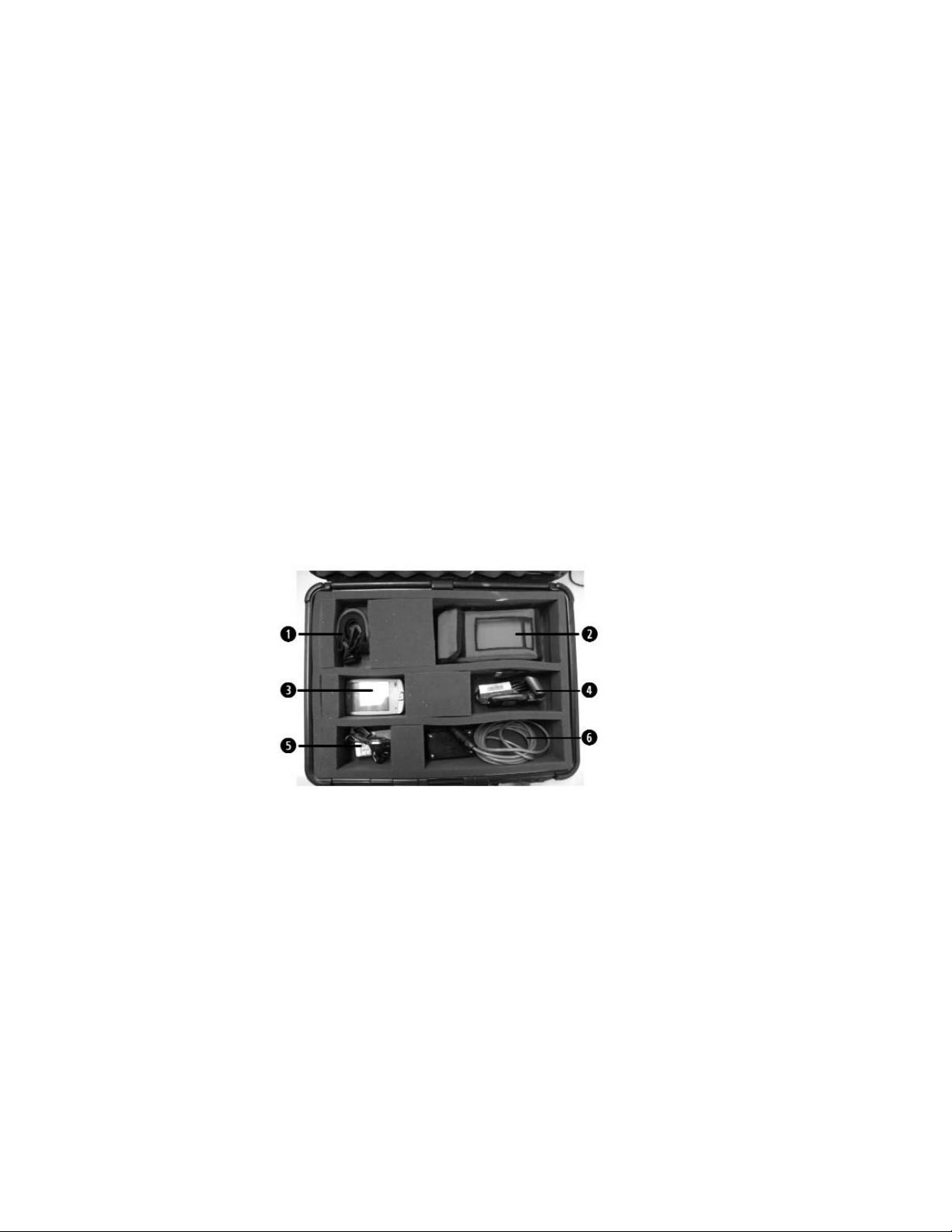

Figure 1-1. Case Contents
1 shoulder strap
2 nylon case
3 general-purpose PDA
(preloaded with application software)
4 docking station
5 recharging plug
6 IR module
• Not shown: instruction manual
CD (only for reloading PDA software)

1. Remove the nylon case and general-purpose PDA.
2. Remove the stylus pen from the PDA and place the pen into the
pocket found on the side of the nylon case.

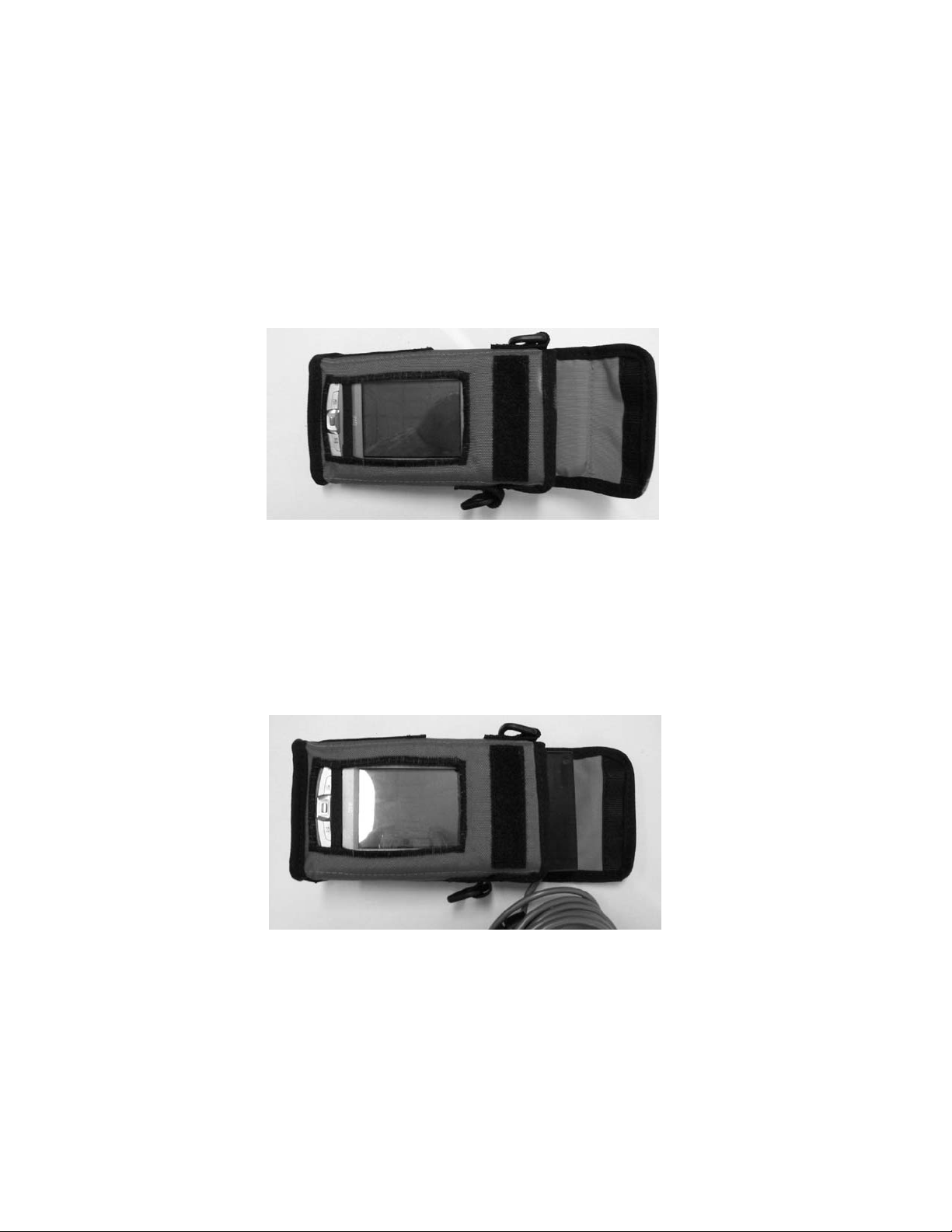

3. Place the general-purpose PDA in the nylon case as shown in
FIGURE 1-2.
4. Remove the IR module and place it in the nylon case as shown in
FIGURE 1-3.
Note that the IR Module is supplied with three user-replaceable
AAA batteries. Use only Energizer Model E92 or Duracell Model
MN2400. Do not mix batteries from different manufacturers or
batteries of different ages.
NOTE: The screw heads must face downward.
Figure 1-3. IR Module Placement in Nylon Case
Figure 1-2. PDA Placement in Nylon Case
1-2

5. Close and button the flap, attach the shoulder strap, and refer to
the user’s manual for operating instructions.
6. The wire from the IR module can be tied off to the nylon case as
shown in FIGURE 1-4.
7. To recharge the general-purpose PDA, refer to the PDA user
manual for instructions.
Figure 1-4. IR Module Tied Off to Nylon Case
1-3

SafEye System
Intrinsically-Safe Diagnostic Kit
1. Remove the leather case and intrinsically safe PDA.
2. Place the intrinsically safe PDA in the leather case as shown in
FIGURE 1-6.
Figure 1-5. Case Contents
(left to right, top to bottom):
1 shoulder strap
2 leather case
3 intrinsically safe PDA
(preloaded with application software)
4 recharging plug
5 IR module
• Not shown: instruction manual
CD (only for reloading PDA software)
1-4

3. Remove the IR module and place it in the leather case as shown in
FIGURE 3.
NOTE: The screw heads must face upward.
4. Close and button the flap, attach the shoulder strap, and refer to
the user’s manual for operating instructions.
5. The wire from the IR module can be tied off to the leather case in a
similar fashion to that shown in FIGURE 1-8.
Figure 1-7. IR Module Placement in Leather Case
Figure 1-6. PDA Placement in Leather Case
1-5

6. To recharge the intrinsically safe PDA, refer to the PDA user
manual for instructions.
Figure 1-8. IR Module Tied Off to Leather Case
1-6

Chapter 2,
Operation Instructions
Running the Host Software
1. From the PDA Start screen, click on the START icon.
2. From the pop-up menu, click on the PROGRAMS option.
3. Click on the SAFEYE CONNECT icon.
Opening Screen
When the user starts running the host program:
• the Opening screen (FIGURE 2-1) appears for three seconds
NOTE: Wait three seconds until the Main screen appears.
Figure 2-1. Opening Screen
2-1

Main Screen
The Main screen:
• monitors the detector
• displays detector data (FIGURE 2-2).
1 Detector Model Number 5 Detector Status
2 Detector Address 6 Communication Status
3 Detector Serial Number
4 Detector Gain
Main Screen Pull-up Menu Buttons

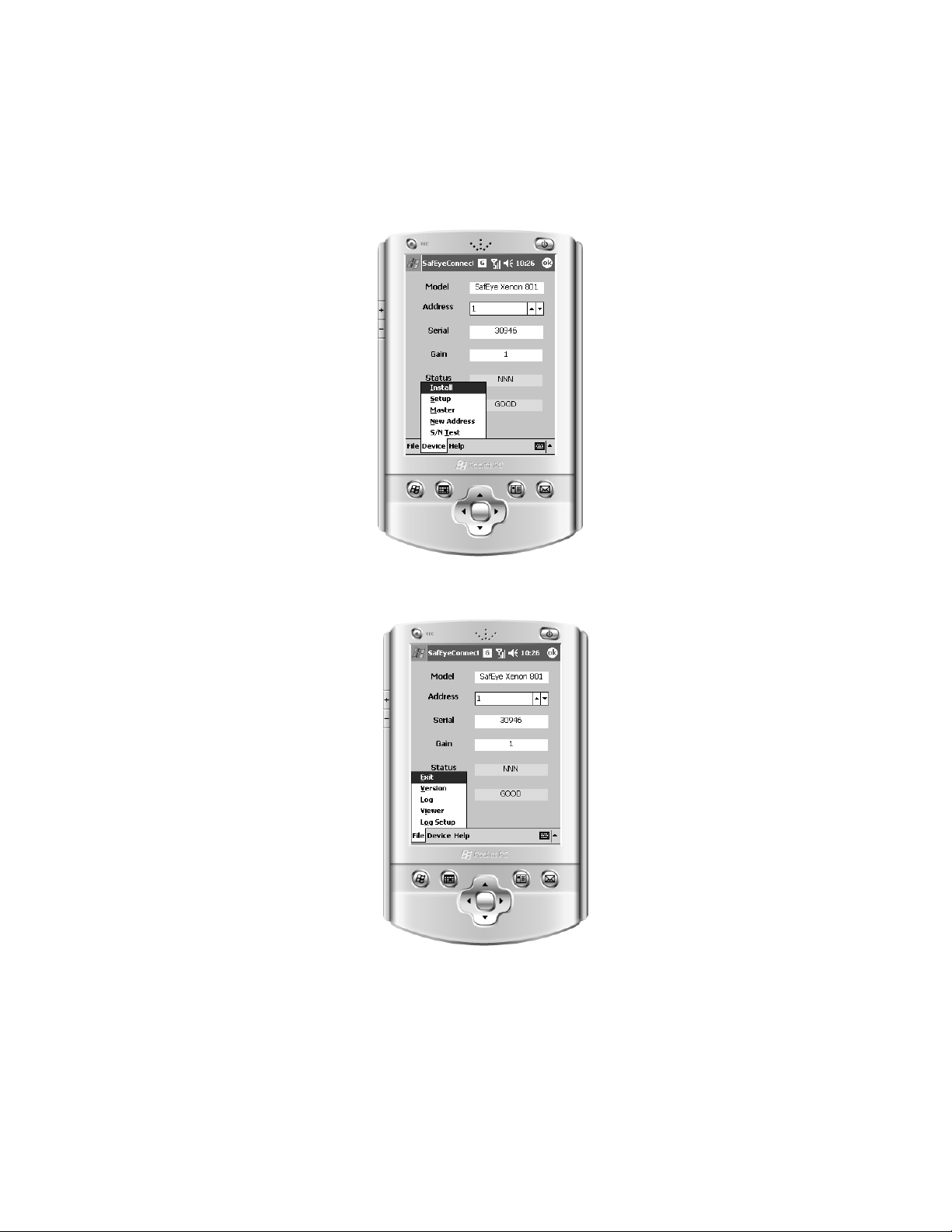

• The Main Menu screen pull-up lists are shown in FIGURES 2-3
and 2-4.
• A description of the Main menu commands is shown in TABLE 2-1.
NOTE: The application software may take several seconds to execute
as it must complete communications with the
SafEye System before updating screens.
• To initialize the Main menu data, select the Device pull-up menu;
then, select MASTER.
Figure 2-2. Main Screen
2-2

Figure 2-4. Main Menu Screen Pull-up Lists
Figure 2-3. Main Menu Screen Pull-up Lists
2-3

Table 2-1. Main Menu Pull-up Commands
DEVICE MENU
NAME DESCRIPTION
Install Detector installation screens (signals information and zero calibration)
Setup Detector options setup screen
Master Press to retrieve detector address
New Address Screen to set a new address
S/N Test System diagnostic screen
FILE MENU
NAME DESCRIPTION
Exit Exit from host program
Version Return system firmware version
Log Initialize logging to a file
Viewer View the log file
Log Setup Logging parameter setup screen
Detector Status
• See Appendix C in SafEye 800 Instruction Manual
(P/N 10055711) for a description of the status letters.
2-4

Installation Screens
Once the SafEye System is physically aligned and the Main menu
indicates "NNN" status, the user can verify installation using the
Install function.
Installation Results
From the Device pull-up menu, click on the INSTALL button to access
the Installation Result screen (FIGURE 2-5).
• This screen enables the user to see the detector’s installation
result.
• The screen example shown in FIGURE 2-5 informs the user that
installation was successful.
1 Installation header
2 The SIGNALS INFORMATION button to select the Signals Information screen
(See the following "Signals Information section.)
3 The FINISH button to return to the Main screen
Figure 2-5. Successful Installation Results
2-5

• The screen example shown in FIGURE 2-6 informs the user of a
bad installation. Refer to the SafEye System Manual
(P/N 10055711) for additional information.
Signals Information
Click on the SIGNALS INFORMATION button (via the Install function)
to access the detailed system data and the electronic alignment
(zero calibration) function.
• This screen offers diagnostic information and is to be used in
conjunction with the Signal/Nose Test screen to ensure proper
operation of the SafEye System.
• Refer to TABLE 4-1 in the SafEye System manual for valid ranges
of these parameters.

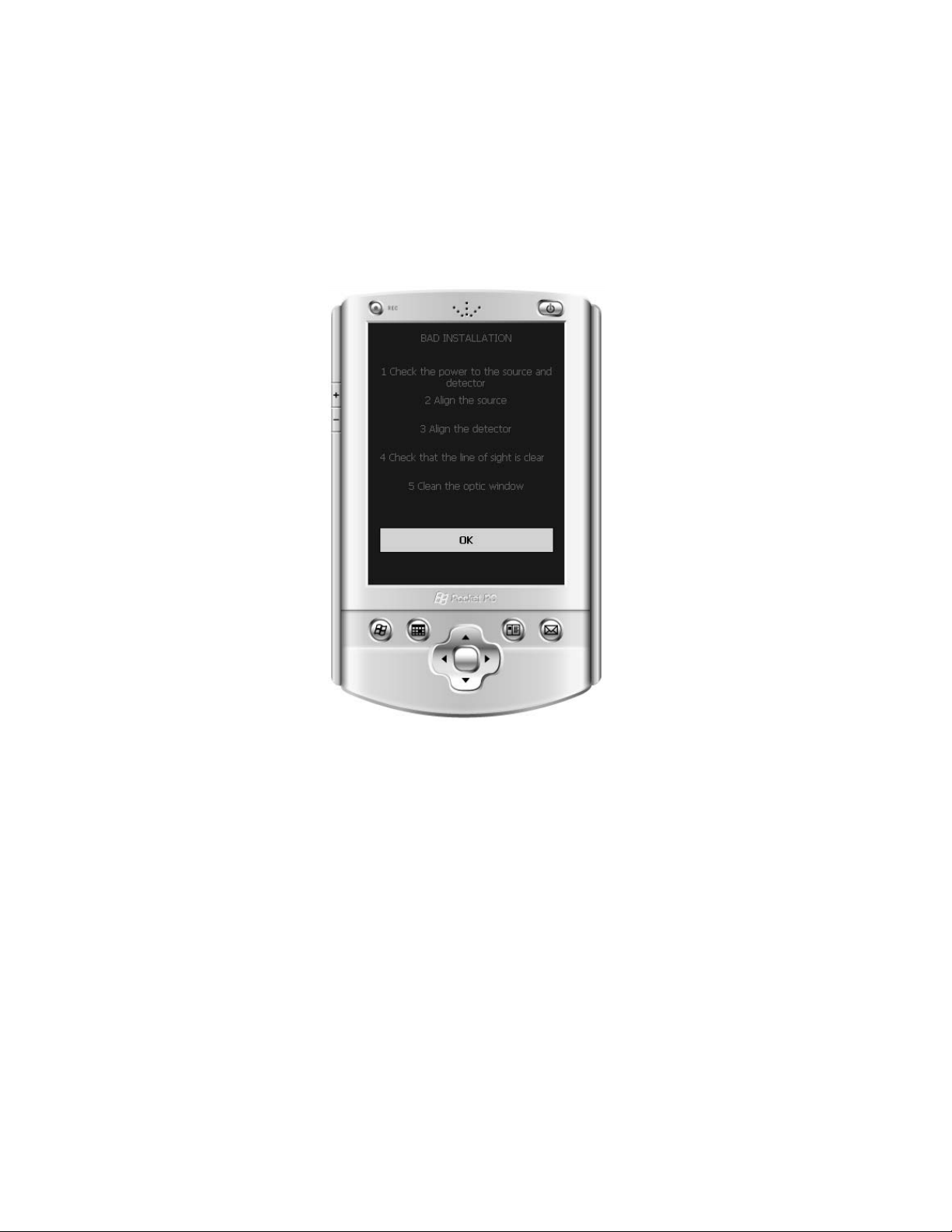

Figure 2-6. Error Message
2-6

1 Detector address, status and gain
2 Detector data channels (TABLE 2-3)
3 ALIGN button - to align (zero) the detector*
4 CLOSE button - to exit to the Main screen
5 Communication status
*The alignment (zero calibration) process:
1. Press the ALIGN button once and wait for status "XXX".
2. Press ALIGN again and wait for status "SSY".
3. Press ALIGN again and see the status "GGG".
4. Wait for status "NNN".
5. Press CLOSE to exit the screen
Figure 2-7. Signals Information Screen
2-7

Channel Information
Table 2-2. Channels Description
CHANNEL DESCRIPTION
Ref Voltage signal of reference, after electronic amplification
Signal1 Voltage signal of sensor1, after electronic amplification (depends on gain)
Signal2 Voltage signal of sensor2, after electronic amplification (depends on gain)
Ratio1 Ratio between sensor1 and reference
Ratio2 Ratio between sensor2 and reference
NQRat1 Normalized ratio for signal1 - Equals 1 when no gas is present
and goes down when gas is introduced
NQRat2 Normalized ratio for signal2 - Equals 1 when no gas is present
and goes down when gas is introduced
LEL.m Actual gas reading of the detector
Voltage Voltage measurement
Temp. Internal instrument temperature
Setup Screen
From the Device pull-up menu, click on the SETUP button to access the
Setup screen (FIGURE 2-8).
• This screen allows the user to view the detector’s optional
parameters and ‘set’ new values for the system.
NOTE: Once a parameter is altered, the user must press SET
OPTIONS to transmit the changes to the SafEye System.
2-8

1 Detector parameters
2 Detector Address (read only)
3 SET OPTIONS button
4 CANCEL button (to exit from Setup screen)
Table 2-3. Detector’s Functions Setup
NAME DESCRIPTION
Gas Type Detector’s gas calibration definition (see TABLE 2-5)
Full Scale Sens Full scale sensitivity options (see TABLE 2-6)
BG Zero Calibration Zero calibration options (see TABLE 2-7)
Accessory Relay Not available
Alarm Latching Alarm relay Latching operation (see TABLE 2-9)
4-20 mA Mode 4-20 mA operation (see TABLE 2-10)
Beam Block During Beam Block During Alarm latches alarm regardless of
Alarm Indication "Alarm Latching" setting (see TABLE 2-11)
Heat Mode Heat Mode operation options (see TABLE 2-12)
Heat On Heat ON temperature value (see TABLE 2-13)

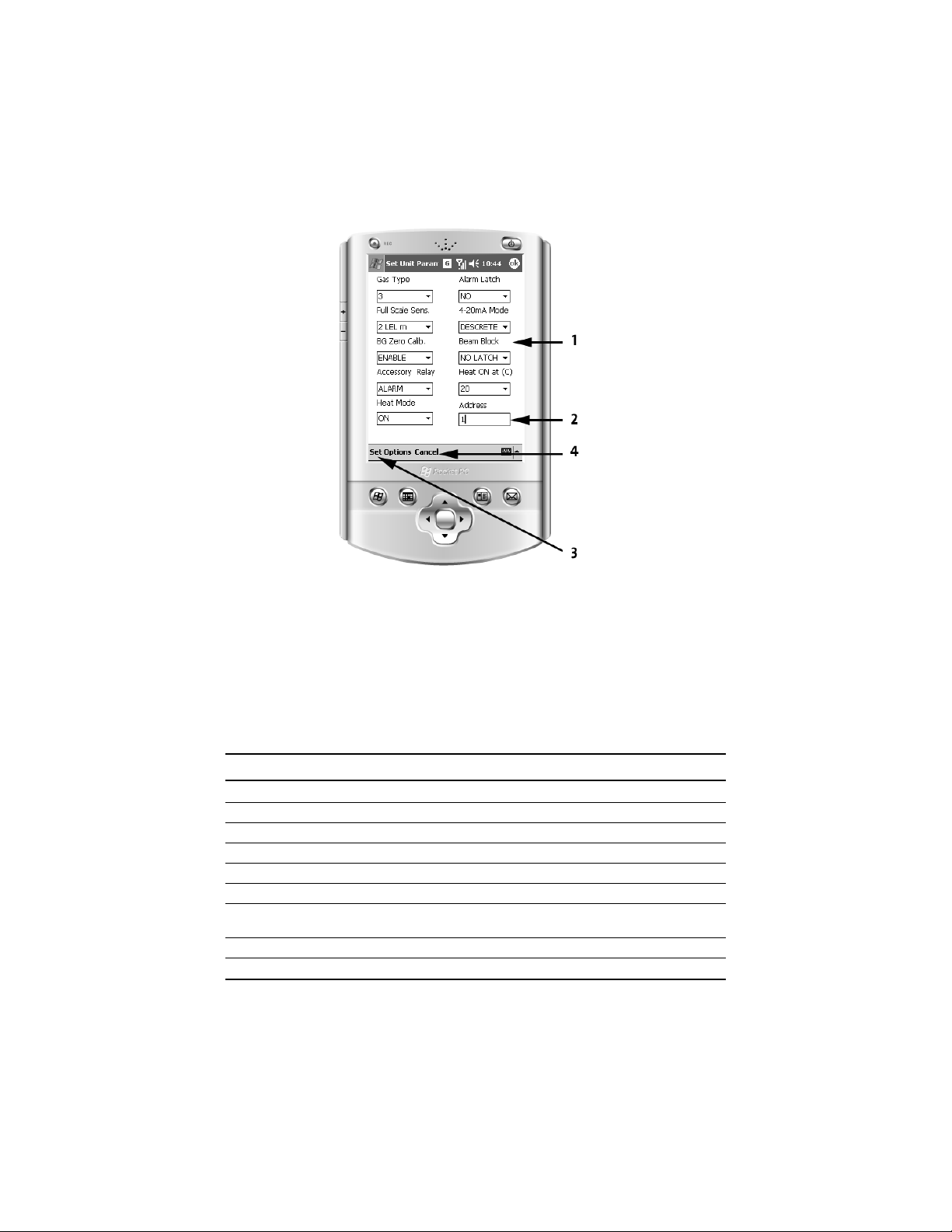

Figure 2-8. Setup Screen
2-9
