MSSC Smart-Jet DL100 User manual

THERMAL INKJET CODER
USER MANUAL

Contents
SAFETY INFORMATION .................................................................................................................................................... 3
EMERGENCY CASE............................................................................................................................................................ 4
ENVIRONMENT PROTECTION........................................................................................................................................... 4
PRODUCT WARRANTY ..................................................................................................................................................... 5
ABOUT MACHINE............................................................................................................................................................. 6
TECHNICAL SPECIFICATIONS................................................................................................................................................ 7
Machine details............................................................................................................................................................... 7
Mobile Application .......................................................................................................................................................... 7
MACHINE OVERVIEW....................................................................................................................................................... 8
INSTALLATION PROCEDURES............................................................................................................................................... 9
MOUNTING BRACKETS ...................................................................................................................................................... 10
GETTING STARTED ......................................................................................................................................................... 13
EXTERNAL DEVICES CONNECTIONS ................................................................................................................................ 13
EXTERNAL SENSOR ............................................................................................................................................................ 13
ENCODER........................................................................................................................................................................... 14
COMBINE EXTERNAL SENSOR AND ENCODER ................................................................................................................... 15
ALARM............................................................................................................................................................................... 16
INPUT AND OUTPUT .......................................................................................................................................................... 16
QUICK STARTUP............................................................................................................................................................. 17
REQUIRED COMPONENTS ................................................................................................................................................. 17
Setup machine............................................................................................................................................................... 17
Login machine............................................................................................................................................................... 17
Design print template by PC Web browser ................................................................................................................... 20
Printer control by Web browser .................................................................................................................................... 30
APPENDIX ...................................................................................................................................................................... 31
INK CARTRIDGES MAINTERNANCE .................................................................................................................................... 31
Print head cleaning ....................................................................................................................................................... 31
Wiping........................................................................................................................................................................... 31
Important notes ............................................................................................................................................................ 32
Purging.......................................................................................................................................................................... 32
INK CARTRIDGE STORAGE PROCEDURE ............................................................................................................................. 33
For short term storing (less than one day).................................................................................................................... 33
For long term storing (more than one day)................................................................................................................... 33
System disposal............................................................................................................................................................. 33
Important handling cautions ........................................................................................................................................ 33
UPDATE FIRMWARE AND SOFTWARE ............................................................................................................................... 34
Update firmware........................................................................................................................................................... 34
Update Software........................................................................................................................................................... 35
Machine default............................................................................................................................................................ 36
TROUBLESHOOTING....................................................................................................................................................... 37

USER MANUAL V2.0| Updated 01-Aug-20173
SAFETY INFORMATION
STOP PRINTING BEFORE INSERTING OR REMOVING THE
CARTRIDGE.
TURN OFF PRINTER BEFORE PLUGGED / UN-PLUGGED ANY
CABLE (PRINT HEAD CABLE / ENCODER CABLE / SENSOR
CABLE / IO CABLE).
BE CAREFUL OF USING OTHER EXTERNAL DEVICES SUCH
AS: ENCODER / SENSOR / POWER SUPPLY.
DO NOT TRY TO USE OTHER CARTRIDGES THAT IS NOT
SUPPLIED FROM YOUR SUPPLIER.
AVOID USING WITH HIGH VOLTAGE, STRONG IMPACT TO
PRINTER.
STORE THE PRINTER IN A DUST-FREE ENVIRONMENT.
BE CAREFUL OF UPDATING FIRMWARE AND SOFTWARE.
WORKING TEMPERATURE: 5-50oC.

USE GLOVE TO AVOID THE SHARP FROM MOUNTING
BRACKET.
RECOMMEND USE MASK AND GLASSES TO AVOID THE INK
FLY IN AIR.
WARNING: THIS EQUIPMENT IS COMPLIANT WITH CLASS A
OF CISPR 32 / EN 55032. IN A RESIDENTIAL ENVIRONMENT
THIS EQUIPMENT MAY CAUSE RADIO INTERFERENCE.

USER MANUAL V2.0| Updated 01-Aug-20174
EMERGENCY CASE
IN SOME SPECIAL CASE LIKE: APPEAR SMOKE ON
PRINTER, PRINT OUT CONTINUOUSLY WITHOUT CONTROL,
FIRE, EXPLOSIVE SOUND, ETC.
PLEASE REMOVE THE POWER SUPPLY IMMEDIATELY!
ENVIRONMENT PROTECTION
DON’T THROW PRINTER /
INK CARTRIDGE TO
RECYCLE BIN

USER MANUAL V2.0| Updated 01-Aug-20175
PRODUCT WARRANTY
LIMITED WARRANTY. THE HOUSING AND CIRCUIT BOARD FOR EACH PRINTER IS
WARRANTED TO BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP FOR A
PERIOD OF TWELVE (12) MONTHS FROM THE BILL OF LADING DATE. THIS LIMITED
WARRANTY DOES NOT APPLY TO SPARE PARTS, AUTHORIZED INKS, OR CARTRIDGES, OR
TO HOUSINGS AND CIRCUIT BOARDS THAT EXPERIENCE PROBLEMS RESULTING FROM
MISUSE, TAMPERING OR IMPROPER STORAGE.
ANY NON-ORIGINAL PARTS AND UNAPPROVED OEM INKS
ARE USED.

THE PRODUCT HAS BEEN ALTERED OR MODIFIED WITHOUT
APPROVAL FROM US.

THERE IS DAMAGE ON THE PRINT HEAD AS A RESULT OF
IMPROPER INSTALLATION.
DAMAGE OCCURS FROM AN ACCIDENT, SUCH AS BUT NOT
LIMITED TO, BEING DROPPED, BEING SPRAYED WITH
WATER OR OTHER LIQUIDS, CAUSED BY A NATURAL
DISASTER, CAUSED BY STOCKING OR SHIPPING
CONDITIONS.
UNAPPROVED, WRONG OR UNSTABLE POWER SUPPLY IS
USED.

USER MANUAL V2.0| Updated 01-Aug-20176
ABOUT MACHINE
Thank you for purchasing the Smart-Jet DL100 Thermal Inkjet Coder, a product of MSSC LLC.This
printer is designed for packaging printing, POD printing applications powered by HP Thermal Inkjet
Technology.
Machine boasts to be able to run Standalone, print variable data and variable 2D barcodes, Wi-Fi
connection via mobile devices for control and real time update print status. Each option provides a full
set of applications.
Machine produces crisp text, logos, variable data and barcodes on porous and non-porous media by
automatically recognizes aqueous and solvent inks and applies the appropriate printing parameters.
The complete system includes one machine, power supply with On/Off switch, mounting brackets.

USER MANUAL V2.0| Updated 01-Aug-20177
TECHNICAL SPECIFICATIONS
Machine details
No. Description Specifications
1
Model
Smart-Jet DL100
2
Display
PC’s Monitoring, Tablet (Optional)
3
Dimensions (L x W x H)
108 x 61 x 83mm /4.25 x 2.41 x 3.27inches
4
Weight
580g
5
Power supply
AC 100V – 240V, 50/60Hz. Output 24VDC 2.5A
6
Maximum power consumption
48W
7
Maximum printing resolution
600x600dpi
8
Print speed
70m/min@300x300dpi
9
Optical density
5 levels
10
Operation selection
LAN Internet, Wi-Fi, Tablet (Optional)
11
Message memory
4GB for Storage
12
Ink solution
Aqueous and Solvent
13
Menu language
Multiple / selectable
14
Printable characters
Windows true fonts
15
No. of lines
Unlimited per Template
16
Character height
Maximum 12.7mm/0.5”
17 Printability
Alphanumeric, logos, date/time, expiry date, Julian date,
shift code, variable data and variable 2Dbarcodes, POD
(Print Online Data)
18
Operating temperature
5
o
C – 50
o
C
19
External connections
External sensor, encoder, alarm beacon, etc…
Mobile Application
Control machine via Mobile application or tablet interface.

USER MANUAL V2.0| Updated 01-Aug-20178
MACHINE OVERVIEW
•[1] Led Ink status.
•[2] Led Run status.
•[3] Led Stop status.
•[4] Led Alarm status.
•[5] Led Sen status
•[6] USB connector. Use for USB Wi-Fi module.
•[7] RJ45 LAN connector. Use for Print Online Data or Remote control.
•[8] Start/Stop button. Start/Stop printer or use for reset default.
•[9] Power supply connector.
•[10] I/O port. Connect to Encoder, External sensor, Alarm beacon.

USER MANUAL V2.0| Updated 01-Aug-20179
INSTALLATION PROCEDURES
No.
Item
Quantity
[1]
Machine
1
[2] Clamps 3
[3] Base clamp 1
[4] Round bar short 1
[5] Round bar long 3
[6] Screws M8x20 8

USER MANUAL V2.0| Updated 01-Aug-201710
MOUNTING BRACKETS
Please setup machine with minimum distance that you could. Closer distance for better printing quality.
We are recommend from 1-3 mm.
Step 1
Select direction to mount machine on the conveyor or production line.
Step 2
Installing the base clamp to the side of the conveyor or production line.
Step 3
Installing the clamps to the round bar.

USER MANUAL V2.0| Updated 01-Aug-201711
Step 4
Select the suitable bar length for each case.
Horizontal setup
This setup will be used to print on carton box, bottle, tray, pipe, etc…
Vertical setup
This setup will be used to print on paper, film, and other flat substrates.
NOTES: With default machine, we don’t support this setup. You need buy more accessories (round
bar and clamps).

USER MANUAL V2.0| Updated 01-Aug-201712
Step a:Add more clamp to bracket.
Step b: Add one more vertical round bar.
NOTES:
Make sure the brackets are mounted firmly to avoid vibration and sway of the print head. This will affect
the print quality.

USER MANUAL V2.0| Updated 01-Aug-201713
GETTING STARTED
Install the machine on your conveyor according to the installation instructions. See the Quick Start
Guide for more information.
•Set print direction and appropriate throw distance to obtain best print quality (1-3 mm).
•Insert ink cartridge.
•Plug the power cord into an appropriate power source to start up the machine.
•The printer need PE (Protective earthing conductor) connection before use.
EXTERNAL DEVICES CONNECTIONS
NOTES:
•Machine is able to operate with External Sensor, Encoder, Alarm at a time. Consult your supplier
for further supports on the settings and connections.
•To connect machine with External Sensor, Encoder, Alarm, etc…, additional connector DB15
(male) will be required.
EXTERNAL SENSOR

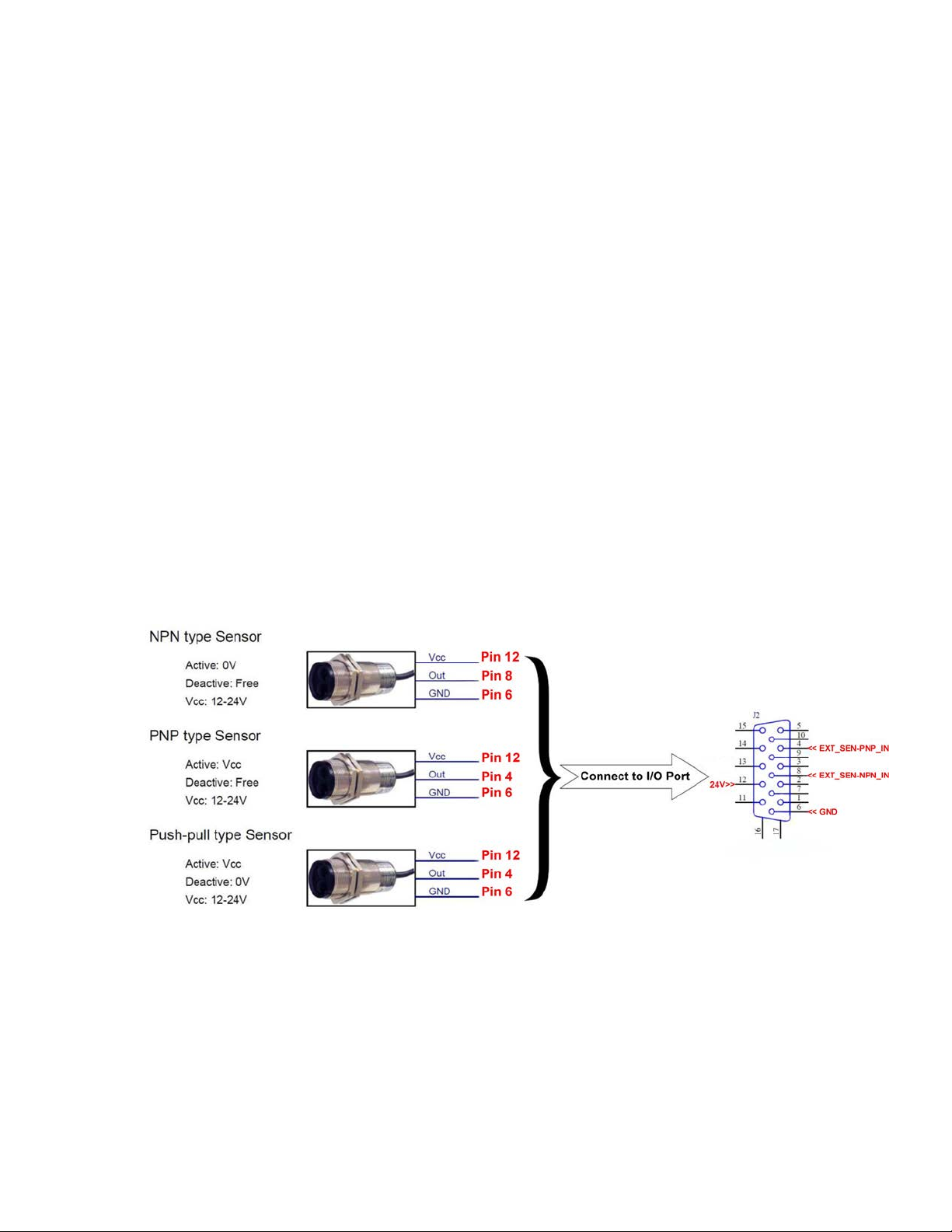

Machine supports NPN, PNP and Push-pull sensor types.
•Connect sensor using power supply on machine 24VDC.
•Connect sensor to machine using external power supply. Below demonstration is for external
power supply of 5VDC.

USER MANUAL V2.0| Updated 01-Aug-201714
ENCODER
An encoder is recommended to ensure the best print quality regardless the inconsistent speed of
conveyor.
To calculate wheel diameter (D) depend on resolution (R) is:
D = R/( x 600) (inches).
Example: Encoder has R = 3600 (PPR),
D = 1.90985 inches ~ 48.5 mm.

USER MANUAL V2.0| Updated 01-Aug-201715
COMBINE EXTERNAL SENSOR AND ENCODER
In some case you need to use external sensor and encoder to get perfect printing quality. But the
machine have one extended port only. Please do as following instruction to take external sensor and
encoder work together with machine.
See picture for this situation.
See this picture for connection pins.
NOTES:
PIN12 (24V) use for both of Encoder and External sensor.

USER MANUAL V2.0| Updated 01-Aug-201716
ALARM
Allow users to monitor operation of Machine from distance via the light signals from the Alarm.
INPUT AND OUTPUT
Input: To trigger some functions (reset counter …). Accept NPN or dry contact.
Output: NPN signal. Active when some even occur (each print …).

USER MANUAL V2.0| Updated 01-Aug-201717
QUICK STARTUP
REQUIRED COMPONENTS
No
Basic Components
With Smartphone
With PC Web browser
Optional
1
Machine
 
3
Power supply


4
Mounting brackets


5
USB Wi-Fi Module


6
Ink cartridge


8
Smartphone Android or iOS

10
PC desktop/laptop

11
PC connection Cable

12
Encoder

13
Alarm Beacon

14
External Sensor

15
Tablet

Setup machine
See Installation Procedures and Getting Started.
NOTES: The machine will function with water base and solvent base ink series from us only. Trying to
use unapproved cartridges may damage the machine and void the warranty.
Login machine
Login by Wi-Fi hotspot using USB Wi-Fi module.
•Insert the USB Wi-Fi module to USB connector port.
•Insert the Power supply.
•Power on the machine. The boot time to complete about 40 seconds.
•The Beep sound and Alarm beacon to confirm boot completed.
•By default for USB connector port is Wi-Fi Hotspot:
oSSID: DL100_XX
oPassword: dlioj@100 (Please change the password hotspot for security)
•Connect the Smartphone or PC to Wi-Fi hotspot.
•Login the machine by default username and password:
oIP default:192.168.100.10
oUsername: Admin (password: dl@admin)
oUsername: Operator (password: dl@operator)
oUsername: Viewer (password: dl@viewer)
•Please change the Admin’s password for security. Admin can add more user.

USER MANUAL V2.0| Updated 01-Aug-201718
By PC Web Browser using Wi-Fi hotspot (Chrome, Firefox, Opera, Safari).
By Smartphone using the Android Application or iOS Application.

USER MANUAL V2.0| Updated 01-Aug-201719
Login by PC Web browser using RJ45 LAN connector.
•PC static IP address setup.
•Insert the Power supply.
•Connect PC RJ45 gate to RJ45 LAN connector by cable.
•Power on the machine. The boot time to complete about 40 seconds.
•The Beep sound and Alarm beacon to confirm boot completed.
•Login the machine by default username and password:
oIP default:192.168.80.180
oUser name: Admin (password: ioj@admin)
oUser name: Operator (password: ioj@operator)
oUser name: Viewer (password: ioj@viewer)
•Please change the Admin’s password for security. Admin can add more user.

USER MANUAL V2.0| Updated 01-Aug-201720
Design print template by PC Web browser
Login by Web browser
Menu interface
