Murata LBEE5HY2DU User manual

WLAN+Bluetooth Module User Manual
Part Number: LBEE5HY2DU
LBEE5HY2DU has been FCC/ISED certified as Single Modular Approval with the following IDs.
FCC ID: VPYLB2DU IC: 772C-LB2DU
The module is limited to OEM installation ONLY. The OEM integrator is responsible for ensuring that the end-user
has no manual instruction to remove or install module.
Therefore, the final host product must be submitted to Murata for confirmation that the installation for the
module into the host is in compliance with regulations of FCC and IC Canada. Specially, if an antenna other than
the model documented in the Filing is used, a Class 2 Permissive Change must be filed with the FCC.
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate
the equipment.
This module has been approved by FCC to operate with the antenna types with the maximum permissible gain
indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device. The following antennas have been certified in combination
with the module. Refer to next pages for the antenna application guidance.
▪PCB antenna with peak gains of +0.1dBi (2.4GHz) and -0.4dBi (5GHz);

Antenna Application Guidance –PCB antenna
Contact Murata for the design file of the PCB antenna pattern

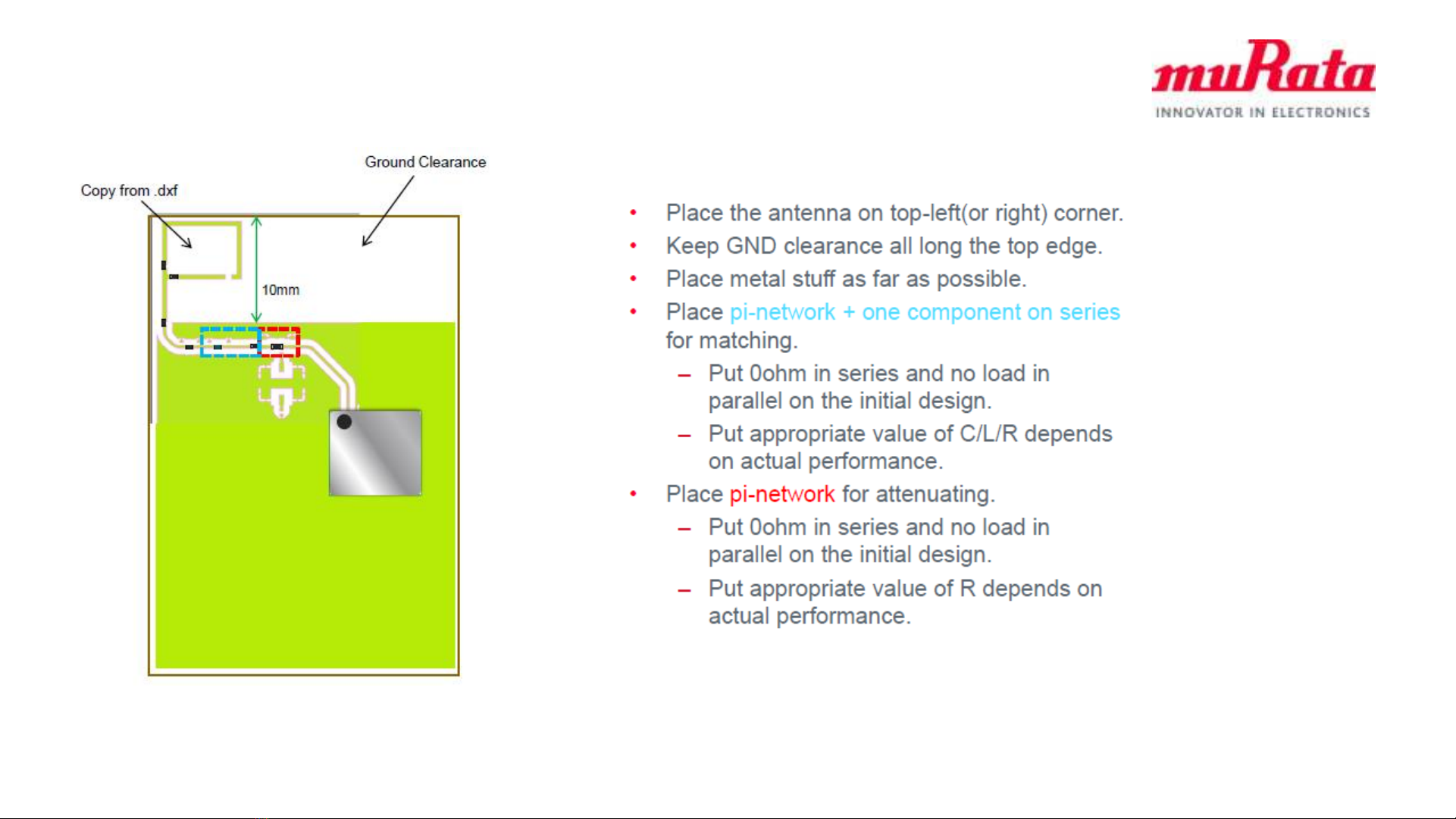

Antenna Application Guidance –PCB antenna (cont.)

FCC Statements
Please take attention that changes or modification not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Please notice that if the FCC identification number is not visible when the module is installed inside another device,
then the outside of the device into which the module is installed must also display a label referring to the enclosed
module. This exterior label can use wording such as the following: “Contains FCC ID: VPYLB2DU” any similar wording
that expresses the same meaning may be used.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC Statements (cont.)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help

FCC Statements (cont.)
The device must be professionally installed The intended use is generally not for the general public. It is generally for industry/commercial
use.The connector is within the transmitter enclosure and can only be accessed by disassembly of the transmitter that is not normally
required. the user has no access to the connector. Installation must be controlled. Installation requires special training This module has been
assessed against the following FCC rule parts: CFR 47 FCC Part 15 C (15.247, DTS and DSS) and CFR 47 FCC Part 15 E (NII). It is
applicable to the modular transmitter。
This radio transmitter FCC ID:VPYLB2DU has been approved by Federal Communications Commission to operate with the antenna types
listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the
maximum gain indicated for any type listed are strictly prohibited for use with this device.
The concrete contents to check are the following three points.
１) Must use antenna such PCB antenna (with gain not exceeding +0.1dBi at 2.4GHz & -0.4dBi at 5GHz) ;
２) Should be installed so that the end user cannot modify the antenna;
３) Feed line should be designed in 50ohm
Fine tuning of return loss etc. can be performed using a matching network.
L'émetteur radio FCC id: VPYLB2DU a été approuvé par la FCC
Utilisez les types d'antennes énumérés ci - dessous et indiquez le gain maximal admissible. Le gain du type d'antenne non inclus dans cette
liste est supérieur au gain maximal de l'un des types énumérés et ne doit pas être utilisé avec cet équipement.
Le contenu spécifique de l'inspection comprend les trois points suivants.
1) Une antenne dont le gain ne dépasse pas +0.1dBi (2.4GHz) and -0.4dBi (5GHz)
2) Doit être installé là où l'utilisateur final ne peut pas modifier l'antenne;
3) La ligne d'alimentation doit être conçue pour 50 ohms
Le réseau correspondant peut être utilisé pour affiner la perte de retour, etc.

IC Statements
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type
and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par
Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres
utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée
équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication
satisfaisante.

IC Statements (cont.)
This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between the
radiator & your body.
ce matériel est conforme aux limites de dose d'exposition aux rayonnements, FCC / CNR-102 énoncée
dans un autre environnement.cette eqipment devrait être installé et exploité avec distance minimale de
20 entre le radiateur et votre corps.
Please notice that if the IC identification number is not visible when the module is installed inside another
device, then the outside of the device into which the module is installed must also display a label referring
to the enclosed module. This exterior label can use wording such as the following: “Contains IC: 772C-
LB2DU” any similar wording that expresses the same meaning may be used.
Notez que si le numéro d'identification IC n'est pas visible lorsque le module est installé dans un autre
appareil, une étiquette indiquant le module attaché doit également être affichée à l'extérieur de l'appareil
où le module est installé. L'étiquette extérieure peut être libellée comme suit: « contient IC: 772C-LB2DU
» toute expression similaire qui exprime le même sens.

IC Statements (cont.)
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems;
For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350
MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;
For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850
MHz shall be such that the equipment still complies with the e.i.r.p. limits as appropriate;
Les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour uneutilisation à
l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux;
Le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et5 470-5 725 MHz
doit se conformer à la limite de p.i.r.e.;
Le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 MHz)doit se conformer à la
limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas.

IC Statements (cont.)
This radio transmitter 772C-LB2DU has been approved by Innovation, Science and Economic Development Canada to operate with
the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a
gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
The concrete contents to check are the following three points.
１) Must use antenna such as PCB antenna (with gain not exceeding +0.1dBi at 2.4GHz & -0.4dBi at 5GHz) ;
２) Should be installed so that the end user cannot modify the antenna;
３) Feed line should be designed in 50ohm
Fine tuning of return loss etc. can be performed using a matching network.
Le présent émetteur radio 772C-LB2DU a été approuvé par Innovation, Sciences et Développement économique
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les
types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué pour tout type
figurant sur la liste, sont strictement interdits pour l'exploitation de l'émetteur.
Le contenu concret à vérifier sont les trois points suivants.
１) doit utiliser une antenne comme PCB gain n'excédant pas +0.1dBi(2.4GHz) & -0.4dBi(5GHz)
２) doivent être installés de façon que l'utilisateur final ne peut pas modifier l'antenne
３) La ligne d’alimentation doit être conçue en 50ohm
Le réglage précis de la perte de rendement, etc. peut être effectué en utilisant un réseau correspondant.

Notice to OEM integrator
Must use the device only in host devices that meet the FCC/ISED RF exposure category of mobile, which means the device is
installed and used at distances of at least 20cm from persons. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
The end user manual shall include FCC Part 15 /ISED RSS GEN compliance statements related to the transmitter as show in this
manual(FCC/ICanada statement). Host manufacturer is responsible for compliance of the host system with module installed with
all other applicable requirements for the system such as Part 15 B, ICES 003. Host manufacturer is strongly recommended to
confirm compliance with FCC/ISED requirements for the transmitter when the module is installed in the host.
Must have on the host device a label showing Contains FCC ID: VPYLB2DU，IC: 772C-LB2DU
The use condition limitations extend to professional users, then instructions must state that this information also extends to the
host manufacturer’s instruction manual.
This module is stand-alone modular. If the end product will involve the Multiple simultaneously transmitting condition or
different operational conditions for a stand-alone modular transmitter in a host, host manufacturer have to consult with module
manufacturer for the installation method in end system. Any company of the host device which install this modular should
perform the test of radiated & conducted emission and spurious emission etc. according to FCC Part 15C: 15.247 and 15.209 &
15.207, 15B class B requirement, only if the test result comply with FCC part 15C: 15.247 and 15.209 & 15.207, 15B class B
requirement. Then the host can be sold legally.
This modular transmitter is only FCC authorized for the specific rule parts ( 47CFR Part 15.247 and 15.407) listed on the grant, and
that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the
modular transmitter grant of certification. Host manufacturer is strongly recommended to confirm compliance with FCC/ISED
requirements for the transmitter when the module is installed in the host. Must have on the host device a label showing Contains
FCC ID: VPYLB2DU and Contains IC: 772C-LB2DU

Notice to OEM integrator (cont.)
l'hôte doit utiliser l'instrument uniquement dans des dispositifs qui répondent à la fcc / (catégorie d'exposition rf mobile, ce qui
signifie le dispositif est installé et utilisé à une distance d'au moins 20 cm de personnes. le manuel de l'utilisateur final doit inclure
la partie 15 / (fac rss gen déclarations de conformité relatives à l'émetteur que de montrer dans ce manuel. le fabricant est
responsable de la conformité de l'hôte, le système d'accueil avec le module installé avec toutes les autres exigences applicables
du système comme la partie 15 b, ices - 003. accueillir le fabricant est fortement recommandé de confirmer la conformité avec les
exigences de la fcc / (émetteur lorsque le module est installé dans l'hôte. le dispositif d'accueil doivent avoir une étiquette
indiquant contient FCC ID: VPYLB2DU，IC:772C-LB2DU
