Shock Sensor Evaluation Module
Operating Manual
Edition 02
2015/5/13
Part Number
PKGX-14-4010

CONFIDENTIAL
2
1 Outline 3
1.1 Features 3
1.2 Application Example 4
1.3 Functional Block Diagram 4
1.4 Functional Block Layout Diagram 5
2 Evaluation Procedures 6
3 Electrical Specifications and Board Information 7
3.1 Input & Output Terminals 7
3.2 Electrical Specifications 8
3.3 Circuit Diagram 10
3.4 Bill of Material 11
3.5 External Dimension 12
3.6 Board Layout 13
4 Precautions 14
4.1 Precautions when in use 14
4.2 Other Precautions 14

CONFIDENTIAL
3
1 Outline
This document describes the evaluation module for the Piezo Ceramic Shock Sensor
(PKGS-25SXAP1-R) produced by Murata Manufacturing Co., Ltd. on its configuration, usage and other
information.
1.1 Features
The evaluation module is shipped with the required peripherals on the board and you can start
to evaluate the module easily to use Shock Sensor. The features of this evaluation board are:
-Able to evaluate easily the sensor by supplying power to the evaluation module.
-It is possible to detect acceleration in frequency band up to 1KHz.
-PKGS-25SXA P1-R Shock Sensor (1 axis of detection ) has been installed.
-Due to the compactness (16.8mm x 10.8mm x 3.55mm), it is easy to install the module in your
evaluation environment.
-The portions of sensor and circuits are shielded by countermeasure against external noise.
-With supplied connector, the connection between module and your equipment is easy.
-An output terminal, provided after the first stage amplifier, is used as an operability checkpoint.
-It is an analog output. As it is equipped with a comparator, the output of comparison result
against threshold value is also possible.
Fig. 1. Appearance of the Evaluation Module

CONFIDENTIAL
4
1.2 Application Examples
Below show some application examples that use this evaluation module.
1.Anti-thief Vibration Detection 2.Abnormal Motor Vibration Detection 3.Input Devices
Fig. 2. Application Examples
1.3 Functional Block Diagram
Fig. 3shows the functional block diagram of the evaluation module.
Fig. 3. Functional Block Diagram
Note 1: Refer to chapter 3.1 details about「I/O Terminal」

CONFIDENTIAL
5
1.4 Functional Block Layout Diagram
Fig. 4. shows a functional block layout of the evaluation module.
Fig. 4. Functional Block Layout Diagram
Comparator Circuit
Charge Amplifier
Circuit
Shock Sensor
Connector
(I/O terminal)

CONFIDENTIAL
6
2 Evaluation Procedures
The following shows an example of the evaluation procedures for using this evaluation module.
①Attach this module to the target of measurement.
(Usually at our company, we use the Double-side tape shown below. Note 2.)
<Reference>
Fig 5. Double-side Tape of Nichiban Co., Ltd
Note 2: Please put the Double-side tape in whole surface of back side evaluation module and put
uniformly-flat, in order that the acceleration which you want to get can transact to the evaluation module.
②Supply predefined voltage (e.g.3.3V) to the board through VCC and GND at I/O Terminal.
③When observing the waveform of the analog signal output, connect oscilloscope to AOUT .
When checking comparator circuit signal output, connect to COUT..
Fig. 6. Connection Diagram of Evaluation Module
④If necessary, attach the included shield cover. (Solder to the red frame of Diagram 6)
COMP_OUT
A_OUT
VCC
GND
AMP1
Oscilloscope

CONFIDENTIAL
7
3 Specifications & Board Information
The following show the electrical specifications and the board information of the evaluation module
when shipped..
3.1 Input & Output Terminals
Fig. 7shows detailed information of input-output terminals (I/O Terminal) on the evaluation
module.
Fig. 7. Appearance of Input-Output Terminals
Table 1. I/O Terminal List
Symbol Wire
Color Description
COMP_OUT Green Comparator Output Terminal of Sensor (after signal amplification).
Output is HIGH when detected. Output is LOW when not detected.
A_OUT Blue Analog Output Terminal of Sensor (after signal amplification).
VCC Red The Power Supplying Terminal of Evaluation Module.
GND Black The Ground Terminal of Evaluation Module.
AMP1 Yellow Analog Output Terminal of Sensor (after first stage amplification).

CONFIDENTIAL
8
3.2 Electrical Specifications & Mechanical Specifications
The following shows the electrical and mechanical specifications of this evaluation module.
Table 2. Electrical Specifications
※Unless otherwise specified, temperature of measurement is 25ºC and supply voltage is 3.3V
Parameters Value Unit
Min. Typ. Max.
Operating Temperature Range -40 - 85 ℃
VCC Input Voltage Range 2.5 - 5.0 V
A_OUT Output Voltage Range 0.0 - VCC V
COMP_OUT Output
Voltage Range
When detected - - VCC V
When not detected 0.0 - - V
Reference Voltage T.B.D 1.65 T.B.D V
Gain
Charge AMP 13.9 dB
AMP 2 9.6 dB
AMP 3 35.0 dB
Cutoff
frequency(-3dB)
HPF 1 106 Hz
HPF 2 106 Hz
LPF 1 2340 Hz
LPF 2 2340 Hz
LPF 3 1061 Hz
Comparator Threshold Value 2.24 V
Current Consumption (Note 3) 1.55 mA
Note 3: Current Consumption is depending on Current Consumption of OP-AMP and Current
Consumption generated of Reference Voltage portion.

CONFIDENTIAL
9
Table3. Mechanical Specifications
※Unless otherwise specified, temperature of measurement is 25ºC and supply voltage is 3.3V
Parameters Value Unit
Min. Typ. Max.
Circuit Sensitivity T.B.D 0.35 T.B.D V/G
Sensor Resonance Frequency 21 27 kHz
Number of Axis 1
Inclination Angle of Sensor Shaft 24 25 26 °
Fig 8. Inclination of Shock Sensor Shaft (PKGS-25SXAP1-R)
Axis D : This axis (Inclination) is an acceleration applied direction, when electric charge sensitivity is
checked. It tolerance is within ±1º.
Electrode B
Electrode A
Polarity marking
Z
Y
X
25±1°
D

CONFIDENTIAL
10
Vcc
3.3
AC {G} 0
Rser=0
V1
IC2-1
C1
150p
R1
10MEG
R3
1MEG
R2
330K
C3
68p
C4
100n
R4
15K
IC2-2 R6
10k
IC1
R7
100k
R8
100k C6
100n
15000p
C2
R9
390k
R10
820K
C7
100n
IC3
C5
82p
R5
820k
Vcc
Input Vcc
IC2-1_OUT
Sensor_Output
Vcc Analog_Output
Vcc
Vcc
Comparator_Output
Vref
Vcc
.ac oct 100 1 50k
.params G=1
OPA2376AIYZDT1/2
Vos = 25uVmax.
Ib= 10pAmax.
GBW= 5.5MHz
Low Noise 7.5nV
IQ=950uA* 2
Rail toRail Vref=2.24V
OPA2376AIYZDT
2/2 BU7275HFV
IDD=1.2uAmax.
Full Swing
Gain=56
LPF2, Fc =2.3KHz
LPF 3,
Fc =1.06KHz
HPF, Fc = 106Hz
U1
3.3 Circuit Diagram
Following shows the circuit diagram of evaluation module.
Fig 9. Circuit Diagram
(Formulas Descriptions)
Charge AMP = 20log10 (Cf/C1) [dB] (In case of PKGS-25SXA、Cf=740pF)
AMP2 = 20log10 (R3/R2) [dB]
AMP3 = 20log10 (R5/R4) [dB]
HPF1 = 1/(2×π×C1 ×R1) [Hz]
HPF2 = 1/(2×π×C4 ×R4) [Hz]
LPF1 = 1/(2×π×C3 ×R3) [Hz]
LPF2 = 1/(2×π×C5 ×R5) [Hz]
LPF3 = 1/(2×π×C2 ×R6) [Hz]

CONFIDENTIAL
11
Below is the simulated frequency response curve of above circuitry (Fig.9).
Fig 10. Frequency Response Curve of PKGX-14-4010
Note 4: This Frequency Response Curve serves as referencing purpose only. In this simulation, the
frequency response ranges from 133 Hz to 1,080 KHz (-3dB points). Actual frequency response curve
varies according to the actual characteristics of circuitry and components.
1Hz 10Hz 100Hz 1KHz 10KHz
-88dB
-80dB
-72dB
-64dB
-56dB
-48dB
-40dB
-32dB
-24dB
-16dB
-8dB
0dB V(analog_output)

CONFIDENTIAL
12
3.4 Bill of Material
The following show the bill of materials of the evaluation module when shipped.
Ref. Mfg. Part No. Description
C1 Murata GRM0332C1H151JA01 capacitor, 150pF
C2 Murata GRM033C80J153KE01 capacitor, 15nF
C3 Murata GRM0332C1H680JA01 capacitor, 68pF
C4 Murata GRM033C80G104KE19 capacitor, 100nF
C5 Murata GRM0332C1H820JA01 capacitor, 82pF
C6 Murata GRM033C80G104KE19 capacitor, 100nF
C7 Murata GRM033C80G104KE19 capacitor, 100nF
CN1 JST SM05B-SRSS-TB(LF) (SN) Connector
IC1 General BU7205HFV-TR Op-Amplifier
IC2 General OPA2376AIYZDT Op-Amplifier
IC3 General BU7275HFV-TR Op-Amplifier
R1 KOA RK73B1HTTCM106J resistor, 10M
R2 KOA RK73B1HTTCM334J resistor, 330K
R3 KOA RK73B1HTTCM105J resistor, 1M
R4 KOA RK73B1HTTCM153J resistor, 15K
R5 KOA RK73B1HTTCM824J resistor, 820K
R6 KOA RK73B1HTTCM103J resistor, 10K
R7 KOA RK73B1HTTCM104J resistor, 100K
R8 KOA RK73B1HTTCM104J resistor, 100K
R9 KOA RK73B1HTTCM394J resistor, 390K
R10 KOA RK73B1HTTCM824J resistor, 820K
U1 Murata PKGS-25SXAP1-R Shock Sensor
Table 4. Bill of Material

CONFIDENTIAL
13
3.5 External Dimensions
The outline dimensions of the evaluation module are shown in the drawing below.
Table 5. External Dimensions
External Dimensions（Length × Width × Height）[mm]
16.8×10.8×4.0

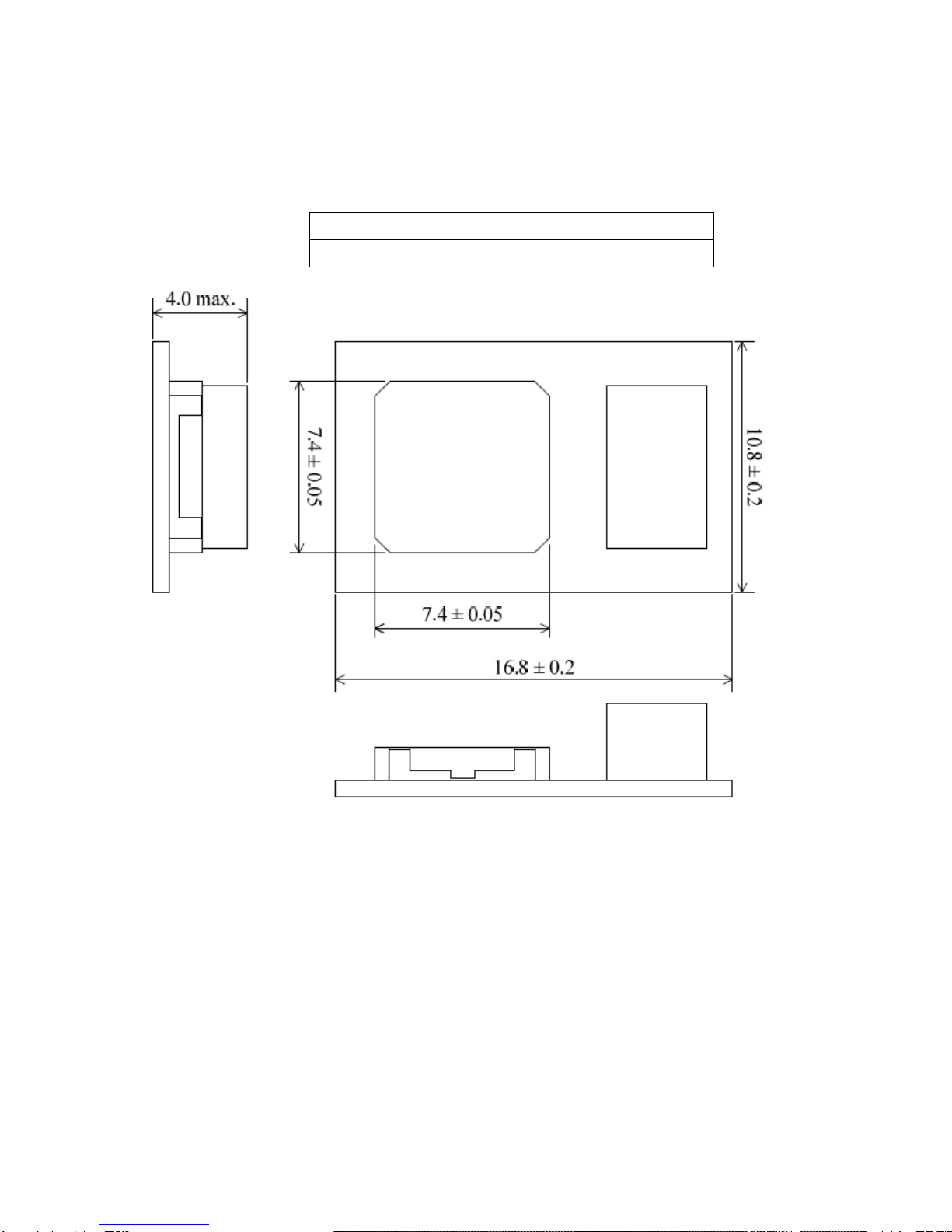

Fig11. External Dimension Drawing
Note 4. The height of Connector’s portion is 3.55mm.
Connector

CONFIDENTIAL
14
3.6 Board Layout
The following shows the board layout of this evaluation module.

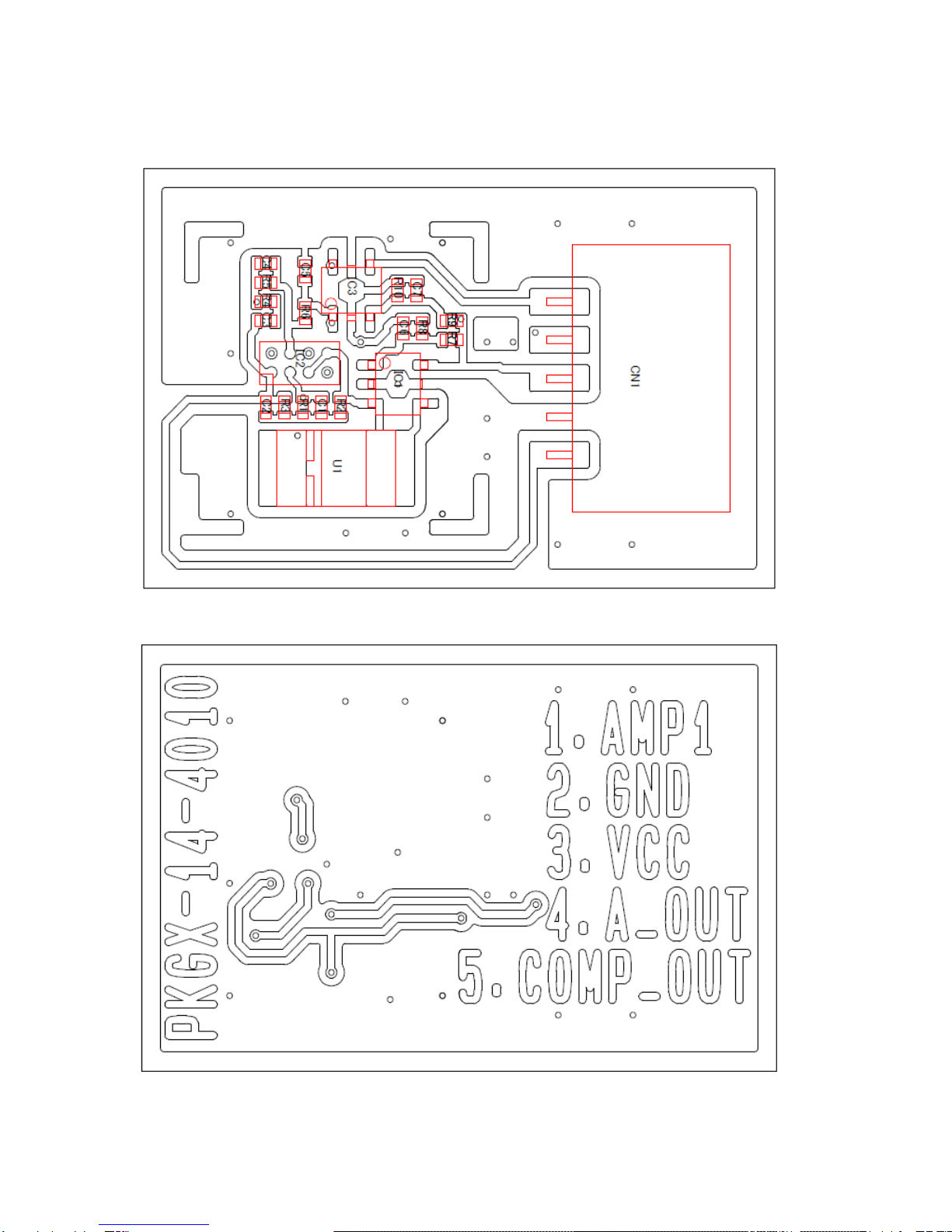

Fig 11. Board Layout (Top Copper Layer)
Fig 12. Board Layout (Bottom Copper Layer)

CONFIDENTIAL
15
4.Precautions
4.1 Precautions when in use
-This evaluation module cannot detect gravitational acceleration and free fall.
-Please take off direct sunlight and moisture during storage of this evaluation module. There is a
possibility of corrosion on the connector.
-Due to change of atmospheric pressure, the characteristics of this evaluation module may change.
Please do not use in conditions where atmospheric pressure is vastly different from ground level (e.g.
vacuum and water etc).
-Please do not store the evaluation module in environments which is exposed to dust, oil, corrosive
gases, acid and alkaline.
-When exposed to sudden changing temperature, this evaluation module may extemporarily generate
output even when there is no applying acceleration. The output is affected by different conditions of
stress and individual differences of sensor. Please evaluate deeply influence of temperature change
which you expect by your set.
-Depending on the environment of usage, is evaluation module may be susceptible to external
electrical noise. In this case, please use the shield cover provided for noise reduction.
-Mounting of provided shield cover on this evaluation module will be performed by users as needed.
Please be extreme caution not to cause short circuit during the installation of shielding.
-This evaluation module detects acceleration that is transmitted through your housing and your
mounting board. Please use this module after considering characteristics of mechanical acceleration
transmission in your set deeply.
-Depending on the mounting conditions of the evaluation module internal resonance of set and
interferences from inherited frequencies of each component, there is a possibility that acceleration is
not transmitted from this product as intended by user.
4.2 Other Precautions
This document and evaluation module shall not;
・-be used for other purpose than the purpose for evaluation of Murata’s sensor products,
・-be disclosed, transferred and/or lent to third party,
・-be copied, reproduced and published.
・WE HEREBY DISCLAIM FROM ANY AND ALL WARRANTIES FOR THIS DOCUMENT
THIS EVALUATION BOARD, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT
MITATION ANY WARRANTY OF DESIGN, MERCHANTABLITY, FITNESS FOR A
RTICULAR PURPOSE, OR AGAINST INFRINGEMENT OF INTELLECTUAL PROPERTY
RIGHTS

CONFIDENTIAL
16
・We SHALL NOT BE LIABLE FOR ANY DAMAGES OR LOSSES, INCLUDING CLAIMS ON A THIRD
PARTY, ARISING OUT OF OR RELATING TO THE USE OF THIS DOCUMENTAND EVALUATION
BOARD
・It is the user’ s responsibility for any changes to circuit. Any change related activities to the circuit will
result a void in warranty.
