Murata LBUA5QJ2AB User manual

UWB+BLE Module User Manual
Part Number: LBUA5QJ2AB
LBUA5QJ2AB has been FCC/ISED certified as Single Modular Approval with the following IDs.
FCC ID: VPYLB2AB IC: 772C-LB2AB
The module is limited to OEM installation ONLY. The OEM integrator is responsible for ensuring that the end-user
has no manual instruction to remove or install module.
Therefore, the final host product must be submitted to Murata for confirmation that the installation for the
module into the host is in compliance with regulations of FCC and IC Canada. Specially, if an antenna other than
the model documented in the Filing is used, a Class 2 Permissive Change must be filed with the FCC.
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate
the equipment.
This module has been approved by FCC to operate with the antenna types with the maximum permissible gain
indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device. The following antennas have been certified in combination
with the module. Refer to next pages for the antenna application guidance.
(a) TWR/TDoA antenna for UWB with peak gains of 3.9dBi (channel 5) and 2.8dBi (channel 9);
(b) AoA/PDoA antenna for UWB with peak gains of 1.8dBi (channel 5) and -1.5dBi (channel 9);
(c) PCB antenna for BLE with a peak gain of -4.7dBi;

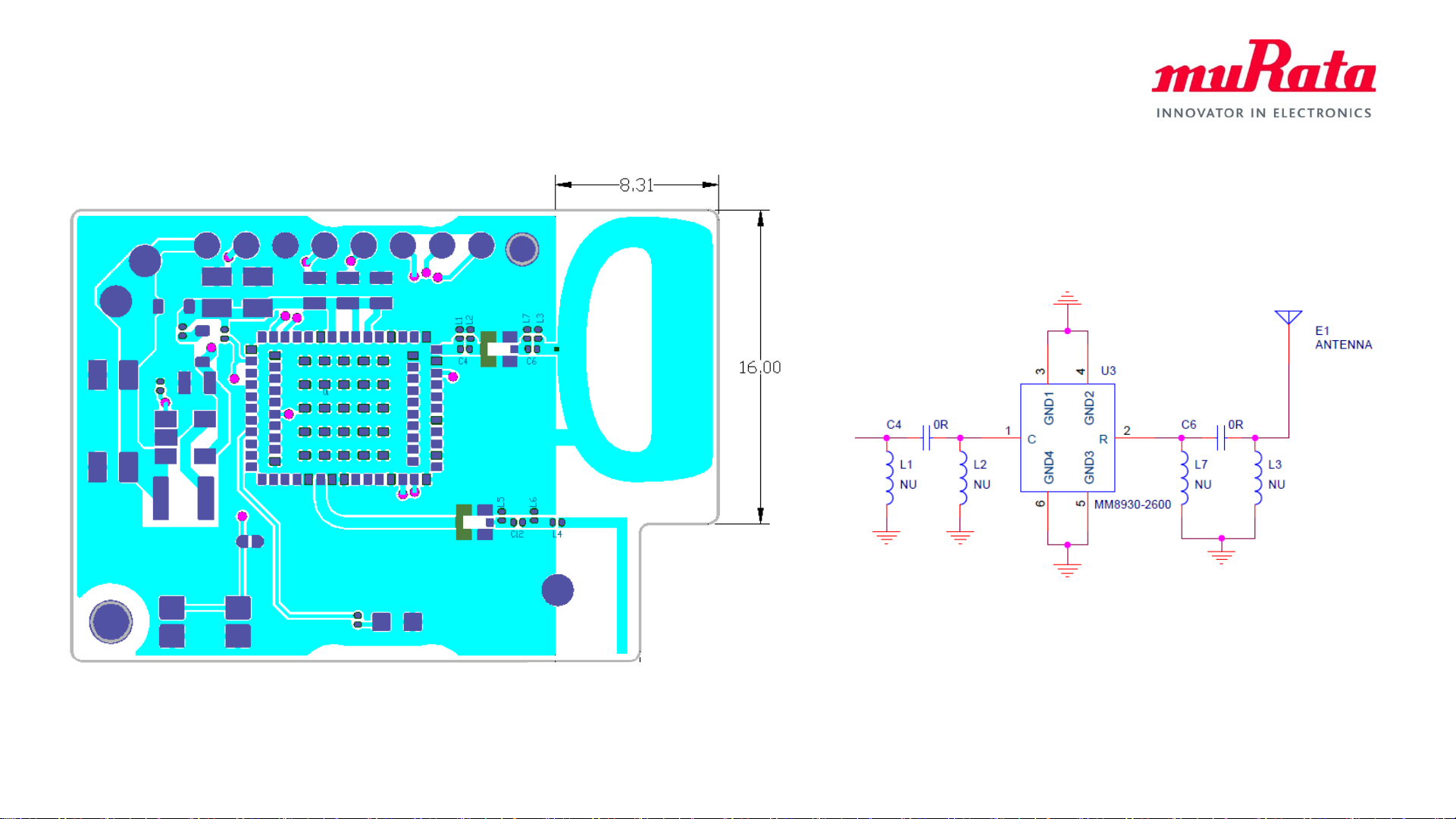

Antenna Application Guidance_ TWR/TDoA antenna
Refer to js-0977-type 2cutag_antenna.dwg for antenna pattern.
Contact Murata for the design file.

Antenna Application Guidance_ AoA/PDoA antenna
Refer to js-0958_2ab certification board_pdoa_antenna.dxf for antenna pattern.
Contact Murata for the design file.
Top Bottom

Antenna Application Guidance_ PCB antenna for BLE
Refer to js-0977-type 2cutag_antenna.dwg for antenna pattern.
Contact Murata for the design file.

Guidance to host product manufacturer
Module has professional users use condition limitations, Host product manufacturer please ensure giving such
warning like “Product is limited to professional users use” in your product’s instruction.
Unique antenna connector must be used on our Part 15 authorized transmitters used in the host product. Contact
Murata for a list of acceptable unique connectors.
Any deviation(s) from the defined parameters of the antenna trace, as described by this instruction, host product
manufacturer must notify us that you wish to change the antenna trace design. In this case, a Class II permissive
change application is required to be filed by us, or you (host manufacturer) can take responsibility through the
change in FCC ID and IC ID (new application) procedure followed by a Class II permissive change application.

FCC&IC regulatory compliance statement
§15.19 Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
§15.21 Information to user
Warning: changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
RF Exposure compliance statement
This Module complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20cm between the radiator and your
body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Labelling Instruction for Host Product Integrator
Please notice that if the FCC and IC identification number is not visible when the module is installed inside
another device, then the outside of the device into which the module is installed must also display a label referring
to the enclosed module. For FCC, this exterior label should follow “Contains FCC ID: VPYLB2AB”. In accordance
with FCC KDB guidance 784748 Labeling Guidelines. For IC, this exterior label can use wording
“Contains IC: 772C-LB2AB”.

FCC&IC regulatory compliance statement (cont.)
§ 15.19 Labelling requirements shall be complied on end user device.
Labelling rules for special device, please refer to § 2.925, § 15.19 (a)(5) and relevant KDB publications. For E-
label, please refer to § 2.935.
Installation Notice to Host Product Manufacturer
The OEM integrator is responsible for ensuring that the end-user has no manual instruction to remove or install
module.
The module is limited to installation in mobile application, a separate approval is required for all other operating
configurations, including portable configurations with respect to §2.1093 and difference antenna configurations.
Antenna Change Notice to Host manufacturer
If you desire to increase antenna gain and either change antenna type or use same antenna type certified, a Class
II permissive change application is required to be filed by us, or you (host manufacturer) can take responsibility
through the change in FCC ID (new application) procedure followed by a Class II permissive change application.
FCC other Parts, Part 15B Compliance Requirements for Host product manufacturer
This modular transmitter is only FCC authorized for the specific rule parts listed on our grant, host product
manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the
modular transmitter grant of certification.

FCC&IC regulatory compliance statement (cont.)
This device is approved under Part 15.519 for handheld use.
The use of antennas mounted on outdoor structures, e.g., antennas mounted on the outside of a building or on a telephone pole, or any
fixed outdoors infrastructure is prohibited.Antennas may be mounted only on the hand held UWB device.
UWB devices may not be employed for the operation of toys. Operation onboard an aircraft, a ship or a satellite is prohibited.
Host manufacturer in any case shall ensure host product which is installed and operating with the module is in compliant with Part 15B
requirements.
Please note that For a Class B or Class A digital device or peripheral, the instructions furnished the user manual of the end-user product
shall include statement set out in §15.105 Information to the user or such similar statement and place it in a prominent location in the
text of host product manual. Original texts as following:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency en
ergy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a part
icu
lar installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correc
t the interference by one or more of the following measures:
—
Reorient or relocate the receiving antenna.
—
Increase the separation between the equipment and receiver.
—
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—
Consult the dealer or an experienced radio/TV technician for help.
Note
: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection
against
harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in
accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case
the
user will be required to correct the interference at his own expense.
For Class B
For Class A

IC Statements
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type
and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément àla réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvépour l'émetteur par
Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres
utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée
équivalente (p.i.r.e.) ne dépasse pas l'intensiténécessaire à l'établissement d'une communication
satisfaisante.

IC Statements (cont.)
This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between the
radiator & your body.
ce matériel est conforme aux limites de dose d'exposition aux rayonnements, FCC / CNR-102 énoncée
dans un autre environnement.cette eqipment devrait être installéet exploitéavec distance minimale de
20 entre le radiateur et votre corps.
When the Industry Canada certification number is not visible when the module is installed inside another
device, then the outside of the device into which the module is installed must also display a label referring
to the enclosed module. This exterior label can be use wording ”Contains transmitter module IC: 772C-
LB2AB”or “Contains IC: 772C-LB2AB”.
