N&W Global Vending Colibri User manual

Quick Reference Guides

Programming Instruction Manual
CONTENTS
• Colibri
• Kikko
• Brio 250
• Piccolo Mattino
• Impresso duo
• Gran Mattino
• 5100
• 5300
• Snakky
• Mariner
• Astro
• Spazio P
• Spazio LX (round door)
• Spazio
• Zenith
• Spring & Dual
• Smart
• Starfood
• Zeta

COLIBRI Quick Reference Guide
• Open Door
• Insert Service Key
• Program button is located inside main door, right hand button.
• When pressing program button leave a two second gap between each press.
------------------------------------------------------------------------------------------------------------------------------
Reset Failures
• Press program button twice, (Present Failures)
• Press button 6 and faults will be displayed or press button 8 to reset faults.
------------------------------------------------------------------------------------------------------------------------------------------
Statistics
• Press the program button once, (Statistics).
• Press button 6 (Statistics Display)
• Press button 6 (button 1 P= 00000) Scroll between P=PAY G=GRATIS/FREE T=TEST
------------------------------------------------------------------------------------------------------------------------------------------
Set Prices
• Press the program button twice, (Present Faults) scroll to (Set Prices).
• Press button 6 (Price 1=0010) (if price one is set to 0000 the machine will be set to free
vend).
• Press change data (Price 1=0000 FLASHING).
• Press buttons 1or 5 to scroll to required price.
• Press button 6 to confirm price change.
SetPrice/Buttons
• Press button 6 (Set Price/Selection).
• Press button 6 (button 1=ON)
• Press button 6 (Price 1).
• Press button 7 (price 1 flashing) a price can now be selected (from 1-8) from the set prices
menu. `
In programming mode the Colibri buttons have the following functions:
1 Scroll up/increase data
1 5
2 Exit function/cancel change
5 Scroll Down/decrease data 2 6
6 Enter button/confirm change
3 7
7 Change data item
8 Reset Failures Button 4 8
To exit the program power the machine down

Kikko Quick Reference Guide
• Open Door
• Insert Service Key
• To enter the program press the program button located on the inside of the main
door.
(-) scroll scroll (+)
Enter
Exit
Statistics
• Press program button once (Statistics).
• Press enter, scroll to (display statistics).
• Press enter (Dis Sel Count).
• Press enter (Single count). Scroll to (Total count) and press enter.
• Press enter, scroll through each selection taking readings.
------------------------------------------------------------------------------------------------------------------------------------------
Failures
• Press the program button once.
• Press Exit button, (Failures).
• Press enter (Read Failures) Press enter to read.
• Then scroll to reset failures.
• Press enter to reset any failures.
-------------------------------------------------------------------------------------------------------------------------------------------
Prices
• Press the program button once (Statistics).
• Press Exit (Present Failures) Scroll to (set parameters).
• Press enter (cash).
• Press enter scroll to (single price).
• Press enter (Price Band 0)(0= being the normal price band).
• Press enter price flashing.
• Change price and press enter to confirm change.
Press the program button to exit the program

BRIO 250 Quick Reference Guide
• Open Door
• Insert Service Key
• Program button located inside inner door next to cup dropper,(Button on bottom of
circuit board).
• When pressing the program button leave a two second gap between each press.
Present failures
• Press program button twice. (present failures).
• Press button 2 to read any faults,
• To reset any problems press button number 4
------------------------------------------------------------------------------------------------------------------------------------------
Set Prices
• Press the program button twice (Present Failures) press + (Set Prices).
• Press button 2 (Price 1=0010) (if price one is set to 0000 the machine will be set to free
vend).
• Press button 3 and select the correct price.
• Press button 2 to confirm change.
Set Price/Select
• Press the program button twice (Set Price/Selection).
• Press button 2 (Button 1= A)
• Press button 2 (price 1),
• Press Button 3 scroll to the required price (1-8).
• Press button 2.
_
+
1
Statistics
• Press program twice (Present Faults). 2
• Press button 8 to display Statistics,
• Use the + or - buttons to take the readings required.
3
P = Pay G = Gratis/Free T = Test
The selection buttons on the front have the following direct functions
1. EXIT 4
2. ENTER
3. CHANGE DATA
4. RESET FAILURES 5
5. INSTALLATION
6. RESET STATISTICS
7. PRINT STATISTICS 6
8. DISPLAY STATISTICS
7
To exit the program Power machine down
8

PICCOLO MATTINO Quick Reference Guide
• Open Door
• Program button is button A on the selection panel
• Press the program button twice in quick succession.
RESET
FAILURES
RESET
STATS
B
A
DISPLAY
STATS
PRINT
STATS
C
D
E
A = Change data
B = Previous function or increase data
C = Next function or decrease data
D = Delete data or exit function
E = Confirm data or confirm function
With Present Faults on the display, the buttons indicated above are assigned direct functions.
Present Failures
• Press button Atwice in quick succession (Password and enter 1111)(Maintenance).
• Press button C(Programming)
• Press button E(Present Faults).
• Press button Eto read or reset button to clear.
-------------------------------------------------------------------------------------------------------------------------------------------
Statistics
• Press button Atwice in quick succession (Password enters 11111)(Maintenance)
• Press C (Programming)
• Press E (Present Failures)
• Press the Display Stats button (Statistics 1)
• Press Cto scroll through selections
Power machine down to exit the program

Impresso Duo Quick Reference Guide
• Open Door
• Insert service key
• To enter the program press the P button twice in quick succession then enter the
password required.
1 2 3 4
DISPLAY p
5 6 7 8 J
S
9 10 11 12
Statistics
Enter the following password 55555 (Washing)•
•
•
•
Press button P (View Counters)
Press button 8 (Total = XXXX)
Use the P button to scroll through each section.
Flush
Enter the following password 55555 (washing)•
• Press button 8 (machine will now flush).
Reset Failures
Enter program (password 42314)•
•
•
Press P (Failures)
With Failures on the display press button 2 on the selection panel to reset.
To exit the program power the machine down

GRAN MATTINO Quick Reference Guide
2 3 4
1
5 6 7 8
10 11 12
A = Change data 1 = Coffee Boiler Installation
B = Previous function or Scroll up 2 = Reset Failures
C = Next function or Scroll down 3 = Reset Statistics
D = Delete data or exit function 5 = Display Statistics
E = Confirm data or confirm function 6 = Print Statistics
Reset Failures
• Press button A twice in quick succession (Password = 11111)(Maintenance).
• Scroll to Programation and press button E(Powder Dose).
• Press button 2 to reset failures.
-------------------------------------------------------------------------------------------------------------------------------------------
Statistics
• Press button Atwice in quick succession (Password = 11111)(Maintenance).
• Scroll to Programation and press button E(Powder Doses).
• Press button 5to display Statistics.
-------------------------------------------------------------------------------------------------------------------------------------------
Set Prices
• Press button Atwice in quick succession (Maintenance).
• Press B(Programation) and press E (Powder Dose).
• Press B (Set Price).
• Press E (Price 1=0010) (if price 1 is set to 0000 the machine will be set to free vend).
• Press Aand use button Bto select the correct price and press E.
Set Price/Select
• Scroll to Set Price/Selection.
• Press E(Button 1= ON)(Scroll 1-12).
• Press E(price 1=0010? Flashing)
• Scroll to price required, press E.
To exit the program power the machine down

5100 Quick Reference Guide
The four pre-selection buttons (at the top of the selection panel) are used to activate the
menus and their options:
DOWN BUTTON
STEP RIGHT BUTTON
DECREASE BUTTON
CLEAR OR UP BUTTON
INCREASE BUTTON
C
JUG
RETURN TO START OF MENU
Statistics
• Open the machine door (Total Count Menu)(NRES TOT: XXX = Non resetable)
(RES TOT:XXX = Resetable).
• To reset counters press the down button 4 times then step right once, press the Increase
button to reset the data.
• The display will then return to Total Counters.
Brewer Rinse
• Open main door (total sales).
• Press the step right button until the display shows Rinse down. Press down (brewer/Mixer.
• Press step right and close door.
• Press the +button and follow the instructions on the screen.
Set Prices
• Open the door (total sales).
• Press right until the (Basic Operation).
• Press down until (Price Info).
• Press step right button (Price Set).
• Press down button until the drink required is on the display then use the +or −buttons to
alter price.
• Then press the Jug button to exit the program and close the door.
To exit the program close the door and press the jug button

5300 Quick Reference Guide
• Open door
• Insert service key
• Program button is located on the inside of the main door marked MODE
When the machine is in programming mode the keypad buttons are assigned
the following functions:
1 2
3 4
5 6
7 8
9 0
Scroll − Scroll +
Exit Enter
Statistics
• Press the Mode button (Audit Mode).
• Press enter (View data)
• Press enter (Totals- Period).
• With Total – Period on the display
• press enter and you can know scroll through each selection.
Set Prices
• Press the Mode button (Audit Mode) press + (Supervisor Mode).
• Press enter (Adjust Ingredients) press + (Adjust Drink Prices)
• Press enter (Normal Prices).
• Press enter, you can know scroll to each selection and set the price.
To exit the program press the mode button

Snakky Quick Reference Guide
• Open Door
• Insert service key
• The program button is located inside coinage compartment in center of the
processor board
1 2 3
Statistics
• Press the program button (Statistics).
• Press the E button 4 5 6
• Press Otwice (Statistics Display).
• Press E (Selection Count Display).
7 8 9
• Press E (Count display by selection or Total Count Display).
• Press EYou can use the Obutton to view each selections.
O E C
--------------------------------------------------------------------------------------------------
Prices
• Enter the program (Statistics),
• Press C (Failures).
• Press O(Program Parameters)
• Press E(Cash)
• Press E (Prices)
• Press Ebutton. (Price Band O).
• Press Eto enter, (selection No 11flashing).
• Choose the selection to be priced and press the Ebutton.
• The program will automatically move to the next selection number.
---------------------------------------------------------------------------------------------------------------------------------------------------------
Failures
• Enter the program (Statistics),
• Press the Cbutton the (Failures).
• Press the E button and you have five options,
1. Failure Reading = Read any faults
2. Failure Reset = Reset any Faults
3. Motor Errors = Identify any motor faults
4. Motor Status = to read the last fault that occurred
5. Reset Motor Errors = to reset any motor faults
To use any of the above functions press the Obutton and the E button to confirm.
To exit the program power the machine down

MARINER Quick Reference Guide
• Open Door
• Insert service key
• Program button is located inside the main door marked Mode.
3
5
7
9
1
0
8
6
4
2
4
7
1
5
8
2
A
6
9
3
ENTER
N
EXT
+
O & PREVIOUS
& SPACE
STU VWX YZ
MNO PQRJKL
GHIDEFABC
B
CANCEL
KEYPAD MODEL

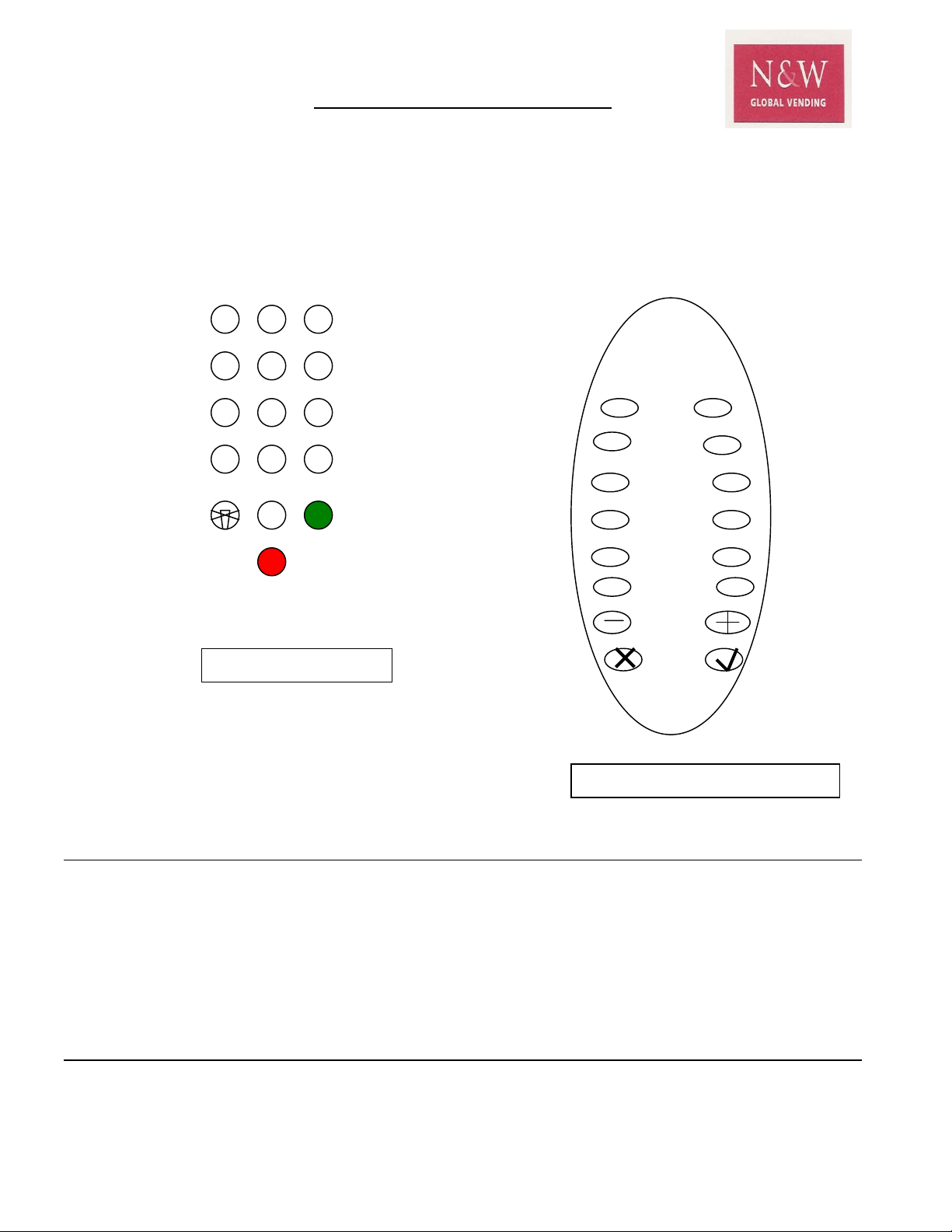

Statistics
• Press the mode button (Audit Mode).
DIRECT SELECTION MODEL
• Press enter (View Data).
• Press enter (Totals-Period or Cumulative).
• Press enter and scroll through each selection.
Prices
• Press the Mode button (Audit Mode).
• Scroll to Supervisor Mode.
• Press enter (Adjust Ingredients).
• Scroll to (Adjust Drink Prices).
• Press enter (Normal Prices),
• Press enter you can know set the prices for all drinks.
To exit the program press the Mode button

Astro Quick Reference Guide
• Open Door
• Insert Service Key
• To enter the program press the button on the inside of the coinage door.
Statistics
1 2 3
Press program button (Statistics).•
•
•
•
•
•
•
Press button E(Statistics printing)
Press button 8(statistics display) 4 5 6
Press button E(display selection counter)
Press button E(count display x selection)
7 8 9
Press button 8(display total counter)
Press button Ethen use button 8to scroll through selections.
O
E C
Reset Failures
Press program button (statistics)•
•
•
•
•
•
Press button C(present failures)
Press button E (read failures)
Press button 8(reset failures)
Press button E(display will read confirm)
Press button E( Working then change to Done)
Set Prices
Press program button (statistics)•
•
•
•
•
•
Press button 8(set prices)
Press button E(price band 0)
Press button E(make selection)
Use buttons 8&9 to scroll up or down to the price required
Press button Eto confirm the change
To exit the program press the button on the inside of the door

SPAZIO P Quick Reference Guide
• Open door
• Insert service key
• The program button is located inside the main door on the coinage compartment.
.
Scroll up
Set Prices
• Press program button twice (Present Failures).
• Scroll to (Set Prices).
• Press the enter button (PRICE 1=0010).
• Press the change data button to alter the price or
scroll to another price number (1-16).
Set Price/Selection
• Scroll to Set Price/Selection
• Press the enter button (Selection 17=A)
(A=Active D=Disabled).
• The display will show Price 1(know assign the
selection to a price set in the Set Prices section
and press enter).
-------------------------------------------------------------------------
Statistics
• Press the program button twice (Present Failures).
• Press Display Statistics button (Statistic 1).
• Use the scroll buttons to selection required
• Selection 1=P=0000. (P=pay F=free T=TEST)
-------------------------------------------------------------------------
RESET FAILURES
INSTALLATION
RESET STATISTICS
PRINT STATISTICS
DISPLAY STATISTICS
Change data
With reset failures on the display
Buttons within boxed line perform
di
rect functions
.
Scroll down
exit
enter
Current Failures
• Press the program button twice (Present Faults).
• Press the confirm button to read faults.
• Press the Reset Failure button.
To exit the program power the machine down

SPAZIO LX (RD)
• Open door
• Insert service key
• Program button is located inside main door on the coinage compartment
Current Failures
• Press the program button twice (Present Faults).
• Press Eto read faults.
• To reset the faults press the number 2button the keypad.
Set Prices
• Press program button twice (Present Failures).
• Press +(Set Prices).
• Press the Ebutton (PRICE 1=0010)
• Press the Obutton to alter the price(Flashing) then press E.
SetPrice/Selection
• Scroll to (Set Price/Selection). Press Ebutton (Selection 17=A) (A=Active D=Disabled).
• Press the Ebutton (Price 1)(know assign the selection to a price set in the Set Prices
menu 1-14)
Statistics
• Press the program button twice (Present Failures).
• Press button 3(Statistic 17=ON).
• Press E (Selection 17 P=0000)(P=pay F=free T=test).
• You can now use the +& -buttons for individual selection counts.
In programming mode the Spazio LX buttons have the following functions:
-= Scroll Back/decrease data
+ = Scroll Forward/increase data
0 = Change data
E = Enter
C = Delete data/exit function
In addition to the above, the following buttons perform the
direct functions:
1 = Installation
2 = Reset failures
3 = Display statistics
4 = Reset statistics
5 = Print statistics
+
-
1
4
5
2
3
6
8
7
9
0
E
C
To exit the program power the machine down

SPAZIO Quick Reference Guides
• Open door and insert service key
• The programming button is located inside the main door on the coinage
compartment.
Present Failures
• Press the program button twice (Present Failures).
• Press button 5to read Faults.
• Press button 3on the selection panel to delete any failures.
Set Prices
• Press the program button twice (Present Failures).
• Scroll to Set Prices.
• Press button 5 (PRICE 1=0010).
• Press the button 6to alter the price using the scroll buttons.
Set Price/Select
• Scroll to Set Price/Selection.
• Pressing button 5(Button 1 = on).
• Press button 5(Price 1).
• Press button 6and a price number can now be entered from 1-14 from the set price menu.
Statistics
• Press the program button twice (Failures).
• Press button 4 on the selection panel (Statistic 1) then change to (SEL N 1 P=0000).
• P=PAY G=GRATIS/FREE T=TEST
• You can know scroll through each selection to retrieve vend information.
In programming mode the Spazio buttons have the following functions:
Scroll down/decreas
edata
Scroll up/increase data
B
U
TT
ON
1 B
U
TT
ON
5
B
U
TT
ON
2 B
U
TT
ON
6
B
U
TT
ON
3
B
U
TT
ON
7
B
U
TT
ON
4 B
U
TT
ON
8
1 = Delete data/exit function 5 = Confirm function/confirm data item
2 = Installation 6 = Change data
3 = Failures reset 7 = Statistics reset
4 = Statistics display 8 = Statistics printout
To exit the program power the machine down

ZENITH Quick Reference Guide
• Open door and insert service key
• The programming button is located inside the main door on the coinage
compartment
Prices
• Press the program button once then the exit button (Present Failures).
• Press the scroll button (Program Parameters).
• Press enter (Cash).
• Press enter (Prices)
• Press enter (Set individual price).
• Press enter (band 0).
• Press enter (Selection Flashing).
• Use the scroll buttons to select the correct price and press enter to confirm change.
-------------------------------------------------------------------------------------------------------------------------------
Statistics
• Press the program button once (Statistics).
• Press enter button and scroll to (Statistics display).
• Press enter (Selection Count Display).
• Press enter and scroll to (Total Count Display)
• Press enter, you can know scroll through the selections for individual counts or a grand total.
----------------------------------------------------------------------------------------------------------------------------------------
Reset Failures
• Press the program button once then the exit button (Failures).
• Press enter choose between Read Failures and Reset Failures.
• Press enter Read Failures or scroll to Reset Failures and press enter to delete any failures.
Prime Syrups
• Press the Program button once then the Exit button (Present Failures).
• Scroll to Test and press enter (Complete Selection) and scroll to (Unit Control)
• Press enter (Press button Flashing).
• To prime Syrup 1 press the 5th button down on the left hand column and press enter.
• To prime Syrup 2 press the 5th button down on the center column and press enter.
SCROLLING KEYS to move to the previous or next menu.
Enter KEY to move from one menu to a sub menu or confirm the data on the display.
EXIT KEY to return from a sub menu to the higher level menu or to clear the data on
display.
To exit the program press the program button again

SPRING & DUAL Quick Reference Guide
• Open door
• To enter the program pull out top switch located under the vend bin tray on the
power box in the bottom right hand corner of the machine.
The front keypad of the Spring/Dual is used to enter and confirm data as follows:
1 2 3
4 5 6
7 8 9
0 E C
FORWARD = 0
ENTER = E
EXIT = C
Statistics
• With the top switch pulled out (Statistics)
• Press the Ebutton (Total Sales or Partial Sales)
• Select option and press enter then use the Obutton to scroll through each selection.
-------------------------------------------------------------------------------------------------------------------------------
Pricing
• With the top switch pulled out (Statistics).
• Press the Cbutton (Set Prices).
• Press the E button (Normal prices).
• Press E(Single price)
• Press Ethe selection number will flash, enter number then the price.
------------------------------------------------------------------------------------------------------------------------------
Failure
• Pull top switch out (Statistics).
• Press C button (Scroll To failures)
• Press E then choose one of the following and press E.
1. Failure Display = Read Failures by pressing the Ebutton
2. Failure Reset = Reset Failures by pressing the Ebutton
3. Motor Failure Display = Display any faults that have occurred during a vend.
4. Motor Failure Reset = Resets any Motor faults.
To exit the program close the main door

SMART Quick Reference Guide
The front keypad of the Smart is used to enter and confirm data as follows:
1 2 3
4 5 6
7 8 9
0 E C
FORWARD = 0
ENTER = E
EXIT = C
To access the Programming mode with the door open, press the C button and enter the
4-digit password 4231.
Setting Price
• With the door open press C(enter password = 4231).
• Scroll to set prices (Normal Prices).
• Press E.
• Now choose between (Global or Single price).
• Press E. (Selection number will flash),
• Use Obutton to scroll between selection numbers and prices. (Prices entered must be 3
digits i.e. 0.50).
-------------------------------------------------------------------------------------------------------------------------------
Reset Failures
• To reset failures open main door and press the C button, enter the code 4231 and the
machine will display Set Prices.
• Scroll through to Reset Failures and press the Ebutton twice.
-----------------------------------------------------------------------------------------------------------------------------
Statistics
• Open the main door and the display will read Statistics,
• Press enter and use the O button to scroll through the selections.
To exit the program close the main door
