NANLITE PavoTube II 15X User manual

Guangdong NanGuang Photo&Video Systems Co., Ltd
PavoTube $ 15X
PavoTube $ 30X
PavoTube $ 60X
USER MANUAL

1
PavoTube $ 15X/30X/60X
Technical Data
Model No.: PavoTube II 15X
Rated Power: 35W
Input Voltage/Current: DC15V/2A Max
AC100-240V
50/60Hz
Lithium Battery: 14.8V/2200mAh
Color Temperature: 2700K-12000K
CRI: Average 97
TLCI: Average 98
Model No.: PavoTube II 30X
Rated Power: 70W
Input Voltage/Current: DC15V/4A Max
AC100-240V
50/60Hz
Lithium Battery: 18.5V/4400mAh
Color Temperature: 2700K-12000K
CRI: Average 97
TLCI: Average 98
Model No.: PavoTube II 60X
Rated Power: 106W
Input Voltage/Current: DC15V/6.5A Max
AC100-240V
50/60Hz
Lithium Battery: 18.5V/8800mAh
Color Temperature: 2700K-12000K
CRI: Average 97
TLCI: Average 98
PavoTube $ 30X
PavoTube $ 15X
PavoTube $ 60X

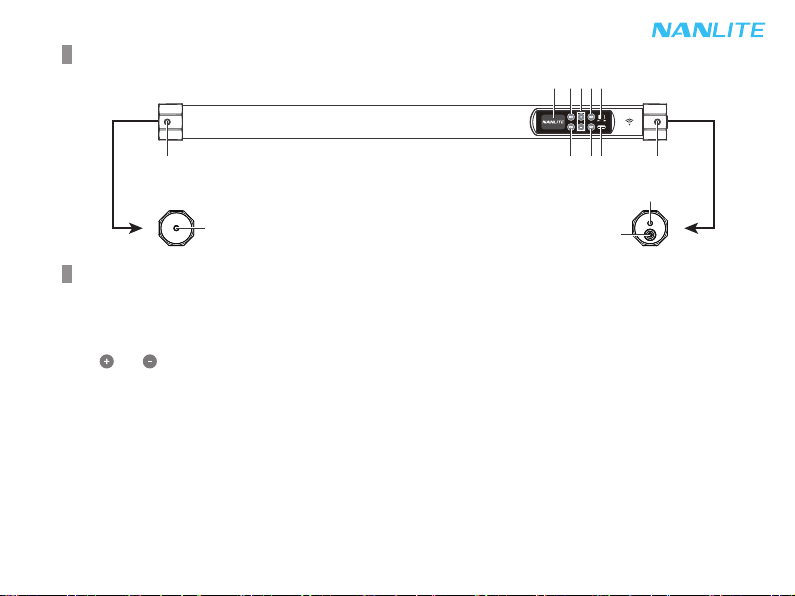

Product Diagram
RGBWW LED Pixel Tube Light

2
Product Details
Detailed Description
1. 1/4-20 Mount Receiver: To match the accessories with 1/4-20 mount.
2. Display: Menu and option display.
3. MODE Button: Switch between modes CCT, HSI, EFFECT, PIXEL FX and MENU.
4. " " & " ": Increase or decrease settings, supports long/short press.
5. TRIGGER Button: For triggering STORM MANUAL and EXPLOSION MANUAL effect.
6. Power Switch: Power on/off.
7. SWITCH Button: Switch selected options.
8. LOCK Button: Long press the LOCK button to lock functions, now operation buttons cannot change the current
function, long press the LOCK button again to release the lock status.
9. USB Type-C port: For firmware updates.
10. DC Power Socket: DC power input interface.
11. DMX interface: plug in DMX adapter cable for DMX signal input and output.
( Note: The DMX adapter cable is not included.)
1
1
10
11
7 8 9 1
32 54 6

3
Usage
1. Power Connection
2. Eyebolts Installation
①Connecting the fixture with power adapter.
②Built in battery automatically powers unit once charged and unplugged from a power source.

4
MENU
LANGUAGE: ENG
CH: 512
6.0h MENU
LANGUAGE: ENG
CH: 511
6.0h
PIXEL FX
FX: HUE LOOP
DIM: 100%
6.0h MENU
LANGUAGE: ENG
CH: 512
6.0h
Remote Control
·PavoTube II 15X/30X/60X supports remote control via 2.4G, DMX, RDM, and has built-in Bluetooth.
▲The channel needs to be set before operating the remote control via 2.4G, DMX, RDM.
1. Channel Setting
Press MODE button to switch to MENU interface.
Press " " & " " to set the corresponding parameters.
(1) The connection between the fixture and DMX adapter cable is as follows:
2. DMX Remote Control
①Connect the fixture to the DMX/RDM console with a DMX adapter cable.

5
(2) The connection between the DMX adapter cable and console is as follows:
DMX IN
1 GND
NC
NC
NC
NC
GND 1
DATA - 2
DATA + 3
DMX OUT
2 DATA -
3 DATA +
·The connection between the light fixture and DMX/RDM console, light fixture and light fixture should use DMX
adapter cable. (DMX adapter cable is not included.)
XLR plug/socket and the wire should be connected as pictured.
·Pin1, Pin2, Pin3 for connecting DMX singal, Pin4, Pin5 is connectionless.
▲Note: When connecting with socket, the internal pins should not be in contact with the inner case, and pins
should not be in contact with each other.The fixture adapts to the DMX512 (1990) control signal.
②DMX Terminator
ln DMX control mode, the DMX output of the last fixture should be connected with a DMX terminator
(Not included). This prevents interference caused by DMX signals in the transmitting process.
The terminator is connected with a 120Ωresistor across Pin 2 and Pin 3. (As shown below)
DMX Terminator Connection
Connect a 120Ω resistor across
Pin 2 and Pin 3 in an XLR plug
and insert into the DMX OUT
socket on the last fixture.
PIN 2PIN 3
120Ω
1
2
3
5
4

6
③Set the channel of the fixture.
④Refer to the DMX reference guide and control the light via DMX/RDM console.
(For specific operation methods, please refer to the DMX/RDM console operation manual.)
Note: DMX reference guide 《PavoTube_II_15X_30X_60X_DMX_REFERENCE_GUIDE_EN》please download it
from www.nanlite.com or scan the QR code below to download.
MENU
WIRELESS PR: V1.0
6.0h
BT: RESET
6.0hMENU
LANGUAGE: ENG
CH: 512
6.0h
3. 2.4G Remote Control
Set the channel of the 2.4G remote controller to be consistent with the light fixture, enabling the
PavoTube II 15X/30X/60X to be remotely controlled by 2.4G remote controller or by APP via the transmitter box.
Note: ①2.4G remote controller and transmitter box are sold separately.
②The fixture supports the 2.4G wireless protocol V1.0 and V2.0. Set fixture to V2.0 while using
WS-RC-C1 or WS-RC-C2 remote controller. Set fixture to V1.0 while using other remote controllers.
Press SWITCH button to WIRELESS PR.
6.0h
Please scan the QR code to check or download the latest DMX reference guide.

7
MENU
WIRELESS PR: V1.0
6.0h
BT: RESET
MENU
WIRELESS PR: V2.0
6.0h
BT: RESET
Press " " " " to select V1.0 or V2.0.
6.0h
4. RDM Remote Control
①Connect the light fixture to the console with RDM function by DMX adapter cable.
②Control the fixture via a console with RDM function.
(For specific operation methods, please refer to the RDM console operation manual.)
Note: The UID format of the fixture is as follows:
0008 XXXX XXXX
Serial number
0401：PavoTube II 15X
0402：PavoTube II 30X
0403：PavoTube II 60X
Manufacture: Nanguang

8
CCT
CCT: 05600 G/M:0
DIM: 100%
6.0h CCT 6.0h
CCT: 05600 G/M:0
DIM: 100%

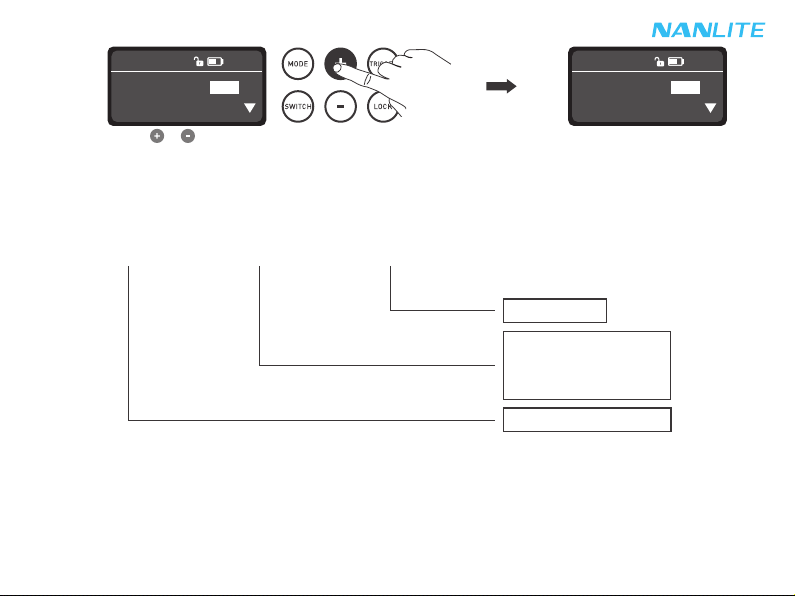

1. Toggle the power switch to turn on the light, "NANLITE" logo will be displayed on start up.
2. MODE button: Press MODE button to switch between modes - CCT, HSI, EFFECT, PIXEL FX and MENU.
Operating Instructions

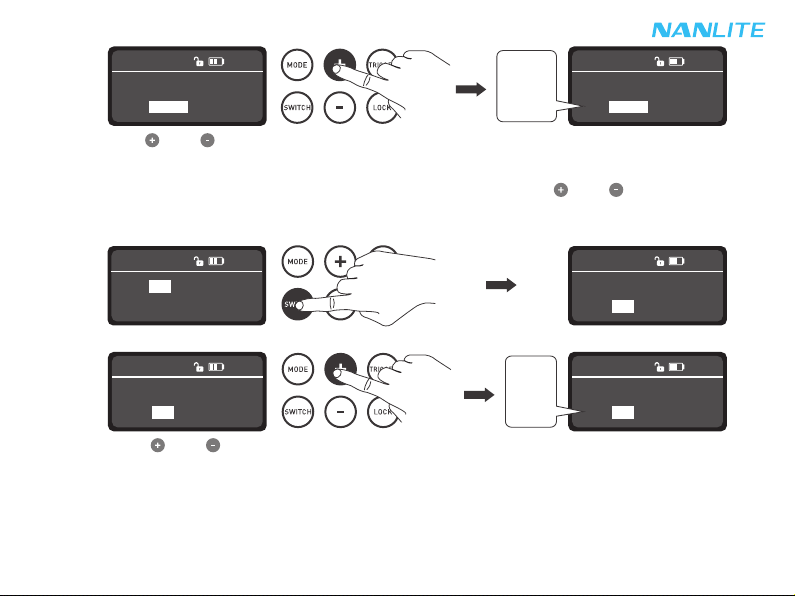

①In CCT Mode: press SWITCH button to select from DIM, CCT and G/M, press " " and " " to adjust the value
of DIM, CCT and G/M.
DIM range: 000% --- 100% CCT range: 2700K --- 12000K G/M range: -100 --- +100.
Press SWITCH button to select from DIM, CCT and G/M.
CCT
CCT: 05600 G/M:0
DIM: 100%
6.0h
Time remaining
CCT
HSI
EFFECT
PIXEL FX
MENU
Battery indicator
Unlock/lock state

9
②In HSI mode, press SWITCH button to select from DIM, HUE and SAT, press " " and " " to adjust the value of
DIM, HUE and SAT.
DIM range: 000% --- 100% HUE range: 000 --- 360 SAT range: 000 --- 100.
6.0h
HSI
HUE: 001 SAT:100
DIM: 100%
6.0h
000
.
.
.
.
.
360
6.0h
HSI
HUE: 000 SAT:100
DIM: 100%
6.0h
HSI
HUE: 000 SAT:100
DIM: 100%
6.0h
HSI
HUE: 000 SAT:100
DIM: 100%
6.0h
6.0h
Press " " and " " to set the corresponding parameters.
Pres " " and " " to set the corresponding parameters.
Note: In EFFECT mode, the adjustable range of DIM, CCT and G/M are the same as CCT mode.
Note: In EFFECT mode, the adjustable range of DIM, HUE and SAT are the same as HSI mode.
Press SWITCH button to select from DIM, HUE and SAT.
CCT 6.0h
CCT: 05700 G/M:0
DIM: 100%
2700K
.
.
.
.
.
12000K
CCT
CCT: 05600 G/M:0
DIM: 100%
6.0h

10
EFFECT
DIM: 000%-100%
FX: WELDING
Hue Loop
.
.
.
.
.
Welding
6.0h
EFFECT
FX: HUE LOOP
DIM: 100%
6.0h
EFFECT
FX: HUE LOOP
DIM: 100%
EFFECT
FX: HUE LOOP
6.0h
DIM: 100%
EFFECT
FX: HUE LOOP
DIM: 100%
EFFECT
FX: HUE LOOP
DIM: 099%

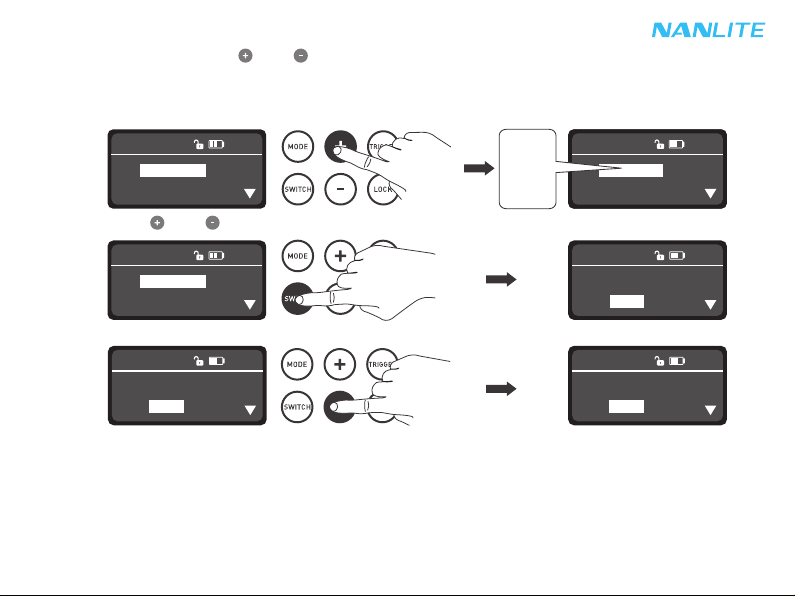

③In Effect mode, press " " and " " to select desired special effect. PavoTube II 15X/30X/60X has built-in
effects including Hue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm Auto,
Storm Manual, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion Auto, Explosion
Manual and Welding.
Press SWITCH button to switch options.
④In PIXEL FX mode, PavoTube II 15X/30X/60X has built-in effects including HUE LOOP, CCT LOOP, INT LOOP,
MULTICOLOR, FADE, SCROLL, RAINBOW. The setting method is the same as Effect mode.
Press " " and " " to select select desired special effect.
6.0h
6.0h6.0h

11
Press " " and " " to select the language.
⑤MENU
Press MODE button to switch to MENU, then press SWITCH button to switch between CH, LANGUAGE,
DMX MODE, DMX PIXEL, WIRELESS PR, BLUETOOTH RESET and VERSION.
(1) Channel setting, please refer to P4 for channel settings.
(2) Language setting
菜单
通道：512
语言：中文
中文
ENG
MENU
CH: 512
LANGUAGE: ENG
MENU
CH: 512
LANGUAGE: ENG
Press SWITCH button to LANGUAGE.
6.0h
6.0h
6.0h
MENU
LANGUAGE: ENG
CH: 512
6.0h

12
MENU
CH: 512
6.0h
LANGUAGE: ENG

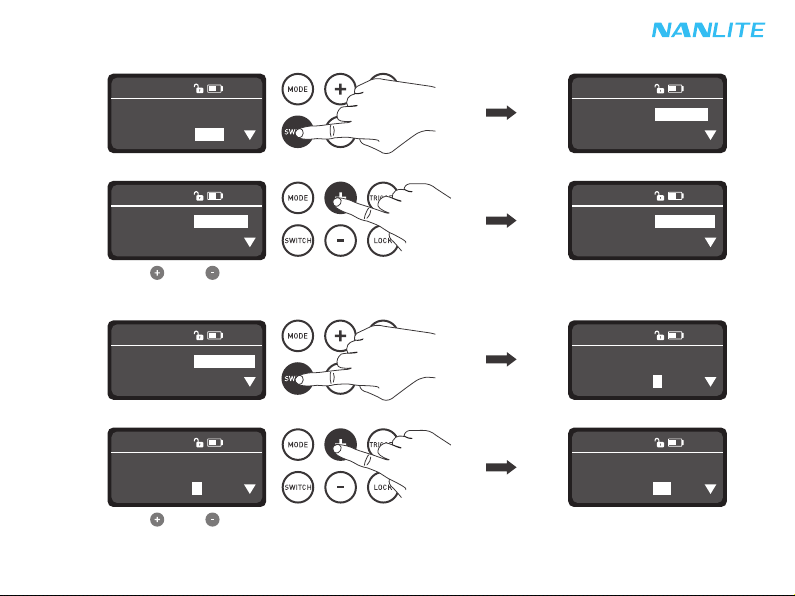

Press " " and " " to select the desired DMX mode.
(3) DMX MODE setting
Press SWITCH button to DMX MODE.
MENU
DMX MODE: CCT 8bit
DMX PIXEL: 8
6.0h
MENU
DMX MODE: CCT 8bit
DMX PIXEL: 8
MENU
DMX MODE: CCT 16bit
DMX PIXEL: 8
6.0h
MENU
DMX MODE: CCT 16bit
DMX PIXEL: 8
6.0h
Press " " and " " to select the desired number of DMX pixels.
(4) DMX PIXEL setting
Press SWITCH button to DMX PIXEL.
MENU
DMX MODE: CCT 16bit
DMX PIXEL: 8
MENU
DMX MODE: CCT 16bit
DMX PIXEL: 8
MENU
DMX PIXEL: 16
DMX MODE: CCT 16bit
6.0h
6.0h 6.0h
6.0h

13
(5) Wireless protocol, please refer to P6 for wireless protocol settings.
MENU
WIRELESS PR: V2.0
BT: RESET
6.0h

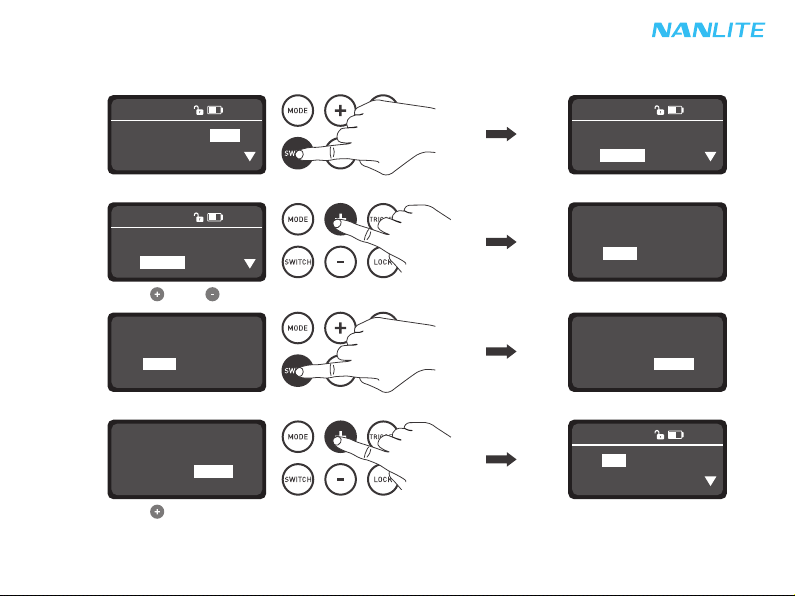

Press " " and " " to the interface of reset bluetooth.
(6) Bluetooth reset
Press SWITCH buton to BT.
Back Reset
Reset bluetooth
MENU
WIRELESS PR: V2.0
BT: RESET
Press " " or MODE button could reset the Bluetooth, and it will automatically return to the menu after
Bluetooth reset.
Press SWITCH button to select Reset.
Back Reset
Reset bluetooth
6.0h
MENU
WIRELESS PR: V2.0
BT: RESET
6.0h
Back
Reset bluetooth
Reset
Back
Reset bluetooth
Reset
MENU
LANGUAGE: ENG
CH: 512
6.0h

14
3. Toggle the power switch to turn off the light.
·Lighting effects and additional functionality maybe added with future firmware releases, for details of these
please see www.nanlite.com.
(7) VERSION

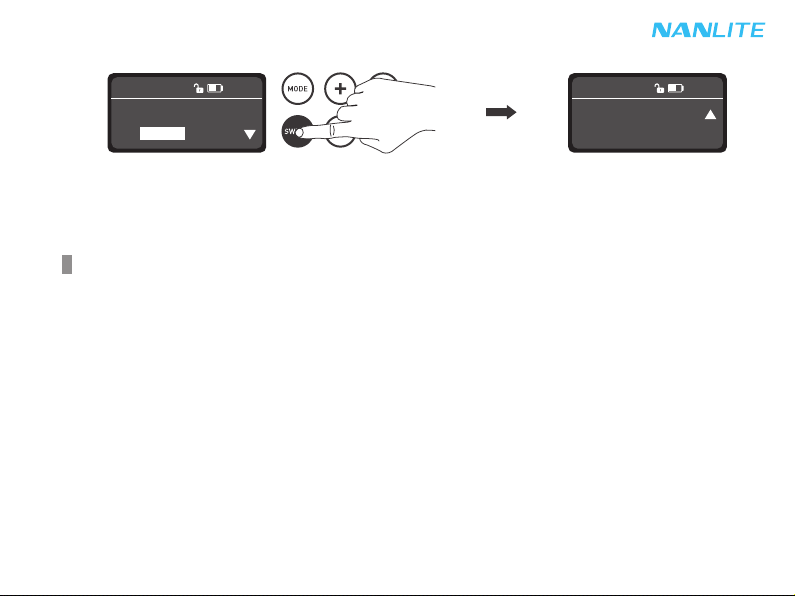

Press SWITCH button to VERSION to check the current version of the fixture.
6.0h
MENU
WIRELESS PR: V2.0
BT: RESET
6.0h MENU
WERSION: V2.01.08
6.0h
1. Please open the package to check for possible damage. If damaged, do not use. Please contact your dealer or
the manufacturer as soon as possible.
2. Please do not use power cable which are faulty or have insulation damage. Please be careful when unplugging and
do not drag the power cable.
3. Before installation, please make sure the power supply voltage is correct and compatible with that specified on
fixture.
4. Please turn off the power when fixture is not in use or being cleaned.
5. Please operate the fixture safely. Keep fixture away from children.
Safety Precautions

15
1. Do not place any object on the light fixture or let any liquid flow into the interior.
2. Avoid placing lamps near flammable and volatile substances, such as alcohol or gasoline.
3. When cleaning the fixture, please use soft cloth with neutral detergent to wipe off dirt. Please do not use abrasives
or strong detergent.
4. The light should be operated safely where it won't be at risk of getting wet or under extreme temperature.
The operating temperature of PavoTube II 15X and PavoTube II 30X should not be higher than 45°C, and the
operating temperature of PavoTube II 60X should not be higher than 40°C. Do not use or store the fixture around
objects with high heat.
5. Do not mount the PavoTube II 60X on LS-FL-1/4 stand.
6. Please do not disassemble the fixture or attempt to carry out repairs. Any required maintenance shiould be carried
out by suitably qualified professionals, opeerating in strict compliance with the instructions described in this manual.
Notice

16
PavoTube II 15X × 1 15V2A Power Adapter × 1
Carrying Bag × 1 Power Adapter Rubber Strap × 1 Eyebolt × 2
User Manual × 1
Power Cable 3M × 1
Clip × 1
GuangdongNanGuang Photo&Video Systems Co., Ltd
PavoTube $ 15X
PavoTube $ 30X
PavoTube $ 60X
USER MANUAL

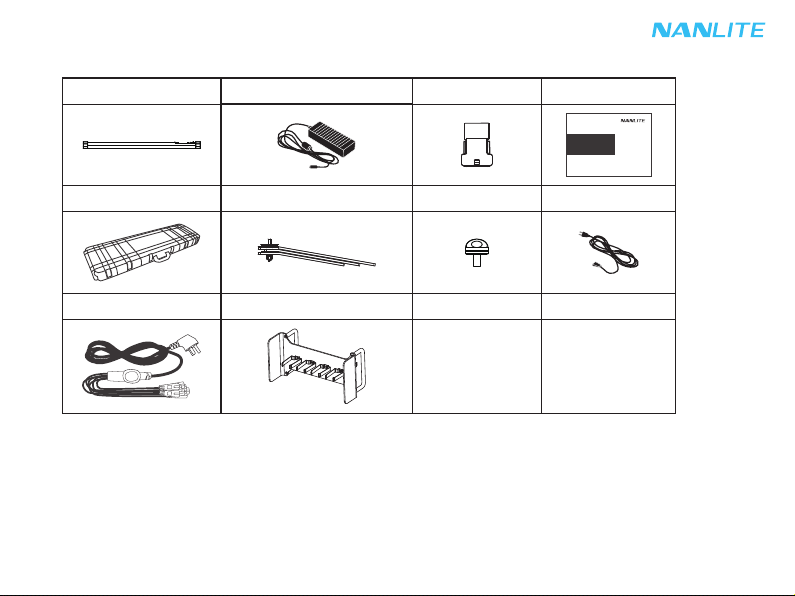

What’s in the box? Please kindly check.
PavoTube II 15X 1KIT
PavoTube II 15X × 2 15V2A Power Adapter × 2
Power Adapter Rubber Strap × 2 Eyebolt × 4
User Manual × 1
Carrying Bag × 1
Clip × 2
PavoTube II 15X 2KIT
PavoTube II 15X × 4 15V2A Power Adapter × 4
Power Adapter Rubber Strap × 4 Eyebolt × 8
User Manual × 1
Carrying Bag × 1
Clip × 4
PavoTube II 15X 4KIT
Power Cable 3M × 2
Power Cable 3M × 4

17
PavoTube II 15X × 8 15V/2A Power Adapter × 8
Hard Case × 1 Floor Stand × 8 Eyebolt × 16
User Manual × 1
Power Cable 3M × 8
Clip × 16
1/8 DC Power Cable × 1 8-in-1 Power Adapter Holder × 1
GuangdongNanGuang Photo&Video Systems Co., Ltd
PavoTube $ 15X
PavoTube $ 30X
PavoTube $ 60X
USER MANUAL
PavoTube ll 15X 8KIT

18
PavoTube II 30X × 2 15V4A Power Adapter × 2
Power Adapter Rubber Strap × 2 Eyebolt × 4
User Manual × 1
Carrying Bag × 1
Clip × 2
PavoTube II 30X 1KIT
PavoTube II 30X 2KIT
PavoTube II 30X × 4 15V4A Power Adapter × 4
Power Adapter Rubber Strap × 4 Eyebolt × 8
User Manual × 1
Carrying Bag × 1
Clip × 4
PavoTube II 30X 4KIT
PavoTube II 30X × 1 15V4A Power Adapter × 1
Carrying Bag × 1 Power Adapter Rubber Strap × 1 Eyebolt × 2
User Manual × 1
Power Cable 3M × 1
Clip × 1
GuangdongNanGuang Photo&Video Systems Co., Ltd
PavoTube $ 15X
PavoTube $ 30X
PavoTube $ 60X
USER MANUAL
Power Cable 3M × 2
Power Cable 3M × 4

19
PavoTube II 30X × 8 15V/4A Power Adapter × 8
Hard Case × 1 Floor Stand × 8 Eyebolt × 16
User Manual × 1
Power Cable 3M × 8
Clip × 16
1/8 DC Power Cable × 1 8-in-1 Power Adapter Holder × 1
GuangdongNanGuang Photo&Video Systems Co., Ltd
PavoTube $ 15X
PavoTube $ 30X
PavoTube $ 60X
USER MANUAL
PavoTube ll 30X 8KIT
