Nautilus Inspiration 4-Station User manual

OWNER’S
MANUAL
Nautilus® Inspiration® 4-Station
Core Health & Fitness

Page 1
PRODUCT SPOTLIGHT ............................................................................................................................................. 2
IMPORTANT SAFETY INSTRUCTIONS ............................................................................................................................................. 3
IMPORTANT LABEL LOCATIONS .......................................................................................... 5
INSTALLATION ............................................................................................................................................. 7
LOW ROW .......................................................................................... 8
TRICEP PRESS ........................................................................................12
LAT PULLDOWN ........................................................................................16
CABLE CROSS ........................................................................................20
STRENGTH PRODUCT USE ...........................................................................................................................................27
MAINTENANCE ...........................................................................................................................................30
SUPPORT AND SERVICE ...........................................................................................................................................34
TABLE OF CONTENTS

Page 2
9NP-M9601 Inspiration 4-Station
Overall Weight Width Length Height Max User Weight
1732 lbs (396 kg) 60 in (81 cm) 131 in (208 cm) 96 in (154 cm) 350 lbs (159 kg)
All products may be covered by US and Foreign Patents and Patents Pending.
PRODUCT SPOTLIGHT

Page 3
WARNING - to reduce the risk of injury to
person:
1. This machine is not intended to be used by
children. It is not intended to be used by persons
with reduced physical, sensory, or mental
capabilities or lack of experience and knowledge,
unless given instruction and under the personal
supervision concerning use of the machine by a
person responsible for their safety. Do not leave
children unsupervised around the machine.
2. Fully engage weight selection switches. Partial
insertion can cause weights to fall unexpectedly.
Never pin the weight stack in an elevated
position. Never attempt to “switch o” a cartridge
if any weights are suspended. Never attempt to
release jammed weights or parts.
3. When adjusting any seat, knee stabilization pad,
range of motion limiter, foothold pad or any other
type of adjuster, make certain that the adjusting
pin is fully engaged in the hole to avoid injury.
4. Inspect the machine for worn or loose
components prior to use. Tighten/replace any
loose or worn components prior to using. Pay
close attention to ropes, belts, or chains and their
connections.
5. Never use dumbbells or other means to
incrementally increase the weight resistance.
6. Do not wear loose or dangling clothing or jewelry
while using selectorized strength equipment.
Stay clear of all moving components.
7. Do not exceed the maximum specied user
weight of 350 lbs (159 kg).
Free Area
Training Area
Free Area
Training Area
Required Clearance
8. Assemble and operate the machine on a solid
level surface. Position the machine with sucient
clearance on each side of the training area to
allow for ease of mounting and dismounting.
An additional clearance of at least 24.0 inches
(0.6 meters) is required for free area. Where
equipment is positioned adjacent to each other
the value of the free area may be shared. These
dimensions are the recommended minimum
distances. The actual area for access and passage
is the responsibility of the facility and should take
into account this training envelope and any other
national or local codes or regulations.
9. This equipment shall only be used in supervised
areas where access and control is specically
regulated by the owner; the extent of control
depends on the users, e.g. degree of reliability,
age, experience, etc.
IMPORTANT SAFETY INSTRUCTIONS
Before using this product, it is essential to read the ENTIRE operations manual and ALL installation
instructions. The Owner’s manual describes equipment setup and instructs members on how to use
correctly and safely.
Read all warnings posted on the machine.
Health related injuries may result from incorrect or excessive use of exercise equipment. NAUTILUS
strongly recommends you to encourage your members to discuss their health program or tness
regimen with a health care professional, especially if you or they have not exercised for several years,
are over 35, or have known health conditions.
WARNING!

Page 4
10. This unit meets industry standards for stability
when used for its intended purpose in
accordance with the instruction placards. Using
the machine for support during stretching or
allowing resistance straps, ropes, or other means
to be attached to it may result in serious injury.
11. The safety and integrity of this machine can only
be maintained when the equipment is regularly
examined for damage and wear and repaired.
It is the sole responsibility of the owner of this
equipment to ensure that regular maintenance
is performed. Worn or damaged parts must be
replaced immediately or the equipment removed
from service until the repair is made.
12. Cables pose an extreme liability if used when
frayed. Always replace any cable at rst sign of
wear. (Consult Nautilus if uncertain or if you have
questions regarding wear).
13. Routinely inspect all cable couplers that join
movement arms to the cables and replace at the
rst sign of wear.
14. Use only replacement components supplied by
Nautilus on weight stacks and drive systems.
Substitutes are forbidden and will void all
warranties.
15. Do not over exert yourself during exercise. Stop
exercising if you feel pain or tightness in your
chest, become short of breath or feel faint. If you
feel pain or experience any abnormal symptoms,
stop exercising and consult your health care
provider.
SAVE THESE INSTRUCTIONS

Page 5
IMPORTANT LABEL LOCATIONS
Serial Label
731-0517
731-0512
731-8118
Instruction Placards
731-7682
731-8048
731-7223-02
731-7223-01
Serial Label
731-0517
731-0512
731-8118
Instruction Placards
731-7682
731-8048
731-7223-02
731-7223-01
*See page 28
See next page for label images.
Core Health & Fitness, LLC
4400 NE 77th Avenue, Suite 300
Vancouver, WA 98662 USA
1-888-678-2476
P/N: 050-5457 Rev B
SKU
Serial
Color
Config.
Class S Fitness Equipment. Max User Weight 350 Lbs (160 Kg).
DESIGNED IN THE USA
MADE IN CHINA
Patents:
www.corehealthandfitness.com/patents
90mm
25mm
4 - R0.5
NOTES:
OVERLAY NOT TO BE AFFECTED BY WASH/WIPE USING ALCOHOL
(ISOPROPYL), AMMONIA AND/OR A 5% SODIUM HYPOCHLORITE TO WATER
SOLUTION (CLOROX).
DRAWING ARTWORK AND DIMENSIONS ARE FOR REFERENCE ONLY. REFER
TO ART FILE 050-2198.PDF FOR CORRECT ARTWORK, COLORS AND EXACT
DIMENSIONS. (SEE CHART FOR ART FILE SUFFIX; NUMBER AND REVISION
SAME AS PRINT).
LINES MUST BE CLEAN AND STRAIGHT; ART WORK TO BE APPROVED BY
CORE HEALTH & FITNESS LLC ENGINEERING.
MATERIAL:
2.54mm BASE - WHITE THERMAL TRANSFER TAMPER PROOF LABEL
STOCK WITH PEEL-AWAY PROTECTIVE COATING OR ENGINEERING EQUIV.
0.050mm OVER LAMINATE - MATTE PVC
0.050mm ADHESIVE - 3M 300 LSE OR APPROVED EQUIVALENT WITH REMOVABLE LINER
Label, S/N, Non-Powered, Primary, Core H&F
= PMS Cool Gray 5
PART NUMBER: 050-5457 , REV. B
= PMS BLACK
-Artwork prints @ 100% (actual size)

Page 6
731-0512 731-7223-01 731-7223-02
ADJUSTMENT INSTRUCTIONS
WITH TROLLEY INSTALLED ONTO POST
REMOVE (2) FASTENERS AND WASHERS IN END CAP.
REMOVE END CAP, PLACE ASIDE TO BE REINSTALLED
LATER.
GRAB HANDLE HERE
THEN TRY TO ROCK HANDLE
UP AND DOWN
IF HANDLE ROCKS YOU WILL NEED TO ADJUST THE
TENSION FASTENER ON THE FRONT PULLY BLOCK
( OVER )
TO ADJUST THE FRONT ROLLER, LOOSEN THE JAM NUT
ON THE SET SCREW
TIGHTEN THE SET SCREW, GRAB HANDLE AND ROCK IT
UP AND DOWN, IF IT DOES NOT MOVE, THEN PULL PIN
AND SLIDE TOLLEY UP AND DOWN (MAKE SURE THERE
IS NO DRAG.) ONCE THE HANDLE IS TIGHT ENOUGH TO
NOT ROCK OR HAVE ANY DRAG, USE HEX KEY TO HOLD
THE SET SCREW AND TIGHTEN THE JAM NUT.
REPLACE THE COVER AND REPLACE THE SCREWS
731-7682 731-8118
731-8048 731-0517

Page 7
SKU Description
731-3186 SCREW,M3.5 X 13,SELF TAPPING
731-3185 CAP,MS TOWER
731-3164-XX WELD,PLACARD,MS
731-1194 SCREW,M6 x 1.0,16mm,FHM,HK
731-7349 PLACARD,LOW ROW, NAU
731-4439 STICKER,ADD ON, MULTI STATION
731-3641 ASSY,WGT STK,130kG,MS
731-3622-XX WELD,LOW ROW
110-3783 SCREW,M10x1.5,140mm,HHC,HE,AS,ZC,GR12.9
731-0363 NUT,M10X1.5,NYLOC
731-0367 WASHER,PLAIN,M10
731-3221 BRKT,MOUNT,DOUBLER,MS
731-5516 SCREW,M10x1.5,75mm,HHC,HE,AS,12.9,ZC
731-3178 BRACKET, CONNECTOR, 76.2MM
110-3814 SCREW,M10x1.5,30MM,HHC,HE,AS,12.9,ZC
731-3646 ASSY,CABLE,LR
731-3204 ASSY,WGT STK,100kG,TP
731-7350 PLACARD,TRICEPS PRESS, NAU
731-3203-XX WELD,BACK REST,TP
731-7525-XX WELD,LAT PULL,UPPER
731-3641 ASSY,WGT STK,130kG,MS
731-7351 PLACARD,LAT PULL, NAU
731-3648-XX WELD,LAT PULL,LOWER
731-3142 ASSY,WGT STK,100kG,CC
731-7348 PLACARD,CABLE CROSS, NAU
731-8118 STICKER,INSTRUCTIONS,TROLLEY
731-3194 WELD, BALET BAR, RIGHT, BLACK
731-3174 BRKT, BALET BAR MNT
731-3199 WELD, BALET BAR, LEFT, BLACK
731-3223 SCREW,M10 X 1.5,140MM,BHC,HK, CS, NP
731-3157-XX WELD,POST MOUNT,LOW
731-2448 SCREW,M10x1.5,16MM,BHC,HK,AS,GR-12.9,NKL
731-3188-XX WELD,UPPER SUPPORT,CC
731-3161 SCREW,M12 X 1.75,25mm,FHM,HK,AS,GR-10.9,NKL
731-0165 CAP,PLASTIC,PULLEY,Ø120mm
110-3883 SCREW,M10x1.5,55MM,HHC,HE,AS,12.9,ZC
731-0731 ASSY,PULLEY,Ø120MM,CABLE
731-3157-XX WELD,POST MOUNT,LOW
731-1878 WELD,ADJ. GUIDE TUBE, DAP
731-2448 SCREW,M10x1.5,16MM,BHC,HK,AS,GR-12.9,NKL
731-0365 NUT,M8 X 1.25,NYLOC JAM
731-0209 CAP, END, 110 X 50
Required Tools:
• #2 Phillips Screwdriver
• 4mm Allen Key
• 5mm Allen Key
• 6mm Allen Key
• 8mm Allen Key
• 16mm Socket
• Ratchet Wrench
• 16mm Open-Ended Wrench
• 13mm Open-Ended Wrench
• 10mm Open-Ended Wrench
Parts List
INSTALLATION

Page 8
LOW ROW

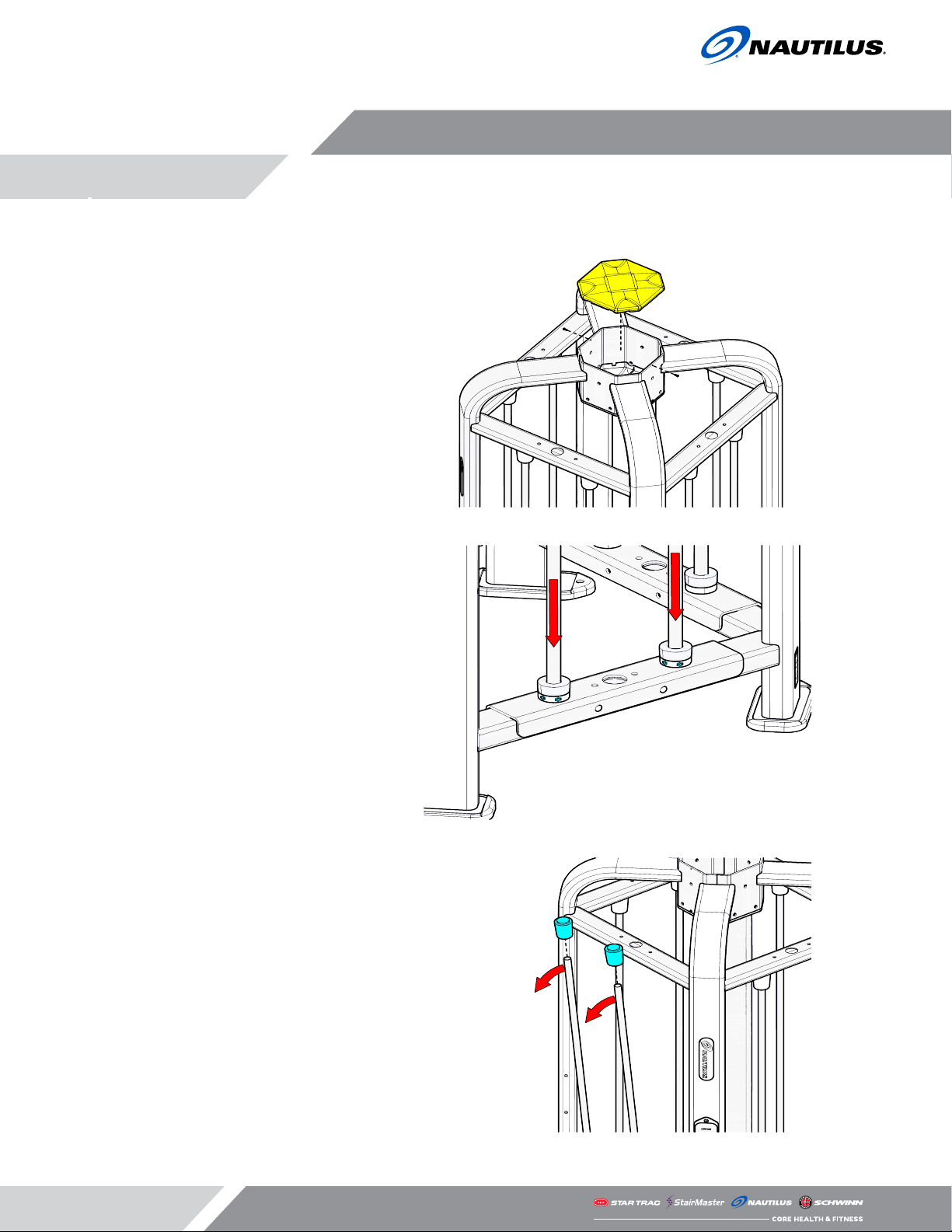

1. Use a #2 phillips screwdriver to
remove the two (2) M3.5 x 13mm
self tapping screws (731-3186)
from the frame, then remove the
cap (731-3185).
Fig. 1
2. Use a 5mm allen key to loosen
the four (4) set screws located at
the bottom of the weight stack
guide rods, once the set screws
are loose the guide rods should
drop down.
Fig. 2
3. Swing the guide rods forward
out of the machine then remove
the guide rode stop caps.
Fig. 3

Page 9
4. Starting from the bottom of
the weight stack (731-3641),
carefully slide each weight plate
down the guide rods.
5. Once the entire weight stack has
been installed, replace the guide
rod caps, reinstall the rods back
into place, and tighten the set
screws loosened in step 3.
START
Fig. 4
6. Use a 4mm allen key to secure
the placard (731-3164-XX) to
the frame using three (3) pieces
of the M6 x 16mm at head
machine screw (731-1194),
then attach the low-row decal
(731-7349) and the add-on decal
(731-4439) to the placard.
Fig. 5

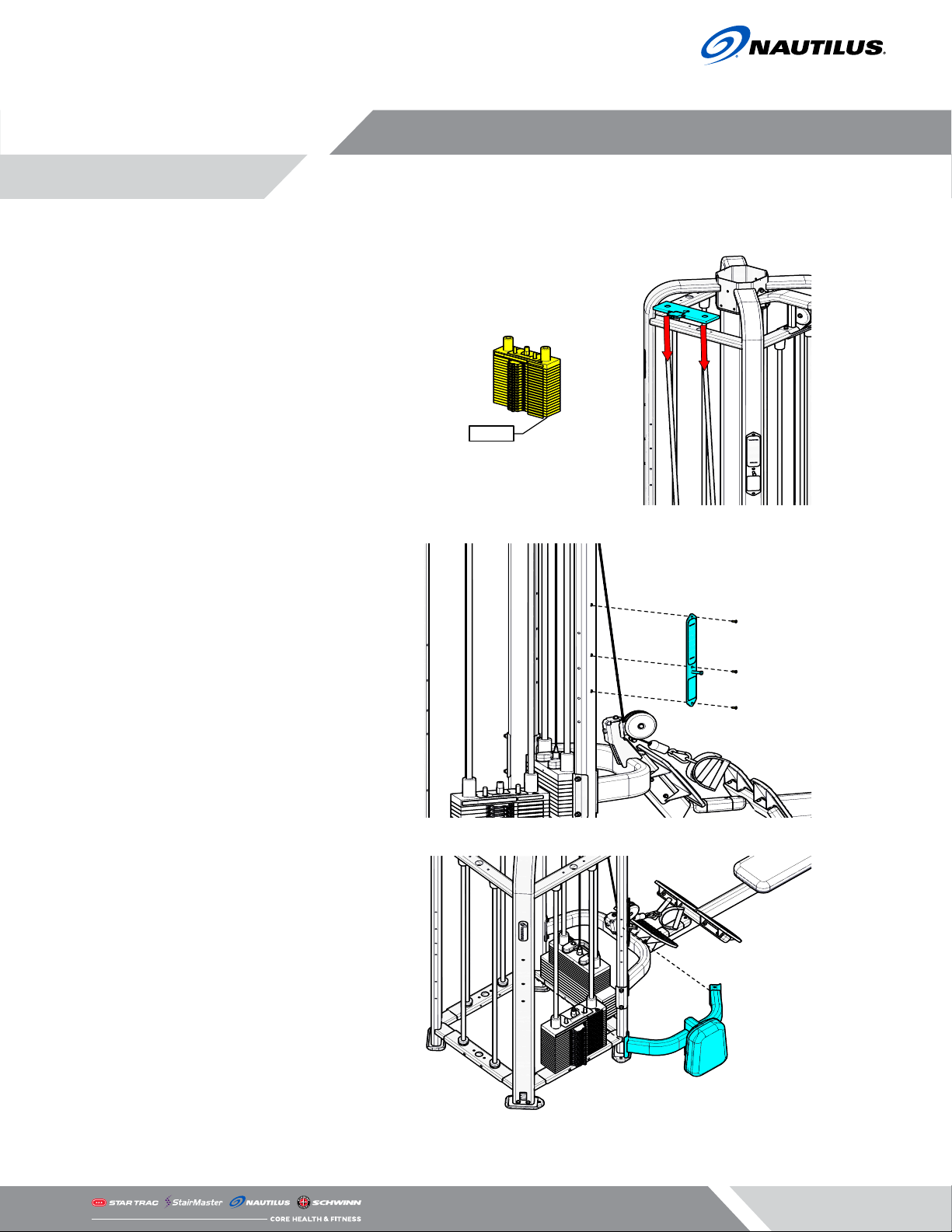

7. Slide the low row weldment
(731-3622-XX) into place.
Fig. 6

Page 10
8. Use a 16mm socket and a 16mm
open-ended wrench to secure
the low row weldment to the
tower frame using four (4) pieces
each of the M10 x 140mm bolts
(110-3783) and M10 nylock
nuts (731-0363), eight (8) pieces
of the M10 at washer (731-
0367), and two (2) pieces of the
weldment mount bracket (731-
3221).
Fig. 7
9. Set the upper low row frame into
place.
Fig. 8
10. Use a 16mm socket and a 16mm
open-ended wrench to secure
the upper low row weldment
to the tower frame using two
(2) pieces each M10 x 75mm
bolt (731-5516) and M10 nylock
nut, four (4) pieces of the M10
washer, and one (1) piece of the
76.2mm bracket connector (731-
3178).
Fig. 9

Page 11
11. Finish securing the upper
weldment to the tower frame
using three (3) pieces each of
the M10 x 30mm bolt and M10
nylock nut, and six (6) pieces of
the M10 at washer.
Fig. 10
12. Ensure that the cable is routed
properly.
Fig. 11
Fig. 12

Page 12
13. Use a 10mm open-ended
wrench to secure the cable (731-
3646) to the weight stack then
use a 16mm open-ended wrench
to tighten the M10 jam nut to
lock the cable in place.
Fig. 13
TRICEP PRESS
14. Use a 5mm allen key to loosen
the four (4) set screws located at
the bottom of the weight stack
guide rods, once the set screws
are loose the guide rods should
drop down.
Fig. 14
15. Swing the guide rods forward
out of the machine then remove
the guide rode stop caps.
Fig. 15

Page 13
16. Starting from the bottom of
the weight stack (731-3204),
carefully slide each weight plate
down the guide rods.
17. Once the entire weight stack has
been installed, replace the guide
rod caps, reinstall the rods back
into place, and tighten the set
screws loosened in step 14.
START
Fig. 16
18. Use a 4mm allen key to secure
the placard to the frame using
three (3) pieces of the M6 x
16mm at head machine screw,
then attach the tricep press
decal (731-7350) and the add-on
decal to the placard.
Fig. 17
19. Set the back rest weldment (731-
3203-XX) into place.
Fig. 18

Page 14
20. Use a 16mm socket and a 16mm
open-ended wrench, secure the
back rest weldment to the tower
frame using four (4) pieces each
of the M10 x 140mm bolt and
M10 nylock nut, eight (8) pieces
of the M10 at washer, and two
(2) pieces of the bracket mount.
Fig. 19
21. Set the tricep press weldment
(731-7525-XX) into place.
Fig. 20
22. Use a 16mm socket and a 16mm
open-ended wrench to secure
the upper low row weldment to
the tower frame using two (2)
pieces each M10 x 75mm bolt
and M10 nylock nut, four (4)
pieces of the M10 washer, and
one (1) piece of the 76.2mm
bracket connector.
Fig. 21

Page 15
23. Finish securing the upper
weldment to the tower frame
using three (3) pieces each of
the M10 x 30mm bolt and M10
nylock nut, and six (6) pieces of
the M10 at washer.
Fig. 22
24. Ensure the cable is routed
properly.
Fig. 23
25. Use a 10mm open-ended
wrench to secure the cable to
the weight stack then use a
16mm open-ended wrench to
tighten the M10 jam nut to lock
the cable in place.
Fig. 24

Page 16
LAT PULLDOWN
26. Use a 5mm allen key to loosen
the four (4) set screws located at
the bottom of the weight stack
guide rods, once the set screws
are loose the guide rods should
drop down.
Fig. 25
27. Swing the guide rods forward
out of the machine then remove
the guide rode stop caps.
Fig. 26
28. Starting from the bottom of
the weight stack (731-3204),
carefully slide each weight plate
down the guide rods.
29. Once the entire weight stack has
been installed, replace the guide
rod caps, reinstall the rods back
into place, and tighten the set
screws loosened in step 26.
START
Fig. 27

Page 17
30. Use a 4mm allen key to secure
the placard to the frame using
three (3) pieces of the M6 x
16mm at head machine screw,
then attach the lat pulldown
placard(731-7351) and the add-
on decal to the placard.
Fig. 28
31. Set the lat pulldown weldment
(731-3648-XX) into place.
Fig. 29
32. Use a 16mm socket and a 16mm
open-ended wrench, secure the
back rest weldment to the tower
frame using four (4) pieces each
of the M10 x 140mm bolt and
M10 nylock nut, eight (8) pieces
of the M10 at washer, and two
(2) pieces of the bracket mount.
Fig. 30

Page 18
33. Set the lat pulldown weldment
into place.
Fig. 31
34. Use a 16mm socket and a 16mm
open-ended wrench to secure
the upper low row weldment to
the tower frame using two (2)
pieces each M10 x 75mm bolt
and M10 nylock nut, four (4)
pieces of the M10 washer, and
one (1) piece of the 76.2mm
bracket connector.
Fig. 32
35. Finish securing the upper
weldment to the tower frame
using three (3) pieces each of
the M10 x 30mm bolt and M10
nylock nut, and six (6) pieces of
the M10 at washer.
Fig. 33

Page 19
36. Ensure the cable is routed
properly.
Fig. 34
37. Use a 10mm open-ended
wrench to secure the cable to
the weight stack then use a
16mm open-ended wrench to
tighten the M10 jam nut to lock
the cable in place.
Fig. 35
