l Lift handset. z<
PLACING AN OUTSIDE tIiAitUSlNG HANDSFREE DlAllNG *
l Depress idle outside line button.
l Dial desired telephone number.
l Depress ON/OFF button.
NOTE: When placing consecutive calls
l Depress idle outside line button.
the RECALL button may be used to
l Dial desired telephone number,
disconnect existing call and to
l Lift handset when called partys voice isheard through speaker,
provide dial tone.
[Handset not required when equipped with Speakerphone.]
NOTE: If “bus\/’ or “no answer” is received, depress ON/OFF button to disconnect.
l Establish connection as outlined above. l Lift handset when ready to resume conversation.
l Depress ON/OFF button to begin monitoring.
(Handset not required when equipped
l Replace handset [adjust volume if necessary), with Speakerphone.)
l Lift handset, (Depress ON/OFF button if equipped with Speakerphone.)
l Depress slow-flashing outside line button,
ANSWERINGANATTENDANTTRANSFERREDCALL
When the attendant transfers an outside call to your station, a “C” will momentarily appear in your
display and ring tone will be heard through your speaker.
l Lift handset, (Depress ONIOFFbutton if equipped with Speakerphone.)
l Depress flutter-flashing outside line button.
Get other manuals https://www.bkmanuals.com

l Lift handset, (Depress ON/Off bution ifequipped * Dial digit “1” to transmit tone signal.
with Speakerphone.)
NOTE: When calling a Single Line telephone,
l Depress ICM button,
no voice announcement is available.
l Dial desired station number,
OR
Ring signal will be automatically pro-
vided.
l Voice announce after hearing tone burst;

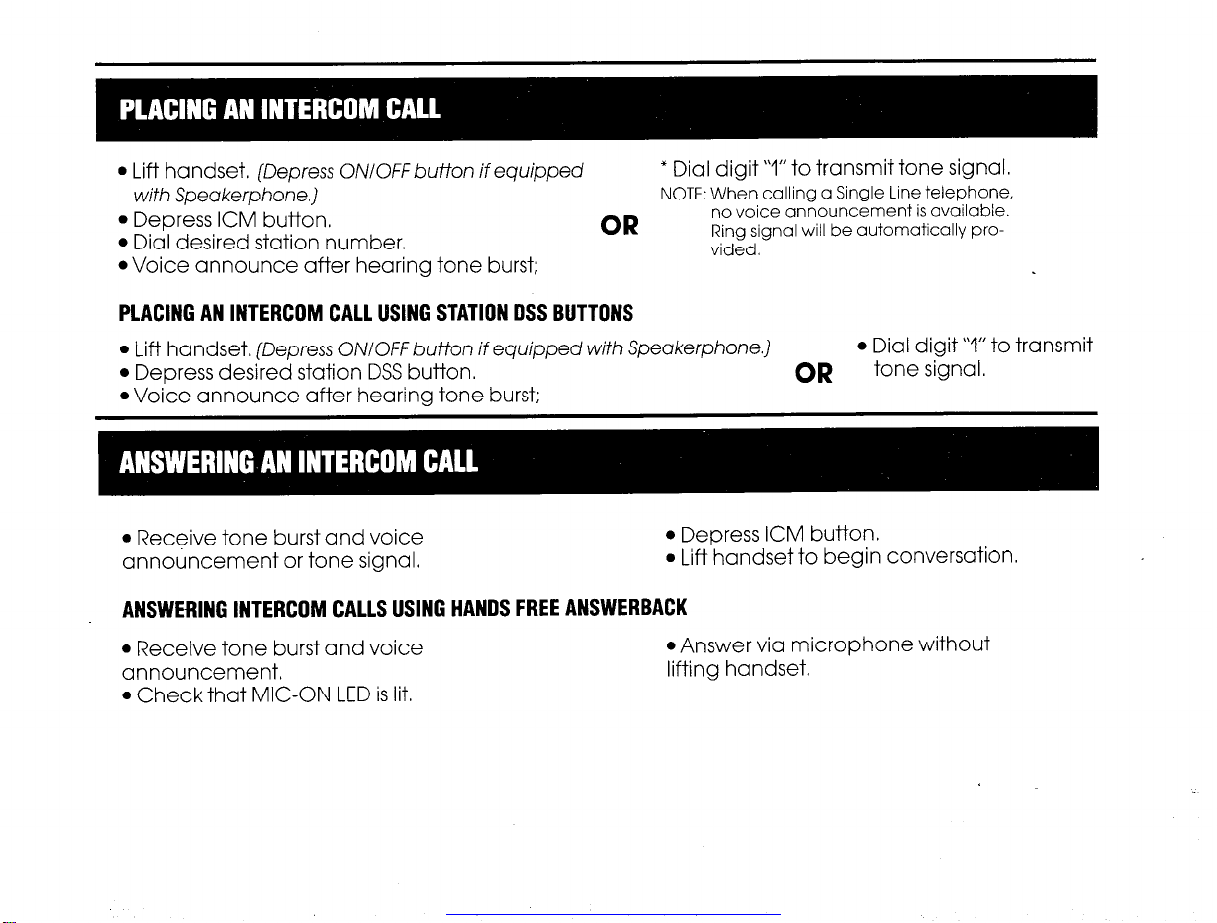

PLACING AN INTERCOM CALL USING STATIONOSSBUTTONS
l Lift handset. (Depress ON/OFF button if equipped with Speakerphone.)
l Dial digit “1” to transmit
l Depress desired station DSS button.
OR
tone signal.
l Voice announce after hearing tone burst;
l Receive tone burst and voice
l Depress ICM button.
announcement or tone signal.
l Lift handset to begin conversation.
ANSWERING INTERCOM CALLS USING HANDS FREEANSWERBACK
l Receive tone burst and voice
announcement.
l Check that MC-ON LED is lit.
l Answer via microphone without
lifting handset.
Get other manuals https://www.bkmanuals.com

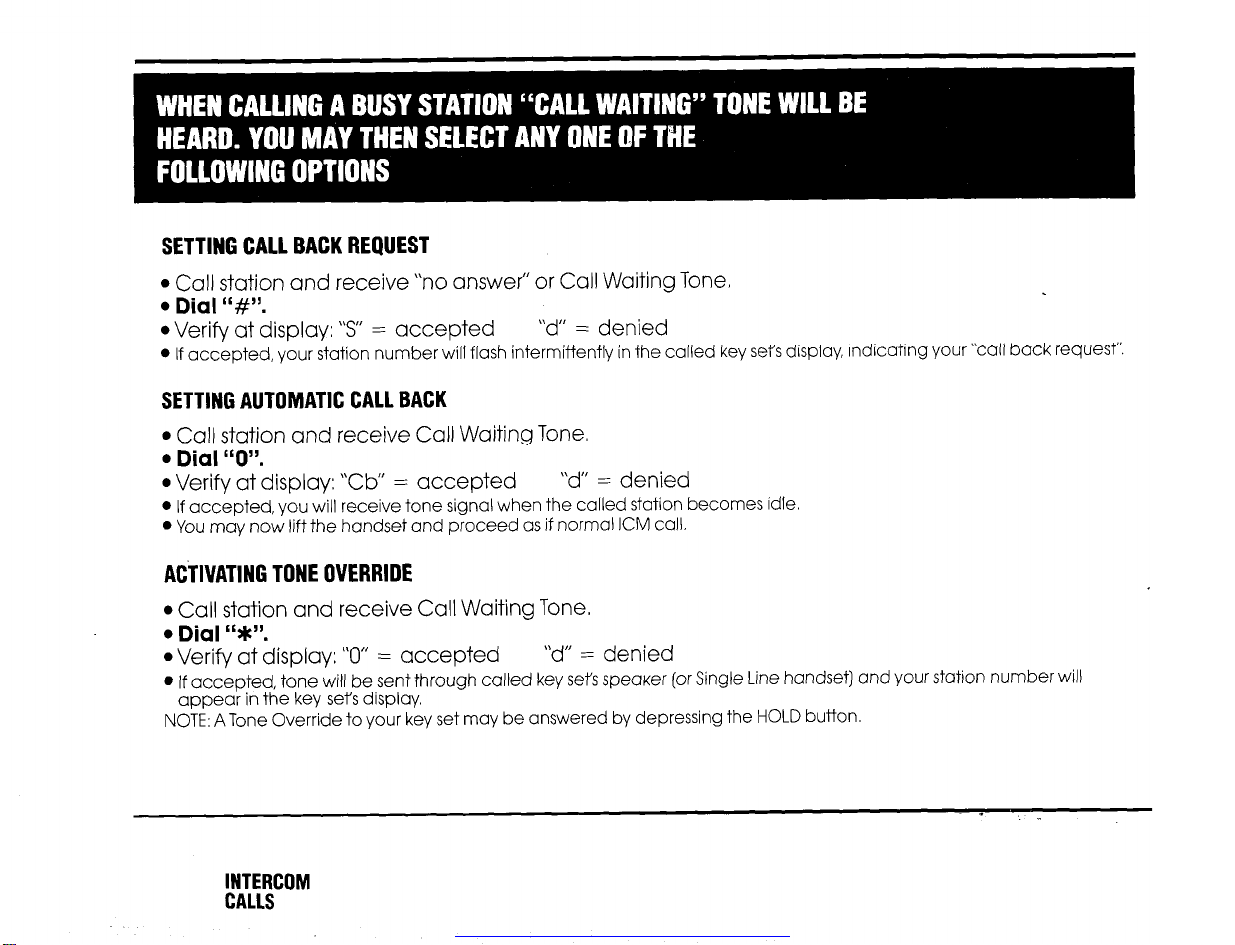

SETTINGCALLBACKREQUEST
l Call station and receive “no answer” or Call Waiting Tone.
l Dial “#“.
l Verify at display: ‘5” = accepted “d” = denied
l If accepted, your station number will flash intermittently in the called key set’s display, indicating your “call back request”.
SETTINGAUTOMATICCALLBACK
l Call station and receive Call Waiting Tone.
l Dial “0”.
l Verify at display: “Cb” = accepted “d” = denied
l If accepted, you will receive tone signal when the called station becomes idle.
l You may now lift the handset and proceed as if normal ICM call.
ACTIVATINGTONEOVERRIDE
l Call station and receive Call Waiting Tone.
l Dial “W.
l Verify at display: “0” = accepted “d” = denied
l If accepted, tone will be sent through called key set’s speaker (or Single Line handset) and your station number will
appear in the key sets display.
NOTE: A Tone Override to your key set may be answered by depressing the HOLD button.
INTERCOM
CALLS
Get other manuals https://www.bkmanuals.com

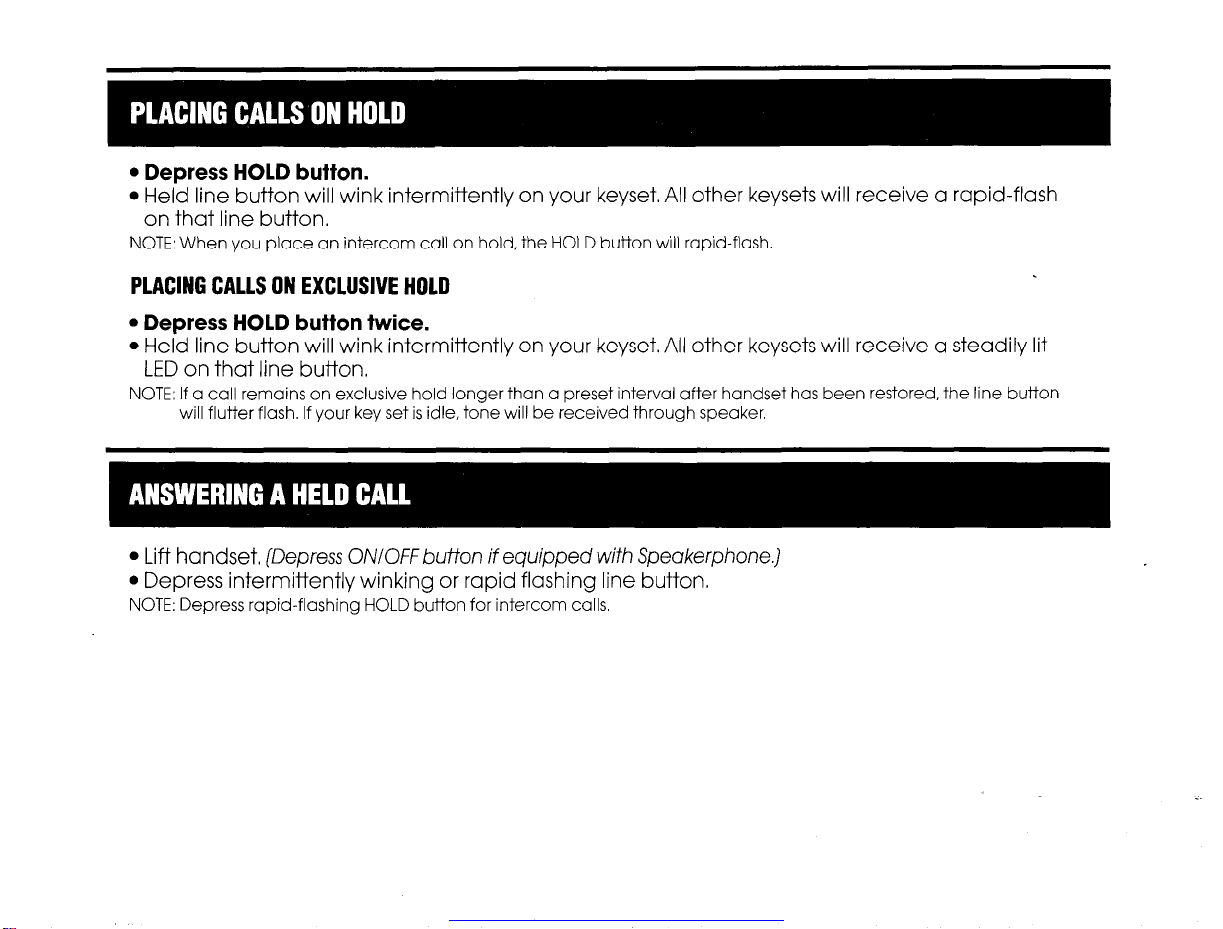

l Depress HOLD button.
l Held line button will wink intermittently on your keyset. All other keysets will receive a rapid-flash
on that line button.
NOTE: When you place an intercom call on hold, the HOLD button will rapid-flash.
PLACING CALLS ON EXCLUSIVE HOLD
l Depress HOLD button twice.
l Held line button will wink intermittently on your keyset. All other keysets will receive a steadily lit
LED on that line button.
NOTE: If a call remains on exclusive hold longer than a preset interval after handset has been restored, the line button
will flutter flash. If your key set is idle, tone will be received through speaker.
l Lift handset, [Depress ONIOFFbuffon if equipped with Speakerphone.)
l Depress intermittently winking or rapid flashing line button.
NOTE: Depress rapid-flashing HOLD button for intercom calls
Get other manuals https://www.bkmanuals.com

;i.

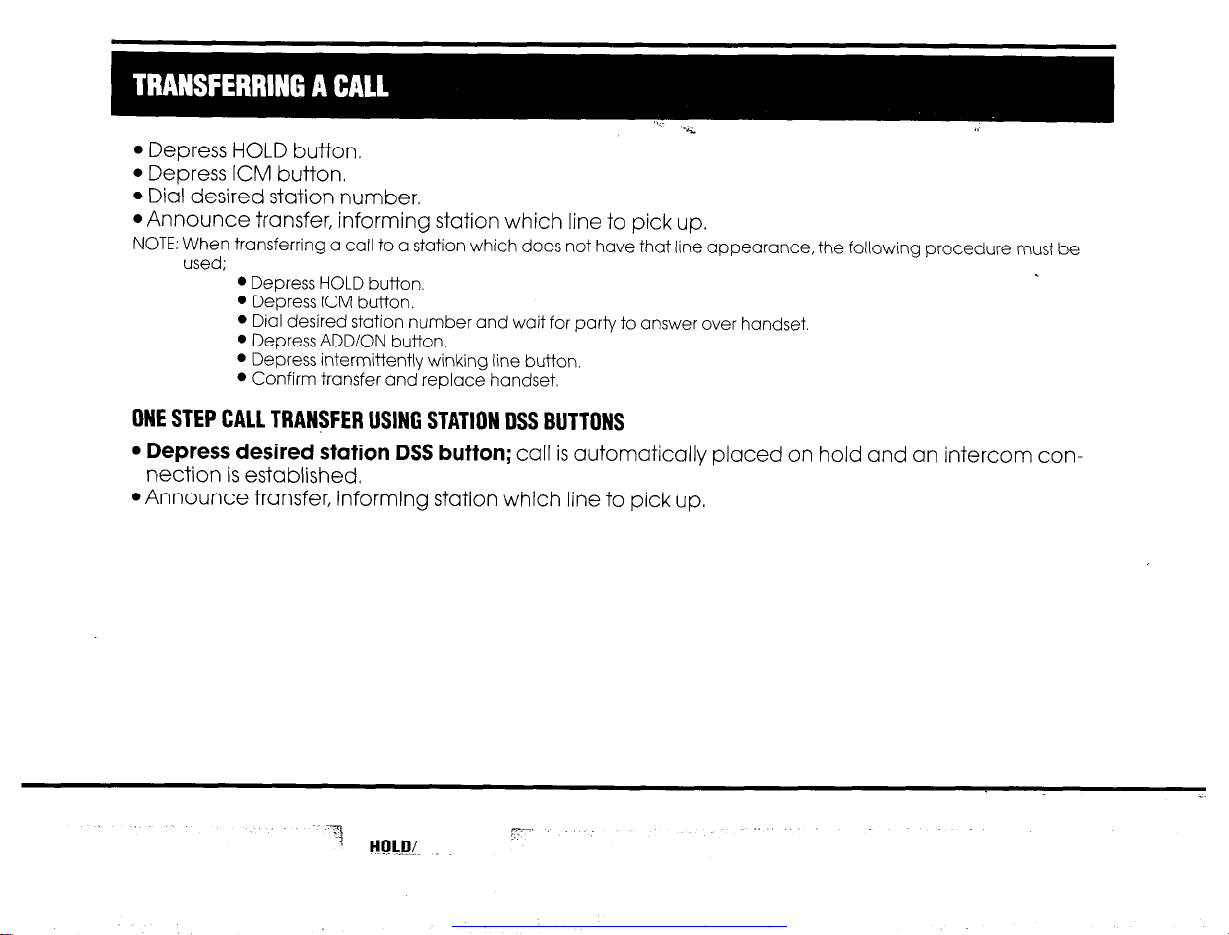

l Depress HOLD button.
l Depress ICM button.
l Dial desired station number.
l Announce transfer, informing station which line to pick up.
NOTE: When transferring a call to a station which does not have that line appearance, the following procedure must be
used;
l Depress HOLD button.
l Depress ICM button.
l Dial desired station number and wait for party to answer over handset.
l Depress ADD/ON button.
l Depress intermittently winking line button.
l Confirm transfer and replace handset.
ONESTEP CALL TRANSFER USING STATIONDSSBUTTONS
l Depress desired station DSS button; call isautomatically placed on hold and an intercom con-
nection is established.
l Announce transfer, informing station which line to pick up.

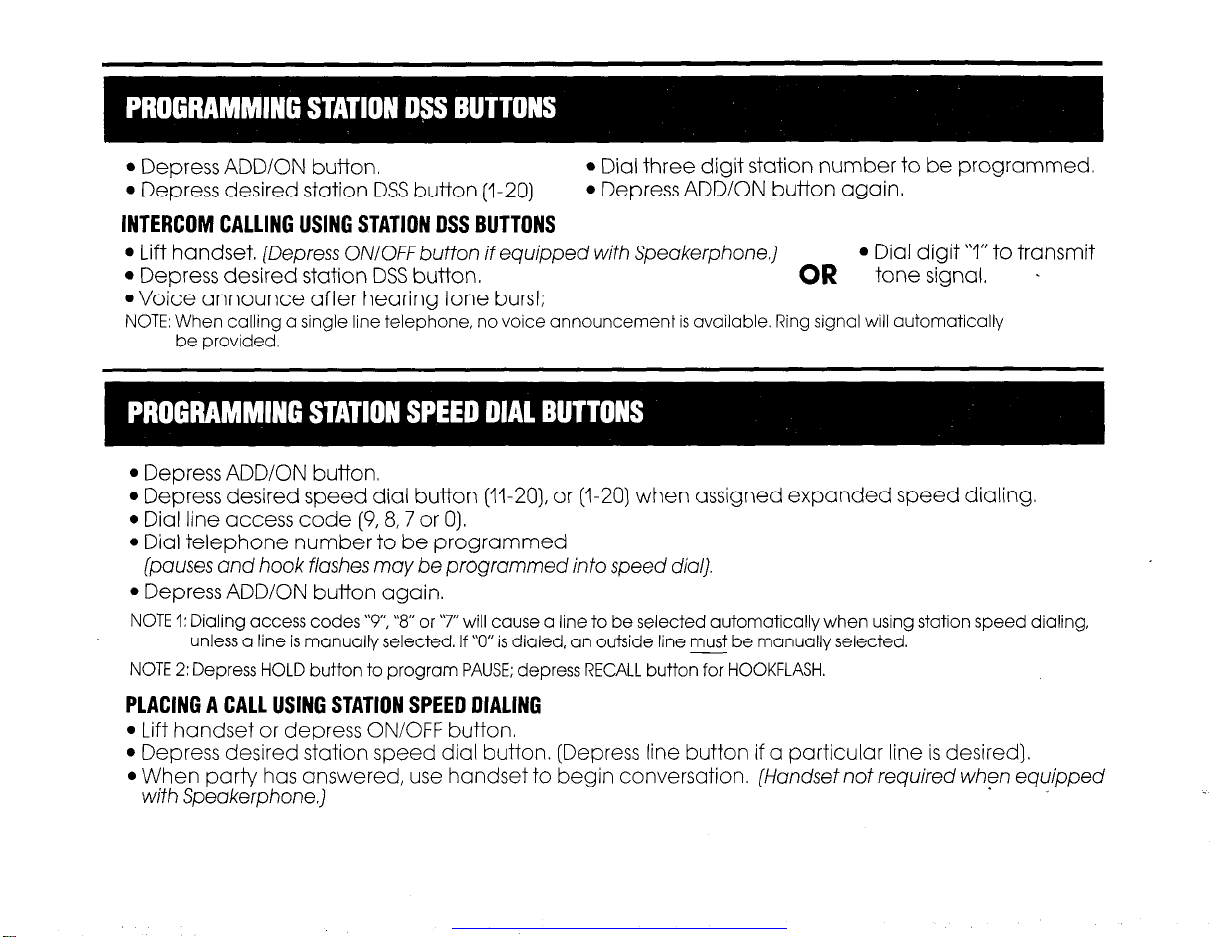

Get other manuals https://www.bkmanuals.com

l Depress ADD/ON button.
l Dial three digit station number to be programmed.
l Depress desired station DSS button (I-20) l Depress ADD/ON button again.
INTERCOM CALLING USING STATIONDSSBUTTONS
l Lift handset. (Depress ONIOfFbutton if equipped with Speakerphone.)
l Dial digit “1” to transmit
l Depress desired station DSS button. OR tone signal. .
l Voice announce after hearing tone burst;
NOTE: When calling a single line telephone, no voice announcement is available. Ring signal will automatically
be provided,
l Depress ADD/ON button.
l Depress desired speed dial button (II-20), or (I-20) when assigned expanded speed dialing.
l Dial line access code (9,8,7 or 0).
l Dial telephone number to be programmed
[pauses and hook flashes may be programmed into speed cfid).
l Depress ADD/ON button again.
NOTE 1: Dialing access codes V”, “8” or “7” will cause a line to be selected automatically when using station speed dialing,
unless a line is manually selected. If “0” is dialed, an outside line must be manually selected.
NOTE 2: Depress HOLD button to program PAUSE; depress RECALL button for HOOKFLASH.
PLACING A CALL USING STATIONSPEEDDIALING
l Lift handset or depress ON/OFF button,
l Depress desired station speed dial button, (Depress line button if a particular line isdesired).
l When party has answered, use handset to begin conversation. (Handsef not required when equipped
with Speakerphone.)
Get other manuals https://www.bkmanuals.com

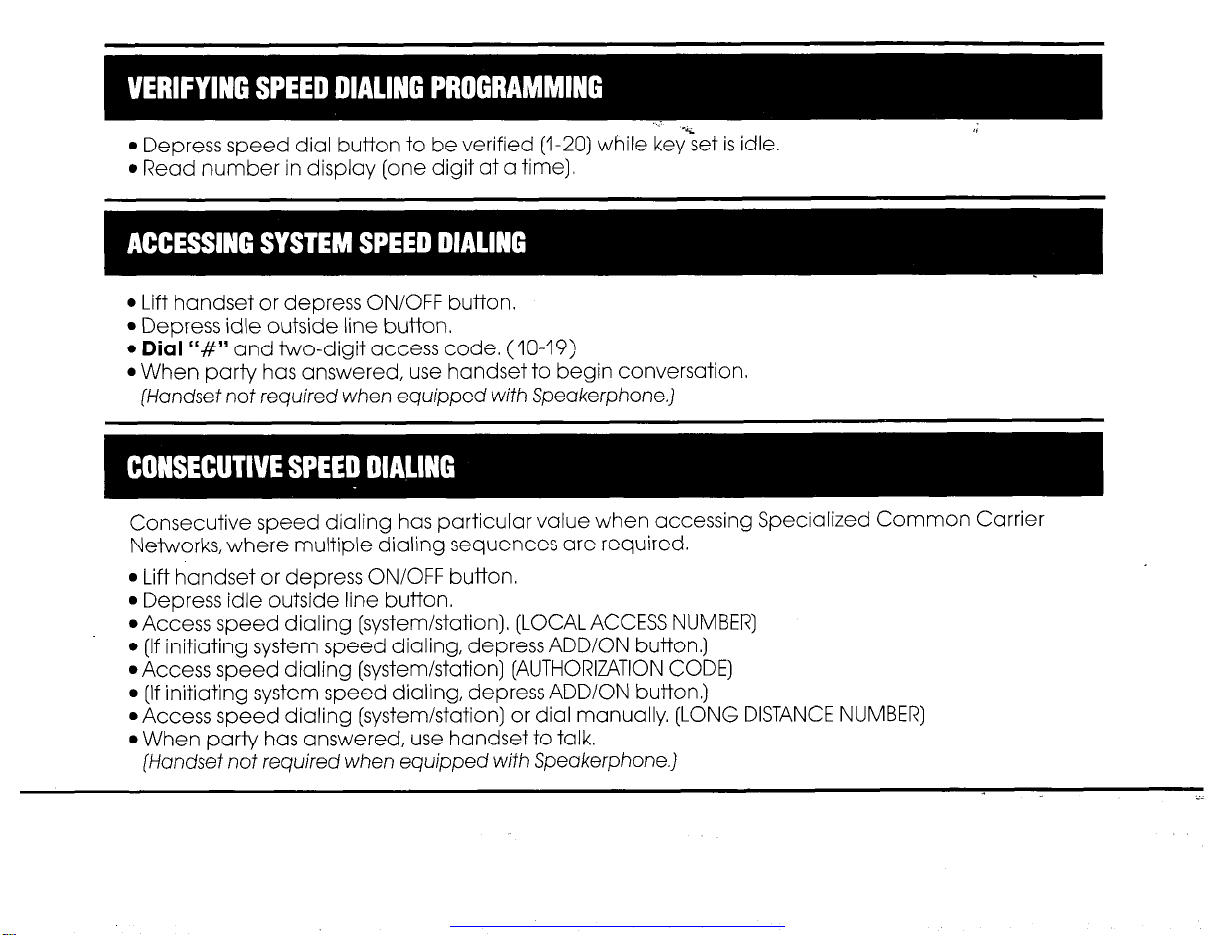

l Depress speed dial button to be verified (I-20) while keGet is idle.
l Read number in display (one digit at a time).
l Lift handset or depress ON/OFF button.
l Depress idle outside line button.
l Dial “#” and two-digit access code. (IO-IO>
l When party has answered, use handset to begin conversation,
(Hcmdsef not required when equipped with Speakerphone.)
Consecutive speed dialing has particular value when accessing Specialized Common Carrier
Networks, where multiple dialing sequences are required.
l Lift handset or depress ON/OFF button.
l Depress idle outside line button.
l Access speed dialing (system/station). (LOCAL ACCESS NUMBER]
l (If initiating system speed dialing, depress ADD/ON button.)
l Access speed dialing (system/station] (AUTHORIZATION CODE)
l (If initiating system speed dialing, depress ADD/ON but-ton.)
l Access speed dialing (system/station) or dial manually. (LONG DISTANCE NUMBER)
l When party has answered, use handset to talk.
[Handset not required when equipped with Speakerphone.)
Get other manuals https://www.bkmanuals.com

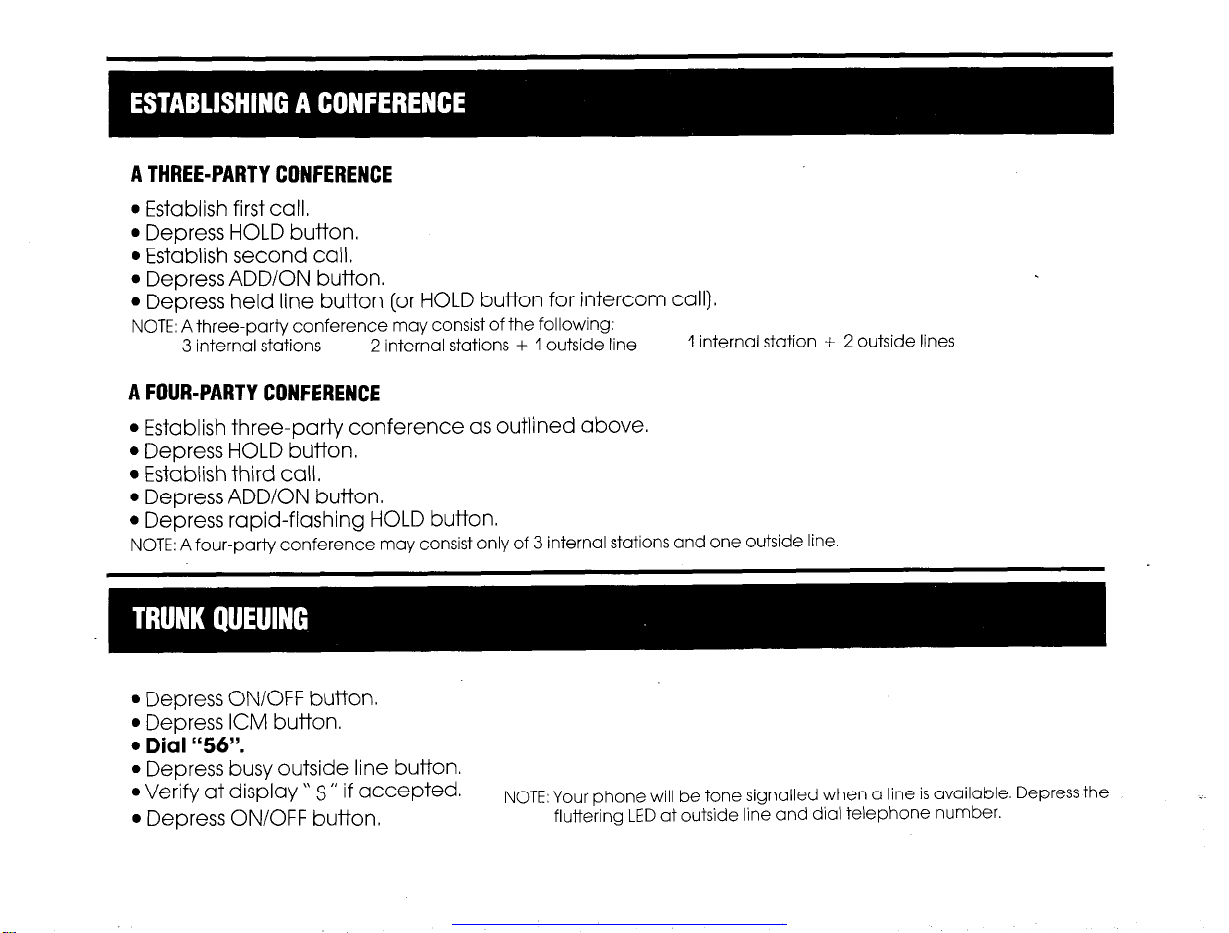

ATHREE-PARTYCONFERENCE
l Establish first call.
l Depress HOLD button,
l Establish second call.
l Depress ADD/ON button.
l Depress held line button (or HOLD button for intercom call).
NOTE: A three-party conference may consist of the following:
3 internal stations 2 internal stations + 1 outside line 1 internal station + 2 outside lines
AFOUR-PARTYCONFERENCE
l Establish three-party conference as outlined above.
l Depress HOLD button.
l Establish third call,
l Depress ADD/ON button.
l Depress rapid-flashing HOLD button.
NOTE: A four-party conference may consist only of 3 internal stations and one outside line
l Depress ON/OFF button.
l Depress ICM button.
l Dial 56”.
l Depress busy outside line button.
l Verify at display ” s ” if accepted.
l Depress ON/OFF button.
NOTE: Your phone will be tone signalled when a line is available. Depress the
fluttering LED at outside line and dial telephone number.
Get other manuals https://www.bkmanuals.com

SETTING
l Depress ON/OFF button.
l Depress ICM button.
l Dial “46”
l Dial station number calls should be forwarded to.
l Dial “I” for all calls to be forwarded.
l Dial “2” for calls to be forwarded only when your station is busy,
l Receive confirmation tone.
l Depress ON/OFF button.
NOTE: The HOLD LED will be lit steadily when call forwarding is set.
CANCELllNG
l Depress ON/OFF button,
l Depress ICM button,
l Dial “46”.
l Depress ON/OFF button again.
VERIFYING
l Depress ON/OFF button,
l Depress ICM button.
l Dial “47”.
l Read target number in display.
l Display will indicate “00” if no call forwarding isset.
Get other manuals https://www.bkmanuals.com

l Lift handset. (Depress ONIOFFbufton if l Depress ICM button.
equipped with Speakerphone.)
l Dial “2” to establish connection.
l Lift handset or depress ON/OFF button.
l Depress idle outside line button.
l Dial “W’.
l When party has answered, use handset to talk.
(Handset not required when equipped
with Speakerphone.)
SETTING
l Depress DND button; LED lights steady.
CANCELLING
l Depress DND button; LED goes out.
@A rapid-flashing DND LED indicates that the attendant has a Message Waiting for the station user.
Get other manuals https://www.bkmanuals.com

SINGLE LINE TELEPHONE
l Lift handset, listen for dial tone.
l Dial desired station number.
l Wait for party to answer.
l Lift handset, listen for dial tone.
l Dial outside line access code (9,8, or 7).
l Dial telephone number.
*Ask party to hold.
l Depr;ess switchhook momentarily, listen for second dial tone.
l Place a second call if desired,
NOTE 1:When handset is restored your phone will ringback immediately with your held call.
NOTE 2: If attendant camp-on tone or station tone override signal is received through your handset, you may use this
feature to place call in progress on hold and immediately answer the call waiting.
. i
Get other manuals https://www.bkmanuals.com

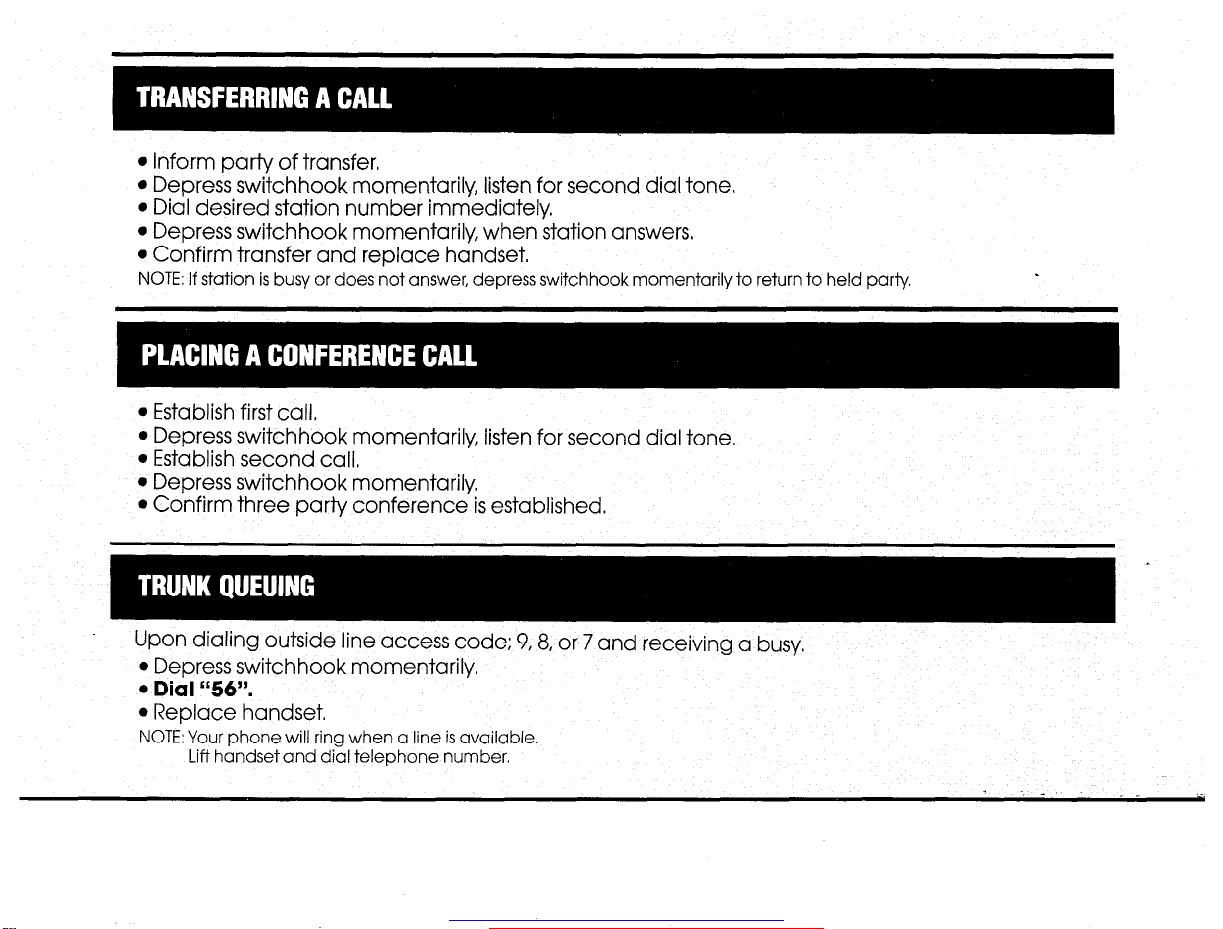

l Inform party of transfer,
l Depress switchhook momentarily, listen for second dial tone.
l Dial desired station number immediately.
l Depress switchhook momentarily, when station answers,
l Confirm transfer and replace handset.
NOTE: If station is busy or does not answer, depress switchhook momentarily to return to held party.
l Establish first call.
l Depress switchhook momentarily, listen for second dial tone.
l Establish second call,
l Depress switchhook momentarily.
l Confirm three party conference is established.
UPOn dialing outside line access code; 9,8, or 7 and receiving a busy.
l Depress switchhook momentarily.
l Dial c56yy.
l Replace handset.
NOTE: Your phone will ring when a line is available.
Lift handset and dial telephone number.
Get other manuals https://www.bkmanuals.com

l Lift handset,
l Dial “40”.
l Dial two digit access code, 20 through 29.
0 Dial outside line access code, 9,8, or 7.
l Dial telephone number.
l Replace handset.

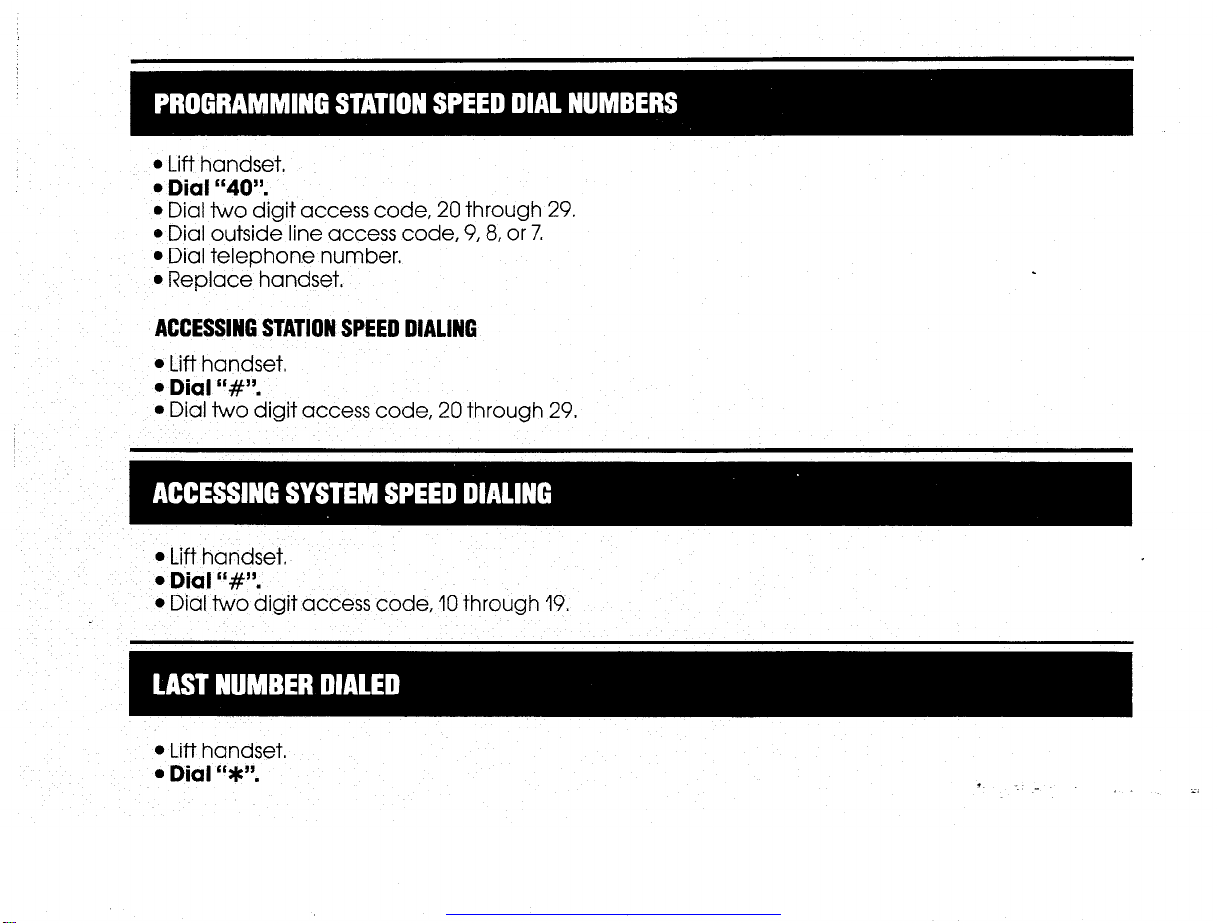

ACCESSINGSTATIONSPEEDDIALING
l Lift handset.
l Dial “#“.
l Dial two digit access code, 20 through 29,
l Lift handset.
l Dial ‘*#“.
l Dial Iwo digit access code, 10 through 19.
l Lift handset.
Get other manuals https://www.bkmanuals.com

SETTING
l Lift handset.
l Dial “46”.
l Dial station number you wish your calls to be forwarded to.
l Dial rrly’ for all calls to be forwarded.
l Dial “2” for calls to be forwarded only when your phone isbusy.
CANCELLING
l Lift handset.
l Dial 46 and replace handset,
l Lift handset.
l Dial 2.
l You will be connected to the incoming intercom or attendant transferred call to a station within
your programmed group.
NIGHTCALLPICKUP
l Lift handset.
l Dial 3.
l You will be connected to the incoming call when the system has been placed in the night mode,
Get other manuals https://www.bkmanuals.com

l Lift handset. ANSWERING
T Dial internal zone access code (51,52,53 or 50).
l Lift handset,
l Voice page.
l Dial 55.
l Lift handset. ANSWERING
l Dial external zone page access code (61,62,63 or 60).
l Lift handset.
l Voice page.
l Dial 65.
Account code entry applies only to those systems equipped with station message detail
service (SMDS),
l Dial telephone number,
l Immediately dial * and the account code (up to nine digits). [To enter Account Code, dial manually
or access speed dial (system/station),]
Get other manuals https://www.bkmanuals.com

DIRECTORY NOTES
Name Area Code &Number
Get other manuals https://www.bkmanuals.com
