NEC DT300 Series User manual

DT300/DT700 Series Terminals
SV8300 USER’S GUID
E
NEC Unified Solutions, Inc.
February, 2008

LIABILITY
DISCLAIMER
NEC Unified Solutions, Inc. reserves the right to change the specifications, functions, or
features, at any time, without notice.
NEC Unified Solutions, Inc. has prepared this document for use by it s em ployees and customers.
The information contained herein is the property of NEC Unified Solutions, Inc. and sh all not be reproduced
without prior written approval from NEC unified Solutions, Inc. All brand names and product names
on this docu ment are trademarks or registered t rademarks of their respective companies.
Copyright 2008
NEC Unified Solutions, Inc.

1
1. I NTRODUCTION
• General
This guide explains how to operate DT300/DT700 Series terminals.
CHAPTER 1 INTRODUCTION
Explains the configuration of this guide and contains
the following information.
• Face layout of DT Series
• Keys and Parts of DT Series

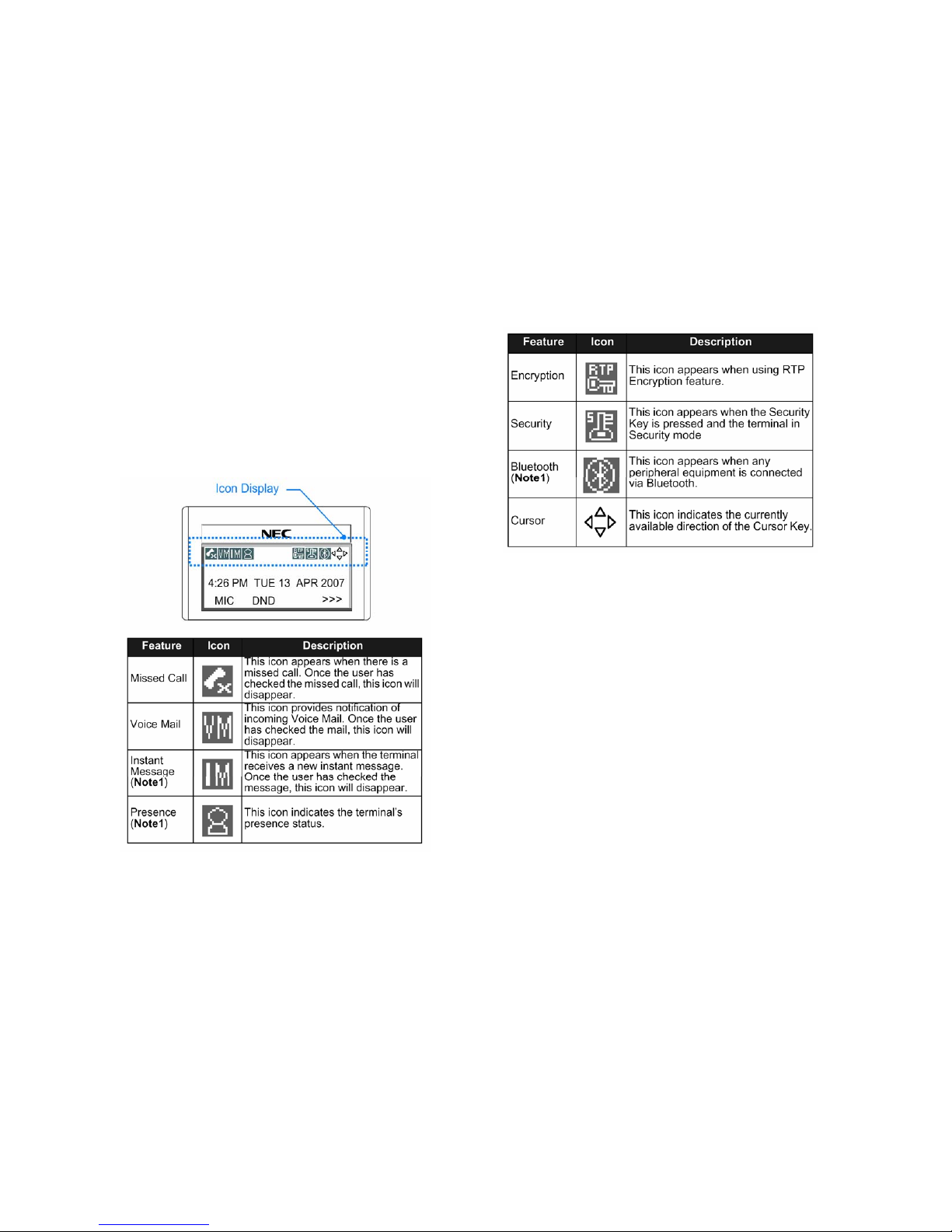

• Icon Display
• Menu List
CHAPTER 2 TERMINAL SETUP
Explains the terminal settings from DT Series.
CHAPTER 3 BASIC OPERATION
Explains the basic operation of DT Series.
CHAPTER 4 FEATURE OPERATION
Explains operating procedures for various Telephony
Server features.

2

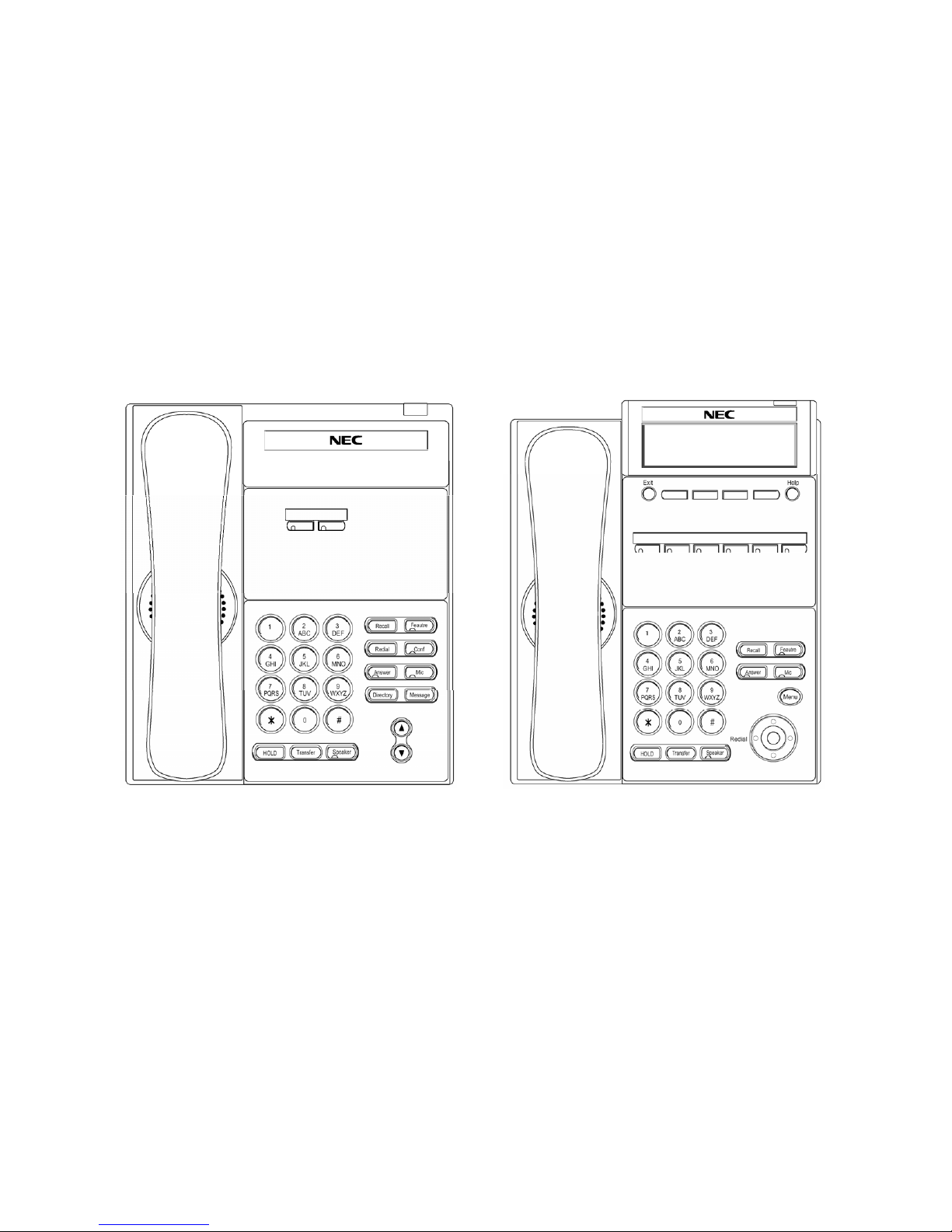

• Face Layout
DT310/710 (2-Button without LCD)
DT310/710 (6-Button with LCD)

3
DT330/DT730 (12-Button with LCD)
Note: Security button is equipped on DT730 only.
DT330/DT730 (24-Button with LCD)
Note: Security button is equipped on DT730 only.

4
DT330/DT730 (32-Button with LCD)
Note: Security button is equipped on DT730 only.
DT330/DT730 (DESI Less 8-Button)
Note: Security button is equipped on DT730 only.

5
• Keys And Parts
DT310/DT710
(2-Button without LCD)
(1) Call Indicator Lamp
Lamp at top corner of DT Series Display flashes when a call
terminates to the terminal. Lamp lights steadily when a
message has been left.
(2) Programmable Keys
These keys can be programmed as Flexible Line
ke
y
/Pro
g
rammable Feature Ke
y
b
y
Tele
p
hon
y
Server Administrator.
When Telephony Server Administrator sets “One-Touch Speed
Dial key” on the programmable keys, users can assign any
numbers (ex. Telephone number, etc.) to the key (up to 24
digits).
* For the assignment of the keys, confirm to the
Telephony Server Administrator.
(3) Recall
Press key to finish the call and hear the dial tone.
(4) Feature
Used to activate any features as terminal setup
functions, etc. and to program One-Touch Speed
Dial Keys.
(5) Redial
(Last Number Call, Speed Calling-Station/Group) Press key to
activate redial feature. Press redial and scroll back through
numbers that have been dialed.
(6) Conf
Press key to establish a three-way conversation. LED on key
lights when key is active.
(7) Answer
When LED on this key is lit, press key to answer a waiting call.
(8) Mic
Press key to respond hands free. LED on this key lights during
speakerphone operation.

6
(9) Message
Press key to access the voice mail system.
(10)Up/Down
( DOWN UP)
Used to adjust LCD contrast, speaker/receiver volume, and
ringer volume.
• LCD Contrast:
Press ( ) or ( ) key while idle.
• Speaker/Receiver Volume:
Press ( ) or ( ) key during conversation.
• Ringer Volume:
Press ( ) or ( ) key during ringing.
(11) Directory
Press key to activate speed calling - system feature.
(12) Speaker
Controls the built-in speaker which can be used for Hands Free
dialing/monitoring.
LED on key lights when key is active.
(13)Transfer
Allows the station user to transfer established calls to another
station, without attendant assistance.
(14)Hold
Press this key to place an internal or external call on hold.

7
DT330/DT730
(24-Button with LCD)
(1) Security Button (DT730 only)
The user can prevent information leakage from
terminal by simple operation.
(2) Call Indicator Lamp
Lamp at top corner of DT Series Display flashes when a call
terminates to the terminal. Lamp lights steadily when a
message has been left.
(3) LCD (Note 1)
LCD (Liquid Crystal Display) provides DT Series activity
information plus data, time and Soft Key Operation.
The LCD on DT310/DT710 has 24-character, 3-line capability.
The LCD on DT330/DT730 has 24-character, 4- line capability.
Top line is used exclusively for the status icons.
(4) Exit
The user can exit from the Help key mode by
pressing this key.

8
(5) Soft Keys
Any feature shown at the bottom of the LCD is
available. The appropriate feature key is displayed
on the screen according to the call handling process.
(6) Help
Explanations of the Soft Keys can be called up on
the LCD by pressing this key.
(7) Programmable Keys
These keys can be programmed as Flexible Line
key/Programmable Feature Key by Telephony
Server Administrator.
When Telephony Server Administrator sets “One-
Touch Speed Dial key” on the programmable keys,
users can assign any numbers (ex. Telephone
number, etc.) to the key (up to 24 digits).
* For the assignment of the keys, confirm to the
Telephony Server Administrator.
(8) Recall
Press key to finish the call and hear the dial tone.
(9) Feature
Used to activate any features as terminal setup
functions, etc. and to program One-Touch Speed
Dial Keys.
(10) Answer
When LED on this key is lit, press key to answer a
waiting call.
(11) Mic
Press key to respond hands free. LED on this key
lights during speakerphone operation.
(12) Menu
From this key, the user can access to the functions
not normally used (such as terminal settings,
downloads and access to XML applications) easily.
(13) Cursor
By using this Key, DT Series user can access to
various features with simple operation.
Two lines of menu items can be displayed at a
time. Use "Up" or "Down" key to scroll the item.

9

(Menu) 1/2



1. Call History
3. Directory
Up Down Cancel Save
User Menu
1. Call History
2. Directory
3. Tool
4. Call Function
5. Setting
6. Presence
#. Favorite
0. Config
Up Down Cancel Save
Note: DT310/710 (2-Button without LCD) does
not have the Cursor Key.
(14) Enter
DT330/DT730 Series has Shortcut Menu for frequently-
used features. The user can access to Shortcut Menu by
pressing Enter Key.
Note: DT310/710 Series does not support the Shortcut Menu.
Shortcut Menu includes the following features.
Feature Description
1. Missed Call Access to history of Missed Call.
2. Voice Mail Access to history of incoming Voice
Mail.
3. IM Not supported.
4. Presence Not supported.
5. Bluetooth Not supported.
Note 2: A-law Countries [Australia, Russia, Latin America, UK,
Middle near East, other Asian nations]: # µ-law Countries [North
America, Japan, Hong Kong, Taiwan]:

(15) Redial
(Last Number Call, Speed Calling-Station/Group) Press
key to activate redial feature. Press redial and scroll back
through numbers that have been dialed.
When the desired number is displayed,
press the or # (Note 2) key to activate dialing.
(16) Speaker
Controls the built-in speaker which can be used for Hands
Free dialing/monitoring.
LED on key lights when key is active.
(17) Transfer
Allows the station user to transfer established calls to
another station, without attendant assistance.
(18) Hold
Press this key to place an internal or external call on hold.
Note 1: Not equipped on DTL-2E-1/ITL-2E-1.

10

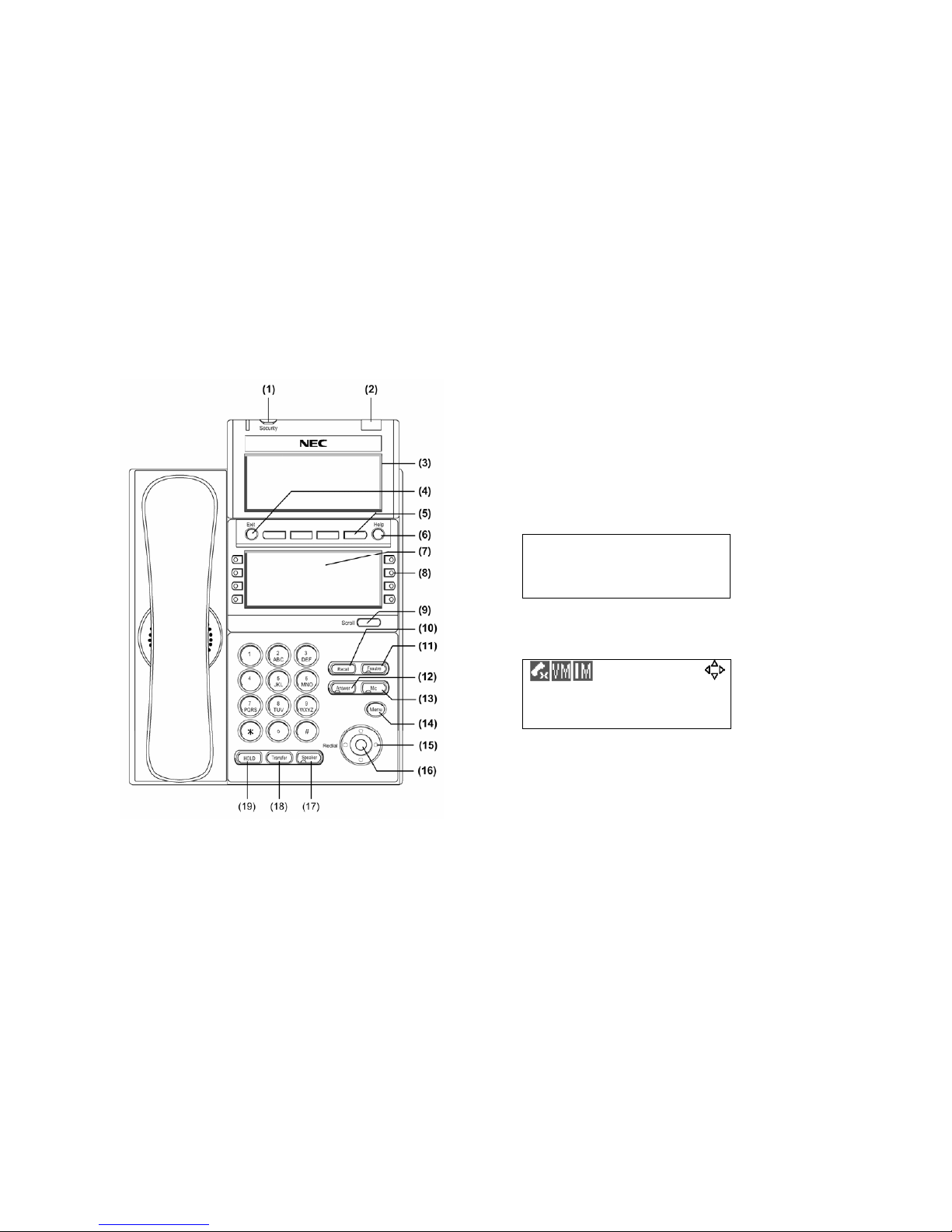

DT330/DT730
(DESI Less 8-Button with LCD)
(1) Security Button (DT730 only)
The user can prevent information leakage from terminal by
simple operation.
(2) Call Indicator Lamp
Lamp at top corner of DT Series Display flashes when a call
terminates to the terminal. Lamp lights steadily when a
message has been left.
(3) LCD (Note 1)
LCD (Liquid Crystal Display) provides DT Series activity
information plus data, time and Soft Key Operation.
The LCD on DT310/DT710 has 24-character, 3-line
capability.
4:26 PM TUE 12 FEB 2008
MIC VOICE >>>
The LCD on DT330/730 has 24-character, 4-line capability.
Top line is used exclusively for the status icons.
4:26 PM TUE 12 FEB 2008
MIC VOICE >>>
(4) Exit
The user can exit from the Help key mode by pressing this key

11
(5) Soft Keys
Any feature shown at the bottom of the LCD is available. The
appropriate feature key is displayed on the screen according to
the call handling process.
(6) Help
Explanations of the Soft Keys can be called up on the LCD by
pressing this key.

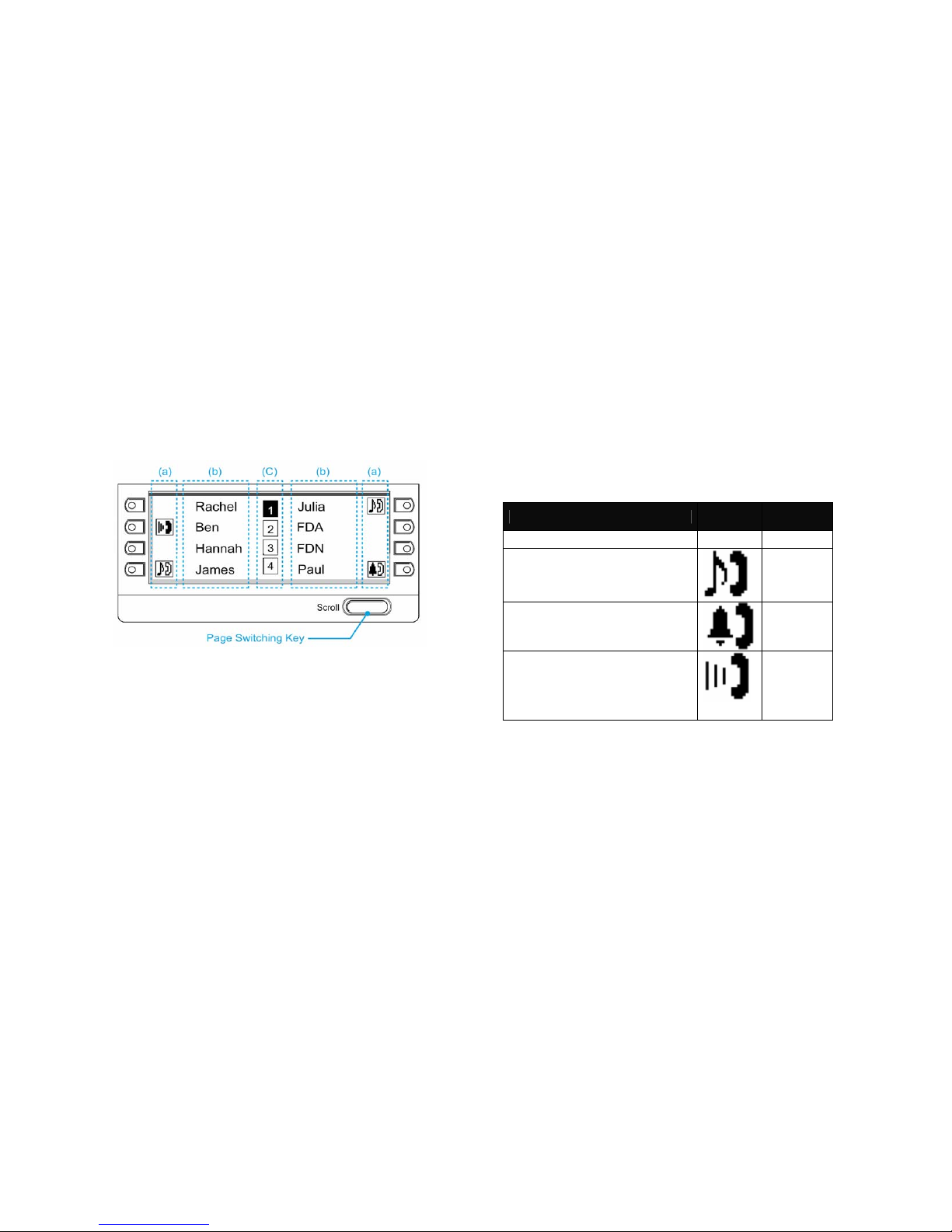

(7) 8LD Display
32 (8 keys x 4 pages) additional programmable keys are
provided. They can be programmed as Flexible
Line/Programmable feature key by Telephony Server
Administrator, similar to existing programmable keys. When
Telephony Server Administrator sets “One-Touch Speed
Dial key” on the programmable keys, users can assign any
numbers (ex. Telephone number, etc.) to the key (up to 8
digits).
* Maximum 8 characters can be displayed.
** The users can change the name displayed on the LCD. For
the operating procedure, refer to To Register Name On One-
Touch Speed Dial key.
*** For the assignment of the keys, confirm to the Telephony
Server Administrator.
(a) Icon
Status of the Line key such as Call termination, Call Hold or
Busy, and setting on the Feature key are shown as Icons.
User’s Status Icon Flashing
Pattern
Idle
 Call Hold (Individual Hold on Call
Park Group)
 Exclusive Call Hol
Blink
Note
 Recall (Individual Hold/Exclusive
Call Hold/Call Transfer/
 Individual Hold on Call Park Group)
Blink
Note
 During Conversation (Individual
Use)
 Call Transfer
 Conference

12
(b) Feature Key Information
Feature Key Information displays the followings.
Key Description
Maximum
digits to be
displayed
Line Key - Name and Number
information
Up to 8 digits.
Feature Key - Feature Name Up to 8 digits.
One-Touch
Speed Dial Key
- Speed Dial Name
Information
- Number Information
Up to 6 digits.
(c) Page Icon
8LD display has four pages (8 Programmable Feature keys
per page). Page Icon Key indicates currently displayed page.
The user can switch the Feature Key display from page 1 to 4
by using the Page Switching Key.
Note 3: The icon flashes during events such as call
termination to a line key or call back.
Example:
(8) Programmable Keys
These keys can be programmed as Flexible Line key/
Programmable Feature Key by Telephony Server
Administrator.
When Telephony Server Administrator sets “Speed Dial key”
on the programmable keys,
users can assign any numbers (ex. Telephone

13
number, etc.) to the key (up to 24 digits).
* For the assignment of the keys, confirm to the
Telephony Server Administrator.
Following picture shows LCD indication of Programmable keys.
Appropriate icons are displayed according to the using feature.
These displays cannot be changed by user.
Following pictures shows each LCD indication
when Speed Dial key is set to Programmable key. Following
picture shows the indication of each status.
When Station line/Trunk line are assigned.
No icons are displayed.
* Users can register name on each Speed Dial key. For the
procedures, refer to To Register Name On Speed Dial key.
When any features using feature access code are
assigned.
Icons turn black.
* Users can register name on each One-Touch
Speed Dial key. For the procedures, refer to To
Register Name On Speed Dial key.
(9) Scroll Key
This key is used to turn over the page of 8LD display.
(10)Recall
Press key to finish the call and hear the dial tone.
(11)Feature
Used to activate any features as terminal setup
functions, etc. and to program Speed Dial Keys.

14
(12) Answer
When LED on this key is lit, press key to answer a waiting
call.
(13) Mic
Press key to respond hands free. LED on this key lights
during speakerphone operation.
(14) Menu
From this key, the user can access to the functions not
normally used easily.
(15) Cursor
By using this Key, DT Series user can access to various
features with simple operation.
Two lines of menu items can be displayed at a
time. Use "Up" or "Down" key to scroll the item.
Note: DT310/710 (2-Button without LCD) does not have the
Cursor Key.
(16) Enter
DT330/DT730 Series has Shortcut Menu for frequently-
used features. The user can access to Shortcut Menu by
pressing Enter Key.
Note: DT310/710 Series does not support the Shortcut Menu.
Shortcut Menu includes the following features.
Feature Description
1. Missed Call Access to history of Missed Call
2. Voice Mail Access to history of incoming Voice Mail.

15
Feature Description
3. IM Not supported.
4. Presence
Not supported.
5. .Bluetooth
Not supported.
(17) Speaker
Controls the built-in speaker which can be used for
Hands Free dialing/monitoring.
LED on key lights when key is active.
(18)Transfer
Allows the station user to transfer established calls
to another station, without attendant assistance.
(19)Hold
Press this key to place an internal or external call
on hold.

16
• ICON DISPLAY
The LCD of DT730 Series displays Desktop Icons
which provide notification when events (such as missed
call and voice mail) occur.
Note: DT310/DT330/DT710 Series does not support
the icon display.
Note 1: Currently unavailable.

17
• Menu List
From the Menu List, the user can use various
application features such as Directory and Call History.
To Display Menu List
No.
Menu
Item Description
1 Call
History
To view Call History. For details, see
Chapter 7 CALL HISTORY OPERATION.
2 Directory To use Directory function. For details,
see Chapter 6. DIRECTORY
OPERATION.
3 Tool - Uses when accessing external XML
server. For details, please contact the
system administrator.
- Uses when sending/receiving Instant
Message. (Note1)
4 Call
Function
Currently Not Used (grayed out).
5 Setting To set up the terminal such as ringing
volume control, LCD display setting and
download of Music on Hold.
6 Precense Currently Not Used (grayed out).
# Favorite By registering frequently-used features
as favorite, the user can these features
with simple operation.
0 Terminal
Config
This item is used for Configuration
setting of DT Series.
Note 1: Operation for Instant Message (IM) is currently
unavailable.
Note: Unavailable Menu items are grayed out.
• Simple Operation By Menu Key and Cursor Key
By using Menu Key and Cursor Key, DT Series user can
access to Call History, Directory and terminal settings with
simple operation.
As an example, the following shows the operations how to
access to Directory menu.

18
2. TERMINAL SETUP
This chapter describes operating procedures for
terminal settings by the UP/Down Key and Feature
Keys.
Various terminal settings such as display, sounds,
password, and language are also available from Menu
Key. For detailed information on terminal settings from
Menu Key, see SV7000 IP Peripheral Guide.
Terminal Setup with the Up/Down Key
To Adjust Handset Receiver Volume
Press the Up/Down key in the off-hook status or during
the call.
To Adjust Speaker Volume
Press the Up/Down key during speakerphone operation
or during the call.
To Adjust Ringer Tone
Press the Up/Down key during ringing.
To Adjust LCD Contrast
Press the Up/Down key in the on-hook status.
Note: When the terminal is connected with 16LD ADM, 16 degrees
of LCD contrast are available (8 degrees in terminal side and 2
degrees in ADM itself). (In Expansion mode only, Link motion)
