netvox R816B User manual

Wireless Wall-Mounted Power Socket with Consumption Monitoring,
One Gang Wireless enabled, One Gang Straight-through, US type
Model：R816B
Wireless Wall-Mounted Power Socket
with Consumption Monitoring
(US type)
R816B
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

1
Table of Content
1. Introduction......................................................................................................................2
2. Appearance.......................................................................................................................3
3. Main Characteristic..........................................................................................................3
4. Operation..........................................................................................................................4
5. Data Report ......................................................................................................................5
5.1 Example of ReportDataCmd......................................................................................6
5.2 Example of ConfigureCmd ........................................................................................7
5.3 Example for MinTime/MaxTime logic ......................................................................8
6. Product Installation ..........................................................................................................9
7. Important Maintenance Instruction ................................................................................10

2
1. Introduction
R816B is a long-distance wireless socket device for Netvox ClassC type devices based on the LoRaWAN open protocol,
compatible with the LoRaWAN protocol. The AppServer can be used to control the opening and closing of the external load of
the R816B, and the external load can also be controlled by the switch that comes with the R816B device itself. The current,
voltage, power and energy values of the current load can be viewed through the AppServer. R816B supports automatic
disconnection of load and over-current alarm.
LoRa wireless technology:
LoRa is a wireless communication technology dedicated to long-distance low-power consumption. Its spread-spectrum
modulation method greatly increases the communication distance compared with other communication methods, and can be
widely used in long-distance low-rate IoT wireless communication fields in various occasions. Such as automatic meter reading,
building automation equipment, wireless security systems, industrial monitoring and control. It has the characteristics of small
size, low power consumption, long transmission distance and strong anti-interference ability.
LoRaWAN:
LoRaWAN defines an end-to-end standard specification using LoRa technology to ensure interoperability between devices from
different vendors.

3
2. Appearance
Note: Socket 1 is a general socket and cannot be controlled.
3. Main Characteristic
Compatible with LoRaWAN standard
100-240VAC 50/60HZ power supply
Simple operation and setting
Compatible with LoRaWANTM Class C
Frequency hopping spread spectrum
Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
Over current alarm
Automatically disconnect the load due to over current
Switch Indicator
Network Indicator
Switch Button
Socket 1
Socket 2
Factory Restoring Key (inside)

4
4. Operation
On/Off
Power on/Turn on Socket the R816B into the power supply of the AC 100-
240V, power on the device and
all the indicators flash once.
Power off When the R816B is removed from the power supply interface, the R816B will be
powered off and stopped.
Network Joining
Never joined the network
Turn on the device to search the network to join.
The network indicator stays on: success
The network indicator remains off: fail
Had joined the network
Turn on the device to search the previous network to join.
The network indicator stays on: success
The network indicator remains off: fail
Fail to join the network
(when the device is on)
Suggest to check the device verification information on the gateway or consult your
platform server provider.
Function Key
Press and hold the factory restoring key
for
5 seconds
Restore to factory setting
The network indicator flashes for 10 times: success
The network indicator remains off: fail
Press and hold the factory restoring key
for
10 seconds
(The network indicator flashes once when
the button is pressed for 5s, and flashes
again when the button is pressed for 10s),
and then release the key
to clear the power
information)
Clear electric energy cumulative value
The network indicator flashes for 5 times
If the network indicator does not flash, the clearing of the accumulated electric energy
value fails
Press the switch button
Control the relay switch on R816B for Toggle operation
When R816B is on, the switch indicator is on;
When R816B is off, the switch indicator is off.

5
5. Data Report
Data report configuration and sending period are as following:
Min Interval
(Unit:second)
Max Interval
(Unit:second) Reportable Change Current Change≥ Reportable Change
Current Change＜
Reportable Change
Any number between
1~65535
Any number between
1~65535 Can not be 0. Report per Min Interval
Report
per Max Interval
The device will immediately send a version packet report along with two uplink packets including ON/OFF status, energy, over
current alarm, voltage, current and power.
The device sends data in the default configuration before any configuration is done.
Default setting:
MaxTime: 0x0384 (900s)
MinTime: 0x0002 (2s)
// Mintime is recommended to set by default 2 seconds. Need to control to reduce frequent Report recommendations by
adjusting reportchange and Max Interval)
Current Change: 0x0064 (100mA)
Power Change: 0x0014 (20W)
Note:
1. The device reports the ON/OFF status, energy, over current alarm first, and after 10 seconds reports the voltage, current
and power.
2. When happened the over-current alarm, it will disconnect the load and the network indicator will quickly flash about 25
times.
3. Press the switch button or receive the switch command: The device will be reported immediately.
4. The uplink data reported by the device is referenced by the Netvox LoraWAN Application Command document and
http://www.netvox.com.cn:8888/page/index

6
5.1 Example of ReportDataCmd
FPort：0x06
Bytes 1 1 1 Var(Fix=8 Bytes)
Version DeviceType ReportType NetvoxPayLoadData
Version– 1 bytes –0x01——the Version of NetvoxLoRaWAN Application Command Version
DeviceType– 1 byte – Device Type of Device
The devicetype is listed in Netvox LoRaWAN Application Devicetype doc
ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype
NetvoxPayLoadData– Fixed bytes (Fixed =8bytes)
PayLoadData– var bytes (Max=9bytes)
Version Device
Type
Report
Type NetvoxPayLoadData
0x01 0x73
0x01
OnOff (1Byte)
OFF_0x00
ON_0x01
Energy
(4Bytes)
unit:1wh
OverCurrentAlarm
(1Byte)
0:noalarm 1:alarm
※1DashCurrentAlarm
(1Byte)
0:noalarm 1:alarm
※2PowerOffAlarm
(1Byte)
0:noalarm 1:alarm
0x02 Vol
(2Bytes,Unit:1V)
Current
(2Bytes,Unit:1mA)
Power
(2Bytes,Unit:1W)
Reserved
(2Bytes,fixed 0x00)
※1 R816B does not support Dash Current Alarm.
※2 R816B does not support Power Off Alarm.
First uplink reports 0173010000000006000000 and after 10 seconds, the second uplink reports 01730200DB006400160000
The status of the switch is off.
The accumulated value of the energy is 6WH.
The over current does not alarm
The voltage is 219V 00DB(Hex)=219 (Dec)
The current is 100mA 0064(Hex)=100(Dec)
The power is 22W 0016(Hex)=22(Dec)

7
5.2 Example of ConfigureCmd
FPort：0x07
Bytes 1 1 Var(Fix =9 Bytes)
CmdID DeviceType NetvoxPayLoadData
CmdID– 1 byte
DeviceType– 1 byte – Device Type of Device
NetvoxPayLoadData– var bytes (Max=9bytes)
Description Device Cmd
ID
Device
Type NetvoxPayLoadData
Off
R816B
0x90
0x73
Reserved
(9Bytes,Fixed 0x00)
On 0x91 Reserved
(9Bytes,Fixed 0x00)
Toggle 0x92 Reserved
(9Bytes,Fixed 0x00)
Clear
Energy 0x93 Reserved (9Bytes,Fixed 0x00)
Read
CurrentStatus 0x94 Reserved (9Bytes,Fixed 0x00)
Config
ReportReq 0x01 MinTime (2bytes Unit:s)
MaxTime
(2bytes Unit:s)
CurrentChange
(2byte)
Unit:1mA
PowerChange
(2byte)
Unit:1W
Reserved
(1Byte)
Fixed 0x00)
Config
ReportRsp 0x81 Status (0x00_success)
Reserved
(8Bytes,Fixed 0x00)
ReadConfig
ReportReq 0x02 Reserved (9Bytes,Fixed 0x00)
ReadConfig
ReportRsp 0x82 MinTime (2bytes Unit:s)
MaxTime
(2bytes Unit:s)
CurrentChange
(2byte)
Unit:1mA
PowerChange
(2byte)
Unit:1W
Reserved
(1Byte)
Fixed 0x00)
(1) Turn off the R816B switch button
Downlink: 9073000000000000000000
(2) Turn on the R816B switch button
Downlink: 9173000000000000000000

8
(3) Toggle turn on/off switch button
Downlink: 9273000000000000000000
(4) Clear the historical electrical energy data
Downlink:9373000000000000000000
(5) Setting Min Interval = 2 seconds, Max Interval = 300 seconds, Current Change = 100mA,Power Change = 20W
Downlink:01730002012C0064001400
Response: 8173000000000000000000 (successful)
(6) Read the current report interval
Downlink: 0273000000000000000000
Response:82730002012C0064001400
5.3 Example for MinTime/MaxTime logic
Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, PowerChange=2W
MaxTime MaxTime
(MinTime) (MinTime)
0H 1H 2H
Note:
MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless PowerChange value.
Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, PowerChange=2W
MaxTime
MinTime MinTime MinTime MinTime
0H 15th M 30th M 45th M 1H 2H
Collects data
REPORTS 35W
Collects data
REPORTS 39W
Collects data
REPORTS 50W
Collects data
REPORTS 10W
Collects data
REPORTS 11W
Collects data
9W
Does not report
Collects data
10W
Does not report
Collects data
9W
Does not report

9

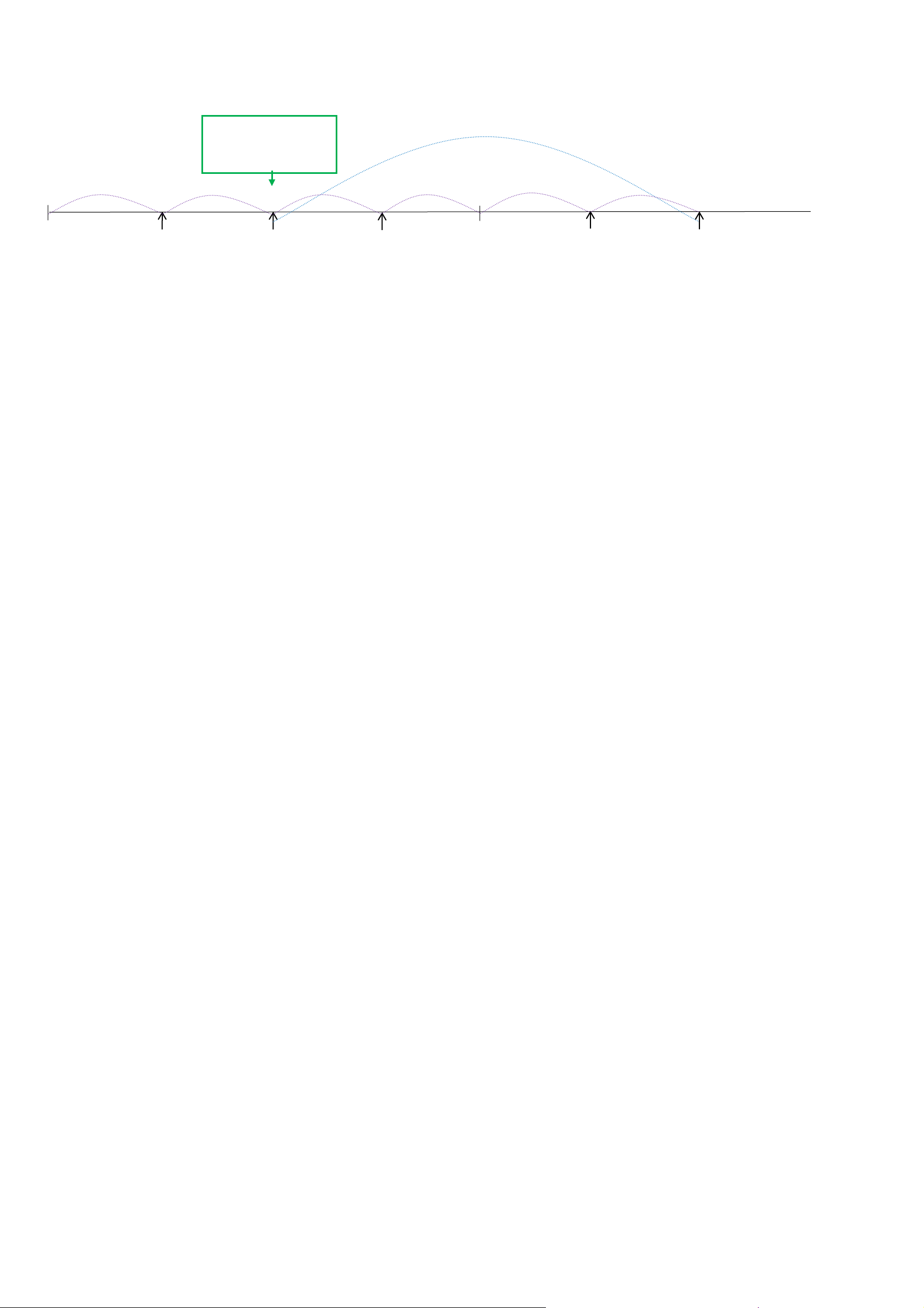

Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, PowerChange=2W
MaxTime
MinTime MinTime MinTime MinTime MinTime MinTime
0H 15th M 30th M 45th M 1H 1H15thM 1H30thM
Remarks:
1. Compare the collected data with the last reported data. If the amount of data change is greater than ReportableChange, the
device will report based on the MinTime interval. If the data change is not greater than the last reported data, the device will
report based on the MaxTime interval.
2. For the energy consumption detection device, because the device is a constant power supply device, it is not recommended to
set the MinTime interval value too high in order to obtain the status information in real time. It is recommended to use the
default 2 seconds. If users need to control frequent report recommendations to adjust ReportableChange and MaxTime.
3. After the device sends a packet (regardless of whether the data has changed, such as pressing a button or the maximum time
is due), another MinTime / MaxTime calculation cycle is initiated.
6. Product Installation
This product does not have a waterproof function. After the screening is completed, please place it indoors.
Note:
The energy data of R816B is saved once every 10 seconds if the memory chip is AT24C02, once every 10 seconds for AT2402.
After power off, the data within 10 seconds will be gone.
Collects data
13W
REPORT ON
Collects data
9W
Does not report
Collects data
10W
REPORTS
Collects data
12W
Does not report
Collects data
14W
Does not report
Collects data
13W
Does not report
Collects data
14W
REPORT
Power Change
over 2W

10
7. Important Maintenance Instruction
Kindly pay attention to the following in order to achieve the best maintenance of the product:
• Keep the device dry. Rain, moisture, or any liquid, might contain minerals and thus corrode electronic circuits. If the device gets
wet, please dry it completely.
• Do not use or store the device in dusty or dirty environment. It might damage its detachable parts and electronic components.
• Do not store the device under excessive heat condition. High temperature can shorten the life of electronic devices, destroy
batteries, and deform or melt some plastic parts.
• Do not store the device in places that are too cold. Otherwise, when the temperature rises to normal temperature, moisture will
form inside, which will destroy the board.
• Do not throw, knock or shake the device. Rough handling of equipment can destroy internal circuit boards and delicate
structures.
• Do not clean the device with strong chemicals, detergents or strong detergents.
• Do not apply the device with paint. Smudges might block in the device and affect the operation.
• Do not throw the battery into the fire, or the battery will explode. Damaged batteries may also explode.
All of the above applies to your device, battery and accessories. If any device is not working properly, please take it to the nearest
authorized service facility for repair.
