netvox RA0716 User manual

Model: RA0716_R72616_RA0716Y
Wireless PM2.5/Temperature/Humidity Sensor
Wireless PM2.5 / Temperature /
Humidity Sensor
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

1
Table of Content
1. Introduction................................................................................................2
2. Appearance.................................................................................................3
3. Main Feature ..............................................................................................4
4. Set up Instruction.......................................................................................4
5. Data Report ................................................................................................6
6. Installation..................................................................................................8
7. Important Maintenance Instruction..........................................................10

2
1.Introduction
RA0716_R72616_RA0716Y is a Class A type device based on the LoRaWAN open protocol of Netvox and is compatible with the
LoRaWAN protocol.
RA0716_R72616_RA0716Y can be connected with the sensor of the temperature and humidity and PM2.5. The values collected
by the sensor are reported to the corresponding gateway.
LoRa Wireless Technology:
LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other
communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance.
Widely used in long-distance, low-data wireless communications. For example, automatic meter reading, building automation
equipment, wireless security systems, industrial monitoring. Main features include small size, low power consumption,
transmission distance, anti-interference ability and so on.
LoRaWAN:
LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and
gateways from different manufacturers.

3
Built-in PM2.5, Temperature & Humidity
Power Cable
Waterproof cover
Built-in battery pack
Built-in PM2.5, Temperature & Humidity
Solar panel
DC in
Built-in PM2.5 sensor
Function Key
Temperature & Humidity sensor
2. Appearance
Figure 1 RA0716
Figure 2 R72616
Figure 3 RA0716Y
Indicator

4
3. Main Feature
Compatible with LoRaWAN
RA0716 and RA0716Y applies DC 12V adapters
R72616 applies solar and rechargeable lithium batteries
Simple operation and setting
PM2.5, temperature and humidity detection
Adopt SX1276 wireless communication module
4. Set up Instruction
On/Off
Power On RA0716 and RA0716Y are connected to DC 12V adapter for power on.
R72616 applies solar and rechargeable lithium batteries.
Turn On Connect with power on to turn on
Restore to Factory Setting Press and hold the function key for 5 seconds till green indicator flashes 20 times.
Power Off Disconnect from the power supply
*The engineering test requires to write the engineering testing software separately.
Note The interval between on and off is suggested to be about 10 seconds to avoid the interference
of capacitor inductance and other energy storage components.
Network Joining
Never Join the Network
Turn on the device to search the network.
The green indicator keeps on for 5 seconds: success.
The green indicator remains off: fail
Had joined the network
(Not in the original setting)
Turn on the device to search the previous network.
The green indicator keeps on for 5 seconds: success.
The green indicator remains off: fail.
Fail to Join the Network Suggest checking the device registration information on the gateway or consulting your
platform server provider if the device fails to join the network.

5
Function Key
Press and Hold for 5 Seconds
Restore to the original setting / Turn off
The green indicator flashes 20 times: success
The green indicator remains off: fail
Press once
The device is in the network: the green indicator flashes once and the device sends a data
report
The device is not in the network: the green indicator remains off
Low Voltage Threshold
Low Voltage Threshold 10.5 V
Threshold Restore to Factory Setting
Description
RA0716_R72616_RA0716Y has the function of the power-down saving the memory
of network-joining information. This function acquiesces in turn off, that is, it will
rejoin every time when it is power on. If the device is turned on by the
ResumeNetOnOff command, the last network-joining information will be recorded
when every time it is power on. (including saving the network address information
that it is assigned, etc.) If users want to join a new network, the device needs to
perform the original setting, and it will not rejoin the last network.
Operation Method
1. Press and hold the binding button for 5 seconds and then release
(release the binding button when the LED flashes), and the LED flashes 20 times.
2. The device automatically restarts to rejoin the network.

6
5. Data Report
After power on, the device will immediately send a version packet report and the data report including the temperature,
humidity, PM2.5 and voltage.
The device sends data according to the default configuration before any other configuring.
ReportMaxTime:
RA0716_ RA0716Y is 180s,
R72616 is 900s (subject to original setting)
ReportMinTime: 30s
ReportChange:0
* The value of the ReportMaxTime should be greater than (ReportType count *ReportMinTime+10). (unit: second)
* ReportType count = 1
Note:
(1) The cycle of the device sending the data report is according to the default.
(2) The interval between two reports must be the MaxTime.
(3) ReportChange is not supported by RA0716_R72616_RA0716Y (Invalid configuration). The data report is sent
according to ReportMaxTime as a cycle (the first data report is the start to the end of a cycle).
(4) Data pocket: PM2.5, voltage, temperature and humidity.
(5) The device also supports the TxPeriod cycle configuration instructions of Cayenne. Therefore, the device can
perform the report according to the TxPeriod cycle. The particular report cycle is ReportMaxTime or TxPeriod
depending on which report cycle was configured last time.
(6) It would take 35 seconds for the sensor to sample and process the collected value after pressing the button, please be patient.
The device reported data parsing please refer to
Netvox LoraWAN Application Command document and Netvox Lora Command Resolver
http://www.netvox.com.cn:8888/page/index

7
Report Configuration
(1)Configure RA0716 device parameter MinTime = 30s, MaxTime = 120s (120>30*1+10)
Downlink: 0135001E00780000000000
Device Return:
8135000000000000000000 (configuration success)
8135010000000000000000 (configuration failure)
(2)Read RA0716 device parameter
Downlink: 0235000000000000000000
Device Return:
8235001E00780000000000 (device current parameter)
Description Device CmdI
D DeviceType NetvoxPayLoadData
ConfigRepo
rtReq
RA0716
R72616
RA0716Y
0x01
0x35
0x36
0x37
MinTime
(2bytes Unit:s)
MaxTime
(2bytes Unit: s)
Reserved
(5Bytes, Fixed 0x00)
ConfigRepo
rtRsp 0x81 Status
(0x00_success)
Reserved
(8Bytes, Fixed 0x00)
ReadConfig
ReportReq 0x02 Reserved
(9Bytes, Fixed 0x00)
ReadConfig
ReportRsp 0x82 MinTime
(2bytes Unit: s)
MaxTime
(2bytes Unit: s)
Reserved
(5Bytes, Fixed 0x00)

8
6.Installation
1.RA0716 does not have the waterproof function. After the device completes joining the network, please place it indoor.
2.R72616 has a waterproof function. After the device completes joining the network, please place it outdoors.
(1)In the installed position, loosen the U-shaped screw, the mating washer and the nut at the bottom of R72617, and
then make the U-shaped screw pass through the appropriate size cylinder and fix it on the fixing strut flap of R72616.
Install the washer and the nut in order and lock the nut till R72616 body is stable and does not shake.
(2)At the upper side of the fixed position of R72616, loosen the two U-shaped screws, the mating washer and nut on
the side of the solar panel. Make the U-shaped screw pass through the appropriate size cylinder and fix them on the
main bracket
of the solar panel and install the washer and the nut in sequence. Lock nut till the solar panel is stable and does not
shake.
(3) After adjusting the angle of the solar panel completely, lock the nut.
(4) Connect the top waterproof cable of R72617 with the wiring of the solar panel and lock it tight.
(5)Rechargeable lithium battery
R72616 has a battery pack inside. Users can buy and install rechargeable 18650 lithium battery, a total of 3 sections,
voltage 3.7V/ every single rechargeable lithium battery, recommended capacity 5000mah. The installation of
rechargeable lithium battery steps are as follows:
1: Remove the four screws around battery cover.
2: Insert three 18650 lithium batteries. (Please make sure the positive and negative level of the battery)
3: Press the activation button on the battery pack for the first time.
4: After activation, close the battery cover and lock the screws around battery cover.

9
Fig. Rechargeable Lithium Battery

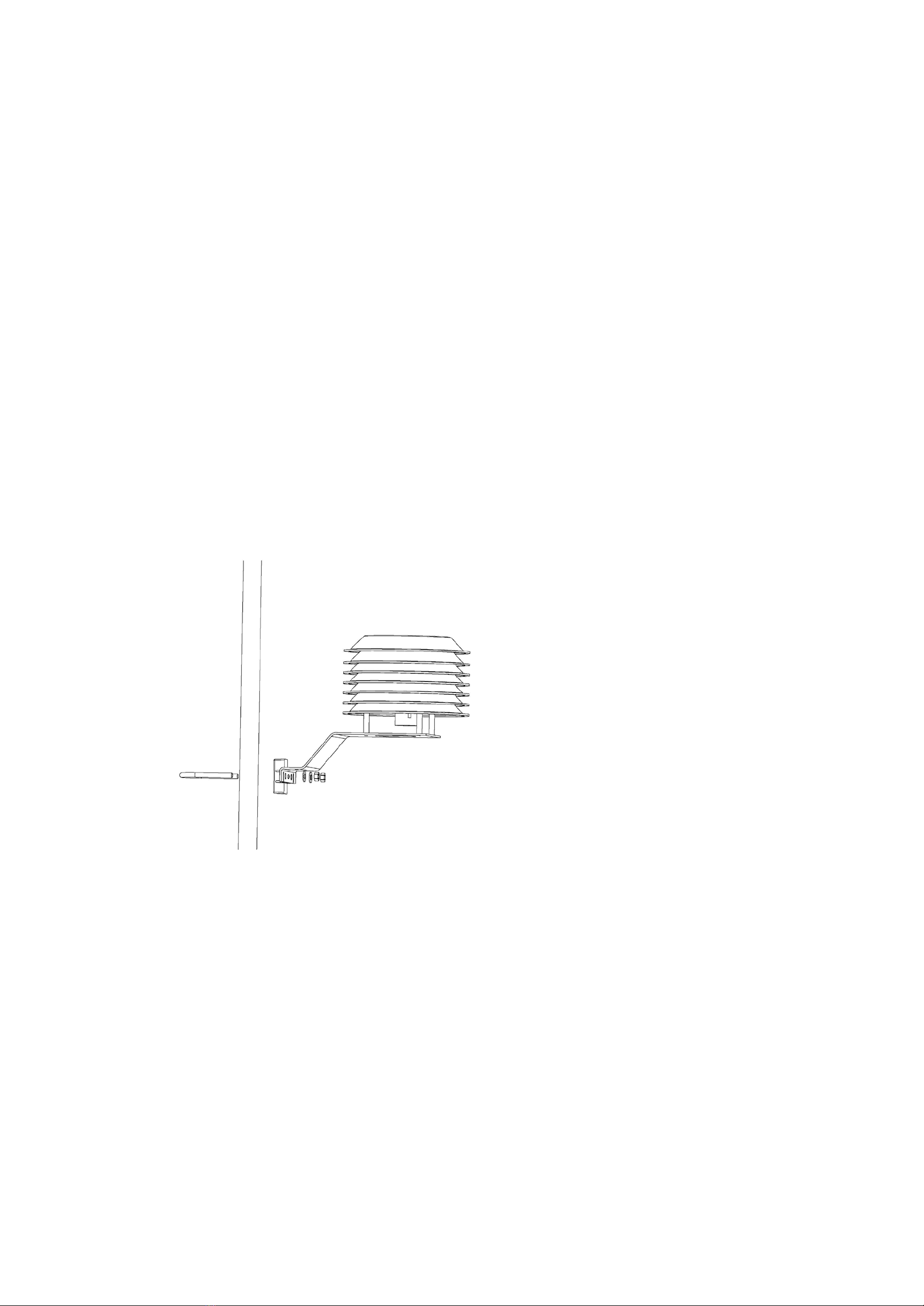

3.RA0716Y is waterproof and can be placed outdoors after the device completes joining the network..
(1) In the installed position, loosen the U-shaped screw, the mating washer and the nut at the bottom of RA0716Y, and then
make the U-shaped screw pass through the appropriate size cylinder and fix it on the fixing strut flap of RA0716Y. Install
the washer and the nut in order and lock the nut till RA0716Y body is stable and does not shake.
(2) Loosen the M5 nut at the bottom of the RA0716Y matte and take the matte together with the screw.
(3) Make the DC adaptor pass through the central hole of the bottom cover of RA0716Y and insert it into the RA0716Y DC
socket, and then put the mating screw to the original position and lock the M5 nut tight.

10
7. Important Maintenance Instruction
The device is a product with superior design and craftsmanship and should be used with care.
The following suggestions will help you use the warranty service effectively.
• Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic
circuits. In case the device is wet, please dry it completely.
• Do not use or store in dusty or dirty areas. This way can damage its detachable parts and electronic components.
• Do not store in excessive heat place. High temperatures can shorten the life of electronic devices, destroy batteries, and
deform or melt some plastic parts.
• Do not store in excessive cold place. Otherwise, when the temperature rises to normal temperature, moisture will form
inside which will destroy the board.
• Do not throw, knock or shake the device. Treating equipment roughly can destroy internal circuit boards and delicate
structures.
• Do not wash with strong chemicals, detergents or strong detergents.
• Do not paint the device. Smudges can make debris block detachable parts up and affect normal operation.
• Do not throw the battery into the fire to prevent the battery from exploding. Damaged batteries may also explode.
All the above suggestions apply equally to your device, batteries and accessories.
If any device is not operating properly.
Please take it to the nearest authorized service facility for repairing.
