New Rock Technologies MX series User manual

New Rock Technologies, Inc.
MX Voice-Fax Gateway Series
User Manual
MX8
MX60
MX120
http://www.newrocktech.com
Email: [e-mail]
Document Version: MC0-E001-N

Contents
Contents............................................................................................................................................................................. 2
Contents of Figure ............................................................................................................................................................ 4
Contents of Table.............................................................................................................................................................. 6
1 Overview ....................................................................................................................................................................... 1
1.1 Product Introduction.................................................................................................................................................................1
1.2 Functions and Features.............................................................................................................................................................2
1.3 Equipment Structure.................................................................................................................................................................2
1.3.1 MX8.............................................................................................................................................................................2
1.3.2 MX60...........................................................................................................................................................................4
1.3.3 MX120.........................................................................................................................................................................7
2 Parameter Setting......................................................................................................................................................... 1
2.1 Login........................................................................................................................................................................................1
2.1.1 Obtaining Gateway IP Address....................................................................................................................................1
2.1.2 Logging On..................................................................................................................................................................2
2.1.3 Permission of Gateway Administrator .........................................................................................................................2
2.2 Buttons Used on Gateway Management Interface....................................................................................................................3
2.3 Basic Configuration..................................................................................................................................................................3
2.3.1 Status............................................................................................................................................................................3
2.3.2 Network........................................................................................................................................................................3
2.3.3 System Configuration...................................................................................................................................................6
2.3.4 SIP Configuration.........................................................................................................................................................7
2.3.5 High Availability Configuration ..................................................................................................................................8
2.3.6 MGCP Configuration.................................................................................................................................................10
2.3.7 FoIP............................................................................................................................................................................11
2.4 Routing...................................................................................................................................................................................13
2.4.1 Digit Map...................................................................................................................................................................13
2.4.2 Routing Table.............................................................................................................................................................15
2.4.3 Application Examples of Routing Table ....................................................................................................................18
2.4.4 IP Table......................................................................................................................................................................20
2.5 Line Configuration.................................................................................................................................................................20
2.5.1 FXS Phone Number ...................................................................................................................................................20
2.5.2 FXO Phone Number...................................................................................................................................................21
2.5.3 Subscriber Line Features............................................................................................................................................21
2.5.4 Trunk Line Features...................................................................................................................................................23
2.5.5 Feature Batch .............................................................................................................................................................24
2.5.6 Trunk Batch................................................................................................................................................................25
2.6 Advanced Configuration ........................................................................................................................................................26
2.6.1 System........................................................................................................................................................................26
2.6.2 Security Configuration...............................................................................................................................................29
2.6.3 White List...................................................................................................................................................................29

2.6.4 Media Stream.............................................................................................................................................................30
2.6.5 SIP Related Configuration .........................................................................................................................................31
2.6.6 Characteristics of Subscriber line...............................................................................................................................33
2.6.7 Characteristics of Trunk Line.....................................................................................................................................35
2.6.8 Radius Call Logs........................................................................................................................................................37
2.6.9 Encryption..................................................................................................................................................................37
2.6.10 Greeting....................................................................................................................................................................39
2.6.11 Call Progress Tone Plan...........................................................................................................................................39
2.6.12 Feature Codes...........................................................................................................................................................40
2.7 Status......................................................................................................................................................................................43
2.7.1 Call Status..................................................................................................................................................................43
2.7.2 Call History on FXS...................................................................................................................................................43
2.7.3 Call History on FXO..................................................................................................................................................43
2.7.4 SIP Message count.....................................................................................................................................................44
2.8 Logs........................................................................................................................................................................................44
2.8.1 System Status.............................................................................................................................................................44
2.8.2 Call Message..............................................................................................................................................................45
2.8.3 System Startup ...........................................................................................................................................................46
2.8.4 Manage Log ...............................................................................................................................................................46
2.9 Tools.......................................................................................................................................................................................47
2.9.1 Change Password .......................................................................................................................................................47
2.9.2 Export Data................................................................................................................................................................48
2.9.3 Import Data................................................................................................................................................................48
2.9.4 Upgrade......................................................................................................................................................................49
2.9.5 Restore Factory Settings.............................................................................................................................................52
2.9.6 Software Restart.........................................................................................................................................................52
2.9.7 System Reboot ...........................................................................................................................................................52
2.9.8 TDM Capture.............................................................................................................................................................52
2.9.9 Ethereal Capture.........................................................................................................................................................53
2.10 Version Information .............................................................................................................................................................54
2.11 Logout..................................................................................................................................................................................54
3 Appendix: High Availability Configuration .......................................................................................................... 1
3.1 Overview..................................................................................................................................................................................1
3.1.1 Function Definition......................................................................................................................................................1
3.1.2 Server Cluster...............................................................................................................................................................2
3.2 Configuring Primary-Standby Mode........................................................................................................................................1
3.3 Configuring Active-Standby Mode ..........................................................................................................................................1
3.3.1 Enable Active-Standby Feature....................................................................................................................................1
3.3.2 Set SIP Servers.............................................................................................................................................................2
3.3.3 Set the Failover Condition............................................................................................................................................4
3.3.4 How to Manually Perform Switchover.........................................................................................................................5
3.4 Configuring Load Balancing Mode..........................................................................................................................................1
3.4.1 Enable Load Balancing Feature ...................................................................................................................................1
3.4.2 Set SIP Servers.............................................................................................................................................................1
3.4.3 Configure OPTIONS Settings......................................................................................................................................1
3.4.4 Configure REGISTER Settings....................................................................................................................................2
3.4.5 Active Server List ........................................................................................................................................................2

Contents of Figure
Figure 1-1 MX8 Front Panel ..........................................................................................................................................................3
Figure 1-2 MX8 Back Panel...........................................................................................................................................................3
Figure 1-3 MX60 Front Panel ........................................................................................................................................................5
Figure 1-4 Schematic Diagram of MX60 Subscriber Line Connection..........................................................................................6
Figure 1-5 MX60 Back Panel-AC..................................................................................................................................................6
Figure 1-6 MX60 Back Panel-DC..................................................................................................................................................6
Figure 1-7 MX120 Front Panel ......................................................................................................................................................8
Figure 1-8 Schematic Diagram of MX120 Subscriber Line Connection........................................................................................9
Figure 1-9 MX120 Back Panel-AC..............................................................................................................................................10
Figure 1-10 MX120 Back Panel-DC............................................................................................................................................10
Figure 2-1 Login Interface for MX Gateway Configuration ..........................................................................................................2
Figure 2-2 Status Interface .............................................................................................................................................................3
Figure 2-3 Network Configuration Interface..................................................................................................................................4
Figure 2-4 System Configuration Interface ....................................................................................................................................6
Figure 2-5 SIP Configuration Interface..........................................................................................................................................7
Figure 2-6 High availability configuration.....................................................................................................................................9
Figure 2-7 MGCP Configuration Interface...................................................................................................................................10
Figure 2-8 Fax configuration interface.........................................................................................................................................12
Figure 2-9 Configuration Interface for Dialing ............................................................................................................................13
Figure 2-10 Configuration Interface for Routing Table................................................................................................................15
Figure 2-11 Configuration Interface for IP Table.........................................................................................................................20
Figure 2-12 Configuration Interface for FXS phone number .......................................................................................................21
Figure 2-13 Configuration Interface for FXO phone number.......................................................................................................21
Figure 2-14 Configuration Interface for Subscriber Line Features...............................................................................................22
Figure 2-15 Configuration Interface for Trunk Line Features......................................................................................................23
Figure 2-16 Feature batch configuration interface........................................................................................................................25
Figure 2-17 Trunk Batch configuration interface.........................................................................................................................25
Figure 2-18 Interface of system advanced configuraiton..............................................................................................................26
Figure 2-19 Auto provisioning configuration interface................................................................................................................27
Figure 2-20 SNMP configuration interface..................................................................................................................................28
Figure 2-21 TR069 configuration interface..................................................................................................................................28
Figure 2-22 Security configuration interface................................................................................................................................29
Figure 2-23 White list configuration interface .............................................................................................................................30
Figure 2-24 Media stream configuration interface .......................................................................................................................30
Figure 2-25 SIP related configuration interface ...........................................................................................................................32
Figure 2-26 Subscriber-line characteristics configuration interface .............................................................................................33
Figure 2-27 Trunk line characteristics configuraiton interface.....................................................................................................35
Figure 2-28 Configuration interface of Radius call logs...............................................................................................................37
Figure 2-29 Encryption configuration interface ...........................................................................................................................38
Figure 2-30 Greeting interface .....................................................................................................................................................39
Figure 2-31 Call progress tone configuration interface ................................................................................................................39
Figure 2-32 Feature codes configuration interface.......................................................................................................................41
Figure 2-33 Interface of call status...............................................................................................................................................43

Figure 2-34 Interface of call on FXS............................................................................................................................................43
Figure 2-35 Interface of call on FX0............................................................................................................................................44
Figure 2-36 Interface of SIP message count.................................................................................................................................44
Figure 2-37 Interface of System Status ........................................................................................................................................45
Figure 2-38 Call Message interface..............................................................................................................................................46
Figure 2-39 Interface of System Startup.......................................................................................................................................46
Figure 2-40 Interface of Manage Log...........................................................................................................................................47
Figure 2-41 Interface for password changing...............................................................................................................................48
Figure 2-42 Interface of export data.............................................................................................................................................48
Figure 2-43 Interface of import data.............................................................................................................................................49
Figure 2-44 Interface of upgrade..................................................................................................................................................49
Figure 2-45 Interface of file upload..............................................................................................................................................50
Figure 2-46 Upgrade interface......................................................................................................................................................50
Figure 2-47 Screen of upgrade process ........................................................................................................................................51
Figure 2-48 Interface of successful upgrade.................................................................................................................................51
Figure 2-49 Interface of TDM capture .........................................................................................................................................53
Figure 2-50 Interface of Ethereal capture.....................................................................................................................................53
Figure 2-51 Interface of Version info...........................................................................................................................................54
Figure 3-1 Server cluster................................................................................................................................................................2
Figure 3-2 Primary-Standby configuration page ............................................................................................................................1
Figure 3-3 Active-Standby configuration page ..............................................................................................................................2
Figure 3-4 Page to set registrar server............................................................................................................................................3
Figure 3-5 Page to set DNS server .................................................................................................................................................4
Figure 3-6 Page to set failover condition........................................................................................................................................4
Figure 3-7 Page to disable PSTN failover......................................................................................................................................5
Figure 3-8 Load balancing configuration page...............................................................................................................................1
Figure 3-9 Page to configure OPTIONS settings ...........................................................................................................................2
Figure 3-10 Page to configure REGISTER settings .......................................................................................................................2

Contents of Table
Table 1-1 MX series gateway hardware specifications ..................................................................................................................1
Table 1-2 Common Configuration Combination of MX8 ..............................................................................................................2
Table 1-3 Description of MX8 Front Panel....................................................................................................................................3
Table 1-4 Description of MX8 Back Panel ....................................................................................................................................3
Table 1-5 Configuration Description of Analog Line Interfaces for All MX8 Models ..................................................................4
Table 1-6 Configuration combination of MX60.............................................................................................................................4
Table 1-7 Description of MX60 Front Panel..................................................................................................................................5
Table 1-8 Pin Specifications for MX60 RJ45 Socket Port .............................................................................................................5
Table 1-9 Description of MX60 Back Panel ..................................................................................................................................7
Table 1-10 Meanings of MX60 Indicators .....................................................................................................................................7
Table 1-11 MX120 interface card ..................................................................................................................................................7
Table 1-12 Configuration Combination of MX120........................................................................................................................7
Table 1-13 Description of MX120 Front Panel..............................................................................................................................8
Table 1-14 Pin Specifications for MX120 RJ45 Socket Port .........................................................................................................9
Table 1-15 Corresponding Relation Between MX120 RJ45 Socket and Line Number..................................................................9
Table 1-16 MX120 Back Panel....................................................................................................................................................11
Table 1-17 Meanings of MX120 Indicators .................................................................................................................................11
Table 1-18 MX120 system operation state...................................................................................................................................11
Table 2-1 Default IP Address of Gateway......................................................................................................................................1
Table 2-2 Default Passwords of Gateway ......................................................................................................................................2
Table 2-3 Network Configuration Parameters................................................................................................................................4
Table 2-4 System Configuration Parameters..................................................................................................................................6
Table 2-5 Codec Methods Supported by Gateways........................................................................................................................7
Table 2-6 SIP Configuration Parameters........................................................................................................................................8
Table 2-7 Parameters......................................................................................................................................................................9
Table 2-8 MGCP Configuration Parameters ................................................................................................................................10
Table 2-9 Fax configuration parameters.......................................................................................................................................12
Table 2-10 Description of Dialing................................................................................................................................................13
Table 2-11 Routing Table Format ................................................................................................................................................16
Table 2-12 Number Transformations ...........................................................................................................................................17
Table 2-13 Routing Destination ...................................................................................................................................................18
Table 2-14 Configuration Parameters of FXS phone number ......................................................................................................21
Table 2-15 Configuration Parameters of FXO phone number......................................................................................................21
Table 2-16 Configuration Parameters of Phone Features.............................................................................................................22
Table 2-17 Configuration Parameters of Trunk Line Features.....................................................................................................24
Table 2-18 Parameters of system advanced configuration ...........................................................................................................26
Table 2-19 Parameters for auto provisioning configuration.........................................................................................................27
Table 2-20 Parameters for SNMP configuration..........................................................................................................................28
Table 2-21 Parameters for TR069 configuration..........................................................................................................................28
Table 2-22 Parameters for security configuration ........................................................................................................................29
Table 2-23 Media stream configuration parameter.......................................................................................................................30
Table 2-24 SIP related configuration parameter...........................................................................................................................32
Table 2-25 Subscriber-line characteristics configuration parameter.............................................................................................34

Table 2-26 Trunk line characteristics configuration parameter....................................................................................................36
Table 2-27 Configuration parameter of Radius call logs..............................................................................................................37
Table 2-28 Encryption configuration parameters .........................................................................................................................38
Table 2-30 Call progress tone configuration parameters..............................................................................................................40
Table 2-31 Feature codes configuration parameter ......................................................................................................................41
Table 2-32 Parameters of call state...............................................................................................................................................43
Table 2-33 Parameters of System Status......................................................................................................................................45
Table 2-34 Configuration parameters of Manage Log..................................................................................................................47

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 1
1 Overview
1.1 Product Introduction
MX Series intelligent VoIP Gateways (MX Gateways) are designed to bridge the traditional telecom
terminal device into IP networks through SIP or MGCP protocols. The main applications include:
For carriers and value-added service providers to provide telephone, fax and voice-band data services to
subscribers using IP access methods such as FTTB, HFC, and ADSL;
Used to bridge the traditional telecom terminal equipments, such as PBXs, to the IP core networks of
carriers;
Connected with PBX of enterprises to provide IP-based voice private network solutions for institutions,
enterprises and schools;
Used as remote acces equipments for IP-PBXs in call center deployment.
MX Series includes MX8, MX60and MX120 subseries. Their features are similar with the main
differences as follows:
Table 1-1 MX series gateway hardware specifications
Model
Voice ports
Chassis
Installation
CPU
RAM
Flash
Power
MX8
2-8
Plastic
Casing
Desktop
MPC852T
64MB
16MB
5-9 VDC
MX60
16-48
19’’ wide
and 1U
High
Rack
AT91SAM9
G20B
64MB
16MB
100-240 VAC
MX120
48-96
19” Wide
and 2U
High
Rack
MPC8247
128M
B
16MB
100-240 VAC,
-48 VDC
(Optional)
Hardware of MX series gateways use high-performance CPUs, ensure that each product of the series
can achieve full-capacity concurrent calls with high speech quality.
MX gateways software adopts the stable and reliable embedded Linux operating system (OS), thereby
implementing scores of business phone functions, including, call forwarding, call transfer, call hold,
teleconference, caller identification, Do Not Disturb, ringback tone, hunt group simultaneous ring,
distinctive ring, one phone with two numbers, and fax. In addition, MX gateways are featured with
FXO port second stage dialing with voice prompt, routing table with a maximum of 500 entries, pone
digit manipulation, and PSTN failover upon power-off or network disconnection.
MX gateways support local and remote management operations through Web GUI or Telnet and also
support SNMPv2-based and TR069/TR104/TR106-based centralized management scheme.
Maintenance tasks such as modifying configuration, upgrading software, collecting statistical data,
downloading logs, and fault alarms can be performed.

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 2
1.2 Functions and Features
Connect analog telephone, PBX, facsimile machine and POS machine to the IP core network, or
PSTN;
Work with service platform to provide various telephone supplementary services;
Support protocols: SIP, MGCP;
Flexible configuration of Phone/Line interfaces;
Support G.711, G.729, G.723.1, GSM, iLBC;
Support echo cancellation;
Up to 500 routing rules can be stored in gateways;
Intercom;
Support digitmap;
Support call progress tones for various countries and regions;
Support Line second stage dialing or voice prompt;
Support PSTN failover through FXO ports;
Security strategy: IP filter, encryption
Support routing table;
Support T.30/T.38 fax mode;
Support polarity inverse detection and busy tone detection;
Support three-way calling;
Compatible with unified communication solutions, such as CallManager, OCS and Asterisk;
Support SNMPv2 and TR069/TR104/TR106
Support Web GUI-based management , Telnet, automatic software upgrades, and configuration
downloading
Support high availability, implementing a cloud of SIP servers working in primary-standby or load
balancing mode
Support auto provisioning
Support security settings such as white list
1.3 Equipment Structure
1.3.1 MX8
MX8 is the product with smallest capacity in MX Gateway Series. Designed with small plastic
structure for desktop placement, MX8 can provide up to 8 analog line interfaces. MX8 supports the
following types of configuration:
Table 1-2 Common Configuration Combination of MX8
Models
Number of FXS Ports
Number of FXO Ports
MX8-2S/2
2
2
MX8-6S/2
6
2

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 3
Models
Number of FXS Ports
Number of FXO Ports
MX8-4S
4
0
MX8-8S
8
0
MX8-4FXO
0
4
MX8-8FXO
0
8
MX8-4S/4
4
4

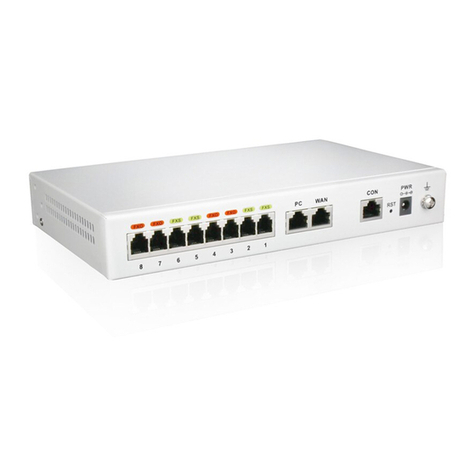

Figure 1-1 MX8 Front Panel
Table 1-3 Description of MX8 Front Panel
#
Description
①
Power indicator (PWR), Light-on indicates that it has been powered.
②
Steady on indicates valid Ethernet link, flashing indicates Ethernet activities (receiving and/or
transmitting)
③
Analog subscriber line (FXS) or analog trunk (FXO) interface indicator, Light-on indicates that
it is in use.
Figure 1-2 MX8 Back Panel
Table 1-4 Description of MX8 Back Panel
#
Description
①
Power interface, 5-9 VDC input

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 4
#
Description
②
10/100 M Ethernet Interface, RJ45
③
Analog subscriber line (FXS) or analog trunk (FXO) interface
Table 1-5 Configuration Description of Analog Line Interfaces for All MX8 Models
MX8
Models
RJ11 Interface Configuration
1
2
3
4
5
6
7
8
MX8-2S/2
Trunk
Line 1
Trunk
Line 2
Subscriber
Line 1
Subscriber
Line 2
NA
NA
NA
NA
MX8-6S/2
Trunk
Line 1
Trunk
Line 2
Subscriber
Line 1
Subscriber
Line 2
Subscriber
Line 3
Subscriber
Line 4
Subscriber
Line 5
Subscribe
r Line 6
MX8-4S
Subscriber
Line 1
Subscriber
Line 2
Subscriber
Line 3
Subscriber
Line 4
NA
NA
NA
NA
MX8-8S
Subscriber
Line 1
Subscriber
Line 2
Subscriber
Line 3
Subscriber
Line 4
Subscriber
Line 5
Subscriber
Line 6
Subscriber
Line 7
Subscribe
r Line 8
MX8-4FXO
Trunk
Line 1
Trunk
Line 2
Trunk
Line 3
Trunk
Line 4
NA
NA
NA
NA
MX8-8FXO
Trunk
Line 1
Trunk
Line 2
Trunk
Line 3
Trunk
Line 4
Trunk
Line 5
Trunk
Line 6
Trunk
Line 7
Trunk
Line 8
MX8-4S/4
Subscriber
Line 1
Subscriber
Line 2
Subscriber
Line 3
Subscriber
Line 4
Trunk
Line 1
Trunk
Line 2
Trunk
Line 3
Trunk
Line 4
1.3.2 MX60
Designed with a 1U high and 19’’ wide compact chassis, MX60 is suitable for installation in a standard
cabinet. MX60 has a built-in power module with the rating voltage of 100-240 V AC or -48 V DC (DC
is optional). The interface card of MX60 uses a RJ-45 socket and is connected to the distribution panel
in equipment room using CAT-5 cables supplied with the unit. MX60 offers up to 48 interfaces of
FXS/FXO. MX60 supports the following types of configuration.
Table 1-6 Configuration combination of MX60
Models
Number of FXS Ports
Number of FXO Ports
MX60-16S
16
0
MX60-32S
32
0
MX60-48S
48
0
MX60-16FXO
0
16
MX60-32FXO
0
32
MX60-48FXO
0
48
MX60-8S/8
8
8
MX60-24S/8
24
8
MX60-40S/8
40
8
MX60-16S/16
16
16
MX60-32S/16
32
16
MX60-24S/24
24
24

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 5
Figure 1-3 MX60 Front Panel
Table 1-7 Description of MX60 Front Panel
#
Description
①③⑤
Three interface slots; each can correspond with four RJ45 sockets; each RJ45socket can
correspond with four pairs of analog lines.
Note: Numbers of interface slots vary from different configuration.
②④⑥
Matrix of 4 x 4 LED status indicators on interface card.
Each RJ45 socket has 8 pins leading out 4 pairs of analog telephone or trunk lines in agreement with the
pair specifications for Ethernet interfaces, whose corresponding relations can be seen in the table below.
CAT-5 cables are used to connect the interface card and distribution panel in equipment installation.
Standard RJ11 telephone lines can be used to plug in a RJ45 socket. The telephone/trunk lines are
connected to the 3rd pair of pins for simple call test.
Table 1-8 Pin Specifications for MX60 RJ45 Socket Port
RJ45 Pin Number
1
2
3
4
5
6
7
8
Analog line pair
1st Pair
2nd Pair
3rd Pair
2nd Pair
4th Pair
TIP1
RING1
TIP2
TIP3
RING3
RING2
TIP4
RING4
Reference color
Orange
white
Orange
Green
white
Blue
Blue
white
Green
Brown
white
Brown

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 6
Figure 1-4 Schematic Diagram of MX60 Subscriber Line Connection
Figure 1-5 MX60 Back Panel-AC
Figure 1-6 MX60 Back Panel-DC

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 7
Table 1-9 Description of MX60 Back Panel
#
Description
①
Ground Pole
②
Indicator, see Table 1-10for description
③
USB Interface, reserved for future use
④
Configuration interface (CON), Ethernet lines used for local management and debugging
⑤
Two Ethernet interfaces: one IP address
⑥
Cooling fan
⑦
AC power socket, 100-240 VAC voltage input or -48 V DC input.
Table 1-10 Meanings of MX60 Indicators
Mark
Function
Status
Description
PWR
Power
Indication
Green
Power on
Off
Power off
STU
Status
Indication
Off
System locked and inactive
Green Flash
Normal operation
ALM
Alarm
Indication
Off
No alarms
Red Flash
New alarms occurred but not confirmed.
Red Constant
System in the process of powerup and not in the normal operation mode
Red
Alarms existed and all alarm information confirmed.
1.3.3 MX120
The device of MX120 can hold four interface cards which enable to flexibly configure FXS and FXO
ports. And each card equips up to 24 ports. MX120 can provide up to 96 ports. It supports the following
configurations:
Table 1-11 MX120 interface card
Type
FXS Ports
FXO Ports
24FXS
24
0
24FXO
0
24
8FXS/8
8
8
16FXS/8
16
8
12FXS/12
12
12
Table 1-12 Configuration Combination of MX120
Models
Number of FXS Ports
Number of FXO Ports
MX120-72S
72
0
MX120-96S
96
0
MX120-72FXO
0
72
MX120-96FXO
0
96

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 8
Models
Number of FXS Ports
Number of FXO Ports
MX120-64S/8
64
8
MX120-88S/8
88
8
MX120-60S/12
60
12
MX120-84S/12
84
12
MX120-56S/16
56
16
MX120-80S/16
80
16
MX120-52S/20
52
20
MX120-76S/20
76
20
MX120-48S/24
48
24
MX120-72S/24
72
24
Figure 1-7 MX120 Front Panel
Table 1-13 Description of MX120 Front Panel
#
Description
①
Matrix of 6x4 LED status indicator on interface card
②③④⑤
Four interface slots; each can contain one 24-port interface card.
Do not plug and remove the interface cards of MX120 when equipment is powered on.
Numbering definition of system interface slots: on the low-left side of chassis is #1 slot (marked with
No.1 to 24), on the low-right side of chassis is #2 slot (marked with No.25 to 48), on the up-left side of
chassis is #3 slot (marked with No.49 to 72), and on the up-right side of chassis is #4 slot (marked with
No.73 to 96).
Each RJ45 socket has 8 pins leading out 4 pairs of analog telephone or trunk lines in agreement with the
pair specifications for Ethernet interfaces, whose corresponding relations can be seen in the table below.
CAT-5 cables are used to connect the interface card and distribution panel in equipment installation.

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 9
Standard RJ11 telephone lines can be used to plug in a RJ45 socket. The telephone/trunk lines are
connected to the 3rd pair of pins for simple call test.
Table 1-14 Pin Specifications for MX120 RJ45 Socket Port
RJ45 Pin Number
1
2
3
4
5
6
7
8
Analog line pair
1st Pair
2nd Pair
3rd Pair
2nd Pair
4th Pair
TIP1
RING1
TIP2
TIP3
RING3
RING2
TIP4
RING4
Reference color
Orange
white
Orange
Green
white
Blue
Blue
white
Green
Brown
white
Brown
Figure 1-8 Schematic Diagram of MX120 Subscriber Line Connection
Table 1-15 Corresponding Relation Between MX120 RJ45 Socket and Line Number
RJ45 Socket No.
(From Left to Right)
1
2
3
4
5
6
Line No. of This Card
1 4
5 8
9 12
13 16
17 20
21 24
There is a 6 ×4 LED indicator matrixes on the left side of interface board. Each row of LED indicator
matrixes matches four telephone lines on a RJ45. The first row on the left matches Line 1-4
respectively from top to bottom, the first row on the right matches Line 21-24 respectively from top to
bottom, and the middle rows in the same manner.
LED indicators are used for multiple purposes as follows
Line status indication: this is the most common mode during normal use of equipment. In this mode, if a
line is idle, the indicator corresponding to it goes off; if a line is in call or in use status (such as ringing,
offhook) the indicator corresponding to it goes on.
Line type indication: this is the mode for cable wiring check when installing the equipment. This mode
can be entered by disconnecting Ethernet cables (Both WAN and LAN ports must be disconnected) at
installation stage. After entering this mode, steady on LED indicates that the corresponding line is

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 10
equipped as analog subscriber line type, flashing LED indicates that the corresponding line is
equipped as analog foreigh exchange line type, off LED indicates that the corresponding line is not
equpped or not ready for use.
System operation status indication: this is the mode for displaying information on system operation of
equipment in specific conditions. Usually, this mode is entered when some prompts are required to
give operator during equipment startup, diagnosis or operation. In this mode, LED flashes to display
numbers, letters or other patterns in matrix. Please refer toTable 1-18.
Figure 1-9 MX120 Back Panel-AC
Figure 1-10 MX120 Back Panel-DC

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 11
Table 1-16 MX120 Back Panel
#
Description
①
Indicator, see 0 for description.
②
USB interface, reserved for future use.
③
Configuration interface (CON), used for local management and debugging.
④
Ground Pole
⑤
Two Ethernet interfaces: ETH1 and ETH2, only ETH1 has been set when the equipment is delivered from
factory, default IP address: 192.168.2.240
⑥
Cooling fan
⑦
AC power socket, 100-240 VAC voltage input.
Table 1-17 Meanings of MX120 Indicators
Mark
Function
Status
Description
PWR
Power
Indication
Green
Power on
Off
Power off
STU
Status
Indication
Off
System locked and inactive
Green Flash
Normal operation
ALM
Alarm
Indication
Green
No alarms
Red Flash
New alarms occurred but not confirmed
Steady red
Power-on is in progress; awaiting normal operation
Red
Alarms existed and all alarm information confirmed
Table 1-18 MX120 system operation state
Glittery letter
Status meaning
C
The IP address of gateway conflicts with that of other equipment in LAN. Please settle this problem
before the gateway can be operated normally.
D
Internal failures have been encountered during gateway start up procedure. Please contact your local
distributor for further diagnosis.
P
The gateway is in progress of system software upgrade. Please guarantee stable power supply and
do not conduct other operations during this period.
T
The application software of gateway has been exited. If it cannot be restored by rebooting the
system, please contact your local distributor for further diagnosis.

MX Voice-Fax Gateway Series User Manual
New Rock Technologies, Inc. 1
2 Parameter Setting
2.1 Login
2.1.1 Obtaining Gateway IP Address
Differ from medium- and large-scale Gateways, MX8 Gateways start DHCP service by default, and
automatically obtain an IP address on the LAN; users can use the factory-default gateway IP address if
it is unable to be obtained (e.g. when connected directly with a computer).
MX60 and MX120 Gateways use a static IP address by default.
Table 2-1 Default IP Address of Gateway
Type
Default DHCP Service
Default IP Address
Default Subnet Mask
MX8
Enabled
192.168.2.218
255.255.0.0
MX60
Disabled
192.168.2.240
255.255.0.0
MX120
Disabled
192.168.2.240
255.255.0.0
DHCP Used in Network
Users can dial ## to obtain the current gateway IP address and version information of firmware using
the telephone connected to the subscriber line (FXS ports) after the equipment is powered on.
If the gateways are only configured with FXO ports for analog trunks without FXS ports for subscriber
lines (e.g. MX8-4FXO), users can dial into the gateway by connecting a PBX extension line or PSTN
POTS line to a FXO port, and press ## to obtain the current gateway IP address and version
information of firmware after receiving the second dial tone.
Note: The access mode of the FXO port must be configured as second stage dialing mode. For details,
see section 2.5.4 Trunk Line Features.
Fixed IP Address Used
If the DHCP service on the network is not available or the gateway is directly connected with a computer,
the gateways will use the factory-default IP address.
A user could fail to log in with the default IP address if the IP address of user’s computer and the default
gateway IP address are not at the same network segment. It is recommended that the IP address of
user's computer is changed to be identical with the same network segment of the gateway. For
example, if the gateway IP address is 192.168.2.218, it is recommended to set the computer’s IP
address to any address at the network segment of 192.168.2.XXX).
PPPoE Used
In Basic > Network, the gateways will automatically obtain the WAN address returned by the access
network after the PPPoE service is started and the user name and password are set. Users can dial ## on
