Nibe VVM 500 User manual

• Flexible all-in-one indoor module for heating and hot water.
• For upgrading existing heating systems or new buildings with
requirements for high performance hot water.
• Together with NIBE VVM 500, NIBE’s air/water heat pumps of-
fer a complete system for heating and domestic hot water.
• A new generation control module with colour display and
several new functions.
• Integrated solar coil and solar control for connection to solar
panels or to a stove with back boiler.
• Simple connection to and control of external heat source
(wood/oil/gas and immersion heater).
• Prepared for pool heating.
• Prepared for control of two or more climate systems.
• Possible to control and monitor NIBE VVM 500 remotely.
• Integrated buffer tank for the heating system.
• High hot water capacity, (up to 500 litres at 40 °C at 12 litres/
min) in combination with NIBE F2300.
• Stainless steel hot water coil
• Climate controlled shunt supply that monitors outdoor tem-
perature
• Self regulating speed controlled charger and A-class designed
heat pump
NIBE VVM 500
VVM 500 is a flexible indoor module. Together with air/ water out-
door modules F2300-14/-20 or F2026-6/-8/-10 it creates a com-
plete system to supply heating and hot water requirements of
buildings. VVM 500 can receive energy from several different alter-
natives, such as outdoor heat pumps F2300 and F2026. It can also
be supplemented with energy from the existing boiler instead of
using the internal immersion heater.
You can also use solar power. There are eight complete solar pack-
ages with panels and accessories that use the internal solar coil and
control. Solar energy is primarily used to cover hot water needs.
When enough water is heated, solar energy can be used to heating
the house and even a pool. Another energy alternative is a stove
with back boiler.
NIBE™ VVM 500
FLEXIBLE INDOOR MODULE
INTELLIGENT HOT WATER

2 NIBE VVM 500

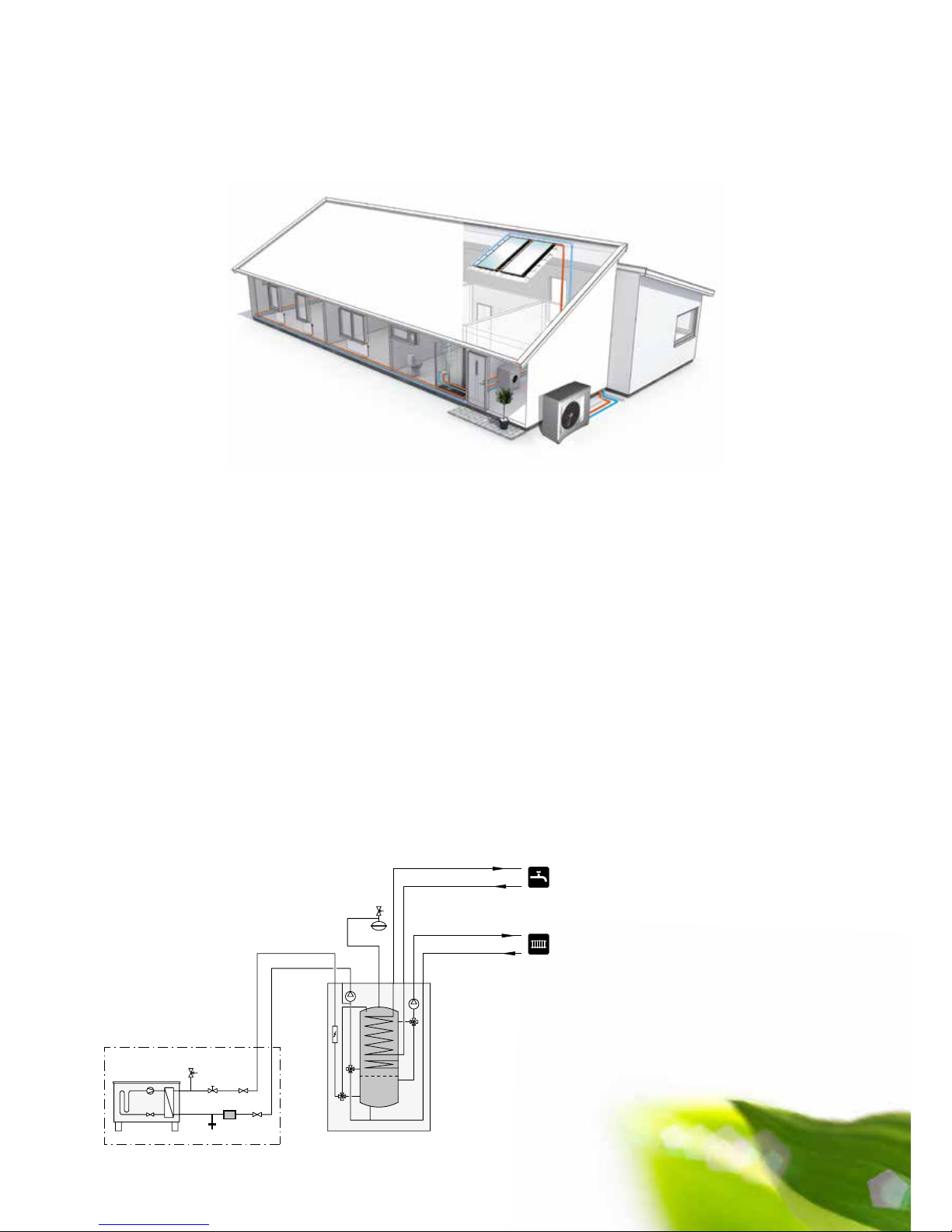

System diagram
Basic docking with hot water and a heating system
VVM 500 is designed for connection and communication with
NIBE’s air/water heat pumps, and offer a complete heating sys-
tem. NIBE’s air/water pumps cover most of a home’s heating and
hot water requirements. VVM 500 operates together with NIBE’s
air/water heat pumps. If the outdoor temperature drops to a lev-
el below the stop temperature of the heat pump the VVM 500
heats the home.
Together with F2300, VVM 500 satisfies the heating require-
ments of buildings from 12–24 kW in a climate with outdoor
temperature above -25 °C. Where less heating is required, use
the F2026. Use the NIBE VPDIM software to decide the correct
heat pump size. The hot water capacity depends on which out-
door module you select and whether and add-ons are allowed.
For example with the F2300-VVM 500 system the tap volume is
500 litres (40 °C) at 12 litres/min when the tank is filled with just
the F2300.
When combined with an outdoor pool in the summer, The
F2300-VVM500 system’s outdoor unit does not normally need
higher dimensioning. This is because the building’s heating re-
quirement is less in the summer time and F2300’s output and ef-
ficiency increases with warmer outdoor temperatures. Solar pan-
els connected to VVM 500 can also be used to heat the pool.
The VVM 500 and NIBE’s air/water heat pumps offer complete
flexibility. VVM 500 is prepared for pool heating, solar panels or
when other external heat sources should be included in the sys-
tem.
HOW THE NIBE™ VVM 500 WORkS

NIBE VVM 500 3
Design
NIBE VVM 500 is equipped with an intelligent and easy to use
controller. The controller optimises the two circulation pumps.
Both the flow to the outdoor heat pump and the flow to build-
ing are adapted to actual demands on heating or hot water. The
required input is defined by the installer during the start up pro-
cedure.
The controller is intuitive for both installers and end users. If a
problem occurs there are several ways to log and analyze select-
ed parameters. Software updates are downloaded via the USB
connection.
The hydraulic concept offers true flexibility and a robust instal-
lation. The lower part of the cylinder is used as a heating buffer
volume, meaning no extra buffer volume independent of the
building’s heating system is needed.
System overview
F2300 - VVM 500 F2026 - VVM 500
Max recommended flow line temperature for heating system. 65 55
Max hot water capacity with outdoor section 24 l/min, 250 l, 40 °C
DUT* >-25 °C
16 l/min, 175 l, 40 °C
DUT* >-20 °C
Available heating output at -20 °C (incl immersion heater) 15 kW (F2300-14)
19 kW (F2300-20)
9 kW, internal immersion heater
Available heating output at -25 °C 9 kW, internal immersion heater 9 kW, internal immersion heater
Available heating output, Outdoor temperature -24 °C (F2300) or -19
°C (F2026)
16 kW (F2300-14 and -24ｰC)
19 kW (F2300-20 and -24ｰC)
12 kW (F2026-6 and -19°C)
13 kW (F2026-8 and -19°C)
14 kW (F2026-10 and -19ｰC)
Available heating output, Outdoor temperature -26 °C (F2300) or -21
°C (F2026)
9 kW (F2300-14 and -26ｰC)
9 kW (F2300-20 and -26°C)
9 kW (F2026-6 and -21°C)
9 kW (F2026-8 and -21ｰC)
9 kW (F2026-10 and -21ｰC)
Internal immersion heater 9 kW
Max connectable external addition 25 kW
Max available heating output from VVM 500 with electrical addition
(for example ELK 15)
24 kW
Max connectable output for external additional coil (1.5 m2) 8 kW
Max hot water temperature (with compressor) 65 °C 58 ｰC
Max hot water temperature (with internal immersion heater) 75 ｰC 65 °C
VVM 500 must be located in a frost and condensation free room at
ambient temperature
5 – 30 ｰC
Max temperature in tank 85 ｰC
"Dimensioned outdoor temperature
Energy is provided to the NIBE VVM 500 by the outdoor heat
pump to the top of the tank or to the bottom depending on de-
mand. Solar panels can be connected to the built in coil and so-
lar energy can be used for hot water, heating a pool or indoor
heating. In the latter case heating water above the stratification
plate is transferred into the heating system. An existing boiler
can be connected to the upper water volume. Another way is
to feed energy using the immersion heater. It can be used for
heating and hot water backup. The controller decides when and
how much of the available energy sources should be fed into
the NIBE VVM 500. It also prioritizes demands for heating, hot
water and swimming pool.
NIBE™ VVM 500 – fLExIBILITy

R
0
+2
0
-2
1
R
0
HMflow 49(50)°C
Hotwater
51°C
+2
0
-2
1
R
0
HMflow
49(50)°C
Hotwater
51°C
R
0
500
XL4
XL2
CM1
XL8 XL9 XL3 XL1
4 NIBE VVM 500

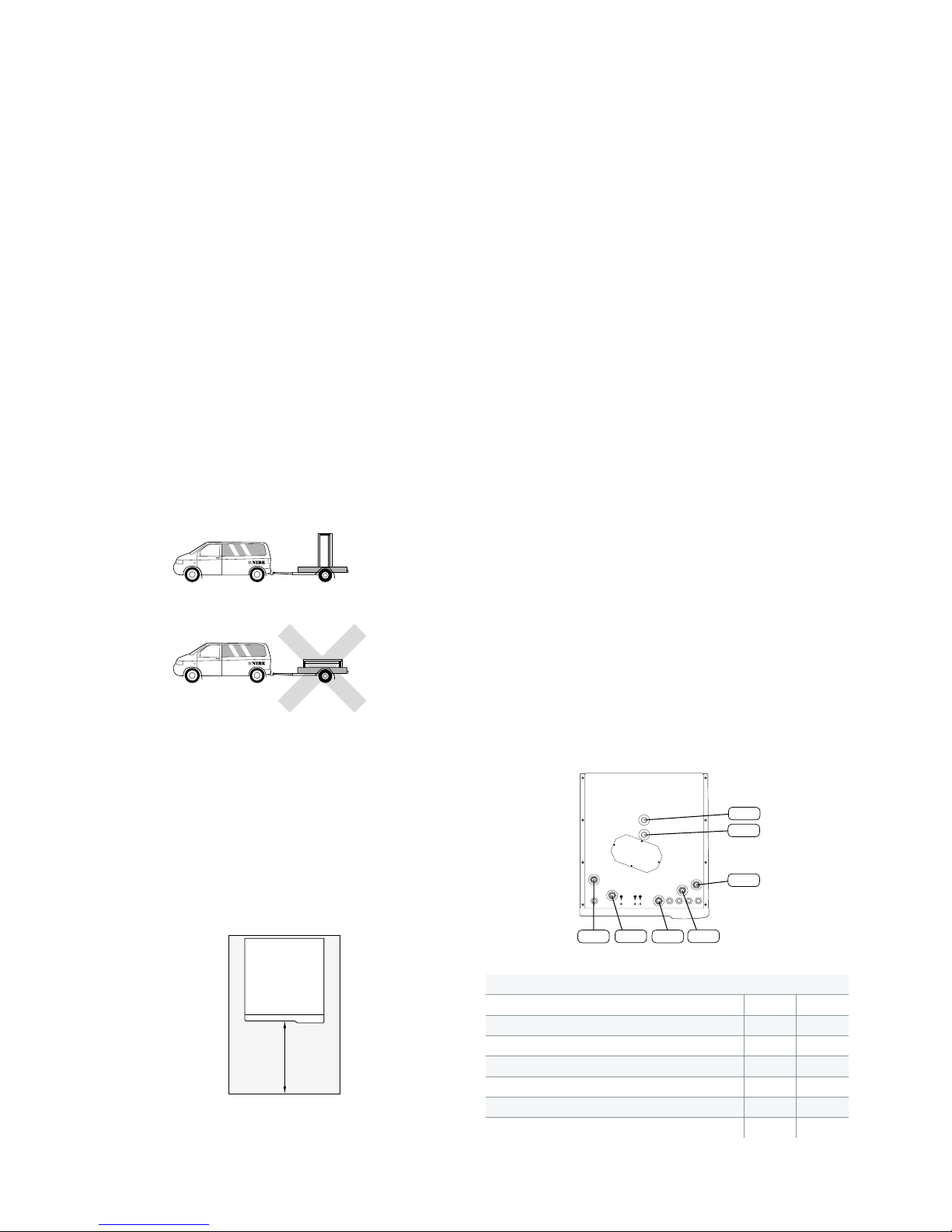

Transport and storage
NIIBE VVM 500 must be transported and stored upright and dry.
The VVM 500 may, however, be carefully laid on its back when
being moved into a building.
Quick and simple installation
• No extra buffer tank for the heating system is required as
VVM 500 fully controls the heat pump and the heating sys-
tem.
• New control with colour display and USB port.
• Installation help with step by step guide through the start-
up process.
• Automatic setting of flow across heat pump and heating sys-
tem.
• Factory installed components for best operational reliability
and safe installation.
• Complete accessory program.
Maintenance
A minimum level of maintenance is required. Only safety valves
require checking. All essential components can be accessed from
the front. This facilitates service and maintenance.
Installation
VVM 500 is easy to install. All pipe connections are easily accessi-
ble. This is especially useful for the replacement market.
Equipment
VVM 500 is equipped with a drain and reversing valve. In addi-
tion, VVM 500 is equipped with climate controlled automatic by-
passes with outdoor and flow sensors, shunt valve, charge and
circulation pump.
Expansion vessel
Dimensioned as 5 % of the maximum system volume (that is 500
litres plus maximum circulating volume in the hot circuit).
Design
VVM 500 is equipped with an intelligent control. This makes for
easy operation at the same time as always enabling the indoor
module to run as efficiently as possible. The control manages the
automatic bypass and circulation pumps. Current temperatures
and set values can be shown on the display.
The insulation consists of moulded, freon-free polyurethane
which is equivalent to approximately 200 mm mineral wool.
The outer casing is of white powder-coated steel plate.
Pipe dimensions
Assembly
Position VVM 500 on a firm base that can bear its weight, prefer-
ably on a concrete floor or foundation. Use the product's adjust-
able feet to obtain a horizontal and stable set-up.
The area where VVM 500 is located must be equipped with floor
drainage.
Installation area
Leave a space of 500 mm in front of the product. All service on
VVM 500 can be carried out from the front.
NOTE! Leave 10-25 mm free space between the indoor module
and the wall behind for routing of cables and pipes.
Connection
CM1 Expansion tank (connection) Ø G20 internal
XL1 Heating medium, flow line Ø G25 internal
XL2 Heating medium, flow line Ø G25 internal
XL3 Cold Water ﾘ G25 internal
XL4 Hot Water Ø G25 exernal
XL8 Connection, docking in heating medium Ø G25 internal
XL9 Connection, docking out heating medium Ø G25 internal
GOOD TO kNOW ABOUT NIBE™ VVM 500

19
28
43
1788
691
725
791
900
734
756
66
85
382
763
296
154
73
61
57
660
381
290
648
25-50
NIBE VVM 500 5
GOOD TO kNOW ABOUT NIBE™ VVM 500
Dimensions

APH
VVM 500
XL8 XL1QM20 XL2
XL9 XL3
FD1
FA1
AA1
BT6
BT54 AA2
AA3
BT2
SF1
AA4
QN11
EB1
XL19
XL14
XL13
XL2
XL14
PF3
CM1
XL1
QM20
XL9
XL8
XL39
BT7
PF1
XL4
XL3
XL18 XL13XL19
AA7
AA4-XJ3
PF3
PF1 QM1
GP12
XL39
QN10
BT63
QN35
AA4-XJ4
XL18
BT3
GP1
UB1
UB2
6 NIBE VVM 500
Indoor module design
GOOD TO kNOW ABOUT NIBE™ VVM 500

NIBE VVM 500 7
List of components
Pipe connections
XL1 Connection, heating medium flow line
XL2 Connection, heating medium return line
XL3 Connection, cold water
XL4 Connection, hot water
XL8 Connection, docking in heating medium
XL9 Connection, docking out heating medium
XL13 Connection, solar system flow line (SCA 30)
XL14 Connection, solar system return line (SCA 30)
XL18 Connection, docking in high temp (DEH 500)
XL19 Connection, docking out high temp (DEH 500)
XL39 Connection, docking pool (POOL 500)
HVAC components
CM1 Expansion tank (connection)
GP1 Circulation pump
GP12 Charge pump
QM1 Drain valve, heating medium
QM20 Venting, climate system
QN10 Reversing valve, climate system/heating medium,
flow line
QN11 Mixing valve
QN35 Reversing valve, climate system/heating medium, re-
turn line
Sensors etc.
BT2 Temperature sensors, heating medium flow
BT3 Temperature sensor, heating medium return*
BT6 Temperature sensor, hot water, control
BT7 Temperature sensor, hot water, display*
BT54 Temperature sensor, solar coil
BT63 Temperature sensor, heating medium supply after im-
mersion heater
Electrical components
AA1 Immersion heater card
AA2 Base card
AA3 Input circuit board
AA4 Display unit
AA4-XJ3 USB port
AA4-XJ4 Service socket
AA7 Extra relay circuit board
EB1 Immersion heater
FA1 Miniature circuit-breaker
FD1 Temperature limiter
SF1 Switch
Other information
PF1 Rating plate
PF3 Serial number plate
UB1 Cable grommet
UB2 Cable grommet
* Not visible in the image
Designations in component locations according to standard IEC 81346-1
and 81346-2
GOOD TO kNOW ABOUT NIBE™ VVM 500

-FL2
-CM1
-EB15
XL9
XL8
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
-FL2
-CM1
-EB15
XL8 XL9
-FL2
-CM1
-EB15
XL3
XL4
-FL2
-CM1
-EB15
XL1
XL2
-FL2
-CM1
-EB15
XL2
XL1
-GP20
-BT3
-BT2
-QN11
-EP21
-AA5
-FL2
-CM1
-EB15
-BT52
-EM1
-AA5
-EM1
-GP15
XL18
XL19
8 NIBE VVM 500
Installation alternative
Heat pump
All outdoor pipes must be thermally insulated with at least 19
mm thick pipe insulation.
VVM 500 is not equipped with shut off valves; these must be in-
stalled outside the indoor module to facilitate any future servic-
ing.
Electric boiler mode
Connect the pipe for docking in from the heat pump (XL8) to the
pipe out from the heat pump (XL9).
Cold and hot water
A mixing valve must be installed if the factory setting is changed
so that the temperature can exceed 60 °C. If the factory setting
is changed, national regulations must be observed. The setting is
made in menu (5.1.1).
Heating medium side
When connecting to a system with thermostats on all radiators/
underfloor heating coils, a relief valve must be fitted, or a thermo-
stat must be removed to ensure sufficient flow.
Two or more climate systems
When more than one climate system is to be heated, the follow-
ing connection can be used.
For this connection accessory ECS 40/ECS 41 is required.
(Max 4 zones)
External heat source
Connection of gas/electric/oil boiler requires accessory DEH 500,
see "Accessories" on the product sheet rear cover and the instal-
lation manual for DEH 500.
INSTALLATION
VVM 500 is easy to install. All pipe connections are easily accessible.

-FL2
-CM1
-EB15
-GP9
XL3
XL4
-FL2
-CM1
-EB15
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
-EP30
-EP30-BT53
-AA25
-CM5
-GP4
-QM45
-RM3
-QM43
-QM44
TP
-FL4
-RM4 T
-GP30
-EM1
-FL2
-CM1
-EB15
XL13
XL14
-BT53
-EP8
-AA5 -CM5
-GP4
-QM45
-RM3
-QM43
-QM44
TP
-FL4
-RM4 T
-GP30
-EP30
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
-FL2
-CM1
-EB15
-EB15
XL39
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
-GP9 -BT51 -HQ4
-EP5
-AA5
-CL11
-CL11-QN19
POOL
NIBE VVM 500 9
Connecting hot water circulation
To reduce the risk of bacterial growth in systems with hot water
circulation, the temperature of the circulating water should not
fall below 50ﾘC. There should not be any non-circulatory hot wa-
ter pipes. Adjust the hot water system so that the temperature
does not fall below 50°C at the end of the system. In VVM 500 it
is possible to schedule the connected pump (GP9).
Wood burning stove with back boiler
Connection to the wood burning stove with back boiler, max 8kW,
requires accessory SCA 30, see Accessories on the rear cover and the
installation manual for SCA 30. This docking provides both heat and hot
water.
Sun
Connection to solar installation requires accessory SCA 30, see Ac-
cessories on the rear cover and the installation manual for SCA 30.
This docking provides both heat and hot water.
Pool
Pool heating is controlled by the pool sensor. In the case of low
pool temperatures, the shuttle valve reverses direction and opens
towards the pool exchanger. This connection requires the POOL
500 accessory, see Accessories on the rear cover and the installa-
tion manual for POOL 500.
INSTALLATION

XL39
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
-FL2
-CM1
-EB15
XL13
XL14
POOL
-BT51-GP9
-CL11
-BT53
-EP8
-AA5 -CM5
-GP4
-QM45
-RM3
-QM43
-QM44
TP
-FL4
-RM4 T
-GP30
-EP30
-GP14
-RM6
XL39
XL13
XL14
-EB15
-RN10
-EB101
XL2
XL1 -HQ1
-QM1
-QM41
-FL10
-QM40
-EB101
POOL
-BT51-GP9
-AA5
-CL11
TPT
-AA5
-EP30
-BT53
-EP8
-GP4
-QM45 -QM43
-QM44
-CM5
-FL4
-FL2
-CM1
-GP14
-RM6
-RM4
-GP30
10 NIBE VVM 500
Electrical connections
General
All electrical equipment, except the outdoor sensors, room sen-
sors and the current sensors are already connected at the factory.
• Disconnect the indoor module before insulation testing the
house wiring.
• When the building is equipped with an earth-fault breaker,
VVM 500 should be equipped with a separate one.
• The electrical circuit diagram for the indoor module is at the
end of this Installer manual.
• Communication and sensor cables to external connections
must not be laid close to high current cables.
• The minimum area of communication and sensor cables to
external connections must be 0.5 mm2up to 50 m, for ex-
ample EKKX or LiYY or equivalent.
• You must use cable grommets UB1 and UB2 when cable
routing in VVM 500. In UB1 and UB2 the cables are inserted
through the indoor module from the back to the front.
Miniature circuit-breaker
The indoor module and a large proportion of its internal com-
ponents are internally fused by a miniature circuit breaker (FA1).
Temperature limiter
The temperature limiter (FD1) cuts the current supply to the elec-
trical addition if the temperature rises to between 90 and 100 de-
grees C and is manually reset.
Settings
Electrical addition - maximum output
The immersion heater can be set to a maximum of 9 kW. Deliv-
ery setting is 9 kW.
The immersion heater output is divided into 4 steps, according to
the table in the Installer manual.
Setting maximum output in the electrical addition is done in
menu 5.1.12.
Standby mode
When the indoor module switch (SF1) is set to emergency mode
only the most necessary functions are activated.
The hot water capacity is reduced.
The load monitor is not connected.
Temperature is fixed in the flow line
Pool and solar

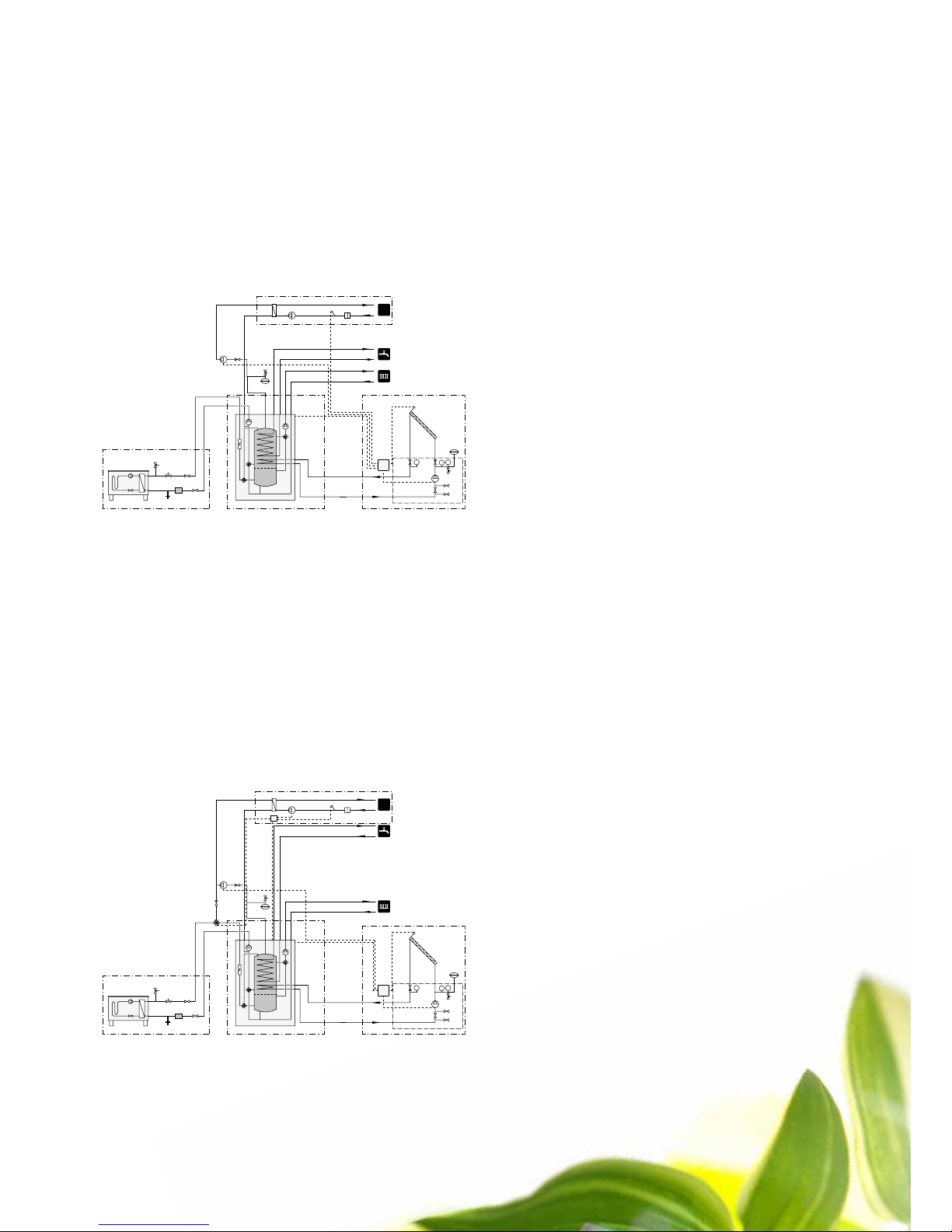

In this example the solar installation is connected. When solar heat-
ing has heated the tank to the desired stop temperature, the solar
heat will be transferred to the pool. Charging the pool continues un-
til the pool is fully heated or until the temperature in the tank falls
below the desired stop temperature.
Pool with heat pump and solar
Charging of the pool is controlled by the pool sensor. In the case
of low pool temperatures, the shuttle valve reverses direction and
opens towards the pool exchanger. This connection requires the
POOL 500 accessory, see Accessories on the rear cover and the in-
stallation manual for POOL 500.
In this example the solar installation is connected. When solar heat-
ing has heated the tank to the desired stop temperature, the solar
heat will be transferred to the pool. Charging the pool continues un-
til the pool is fully heated or until the temperature in the tank falls
below the desired stop temperature.
INSTALLATION

Tillgängligt tryck
(Pa)
Vattenflöde (l/s)
0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8
0
10
20
30
40
50
60
70
100%
25%
T
illgängligt tryck
(Pa)
Vattenflöde (l/s)
0
10
20
30
40
50
60
70
0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8
100%
25%
10
12
14
16
18
20
22
24
26
28
30
100 150 200 250 300 350 400
Tappflöde
(l/min)
Tappvolym (l) 40 °C
Ekonomi Normal Lyx
The diagram above displays what hot water capacity VVM 500
can supply at the different selectable comfort modes.
The difference between the selectable modes is the temperature
of the hot tap water. Higher temperature means hot water lasts
longer.
economy: This position gives less hot water, but is more eco-
nomical. This mode can be used in smaller households with a
small hot water requirement.
Water capacity
Hot water capacity NIBE VVM 500 with NIBE F2026/F2300
Tap flow
(l/min)
Economy Normal Lux
Tap volume (l) 40 ﾘC
normal: Normal mode gives a larger amount of hot water and is
suitable for most households.
luxury: Lux mode gives the greatest possible amount of hot wa-
ter. In this mode, the immersion heater, as well as the compressor,
is used to heat hot water, which may increase operating costs.
F2026 requires additional heat (internal or external) to reach Lux-
ury.
In most cases, F2300 reaches all three settings (including Lux),
with just a compressor.
NIBE VVM 500 11
Pump capacity diagram
Available pressure, circulation pump for heating systems, GP1 Available pressure, charge circulation pump, GP12
Available pressure
(Pa)
Available pressure
(Pa)
Water flow (l/s) Water flow (l/s)
INSTALLATION

12 NIBE VVM 500
B
A
C
D
E
F
VVM 500
THE DISPLAy
Display unit
Display, A
Instructions, settings and operational information are shown on
the display. The easy-to-read display and menu system facilitates
navigation between the different menus and options to set the
comfort or obtain the information you require.
Status lamp, B
The status lamp indicates the status of the heat pump. It:
• lights green during normal operation.
• lights yellow in emergency mode.
• lights red in the event of a deployed alarm.
OK button, C
The OK button is used to:
• confirm selections of sub menus/options/set values/page in
the start guide.
Back button, D
The back button is used to:
• go back to the previous menu.
• change a setting that has not been confirmed.
Status lamp
Display
OK button
Back button
Control knob
Switch
Control knob, E
The control knob can be turned to the right or left. You can:
• scroll in menus and between options.
• increase and decrease the values.
• change page in multiple page instructions (for example help
text and service info).
Switch, F
The switch assumes three positions:
• On ()
• Standby ( )
• Emergency mode ( )
A large, easy to read multicoulour display gives everyone the chance to
maximize the energy saving potential of this exciting green technology!

NIBE VVM 500 13
START GUIDE 5.7
START GUIDE 5.7
START GUIDE 5.7
START GUIDE 5.71/21
THE DISPLAy
Menu system
When the door to the heat pump is opened, the menu system’s
four main menus are shown in the display as well as certain ba-
sic information.
Menu 1 – Indoor climate
Setting and scheduling the indoor climate.
Menu 2 – Hot water
Setting and scheduling hot water production.
This menu only appears if a water heater is docked to the heat
pump.
Menu 3 - Info
Display of temperature and other operating information and ac-
cess to the alarm log.
Menu 4 – Heat pump
Setting time, date, language, display, operating mode etc.
Menu 5 - Service
Advanced settings. These settings are not available to the user.
The menu is visible by pressing the Back button for 7 seconds.
Start guide
The first time the heat pump is started a start guide is started.
The start guide instructions state what needs to carried out at the
first start together with a run through of the heat pump’s basic
settings.
The start guide ensures that the start-up is carried out correctly
and cannot be bypassed. The start guide can be started later in
menu 5.7.
Indoor temperature -
(if a room sensor is
connected)
Outdoor temp. Hot water temp.
Extra hot water
(if activated)
Estimated amount of
hot water
If the start guide is left on this page it closes automati-
cally in 60 min

14 NIBE VVM 500
3x400V
Max heat pump output 1) kW 20
Additional power immersion heater kW 9
Electrical data
Rated voltage 400 V~ 3 NAC 50 Hz
Max operating current A 16,2
Fuse A 16
Power, HM pump W 10 - 110
Output charge pump W 10 - 110
IP class IP 21
Heating medium circuit
Energy class circ-pump low energy
Energy class charge pump low energy
Max system pressure heating medium MPa 0.3 (3 bar)
Min flow l/h 500
Max HM temp ﾘC 70
Pipe connections
Heating medium, CU pipe G25 internal
Hot water connection G25 internal
Cold water connection G25 internal
Heat pump connections G25 internal
Other information
Indoor module
Area HW coil m25
Volume, total indoor module l 500
Volume, buffer vessel l 80
Area, solar coil m21,5
Cut-off pressure, coil MPa 1.0 (10 bar)
Max permitted pressure in indoor module MPa 0.3 (3 bar)
Capacity hot water heating According to EN 255-3
Tap volume 40°C at Eco comfort l 235
Tap volume 40°C at Normal comfort l 303
Tap volume 40°C at Luxury comfort l 378
Idle loss according to DIN 4753-8 W 116
Dimensions and weight
Width mm 760
Depth mm 900
Height mm 1900
Required ceiling height mm 2000
Weight (excl packaging) kg 240
Part no. 069 400
1) Applies to outdoor air heat pump at 7/45 °C (outdoor temperature / Supply temperature)
IP 21
TECHNICAL SPECIfICATIONS

LEK
LEK
LEK
APH
LEK
LEK
LEK
LEK
GRUNDFOS
TypeUPS 25 - 60 130 P/N:59526447
230V-
HEJSAN
PC;0017NIB
DK
50Hz
IP44
TF110
ClassH
Max.10bar
2.5uF
450.20
650.30
900.40
1m(A) P,(W)
LEK
LEK
LEK
LEK
LEK
LEK
LEK
LEK
LEK
LEK
LEK
NIBE VVM 500 15
Outdoor sensor
NIBE™ EMK 500
Energy measurement kit
This accessory is used to
measure the amount of
energy VVM 500 produces
and supplies for hot water
and heating in the build-
ing.
Part no. 067 178
NIBE™ MODBUS 40
Communications module
MODBUS 40 enables VVM
500 to be controlled and
monitored using a design
outdoor temperature in
buildings. Communica-
tion takes place using a
MODBUS-RTU.
Part no. 067 144
NIBE™ RTS 40
Room sensor
Part no. 067 065
NIBE™ SCA 30 (solar)
Possible connection and
control of solar heating.
Part no. 067 179
NIBE™ F2026
Air/water heat pump
6 kW Part no. 064 084
8 kW Part no. 064 085
10 kW Part no. 064 086
NIBE™ F2300
Air/water heat pump
14 kW Part no. 064 063
20 kW Part no. 064 064
NIBE™ Top cabinet
2060 mm
Part no. 056 177
2160 mm
Part no. 056 178
2200-2,450 mm
Part no. 056 179
NIBE™ premium solar
packs for VVM 500
Vertical collectors:
P2 Part no. 057 102 P3 Part no. 057 103
P4 Part no. 057 104 P5 Part no. 057 105
Horizontal collectors:
PL2 Part no. 057 106 PL3 Part no. 057 107
PL4 Part no. 057 108 PL5 Part no. 057 109
NIBE™ DEH 500 (oil/elec-
tricity/gas)
Possible connection and con-
trol of external heat source.
Part no. 067 180
NIBE™ SMS 40
Communications module
SMS 40 enables VVM
500 to be controlled
and monitored via SMS
messages. The mobile ap-
plication NIBE Mobile App
can be used with a mobile
telephone with the Android
operating system .
Part no. 067 073
NIBE™ POOL 500
Pool heating
POOL 500 is an accessory
that enables pool heating
with VVM 500.
Part no. 067 181
NIBE™ RMU 40
Room unit
RMU 40 means that
control and monitoring of
the indoor module can be
carried out in a different
part of the home to where
VVM 500 is located.
Part no. 067 179
NIBE™ ELK
External electrical ad-
dition
These accessories require
accessory DEH 500 (step
controlled addition).
ELK 26
Part no. 067 074
ELK 15
Part no. 067 022

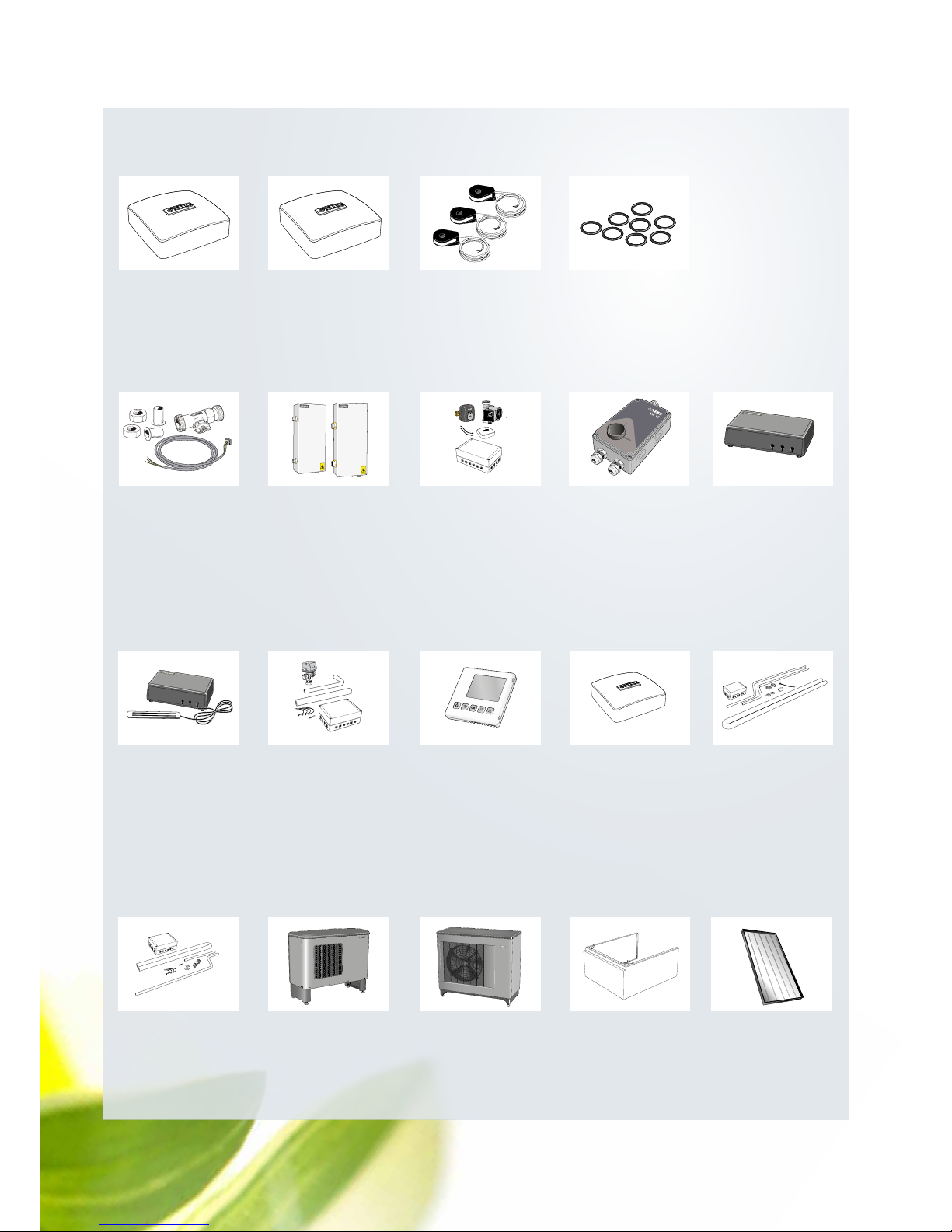

NIBE™ ECS 40/ECS41
Extra shunt group
This accessory is used when
VVM 500 is installed in
houses with two or more
different climate systems
that require different sup-
ply temperatures.
ECS 40 (max 80 m2)
Part no. 067 061
ECS 41 (min 80 m2)
Part no. 067 099
NIBE™ HR 10
Auxiliary relay
Part no. 089 423
Room sensor O-ringsCurrent sensor
The kit of supplied items is placed on top of the product.
SUPPLIED COMPONENTS
ACCESSORIES

16 NIBE VVM 500
This brochure is a publication from NIBE. All product illustrations, facts and specifications are
based on current information at the time of the publication’s approval. NIBE makes reservations
for any factual or printing errors in this brochure.
Photos: www.benfoto.se. ©NIBE 2012.
NIBE is ISO-certified:
SS-EN ISO 9001:2000
SS-EN ISO 14001:2004
639509 Technical PBD GB NIBE VVM 500 1244-1
NIBE Energy Systems AB
Box 14
285 21 Markaryd
SWEDEN
Tel. +46 433 - 73 000
www.nibe.eu
