Niigata seiki D IP67S Series User manual

IP67
SWISS MADE
MODE SET
mm
MICROMETER MCD-***IP67S
CALIPER D-***IP67S
D-***IP67S<comb.>
Model
No.
Instruction Manual
DIGITAL SLINE CALIPER
Thank you for purchasing Niigata Seiki Digital S-Line Caliper.
This caliper is IP-67 rated for water and dust resistance, and can be used in applications where it will be exposed to water,
cutting fluid, lubricating oil, etc.
For safe and proper use, please read this instruction manual before use and follow the procedures described.
Please keep manual where it is accessible to user for future reference.
Keep this manual with the instrument if transferred or leased to a third party.
For inquiries about this product, please contact dealer or Niigata Seiki at the address listed on the following page.
CALIBRATION
●To maintain instrument accuracy, periodic calibration is
recommended.
Wear of measuring surfaces from repeated use may affect accuracy
and periodic accuracy checks should be performed.
Outside Japan,
Please contact distributor or place of purchase to
inquire about calibration services.
①
②
③
④
⑤
For measuring depth.
Depth is measured between these two
surfaces.
Supports LCD Display Unit.
Tighten to prevent the slide and display
from moving.
Displays digital measurement.
Open to access Battery.
Power ON/OFF, Set 0-point, Sleep Mode.
Used to open and close Battery Cover⑪.
⑥Depth Bar················
⑦Depth Meas. Surf. ····
⑧Scale························
⑨lock Screw···············
⑩
LCD Display·············
⑪Battery Cover···········
⑫
[SET] Button············
⑬ Battery Cover Tool ·········
Outside Jaws
■PARTS IDENTIFICATION ・ FUNCTION
⑧Scale
⑨Lock Screw
Battery Cover
※D150IP67S・D200IP67S only
Depth Bar
Inside Jaws
⑫[SET]Button
Precision
Measuring Tool
●
●
●
SAFETY PRECAUTIONS Please Observe
To prevent harm to yourself or others, and to prevent damage to
property, always follow the procedures marked by the following symbols.
WARNING: Indicates risk of personal injury or property damage if not followed.
Denotes a prohibition –
You MUST NOT do
Denotes a requirement –
You MUST do
Read the manual and follow the directions.
・Use of product other than as described in this manual may
cause accident.
Use only for measuring.
・
・
Use for any purpose other than measuring may damage or
wear the instrument. Improper use may also cause accident.
Handle with Care.
Do not drop or subject instrument to excessive shock. Do not
place under heavy objects. Improper handling may
cause damage or poor accuracy.
・Do not scratch instrument, for example by writing ID number.
Avoid using in high electric fields, such as near
fluorescent lights or switching power supplies.
・Incorrect value may be displayed on LCD.
Use and store only in environment meeting the following
conditions:
●Dry location protected from rain, water, and oils.
● Location that is not excessively hot.
● Location protected from use by children and unauthorized
people.
・Use in places contrary to the above may cause damage to
the product resulting in accident or injury.
Jaw Tips Are Sharp—Handle With Care.
・Careless handling may cause injury.
Do not disassemble or modify.
・Disassembly may damage product or cause accident.
For repair, please contact distributor or place of purchase.
Do not write on instrument with electric engraver.
・Do not engrave instrument body or jaw, such as an ID number
with engraver or electric pen.
Position object to be measured
between these surfaces.
For measuring outside dimensions.
Measures height of steps.
For measuring inside dimensions.
Position surfaces inside object to
be measured.
Outside Meas. Surfaces ··
Outside Jaws ··················
Step Meas. Surfaces ······
Inside Jaws ·····················
Inside Meas. Surfaces ·····
⑬Battery Cover Tool
Depth Meas.
Surfaces
⑥
⑦
LCD Display
⑩
⑪
Inside Meas.
Surfaces
Step Meas.
Surfaces
②
④
⑤
③
Outside Meas.
Surfaces
①

C
R
2
0
3
2
SWISS MADE
IP67
MODE SET
CR2032
E125K5 19102000
AFTER USE CARE ・ STORAGE
TROUBLESHOOTING
SPECIFICATIONS
IP CODE SUMMARY
●
●
After use, wipe off any dirt or oil from measuring surfaces, sliding
surfaces, and exterior using a dry cloth and perform rust prevention
treatment. For rust prevention, lightly apply anti-rust oil, or place in
rust preventive bag.
Store with Jaws slightly open.
If stored with Jaws closed tight, expansion due to temperature
changes may cause excessive force which will cause inaccuracy.
Store in a cool, dry, and dark location in the provided case.
Keep out of direct sunlight and moisture, and please keep secure
from unauthorized personnel.
Remove battery if Caliper will not be used for a long period of time.
●
SERVICE
●
●
If Instrument is not working properly, or if you have any questions, please contact
distributor or place of purchase.
Please note, manufacturer is unable to respond to inquires or provide service
directly. Please contact distributor or place of purchase.

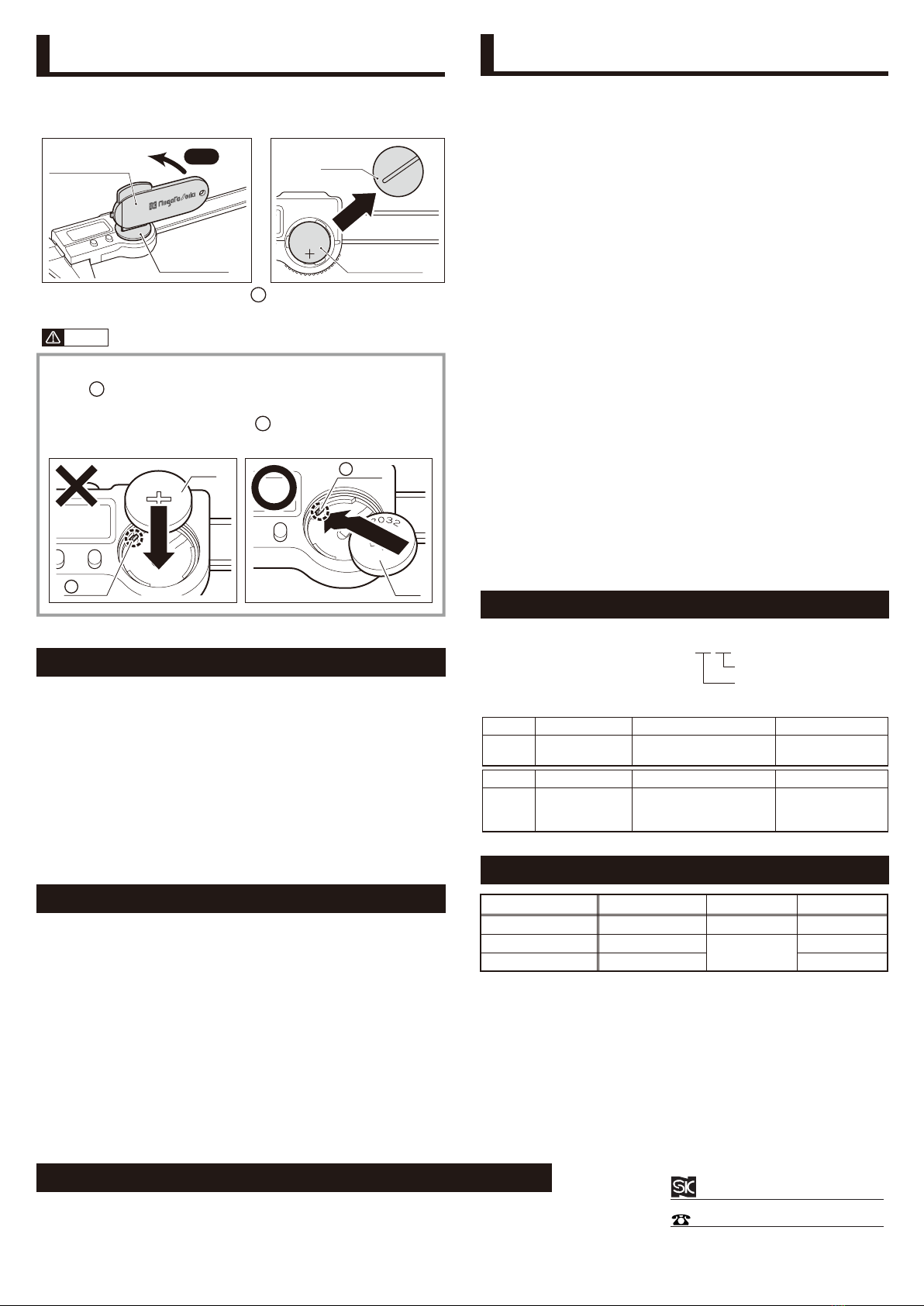

INSERTING ・ REPLACING BATTERY
HOW TO USE
Before use please make the following preparations.
● Clean off any rust inhibitor or debris from measurement and sliding surfaces.
Contamination of surfaces may cause measurement error.
●
Allow the caliper and item to be measured time to reach same temperature.
A temperature difference between the object to be measured and
the caliper may cause measurement error. Allow enough time for
the temperatures to equilibrate.
■SET BUTTON
The SET button performs the following functions.
Press and hold for 2s.・・・Display is set to 0
Press and hold for 2s.・・・Sleep Mode
(Resume by moving Jaw or pressing any button)
③Press and hold for 2s.・・・Power OFF
(Turn power ON by pressing any button two times)
■Absolute Measurement Mode
Turn power ON by pressing any button two times.
With jaws closed, press and hold the [SET] Button for 2 sec.
When “0.00mm” is displayed on LCD, Caliper is ready to start
measurement.
■Comparison Measure Mode
①T urn power ON by pressing any button two times.
②With jaws set on reference part, press and hold the [SET]
Button for 2 sec.
③When “0.00mm” is displayed on LCD, Caliper is ready to start
measurement.
Ｑ． Nothing is displayed on LCD.
Ａ．The battery may be running low, please replace battery with
a new one.
Ｑ．With power on, the number on the LCD does not change as
Display Unit is moved.
Ａ．Please reset by removing battery for about 30sec., and then
replacing.
Ｑ．No response when a button is pressed.
Ａ．Make sure that the battery is correctly installed.
● Use care to avoid damaging terminals when inserting battery
●The ＋ terminals may be broken if battery is pressed straight
down.
●Insert battery at angle, with the ＋ side outward as shown.
※0.02mm higher for other than outside measurements
※Not including quantization error (± 1 count)
0 - 150
0
- 200
0
- 300
±0.02
±0.03
Model No. Mass (g)
D-150IP67S
D-200IP67S
D-300IP67S
Range(mm)
※Inst. Error(mm)
170
200
270
Batt.
Pressed Down
Batt.
＋ Term.
＋ Term.
Slide In
①Unscrew the cover using the
Battery cover Tool, side marked
「CALIPER D-***IP67S」
②Remove the Cover.
Insert the new battery with the ＋ side outward.
Replace the cover using the Battery Cover Tool.
Use only CR2032 type battery
Notice
Battery
Cover Tool
Battery Cover
Battery
Cover
CR2032 Battery
Turn
外す
・IP rating for electrical
equipment defined by
IEC standard for
water and solid body
protection.
1st Digit
６
2nd Digit
Description
Description
Solid Ingress
Protection
Liquid Ingress
Protection
Degree of Protection
Degree of Protection
No ingress of dust allowed.
Dust tight.
2nd Digit: Water proof rating
1st Digit: Direct contact-
protection rating for ingress
of solid foreign object
No harmful effect when
immersed in water for
specified period and pressure.
Test method
Test method
Complete protection
from dust intrusion
Submersion for 30min.
at depth of 1m (for
devices of height less
than 850mm)
７
ＩＰ６７
③
④
●
Niigata Seiki Co., Ltd.
5-3-14, Tsukanome, Sanjo, Niigata, Japan, 955-0055
[phone] FAX : [phone]
MAIL: [e-mail]
URL: http://www.niigataseiki.co.jp
①
②
①
②
③
●● Display: . . . . . . . . . . . . . . . . . . . . . . 5 Digit LCD
●●● Auto Off: . . . . . . . . . . . . . . . . . . . . . ~ 20 min.
● Maximum Response Speed: . . . . . . 2.5m/s
● Operating Temperature Range: . . . 5°C to 40°C
●● Power: . . . . . . . . . . . . . . . . . . . . . CR2032 Lithium Battery (1x)
●● Battery Life: . . . . . . . . . . . . . . . . . . . approx. 1.5 years in normal use
●● Accessory: . . . . . . . . . . . . . . . . . . CR2032 Lithium Battery (for test)
● Resolution: . . . . . . . . . . . . . . . . . . . 0.01mm
Battery Cover Tool
