Niko Swiss Garde 360 Presence KNX UP User manual

Instruction Manual

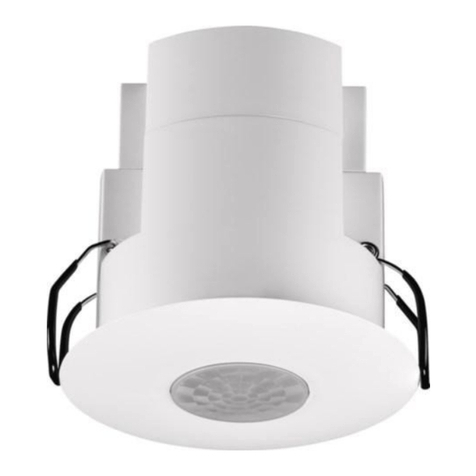

Swiss Garde 360 Presence KNX UP
Item no. Model EAN
351- 25031 SG360P KNX UP 3505100250319
25020N SG360P KNX UP 3505100250203
nv Niko sa, Industriepark West 40, 9100 Sint-Niklaas, Belgium
www.niko.eu, [phone], [e-mail]
Edition 09-2022
Art.-Nr. 25020N (351-25031)

2
Presence detectors 360° KNX
for ceiling flush-mounting
The family of Swiss Garde 360 Presence KNX UP
presence detectors is characterised by the following
outstanding features:
•1 light output for switching, dimming or scenery selection.
•1 HVAC-channel controls heating, ventilation and air
conditioning. This output can be used for presence
detection. Additionally, alarm systems with parametrizable
switch-on delay can be implemented.
•1 Threshold switch in lux with hysteresis setting
•1 brightness output in lux (2 Byte)
•4 Pyro detectors
4 PIR sensors with an 360° detection area can be
activated individually or in groups.
·

3
Important notice
The presence detectors Swiss Garde 360 Presence KNX UP
is suitable f or ceiling mounting indoors only (IP20, class II).
In case of errors such as continuous light, uncontrolled
switching, etc., please consult page 7 „troubleshooting“.
Function
The presence detector Swiss Garde 360 Presence KNX UP
reacts to heat radiation of moving bodies. A person
approaching the monitored area automatically triggers the
connected light. If no motion is detected again, the light will
automatically switch off after a delay time configured in ETS.
In case of activated standby, the light will stay on at reduced
intensity during the set time period (mode dimming
complete/ constant light control).
Installation
Connect the presence detector as follows:
red wire (+) to be connected to red terminal
black wire (-) to be connected to grey terminal
Application notes
A detailed description of the communication objects and all
parametrizable functions can be found in the following
separate document:
Swiss Garde 360 Presence KNX UP
APPLICATION NOTES
3

SG360P KNX UP (351- 25031, 25020N)
frontal view
rear view
4
bus terminal – (grey)
bus terminal + (red)
rating plate
programming button

The PIR sensors 1 2 3 4 can be activated via ETS individually
or in groups, using the above numbering scheme.
After KNX/EIB bus connection: the detector takes
approx. 1 min. to reach a stable working condition!
5
LED green
Flashes with each detection
LED red programming
glows upon pressing the
programming button
PIR sensors numbering

Ø
* maximum values
6
Detection range
The 360° omnidirectional detection range as well as the
dense detection area allow for an optimal function. The
range depends on the mounting height as well as the angle
of approach (high sensitivity when crossing a switching
segment). Since the device registers the temperature
differences between the source of heat and the ambient
temperature, the detection range may vary depending on
site conditions (floor heating, etc.).
SG360P KNX/KLR 4-channels
H
Ø *
Ø *
2,0 m
5 m
12 m
3,0 m
7 m
16 m
4,0 m
9 m
18 m
5,0 m
(10 m)
20 m
6,0 m
(10 m)
22 m
7,0 m
(10 m)
22 m
8,0 m
(10 m)
22 m
H

Device dimensions
7
Troubleshooting
Error Cause/remedies
load doesn`t switch ON • twilight value set to high
• check light/luminaire/fuses
Detector triggers ON and • check detection area for
OFF without reason or potential causes of false
light never turns OFF: triggering: animals, heating, etc.
may all doing faulty switching
• check distances to lamps (heat-
reflection or direct light influence)
•detector is to sensitive, reduce
the detection range sensitivity
(1…10) via ETS.
Turns the ON during day- • twilight adjustment set to high:
time: set to a lower value via ETS
(menu light)

Technical data
nominal voltage: 24V DC (21 - 30V DC)
power consumption: 0,4 W
PIR- sensors: 4 Pyro detectors
sensitivity: adjustable via ETS in 10 steps
light measuring: brightness sensor with linear output
lux value: value readable (5 - 2000lux, 2 Byte)
switiching criteria: motion and brightness
detection range: 360°, ceiling mounted
range height= 3m: Ø7m presence, Ø16m motion
range height= 8m: *(Ø10m presence), Ø22m motion
recom. mounting height: 2m – 8m
mounting: ceiling mounting
available accessory: AP- housing
protection rating: IP 20, indoor mounting, class II
temperature range: - 20°C bis +40 °C
dimensions: 88 x 88 x 35 mm
*maximum values
