Internet calls
3
Copyright © 2007 Nokia. All rights reserved.
Internet calls
Your Nokia E61i supports voice calls over the Internet
(Internet calls). With the Internet call service (network
service), you can make and receive calls over the Internet.
Internet calls can be made from places that have a
broadband connection and WLAN access, e.g. homes,
hotspots at airports, and cafes.
Note: The Internet Call service must be set up
on your Nokia E61i before you can make or
receive calls. In addition to an active WLAN
connection, you need an Internet call account
from a SIP VoIP service provider.
VoIP (Voice Over Internet Protocol) technology is a set of
protocols that facilitate phone calls over an IP network,
such as the Internet. VoIP phone calls can be established
between computers, between mobile phones, and between
a VoIP device and a traditional telephone. To make or
receive a VoIP call, your device must be within WLAN
coverage.
The availability of the Internet call service may vary
according to your country or sales area.
Define the Internet call settings
If your Internet call service provider offers provisioning for
the SIP VoIP settings, it is suggested to use the
provisioning service instead of defining the settings
manually. For details, contact your service provider.
Before you can make Internet calls, you need to define the
Internet call settings. After you have defined the Internet
call settings with these instructions, your device logs in to
the Internet call service automatically when you select
Menu > Connect. > Internet tel..
To define the Internet call settings, do the following:
1Define a SIP profile.
2Define an Internet call profile.
3Select a preferred Internet call profile (optional).

Internet calls
4Copyright © 2007 Nokia. All rights reserved.
Define a SIP profile
1Select Menu > Tools > Settings > Connection >
SIP settings > Options > Add new.
Contact your Internet call service provider for the
correct information.
Define the following settings:
•Profile name — Enter a name for the SIP profile.
•Service profile — Select IETF or Nokia 3GPP as
specified by your service provider. The default is
IETF.
•Default access point — Select the access point to use
for the Internet connection.
•Public user name — Enter your user name received
from your service provider.
•Use compression — Select Yes or No as specified by
your service provider. The default is No.
•Registration — For automatic login, set the
registration mode to Always on. For manual login,
set it to When needed.
•Use security — Select Yes or No as specified by your
service provider. The default is No.
•Proxy server — Enter the proxy server settings for this
SIP profile. See “Define SIP proxy server
details”, p. 4.
•Registrar server — Enter the registration server
settings for this SIP profile. See “Define registration
server details”, p. 5.
2Select Back until you return to the Connection menu.
Define SIP proxy server details
1Select Proxy server.
Proxy servers are intermediate servers between a
browsing service and its users used by some service
providers. These servers may provide additional
security and speed up access to the service.
Define the following settings:
•Proxy server address — Enter the host name or IP
address of the proxy server in use.
•Realm — Enter the proxy server realm.
•User name and Password — Enter your user name and
password for the proxy server.
•Allow loose routing — Select Yes or No as specified by
your service provider. The default is Yes.
•Transport type — Set the Transport type to Auto.
•Port — Enter the port number of the proxy server.
2Select Back until you return to the Connection menu.

Internet calls
5
Copyright © 2007 Nokia. All rights reserved.
Define registration server details
1Select Registrar server.
Define the following settings:
•Registrar serv. addr. — Enter the host name or IP
address of the registrar server in use.
•Realm — Enter the registrar server realm.
•User name and Password — Enter your user name and
password for the registrar server.
•Transport type — Set the Transport type to Auto.
•Port — Enter the port number of the registrar server.
2Select Back until you return to the Connection menu.
Define an Internet call profile
1Select Menu > Tools > Settings > Connection > Internet
tel. settings > Options > New profile. Enter a name for the
profile, and select the SIP profile you just created.
2Select Back until you return to the main menu.
Select a preferred Internet call profile
If you select a preferred Internet call profile, Internet tel.
automatically uses this network profile to connect to the
Internet call service.
1Select Menu > Connect. > Internet tel..
2Select Preferred profile and the Internet call profile you
just created.
3Select Back until you return to the main menu.
Connect to the Internet call
service
To make or receive an Internet call, your device must be
connected to an Internet call service. Select Menu >
Connect. > Internet tel..

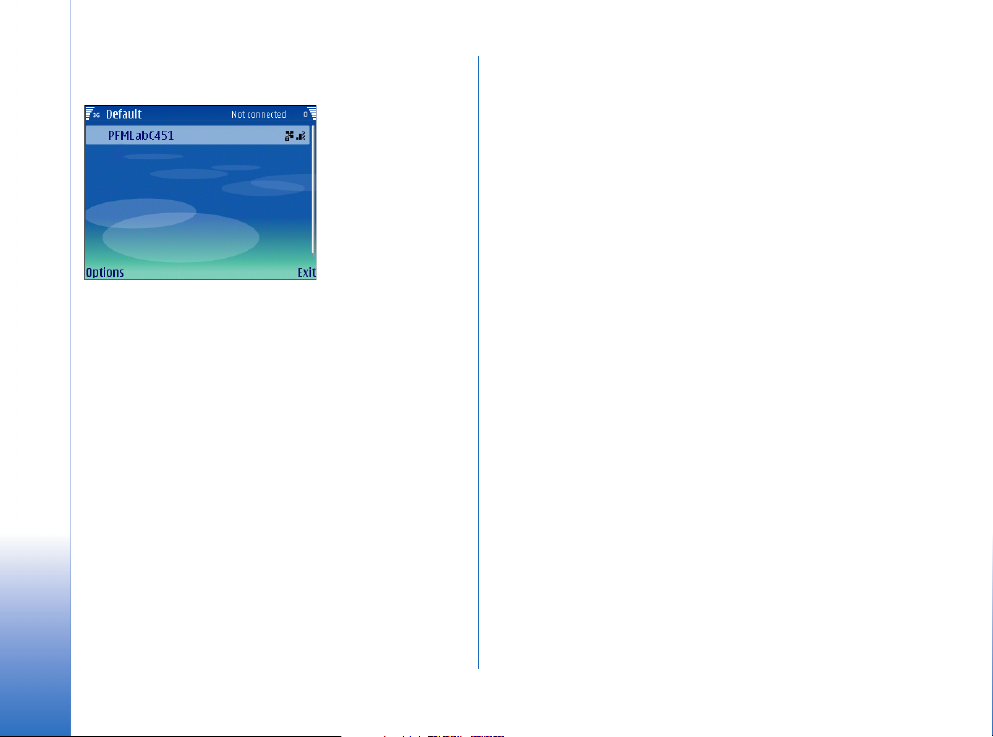

If you have selected automatic login, your device
automatically connects to the Internet call service. If you
manually login to the service, choose an available
connection network from the list, and press the scroll key
to connect to the Internet call service. The saved
networks, which are marked with a star icon, are shown

Internet calls
6Copyright © 2007 Nokia. All rights reserved.
first on the list. If you want to stop the connection from
establishing, select Cancel.
Select Options and from the following:
•Connect to service — to establish a connection to a
service, when there is an Internet call service and
suitable connection network available.
•Disconnect from serv. — to end the connection to the
Internet call service.
•Change service — to choose the Internet call service for
outgoing calls if the device is connected to more than
one service. This option is shown only if there is more
than one configured service available.
•Configure service — to configure new services.
This option is shown only if there are services that
have not been configured.
•Save network — to save the network settings to which
you are currently connected. The previously saved
networks are marked with a star icon on the list of
connection networks. This option is shown only if you
are connected to an unsaved WLAN network.
•Use hidden network — to connect to an Internet call
service using a hidden WLAN network.
•Refresh — to manually refresh the list of connection
networks. Use this option, if your WLAN network is not
shown on the list. The list is also refreshed
automatically every 15 seconds.
The available options may vary.
Your device can be connected only to one WLAN access
point at a time. If you use two or more Internet call
services, which use the same access point, your device may
be connected to multiple services at the same time. The
service used for outgoing Internet calls is shown in the
view, where the connection networks are listed, and can
be changed by selecting Change service.
After you have successfully connected to a service, you
can save the used WLAN network as a known access point.
Connect using a shortcut
You may have a shortcut for Internet tel. in the active
standby or you can add a shortcut if it is not available. By
using the shortcut, you can register manually if an
Internet call service and an access point are available. If
you are already connected to an Internet call service, the
device asks if you want to disconnect from the service.

Internet calls
7
Copyright © 2007 Nokia. All rights reserved.
Make Internet calls
If you set Internet call as the preferred call type and your
device is connected to an Internet call service, calls are
made as Internet calls as the default.

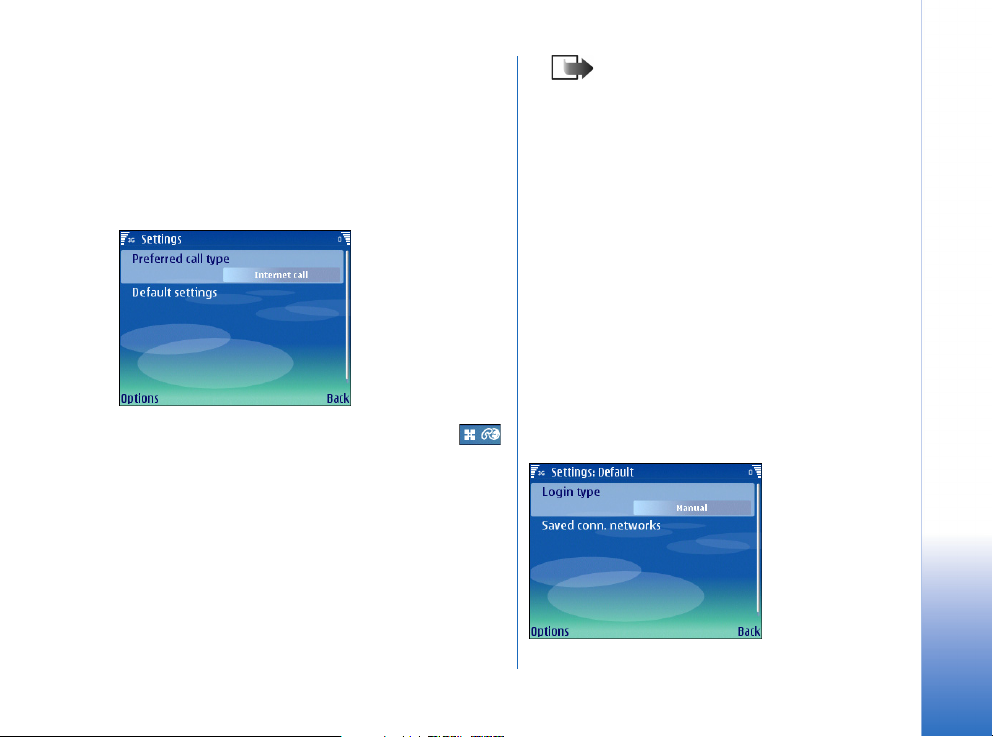

To set the preferred call type for outgoing calls, select
Menu > Connect. > Internet tel. > Options > Settings >
Preferred call type > Cellular or Internet call.
After you have connected to an Internet call service,
icon appears on the display in the standby mode,
indicating that you have an active WLAN connection and
that the device is registered with a SIP server so you can
make Internet calls.
You can make an Internet call from all applications where
you can make a regular voice call.
To make an Internet call in the standby mode, enter the
phone number or Internet address, and press the call key.
Note: To make an Internet call to an address
that does not start with a digit, press any
number key when the device is in the standby
mode; then press # to clear the display and to
switch the device from number mode to letter
mode. Write the address, and press the
call key.
You can also make an Internet call from Contacts and Log.
To make a call from Contacts, select Menu > Contacts, and
scroll to the desired contact. Select Options > Call >
Internet call.
To make a call from Log, select Menu > Log > Recent calls
and Missed calls, Recvd. calls or Dialled nos., and scroll to the
desired contact. Select Options > Call > Internet call.
Service settings
Select Menu > Connect. > Internet tel. > Options >
Settings > Default settings:.

Internet calls
8Copyright © 2007 Nokia. All rights reserved.
Select Login type to view or change the way Internet tel.
connects to the Internet call service. Select from the
following:
•Automatic — Login automatically to the Internet call
service. When a known network is found, the device
automatically connects to the Internet call service. If
you use the automatic login type for WLAN networks,
the device periodically scans for WLAN networks,
which increases the demand on battery power and
reduces the battery life.
•Manual — Login manually to the Internet call service.
Select Saved conn. networks to view the connection
networks you have saved for the Internet call service or
the connection networks, which are recognized by the
Internet call service. These networks are used for
automatic login and are marked with a star icon on the
list of connection networks. To remove a connection
network from the service, select Options > Remove.
Select Edit service settings to open the service-specific
settings. This option is only available if a service-specific
software plugin has been installed in the device.
Profile settings
Select Menu > Connect. > Internet tel. to change settings.
Before you can select the default profile, you must create
profiles in Menu > Tools > Settings > Connection > Internet
tel. settings.
To select the profile that is used by default when you make
Internet calls, select Preferred profile, and press the scroll
key. Scroll to the desired profile, and press the scroll key.
To view or change the registration of your Internet
telephone profiles in the local WLAN network, select
Registration status, and press the scroll key. Scroll to the
profile that you want to register or unregister, and press
the scroll key. Press the scroll key again to select Registered
or Not registered.
Note: Only those profiles where you have
selected Registration > When needed setting in
Menu > Tools > Settings > Connection > SIP
settings are shown in the list.
To save your settings, select Back.
Other features
The Internet call implementation includes the following
features:
• Multiple Internet call profiles.
• Support for cable and Bluetooth headset.
• DTMF support.
• Volume control and mute.
• You can place an ongoing Internet call on hold, and
make a new call. You can also switch between the call
on hold and the new call.

Internet calls
9
Copyright © 2007 Nokia. All rights reserved.
• During an ongoing Internet call, you receive an alert of
another incoming call. To activate Internet call waiting,
select Menu > Tools > Settings > Call > Internet call
waiting. Press the scroll key to activate Internet call
waiting.
• You can restrict anonymous Internet calls by activating
Internet call barring. Select Menu > Tools > Settings >
Call barring > Internet call barring, and set Anonymous
calls to On.
• You can hide your identity from the Internet call
receivers. Select Menu > Tools > Settings > Call > Send
my net call ID, and press the scroll key to select No. To
enable the call ID to be sent, select Yes.
• You can reject incoming Internet calls automatically
and inform the caller that you cannot answer incoming
calls. Select Menu > Tools > Settings > Call > Internet
call alert. Press the scroll key to set the alert Off. To
enable Internet call alerts, select On.
• If you forward an incoming call, the caller is informed
that the call is being forwarded to another recipient.
Network Address Translation
(NAT)
Nokia E61i supports STUN (Simple Traversal of UDP
Through NATs) servers for NAT (Network Address
Translation) traversal, for networks where you do not have
a public IP address. Even with STUN servers in use it is
possible that the connection will not work, as some types
of NATs still block the traffic.
The settings for NAT traversal can only be provisioned by
the service provider, for example over the air or via
download, but cannot be edited manually by the user.
Unlike the SIP settings and Internet call settings, the NAT
settings cannot be defined manually, and it is therefore
recommended to use provisioning offered by Internet call
service provider.
NAT
There are two types of network address translation.
The type often popularly called simply NAT (also named
Network Address Port Translation or NAPT) refers to
network address translation involving the mapping of port
numbers, allowing multiple machines to share a single IP
address. The other, technically simpler form - also called
NAT or basic NAT or static NAT - involves only address
translation, not port mapping. This requires an external IP
address for each simultaneous connection. Broadband
routers often use this feature to allow a designated
computer to accept all external connections even when
the router itself uses the only available external IP
address.
STUN
STUN (Simple Traversal of User Datagram Protocol (UDP)
Through Network Address Translators (NATs)) is a network
protocol allowing a client behind a NAT (or multiple NATs)
to find out its public address, the type of NAT it is behind
and the Internet side port associated by the NAT with a

Internet calls
10 Copyright © 2007 Nokia. All rights reserved.
particular local port. This information is used to set up
UDP communication between two hosts that are both
behind NAT routers.
STUN is a client-server protocol. Nokia E61i includes a
STUN client which will send a request to a STUN server.
The server then reports back to the STUN client the public
IP address of the NAT router, and the port opened by the
NAT to allow incoming traffic back in to the network.
The response also allows the STUN client to determine
what type of NAT is in use, as different types of NATs
handle incoming UDP packets differently.
Protocols like SIP use UDP packets for the transfer of
sound/video/text signaling traffic over the Internet.
As both endpoints are often behind NAT, a connection
cannot be set up in the traditional way. This is where
STUN is useful.
Emergency calls
Your device attempts emergency calls primarily over
cellular networks. If an emergency call using cellular
networks is not successful, your device attempts an
emergency call through your Internet call provider. Due to
the established nature of cellular telephony, you should
use cellular networks for emergency calls, if possible. If
you have cellular network coverage available, make sure
that your cellular phone is switched on and ready to make
calls before you attempt an emergency call. The capability
for an emergency call using Internet telephony depends on
the availability of a WLAN network and your Internet call
provider's implementation of emergency call capabilities.
Contact your Internet call provider to check the Internet
telephony emergency call capability.
