Nokia HF-510 User manual

Nokia Speakerphone HF-510
User Guide
9214752
Issue 1 EN-US

DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this HF-510 product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. The product is
in conformity with the limits defined in Directive 2004/104/EC (amending Directive 72/245/
EEC), Annex I, paragraph 6.5, 6.6, 6.8 and 6.9. A copy of the Declaration of Conformity can be
found at http://www.nokia.com/phones/declaration_of_conformity.
© 2009 Nokia. All rights reserved.
Nokia, Nokia Connecting People and the Nokia Original Accessories logo are trademarks or
registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia
Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES
SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR
INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES
HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY
APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR
WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
The availability of particular products may vary by region. Please check with your Nokia
dealer for details.
Export controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
Issue 1 EN-US

3
Contents
For your safety......................... 4
1. Introduction ......................... 5
Bluetooth wireless technology.......... 5
2. Get started............................ 6
Charge the battery................................ 6
Switch on or off..................................... 7
Switch on ............................................. 7
Switch off............................................. 8
Pair and connect with
another device........................................ 8
Disconnect the speakerphone ........ 9
Connect the speakerphone
manually............................................... 9
3. Mounting the speakerphone
in a vehicle............................... 10
General safety instructions............... 10
Attach to a sun visor.......................... 11
Attach to a windscreen ..................... 12
Attach to a dashboard ....................... 13
4. Basic use ............................. 14
Copy contacts to the
speakerphone........................................ 14
Make or end a call .............................. 15
Call a recently dialed number ...... 15
Voice dialing...................................... 15
End a call............................................ 15
Answer or reject a call....................... 16
Adjust volume....................................... 16
Switch a call to the
connected device................................. 16
Clear settings or reset........................ 16
Troubleshooting ................................... 17
5. Battery and charger
information............................. 18
Care and maintenance ........... 19
Additional safety
information............................. 21
FCC/Industry Canada
notice ...................................... 22

For your safety
4
For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the complete user guide for further information.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving should
be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could
affect performance.

Introduction
5
1. Introduction
With the Nokia Speakerphone HF-510, you can make and answer calls
hands free. You can also copy the phonebook of your compatible mobile
device to the speakerphone and view the copied contacts on the built-in
display to make calls.
You can connect the speakerphone to a compatible mobile device that
supports Bluetooth wireless technology.
Read this user guide carefully before using the speakerphone. Also,
read the user guide for the device that you want to connect to the
speakerphone. For the latest version of the user guide and additional
information related to your Nokia product, see www.nokia.com/support
or your local Nokia website.
This product may contain small parts. Keep them out of the reach of
small children. The surface of this device does not contain nickel in the
platings. The surface of this device contains stainless steel.
■Bluetooth wireless technology
In a Bluetooth connection, the mobile device and speakerphone should
be within 10 meters (33 feet) of each other. Connections can be subject
to interference from other electronic devices.
The speakerphone is compliant with the Bluetooth Specification 2.1
supporting the Hands-Free Profile (HFP) 1.5, Phone Book Access
Profile (PBAP) 1.1, and Object Push Profile (OPP) 1.1. Check with the
manufacturers of other devices to determine their compatibility with
this device.

Get started
6
2. Get started

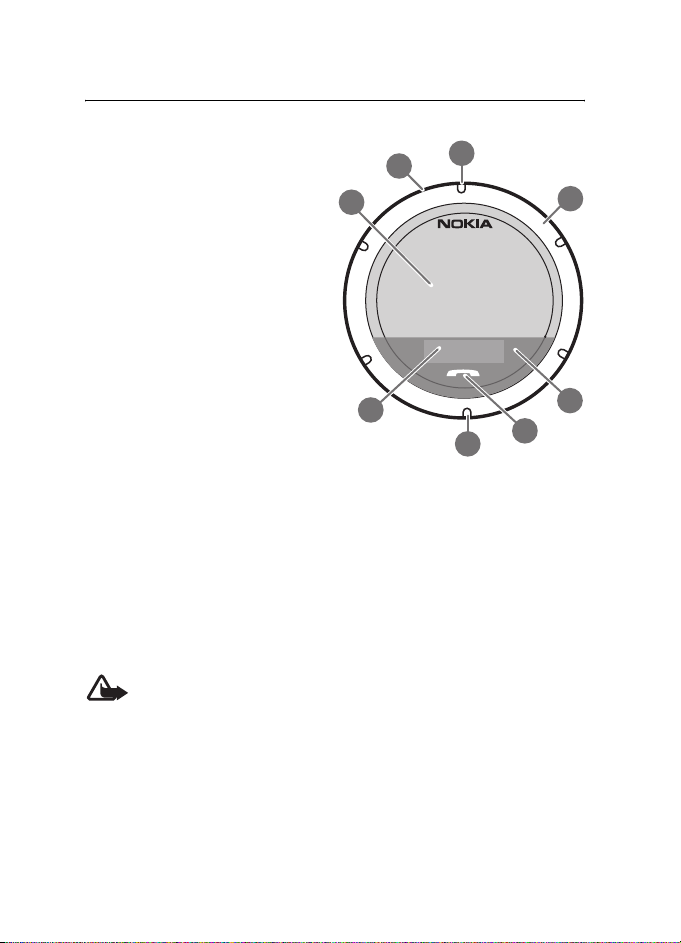

The speakerphone contains the
following parts:
1. Power key
2. Microphone
3. Speaker
4. Display
5. Volume wheel
6. Indicator light
7. Answer/end key
8. Charger connector
Before using the speakerphone,
you must charge the battery and
pair the speakerphone with a
compatible device.
Parts of the speakerphone are magnetic. Metallic materials may be attracted to
the speakerphone. Do not place credit cards or other magnetic storage media
near the speakerphone, because information stored on them may be erased.
■Charge the battery
Before charging the battery, carefully read Battery and charger
information p. 18.
Warning: Use only chargers approved by Nokia for use with this
particular model. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
When you disconnect the power cord of any accessory, grasp and pull the plug,
not the cord.
1. Connect the charger cable to the charger connector.
1
2
35
4
87
6

Get started
7
2. Connect the charger to the power source. For example, connect the
DC-4 charger to the cigarette lighter socket of your car or the AC-5
charger to a wall outlet. During charging, a battery animation scrolls
on the display and the red indicator light is displayed. Charging the
battery fully may take up to 2 hours and 10 minutes.
If you use a charger that is connected to the cigarette lighter socket,
power must be supplied by a 12-volt car battery. Ensure that the
charger is properly inserted in the cigarette lighter socket and does
not interfere with the normal operation of the car.
In some car models, the cigarette lighter socket is powered by the car
battery even when you remove the ignition key. In those cases, the
car battery might be discharged even if the speakerphone is not in
use. For more information, contact the vehicle manufacturer.
3. When the battery is fully charged, the speakerphone beeps and is
displayed. Disconnect the charger from the speakerphone, then from
the power source.
The fully charged battery has power for up to 30 hours of talk time or up
to 180 hours of standby time.
To check the battery charge when the speakerphone is not connected to
a charger, see the battery indicator on the display. When the battery is
fully charged, is displayed. When the battery charge is low, is
displayed, the red indicator light flashes slowly, and the speakerphone
beeps about every 5 minutes. Recharge the battery.
■Switch on or off
Switch on
To switch on, press the power key. The speakerphone plays an ascending
sequence of beeps, the green indicator light flashes once, and the
display turns on. The speakerphone tries to connect to the device that
was last connected to it ( is displayed).
When the speakerphone is connected to your device and ready for use,
the battery indicator and the Bluetooth name of the device is displayed.

Get started
8
Switch off
To switch off, press the power key. The speakerphone plays a descending
sequence of beeps, the red indicator light flashes once, and the display
turns off.
If the speakerphone is not connected to a device within about
30 minutes, it switches off automatically.
The display is automatically dimmed if the speakerphone is not used
within about 10 seconds to save power.
■Pair and connect with another device
1. Ensure that the speakerphone is switched off and your mobile device
is switched on.
2. If you have not previously paired the speakerphone with a device,
switch on the speakerphone. The speakerphone enters pairing mode,
and is displayed.
If you have previously paired the speakerphone with another device,
switch off the device, and switch on the speakerphone.
3. Within about 5 minutes, activate the Bluetooth feature on the
mobile device, and set the device to search for Bluetooth devices. For
details, see the user guide of your device.
4. On your device, select the speakerphone (Nokia HF-510) from the list
of found devices.
5. Enter the Bluetooth passcode 0000 to pair and connect the
speakerphone to your device. In some devices, you may need to make
the connection separately after pairing.
If pairing succeeds, the speakerphone is shown on the list of currently
paired Bluetooth devices in your mobile device.
When the speakerphone is connected to your device and ready for use,
the Bluetooth name of the device is displayed.
You can pair the speakerphone with up to four devices but connect it to
only one device at a time.

Get started
9
Disconnect the speakerphone
To disconnect the speakerphone from your mobile device, do one of the
following:
• Switch off the speakerphone.
• Disconnect the speakerphone in the Bluetooth menu of your device.
• Move the speakerphone more than 10 meters (33 feet) away from
the device.
You do not need to delete a pairing with the speakerphone to
disconnect it.
Connect the speakerphone manually
When you switch on the speakerphone, it tries to connect to the device
that was last connected to it.
To manually connect the speakerphone to the last used device (for
example, after connection loss), ensure that the other device is switched
on, and press and hold the answer/end key for about 2 seconds.
Alternatively, switch the speakerphone off and back on. To connect the
speakerphone to another paired device, make the connection in the
Bluetooth menu of the device.
You may be able to set your mobile device so that the speakerphone
connects to it automatically. To activate this feature in a Nokia device,
change the paired device settings in the Bluetooth menu.

Mounting the speakerphone in a vehicle
10
3. Mounting the speakerphone
in a vehicle

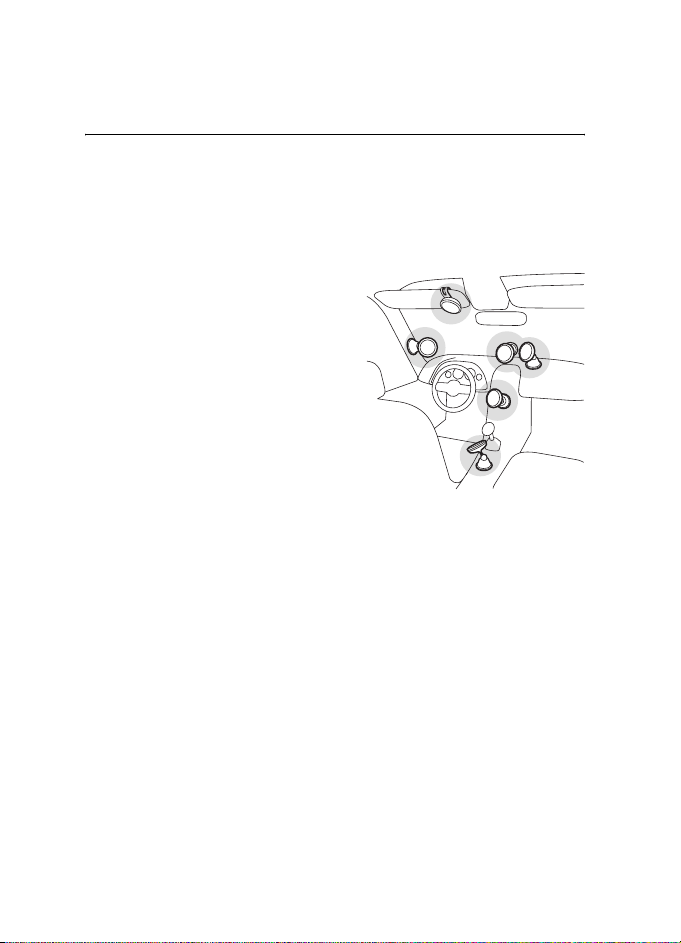

You can attach the speakerphone to the sun visor, windscreen, or
dashboard in your car.
■General safety instructions
The figure shows possible mounting
locations.
When you install the speakerphone in
a car, ensure that it does not interfere
with or hinder the systems used in the
operation of the vehicle (for example,
airbags) or disturb your field of vision
while driving.
Check that the deployment of the
airbags is not blocked or impaired in
any way. Only operate the speakerphone if it is safe to do so under all
driving conditions.
To use the speakerphone when it is attached to the sun visor, ensure
that the sun visor is up against the vehicle’s roof.
Do not adjust the mounting device while driving.

Mounting the speakerphone in a vehicle
11
■Attach to a sun visor
You can attach the speakerphone to the sunvisor of your vehicle using
the supplied clip.
1. To attach the speakerphone to
the clip, insert the catch on the
clip into the slot at the back of
the speakerphone (1). Rotate the
speakerphone clockwise until it
locks into place (2). (To detach
the speakerphone, rotate it
anticlockwise.)
2. Slide the clip around the
sun visor from the driver’s
or passenger’s side (3), and
wrap the strap attached to
the clip around the sun
visor from the back.
3. Thread the strap through
the slot on the clip (4).
Tighten the strap to keep
the speakerphone securely
in place, and firmly press
the hook and loop end of
the strap against the felt on
the strap.
4. Fold the sun visor up
against the vehicle’s
roof (5).

Mounting the speakerphone in a vehicle
12
■Attach to a windscreen
You can attach the speakerphone to the windscreen using the supplied
mounting device.
1. Insert the catch on the
mounting device into the
slot at the back of the
speakerphone (1). Rotate
the speakerphone clockwise
until it locks into place (2).
2. Locate a safe mounting
surface on the windscreen,
and clean the surface
thoroughly withglass
cleaner and a clean towel.
If the ambient temperature is below +15°C (60°F), carefully warm
the surface and the suction cup with a hair dryer to ensure a firm
grip on the windscreen. Ensure that you do not heat the windscreen
excessively to avoid damaging it.
3. Press the suction cup of the mounting device against the windscreen
(3), and rotate the mounting device clockwise (4) to create a vacuum
between the suction cup and the windscreen. Check that the suction
cup is firmly attached.
4. Turn the speakerphone to the desired position.
To detach the speakerphone from the mounting device, rotate it
anticlockwise.
To detach the suction cup from the windscreen, rotate the mounting
device anticlockwise, and pull the strap located on the edge of the
suction cup.

Mounting the speakerphone in a vehicle
13
■Attach to a dashboard
You can attach the speakerphone to the dashboard using the supplied
mounting device and adhesive pad.
1. Ensure that the surface where you attach the adhesive pad on the
dashboard is flat, dry, and free from dirt and dust.

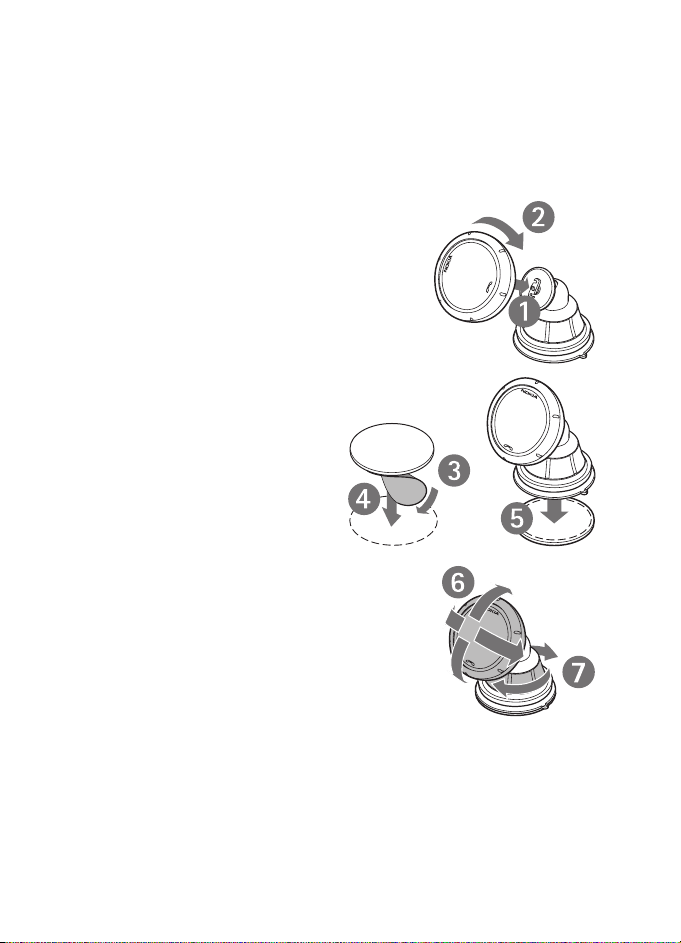

2. Insert the catch on the mounting device
into the slot at the back of the
speakerphone (1). Rotate the
speakerphone clockwise until it locks into
place (2).
3. Peel off the protective sheet
from the adhesive side of the
pad (3), and press the pad
against the dashboard (4) so
that it stays firmly in place.
When you peel off the
protective sheet from the pad,
do not touch the adhesive side.
4. Peel off the protective sheet from the other
side of the pad, and press the suction cup on
the mounting device against the pad (5).
5. Turn the speakerphone to the desired
position (6).
6. Rotate the mounting device clockwise to
create a vacuum (7). Check that the suction
cup is firmly attached.
To detach the speakerphone from the mounting device, rotate it
anticlockwise.
To detach the mounting device from the dashboard, rotate the
mounting device anticlockwise, and pull the strap located on
the edge of the suction cup.

Basic use
14
4. Basic use
■Copy contacts to the speakerphone
When the speakerphone is connected to a compatible mobile device
that supports the PBAP Bluetooth profile, you can copy the contacts
(names and phone numbers) from the internal memory of the device to
the speakerphone. When the speakerphone is connected to a compatible
device that supports the OPP Bluetooth profile, you can copy the
contacts to the speakerphone by sending them through a Bluetooth
connection from your device. For information about the Bluetooth
profiles supported by your device, see the device’s user guide of the
device.
To copy the contacts if your device supports the PBAP profile, turn the
volume wheel left until is displayed, and press the answer/
end key. flashes during copying. If is displayed, try to copy
the contacts using the OPP profile.
To copy a contact if your device supports the OPP profile, select the
contact in your device, and send the contact to the speakerphone
through a Bluetooth connection. Sending several contacts using
the OPP profile takes longer than using the PBAP profile.
Copying may take a few minutes and is automatically stopped after
600 contacts; to stop copying manually when you use the PBAP profile,
press and hold the answer/end key. While the contacts are being copied,
you cannot use the contacts that you have previously copied to the
speakerphone.
If you want to update the contacts from your device to the
speakerphone, copy the contacts again. If you use the PBAP profile,
the previously copied contacts are replaced with the new ones.
The speakerphone supports three phone numbers per contact.
If a contact has more than three phone numbers saved in your
device and you want three particular numbers to be copied to the
speakerphone, save the three numbers as a new contact in your device.

Basic use
15
■Make or end a call
To make a call from your mobile device that is connected to the
speakerphone, use the device in the normal way. Speak towards the
speakerphone. For optimal performance, check that there are no objects
in front of the microphone and that the microphone is in front of you.
During a call, is displayed.
To call a number that you have copied to the speakerphone, turn the
volume wheel when no call is in progress. If the name of the contact
contains Latin characters, scroll to the initial letter, press the answer/
end key, and scroll to the name. If the name does not contain Latin
characters, scroll to the name, and press the answer/end key. To make
the call, scroll to the desired number, and press the answer/end key.
To exit from the contacts, scroll to , and press the answer/end key;
alternatively, wait for 10 seconds, or press the answer/end key twice.
Call a recently dialed number
To redial the number you last called (if your device supports this feature
with the speakerphone), press the answer/end key twice when no call is
in progress.
Voice dialing
To activate voice dialing (if your device supports this feature with the
speakerphone), press and hold the answer/end key for about 2 seconds
when no call is in progress. When is displayed, say the voice tag of
the desired contact clearly.
For voice dialing, you must save voice tags for the desired contacts in
your mobile device. For details, see the user guide of your device.
End a call
To end a call or cancel a call attempt, press the answer/end key.

Basic use
16
■Answer or reject a call
When you receive a call, you hear a ringing tone through the
speakerphone. The caller’s number is displayed on the speakerphone if the
cellular network supports this function. The name saved with the number
is displayed if you have copied the name and number to the speakerphone.
If the name and number are not available, only is displayed.
To answer the call, press the answer/end key.
To reject the call, press the answer/end key twice.
■Adjust volume
To increase the speakerphone volume during a call, turn the volume
wheel right. To decrease the volume, turn the wheel left. The volume
level is displayed on the speakerphone.
Warning: Do not hold the device near your ear when the loudspeaker is
in use, because the volume may be extremely loud.
■Switch a call to the connected device
To switch a call from the speakerphone to the connected device,
switch off the speakerphone, or press and hold the answer/end key
for about 2 seconds. When the call is switched to the connected device,
is displayed.
To switch the call back to the speakerphone, switch on the
speakerphone (if it is off), or press and hold the answer/end key
for about 2 seconds.
■Clear settings or reset
To clear the pairing settings and copied contacts from the
speakerphone, press and hold the power key and the answer/end key
(for over 4 seconds) until the red and green indicator lights start to
alternate and is displayed. After the settings are cleared, the
speakerphone enters pairing mode.

Basic use
17
To reset the speakerphone if it stops functioning even though it is
charged, connect the speakerphone to a charger while you press and
hold the answer/end key.
■Troubleshooting
If you cannot connect the speakerphone to your compatible device, do
the following:
• Ensure that the speakerphone is charged, switched on, and paired
with your device.
• Ensure that the Bluetooth feature is activated on your device.
• Ensure that the speakerphone is within 10 meters (33 feet) of your
device and that there are no other electronic devices between the
speakerphone and the device.
If the name of the person who is calling you is not shown on the
speakerphone display, even though it is saved in the connected mobile
device, check that the device supports the PBAP Bluetooth profile and
that the cellular network provides the caller’s number.

Battery and charger information
18
5. Battery and charger information
This device has an internal, nonremovable, rechargeable battery. Do not attempt
to remove the battery from the device as you may damage the device. This device
is intended for use when supplied with power from the following chargers: AC-3,
AC-4, AC-5, and DC-4. The exact charger model number may vary depending on
the type of plug. The plug variant is identified by one of the following: E, EB, X,
AR, U, A, C, or UB. The battery can be charged and discharged hundreds of times,
but it will eventually wear out. Recharge your battery only with Nokia approved
chargers designated for this device. Use of an unapproved charger may present a
risk of fire, explosion, leakage, or other hazard.
If a battery is being used for the first time or if the battery has not been used for a
prolonged period, it may be necessary to connect the charger, then disconnect
and reconnect it to begin charging the battery. If the battery is completely
discharged, it may take several minutes before the charging indicator light is
displayed.
Unplug the charger from the electrical plug and the device when not in use.
Do not leave a fully charged battery connected to a charger, since overcharging
may shorten its lifetime. If left unused, a fully charged battery will lose its charge
over time.
Always try to keep the battery between 15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and lifetime of the battery. A device with a hot
or cold battery may not work temporarily. Battery performance is particularly
limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged.
Never use any charger that is damaged.
Important: Battery talk and standby times are estimates only and
depend on network conditions, features used, battery age and
condition, temperatures to which battery is exposed, and many other
factors. The amount of time a device is used for calls will affect its
standby time. Likewise, the amount of time that the device is turned
on and in the standby mode will affect its talk time.

Care and maintenance
19
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The following suggestions will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts, microphone, or
speaker and prevent proper operation.
These suggestions apply equally to your device, charger, or any accessory. If any
device is not working properly, take it to the nearest authorized service facility
for service.

Care and maintenance
20
Recycle
The crossed-out wheeled-bin symbol on your product, battery, literature,
or packaging reminds you that all electrical and electronic products,
batteries, and accumulators must be taken to separate collection at the
end of their working life. This requirement applies in the European Union.
Do not dispose of these products as unsorted municipal waste. For more
environmental information, see the product Eco-Declarations at
www.nokia.com/environment.
Always return your used electronic products, batteries, and packaging
materials to a dedicated collection point. This way you help prevent
uncontrolled waste disposal and promote the recycling of materials.
More detailed information is available from the product retailer, local
waste authorities, national producer responsibility organizations, or your
local Nokia representative. Check how to recycle your Nokia products
at www.nokia.com/werecycle, or if browsing on a mobile device,
www.nokia.mobi/werecycle.
