Nonin 7500 Troubleshooting guide

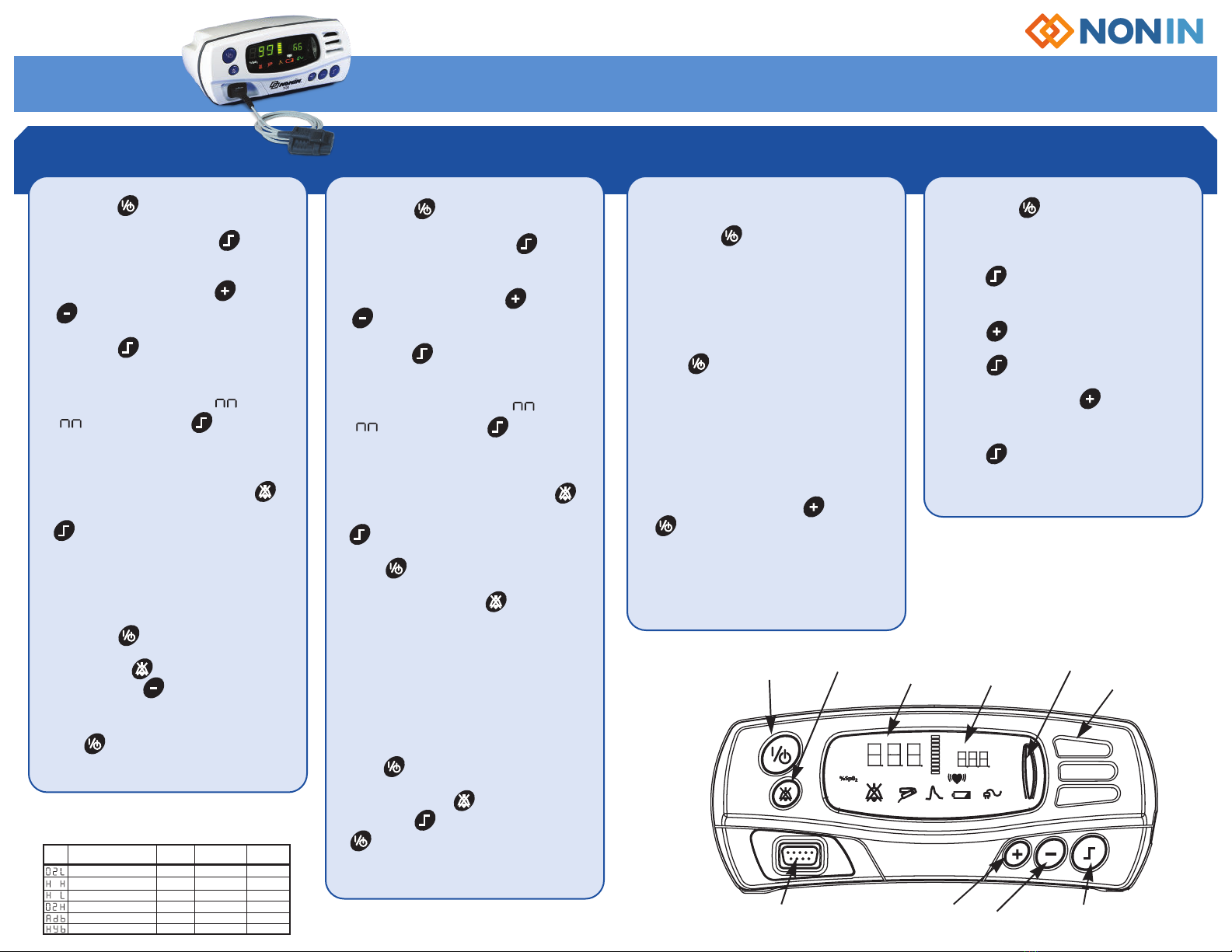

Model 7500 Quick Start-up Guide
(On/Standby)
Alarm
Plus (+)
Minus (-) Limits
%SpO2
Display
Pulse Rate
Display
Alarm
Bar
Speaker
Sensor
Connector
Silence
Power
(step through settings)
1. Turn unit on – Review factory settings below
2. Step through ALL settings using
LIMITS button
3. Change desired settings using or
buttons
4. MUST push LIMITS button after each
 settingtoconrm&moveon
5. Scroll to end of settings to 2nd symbol
( =minutes)andpressLIMITSbutton
6.Unitwillautomaticallyreviewnewsettings
7. TO SAVE SETTINGS – press and hold
 ALARMSILENCEbuttonwhilebrieypressing
LIMITSbutton–“dEFOn”willash
Return to Factory Defaults
Note: User-Dened Default values are lost
when returned to Factory Defaults.
1. Turn unit on – “dEF On” will appear
2. Press and hold ALARM SILENCE button
 andbrieypressbutton–“dEFOFF”
 willash
3. Press POWER button until unit turns OFF,
then turn back ON
SET USER-DEFINED DEFAULTS SET PATIENT SECURITY MODE ON DATA COLLECTION & DOWNLOAD TO CLEAR MEMORY
1. Turn unit on – Review factory settings below
2. Step through ALL settings using
LIMITS button
3. Change desired settings using or
buttons
4. MUST push LIMITS button after
each setting
5. Scroll to end of settings to 2nd symbol
 (=minutes)andpressLIMITSbutton
6.Unitwillautomaticallyreviewnewsettings
7. TO SAVE SETTINGS – press and hold
 ALARMSILENCEbuttonwhilebrieypressing
LIMITSbutton–“dEFOn”willash
8. Press POWER button until unit turns OFF
9. TO SET – Press and hold ALARM SILENCE
button while turning the unit back ON
10.Screenwillash“SECOn”
Note: To set “Low O2” alarm below 85%,
must set in User-Dened Defaults rst,
then follow steps above.
Turn O Patient Security Mode
1. Press POWER button until unit turns OFF
2. Together hold down ALARM SILENCE
button, then LIMITS button and then
POWER button
3. Units reads “SEC OFF”
Data Collection
1. Turn unit on – Recording begins
 automatically
Note: Data less than 1 minute is not saved.
Downloading Data To PC
Note: Patient Security Mode must be OFF
1. Press POWER button until unit turns OFF
2. Connect unit to PC using 7500SC
download cable
3. Boot up nVISION and select FILE>New Data
 Capture,click7500oximeteroption
4. On 7500 unit press and hold and
POWER buttons - unit will display
“PLA bAC” during download
5.Unitreturnstonormaloperatingmode
after download
1. Turn unit on
Note: Patient Security Mode must be OFF
2. Press LIMITS button until “CLr no”
is displayed
3. Press button until “CLr YES” appears
4.PressLIMITSbuttontoconrm
5. “dEL no” appears, press button so
“dEL YES” appears
6.PressLIMITSbuttontoconrm
7.“dnECLr”conrmsmemoryhasbeencleared
Parameter
Factory
Setting
Adjustment
Options Increment
KEY
SpO
2
Low Alarm Limit85%Off, 50-9
51
%
Pulse Rate High Alarm Limit200 BPM Off, 75-275 5 BPM
Pulse Rate Low Alarm Limit 50 BPMOff, 30-110 5 BPM
SpO
2
High Alarm LimitOffOff, 80-100 1%
Alarm Volume High Off, Low, High N/A
No Yes, No N/A
Oximetry Averaging
Factory Default Settings
Thevaluesatrightcomepre-programmedintheModel7500.The
PatientSecurityModeisOFF,unlessturnedon.
For complete specications, please
refer to the Operator’s Manual.

Model 7500
Quick Start-up Guide
©2023 Nonin Medical, Inc.
All trademarks are the property of Nonin Medical, Inc. unless otherwise noted.
P/N 114527-001-02 04/2023
EN: Translations of the Model 7500 Operator’s Manual and Quick Start Guide can
be found using this QR code.
FR: Pour accéder aux traductions du Manuel d’utilisation et du Guide de mise en
marche rapide, veuillez scanner ce code QR.
DE: Übersetzungen des Benutzerhandbuchs für Modell 7500 und der
Schnellstartanleitung können mithilfe dieses QR-Codes aufgerufen werden.
IT: Le traduzioni del Manuale dell’operatore e della Guida rapida del modello 7500
sono disponibili utilizzando questo codice QR.
ES: Puede encontrar traducciones del Manual del operador y de la Guía de inicio
rápido del modelo 7500 utilizando este código QR.
PT: Utilize o seguinte código QR para encontrar traduções do Manual do Operador
do Modelo 7500.
NL: Vertalingen van de gebruikershandleiding van model 7500 zijn te vinden door
deze QR-code te scannen.
EL: Μπορείτε να βρείτε μεταφράσεις του Εγχειριδίου χρήσης του μοντέλου 7500
χρησιμοποιώντας αυτόν τον κωδικό QR.
DA: Oversættelser af brugermanualen til Model 7500 kan ndes ved hjælp af denne
QR-kode.
SV: Översättningar av användarhandboken för Model 7500 kan hittas med denna
QR-kod.
FI: Voit hakea mallin 7500 käyttöoppaan käännettyjä versioita tällä QR-koodilla.
PO: Przekłady podręcznika operatora modelu 7500 można znaleźć, używając tego kodu
QR.
NO: Oversettelser av brukerhåndboken for modell 7500 kan bli funnet ved å bruke
denne QR-koden.
