Spray Height
C
ontroller
Hagie
(STS 12 2000-2004)
Installation Manual
HG01

Printed in Canada
Copyright  2008 by NORAC Systems International Inc.
Reorder P/N UC5-BC-HG01-INST Rev D (STS 12 2000-2004)
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without
the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information contained in this
manual. The technical information in this manual was reviewed at the time of approval for publication.

Contents
1 Introduction.............................................................................................................. 1
2 General UC5 System Layout .................................................................................. 2
3 it Parts.................................................................................................................... 3
4 Pre-Install Checklist ................................................................................................ 9
5 Ultrasonic Sensor Installation............................................................................... 10
6 Roll Sensor Installation ......................................................................................... 15
7 Hydraulic Installation............................................................................................ 19
8 Module Installation................................................................................................ 23
9 Connecting the Sensors to the CANbus ............................................................... 27
10 Software Setup ....................................................................................................... 28
11 Cable Drawings ...................................................................................................... 29

1
1 Introduction
Congratulations on your purchase of the NORAC UC5 Spray Height Controller. This system is
manufactured with top quality components and is engineered using the latest technology to
provide operating reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
Phone [phone] Canada (Toll Free)
1 866 306 6722 United States (Toll Free)
([phone] Europe
([phone] All other regions
E-mail [email protected]
Web www.norac.ca
Every effort has been made to ensure the accuracy of the information contained in this
manual. All parts supplied are selected to specially fit the sprayer to facilitate a complete
installation. However, NORAC cannot guarantee all parts fit as intended due to the
variations of the sprayer by the manufacturer.
Please read this manual in its entirety before attempting installation.

2
2 General UC5 System Layout
Figure 1 illustrates the general layout of the UC5 system components
Figure 1: General UC5 System Layout

3
3 Kit Parts
The following diagrams illustrate the Hagie STS 2000-2004 (HG01) kit specific parts of the
NORAC UC5 system.
3.1 Kit Overview
Figure 2: HG01 System Parts

4
3.2 ydraulic Plumbing
NOTE Hoses are supplied by Hagie
Figure 3: HG01 Hydraulic Plumbing Parts
The use of dielectric grease is not recommended on any NORAC electrical connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of the
supplied Permatex Anti-seize grease to all threaded parts upon installation. Permatex Anti-
seize lubricant is preferred, but other similar anti-seize products may be used.

5
3.3 List of Parts
Item Part Number Name Quantity
B10 44728 MOUNTING BRACK T COMPL T UC4 BR AKAWAY XT ND D 2
B11 44743 MOUNTING BRACK T MAIN LIFT S NSOR UC4 PLUS 1
B13 44700-03 PLAT VALV MOUNT UC3 BOOM CONTROL HAGI 1
C01 43220-05 CABL UC5 N TWORK 14 AWG 5M 2
C03 43220-03 CABL UC5 N TWORK 14 AWG 3M 1
C04 43210-03 CABL UC5 N TWORK 18 AWG 3M 1
C05 43210-01 CABL UC5 N TWORK 18 AWG 1M 2
C06 43210-20 CABL UC5 N TWORK 18 AWG 20M 2
C10 43230-04 CABL UC5 VALV 2PIN DT TO 2PIN DT 4
C20 43240-07 CABL UC5 INT RFAC MAIN DT (WITH AUX 1 & 2) 1
C21 43240-01 CABL UC5 INT RFAC TILT DT 1
C30 43250-06 CABL UC5 BATT RY PIGTAIL 1
01 43710 UC5 CONTROLL R MODUL 1
02 43720 UC5 VALV MODUL 1
03 43732 UC5 INPUT MODUL PASS THRU 1
04 43740 UC5 ROLL S NSOR 2
05 43750 UC5 ULTRASONIC S NSOR 3
10 43760 UC5 N TWORK COUPL R 3-WAY 1
11* 43765 UC5 N TWORK COUPL R 8-WAY 1
12 43764 UC5 N TWORK COUPL R 2-WAY 1
20* 43764T UC5 N TWORK COUPL R 2-WAY WITH T RMINATOR 2
H10 44865-14 HYDRAULICS FITTING KIT - HG2 1
M02 UC5-BC-HG01-INST MANUAL INSTALLATION UC5 HAGI STS 12 2000-2004 1
P01 106034 UC5 N TWORK 2 PIN PLUG 4
P02 106035 UC5 N TWORK 12 PIN PLUG (A-K Y) 1
P03 105882 UC5 N TWORK 6 PIN PLUG 3
V01* 44963D VALV BLOCK ASS MBLY 2 STATION CC/LS PROP DT 4 BOLT 1
* See Substitution Parts

6
3.4 Substitution Parts
Substitution parts will in no way affect the operation of the system provided that they are
installed as directed.
Item E11 – 8-way coupler (43765) may be substituted with:
Item Part Number Name Quantity
11* 43762 UC5 N TWORK COUPL R 6-WAY 1
43765 43762
43765 Replaced with a 43762
Item E20 – 2-way coupler with terminator (43764T) may be substituted with:
Item Part Number Name Quantity
10 43760 UC5 N TWORK COUPL R 3-WAY 2
20* 43780 UC5 N TWORK T RMINATOR 2
Install the UC5 Network Terminator (E20*) into the third connector on the UC5 Network 3-way
Coupler (E10) (shown below). It is now a drop-in replacement for the 43764T (E20).
43764T Replaced with a 43760 and 43780

7
Item V01 – 2 Station Valve Block (44963D) may be substituted with:
Item Part Number Name Quantity
V01 44933D VALV BLOCK ASS M UC4-BC 2-STATION CC/LS VARIABL RAT 1
The 44933D is a direct replacement for the 44963D. Both valve blocks function the same. The
blocks are identifiable by the filter cap shape and by the part number stamped on the side.
The A and B ports are opposite on each valve block so verify that the hoses are being
connected to the correct port. The raise lines always go to the “B” port and the lower lines
go to the “A” port.
44933D Valve Block Shown Alongside 44963D Valve Block
Filter Cap Part
Number
Part
Number
Filter Cap

8
3.5 ydraulic Fitting Kit Details (P/N: 44865-14)
Item Part Number Name Quantity
F01 103195 6MJT 2
F02 104584 MAL TO F MAL ADAPT R - 6MB 6FB 2
F03 103071 MAL 90 D GR ADAPT R - 8MB 6MJ90 2
F04 103814 MAL 90 D GR ADAPT R - 6MB 6MJ90 2
F05 103312 MAL ADAPT R - 6MB-6MJ 6
F06 44927 ORIFIC INS RT .031 IN ON WAY 2
F08 44928 ORIFIC INS RT .047 IN ON WAY 4
F09 104369 PLUG - 6MBP 4
F10 103839 T ADAPT R - 6FJXR 6MJT 2
6 M B - 6 M OR X 90
SIZE IN
1/16 TH'S
GENDER: MA E
OR FEMA E
90 ° ANG E
SWIVE
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - F AT
FACE
P - PIPE
Fitting Name
Example:

9
4 Pre-Install Checklist
The pre-install checklist is necessary to check the existing sprayer functionality before the
installation.
1. Unfold the sprayer over a flat, unobstructed area (i.e. no power lines…etc.).
2. Ensure all boom-fold operations are functional (place a check mark in boxes below).
3. Bring engine to field-operational RPM and record below.
4. Record the time (seconds) it takes for a full stroke for all boom functions. To ensure
repeatable measurements, take the average of 3 trials.
5. Not all sprayers will have the functions listed below in Figure 4.
Ensure the boom has sufficient travel so it does not contact the ground during these tests.
Figure 4: Pre-Install Boom Speeds

10
5 Ultrasonic Sensor Installation
5.1 Bracket Assembly

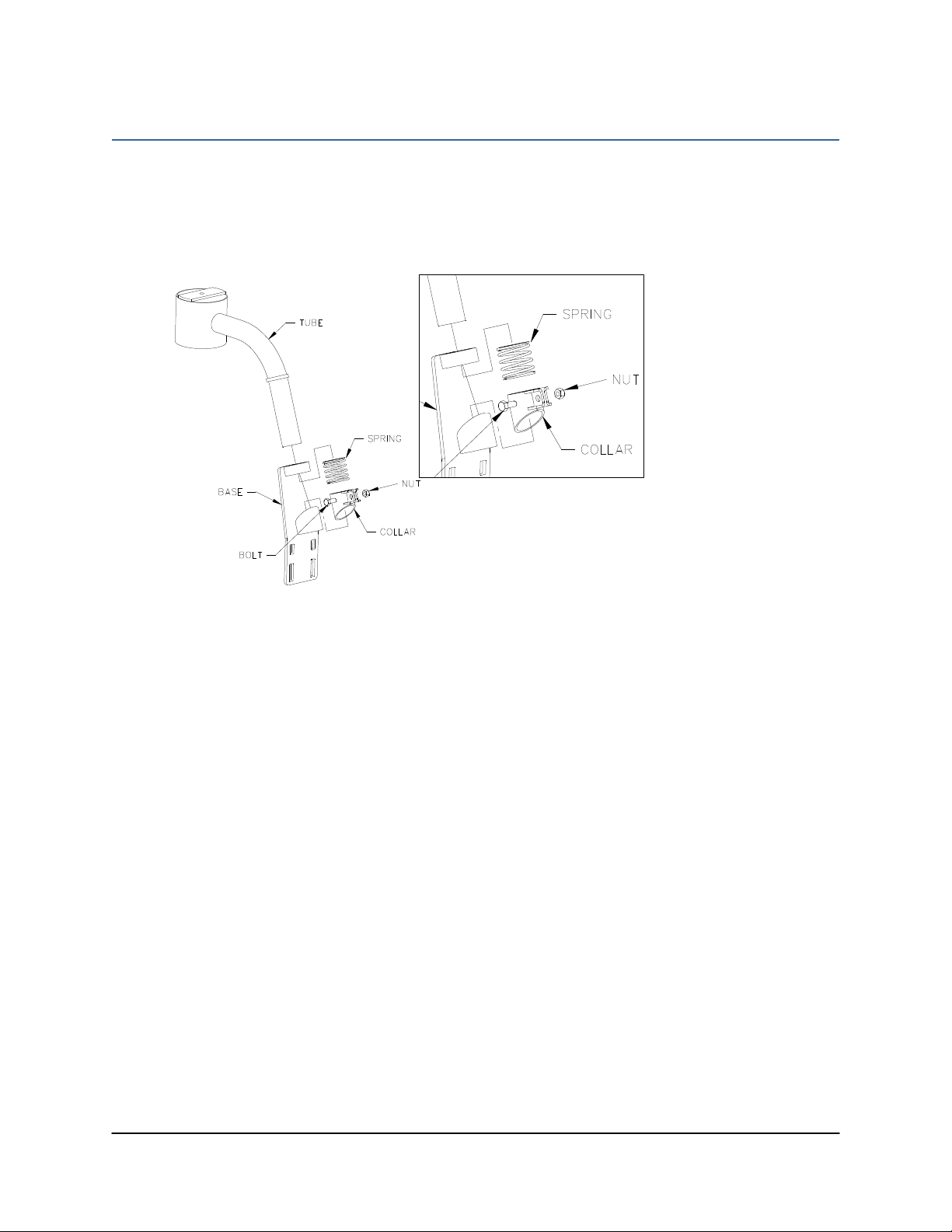

Assemble the breakaway sensor bracket as illustrated in Figure 5, following the instructions
below.
Figure 5: Breakaway Bracket Assembly
1. Compress the spring and insert it together with the collar into the base.
2. Slide the tube through the assembled part.
3. Using the bolt and nut, tighten the collar to the tube with the sensor tube centered.
4. Apply a small amount of grease to the rotating surfaces of the bracket.
5. To install the sensor brackets on the 45 degree tube, use the sensor adapter plate B12 if
necessary.

11

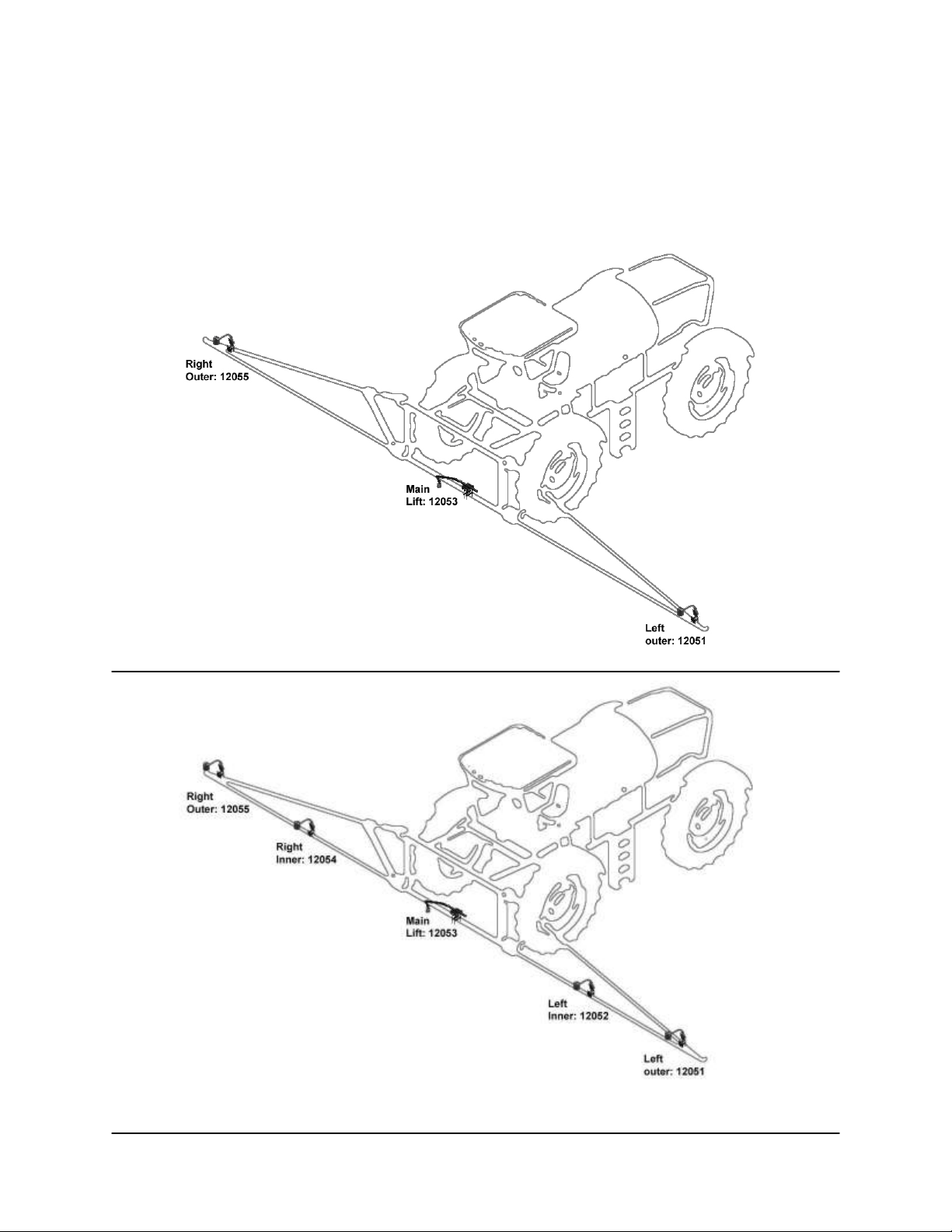

5.2 Ultrasonic Sensor Serial Number Arrangement
When installing the UC5 sensors, start with the smallest serial number on the left-hand side, and
proceed to the largest serial number on the right hand side. Each UC5 sensor has a serial number
stamped on the sensor housing.
Figure 6: Sensor Serial Number Arrangement
3 Sensor System
:
5
Sensor System
:

12
5.3 Ultrasonic Sensor Mounting Guidelines
The following guidelines will ensure optimal sensor performance and prevent sensor
measurement error. These rules should be followed for both the wing sensors and the main lift
(middle) sensor.
1. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground (A).
2. The centerline of the acoustic cone should be approximately vertical at normal operating
heights (A).
3. The bottom of the sensor must be at least 9 inches in front of the spray nozzles and boom
structure (B). (This does not apply for the main lift sensor)
4. The bottom of the sensor must be at least 9 inches above the spray nozzles (C).
5. Ensure there are no other obstructions with a 12 inch (23 cm) diameter circle projected
directly below the sensor (D).
Figure 7: Sensor Mounting Guidelines

13
5.4 Wing Sensor Installation
1. The sensor bracket should be oriented forward (ahead of the boom).
2. Typically the best mounting location for the wing sensor brackets will be near the end of the
boom tips, approximately two feet (60cm) from the end.
3. Depending on the boom design, some breakaway sections will lift upwards as they break
back. If the sensor is mounted to this portion of the boom, the system will force the boom
downwards towards the ground as the boom folds backwards.
4. Mount the NORAC UC5 ultrasonic sensor into the sensor bracket and run the sensor cable
through the sensor tube.
A problem can arise if a sensor is not mounted correctly. It is possible for the sensor to
read off of the boom instead of the ground. This may only become apparent once the
controller is switched from soil to crop mode.
Also be careful that the sensor bracket does not collide with any other part of the boom
when the boom is folded to transport position. If possible, mount the sensor brackets while
the booms are folded to ensure they will not cause interference.
Figure 8: Sensor Reading Off Boom

14
5.5 Main Lift Sensor Installation
Figure 9: Main Lift Bracket Assembly
1. There are a variety of ways to mount the main lift bracket on most sprayers. The bracket
should position the sensor approximately in the center of the sprayer, forward of the boom.
An example of this mounting is illustrated in Figure 10.
2. Mount the ultrasonic sensor to the main lift bracket. Run the sensor cable down the center of
the main lift bracket tube.
Figure 10: Example Mounting of the Main Lift Bracket
Ensure the bracket does not collide with any other part of the sprayer throughout the full
range of main lift motion.

15
6 Roll Sensor Installation
6.1 Bracket Assembly
1. Securely mount the roll sensors to the included roll sensor brackets using the #6 machine
screw and nylon lock-nuts.
2. The orientation of both roll sensors to the roll sensor bracket will depend on the bracket
mounting. The roll sensor CANbus connector must be pointing towards the right side of the
sprayer when looking from the rear of the sprayer.
Figure 11: Mounting Roll Sensor to Bracket
Figure 12: Roll Sensor Orientation - Connector Facing Right Wing

16
6.2 Roll Sensor Mounting Guidelines: Front Mounted Rigid Booms
1. When mounting the roll sensors, mount one to the boom and one to the chassis near the
sprayer cab.
Figure 13: Roll Sensor Mounting on a Front Mounted Rigid Boom
2. Ensure the roll sensors are relatively level when the sprayer boom and chassis are level.
3. Both roll sensor cables must be pointing towards the right hand wing of the sprayer when
looking from the rear of the sprayer.
4. Ensure both roll sensors are mounted adequately and that the cables provide enough slack to
allow sufficient boom roll.

17
6.3 Boom-Frame Roll Sensor Mounting
1. Install the roll sensor with the lowest serial number onto the top part of the center boom
section on the left hand side of the boom. The roll sensor must be mounted with the
connector facing the right boom when viewed from the rear of the sprayer.
Figure 14: Hagie Boom Frame Roll Sensor Mounting
Ensure the boom frame roll sensor does not collide with any parts and the cable has
sufficient slack for the boom to travel though its entire range of motion.
