NordicTrack AudioStrider 30725.0 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
Model No. 30725.0
Serial No.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction.If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-936-4266
Mon.–Fri., 8:00 until 17:00 EST
(excluding holidays)
OR E-MAIL US:
[email protected]
www.proform.com
Visit our website at
Visit our website at
www.nordictrack.com
Visit our website at
www.healthrider.com
Visit our website at
USER’S MANUAL

TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
2
NordicTrack is a registered trademark of ICON IP, Inc.
The warning decals shown at the right have
been applied in the locations shown. If a decal
is missing or illegible, see the front cover of
this manual and order a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual
size.
166295
Keep hands and
fingers clear of
this area.
AATTENTIONTTENTION
Gardez vos mains
et vos doigts
Éloignés de cet
endroit.
REV–B 209489 & 210125

3
WARNING:To reduce the risk of serious injury, read the following important precau-
tions and instructions in this manual and all warnings on your elliptical exerciser before using the
elliptical exerciser. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1. Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over the age of
35 or persons with pre-existing health prob-
lems.
2. Use the elliptical exercise only as described
in this manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
4. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institu-
tional setting.
5. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dis-
mount, and use it.
6. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
7. Keep children under age 12 and pets away
from the elliptical exerciser at all times.
8. The elliptical exerciser should not be used
by persons weighing more than 300 lbs.
(136 kg).
9. Wear appropriate exercise clothes while
using the elliptical exerciser. Always wear
athletic shoes for foot protection while exer-
cising.
10. Hold the handgrip pulse sensors or the upper
body arms when mounting, dismounting, or
using the elliptical exerciser.
11. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
12. Keep your back straight while using the ellip-
tical exerciser; do not arch your back.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. When you stop exercising, allow the pedals
to slowly come to a stop.
IMPORTANT PRECAUTIONS

4
BEFORE YOU BEGIN
Thank you for purchasing the revolutionary
NordicTrack®AUDIOSTRIDER 800 elliptical exerciser.
The AUDIOSTRIDER 800 elliptical exerciser provides
awide array of features designed to make your work-
outs at home more effective and enjoyable—and
when you’re not exercising, the unique elliptical exer-
ciser can be folded out of the way.
For your benefit, read this manual carefully before
you use your elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Stereo Cable
Upper Body Arm
Pedal Disk
Wheel
Pedal
Stereo Speakers
Water Bottle Holder*
Console
Leveling Foot
Handle
Latch Button
Ramp
FRONT
RIGHT SIDE
REAR
Incline Knob
Storage Magnet
Fan
Pedal Arm Latch
*No water bottle is included

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included hex keys and your own Phillips screwdriver and rubber
mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number follow-
ing the parentheses is the quantity needed for assembly. Note: Some small parts may have been preassem-
bled. If a part is not in the parts bag, check to see if it has been preassembled.
M10 x 93mm Button Screw (82)–4
M10 x 25mm
Washer (87)–2
M8 Split
Washer (101)–4
M4 x 16mm
Screw (97)–16
M6 Split Washer
(102)–8
M6 x 35mm
Screw (109)–4 M6 x 62mm Screw (108)–4
M8.5 x 16mm x
1.5mm Washer
(103)–6 Link Arm
Spacer (74)–4
M8 x 20mm Button
Screw (107)–4 M8 x 25mm Button Screw (110)–2 M10 x 20mm Button Screw (111)–2
M8 x 15mm Button
Screw (106)–10
M10 Curved
Washer (99)–4
Wave Washer
(100)–2
1. If there is a shipping bracket attached to the
rear of the Folding Frame (not shown), remove
the screw and the shipping bracket from the
Folding Frame. Discard the screw and the ship-
ping bracket.
See HOW TOFOLD AND UNFOLD THE
ELLIPTICAL EXERCISER on page 11and
unfold the elliptical exerciser.
While another person lifts the front of the
Frame (1), attach the Front Stabilizer (4) to the
Frame with two M10 x 93mm Button Screws
(82) and two M10 Curved Washers (99).
4
99
99
82
1
1

6
2. While another person lifts the Folding Frame (2),
attach the Rear Stabilizer (3) to the Folding
Frame with two M10 x 93mm Button Screws (82)
and two M10 Curved Washers (99). Next, tight-
enthe Center Foot (95) into the Frame (1).
3. Attach the Front Ramp Cover (6) to the
Ramp (5) with four M4 x 16mm Screws (97).
Slide an M10 x 25mm Washer (87) onto an
M10 x20mm Button Screw (111). Tighten the
Button Screw into one end of the Ramp
Axle (72). Apply a small amount of the included
grease to the Ramp Axle.
Orient the Ramp (5) as shown. Align the lower
end of the Ramp with the welded tube on the
Frame (1). Insert the Ramp Axle (72) into the
Ramp and the welded tube. Then, pull the Ramp
Knob (9), lower the Ramp, and engage the
Ramp Pin (62) in one of the three adjustment
holes in the front of the Frame.
Slide an M10 x 25mm Washer (87) onto an
M10 x 20mm Button Screw (111). Tighten the
Button Screw into the open end of the Ramp
Axle (72).
3
3
82
962
Adjustment
Holes
5
1
72
Grease
111
97
111
87
87
6
2
95
1
99
99
2

5. Insert the Roller (38) on the Left Pedal Arm (32)
and the Roller on the Right Pedal Arm (33) into
the sides of the Ramp (5).
Attach the Rear Ramp Cover (7) to the
Ramp (5) with two M4 x 16mm Screws (97).
See the inset drawing. Lift the Pedal Arm
Latch (41) on the Left Pedal Arm (32), and set
the end of the Left Pedal Arm on the left Crank
Bushing Sleeve (54). Release the Pedal Arm
Latch, and make sure that the Left Pedal Arm is
securely connected to the Crank Bushing
Sleeve.
Connect the Right Pedal Arm (not shown) to
the right Crank Bushing Sleeve (not shown)
in the same way.
7
4. Identify the Left Pedal (34) and the Left Pedal
Arm (32), which are marked with stickers.
Attach the Left Pedal (34) to the Left Pedal
Arm (32) with two M6 x 62mm Screws (108),
two M6 x 35mm Screws (109), and four M6
Split Washers (102).
Attach the Right Pedal (not shown) to the
Right Pedal Arm (not shown) in the same
way.
97
7
5
5
34
108 102
102
109
41
54
109
32
32
4
38
32
33
102

8
7. Attach the Left Upper Body Arm (22) to the left
Upper Body Leg (24) with three M8 x 15mm
Button Screws (106).
Attach the Right Upper Body Arm (23) in the
same way.
6. While another person holds the Upright (10)
near the Frame (1), connect the Upper Wire
Harness (65) to the Lower Wire Harness (64).
Carefully insert the Upright (10) into the
Frame (1); be careful not to damage the Wire
Harnesses (64, 65). Attach the Upright with four
M8 x 20mm Button Screws (107) and four M8
Split Washers (101).
22
23
24
106
7
6
65
64 107
101 101
1
10
Becareful not
to damage the
Wire Harnesses
(64, 65) during
this step.
107

9
9. Apply a small amount of grease to the axle on
the Left Link Arm (30), to the axle on the Left
Pedal Arm (32), and to a Wave Washer (100).
Slide the Wave Washer (100) onto the axle on
the Left Pedal Arm (32). Next, slide a Link Arm
Spacer (74) onto the axle on the Left Link
Arm (30).
Then, insert the axle on the Left Link Arm (30)
into the left Upper Body Leg (24) while sliding
the Left Link Arm onto the axle on the Left Pedal
Arm (32).
Repeat this step with the Right Link Arm (31).
10. Attach the Left Link Arm (30) to the Left Pedal
Arm (32) with an M8 x 15mm Button Screw
(106), an M8.5 x 16mm x 1.5mm Washer (103),
and an Axle Cover (66).
Attach the Left Link Arm (30) to the left Upper
Body Leg (24) with an M8 x 25mm Button
Screw (110), two M8.5 x 16mm x 1.5mm
Washers (103), two Axle Covers (66), a Link
Arm Spacer (74), and an M8 x 15mm Button
Screw (106) as shown.
Attach the Right Link Arm (31) in the same
way.
9
32
100
30
Grease
Grease
31
24
74
10
66 74
103
110
66 32
30
31
103
106
24
66
103
106
8. Hold the Left Rear Upper Body Cover (26) and
the Left Front Upper Body Cover (27) around
the left Upper Body Leg (24). Attach the Upper
Body Covers with five M4 x 16mm Screws (97).
Attach the Right Rear Upper Body Cover (28)
and the Right Front Upper Body Cover (29)
inthe same way.
24
97
26
28
27
97
829

10
12. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.

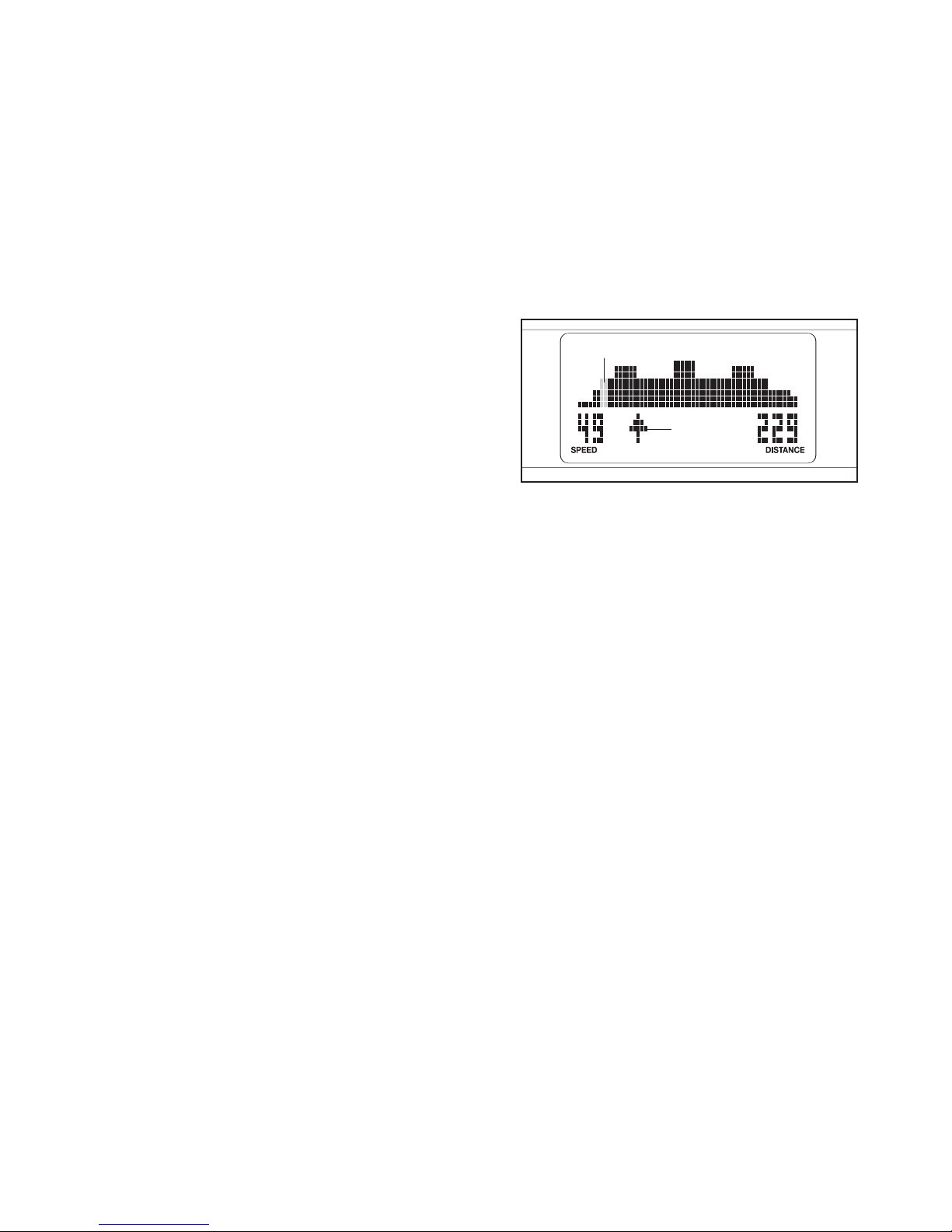

11. The Console (11) can be operated with four
1.5V “D” batteries (not included); alkaline batter-
ies are recommended. IMPORTANT: If the
ellipical exerciser has been exposed to cold
temperatures, allow it to warm to room tem-
perature before inserting batteries into the
Console. If you do not do this, the console
displays or other electronic components
may become damaged. Locate the two battery
covers on the back of the Console. Press the
tabs on the battery covers, and remove the bat-
tery covers. Next, insert two batteries into each
battery compartment; make sure that the bat-
teries are oriented as shown by the symbols
inside the battery compartments. Then, reat-
tach the battery covers.
The Console (11) can also be operated with a
regulated 6-volt DC 2-amp power supply (not
included). To purchase a power supply, call
your local Sears store. To avoid damaging
the console, use only a manufacturer-sup-
plied power supply. Plug one end of the power
supply into the jack on the elliptical exerciser;
plug the other end into an outlet installed in
accordance with all local codes and ordinances.
11
11
Battery
Cover
Battery
Cover
