NordicTrack Elite 10.9 User manual

USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. NTEL09817.1
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
nordictrack.com
To register your product and
activate your warranty today,
go to my.nordictrack.com.
For service at any time, go to
nordictrackservice.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE ELLIPTICAL ..............................................................17
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
MAINTENANCE AND TROUBLESHOOTING.....................................................31
EXERCISE GUIDELINES ....................................................................34
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. The BLUETOOTH®word
mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a
trademark of Google LLC. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of
Wi-Fi Alliance.

3
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. When connecting the power cord, plug the
power cord into a grounded circuit.
10. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
11. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
12. DANGER: Always unplug the power
cord and switch the power switch to the off
position when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should be
performed by an authorized service repre-
sentative only.
13. Keep children under age 13 and pets away
from the elliptical at all times.
14. The elliptical should not be used by persons
weighing more than 350 lbs. (159 kg).
15. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
16. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
17. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid in
determining heart rate trends in general.
IMPORTANT PRECAUTIONS

4
18. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
19. Keep your back straight while using the
elliptical; do not arch your back.
20. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS

5
all
STANDARD SERVICE PLANS

6
Thank you for selecting the revolutionary
NORDICTRACK®ELITE 10.9 elliptical. The ELITE 10.9
elliptical provides an impressive selection of features
designed to make your workouts at home more effec-
tive and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate Monitor
Accessory Tray
Speaker
Handlebar
Upper Body Arm
Pedal
Roller
Handle
Ramp
Console
Tablet Holder
BEFORE YOU BEGIN
Wheel
Power Cord
Power Switch
Leveling Foot
Length: 5 ft. 8 in. (173 cm)
Width: 2 ft. 2 in. (66 cm)

7
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 Locknut
(102)–4
M5 Washer
(94)–2 M8 x 28mm
Washer (97)–2
M8 x 22mm
Washer (77)–2
M10 x 122mm
Screw (104)–4
M8 x 38mm Bolt
(96)–4
M4 x 16mm
Screw (101)–14
M8 x 13mm
Screw (82)–4
Tablet Holder
Screw (111)–4
M8 x 20mm
Screw (126)–2
M10 x 25mm
Screw (99)–2

8
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
2. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping while you
complete this step.
Attach the Rear Stabilizer (2) to the Frame (1)
with two M10 x 122mm Screws (104).
Then, remove the packing materials from under
the rear of the Frame (1).
2
1
2
104
1. Go to my.nordictrack.com on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your purchase.

9
3
2
106
15
3. Press the Cover Mounts (106) on the underside
of the Rear Stabilizer Cover (15) into the Rear
Stabilizer (2).
4
4. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (6) to the Frame (1)
with two M10 x 122mm Screws (104).
Then, remove the packing materials from under
the front of the Frame (1).
1
6104

10
6. Locate the wire tie (B) in the lower end of the
Upright (4). Tie the wire tie to the Main Wire
(110). Then, pull the upper end of the wire tie
until the Main Wire is routed through the Upright.
Tip: To prevent the Main Wire (110) from fall-
ing into the Upright (4), secure the Main Wire
with the wire tie (B).
1
4
110
B
B
5
6
Avoid pinching
the Main Wire
(110) and avoid
damaging the
tabs (A)
A
4
99
99
110
5. Tip: Avoid pinching the Upper Wire (110).
Avoid damaging the indicated plastic tabs
(A). Have a second person hold the Upright (4)
on the Frame (1).
Attach the Upright (4) to the Frame (1) with four
M10 x 25mm Screws (99); start all the Screws,
and then tighten them.
Note: Two M10 x 25mm Screws (99) may be
preattached to the Frame (1). If so, simply slide
the Upright (4) under the two Screws.

11
7
7. Using a plastic bag to keep your fingers clean,
apply some of the included grease to the Pivot
Axle (35).
Insert the Pivot Axle (35) through the Upright (4)
and center it. Tip: It may be helpful to use a
rubber mallet.
Identify the Right Upper Body Leg (60) and
orient it as shown.
Slide a Pivot Spacer (54) and the Right Upper
Body Leg (60) onto the right side of the Pivot
Axle (35).
Repeat these actions for the Left Upper Body
Leg (46).
Tighten an M8 x 13mm Screw (82) with an
M8 x 28mm Washer (97) into each end of the
Pivot Axle (35) at the same time.
60
54
46
82
82
97
97
35
4
Grease
8
8. Identify the Right Upper Body Arm (61) and
orient it as shown.
Slide the Right Upper Body Arm (61) onto the
Right Upper Body Leg (60).
Attach the Right Upper Body Arm (61) with two
M8 x 38mm Bolts (96) and two M8 Locknuts
(102). Make sure that the Locknuts are in the
hexagonal holes (C).
Repeat this step for the Left Upper Body
Arm (47). C
60
61
47
96
102

12
9
7
4
63
9. Untie and discard the wire tie on the Main
Wire (110).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Main Wire (110) and to the
Sensor Wires (63).
Insert the excess wire into the Upright (4).
110
10 7

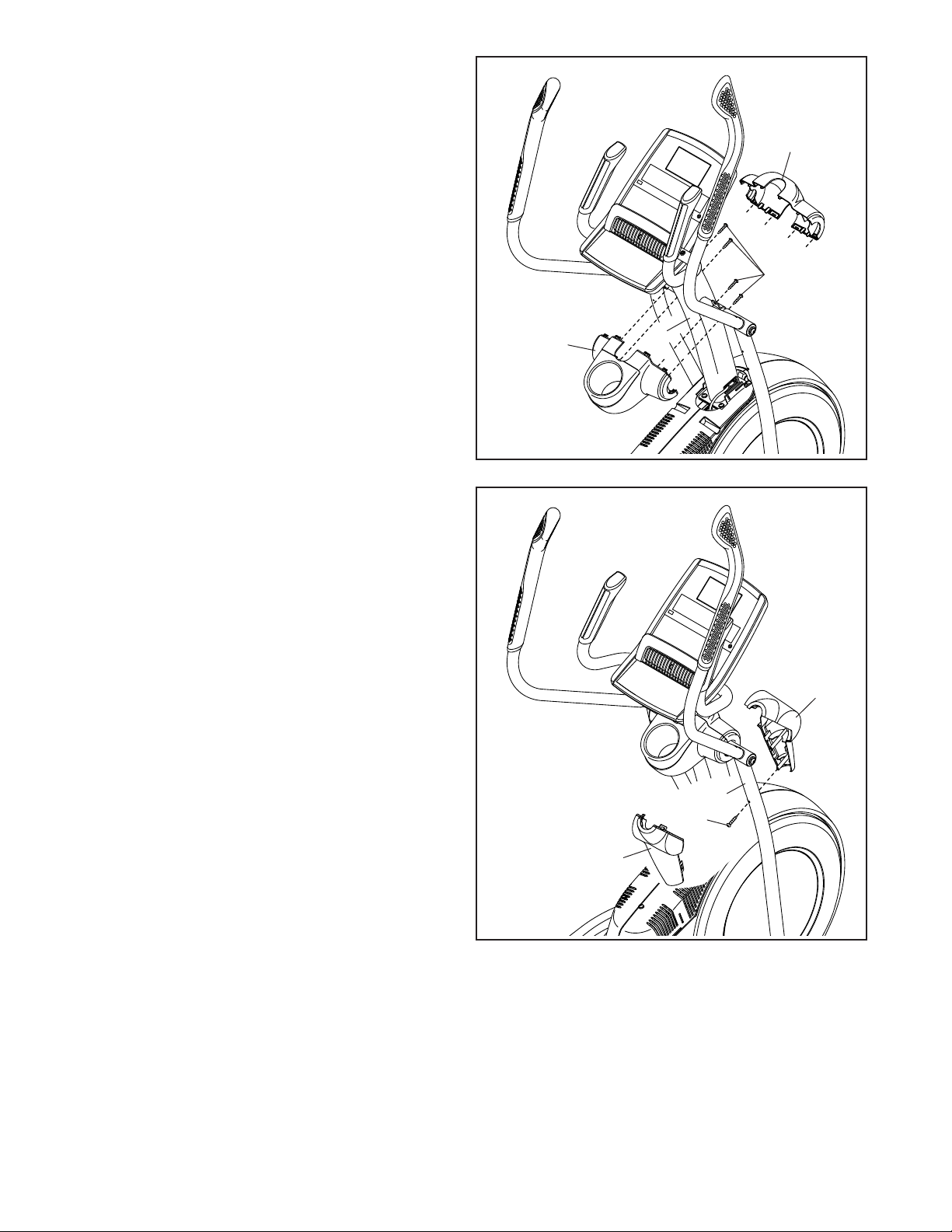

10. Tip: Avoid pinching the wires. Attach
the Console (7) to the Upright (4) with four
M4 x 16mm Screws (101); start all the Screws,
and then tighten them.
101
101
4
Avoid pinching
the wires

13
11

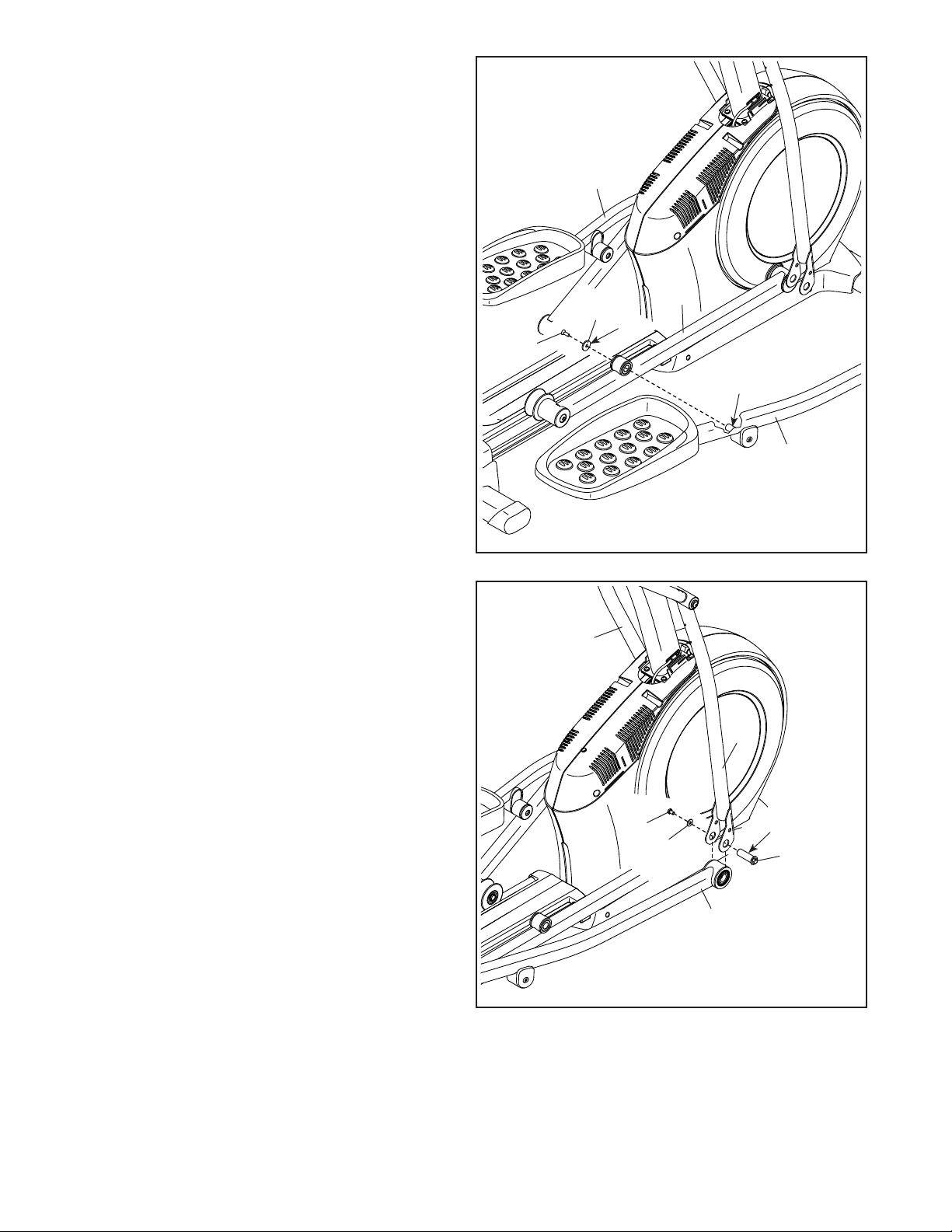

11. Orient the Right Pedal Arm (58) as shown.
Apply grease to the axle on the Right Pedal
Arm (58).
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 20mm Screw (126)
and a Retainer (55); make sure that the flat
side (D) of the Retainer is facing the Right
Roller Arm.
Repeat this step for the Left Pedal Arm (44).
Grease
126
55
58
59
44
82
77
58
60
46
64
Grease
12
D
12. Apply grease a Pedal Arm Axle (64).
While a second person holds the front end of
the Right Pedal Arm (58) inside the bracket on
the Right Upper Body Leg (60), insert the Pedal
Arm Axle (64) into both parts from the direction
shown.
Next, slide an M8 x 22mm Washer (77) onto an
M8 x 13mm Screw (82), and tighten the Screw a
few turns into the Pedal Arm Axle (64).
Then, tighten the Pedal Arm Axle (64) and the
M8 x 13mm Screw (82) at the same time.
Repeat this step on the other side of the
elliptical.

14
13
13. Orient the Rear Upright Cover (81) as shown,
and attach it to the Upright (4) with four
M4 x 16mm Screws (101); start all the Screws,
and then tighten them.
Next, orient the Front Upright Cover (117) as
shown, and press it onto the Rear Upright
Cover (81).
101
81
117
4
14
14. Identify the Right Arm Front Cover (65), orient it
as shown, and attach it to the Right Upper Body
Leg (60) with an M4 x 16mm Screw (101).
Next, identify the Right Rear Cover (66), orient it
as shown, and press it onto the Right Arm Front
Cover (65).
Repeat this step on the other side of the
elliptical.
65
60
101
66

15
15. Identify the Right Leg Inner Cover (83) and orient
it as shown.
Attach the Right Leg Inner Cover (83) to the
Right Upper Body Leg (60) with an M4 x 16mm
Screw (101) and an M5 Washer (94).
Next, identify the Right Leg Outer Cover (69),
orient it as shown, and press it onto the Right
Leg Inner Cover (83).
Repeat this step on the other side of the
elliptical.
60
94 101 69
15
83
75
118
73, 74
16. Orient the Shield Cover Cap (118) and the Shield
Cover (75) as shown.
First, press the tabs on the Shield Cover Cap
(118) into the Left and Right Shields (73, 74).
Then, press the tabs on the Shield Cover (75)
into the Left and Right Shields (73, 74).
16

16
17. Orient the Rear Console Cover (80) as shown,
and attach it to the Upright (4) with two
M4 x 16mm Screws (101).
Next, orient the Front Console Cover (79) as
shown, and press it onto the Rear Console
Cover (80).
79
4
80
101
17
19. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.
18. Attach the Tablet Holder (127) to the Console (7)
with four Tablet Holder Screws (111); start all
the Tablet Holder Screws, and then tighten
them. 7
127
111
18

17
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The power cord has a plug with a
grounding pin.
Plug the
power cord
into an
appropriate
outlet that
is properly
installed and
grounded in
accordance
with all local
codes and
ordinances.
The outlet must be on a nominal 120-volt circuit.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown
at the right
if a properly
grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a
qualied electrician to determine whether the out-
let box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualied electrician.
HOW TO USE THE ELLIPTICAL
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug—if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
Grounded Outlet
2-pole Receptacle
Grounding Pin
Adapter
Lug
Metal Screw

18
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright (A), and place one foot against one of
the wheels (B). Pull on the upright and have a second
person lift the handle (C) until the elliptical will roll on
the wheels. Carefully move the elliptical to the desired
location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet beneath the rear of
the frame (E) or turn the leveling foot under the center
of the frame (F) until the rocking motion is eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder (F) is designed for
use with most small tablets. Do not place any other
electronic device or object into the tablet holder.
To insert a tab-
let into the tablet
holder (F) , set
the bottom edge
of the tablet in the
tray. Make sure
that the tablet is
firmly secured in
the tablet holder.
Reverse these
actions to remove
the tablet from the tablet holder.
A
C
B
D
E
F

19
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars (G) or the
upper body arms (H) and step onto the pedal (I) that is
in the lower position. Then, step onto the other pedal.
Push the pedals until they begin to move with a con-
tinuous motion. Note: The pedals can turn in either
direction. It is recommended that you turn the ped-
als in the direction shown by the arrow; however,
for variety, you can turn the pedals in the opposite
direction.
To dismount the elliptical, wait until the pedals (I) come
to a complete stop. Note: The elliptical does not
have a free wheel; the pedals will continue to move
until the flywheel stops. When the pedals are station-
ary, step off the higher pedal first. Then, step off the
lower pedal.
G
H
I

20
Crow
ELS079915V1
NTEL09817
CONSOLE DIAGRAM FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
resistance of the pedals and the incline of the ramp as
it guides you through an effective exercise session.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button.
While you exercise, the console will display continu-
ous exercise feedback. You can also measure your
heart rate using the handgrip heart rate monitor or an
optional chest heart rate monitor (see page 30
for more information).
You can also listen to your favorite workout music or
audio books with the console sound system while you
exercise.
In addition, you can use the charging port on the
console to charge your USB-compatible device while
you exercise.
To turn on the power, see page 21. To learn how
to use the touch screen, see page 21. To set up
the console, see page 22.
