NordicTrack Cxt 1400 Elliptical User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manu-
al for future reference.
Serial
Number
Decal
Model No. NTEVEL1285.0
Serial No.
USER’S MANUAL
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, please call:
Or write:
ICON Health & Fitness, Ltd.
Customer Service Department
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: [email protected]
08457 089 009
www.iconeurope.com
Visit our website at

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
NordicTrack is a registered trademark of ICON IP, Inc.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual and all
warnings on the elliptical exerciser before
using the elliptical exerciser.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Use the elliptical exerciser only as described
in this manual.
4. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institu-
tional setting.
5. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dis-
mount, and use it.
6. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
7. Keep children under 12 and pets away from
the elliptical exerciser at all times.
8. The elliptical exerciser should not be used by
persons weighing more than 115 kg (250
lbs.).
9. Wear appropriate exercise clothes and
athletic shoes while using the elliptical
exerciser.
10. When unfolding the elliptical exerciser (see
page 12), hold the handle firmly with both
hands, pull and hold the latch lever, lower
the frame slowly to the floor, and then
release the latch lever. If the frame is low-
ered quickly, or if the latch lever is released
early, the elliptical exerciser may tip over,
resulting in damage or serious injury.
11. Hold the handlebars or the handgrip pulse
sensor when mounting, dismounting, or
using the elliptical exerciser.
12. The pulse sensors are not medical devices.
Various factors may affect the accuracy of
heart rate readings. The pulse sensors are
intended only as an exercise aid in determin-
ing heart rate trends in general.
13. Keep your back straight while using the ellip-
tical exerciser; do not arch your back.
14. If you feel pain or dizziness while exercising,
stop immediately and cool down.
15. When you stop exercising, allow the pedals
to slowly come to a stop.

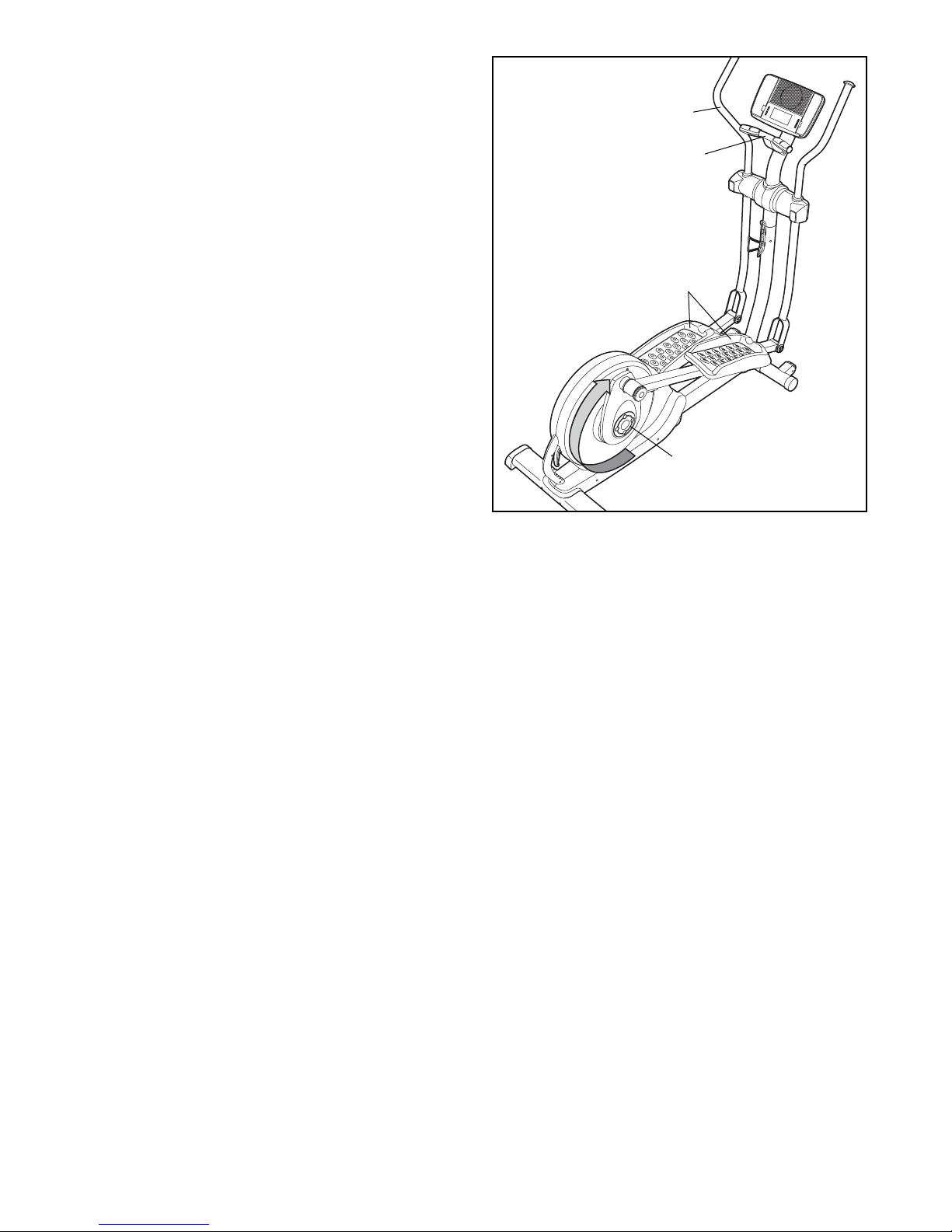

16. The decals shown on page 4 are found on
the elliptical exerciser. If one of the decals is
missing or illegible, call the toll-free tele-
phone number on the front cover of this
manual and order a free replacement decal.
Apply the decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary Nordictrack®
CXT 1400 elliptical exerciser. The CXT 1400 elliptical
exerciser offers a wide array of features designed to
make your workouts at home more effective and
enjoyable; and when you’re not exercising, the unique
CXT 1400 elliptical exerciser can be folded out of the
away.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, see the front cover of
this manual. To help us assist you, please note the
product model number and serial number before call-
ing. The model number is NTEVEL1285.0. The serial
number can be found on a decal attached to the ellip-
tical exerciser (see the front cover of this manual for
the location of the decal).

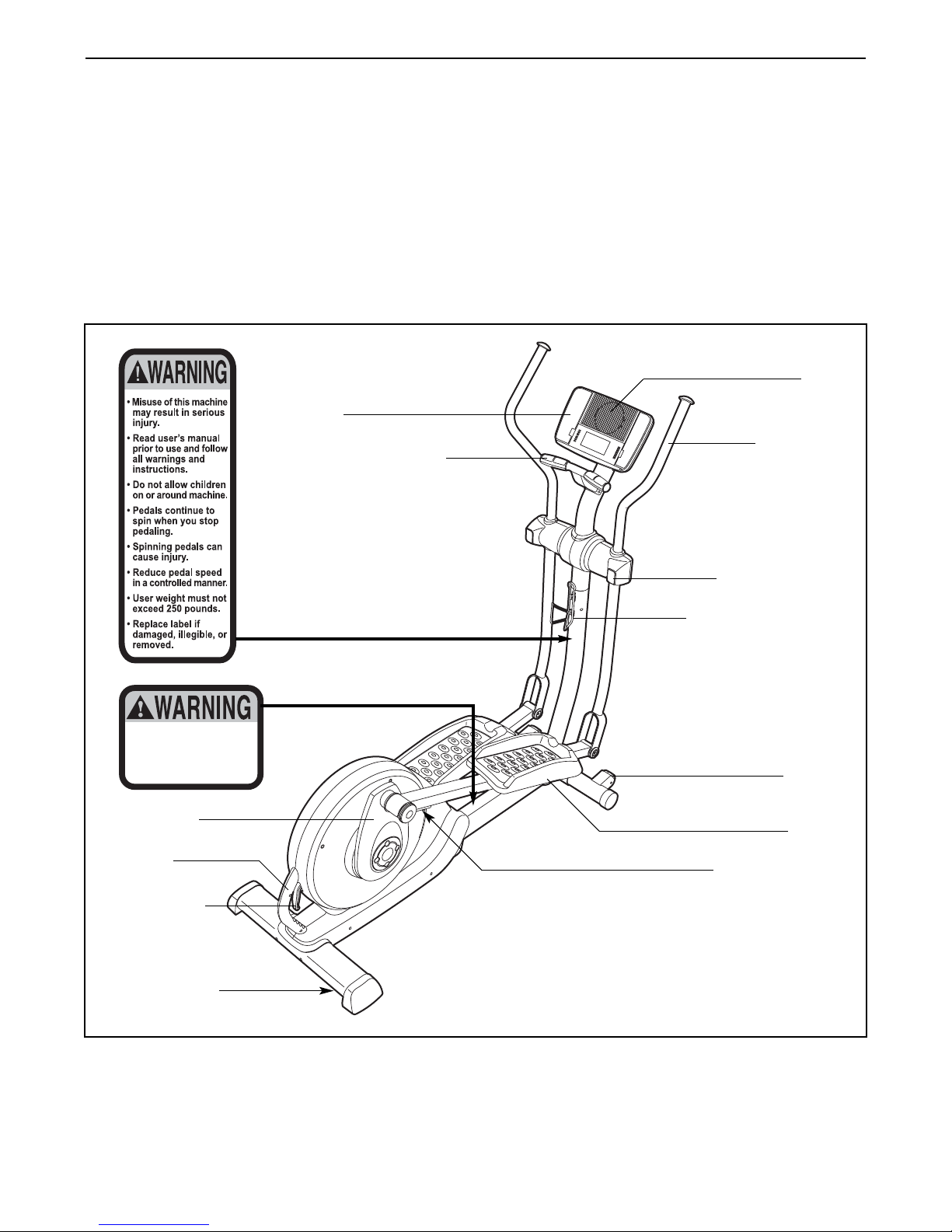

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Handlebar
Crank Arm
Wheel
Pedal
Console
Water Bottle Holder*
Leveling Foot
Handle
Latch Lever
Storage Magnet
Fan
Pedal Arm Latch
*No water bottle is included
Keep hands and
fingers clear of
this area.

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on pages 28 and 29. The number follow-
ing the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-assem-
bled. If a part is not in the parts bag, check to see if it has been pre-assembled.
M10 x 127mm Button Screw (83)–2
M4 x 14mm
Screw (104)–8
M10 Nylon
Locknut (81)–2
M8 Jamnut
(79)–7
M8 Washer
(88)–6
Wave Washer
(111)–2
M8 x 23mm Button
Screw (84)–7
M8 Split
Washer (90)–6
M8 x 43mm Button
Bolt (78)–4
M4 x 16mm
Round Head
Screw (101)–8
M4 x 32mm
Round Head
Screw (105)–6
M4 x 45mm
Screw (108)–2
M8 x 23mm Shoulder
Screw (115)–4
M8 x 69mm Button
Bolt (80)–1
M10 x 80mm Carriage
Bolt (82)–2
Hub Screw (87)–8
Star Washer
(112)–8
M8 x 112mm Button Bolt (123)–2

6

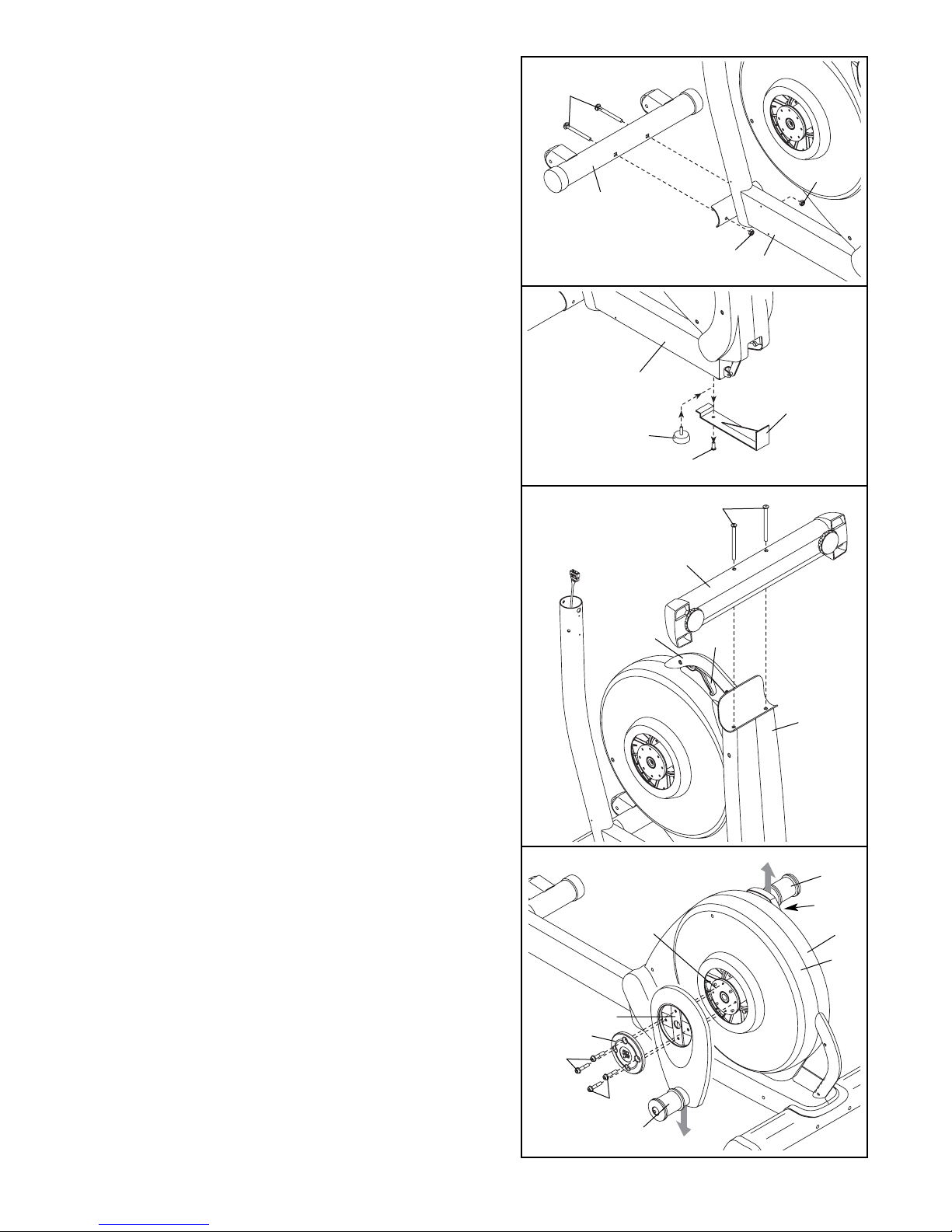

1. While another person lifts the Base (1), attach the
Front Stabiliser (6) to the Base with two M10 x 80mm
Carriage Bolts (82) and two M10 Nylon Locknuts (81).
2. Remove the indicated screw and bracket from the
Base (1). Discard the screw and the bracket.
Next, turn the Base Foot (26) into the Base (1) as far
as possible.
3. Attach the Rear Stabiliser (7) to the Frame (2) with two
M10 x 127mm Button Screws (83).
Next, hold the handle on the Frame (2) firmly with
both hands, pull and hold the Latch Lever (68),
lower the Frame slowly until the Rear Stabiliser (7)
is resting on the floor, and then release the Latch
Lever.
4. Hold a Hub Cover (75) and a Crank Arm (36) against
the left Crank Hub (38). Align the holes in the Hub
Cover and the Crank Arm with the unused holes in the
left Crank Hub. Next, insert four Hub Screws (87) into
the Hub Cover and the Crank Arm, and finger tighten
the Hub Screws into the left Crank Hub. Tighten one of
the Hub Screws, and then tighten the Hub Screw far-
thest from the first Hub Screw. Then, tighten the
remaining two Hub Screws.
Repeat this step on the other side of the elliptical exer-
ciser. Make sure that the Crank Arms (36) are
attached so that one Crank Bushing Sleeve (43) is
at the top of the Side Shields (28, 29) when the
other Crank Bushing Sleeve is at the bottom of the
Side Shields.
6
81
81
82
1
1
Bracket
26
Screw
383
7
Handle
2
68
2
4
36
38
75
87
87
36
28
29
43
1
43

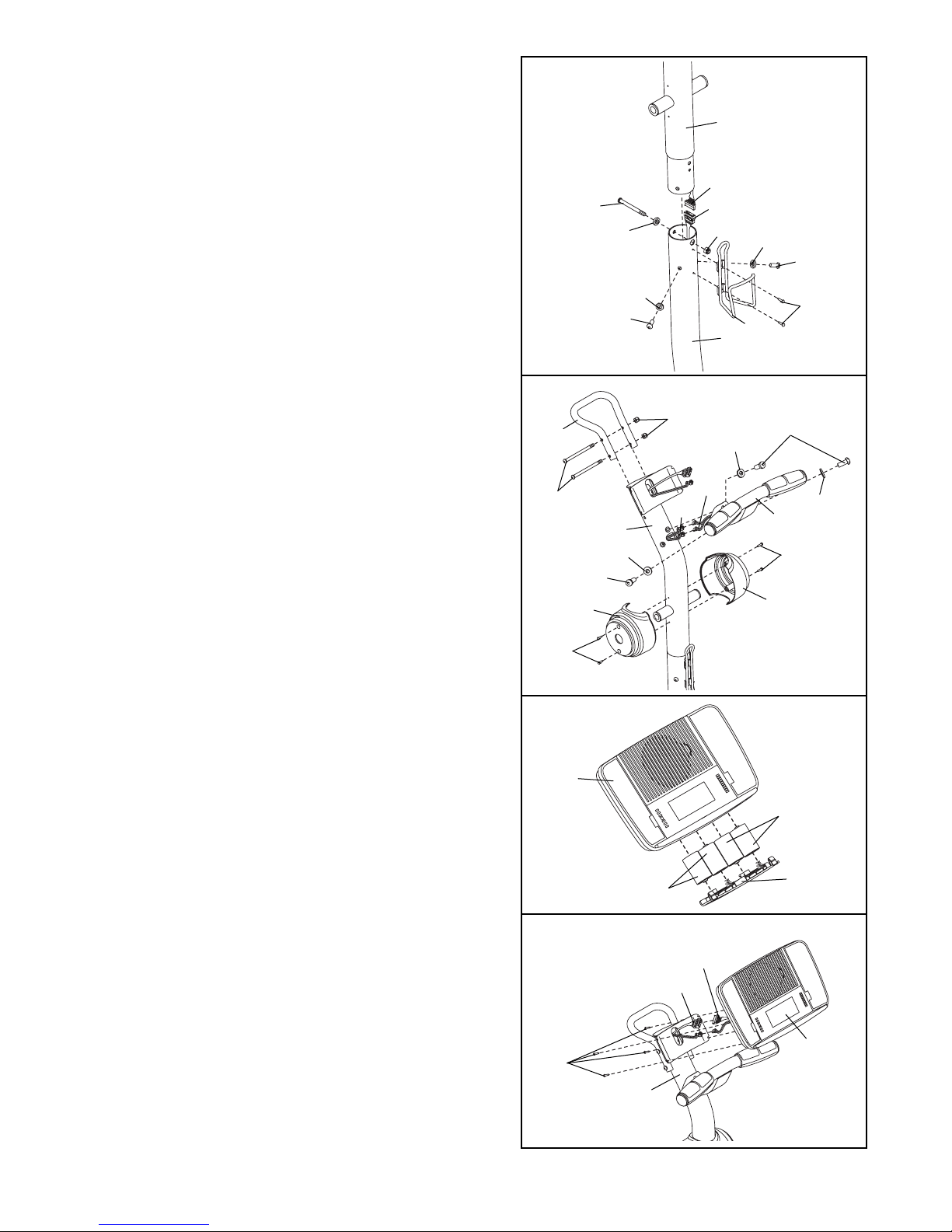

8. While another person holds the Console (5) near the
Upright (3), connect the two wire harnesses on the
Console to the corresponding connectors on the Upper
Wire Harness (48). Insert the excess wire harness into
the Upright (3). Next, attach the Console to the Upright
with four M4 x 16mm Round Head Screws (101). Be
careful to avoid pinching the wire harnesses.
7
6. Orient the Transport Handle (119) as shown, and attach
it to the Upright (3) with two M8 x 112mm Button Bolts
(123) and two M8 Jamnuts (79).
While another person holds the Pulse Bar (4) near the
Upright (3), connect the two connectors on the Upper
Wire Harness (48) to the corresponding connectors on
the Pulse Wire (121). Insert the Wire Harnesses into the
Upright, and attach the Pulse Bar to the Upright with
three M8 x 23mm Button Screws (84) and three M8 Split
Washers (90).
Orient one of the Upright Covers (17) as shown, and hold
it against the Upright (3). Attach the Upright Cover with
two M4 x 16mm Round Head Screws (101). Attach the
other Upright Cover in the same way.
7. The Console (5) requires four “D” batteries; alkaline
batteries are recommended. Remove the battery cover
from the bottom of the Console. Next, insert four batter-
ies into the battery compartment; make sure that the
batteries are oriented as shown by the diagram
inside the battery compartment. Reattach the battery
cover.
5. While another person holds the Upright (3), connect
the Upper Wire Harness (48) to the Lower Wire
Harness (49). Gently pull the upper end of the
Upper Wire Harness to remove any slack, and
insert the Upright into the Base (1). Attach the Upright
with an M8 x 69mm Button Bolt (80), an M8 Split
Washer (90), and an M8 Jamnut (79). Do not tighten
the Button Bolt yet; make sure that the Jamnut is
in the hexagonal hole in the Base.
Next, finger tighten two M8 x 23mm Button Screws
(84) with M8 Split Washers (90) into the Base (1). Do
not tighten the Button Screws yet.
Attach the Water Bottle Holder (22) to the Base (1)
with two M4 x 14mm Screws (104).
48
5
3
101
Wire
Harnesses
6
8
17 17
3
101
101
121
79 84
84
90
90
4
48
90
123
119
Battery
Cover
Batteries
Batteries
7
5
3
80
48
49
22
84
84
90
90
90 104
79
1
5

8
11. Hold the Left Front Handlebar Cover (18) and the Left
Rear Handlebar Cover (19) around the Left Upper Body
Arm (11). Attach the Handlebar Covers with three M4 x
32mm Round Head Screws (105).
Attach the Right Front Handlebar Cover (20) and the
Right Rear Handlebar Cover (21) to the Right Upper
Body Arm (12) in the same way.

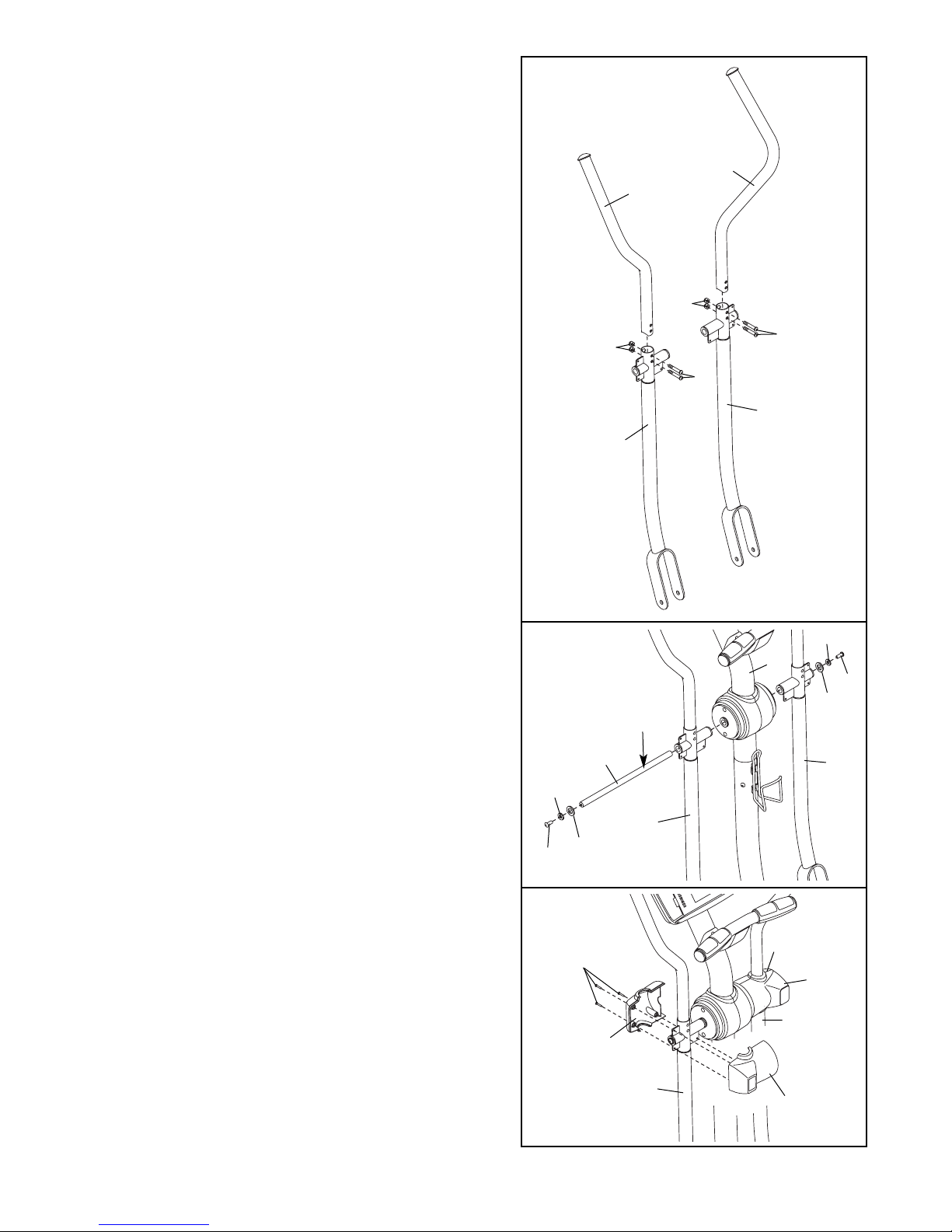

10. Insert the Pivot Axle (74) into the Upright (3) and center
it. Apply a generous amount of the included grease to
the Pivot Axle.
Orient the Left Upper Body Arm (11) as shown, and
slide it onto the left end of the Pivot Axle (74). Slide the
Right Upper Body Arm (12) onto the right end of the
Pivot Axle.
Tighten an M8 x 23mm Button Screw (84) with an M8
Washer (88) and a Wave Washer (111) into each end of
the Pivot Axle (74). Make sure that the Wave Washers
are on the ends of the Pivot Axle.
9. Identify the Left Handlebar (8) and the Left Upper Body
Arm (11), which are marked with stickers.
Orient the Left Handlebar (8) and the Left Upper Body
Arm (11) as shown. Insert the Left Handlebar into the
Left Upper Body Arm. Attach the Left Handlebar with two
M8 x 43mm Button Bolts (78) and two M8 Jamnuts (79).
Make sure that the Jamnuts are in the hexagonal
holes in the Left Upper Body Arm.
Attach the Right Handlebar (9) to the Right Upper Body
Arm (12) in the same way.
9
11
8
9
12
88
84
111
88
74
3
84 111
12
11
78
78
79
79
20
21
105
12
19
Grease
11
10
18
11

9
13. Apply a light film of grease to a Pedal Leg Axle (32).
Next, slide a 5mm Spacer (118) onto the Pedal Leg
Axle. Then, slide an M8 Washer (88) and a Pedal Leg
Cover (31) onto an M8 x 23mm Shoulder Screw (115),
and finger tighten the Shoulder Screw into one end of
the Pedal Leg Axle.
Have another person hold the front end of the Left
Pedal Leg (14) inside of the bracket on the Left Upper
Body Arm (11). Insert the Pedal Leg Axle (32) into both
parts; make sure that the 5mm Spacer (118) is
inside of the bracket on the Left Upper Body Arm.
Slide a 5mm Spacer (118) onto the other end of the
Pedal Leg Axle (32). Next, slide an M8 Washer (88)
and a Pedal Leg Cover (31) onto an M8 x 23mm
Shoulder Screw (115), and finger tighten the Shoulder
Screw into the Pedal Leg Axle. Then, tighten both
Shoulder Screws.
Repeat this step on the right side of the elliptical
exerciser.
14. Lift the latch on the underside of the Left Pedal Leg
(14), and set the Left Pedal Leg on the left Crank
Bushing Sleeve (43). Release the lever, and make
sure that the Left Pedal Leg is securely connected to
the Crank Bushing Sleeve.
Connect the Right Pedal Leg (not shown) in the same
way.
See step 5. Tighten the M8 x 69mm Button Bolt (80)
and the two M8 x 23mm Button Screws (84).

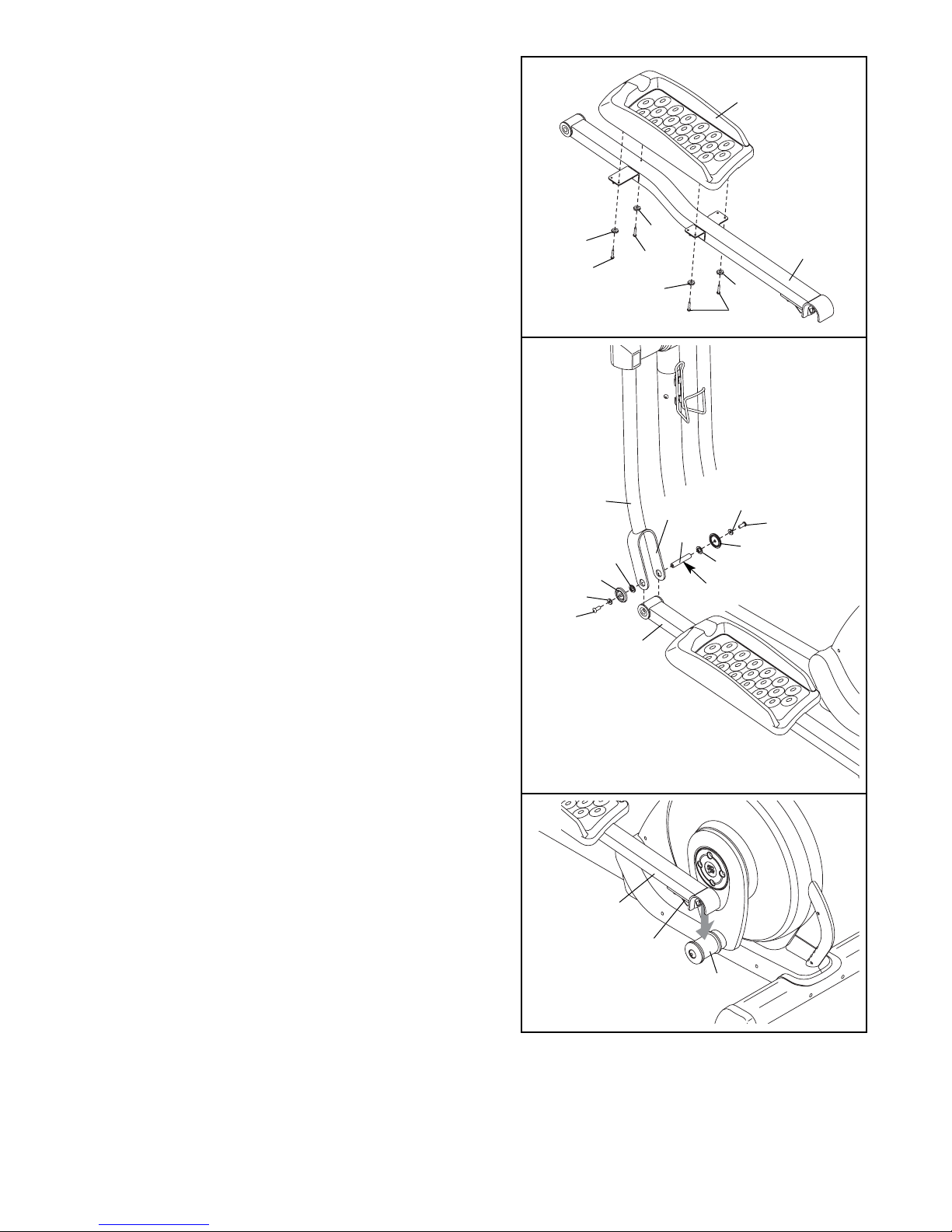

12. Identify the Left Pedal (13) and the Left Pedal Leg
(14), which are marked with stickers.
Attach the Left Pedal (13) to the Left Pedal Leg (14)
with an M4 x 45mm Screw (108), three M4 x 14mm
Screws (104), and four Star Washers (112).
Attach the Right Pedal (not shown) to the Right Pedal
Leg (not shown) in the same way.
15. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
Bracket
13
115
88
31
11
31
14
Latch
14
43
13
14
104
104
112 112
112 112
14
108
12
115
118
118
Grease
32
88

10
HOW TO USE THE CHEST PULSE SENSOR
HOW TO PUT ON THE CHEST PULSE SENSOR
The chest pulse sensor consists of two components—
the chest strap and the sensor unit. Follow the instruc-
tions below to put on the chest pulse sensor.
See the inset drawing above. Insert the tab on one end
of the chest strap through the hole in one end of the
sensor unit. Then, press the end of the sensor unit
under the buckle on the chest strap.
Wrap the
chest pulse sen-
sor around your
chest, and
attach the free
end of the chest
strap to the sen-
sor unit as
described
above. Adjust the length of the chest strap, if neces-
sary. The chest pulse sensor should be under your
clothing, against your skin, and as high under the pec-
toral muscles or breasts as is comfortable. Make sure
that the logo is right-side-up and facing forward.
Next, pull the
sensor unit
away from your
body a few inch-
es and locate
the two elec-
trode areas on
the inner side.
Using a saline solution such as saliva or contact lens
solution, wet both electrode areas. Return the sensor
unit to a position against your chest.
CHEST PULSE SENSOR TROUBLESHOOTING
If the chest pulse sensor does not function proper-
ly, or if the displayed heart rate is excessively high
or low, try the troubleshooting steps below.
• Make sure that you are wearing the chest pulse sen-
sor as described at the left. If the chest pulse sensor
does not function when positioned as described,
move it slightly lower or higher on your chest.
• Each time you use the chest pulse sensor, use
saline solution such as saliva or contact lens solu-
tion to wet the two electrode areas on the sensor
unit (see the drawing below). If heart rate readings
do not appear until you begin perspiring, re-wet the
electrode areas.
• Make sure that you are within arm’s length of the
console.
• If you wear the chest pulse sensor and hold the
handgrip pulse sensor at the same time, the console
will not display your heart rate accurately.
• The chest pulse sensor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the chest pulse sensor can be
affected by magnetic interference caused by high
power lines or other sources. If it is suspected that
magnetic interference may be causing a problem,
try relocating your exercise equipment.
• If the chest pulse sensor still does not function prop-
erly, test the chest pulse sensor in the following way:
Hold the chest
pulse sensor
and place your
thumbs over
the electrode
areas as
shown. Next,
hold the chest
pulse sensor near the console. While holding one
thumb stationary, begin tapping the other thumb
against the electrode area at a rate of about one tap
per second. Check the heart rate reading on the
console.
Chest Strap
Sensor Unit
Tab
Buckle
Electrode Areas
Sensor
Unit
Electrode Areas
Logo

11
•If the chest pulse sensor does not function properly
after you have followed all of the above instructions,
the battery should be replaced in the following way:
Locate the battery
cover on the back of
the sensor unit.
Insert a coin into the
slot in the cover, turn
the cover counter-
clockwise, and
remove the cover.
Remove the old bat-
tery and insert a
new CR 2032 bat-
tery. Make sure
that the battery is
turned so the writ-
ing is on top.
Replace the battery
cover and turn it
clockwise to close
it.
CHEST PULSE SENSOR CARE
• Thoroughly dry the chest pulse sensor after each
use. The chest pulse sensor is activated when the
electrode areas are wetted and the chest pulse sen-
sor is put on; the chest pulse sensor shuts off when
it is removed and the electrode areas are dried. If
the chest pulse sensor is not dried after each use, it
may remain activated longer than necessary, drain-
ing the battery prematurely.
• Store the chest pulse sensor in a warm, dry place.
Do not store the chest pulse sensor in a plastic bag
or other container that may trap moisture.
• Do not expose the chest pulse sensor to direct
sunlight for extended periods of time. Do not expose
the chest pulse sensor to temperatures above 122°
Fahrenheit (50° Celsius) or below 14° Fahrenheit
(-10° Celsius).
• Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. The chest
strap may be hand washed and air dried.
CR 2032
Battery

12
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
EXERCISER

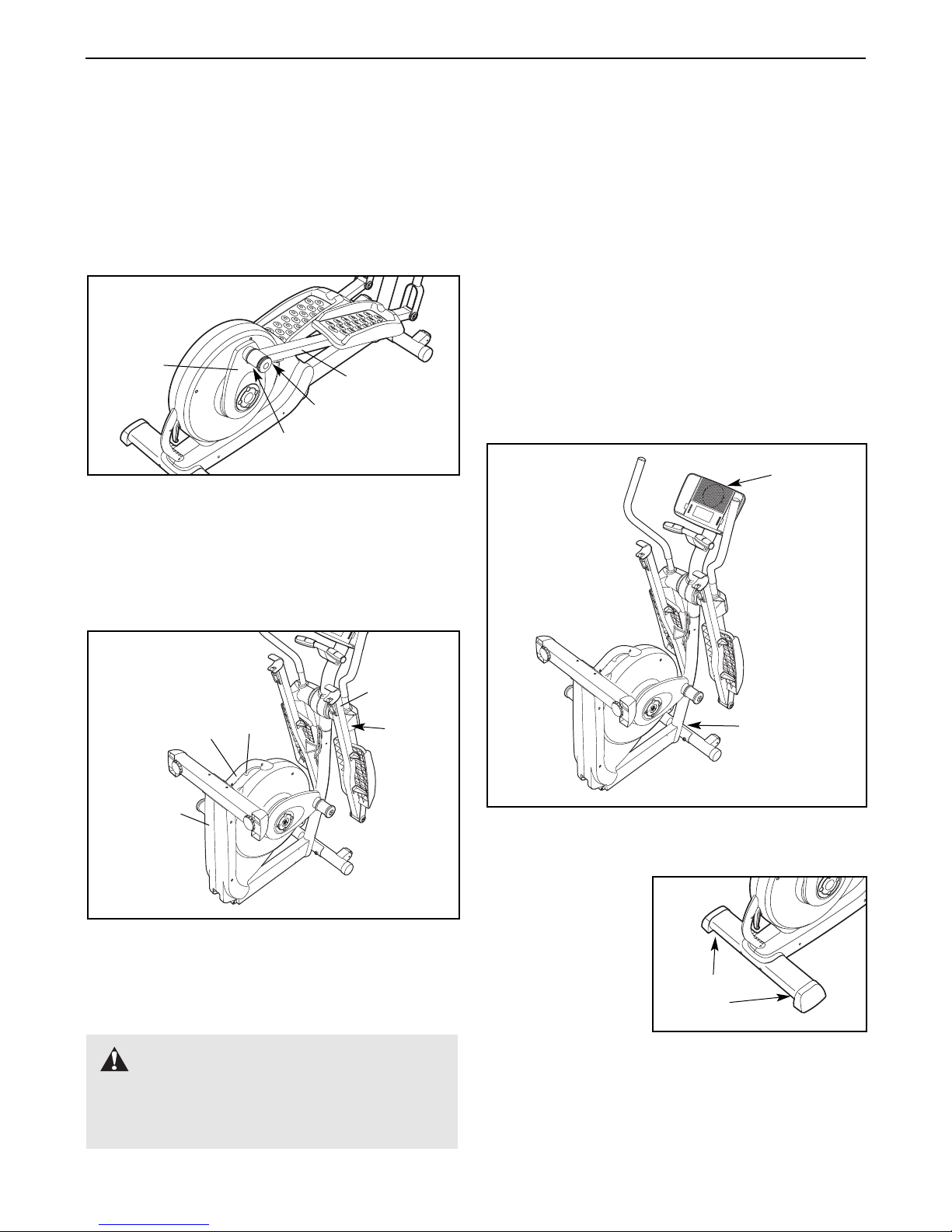

While the elliptical exerciser is not in use, the frame can
be folded out of the way. First, lift the latch under each
pedal leg, and lift the pedal legs off the sleeves on the
crank arms.
Next, raise the pedal legs until they touch the magnets
on the upper body arms; the magnets will hold the
pedal legs in place. Then, hold the handle firmly with
both hands, pull and hold the latch lever, lift the
frame to the position shown below, and release the
latch lever.
To use the elliptical exerciser, hold the handle firmly
with both hands, pull and hold the latch lever,
lower the frame slowly to the floor, and then
release the latch lever.
Next, pull the pedal legs off the magnets on the upper
body arms. Then, lift the latches under the pedal
legs, and set the pedal legs on the sleeves on the
crank arms. Release the latches, and make sure that
the pedal legs are securely connected to the crank
arms.
HOW TO MOVE THE ELLIPTICAL EXERCISER
To move the elliptical exerciser, first fold it as
described at the left. Next, stand in front of the ellipti-
cal exerciser, hold the transport handle, and place one
foot against the center of the front stabiliser. Pull the
transport handle until the elliptical exerciser will roll on
the front wheels. Carefully move the elliptical exerciser
to the desired position, and then lower it.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exer-
ciser rocks slightly
on your floor during
use, turn one or
both of the leveling
feet beneath the
rear stabiliser until
the rocking motion is
eliminated.
Latch
Sleeve
Pedal Leg
Crank
Arm
Handle
Place
your foot
here
Magnet
Transport
Handle
Frame
Latch
Lever
Pedal Leg
Leveling
Feet
WARNING: If the frame is low-
ered quickly, or if the latch lever is released
early, the elliptical exerciser may tip over,
resulting in damage or serious injury.

13
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the handlebars or
the handgrip pulse sensor and step onto the pedal that
is in the lowest position. Next, step onto the other
pedal. Push the pedals until they begin to move with a
continuous motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow at the right; how-
ever, for variety you can turn the crank arms in the
opposite direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. (Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.)
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
Pedals
Crank Arm
Handlebar
Handgrip
Pulse Sensor

14
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the pedals can be changed
with the touch of a button. As you exercise, the con-
sole will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor or the chest pulse sensor.
The console also offers eight preset programs. Each
program automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pace as it guides you through an effective workout.
In addition, the console features two heart rate pro-
grams that automatically change the resistance of the
pedals and prompt you to vary your pace to keep your
heart rate near a target heart rate while you exercise.
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using the included stereo
audio cable, you can connect the elliptical exerciser to
your portable stereo, home stereo, computer, or VCR
and play special iFIT.com CD and video programs
(iFIT.com CDs and videocassettes are available sepa-
rately). iFIT.com programs automatically control the
resistance of the pedals and prompt you to vary your
pace as a personal trainer coaches you through every
step of your workout. High-energy music provides
added motivation. To purchase iFIT.com CDs and
videocassettes, call the toll-free telephone number
on the front cover of this manual.
With the elliptical exerciser connected to your comput-
er, you can also go to our Web site at www.iFIT.com
and access programs directly from the internet.
Explore www.iFIT.com for more information.
To use the manual mode of the console, follow the
steps beginning on page 15. To use a preset
program, see page 17. To use a heart rate program,
see page 18. To use an iFIT.com CD or video pro-
gram, see page 23. To use an iFIT.com program
directly from our Web site, see page 24.
Note: If there is a sheet of clear plastic on the face
of the console, remove it before using the console.

15
HOW TO USE THE MANUAL MODE
Press any button on the console or begin
pedaling to turn on the console.
A few seconds after the console is turned on, the
displays will light. A tone will then sound and the
console will be ready for use.
Select the manual mode.
If you have selected
a program or the
iFIT.com mode, rese-
lect the manual mode
by pressing the iFIT
button once or twice
until a track appears
in the matrix but the letters “iFIT” do not appear
above the matrix.
Begin pedaling and change the resistance of
the pedals as desired.
As you pedal,
change the resis-
tance of the pedals
by pressing the 1
Step Resistance but-
tons. Note: After the
1 Step Resistance
buttons are pressed, it will take a moment for the
pedals to reach the selected resistance level.
Monitor your progress with the matrix, the
Training Zones bar, and the displays.

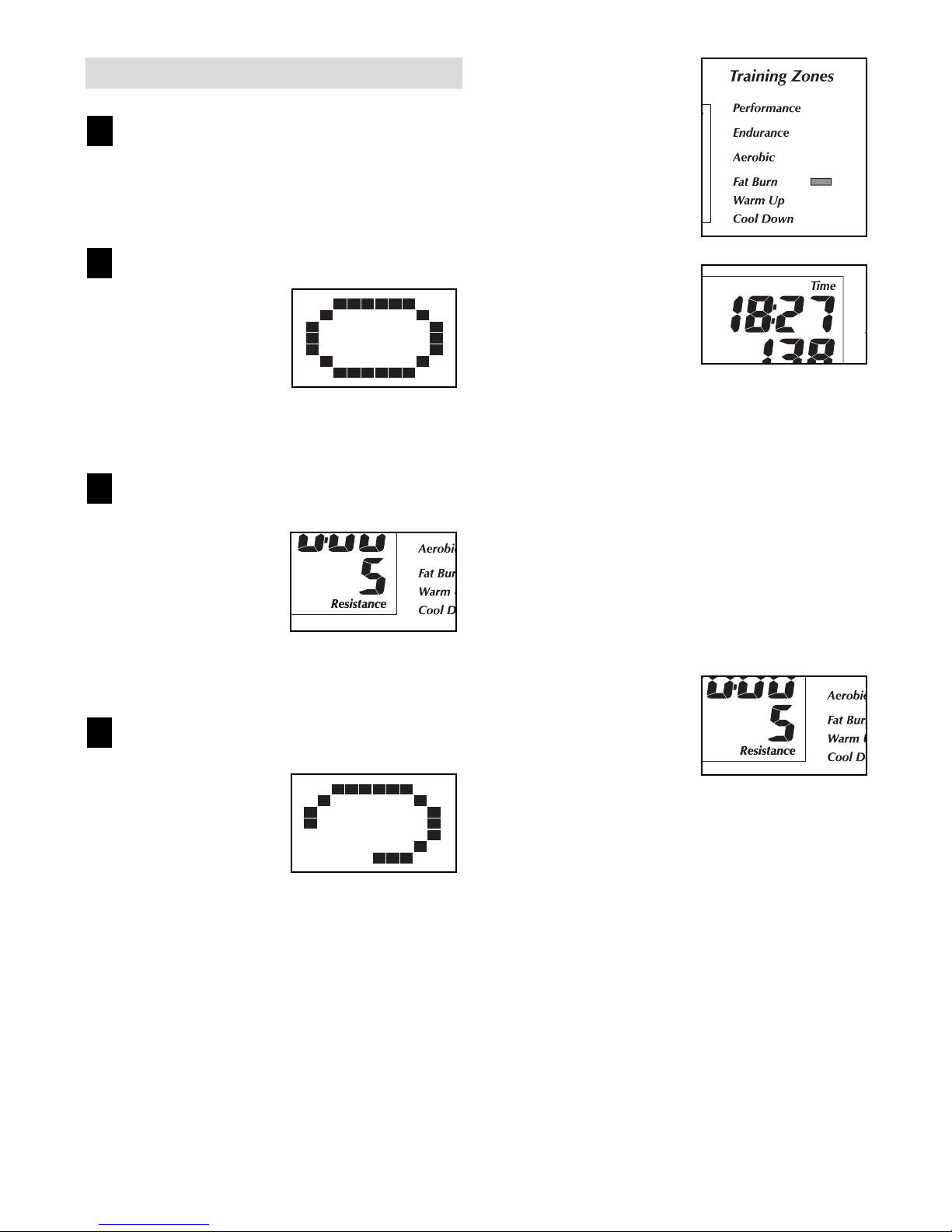

The matrix—When
the manual mode or
the iFIT.com mode is
selected, the matrix
will display a track
that represents 1/4
mile (400 meters). As
you exercise, the indicators around the track will
light in succession until the entire track is lit. The
track will then disappear and the indicators will
again begin to light in succession.
The Training Zones
bar—The Training
Zones bar will show
the approximate inten-
sity level of your exer-
cise.
The upper display—
The upper display will
show the approximate
number of grams of
carbs you have
burned, the approxi-
mate number of calo-
ries you have burned, the distance you have ped-
aled, and the elapsed time. The display will
change from one number to the next every few
seconds. Note: When a program is selected, the
display will show the time remaining in the pro-
gram instead of the elapsed time.
To see the total distance pedaled since the ellipti-
cal exerciser was purchased, press the Odometer
button twice; the words “Total Dist.” and the total
number of miles will appear in the display. To
again see the distance that you have pedaled dur-
ing your workout, press the Odometer button
again.
The lower display—
The lower display will
show your pedaling
pace, in revolutions
per minute (RPM),
your pedaling speed,
and the resistance
level of the pedals. The display will change from
one number to the next every few seconds. The
display will also show your heart rate when you
use the handgrip pulse sensor or the chest pulse
sensor.
4
3
2
1

16
Note: The console
can show speed and
distance in either
miles or kilometers.
The letters “MPH” or
“Km/H” will appear in
the lower display to
show which unit of measurement is selected. To
change the unit of measurement, first hold down
the Start button for a few seconds. An “E” (for
English) or an “M” (for metric) will appear in the
lower display. Press the 1 Step Resistance 10 but-
ton to change the unit of measurement. Note:
When the batteries are replaced, it may be neces-
sary to reselect the desired unit of measurement.
While you are select-
ing a unit of mea-
surement, you can
also select a back-
light mode. The “On”
mode keeps the
backlight on while the
console is on. The “Off” mode turns the backlight
off. To conserve the batteries, the “Auto” mode
keeps the backlight on only while you are exercis-
ing. Press the 1 Step Resistance 1 button to
change the backlight mode if desired. Then, press
the Start button.
Measure your heart rate if desired.
To use the chest pulse sensor, see page 10. To
use the handgrip pulse sensor, follow the instruc-
tions below. Note: If you wear the chest pulse
sensor and hold the handgrip pulse sensor at
the same time, the console will not display
your heart rate accurately.
If there are sheets
of clear plastic on
the metal contacts
on the handgrip
pulse sensor, peel
off the plastic. To
measure your heart
rate, hold the handgrip pulse sensor, with your
palms resting against the metal contacts. Avoid
moving your hands or gripping the contacts
tightly.
When your pulse is detected, your heart rate will
be shown in the lower display. For the most accu-
rate heart rate reading, hold the contacts for at
least 15 seconds. Note: If you continue to hold the
handgrip pulse sensor, the lower display will show
your heart rate for up to 30 seconds. The display
will then show your heart rate along with the other
modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts too tightly.
Turn on the fan if desired.
To turn on the fan at
low speed, press the
Auto Breeze Fan but-
ton; the number 1 will
appear next to the
word “Fan” in the dis-
play. To turn on the
fan at medium speed, press the button a second
time; the number 2 will appear. To turn on the fan
at high speed, press the button a third time; the
number 3 will appear. To select the Auto mode,
press the button again; the words “Auto Fan” will
appear. While the Auto mode is selected, the
speed of the fan will automatically increase or
decrease as you increase or decrease your ped-
aling speed.
To turn off the fan, press the Auto Breeze Fan
button again. Note: If the pedals are not turned
for a few minutes, the fan will automatically turn
off.
Slide the thumb tab on the right side of the fan to
pivot the fan to the desired angle.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for several seconds, a
tone will sound, the console will pause, and the
time will begin to flash in the upper display.
If the pedals are not moved for a few minutes, the
console will turn off and the displays will be reset.
7
6
5
Contacts

17
HOW TO USE A PRESET PROGRAM
Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 15.
Select one of the eight preset programs.
To select a preset program, press one of the but-
tons labeled “20 minutes,” “30 minutes,” or “45
minutes.” Note: Each “30 minutes” button can be
used to select two programs.
When a preset pro-
gram is selected, a
profile of the resis-
tance settings of the
program will scroll
across the matrix. In
addition, the program
time will appear in the upper display, and the
maximum resistance setting of the program will
flash in the lower display for a moment.
Press the Start button or begin pedaling to
start the program.
Each program is divided into several one-minute
segments. One resistance setting and one pace
setting are programmed for each segment. Note:
The same resistance setting and/or pace setting
may be programmed for two or more consecutive
segments.
The resistance
setting for the first
segment will be
shown in the
flashing Current
Segment column
of the matrix. (The
pace settings are not shown in the matrix.) The
resistance settings for the next several segments
will be shown in the columns to the right.

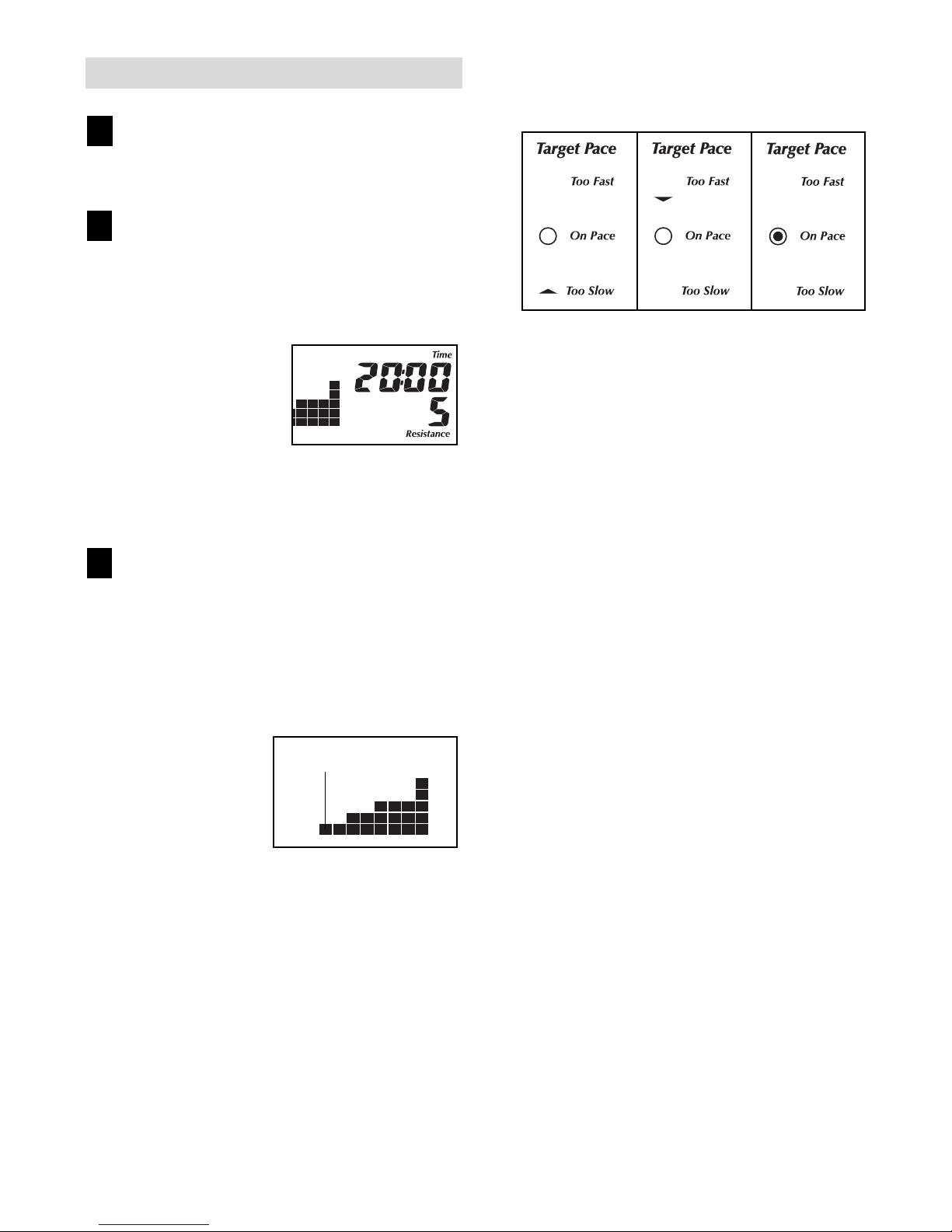

As you exercise, the Target Pace guide will help
you to keep your pedaling pace near the pace
setting for the current segment. When one of the
“Too Slow” indicators lights, increase your pace;
when the one of the “Too Fast” indicators lights,
decrease your pace; when the “On Pace” indica-
tor lights, maintain your current pace.
Important: The pace settings are intended
only to provide motivation. Your actual pace
may be slower than the pace settings. Make
sure to exercise at a pace that is comfortable
for you.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and
all resistance set-
tings will move one column to the left.
The resis-
tance setting for the second segment will then be
shown in the flashing Current Segment column,
and the resistance of the elliptical exerciser will
change to the resistance setting for the second
segment. Note: If all of the indicators in the
Current Segment column are lit after the resis-
tance settings have moved to the left,
the resis-
tance settings may move downward so only the
highest indicators appear in the matrix.
The program will continue until the resistance
setting for the last segment is shown in the
Current Segment column and the last segment
ends.
Note: During the program, you can override the
resistance setting for the current segment, if
desired, by pressing the 1 Step Resistance but-
tons. However, when the next segment begins,
the resistance will change if a different resistance
setting is programmed for the next segment.
If you stop pedaling for several seconds, a tone
will sound and the program will pause. To restart
the program, simply resume pedaling.
3
2
1
Current Segment

18
Monitor your progress with the matrix, the
Training Zones bar, and the displays.
See step 4 on page 15.
Measure your heart rate if desired.
See step 5 on page 16.
Turn on the fan if desired.
See step 6 on page 16.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 16.
HOW TO USE A HEART RATE PROGRAM
Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 15.
Select one of the two heart rate programs.
To select a heart rate program, press either of the
Heart Rate Control buttons.

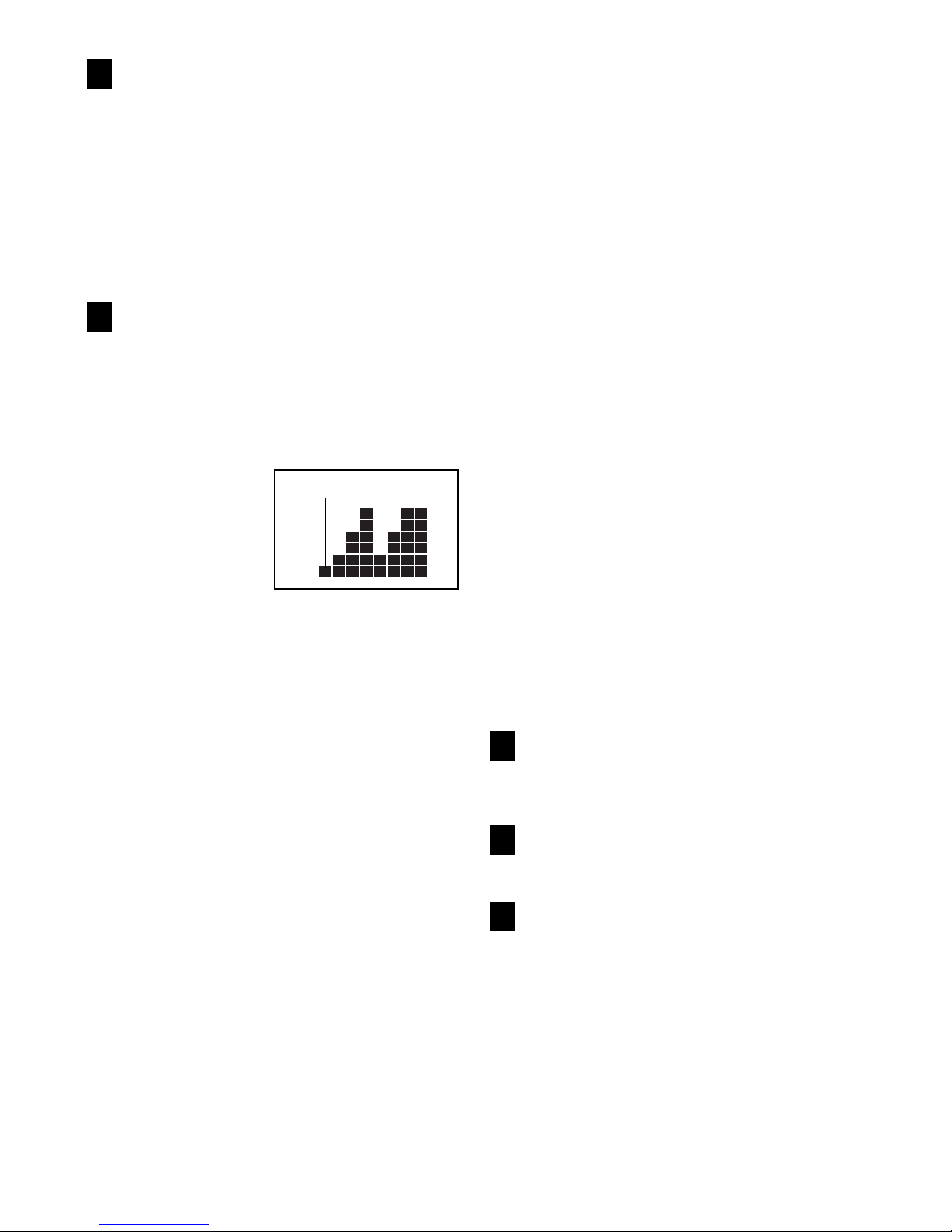

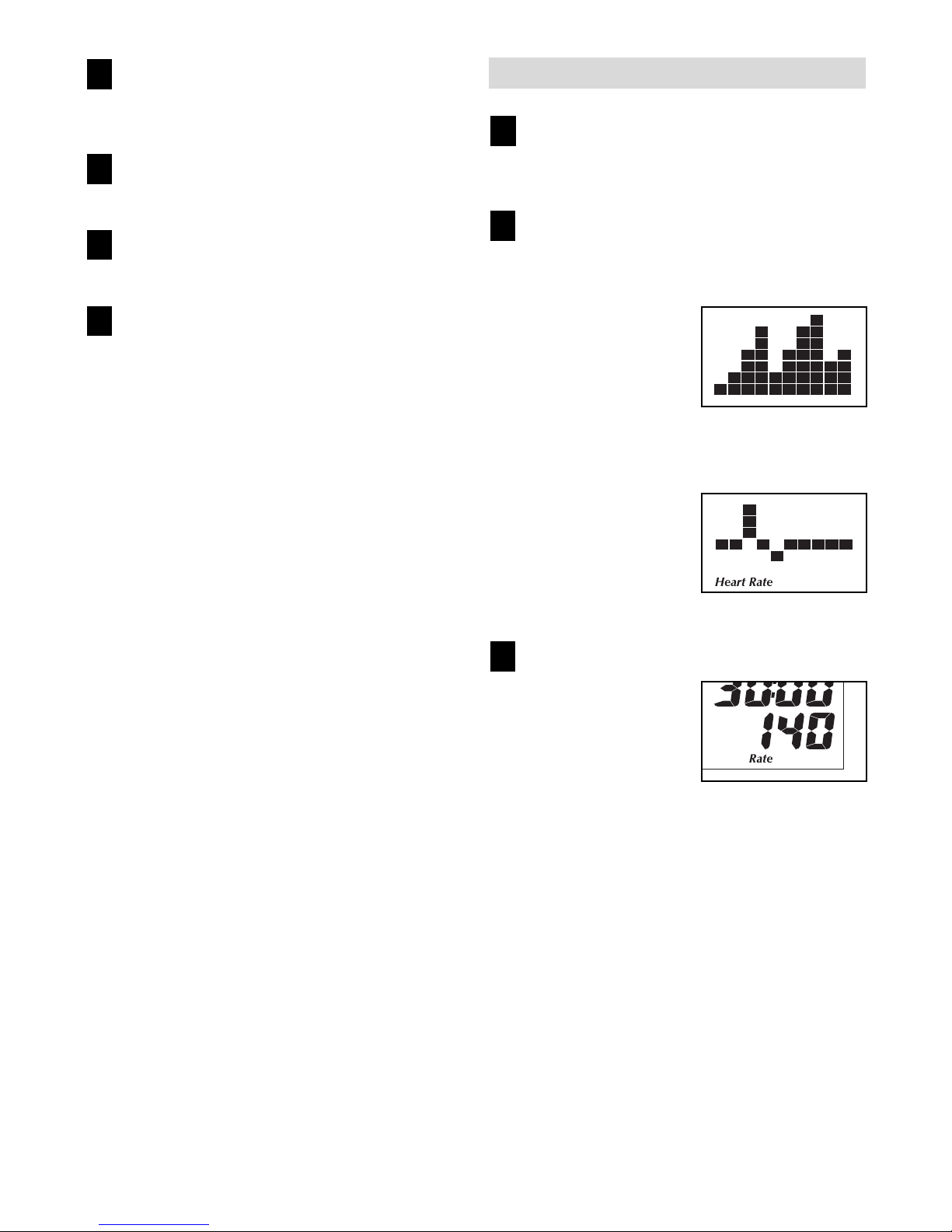

If the first heart rate
program is selected
(if the left Heart Rate
Control button is
pressed), a profile of
the target heart rate
settings of the pro-
gram will scroll across the matrix and the pro-
gram time will appear in the upper display.
If the second heart
rate program is
selected (if the right
Heart Rate Control
button is pressed), a
pulse symbol will
appear in the matrix.
Enter a target heart rate setting.
If the first heart rate
program is selected,
the maximum target
heart rate setting of
the program will flash
in the lower display. If
desired, press the
increase and decrease buttons in the upper left
corner of the console to change the maximum
target heart rate setting (see EXERCISE INTEN-
SITY on page 26). Note: If the maximum target
heart rate setting is changed, the intensity level
of the entire program will change.
If the second heart rate program is selected,
the target heart rate setting for the program will
flash in the lower display. If desired, press the
increase and decrease buttons in the upper left
corner of the display to change the target heart
rate setting (see EXERCISE INTENSITY on
page 26). Note: The same target heart rate set-
ting will be programmed for all segments.
3
2
1
7
6
5
4

19
Put on the chest pulse sensor or hold the
handgrip pulse sensor.
To put on the chest pulse sensor, see page 10.
To use the handgrip pulse sensor, it is not neces-
sary to hold the handgrips continuously during
the program. However, you should hold the hand-
grips frequently for the program to function prop-
erly. Each time you hold the handgrip pulse
sensor, keep your hands on the metal con-
tacts for at least 30 seconds.
Press the Start button to start the program.
The first heart rate program—This program is
divided into 30 one-minute segments. One target
heart rate setting is programmed for each seg-
ment. Note: The same target heart rate setting
may be programmed for two or more consecutive
segments.
The target heart
rate setting for the
first segment will
be shown in the
flashing Current
Segment column
of the matrix. The
target heart rate
settings for the next several segments will be
shown in the columns to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and
all target heart
rate settings will move one column to the left.
The target heart rate setting for the second seg-
ment will then be shown in the flashing Current
Segment column.
The second heart rate program—This program
is divided into 40 one-minute segments. The
same target heart rate is programmed for all seg-
ments. Note: For a shorter workout, stop exercis-
ing or select a different program before the pro-
gram ends.
Both heart rate programs—As you pedal, the
console will regularly compare your heart rate to
the target heart rate setting for the current seg-
ment. If your heart rate is too far below or above
the target heart rate setting, the resistance of the
pedals will automatically increase or decrease to
bring your heart rate closer to the target heart
rate setting.
The Target Pace guide will prompt you to
increase or decrease your pedaling pace during
the program. When one of the “Too Slow” indica-
tors lights, increase your pace; when the one of
the “Too Fast” indicators lights, decrease your
pace; when the “On Pace” indicator lights, main-
tain your current pace.
Important: The target heart rate settings are
intended only to provide motivation. Your
actual heart rate may be slower than the tar-
get heart rate settings. Make sure to exercise
at a pace that is comfortable for you.
Note: During the program, you can manually over-
ride the resistance setting for the current seg-
ment, if desired, with the 1 Step Resistance but-
tons. However, when the console compares your
heart rate to the target heart rate setting, the
resistance of the pedals may automatically
increase or decrease to bring your heart rate
closer to the target heart rate setting.
If you stop pedaling for several seconds, a tone
will sound and the program will pause. To restart
the program, simply resume pedaling.
Monitor your progress with the matrix, the
Training Zones bar, and the displays.
See step 4 on page 15.
Turn on the fan if desired.
See step 6 on page 16.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 16.
8
7
6
5
4
Current Segment

20
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CDs, the elliptical exerciser must be
connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
20 and 21 for connecting instructions. To use iFIT.com
videocassettes, the elliptical exerciser must be con-
nected to your VCR. See page 22 for connecting
instructions. To use iFIT.com programs directly from
our Web site, the elliptical exerciser must be connect-
ed to your home computer. See page 21 for connect-
ing instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the LINE OUT jack on your CD
player. Plug your headphones into the PHONES
jack.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the splitter. Plug the splitter into
the PHONES jack on your CD player. Plug your
headphones into the other side of the splitter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the adaptor. Plug the adaptor into an
AUDIO OUT jack on your stereo.
B. See the drawing above. Plug one end of the audio
cable into the jack beneath the console. Plug the
other end of the audio cable into the LINE OUT jack
on your stereo. Do not use the adaptor.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
audio cable into the splitter. Plug the splitter into the
PHONES jack on your stereo. Plug your head-
phones into the other side of the splitter.
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable
Head-
phones
A
PHONES
PHONES
Audio
Cable Splitter
Headphones
B
AUDIO OUT
RIGHT
LEFT
Audio
Cable Adaptor
A/B
PHONES
Audio
Cable
C
Splitter
Headphones
