USERʼS MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. NTEVEL81210.0
Serial No.
Write the serial number in the
space above for reference.
www.iconeurope.com
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
UK
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5Q
UK
AUSTRALIA
Call: 1-800-237-173
E-mail:
[email protected]

TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHECHESTPULSESENSOR ..................................................14
HOWTOUSETHEELLIPTICAL .............................................................15
MAINTENANCEANDTROUBLESHOOTING ...................................................24
EXERCISEGUIDELINES ...................................................................26
PARTLIST ..............................................................................27
EXPLODEDDRAWING ....................................................................29
ORDERINGREPLACEMENTPARTS ..................................................BackCover
RECYCLINGINFORMATION.........................................................BackCover
WARNING DECAL PLACEMENT
2
NordicTrack is a registered trademark of ICON IP, Inc.
This drawing shows the
location(s) of the warning
decal(s). If a decal is missing
or illegible, see the front cover
of this manual and request a
free replacement decal. Apply
the decal in the location
shown. Note: The decal(s) may
not be shown at actual size.
(inside the frame covers)

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front
and rear of the elliptical and 2 ft. (0.6 m) on
each side. To protect the floor or carpet from
damage, place a mat under the elliptical.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 350 lbs. (159 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. Keep your back straight while using the
elliptical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack®
E12.0 elliptical. The E 12.0 elliptical provides an
impressive selection of features designed to make
your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Handlebar
Ramp Controls
Ramp
Upper Body Arm
Pedal Disc
Reset/Off
Switch
Access Cover Wheel
Pedal Arm Latch
Latch Button
Power Cord
Pedal
Water Bottle Holder*
Console
Handle
Leveling Foot
Resistance
Controls
Fan
*Water bottle is not included

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
M8 Split
Washer (103)–4
M8 Washer
(95)–14
M6 Washer
(112)–4
Wave Washer
(118)–2
M4 x 16mm
Screw (106)–8
M8 x 16mm Patch
Screw (102)–16
M8x25mm Patch
Screw (121)–2
M8 x 44mm Patch
Screw (55)–6
M6 x 50mm
Patch Screw (62)–4
M10 x 95mm Patch Screw (100)–4

6
1.
Have a second person hold the Folding Frame
(2) to prevent the elliptical from tipping until this
step is completed.
Attach the Rear Stabilizer (4) to the Folding
Frame (2) with two M10 x 95mm Patch Screws
(100).
Next, hold the handle on the Rear Stabilizer (4),
press the Latch Button (67), and unfold the
elliptical so that the Rear Stabilizer is resting on
the floor.
1
2. Orient the Front Stabilizer (3) so that the small
welded tubes are facing away from the Main
Frame (1).
Attach the Front Stabilizer (3) to the Main Frame
(1) with two M10 x 95mm Patch Screws (100).
2
100
Handle
Welded
Tubes
67
3
1
4
2
To make assembly easier, read the
information on page 5 before you begin.
100

7
3. Orient the Upright (5) and the Top Cover (27) as
shown, and slide the Top Cover upward onto
the Upright.
Have a second person hold the Upright (5) and
the Top Cover (27) near the Main Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Wire Harness
(60). Next, pull the upper end of the wire tie
until the Wire Harness is routed completely
through the Upright.
Tip: To prevent the Wire Harness (60) from
falling into the Upright (5), secure the Wire
Harness with the wire tie.
4. Note: For clarity, the Top Cover (27) is not
shown in this step.
Tip: Avoid pinching the Wire Harness (60).
Slide the Upright (5) onto the Main Frame (1).
Attach the Upright (5) with four M8 x 16mm
Patch Screws (102) and four M8 Split Washers
(103); do not tighten the Patch Screws yet.
See the inset drawing. Slide the Top Cover
(27) downward; do not press the Top Cover
onto the Frame Covers (21, 22) yet.
3
Wire Tie
Wire Tie
5
27 60
1
4
5
103
103
102
102
102
22
21
27
Avoid pinching the
Wire Harness (60)
60
1

8
5. Apply a coat of the included grease to the
Upright Axle (48) and to two Wave Washers
(118).
Tip: Avoid damaging the Wire Harness (60).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide a Wave Washer (118)
onto each side of the Upright Axle.
6. Identify the Right and Left Upper Body Legs (6,
7), which are marked with “Right” and “Left”
stickers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the right and left sides of the Upright Axle
(48).
Using two hex keys, tighten an M8 x 16mm
Patch Screw (102) and an M8 Washer (95) into
each end of the Upright Axle (48) at the same
time.
5
Avoid damaging the
Wire Harness (60)
Grease
Grease
5
118
48
60
118
6
95
7
102
95
102
48
6

9
8
8. Locate the Pedal Arm Roller (32) on the Right
Pedal Arm (12). Set the Pedal Arm Roller on the
Ramp (130).
Have a second person hold the Right Pedal
Arm (12) until you complete step 9.
7. Identify the Right Pedal (14) and the Right
Pedal Arm (12), which are marked with “Right”
stickers, and orient them as shown.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with three M8 x 44mm Patch Screws
(55) and three M8 Washers (95); do not
tighten the Patch Screws yet.
Next, tighten two M6 x 50mm Patch Screws
(62) and two Small M6 Washers (112) into the
Right Pedal Arm (12) and the Right Pedal (14).
Then, tighten the three M8 x 44mm Patch
Screws (55).
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.
7
14
12
95
95
55
32
12
112
130
62
Do not use
these holes

10
9
95
113
46
Flat
Side
12
39
Grease
50
121
9. Apply grease to the axle on the right Crank Arm
(39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm
(39).
Attach the Pedal Arm Sleeve (46) with an M8 x
25mm Patch Screw (121), a Large Axle Cover
(113), and an M8 Washer (95).
Next, pull upward on the Latch (50) on the Right
Pedal Arm (12). Press the Right Pedal Arm onto
the Pedal Arm Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat steps 8 and 9 on the other side of
the elliptical.
10
10. Press the Ramp Cover (131) downward onto
the Ramp (130).
131
130

11
11. Identify the Right Link Arm (43), which is
marked with an “R” sticker. Orient the Right Link
Arm as shown.
Apply grease to the axle on the Right Pedal
Arm (12). Slide the wide tube on the Right Link
Arm (43) onto the axle.
Attach the Right Link Arm (43) with an M8 x
16mm Patch Screw (102), a Small Axle Cover
(56), and an M8 Washer (95).
Next, apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle into the Right Upper
Body Leg (6) and the Right Link Arm (43) from
the side shown.
Insert a hex key into the M8 x 16mm Patch
Screw (102) in the Link Arm Axle (114). Using a
second hex key, tighten another M8 x 16mm
Patch Screw (102), a Small Axle Cover (56),
and an M8 Washer (95) into the other end of
the Link Arm Axle.
Repeat this step on the other side of the
elliptical.
11
95
95
56
56
6
114
102
102
Grease
Narrow
Tube
Wide
Tube
12
43
102
Grease
12. Identify the Right Upper Body Arm (8), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right Upper
Body Arm (8) near the Right Upper Body Leg
(6) until you complete this step and step 13.
Locate the wire tie in the right side of the
Upright (5). Tie the wire tie to the Right Grip
Wire (45). Pull the upper end of the wire tie until
the Right Grip Wire is routed through the
Upright.
Tip: To prevent the Right Grip Wire (45) from
falling into the Upright (5), secure the Right
Grip Wire with the wire tie.
12
5
6
45
8
Wire Tie

12
13. Tip: Avoid pinching Right Grip Wire (45).
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x
16mm Patch Screws (102).
Repeat steps 12 and 13 to attach the Left
Upper Body Arm (9) to the Left Upper Body
Leg (7).
9
76
45
8
102
102
Avoid pinching the
Right Grip Wire (45)
13
14. Have a second person hold the Console (33)
near the Upright (5).
Untie and discard the wire ties. Connect the
wires on the Console (33) to the Pulse Wire
(105), the Wire Harness (60), and the Grip
Wires (45, 104). Make sure to connect the
console wire that has a tag to the Grip Wire
that has a tag.
Insert the Pulse Wire (105) upward into the
Console (33). Insert the other wires downward
into the Upright (5).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Upright (5) with four M4 x
16mm Screws (106).
See step 4. Tighten the four M8 x 16mm Patch
Screws (102). Then, slide the Top Cover (27)
downward and press it onto the Frame Covers
(21, 22).
14
33
60
5
45
105
104 106
Avoid pinching
the wires
27

13
16. Attach the Rear Upright Cover (25) around the
Upright (5) by pressing the tabs on the Rear
Upright Cover into the Front Upright Cover (24).
See HOW TO PLUG IN THE POWER CORD
on page 15 and plug the power cord into the
receptacle on the frame of the elliptical exer-
ciser. Then, attach the adapter to the power
cord, if necessary.
24
25
5
16
17. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
15. Attach the Front Upright Cover (24) to the
Upright (5) with four M4 x 16mm Screws (106).
24
106
15
5

14

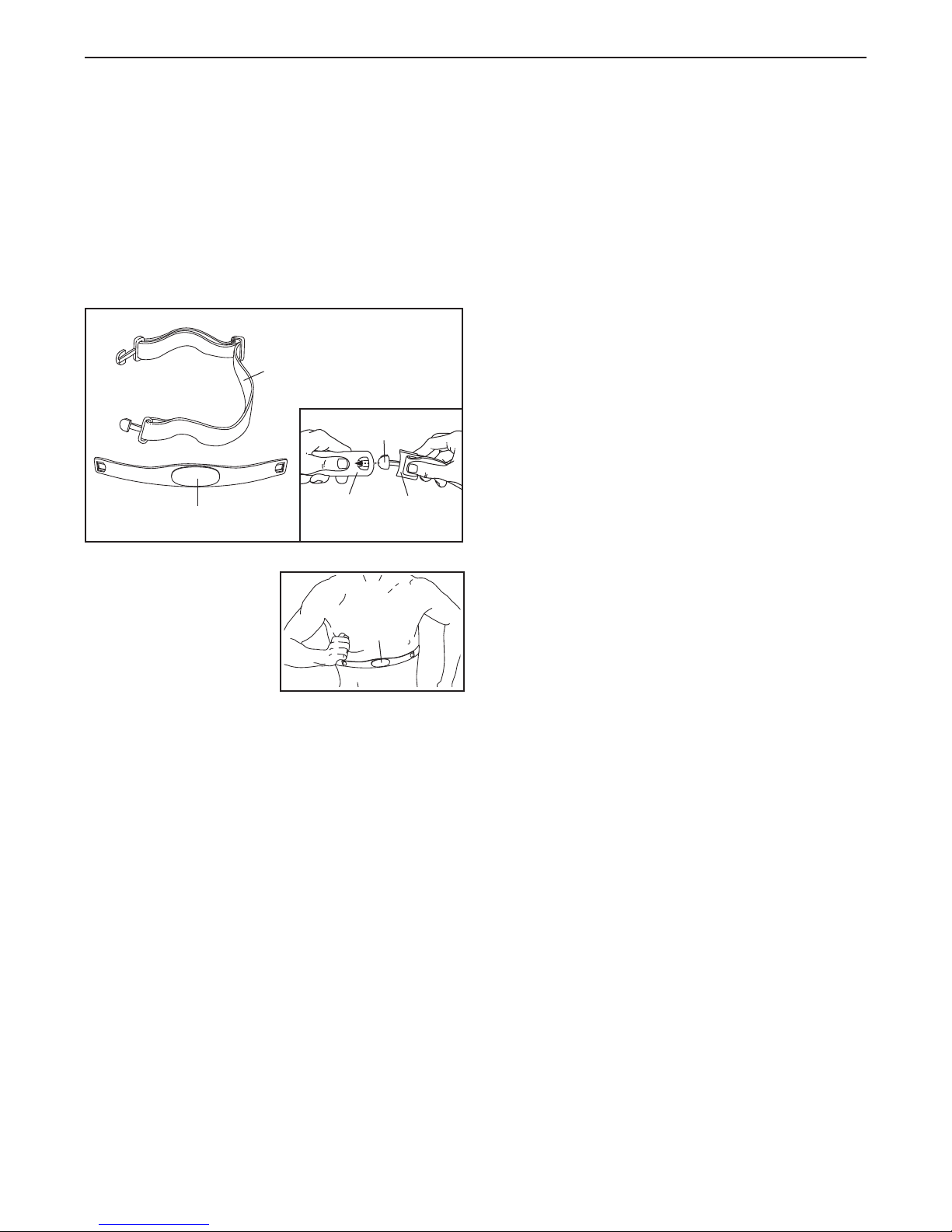

HOW TO PUT ON THE CHEST PULSE SENSOR
The chest pulse sensor has two components: a chest
strap and a sensor unit (see the drawing below). Insert
the tab on one end of the chest strap into one end of
the sensor unit, as shown in the inset drawing. Press
the end of the sensor unit under the buckle on the
chest strap. The tab should be flush with the front of
the sensor unit.
Next, wrap the chest
pulse sensor around
your chest and attach
the other end of the
chest strap to the sen-
sor unit. Adjust the
length of the chest
strap, if necessary. The
chest pulse sensor should be under your clothes, tight
against your skin, and as high under the pectoral mus-
cles or breasts as is comfortable. Make sure that the
logo on the sensor unit is facing forward and is right-
side-up.
Pull the sensor unit away from your body a few inches
and locate the two electrode areas on the inner side
(the electrode areas are covered by shallow ridges).
Using saline solution such as saliva or contact lens
solution, wet both electrode areas. Return the sensor
unit to a position against your chest.
CHEST PULSE SENSOR CARE
• Dry the chest pulse sensor after each use. The
chest pulse sensor is activated when you wet the
electrode areas and put on the chest pulse sensor;
the chest pulse sensor shuts off when it is removed
and the electrode areas are dried. If the chest pulse
sensor is not dried after each use, the battery may
be drained prematurely.
• Store the chest pulse sensor in a warm, dry place.
Do not store the chest pulse sensor in a plastic bag
or other container that may trap moisture.
• Do not expose the chest pulse sensor to direct sun-
light for extended periods of time or to temperatures
above 122° F (50° C) or below 14° F (-10° C).
• Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. Hand wash
and air dry the chest pulse sensor.
CHEST PULSE SENSOR TROUBLESHOOTING
If the chest pulse sensor does not function prop-
erly, try the suggestions below.
• Make sure that you are wearing the chest pulse sen-
sor as described at the left. Note: If the chest pulse
sensor does not function when positioned as
described, move it slightly lower or higher on your
chest.
• Use saline solution such as saliva or contact lens
solution to wet the two electrode areas on the sen-
sor unit. If heart rate readings do not appear until
you begin perspiring, re-wet the electrode areas.
• Position yourself near the console. For the console
to display heart rate readings, the user must be
within armʼs length of the console.
• The chest pulse sensor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the chest pulse sensor can be
affected by magnetic interference caused by high
power lines or other sources. If it is suspected that
this is a problem, try relocating the elliptical.
HOW TO USE THE CHEST PULSE SENSOR
Chest Strap
Sensor Unit
Tab
Buckle
Sensor
Unit
Logo

15
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product is equipped with a power
cord having an equipment-earthing conductor and an
earthing plug. IMPORTANT: If the power cord is
damaged, it must be replaced with a manufacturer-
recommended power cord.
1. Plug the indicated end of the appropriate power
cord into the receptacle on the elliptical.
2. Plug the power
cord into an
appropriate out-
let that is
properly
installed and
earthed in
accordance
with all local
codes and ordi-
nances.
DANGER: Improper connection
of the equipment-earthing conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly earthed. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Receptacle
on Elliptical
Power Cord
Outlet

16
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
When the elliptical is not in use, the frame can be
folded out of the way. First, lift the latch under each
pedal arm, and lift the pedal arms off the pedal arm
sleeves.
Next, raise the pedal arms until they touch the handle-
bars; magnets on the pedal arms will hold the pedal
arms in place. Then, hold the handle and lift the frame
until it locks into a vertical position.
To unfold the elliptical, first hold the handle, press the
latch button, and lower the frame. Next, pull the pedal
arms away from the handlebars.
Then, lift the latches under the pedal arms, and set
the pedal arms on the pedal arm sleeves. Release the
latches, and make sure that the pedal arms are
securely connected to the pedal arm sleeves.
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, first fold it as described at the
left. Next, stand in front of the elliptical, hold the
upright, and place one foot against one of the wheels.
Pull the upright until the elliptical rolls on the wheels.
Carefully move the elliptical to the desired position,
and then lower it to the floor.
Latches
Handle
Sleeve
Pedal Arms
Latch Button
Handlebars
Pull on
the upright
Place
your foot
here

17
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms or
the handlebars and step onto the pedal that is in the
lowest position. Next, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow; however, for
variety you can turn the crank arms in the oppo-
site direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
afree wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly
on your floor
during use,
turn one or
both of the lev-
eling feet
beneath the
rear stabilizer
until the rock-
ing motion is
eliminated.
If the frame of the elliptical flexes during use, turn the
center leveling foot until the flexing motion is eliminated.
Leveling
Feet
Upper Body Arms
Handlebars
Pedals
Crank Arm

18
CONSOLE
DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the
incline of the ramp with the touch of a button. While
you exercise, the console will display continuous exer-
cise feedback. You can also measure your heart rate
using the handgrip pulse sensor or the included chest
pulse sensor.
The console also offers twenty-five preset workouts—
fifteen target toning workouts and ten performance
workouts. Each workout automatically changes the
resistance of the pedals and the incline of the ramp
and prompts you to vary your pedaling pace as it
guides you through an effective workout.
The console also features an iFit training mode that
allows your console to communicate with your wire-
less network through an optional iFit Live module.
With the iFit Live mode, you can download personal-
ized workouts, create your own workouts, track your
workout results, and access many other features. See
www.iFit.com for complete information.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 19. To use the
manual mode, see page 19. To use a preset work-
out, see page 21. To use the iFit training mode, see
page 23. To use the sound system, see page 23. To
use the information mode, see page 23.
Note: If there is a sheet of plastic on the display,
remove the plastic.

HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
15). Next, locate the
reset/off switch on the
frame near the power cord.
Make sure that the reset/off
switch is in the reset position.
The display will then light and the console will be
ready for use.
Note: When you turn on the power for the first
time, the ramp will calibrate automatically. The
ramp will move upward and downward as it calibrates.
When the ramp stops moving, the ramp is calibrated.
IMPORTANT: If the ramp does not calibrate auto-
matically, see HOW TO CALIBRATE THE RAMP on
page 24 and manually calibrate the ramp.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER above.
2. Select the manual mode.
Each time you turn on the console, the main menu
will appear.
To select the manual
mode, press the
Increase and Decrease
buttons next to the
Enter button and high-
light START. Then,
press the Enter button.
If you have selected a workout or the iFit Training
mode, press the Menu button to return to the main
menu.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing one of the numbered 1 Step
Resistance buttons or by pressing the 1 Step
Resistance Increase and Decrease buttons
located on the console or on the right upper body
arm.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press one of the numbered 1 Step Power Ramp
buttons or press the 1 Step Power Ramp Increase
and Decrease buttons located on the console or
on the left upper body arm.
Note: After you press the buttons, it will take a
moment for the ramp to reach the selected incline
level.
4. Follow your progress with the display.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown. Press the Display
button repeatedly to select the desired display
mode.
The display can show the following workout
information:
Calories—This display mode will show the
approximate number of calories you have burned.
Profile—When a workout is selected, this display
mode will show a profile of the resistance levels
for the workout.
Pulse—This display mode will show your heart
rate when you use the handgrip pulse sensor or
the included chest pulse sensor (see step 5 on
page 20).
Ramp—This display mode will show the incline
level of the ramp for a few seconds each time the
ramp incline changes.
19
Reset
Position

20
Resistance—This display mode will show the
resistance level of the pedals for a few seconds
each time the resistance level changes.
RPM—This display mode will show your pedaling
pace, in revolutions per minute (rpm).
Strides—This display mode will show the total
number of strides you have pedaled.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, the display mode will show
the time remaining in the workout instead of the
elapsed time.
Change the volume level of the console by press-
ing the Volume Increase and Decrease buttons.
5. Measure your heart rate if desired.
To use the included chest pulse sensor, see page
14. To use the handgrip pulse sensor, follow the
instructions below. IMPORTANT: If you wear the
chest pulse sensor and hold the handgrip
pulse sensor at the same time, the console will
not display your heart rate accurately.
If there are sheets
of plastic on the
metal contacts on
the handgrip pulse
sensor, remove the
plastic. To measure
your heart rate, hold
the handgrip pulse
sensor for approxi-
mately ten seconds
with your palms rest-
ing against the metal contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will
appear in the display. For the most accurate heart
rate reading, hold the contacts for at least 15 sec-
onds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
The fan has high and low speed settings. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan.
7. When you are finished exercising, unplug the
power cord.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
When you are finished exercising, switch the
reset/off switch to the off position and unplug the
power cord. IMPORTANT: If you do not do this,
the electrical components on the elliptical may
wear prematurely.
Contacts
