NordicTrack Commercial 14.9 User manual

USER’S MANUAL
Serial Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. NTEL71420-INT.0
Serial No.
Write the serial number in the space
above for reference.
iconeurope.com
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness, Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

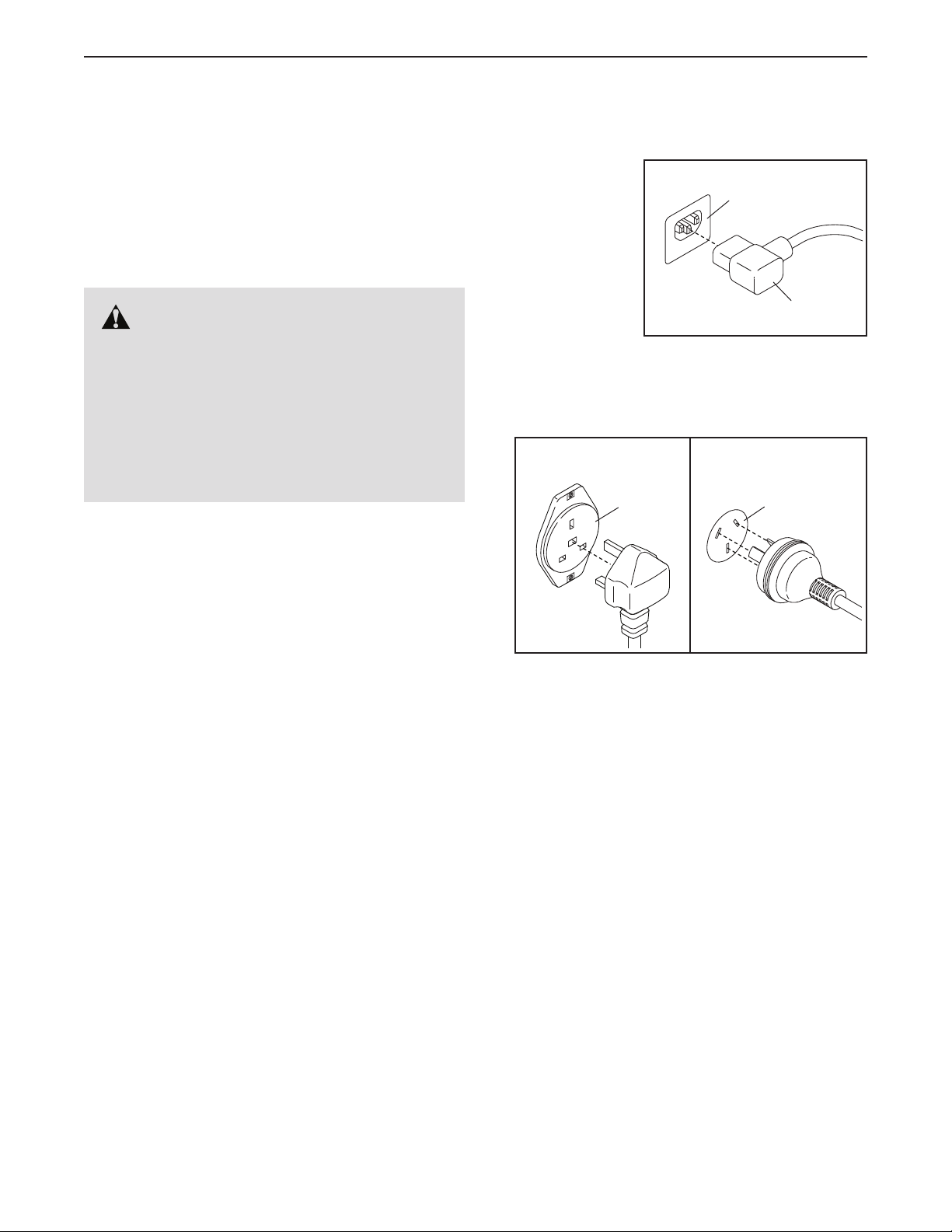

HOW TO PLUG IN THE POWER CORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. Google Maps is a trademark
of Google LLC. The Bluetooth®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are
used under license. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi
Alliance.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.
9. When connecting the power cord, plug the
power cord into a grounded circuit.
10. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
11. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
12. DANGER: Always unplug the power
cord and switch the power switch to the off
position when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should be
performed by an authorized service repre-
sentative only.
13. Keep children under age 16 and pets away
from the elliptical at all times.
14. The elliptical should not be used by persons
weighing more than 350 lbs. (159 kg).
15. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
16. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical. Before mounting or dismounting,
bring the pedals to a stop with the pedal
on the mounting or dismounting side in its
lowest position.

4
SAVE THESE INSTRUCTIONS
17. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
18. Keep your back straight while using the
elliptical; do not arch your back.
19. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

5
Thank you for selecting the revolutionary
NORDICTRACK®COMMERCIAL 14.9 elliptical. The
COMMERCIAL 14.9 elliptical provides an impressive
selection of features designed to make your workouts
at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with

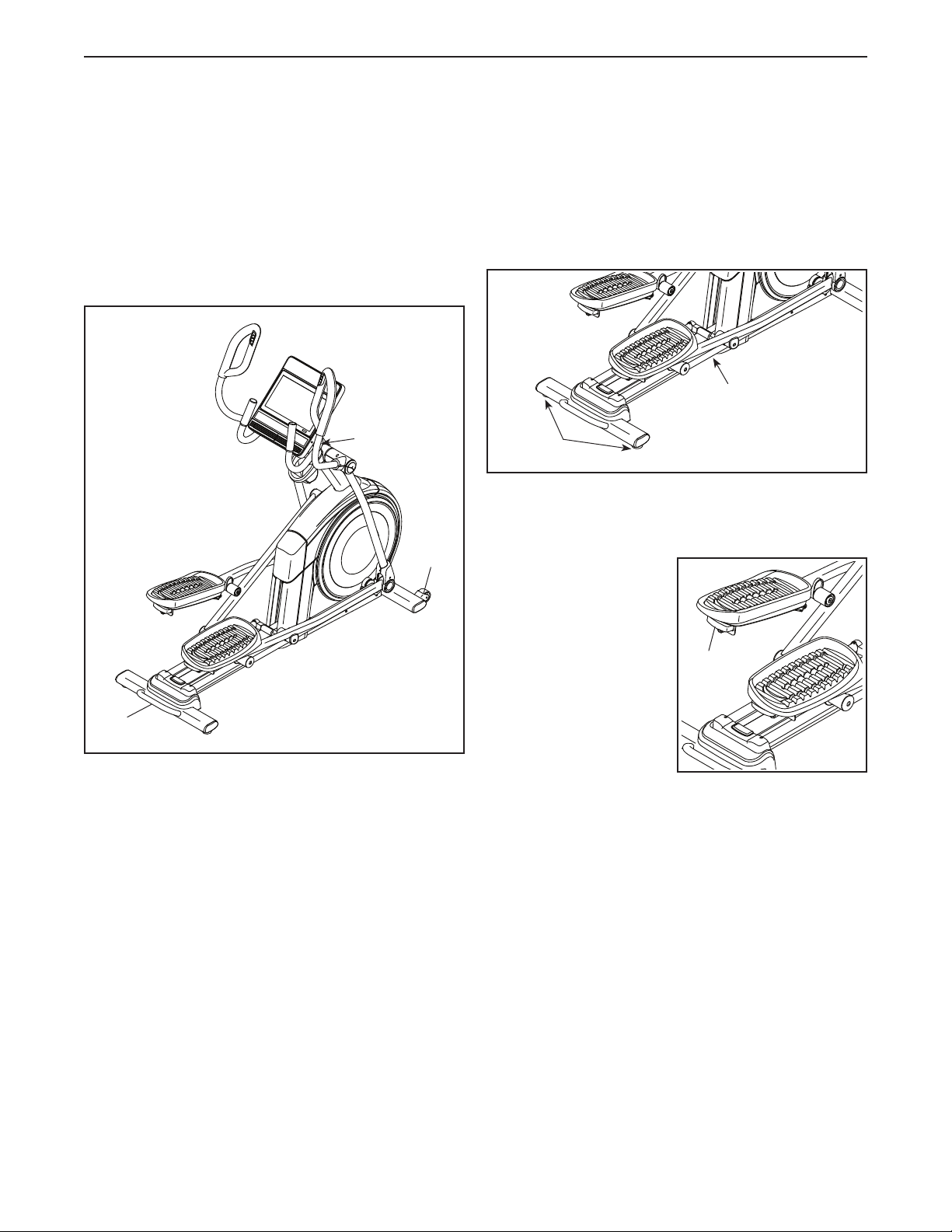

the parts that are labeled in the drawing below.
Accessory Tray
Handlebar
Upper Body Arm
Ramp Control
Pedal
Pedal Handle
Roller
Handle
Ramp
Console
Resistance Control
BEFORE YOU BEGIN
Wheel
Leveling Foot
Length: 5 ft. 7 in. (170 cm)
Width: 2 ft. 4 in. (74 cm)
Weight: 213 lbs. (97 kg)

6
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M10 x 115mm Screw
(104)–4
M8 x 13mm
Screw (82)–4
M8 x 45mm Bolt
(96)–4
M8 x 20mm Flat
Head Screw (120)–2
M8 x 20mm
Screw (95)–2
M8 Locknut
(102)–4
M4 x 16mm
Screw (101)–22
M8 x 22mm
Washer (129)–2
M8 x 28mm
Washer (97)–2
M10 x 25mm
Screw (92)–2

7

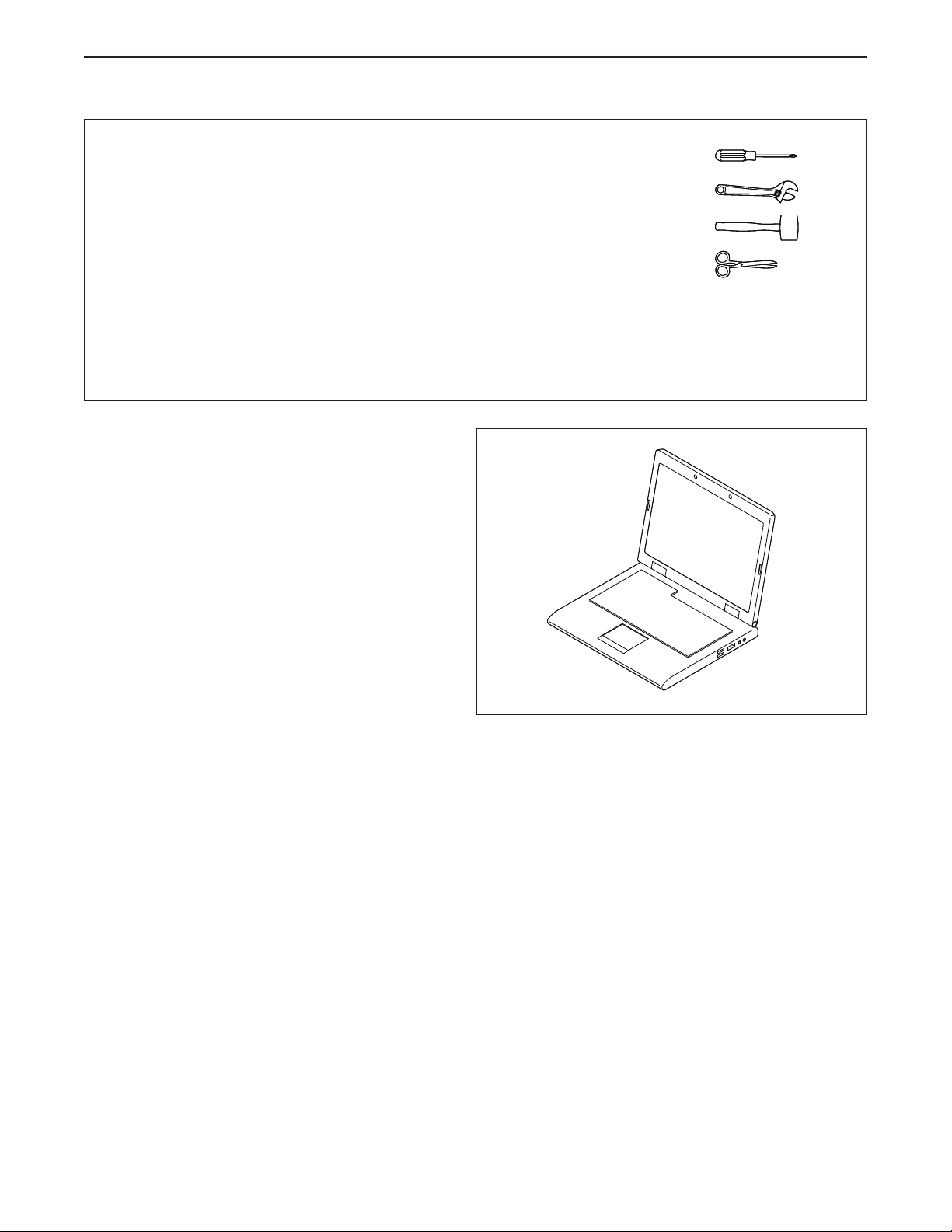

• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
two adjustable wrenches
one rubber mallet
one pair of scissors
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)

8
2. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping while you
complete this step.
If there are shipping supports attached to the
rear of the Frame (1), remove the screws from
the shipping supports, and discard the screws
and the shipping supports.

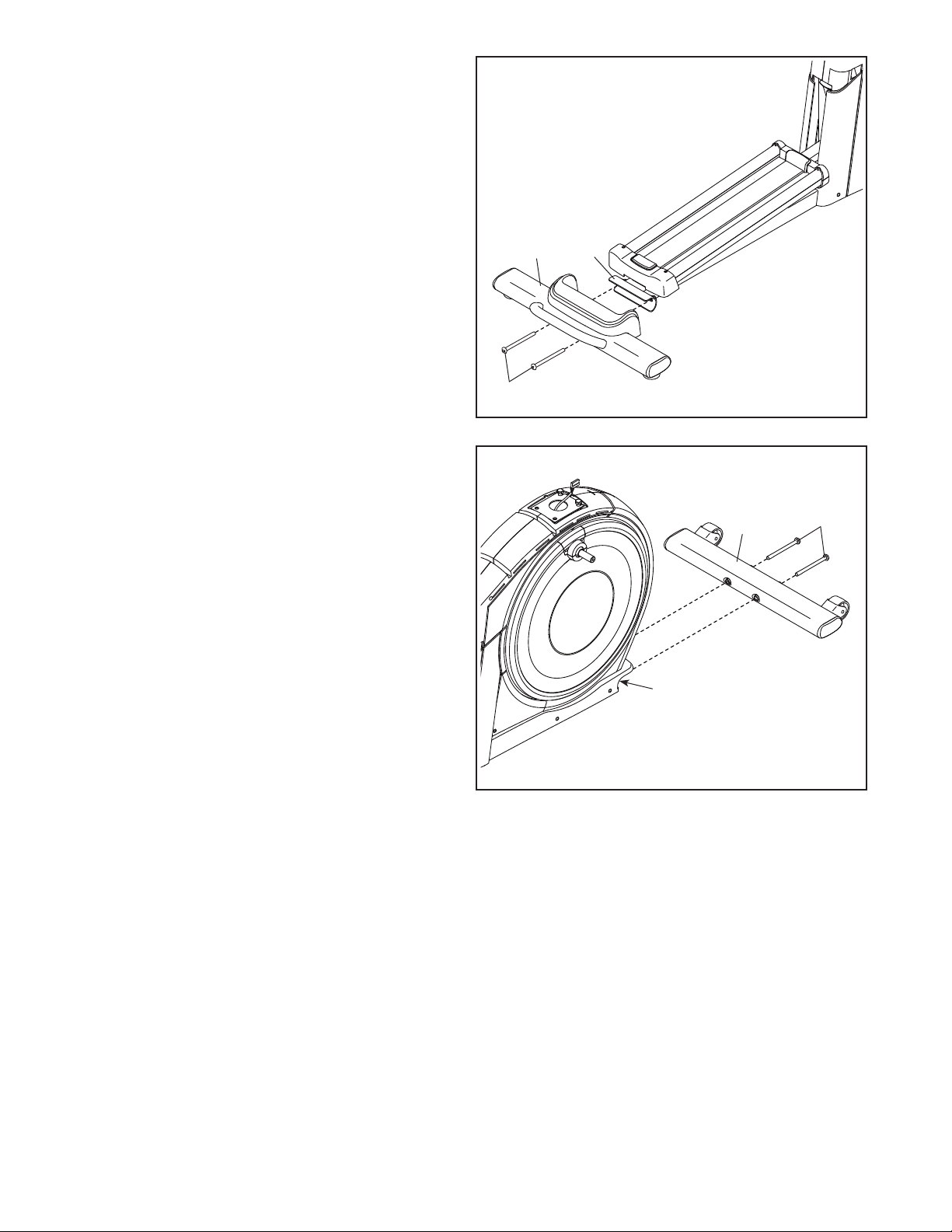

Next, attach the Rear Stabilizer (2) to the Frame
(1) with two M10 x 115mm Screws (104).
Then, remove the packing materials from under
the rear of the Frame (1).
2
1
2
104
3
6
3. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
If there are shipping supports attached to the
front of the Frame (1), remove the screws from
the shipping supports, and discard the screws
and the shipping supports.
Next, attach the Front Stabilizer (6) to the Frame
(1) with two M10 x 115mm Screws (104).
Then, remove the packing materials from under
the front of the Frame (1).
1
104

9
4
77
59
45
95
4. Identify the Right Roller Arm (59), orient it as
shown, and slide it onto the right Crank Arm (20).
Attach the Right Roller Arm (59) with an
M8 x 20mm Screw (95) and a Crank Cover (77).
Repeat this step for the Left Roller Arm (45).
20
5
4
110
A1
A
5. Orient the Upright (4) as shown. Have a second
person hold the Upright near the Frame (1).
Next, locate the wire tie (A) in the lower end of
the Upright (4). Tie the wire tie to the Main Wire
(110) as shown. Then, pull the upper end of the
wire tie until the Main Wire is routed through the
Upright.
Tip: To prevent the Main Wire (110) from
falling into the Upright (4), secure the Main
Wire with the wire tie (A).

10
Avoid pinching the
Main Wire (110)
6
4
1
92
92
110
6. Tip: Avoid pinching the Main Wire (110). Have
a second person hold the Upright (4) on the
Frame (1).
Tip: Two M10 x 25mm Screws (92) are
preattached to the Frame (1).
Attach the Upright (4) with two additional
M10 x 25mm Screws (92); do not fully tighten
the Screws yet.
7

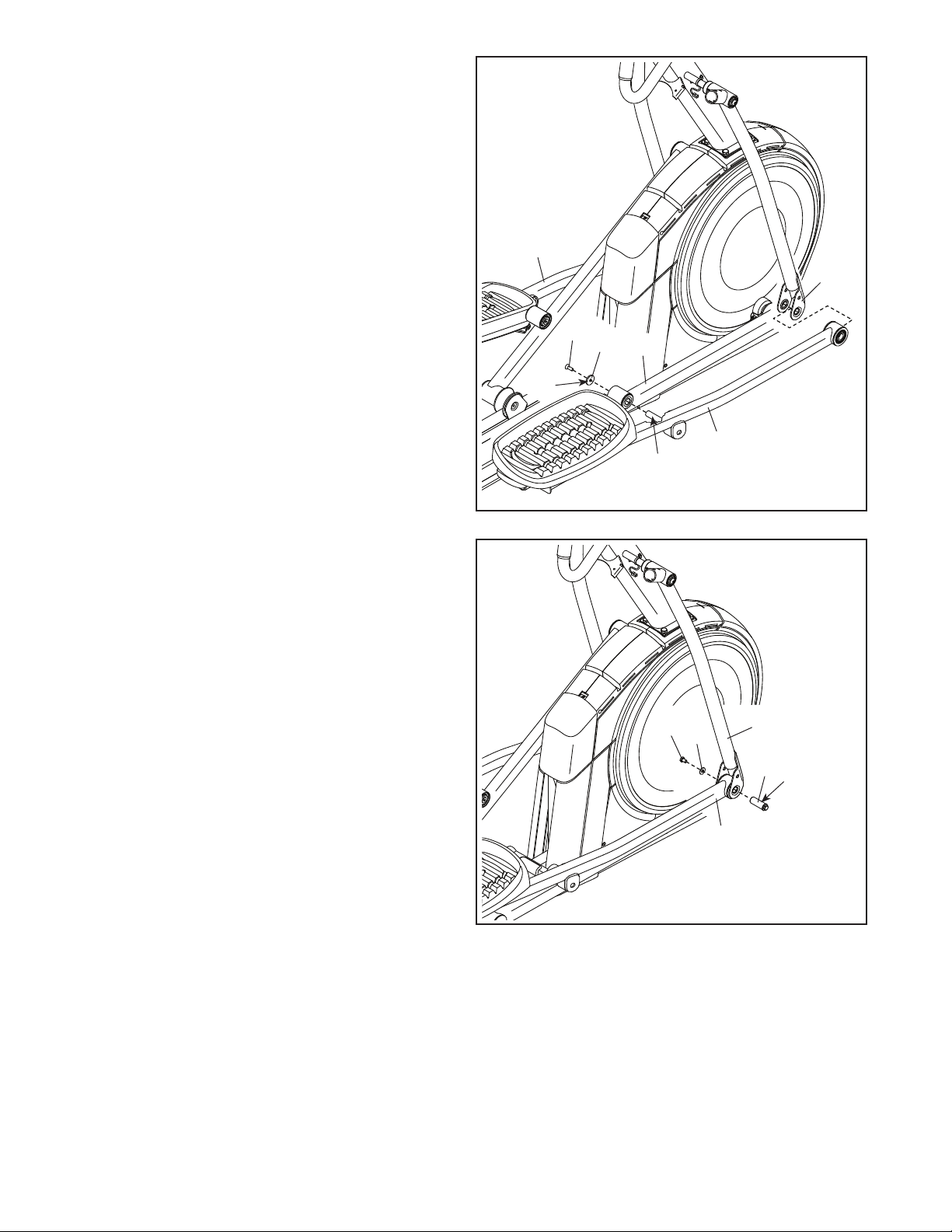

7. Apply grease to the axle on the right side of the
Upright (4).
Next, slide a Pivot Spacer (54) onto the right
side of the Upright (4).
Then, identify the Right Upper Body Leg (60),
orient it as shown, and slide it onto the right side
of the Upright (4).
Attach the Right Upper Body Leg (60) with an
M8 x 13mm Screw (82) and an M8 x 28mm
Washer (97).
Repeat this step for the Left Upper Body
Leg (46).
46
4Grease
60
54
82
97

11
8
60
8. Orient the Right Pedal Arm (58) as shown, and
apply grease to the axle.
Insert the Right Pedal Arm (58) into the Right
Upper Body Leg (60) and into the Right Roller
Arm (59).
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 20mm Flat Head
Screw (120) and a Retainer (55); make sure
that the flat side (B) of the Retainer is facing
the Right Roller Arm.
Repeat this step for the Left Pedal Arm (44).
Grease
55
B
58
44
120
59
9
9. Apply grease to one of the Pedal Arm Axles (64).
Insert the Pedal Arm Axle (64) into the Right
Upper Body Leg (60) and the Right Pedal Arm
(58) from the direction shown.
Next, slide an M8 x 22mm Washer (129) onto an
M8 x 13mm Screw (82), and tighten the Screw a
few turns into the Pedal Arm Axle (64).
Then, tighten the Pedal Arm Axle (64) and the
M8 x 13mm Screw (82) at the same time.
Repeat this step on the other side of the
elliptical.
82 129 60
64 Grease
58

12
10
Avoid pinching
the wires
7
101
4
110
101
111, 146
10. See step 6. Tighten the four M10 x 25mm
Screws (92).
Next, untie and discard the wire tie on the Main
Wire (110).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Main Wire (110) and to the
Extension Wires (111, 146). Tip: The wire
connectors should slide together easily and
snap into place with an audible click. If they
do not, turn one connector and try again.
Insert the excess wire into the Upright (4).
Tip: Avoid pinching the wires. Using the
holes (C) shown in the inset drawing, attach
the Console (7) to the Upright (4) with four
M4 x 16mm Screws (101); start all the Screws,
and then tighten them.
92
92
C
C
7
11

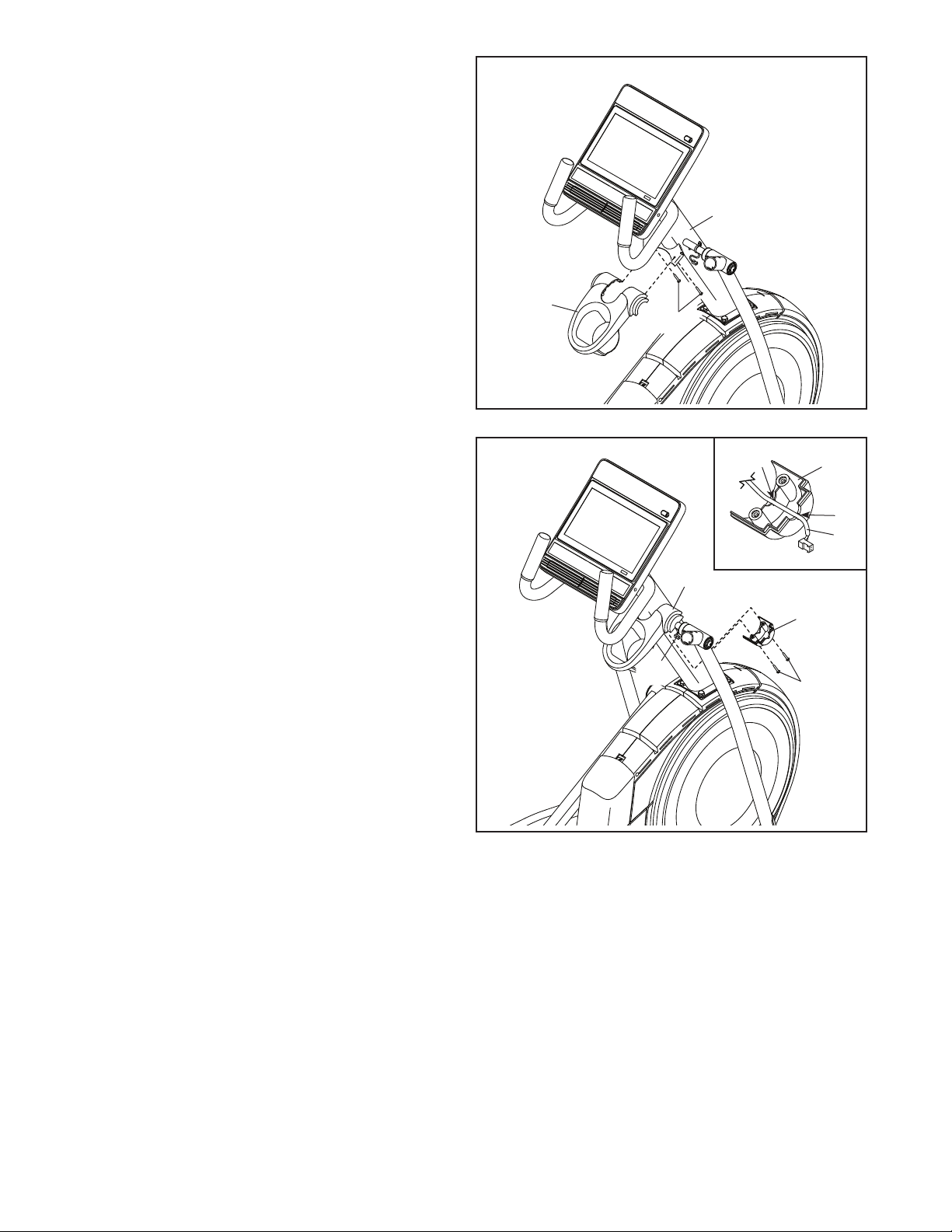

11. Orient the Rear Console Cover (80) as shown,
and attach it to the Upright (4) with two
M4 x 16mm Screws (101).
Then, orient the Front Console Cover (79) as
shown, and attach it to the Rear Console Cover
(80) with two M4 x 16mm Screws (101).
79
4
80
101 101
101

13
12
12. Orient the Accessory Tray (37) as shown, and
attach it to the Upright (4) with two M4 x 16mm
Screws (101).
4
101
37
13
101
81
37
13. Make sure that the Right Control Wire (D) is
in the location shown.
Orient a Lower Tray Cover (81) as shown,
and hold it near the Right Control Wire (D).
Then, insert the Right Control Wire into the
notches (E) in the Lower Tray Cover (see the
inset drawing).
Tip: Avoid pinching the Right Control
Wire (D). Attach the Lower Tray Cover (81) to
the right side of the Accessory Tray (37) with two
M4 x 16mm Screws (101).
Repeat this step on the other side of the
elliptical.
Avoid
pinching
the Right
Control
Wire (D)
D
E
D
D81

14
75
4
117
101
73, 74

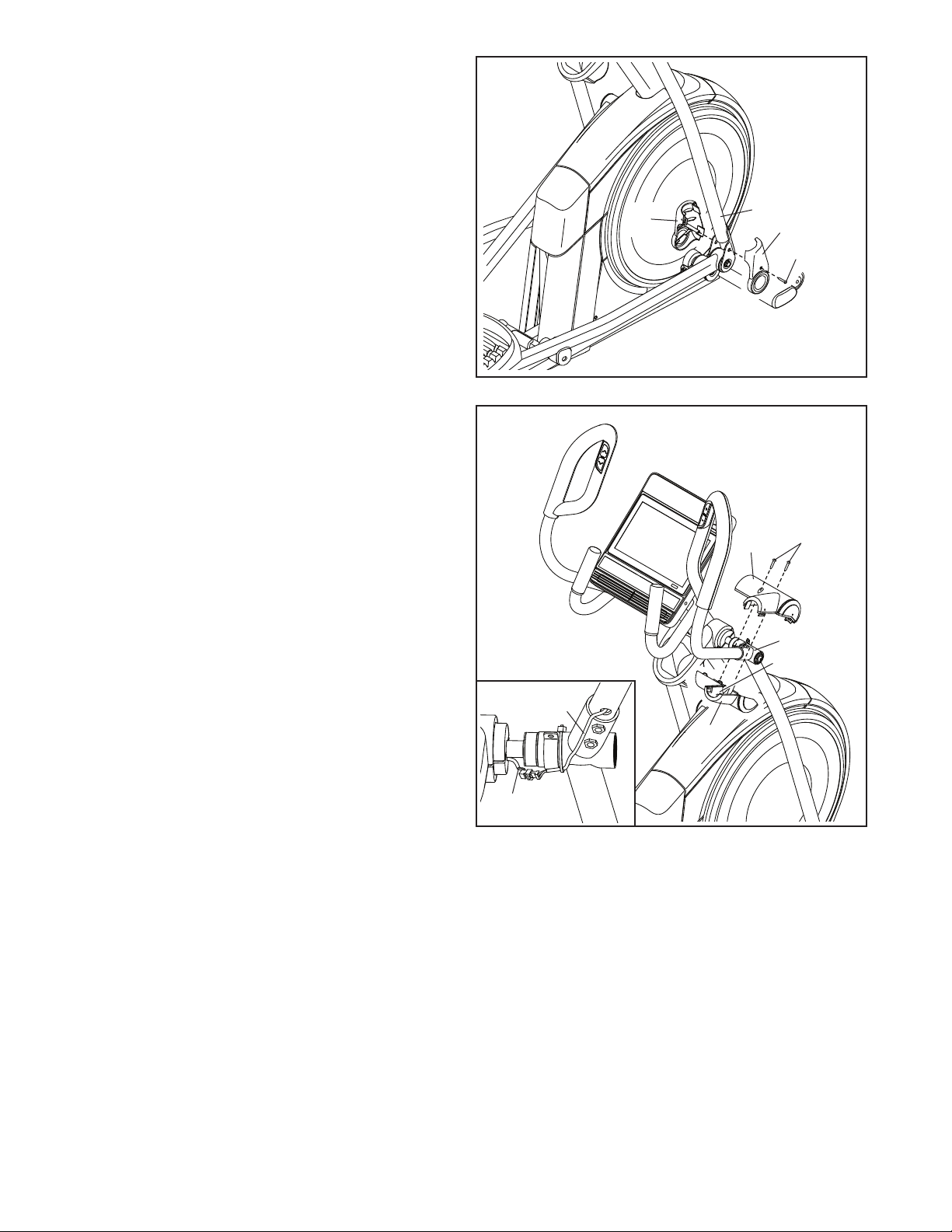

15. Orient the Front Shield Cover (117) and the
Center Shield Cover (75) around the Upright (4)
as shown. Attach them to each other with two
M4 x 16mm Screws (101).
Tip: Avoid pinching the wires. Press the Front
Shield Cover (117) and the Center Shield Cover
(75) onto the Left and Right Shields (73, 74).
15
Avoid pinching
the wires
14
14. Identify the Right Upper Body Arm (61), orient it
as shown, and hold it near the Right Upper Body
Leg (60).
See the left inset drawing. Insert the Right
Extension Wire (146) into the Right Upper Body
Leg (60) and route it out of the indicated hole (F).
Tip: Avoid pinching the Right Extension Wire
(146). Insert the Right Upper Body Arm (61) into
the Right Upper Body Leg (60). Attach the Right
Upper Body Arm with two M8 x 45mm Bolts (96)
and two M8 Locknuts (102); make sure that the
Locknuts are in the hexagonal holes (G).
See the right inset drawing. Connect the Right
Extension Wire (146) to the Right Control Wire
(D), and insert the excess wire into the Right
Upper Body Arm (61). Tip: The wire connec-
tors should slide together easily and snap
into place with an audible click. If they do
not, turn one connector and try again. Next,
orient the Wires exactly as shown, and attach
a zip tie (148) around the Right Upper Body
Leg (60) in the location shown. Then, cut off the
excess zip tie.
Repeat this step for the Left Upper Body
Arm (47).
60
61
47
96
102G
Avoid pinching
the wires
F
146
60
146
D146
148
61
60

15
17
65
60
101
66
17. See the inset drawing. Make sure that
the Right Control Wire (D) and the Right
Extension Wire (146) are in the exact
positions shown.
Tip: Avoid pinching the wires. Orient the Right
Arm Front and Rear Covers (65, 66) around the
Right Upper Body Leg (60) as shown, and attach
them with two M4 x 16mm Screws (101). Make
sure to place the Extension Wire (146) in
the indicated area (H) of the Right Arm Rear
Cover.
Repeat this step on the other side of the
elliptical.
16. Identify the Right Leg Inner Cover (83), orient it
as shown, and insert it through the Right Upper
Body Leg (60).
Next, identify the Right Leg Outer Cover (69),
orient it as shown, and press it onto the Right
Leg Inner Cover (83).
Attach the Right Leg Outer and Inner Covers
(69, 83) to each other with an M4 x 16mm
Screw (101).
Repeat this step on the other side of the
elliptical.
60
101
69
16
83
18. Make sure that all parts are properly tightened. Extra parts may be included. Place a mat beneath the
elliptical to protect the floor.
Avoid pinching
the wires
D
146
H

16
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should
malfunction or break down, earthing provides a path of
least resistance for electric current to reduce the risk
of electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.
1. Plug the
indicated end
of the power
cord (A) into
the socket (B)
on the frame.
2. Plug the power cord into an appropriate outlet (C)
that is properly installed and earthed in accordance
with all local codes and ordinances.
B
A
C
UK Australia
C
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.

17
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright (A), and place one foot against one
of the wheels (B). Next, pull on the upright and have a
second person lift the handle (C) until the elliptical will
roll on the wheels. Carefully move the elliptical to the
desired location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet (D) beneath
the rear stabilizer or turn the leveling foot (E) under
the center of the frame until the rocking motion is
eliminated.
HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal can be
adjusted to several
positions. To adjust
each pedal, simply
pull the pedal handle
(F) outward, move the
pedal to the desired
position, and then
release the pedal
handle into an adjust-
ment hole beneath the
pedal. Make sure to
adjust both pedals to
the same position.
A
C
B
D
E
F
HOW TO USE THE ELLIPTICAL

18
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars (G) or the
upper body arms (H) and step onto the pedal (I) that is
in the lower position. Then, step onto the other pedal.
Push the pedals until they begin to move with a con-
tinuous motion. Note: The pedals can turn in either
direction. It is recommended that you turn the ped-
als in the direction shown by the arrow; however,
for variety, you can turn the pedals in the opposite
direction.
To dismount the elliptical, wait until the pedals (I) come
to a complete stop. Note: The elliptical does not
have a free wheel; the pedals will continue to move
until the flywheel stops. When the pedals are station-
ary, step off the higher pedal first. Then, step off the
lower pedal.
THE OPTIONAL TABLET HOLDER
The optional tablet
holder (J) will hold
your tablet securely
in place and enable
you to use your tablet
while you exercise. The
optional tablet holder is
designed for use with
most full-size tablets.
To purchase a tablet
holder, please see
the front cover of this
manual.
G
H
I
J

19
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
resistance of the pedals and the incline of the ramp as
it guides you through an effective exercise session.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button.
While you exercise, the console will display continuous
exercise feedback. You can even measure your heart
rate using a compatible heart rate monitor.
You can also listen to your favorite workout music or
audio books with the console sound system while you
exercise.
To turn on the power, see page 20. To learn how
to use the touch screen, see page 20. To set up
the console, see page 21.
HOW TO USE THE CONSOLE
CONSOLE DIAGRAM

20
HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console or other
electrical components.

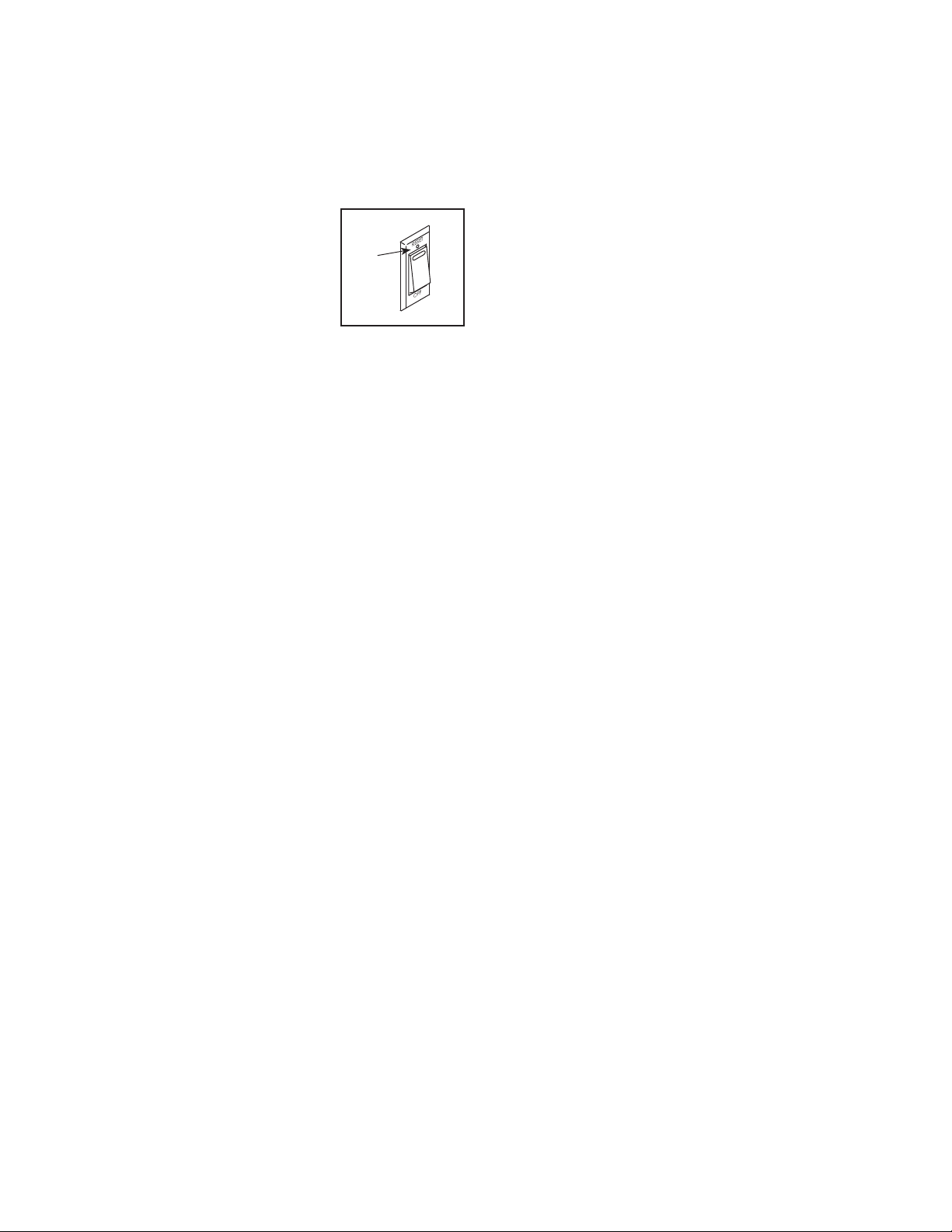

Plug in the power cord (see
HOW TO PLUG IN THE POWER
CORD on page 16). Next,
locate the power switch on the
frame near the power cord.
Press the power switch to the
reset position (A).
The console will then turn on and be ready for use.
Note: When you turn on the power for the first time,
the incline system may calibrate automatically. The
ramp will move upward and downward as it calibrates.
When the ramp stops moving, the incline system is
calibrated.
IMPORTANT: If the incline system does not
calibrate automatically, see step 6 on page 21
and manually calibrate the incline system.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you use the
touch screen:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout.
• To type information into a text box, first touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch ?123. To view
more characters, touch ~[<. Touch ?123 again to
return to the number keyboard. To return to the letter
keyboard, touch ABC. To use a capital character,
touch the shift button (upward-facing arrow symbol).
To use multiple capital characters, touch the shift
button again. To return to the lowercase keyboard,
touch the shift button a third time. To clear the last
character, touch the clear button (backward-facing
arrow with an X symbol).
A
