NordicTrack Freestrider 35 S Elliptical User manual

Model No. NTSR01909.0
Serial No.
Write the serial number in the space
above for reference.
USERʼS MANUA
Serial
Number
Decal
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
www.nordictrack.com
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. f you have questions,
or if parts are damaged or missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CA TO -FREE:
1-888-825-2588
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com

2
TAB E OF CONTENTS
WARNNGDECALPLACEMENT ..............................................................2
MPORTANTPRECAUTONS ................................................................3
BEFOREYOUBEGN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHECHESTPULSESENSOR...................................................11
HOWTOUSETHEELLPTCALSTRDER.....................................................12
MANTENANCEANDTROUBLESHOOTNG ...................................................20
EXERCSEGUDELNES ...................................................................21
PARTLST ..............................................................................23
EXPLODEDDRAWNG ....................................................................25
ORDERNGREPLACEMENTPARTS ..................................................BackCover
LMTEDWARRANTY ..............................................................BackCover
NordicTrack is a registered trademark of CON P, nc.

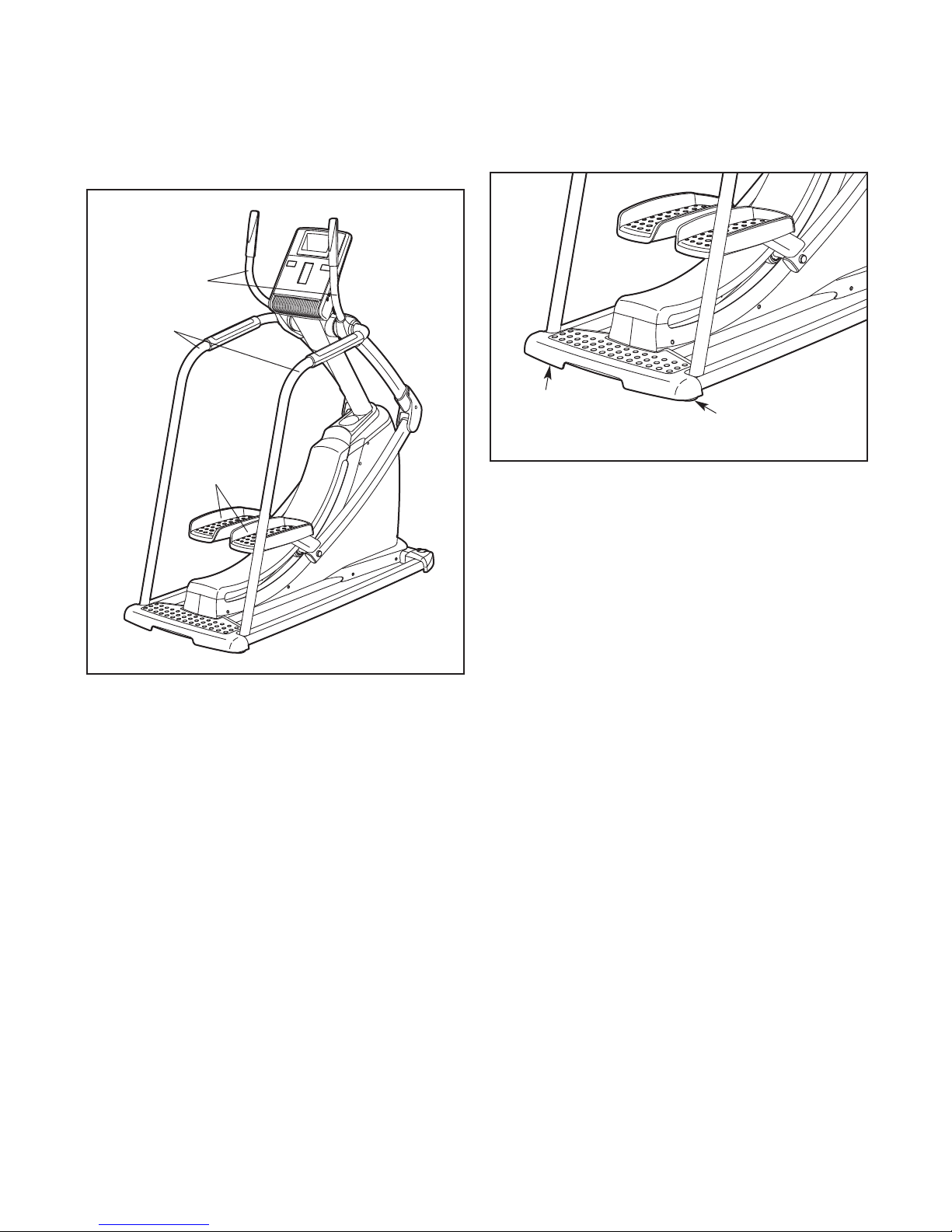

WARNING DECA P ACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical strider before using your elliptical
strider. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical strider are ade-
quately informed of all precautions.
3. The elliptical strider is intended for home
use only. Do not use the elliptical strider in a
commercial, rental, or institutional setting.
4. Keep the elliptical strider indoors, away from
moisture and dust. Place the elliptical strider
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is at least 3 ft. (1 m) of clearance in the
front and rear of your elliptical strider and 2
ft. (0.6 m) on each side.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from the elliptical strider at all times.
7. The elliptical strider should not be used by
persons weighing more than 300 lbs.
(136 kg).
8. Wear appropriate exercise clothes while
using the elliptical strider. Always wear ath-
letic shoes for foot protection while exercis-
ing.
9. Hold the handlebars or the handrails when
mounting, dismounting, or using the ellipti-
cal strider.
10. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
11. Keep your back straight while using the
elliptical strider; do not arch your back.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. When you stop exercising, allow the pedals
to slowly come to a stop.
14. Use the elliptical strider only as described in
this manual.

4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary
NordicTrack®FREESTR DER 35 S elliptical strider.
The FREESTR DER 35 Selliptical strider provides a
wide array of features designed to make your work-
outs more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical strider. f you have questions
after reading this manual, see the front cover of this
manual. To help us assist you, note the product num-
ber and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

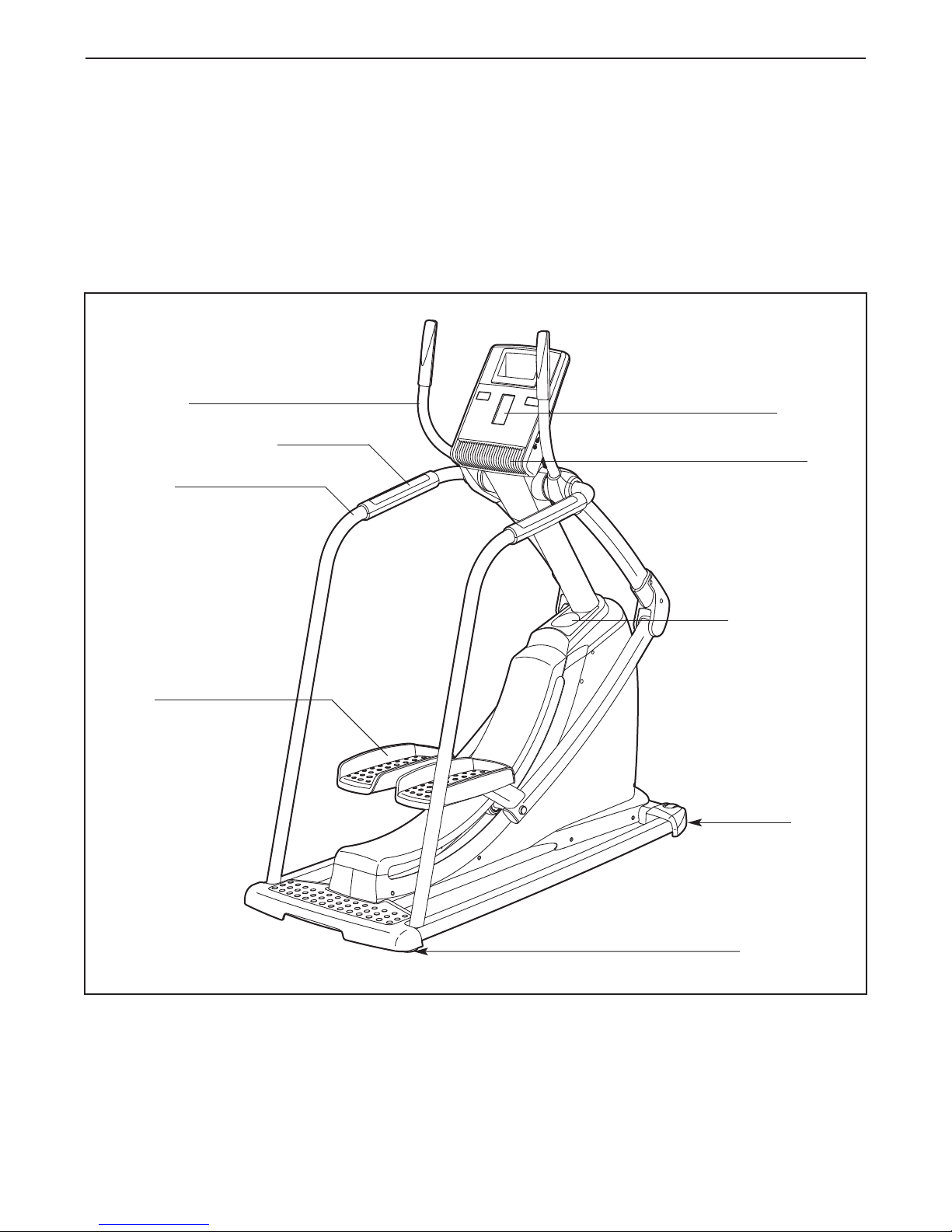

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handrail
Wheel
Pedal
Console
Accessory Tray
Leveling Foot
Handlebar
Handgrip Pulse Sensor
Fan

5
ASSEMB Y
Assembly requires two persons. Place all parts of the elliptical strider in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver .
As you assemble the elliptical strider, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART L ST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
3/8" x 1" Patch
Screw (122)–4
3/8" x 3/4" Patch
Screw (123)–2
3/8" x 3" Screw
(124)–2
1/4" x 3/4" Patch
Screw (127)–4
M10 Split
Washer (128)–2
#8 x 3/4"
Screw (86)–12
#8 x 1" Tek
Screw (126)–8
#8 x 35mm
Screw (125)–1

6
1.
IMPORTANT: Do not remove the foam block
(not shown) located under the pedals until
you have completed step 2.
dentify the Shield Cap (5) and the Upright (26)
and orient them as shown. Slide the Shield Cap
upward around the Upright.
While another person holds the Upright (26)
near the Frame (1), locate the wire ties in the
Upright.
See the inset drawing. Tie the lower end of a
wire tie to the end of the Wire Harness (77).
Pull the other end of the wire tie upward out of
the top of the Upright (26).
Next, tie the lower end of the other wire tie to
the end of the Power Cable (81). Pull the other
end of the wire tie upward out of the top of the
Upright (26).
Then, untie and discard the wire ties.
1
81
5
1
Wire
Ties
77
26
77
81
Wire
Ties
2. Tip: Avoid pinching the wires. Attach the
Upright (26) to the Frame (1) with four 3/8" x 1"
Patch Screws (122). Note: Two of the Patch
Screws may be preattached to the Frame. Tip:
Start all the Patch Screws before tightening
any of them.
Remove and discard the foam block (not
shown) located under the pedals.
2
122
122
1
26
Avoid pinching
the wires
To make assembly easier, read the
information on page 5 before you begin.

7
3. Slide the Shield Cap (5) downward over the
Right and Left Shields (6, 7).
Attach the Shield Cap (5) with a #8 x 35mm
Screw (125) and two #8 x 3/4" Screws (86).
Tip: Start all the Screws before tightening
any of them.
3
86
86
6
125
5
7
4. Orient the Accessory Tray (18) as shown. Press
the Accessory Tray into the Shield Cap (5). 4
5
18

8
5. dentify the Right Handrail (69), which is marked
with a “Right” sticker.
While another person holds the Right Handrail
(69) near the Upright (26), connect the right
Pulse Wire (78) to the right Sensor Wire (79).
nsert the excess wire into the Right Handrail
(69). Then, slide the Right Handrail onto the
Upright (26).
Tip: Avoid pinching the wires. Attach the
Right Handrail (69) with a 3/8" x 3/4" Patch
Screw (123) and an M10 Split Washer (128).
Do not tighten the Patch Screw yet.
Repeat this step for the eft Handrail (70).
5
69
128
123
79
26
70
78
30
6. IMPORTANT: To prevent damage, do not
allow the elliptical strider to tip to either side
during this step.
While another person lifts the rear of the Frame
(1) in the location shown by the arrow, attach
each Handrail (69, 70) to the Frame with a 3/8"
x 3" Screw (124).
See step 5. Tighten the 3/8" x 3/4" Patch
Screws (123).
6
124
124
69
1
70
Avoid pinching
the wires

9
7. While another person holds the Console (4)
near the Upright (26), connect the console wires
to the Wire Harness (77), the Power Cable (81),
and the Ground Wire (82). Then, connect the
console pulse wires to the Pulse Wires (78).
nsert the excess wire downward into the
Upright (26).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Upright (26) with four 1/4" x
3/4" Patch Screws (127).
7
127
77
81 82
26
78
Pulse
Wires
Console
Wires
4
8. dentify the Front and Rear Shields (10, 13) and
orient them as shown.
Attach the Front and Rear Shields (10, 13)
around the Upright (26) with six #8 x 3/4"
Screws (86).
8
26
13
10
86
Avoid pinching
the wires

10
14
86
20
21

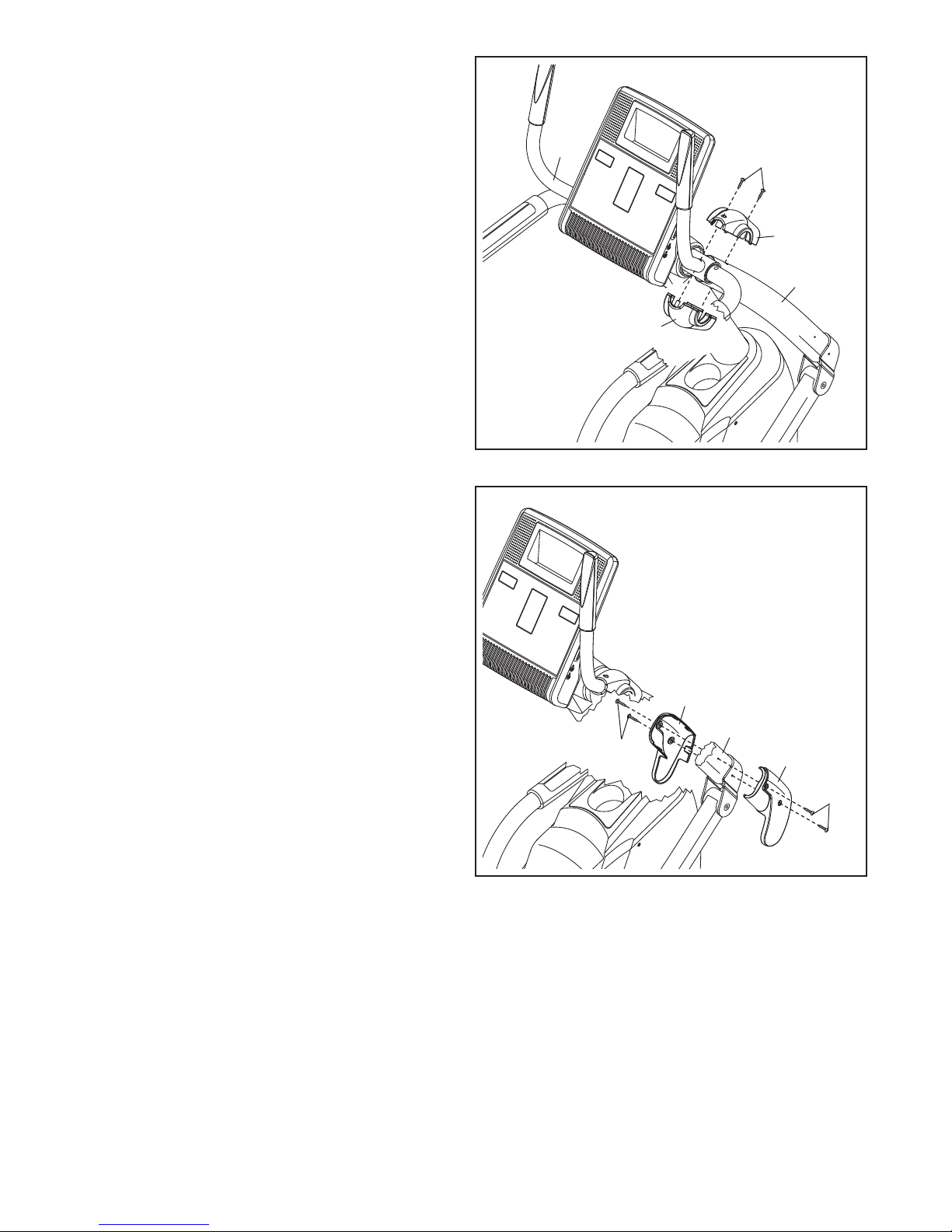

9. dentify the Right Upper and Lower Covers (14,
15), which are marked with “Right” stickers, and
orient them as shown.
Attach the Right Upper and Lower Covers (14,
15) around the Right Handlebar (20) with two
#8 x 3/4" Screws (86).
Repeat this step for the eft Handlebar (21).
9
15
10. dentify a set of Right and Left Link Covers (22,
23), which are marked with “Right” and “Left”
stickers, and orient them as shown.
Attach the Right and Left Link Covers (22, 23)
around the Right Handlebar (20) with four #8 x
1" Tek Screws (126).
Repeat this step for the other side of the
elliptical strider.
10
20
126
126
23
22

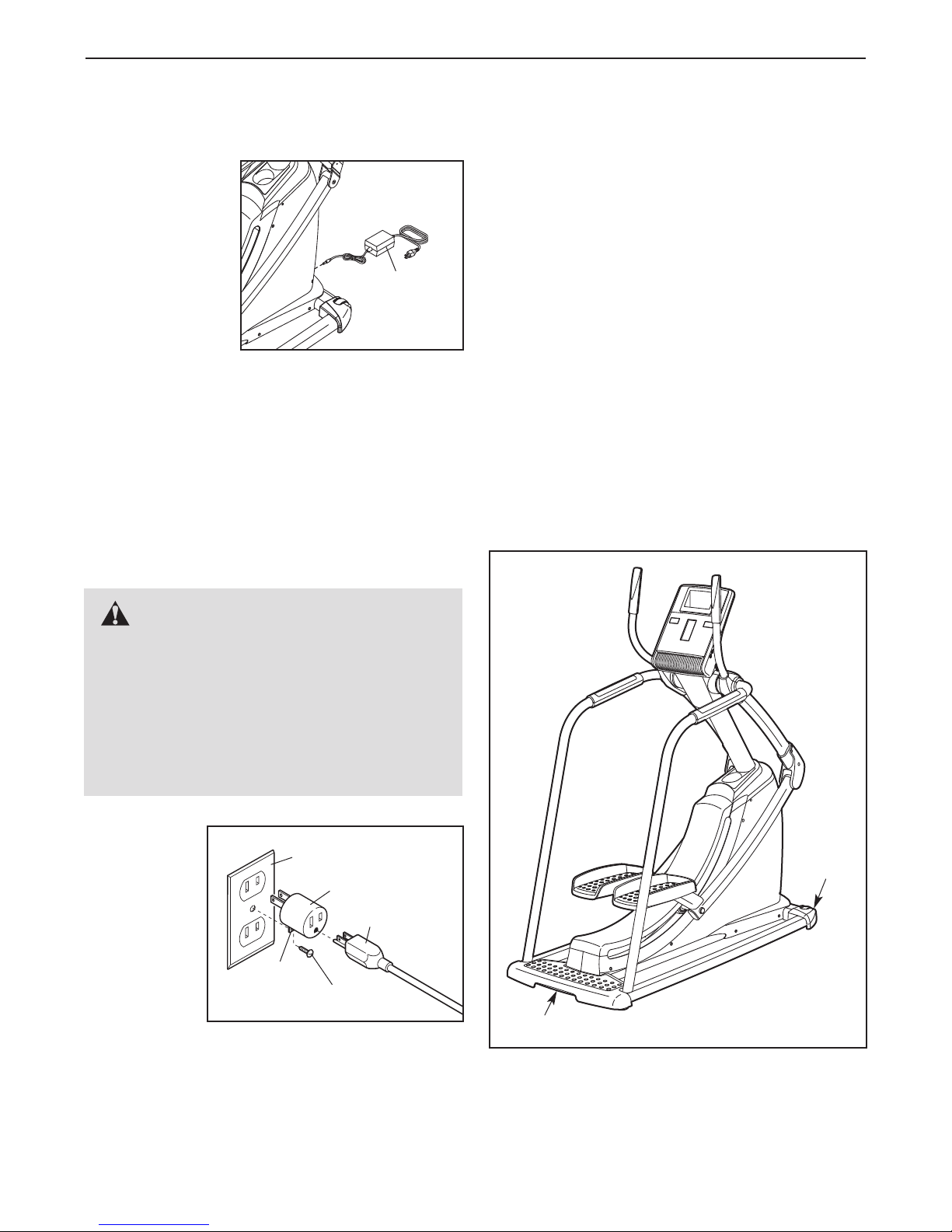

11. Plug the AC power adapter into the jack on the front of the elliptical strider (see HOW TO PLUG N THE AC
POWER ADAPTER on page 12). IMPORTANT: If the elliptical strider has been exposed to cold temper-
atures, allow it to warm to room temperature before plugging in the AC power adapter. If you do not
do this, you may damage the console displays or other electronic components.
Make sure that all parts are properly tightened before you use the elliptical strider. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the elliptical strider to protect the floor.

11

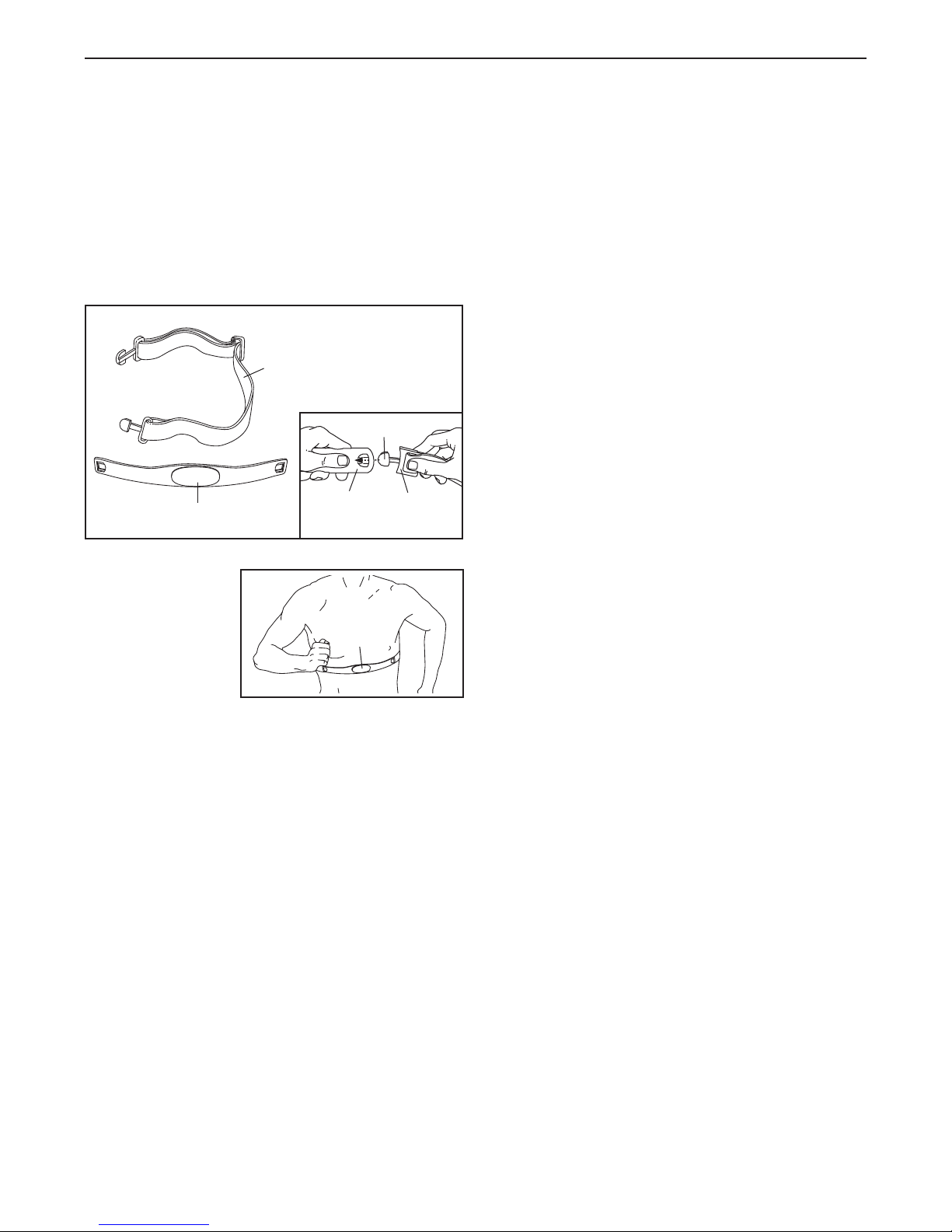

HOW TO PUT ON THE CHEST PU SE SENSOR
The chest pulse sensor has two components: a chest
strap and a sensor unit (see the drawing below). nsert
the tab on one end of the chest strap into one end of
the sensor unit, as shown in the inset drawing. Press
the end of the sensor unit under the buckle on the
chest strap. The tab should be flush with the front of
the sensor unit.
Next, wrap the
chest pulse sensor
around your chest
and attach the
other end of the
chest strap to the
sensor unit. Adjust
the length of the
chest strap, if necessary. The chest pulse sensor
should be under your clothes, tight against your skin,
and as high under the pectoral muscles or breasts as
is comfortable. Make sure that the logo on the sensor
unit is facing forward and is right-side-up.
Pull the sensor unit away from your body a few inches
and locate the two electrode areas on the inner side
(the electrode areas are covered by shallow ridges).
Using saline solution such as saliva or contact lens
solution, wet both electrode areas. Return the sensor
unit to a position against your chest.
CHEST PU SE SENSOR CARE
• Dry the chest pulse sensor after each use. The
chest pulse sensor is activated when you wet the
electrode areas and put on the chest pulse sensor;
the chest pulse sensor shuts off when it is removed
and the electrode areas are dried. f the chest pulse
sensor is not dried after each use, the battery may
be drained prematurely.
• Store the chest pulse sensor in a warm, dry place.
Do not store the chest pulse sensor in a plastic bag
or other container that may trap moisture.
• Do not expose the chest pulse sensor to direct sun-
light for extended periods of time or to temperatures
above 122° F (50° C) or below 14° F (-10° C).
• Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. Hand wash
and air dry the chest pulse sensor.
CHEST PU SE SENSOR TROUB ESHOOTING
If the chest pulse sensor does not function prop-
erly, try the suggestions below.
• Make sure that you are wearing the chest pulse sen-
sor as described at the left. Note: f the chest pulse
sensor does not function when positioned as
described, move it slightly lower or higher on your
chest.
• Use saline solution such as saliva or contact lens
solution to wet the two electrode areas on the sen-
sor unit. f heart rate readings do not appear until
you begin perspiring, re-wet the electrode areas.
• Position yourself near the console. For the console
to display heart rate readings, the user must be
within armʼs length of the console.
• The chest pulse sensor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the chest pulse sensor can be
affected by magnetic interference caused by high
power lines or other sources. f it is suspected that
this is a problem, try relocating the elliptical strider.
HOW TO USE THE CHEST PU SE SENSOR
Chest Strap
Sensor Unit
Tab
Buckle
Sensor
Unit
Logo

12
HOW TO USE THE E IPTICA STRIDER
HOW TO P UG IN THE AC POWER ADAPTER
This product
must be
grounded. f it
should malfunc-
tion or break
down, grounding
provides a path of
least resistance
for electric current
to reduce the risk
of electric shock.
This product is
equipped with an AC power adapter having an equip-
ment-grounding conductor and a grounding plug. Plug
the AC power adapter into the jack on the front of
the elliptical strider. Then, plug the AC power
adapter into an appropriate outlet that is properly
installed and grounded in accordance with all
local codes and ordinances. This product is for
use on a nominal 120-volt circuit. IMPORTANT:
The elliptical strider is not compatible with GFCI-
equipped outlets.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle as
shown at the
right if a
properly
grounded
outlet is not
available. The temporary adapter should be used only
until a properly grounded outlet can be installed by a
qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in
place by a metal screw. Some 2-pole receptacle out-
let box covers are not grounded. Contact a quali-
fied electrician to determine if the outlet box cover
is grounded before using an adapter.
HOW TO MOVE THE E IPTICA STRIDER
Due to the size and weight of the elliptical strider,
moving it requires two persons. Have two persons
lift the indicated end of the elliptical strider until the
elliptical strider will roll on the front wheels. Carefully
move the elliptical strider to the desired location and
then lower it to the level position. CAUTION: To
decrease the risk of injury, bend your legs and
keep your back straight. Make sure to use your
legs rather than your back to lift the elliptical
strider. Do not attempt to move the elliptical
strider over an uneven surface.
DANGER: Improper connection of
the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet installed
by a qualified electrician.
Grounded Outlet Box
Power Cord
Adapter
Lug
Metal Screw
AC Power
Adapter
Wheel
Lift here

13
HOW TO EXERCISE ON THE E IPTICA STRIDER
To mount the elliptical strider, hold the handlebars or
the handrails and step onto the pedals. Push the ped-
als until they begin to move forward and backward
with a continuous motion.
To dismount the elliptical strider, wait until the pedals
come to a complete stop. When the pedals are sta-
tionary, hold the handlebars or the handrails and step
off the pedals.
HOW TO EVE THE E IPTICA STRIDER
f the elliptical strider rocks slightly on your floor during
use, turn one or both of the leveling feet beneath the
rear of the frame until the rocking motion is eliminated.
Leveling
Foot
Leveling
Foot
Handlebars
Handrails
Pedals

14
FEATURES OF THE CONSO E
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When you use the quick start mode of the
console, you can change the resistance of the pedals
or set a target stride length with the touch of a button.
As you exercise, the console will provide continuous
exercise feedback. You can even measure your heart
rate using the handgrip pulse sensor or the included
chest pulse sensor.
The console offers sixteen preset workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to maintain a target stride
length as it guides you through an effective workout.

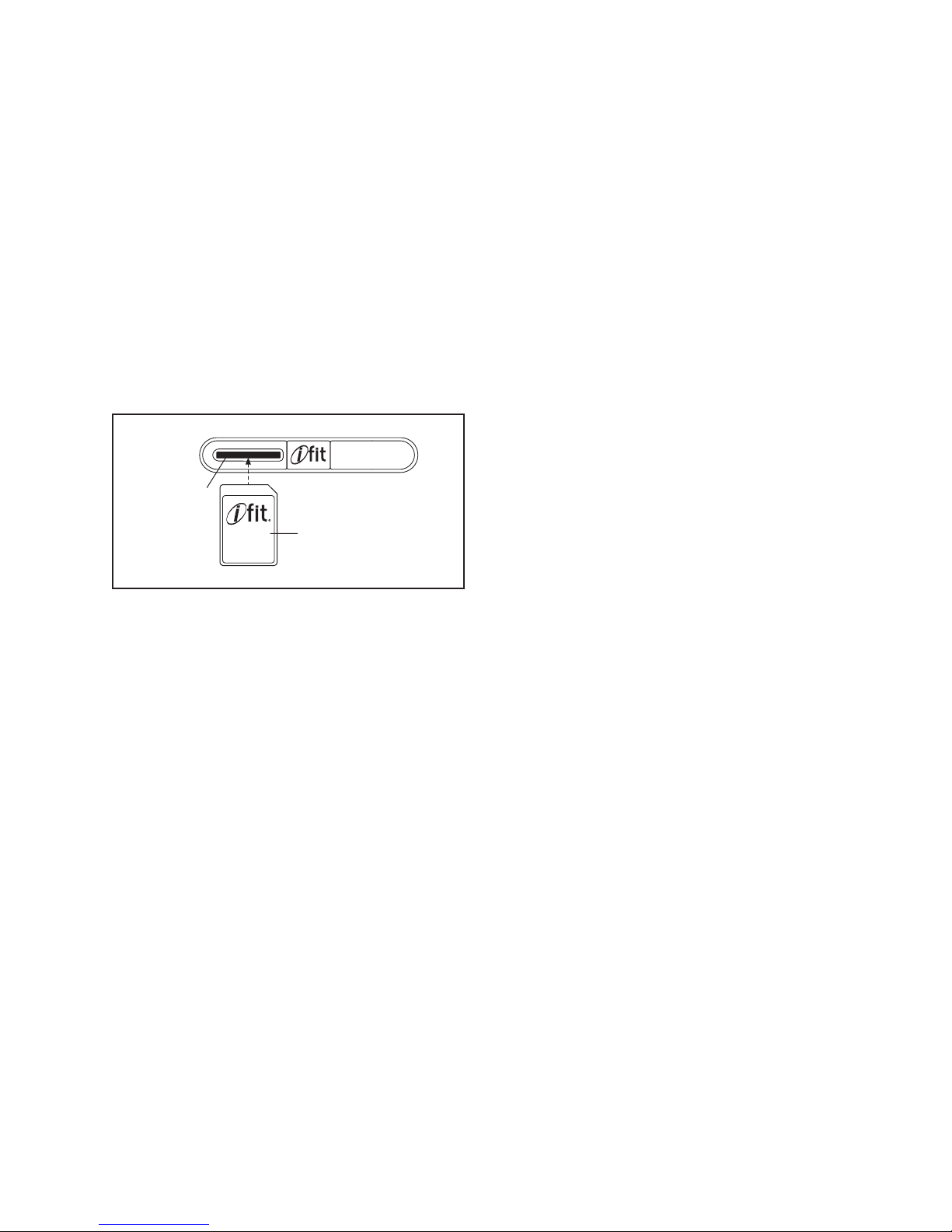

The console features the iFit nteractive Workout
System, which enables the console to accept iFit
cards containing workouts designed to help you
achieve specific fitness goals. For example, lose
unwanted pounds with the 8-week Weight Loss work-
out. iFit workouts control the resistance of the pedals
while the voice of a personal trainer coaches you
through your workouts. iFit cards are available sepa-
rately. To purchase iFit cards, go to www.iFit.com
or see the front cover of this manual. iFit cards are
also available at select stores.
You can even connect your MP3 player or CD player
to the consoleʼs sound system and listen to your
favorite workout music or audio books while you exer-
cise.
To activate the console, see page 15. To turn off
the console, see page 15. To use the quick start
mode, see page 15. To use a preset workout, see
page 17. To use an iFit workout, see page 18. To
use the sound system, see page 18. To use the
maintenance mode, see page 19.
CONSO E DIAGRAM

15
HOW TO ACTIVATE THE CONSO E
The included AC power adapter must be used to oper-
ate the elliptical strider. See HOW TO PLUG N THE
AC POWER ADAPTER on page 12. When the AC
power adapter is plugged in, the displays will light and
the console will be ready for use.
IMPORTANT: If the console has been exposed to
cold temperatures, allow it to warm to room tem-
perature before activating the console. Otherwise,
you may damage the console displays or other
electronic components.
HOW TO TURN OFF THE CONSO E
f the pedals are not moved for a short period of time,
the console will enter an idle mode and a screen
saver will appear in the center display. Unplug the AC
power adapter when the elliptical strider is not in use.
HOW TO USE THE QUICK START MODE
The quick start mode allows you to start exercising,
adjust the resistance of the pedals manually, and set a
target stride length manually.
1. Press the QUICK START button or begin strid-
ing to activate the console.
See HOW TO ACT VATE THE CONSOLE above.
2. Select the quick start mode.
When you activate the con-
sole, the quick start mode
will be selected. f you have
selected a workout, rese-
lect the quick start mode by
pressing any of the workout
buttons repeatedly until zeros appear in the left
and right displays.
3. Change the resistance of the pedals as
desired.
As you stride, change the resistance of the pedals
by pressing one of the numbered QU CKTOUCH
RES STANCE buttons or by pressing the QU CK-
TOUCH RES STANCE increase and decrease but-
tons. Note: After you press a QU CKTOUCH
RES STANCE button, it will take a moment for the
pedals to reach the selected resistance level.
4. Set a target stride length as desired.
The stride length meter in the center display
allows you to set a target stride length.
To set a target stride length,
press the STR DE LENGTH
increase and decrease but-
tons below the stride length
meter repeatedly until the
target bar appears next to
the desired stride length.
Note: Stride length is mea-
sured in inches.
5. Follow your progress with the displays.
eft display–This display
will show the approximate
number of calories you are
burning per hour, the
elapsed time, and your
striding pace in revolutions
per minute (rpm), for a few
seconds each, in a repeat-
ing scan cycle. An indicator will show which infor-
mation is currently displayed.
To select the approximate
number of calories you are
burning per hour, the
elapsed time, or your strid-
ing pace for continuous dis-
play, press the left Display
button repeatedly until an indicator appears above
the information you are interested in viewing.
To reselect the scan cycle,
press the left Display button
repeatedly until the word
SCAN appears in the left
display.
Note: When you select a workout, the display will
show the time remaining in the workout instead of
the elapsed time.
Target Bar
ndicator

16
Center display–This display shows the stride
length meter. The stride length meter compares
your actual stride length to the target stride length.
The target bar in
the stride length
meter indicates the
target stride
length. The pedal
blocks track the
actual movement
of the pedals while
you exercise.
As you exercise, keep your stride length near the
target stride length by striding so that the pedal
blocks move back and forth between the bottom of
the display and the target bar.
The center display will also show the resistance
level of the pedals for a few seconds each time the
resistance level changes. n addition, the center dis-
play will show your heart rate when you use the
handgrip pulse sensor (see step 6 at the right) or
the included chest pulse sensor (see page 11).
Right display–This display
will show the approximate
number of calories you
have burned, the distance
(total number of miles) you
have stridden, and the dis-
tance (vertical feet) you
have climbed, for a few sec-
onds each, in a repeating scan cycle. An indicator
will show which information is currently displayed.
To select the approximate
number of calories you
have burned, the distance
you have stridden, or the
distance you have climbed
for continuous display,
press the right Display button repeatedly until an
indicator appears above the information you are
interested in viewing.
To reselect the scan cycle,
press the right Display but-
ton repeatedly until the
word SCAN appears in the
right display.
To adjust the volume level
of the console, press the
VOL increase and decrease
buttons.
6. Measure your heart rate if desired.
To use the included chest pulse sensor, see page
11. To use the handgrip pulse sensor, follow the
instructions below. Note: If you wear the chest
pulse sensor and hold the handgrip pulse sen-
sor at the same time, the console will not dis-
play your heart rate accurately.
If there are sheets of
clear plastic on the
metal contacts on the
handgrip pulse sen-
sor, remove the plas-
tic. In addition, make
sure that your hands
are clean. To measure
your heart rate, hold
the handgrip pulse
sensor with your palms resting against the metal
contacts. Avoid moving your hands or gripping
the contacts tightly.
When you hold the handgrip pulse sensor, the
word PULSE and a set of flashing dashes will
appear in the center display. Then, when your
pulse is detected, your heart rate will be shown in
the center display. For the most accurate heart
rate reading, hold the contacts for at least 15 sec-
onds.
f your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
7. Turn on the fan if desired.
The fan has high and low speed settings. Press
the FAN button repeatedly to select a fan speed or
to turn off the fan. Note: f the pedals do not move
for about thirty seconds, the fan will turn off auto-
matically.
8. When you are finished using the elliptical
strider, the console will automatically enter an
idle mode.
See HOW TO TURN OFF THE CONSOLE on
page 15.
Contacts
Target
Bar
Pedal
Block
ndicator

17
HOW TO USE A PRESET WORKOUT
Apreset workout automatically changes the resistance
of the pedals and prompts you to maintain a target
stride length.
1. Press any button or begin striding to activate
the console.
See HOW TO ACT VATE THE CONSOLE on page
15.
2. Select a preset workout.
To select a preset workout, press the workout but-
ton with the desired name and profile.
The following informa-
tion will appear in the
center display:
• The name of the
workout
• A profile of the target
stride lengths
• The duration of the
workout
• The maximum stride
length
• The maximum
speed (in steps per
minute)
3. Press the WORKOUT START button or begin
striding to start the workout.
Each preset workout is divided into 25, 30, 45, or
60 one-minute segments. One resistance level
and one stride length is programmed for each seg-
ment. Note: The same resistance level and/or
stride length may be programmed for consecutive
segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flash-
ing column of the profile represents the current
segment of the workout. The height of the flashing
column indicates the stride length for the current
segment. At the end of each segment of the work-
out, a series of tones will sound and the next seg-
ment of the profile will begin to flash. f a different
resistance level is programmed for the next seg-
ment, the resistance level of the pedals will then
change.
As you exercise, keep your
stride length near the target
stride length for the current
segment, which is shown in
the stride length meter in
the center display. IMPOR-
TANT: The target stride
length settings are
intended only to provide
motivation. Your actual
stride length may be
shorter or longer than the
target stride length. Make sure to stride at a
length that is comfortable for you.
f the stride length for the current segment is too
long or too short, you can manually override the
setting by pressing the STR DE LENGTH buttons.
However, when the current segment ends, the
stride length meter will automatically adjust to the
target stride length for the next segment.
f the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the QU CKTOUCH RES S-
TANCE buttons. However, when the current seg-
ment ends, the pedals will automatically adjust to
the resistance level for the next segment.
The workout will continue in this way until the last
segment of the profile flashes. To stop the workout
at any time, stop striding. To resume the workout,
simply resume striding or press the WORKOUT
START BUTTON.
4. Follow your progress with the displays.
See step 5 on page 15.
5. Measure your heart rate if desired.
See step 6 on page 16.
6. Turn on the fan if desired.
See step 7 on page 16.
7. When you are finished using the elliptical
strider, the console will automatically enter an
idle mode.
See HOW TO TURN OFF THE CONSOLE on
page 15.

18
HOW TO USE AN IFIT WORKOUT
iFit cards are available separately. To purchase iFit
cards, go to www.iFit.com or see the front cover of this
manual. iFit cards are also available at select stores.
1. Press any button or begin striding to activate
the console.
See HOW TO ACT VATE THE CONSOLE on page
15.
2. Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot, which is located on the right side of the
console. The iFit card should slide easily into the
slot. f it does not, turn the iFit card and try again.
iFit workouts function in the same way as preset
workouts. To use an iFit workout, see steps 3 to 7
on page 17.
Some iFit cards contain more than one workout.
To select a workout, press the STR DE LENGTH
increase and decrease buttons.
During an iFit workout, press the STR DE
LENGTH increase and decrease buttons to adjust
the volume level for the voice of the personal
trainer.
3. When you are finished exercising, remove the
iFit card.
Remove the iFit card when you are finished exer-
cising. Store the iFit card in a secure place.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the consoleʼs
sound system while you exercise, plug the included
audio cable into the MP3 jack on the right side of the
console and into a jack on your MP3 player or CD
player; make sure that the audio cable is fully
plugged in.
Next, press the play button on your MP3 player or CD
player. Press the VOL increase and decrease buttons
on the console to adjust the volume level or use the
volume control on your MP3 player or CD player.
You can use your own headphones with the console
or with an iFit workout (see HOW TO USE AN F T
WORKOUT at the left). To use your headphones, plug
your headphones cable into the headphones jack on
the right side of the console; make sure that the
headphones cable is fully plugged in.
iFit Slot
iFit Card

19
HOW TO USE THE MAINTENANCE MODE
The console features a maintenance mode that allows
you to access usage information and to view and
change console settings.
1. Press any button or begin striding to activate
the console.
See HOW TO ACT VATE THE CONSOLE on page
15.
2. Select the maintenance mode.
Press and hold down the FAN button for a few
seconds to select the maintenance mode.
When the maintenance mode is selected, usage
information for the elliptical strider will appear in
the center display.
3. View and reset the usage information if
desired.
The first section of the center display will show the
total number of hours that the elliptical strider has
been used, the total number of vertical feet that
the pedals have climbed, and the total distance
that the pedals have been moved.
To reset the usage information to zero, press and
hold down the Resistance increase and decrease
buttons simultaneously for several seconds.
4. Adjust the contrast level of the console
displays if desired.
To adjust the contrast level of the console dis-
plays, press the STR DE LENGTH increase and
decrease buttons until the console displays show
the desired contrast.
5. Exit the maintenance mode.
Press the QU CK START or the WORKOUT
START button to exit the maintenance mode.

20
MAINTENANCE AND TROUB ESHOOTING
If you have questions about maintenance or trou-
bleshooting, see the front cover of this manual.
nspect and tighten all parts of the elliptical strider regu-
larly. Replace any worn parts immediately.
To clean the elliptical strider, use a damp cloth and a
small amount of mild soap. Make sure to regularly
clean the rollers and the track frame on which the
rollers ride. IMPORTANT: To avoid damage to the
console, keep liquids away from the console and
keep the console out of direct sunlight.
HOW TO EVE THE E IPTICA STRIDER
f the elliptical strider rocks slightly on your floor during
use, see HOW TO LEVEL THE ELL PT CAL
STR DER on page 13.
