NordicTrack AudioStrider 990 PRO NTEL09811.2 User manual

www.nordictrack.com
Model No. NTEL09811.2
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
(under frame)
QUESTIONS?
if you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
iMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-800-TO-BE-FIT
(1-800-862-3348)
Mon.=Fri., 6a.m.=6 p.m. MT
Sat. 8 a.m.-4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
USE ' AL

TABLE OF CONTENTS
WARNING DECAL PLACEMENT ............................................................... 2
IMPORTANT PRECAUTIONS .................................................................. 3
BEFORE YOU BEGIN ........................................................................ 4
PART IDENTIFICATION CHART ................................................................ 5
ASSEMBLY ................................................................................ 6
THE CHEST HEART RATE MONITOR .......................................................... 13
HOW TO USE THE ELLIPTICAL .............................................................. 14
FCC INFORMATION ........................................................................ 23
MAINTENANCE AND TROUBLESHOOTING .................................................... 24
EXERCISE GUIDELINES .................................................................... 26
PART LIST ................................................................................ 27
EXPLODED DRAWING ...................................................................... 29
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY ............................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s), if adecal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
•Misuseof this machine
may result in serious
injury.
•Reed user's manual
prior to use and follow
all warnings and
instructions.
•Donot allow children
on or around machine.
• Pedals continue to
spin when you stop
pedaling.
,Spinning pedals can
cause injury.
• Reduce pedal speed
in a controlledmanner.
• User weight must not
exceed 350 pounds.
• Replace label if
damaged, illegible, or
removed= _
NORDICTRACK is a registered trademark of ICON IP, Inc.
2

iMPORTANT PRECAUTIONS
WARNING: Toreducetheriskofseriousniury,readallimportantprecautionsand
instructions in this manual and all warnings on your elliptical before using your elliptical, iCON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
.
.
Before beginning any exercise program, 9.
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre=existing health problems. 10.
Use the elliptical only as described in this
manual
The elliptical should not be used by persons
weighing more than 350 Ibs. (159 kg).
Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
3. it is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
,
.
,
The elliptical is intended for home use only.
Do not use the elliptical in acommercial,
rental, or institutional setting.
Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or coveted patio, or near water.
Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
12.
13.
14.
The heart rate monitor is not amedical
device. Various factors may affect the accu =
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
The elliptical does not have afreewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
acontrolled way.
Keep your back straight while using the ellip-
tical; do not arch your back.
.
.
inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death, if you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3

BEFORE YOU BEGIN
Thank you for selecting the revolutionary
NORDICTRACK _"AUDIOSTRIDER 990 PRO elliptical.
The AUDIOSTRIDER 990 PRO elliptical provides an
impressive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Ramp Control
Heart Rate Monitor
Handlebar
Accessory Tray
Upper Body Arm
Console
Resistance Control
Fan
Ramp
Pedal
Wheel
Roller
Pedal Knob
Handle
Leveling Foot
Length: 6 ft. 5 in. (196 cm)
Width: 2 ft. 4 in. (71 cm)
4

PART iDENTiFiCATiON CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
[
M6 Washer
(90)-10
M8 Jam Nut
(102)-6
M8 x 22mm
Washer (97)-10
M4 x 12mm
Screw (148)-4
M10 Split Washer
(105)-20
M4 x 16mm
Screw (101)-10
M8 x 43mm
Button Bolt (96)-6
MIO x 25mm
Washer (134)-2
M6 x 16mm
Screw (103)-10
M10 x 20mm
Screw (91)-22
16mm Wave
Washer (54)-2
M8 x 23mm Button
Screw (82)-10
5

ASSEMBLY
Assembly requires two persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
To identify small parts, see page 5.
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet _
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
.Remove and discard the shipping brackets (not
shown) on the front and rear of the Frame (1).
Identify the Front Right Stabilizer Tube (145),
which has a Wheel (34) in the indicated location.
While a second person lifts the front of the
Frame (1), insert some packaging materials (not
shown) under the Frame. Have the second per=
son hold the Frame to prevent it from tipping.
Attach the Front Right Stabilizer Tube (145) to
the Frame (1) with three M10 x 20mm Screws
(91) and three M10 Split Washers (105).
Attach the Left Front Stabilizer Tube (not
shown) in the same way.
Then, remove the packaging materials from
under the Frame (1).
91
145 34
2. Identify the two Rear Stabilizer Tubes (2).
While a second person lifts the rear of the Frame
(1), insert some packaging materials (not shown)
under the Frame. Have the second person
hold the Frame to prevent it from tipping.
Attach a Rear Stabilizer Tube (2) to the Frame
(1) with three M10 x 20mm Screws (91) and
three M10 Split Washers (105).
Attach the other Rear Stabilizer Tube (2) in
the same way.
Next, tighten the Small Leveling Foot (136) into
the Frame (1) in the indicated location.
Then, remove the packaging materials from
under the Frame (1).
2
105
91
136
6

3. 3
Identify the Upright Cover (81). Orient the
Upright Cover as shown, and slide it upward
onto the Upright (4).
Have a second person hold the Upright (4) and
the Upright Cover (81) near the Frame (1).
Connect the Upper Wire (152) to the Lower Wire
(111).
,Tip: Avoid pinching the wires. Slide the
Upright (4) onto the Frame (1).
Attach the Upright (4) with eight M10 x 20mm
Screws (91) and eight M10 Split Washers (105).
Do not tighten the Button Screws yet.
Slide the Upright Cover (81) downward. Do not
press the Upright Cover into the Left and
Right Front Shields (73, 74) yet.
105
9
73
Avoid pinching
the wires
105 91
105
7

.Identify the Right Upper Body Arm (61) and the
Right Upper Body Leg (60), which are marked
with "Right" stickers, and orient them as shown.
Attach the Right Upper Body Arm (61) to the
Right Upper Body Leg (60) with three M8 x
43mm Button Bolts (96) and three M8 Jam Nuts
(102). Make sure that the Jam Nuts are in the
indicated hexagonal holes. Do not tighten the
Button Bolts yet.
Attach the Left Upper Body Arm (47) to the
Left Upper Body Leg (46) in the same way.
47
Holes
96
60
.Using a plastic bag to keep your fingers clean,
apply some of the included grease to the Long
Axle (35) and to two 16mm Wave Washers (54)
(only one is shown).
Insert the Long Axle (35) through the Upright (4)
and center it.
Slide a 16mm Wave Washer (54) and the Right
Upper Body Arm (61) onto the right side of the
Long Axle (35).
Repeat these actions for the Left Upper Body
Arm (47).
Tighten an M8 x 23mm Button Screw (82) and
an M8 x 22mm Washer (97) into each end of the
Long Axle (35) at the same time.
82 4
35 Grease
54 97
8

While a second person lifts the back of the Right
Pedal Plate (14), insert the Right Pedal Bracket
(133) into the Right Pedal Arm (58).
Attach the Right Pedal Bracket (133) with an
M10 x 20mm Screw (91) and an M10 x 25mm
Washer (134).
Repeat this step on the other side of the
elliptical.
91
133
.Identify the Right Pedal (49), which is marked
with a "Right" sticker, and orient it as shown.
While a second person lifts the Right Pedal Plate
(14), attach the Right Pedal (49) to the Right
Pedal Plate with five M6 x 16mm Screws (103)
and five M6 Washers (90).
Attach the Left Pedal (12) to the Left Pedal
Plate (not shown) in the same way.
8
14
12
103
49
103
.Apply grease to a Medium Axle (119) and to two
M8 x 22mm Washers (97).
Identify the Right Link Arm (59), which is marked
with a "Right" sticker, and orient it as shown.
Insert the Medium Axle through the Right Link
Arm (59) and the Right Pedal Arm (58).
Tighten an M8 x 23mm Button Screw (82), an
Axle Cover (55), and an M8 x 22mm Washer
(97) into each end of the Medium Axle (119) at
the same time.
Repeat this step on the other side of the
elliptical.
119
Gtease
59
97 55
9

10. Apply grease to a Short Axle (149) and to two
M8 x 22mm Washers (97).
Next, tighten an M8 x 23mm Button Screw (82)
and an M8 x 22mm Washer (97) a few turns into
the Short Axle (149).
While a second person holds the front end of
the Right Link Arm (59) inside the bracket on the
Right Upper Body Leg (60), insert the Short Axle
(149) through both parts.
Tighten another M8 x 23mm Button Screw (82)
and an M8 x 22mm Washer (97) a few turns into
the Short Axle (149). Then, tighten both Button
Screws at the same time. time.
Repeat this step on the other side of the
elliptical.
10
59
149
Grease
97
11. Identify the Right Inner and Outer Leg Covers
(83, 69), which are marked with "Right" stickers,
and orient them as shown.
Press the Right Inner and Outer Leg Covers (83,
69) together around the Right Upper Body Leg
(60).
Attach the Right Inner and Outer Leg Covers
(83, 69) to the Right Upper Body Leg (60) with
an M4 x 16mm Screw (101). To avoid damag=
ing the plastic, do not overtighten the Screw.
Attach the Left inner and Outer Leg Covers
(72, 70) in the same way.
11
10

12. Orient the Rear Console Cover (80) as shown.
Attach the Rear Console Cover (80) to the
Upright (4) with four M4 x 16mm Screws (101).
12
8O
13. While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Upper Wire (152) and to the
Right and Left Sensor Wires (108, 110).
Insert the excess wire into the Upright (4) or into
the Console (7).
Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four M4 x
12mm Screws (148).
13
7\ Avoid pinching
the wires
148
11

14. Attach the Front Console Cover (79) around the
Upright (4) by pressing the tabs on the Front
Console Cover into the Rear Console Cover
(80).
14
15. See step 5. Tighten the six M8 x 43mm Button
Bolts (96).
See step 4. Tighten the eight M10 x 20mm
Screws (91).
Identify the Right Front and Rear Arm Covers
(65, 66), which are marked with "Right" stickers.
Attach the Right Front Arm Cover (65) to the
Right Upper Body Arm (61) with two M4 x 16mm
Screws (101).
Attach the Right Rear Arm Cover (66) around the
Right Upper Body Arm (61) by pressing the tabs
on the Right Rear Arm Cover into the Right Front
Arm Cover (65).
Attach the Left Front and Rear Arm Covers
(67, 68) in the same way.
Then, slide the Upright Cover (81) downward
and press it into the Left and Right Front Shields
(73, 74).
15
68 67
65
73, 74
16. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
12

THE CHEST HEART RATE MONITOR
HOW TO PUT ON THE HEART RATE MONITOR
The heart rate
monitor consists of
a chest strap and a
sensor. Insert the
tab on one end of
the chest strap into
the hole in one end
of the sensor as
shown. Then, press
the end of the sen-
sor under the buckle
on the chest strap.
The tab should be
flush with the front of
the sensor.
Tabs Strap
Sensor
The heart rate moni-
tor must be worn
under your clothes, j\
tight against your
skin. Wrap the heart
rate monitor around
your chest in the
location shown.
Make sure that
the logo is right-
side-up. Then, attach the other end of the chest strap
to the sensor. Adjust the length of the chest strap, if
necessary.
Pull the sensor away from your body a few inches and
locate the two electrode areas, which are covered by
shallow ridges. Using saline solution such as saliva or
contact lens solution, wet the electrode areas. Then,
return the sensor to a position against your chest.
CARE AND MAINTENANCE
• Thoroughly dry the sensor with a soft towel after
each use. Moisture may keep the sensor activated,
shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place. Do
not store the heart rate monitor in a plastic bag or
other container that may trap moisture.
Do not expose the heart rate monitor to direct sun-
light for extended periods of time; do not expose it to
temperatures above 122 ° F (50° C) or below 14° F
(-10° C).
Do not excessively bend or stretch the sensor when
using or storing the heart rate monitor.
To clean the sensor, use a damp cloth and a small
amount of mild soap. Then, wipe the sensor with a
damp cloth and thoroughly dry it with a soft towel.
Never use alcohol, abrasives, or chemicals to clean
the sensor. Hand wash and air dry the chest strap.
TROUBLESHOOTING
If the heart rate monitor does not function properly, try
the steps below.
Make sure that you are wearing the heart rate moni-
tor as described at the left. If the heart rate monitor
does not function when positioned as described,
move it slightly lower or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, rewet the electrode areas.
• For the console to display heart rate readings, you
must be within arm's length of the console.
• Ifthere is a battery cover on the back of the sensor,
replace the battery with a new battery of the same
type.
The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
13

HOW TO USE THE ELLiPTiCAL
HOW TO PLUG iN THE POWER CORD
This product must be grounded, if it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug.
Plug the power cord into an appropriate outlet that
is properly installed and grounded in accordance
with all local codes and ordinances. This product is
for use on a nominal 120-volt circuit. IMPORTANT:
The elliptical is not compatible with GFCFequipped
outlets and may not be compatible with AFCi-
equipped outlets.
A temporary
adapter may
be used to Outlet Box
connect the Adapter
power cord Power Cord
to a 2-pole
receptacle as
shown at the Lug
right if a prop- Metal Screw
erly grounded
outlet is not
available.
The temporary adapter should be used only until a
properly grounded outlet can be installed by a qualified
electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician
to determine if the outlet box cover is grounded before
using an adapter.
HOW TO MOVE THE ELLiPTiCAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright, and place one foot against one of the
wheels. Pull on the upright and have a second person
lift the handle on the ramp until the elliptical will roll on
the wheels. Carefully move the elliptical to the desired
location, and then lower it to the floor.
!oP_l_ e
upright
here
Place
your
foot
here
14

HOW TO ADJUST THE POSiTiONS OF THE PEDALS HOW TO EXERCISE ON THE ELLiPTiCAL
Each pedal can
be adjusted to
several positions.
To adjust each
pedal, simply
turn the pedal
knob beneath the
pedal. Make sure
to adjust both
pedals to the
same position.
Pedal
Pedal
Knob
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor dur-
ing use, turn
one or both of
the leveling feet
beneath the rear
stabilizer until the
rocking motion is
eliminated.
Leveling
Feet
Leveling
Foot
If the frame of the elliptical flexes during use, turn the
leveling foot under the center of the frame until the flex-
ing is eliminated.
To mount the elliptical, hold the upper body arms or the
handlebars and step onto the pedal that is in the lowest
position. Next, step onto the other pedal. Push the ped-
als until they begin to move with a continuous motion.
Note: The pedal arms can turn in either direction.
it is recommended that you turn the pedal arms
in the direction shown by the arrow; however, for
variety, you can turn the pedal arms in the opposite
direction.
Upper Body Arms_
Handlebars_
Pedal
Arm
Pedals
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the highest pedal first. Then, step off the lowest
pedal.
15

CONSOLE DIAGRAM FEATURES OF THE CONSOLE
vE'_TE_ A DISPLAY
My Maps World Tour Event Training Compete
C©N r_OC
x
J
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button. While you
exercise, the console will display continuous exercise
feedback. You can also measure your heart rate using
the handgrip heart rate monitor or the included chest
heart rate monitor.
In addition, the console offers thirty preset workouts--
fifteen calorie workouts and fifteen performance
workouts. Each workout automatically changes the
resistance of the pedals and the incline of the ramp
and prompts you to vary your pedaling pace as it
guides you through an effective workout.
The console also features revolutionary iFit Live
technology that enables the console to communicate
with your wireless network through an optional iFit Live
module. With the iFit Live mode, you can download
personalized workouts, create your own workouts,
track your workout results, race against other runners,
and access many other features. To purchase an iFit
Live module at any time, go to www.iFJt.com or call
the telephone number on the front cover of this
manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 17. To use the
manual mode, see page 17. To use a preset work=
out, see page 20. To use an iFit Live workout,
see page 21. To use the sound system, see page
22. To change console settings, see page 22.
Note: If there is a sheet of plastic on the display,
remove the plastic.
16

HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE
iMPORTANT: if the elliptical has been exposed to
cold temperatures, allow it to warm to room tern=
perature before turning on the power, if you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
HOW TO PLUG iN THE
POWER CORD on page
14). Next, locate the
power switch on the frame
near the power cord. Press
the power switch to the
reset position.
Reset
Position
The display will then light and the console will be ready
for use.
Note: When you turn on the power for the first time,
the ramp will calibrate automatically. The ramp will
move upward and downward as it calibrates. When the
ramp stops moving, the ramp is calibrated.
IMPORTANT: if the ramp does not calibrate auto=
matically, see HOW TO CALIBRATE THE RAMP on
page 24 and manually calibrate the ramp.
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Press the Manual Control button on the console to
select the manual mode.
if a wireless iFit Live module is not inserted into
the console and connected to iFit Live, the manual
mode will be selected automatically.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons located on the console or on the right
handlebar.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resis-
tance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press one of the numbered 1 Step Power Ramp
buttons or press the 1 Step Power Ramp increase
and decrease buttons located on the console or on
the left handlebar.
Note: After you press a button, it will take a
moment for the ramp to reach the selected incline
level.
17

,Follow your progress with the display.
The display can show the following workout
information:
?;L'7!_! _-
L7 Z'--I Z _ su u
TIME DIST.
Calories (Cals.)--This display mode will show the
approximate number of calories you have burned.
Calories per Hour (CalsJHr)--This display mode
will show the approximate number of calories you
are burning per hour.
Distance (Dist.)--This display mode will show
the distance that you have pedaled in miles or
kilometers.
Incline--This display mode will show the incline
level of the ramp for a few seconds each time the
incline level changes.
Pulse--This display mode will show your heart rate
when you use the handgrip heart rate monitor or
the included chest heart rate monitor (see step 5
on page 19).
Resistance (Resist.)--This display mode will
show the resistance level of the pedals for a few
seconds each time the resistance level changes.
RPM--This display mode will show your pedaling
speed in revolutions per minute (rpm).
Stride--This display mode will show the total num-
ber of strides you have pedaled.
Time--When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, this display mode will show the
time remaining in the workout.
The matrix offers several display tabs. Press the
Display button until the desired tab is shown. You
can also press the increase and decrease buttons
next to the Enter button.
Incline--This tab will show a profile of the incline
settings of the workout. A new segment will appear
at the end of each minute.
Speed--This tab will show a profile of the speed
settings of the workout. A new segment will appear
at the end of each minute.
My Trail--This tab will show a track that rep-
resents 1/4 mile (400 m). As you exercise, the
flashing rectangle will show your progress. The
My Trail tab will also show the number of laps you
complete.
Calorie--This tab will show the approximate
amount of calories you have burned. The height of
each segment represents the amount of calories
burned during that segment.
As you exercise, the workout intensity level bar
will indicate the approximate intensity level of your
exercise.
j/_ _ _-....
Press the Home button to return to the default
menu (see HOW TO CHANGE CONSOLE
SETTINGS on page 22 to set the default menu).
If necessary, press the Home button again.
18

When a wireless iFit
Live module is con-
nected, the wireless "_ ,t
symbol at the top
of the display will
show the strength of
your wireless signal. Four arcs indicate full signal
strength.
To exit the manual mode or a workout, press the
Home button. If necessary, press the Home button
again.
Change the volume
level of the console by
pressing the Volume
increase and decrease
buttons.
,/
5. Measure your heart rate if desired.
To use the included chest heart rate monitor, see
page 13. To use the handgrip heart rate monitor,
follow the instructions below. IMPORTANT: If you
use both heart rate monitors at the same time,
the console will not display your heart rate
accurately.
if there are sheets
of plastic on the
metal contacts
on the handgrip
heart rate moni-
tor, remove the
plastic. To mea-
sure your heart
rate, hold the
handgrip heart rate
monitor with your
palms resting against the contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, a heart symbol in will
flash in the display each time your heart beats, one
or two dashes will appear, and then your heart rate
will be shown. For the most accurate heart rate
reading, hold the contacts for at least 15 seconds.
Ifthe display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal perfor-
mance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. Turn on the fan if desired.
.
The fan has low, high,
and auto speed set- F-
tings. While the auto (r_ Ay_NO
mode is selected, the \
speed of the fan will
automatically increase
or decrease as you increase or decrease your ped-
aling speed. Press the Fan increase and decrease
buttons repeatedly to select a fan speed or to turn
off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
When you are finished exercising, unplug the
power cord.
Ifthe pedals do not move for several seconds, a
tone will sound and the console will pause.
Ifthe pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components on the elliptical may
wear prematurely.
19

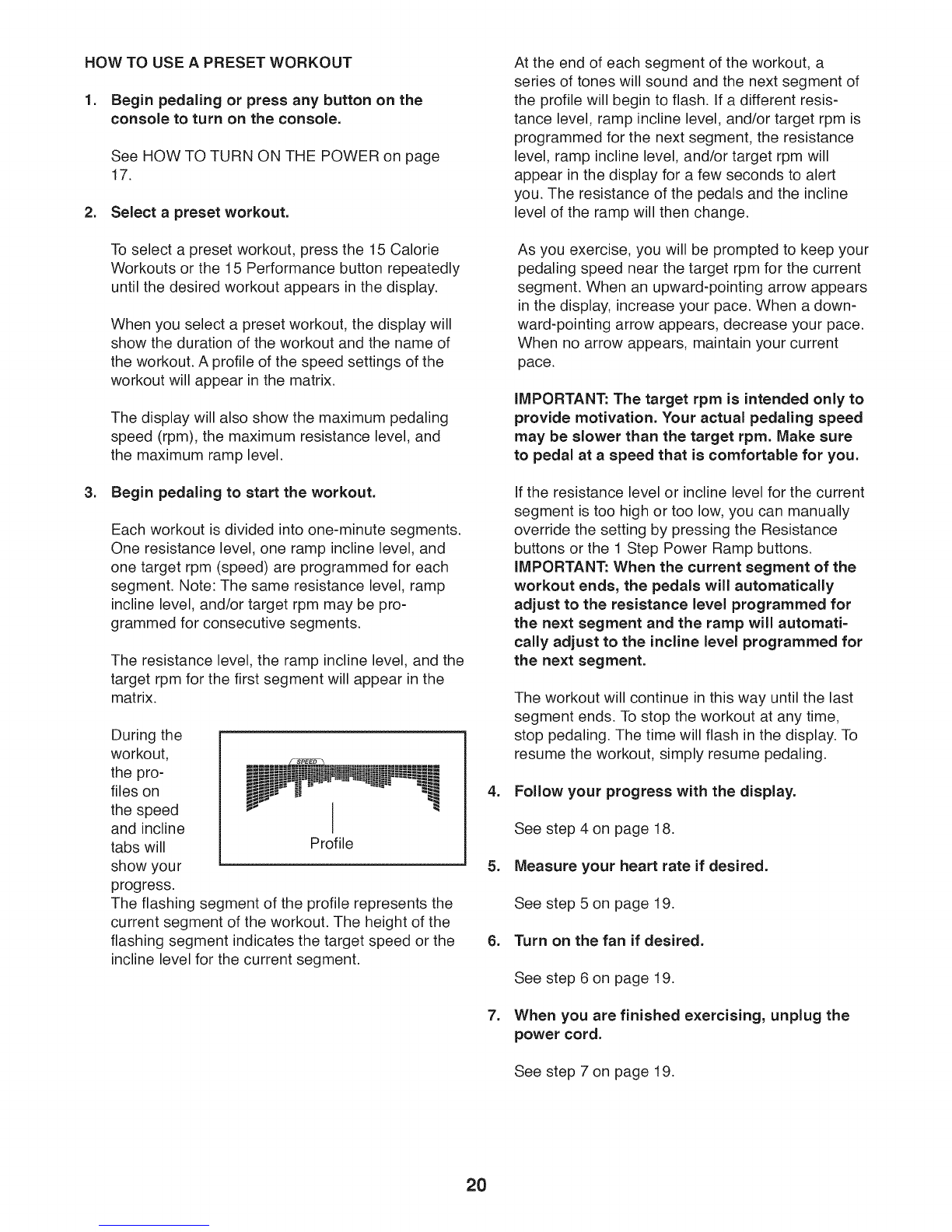

HOW TO USE A PRESET WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on page
17.
2. Select a preset workout.
To select a preset workout, press the 15 Calorie
Workouts or the 15 Performance button repeatedly
until the desired workout appears in the display.
When you select a preset workout, the display will
show the duration of the workout and the name of
the workout. A profile of the speed settings of the
workout will appear in the matrix.
The display will also show the maximum pedaling
speed (rpm), the maximum resistance level, and
the maximum ramp level.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute segments.
One resistance level, one ramp incline level, and
one target rpm (speed) are programmed for each
segment. Note: The same resistance level, ramp
incline level, and/or target rpm may be pro-
grammed for consecutive segments.
The resistance level, the ramp incline level, and the
target rpm for the first segment will appear in the
matrix.
During the
workout,
the pro-
files on
the speed
and incline
tabs will
show your
progress.
Bi..Im.-=_L.. F,i,_-ilir..=-i=iUi
_=m,!_=== = .... =_
Profile
The flashing segment of the profile represents the
current segment of the workout. The height of the
flashing segment indicates the target speed or the
incline level for the current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash, if a different resis-
tance level, ramp incline level, and/or target rpm is
programmed for the next segment, the resistance
level, ramp incline level, and/or target rpm will
appear in the display for a few seconds to alert
you. The resistance of the pedals and the incline
level of the ramp will then change.
As you exercise, you will be prompted to keep your
pedaling speed near the target rpm for the current
segment. When an upward-pointing arrow appears
in the display, increase your pace. When a down-
ward-pointing arrow appears, decrease your pace.
When no arrow appears, maintain your current
pace.
iMPORTANT: The target rpm is intended only to
provide motivation. Your actual pedaling speed
may be slower than the target rpm. Make sure
to pedal at a speed that is comfortable for you.
ifthe resistance level or incline level for the current
segment is too high or too low, you can manually
override the setting by pressing the Resistance
buttons or the 1 Step Power Ramp buttons.
iMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment and the ramp will automati-
cally adjust to the incline level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. The time will flash in the display. To
resume the workout, simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 18.
5. Measure your heart rate if desired.
See step 5 on page 19.
6. Turn on the fan if desired.
.
See step 6 on page 19.
When you are finished exercising, unplug the
power cord.
See step 7 on page 19.
20
