NordicTrack NTIVEL69016.0 User manual

Serial
Number
Decal
USER’S MANUAL
Model No. NTIVEL69016.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
www.iconeurope.com

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL ..............................................................14
MAINTENANCE AND TROUBLESHOOTING.....................................................22
EXERCISE GUIDELINES ....................................................................24
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of
Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The
BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on the elliptical before using the elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the elliptical at all times.
10. The elliptical should not be used by persons
weighing more than 275 lbs. (125 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid in
determining heart rate trends in general.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the
elliptical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4
BEFORE YOU BEGIN
Heart Rate Monitor
Handlebar
Wheel
Pedal
Handle
Accessory Tray
Console
Tablet Holder
Upper Body Arm
Leveling Foot
Thank you for selecting the revolutionary
NORDICTRACK®E 600 elliptical. The E 600 elliptical
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Length: 5 ft. 7 in. (170 cm)
Width: 2 ft. 3 in. (71 cm)
Weight: 141 lbs. (64 kg)

5
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 x 20mm
Screw (62)–13
M8 Split
Washer (64)–19 M8 Washer
(82)–14
M8 Small
Washer (61)–3
M8 x 43mm Bolt
(79)–4
M8 Locknut
(80)–6 M8 Large
Washer (65)–4
M8 x 45mm Screw (83)–6
M4 x 16mm
Screw (53)–4
M4 x 20mm
Screw (50)–8
Medium Wave
Washer (68)–2
Small Wave
Washer (88)–2
M5 x 15mm
Machine
Screw (55)–3
M5 x 8mm
Screw (84)–2
M8 x 92mm Screw (74)–4
M8 x 86mm Bolt (81)–2
M4 x 15mm
Screw (43)–4

6
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
one adjustable wrench
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
2. While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (73) to the
Frame with two M8 x 92mm Screws (74). 73 74
1
2
1. Go to www.iconsupport.eu on your computer
and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Service (see the front cover of this
manual) and register your product.

7
1
74
3
70
4
2
90
42
37
1

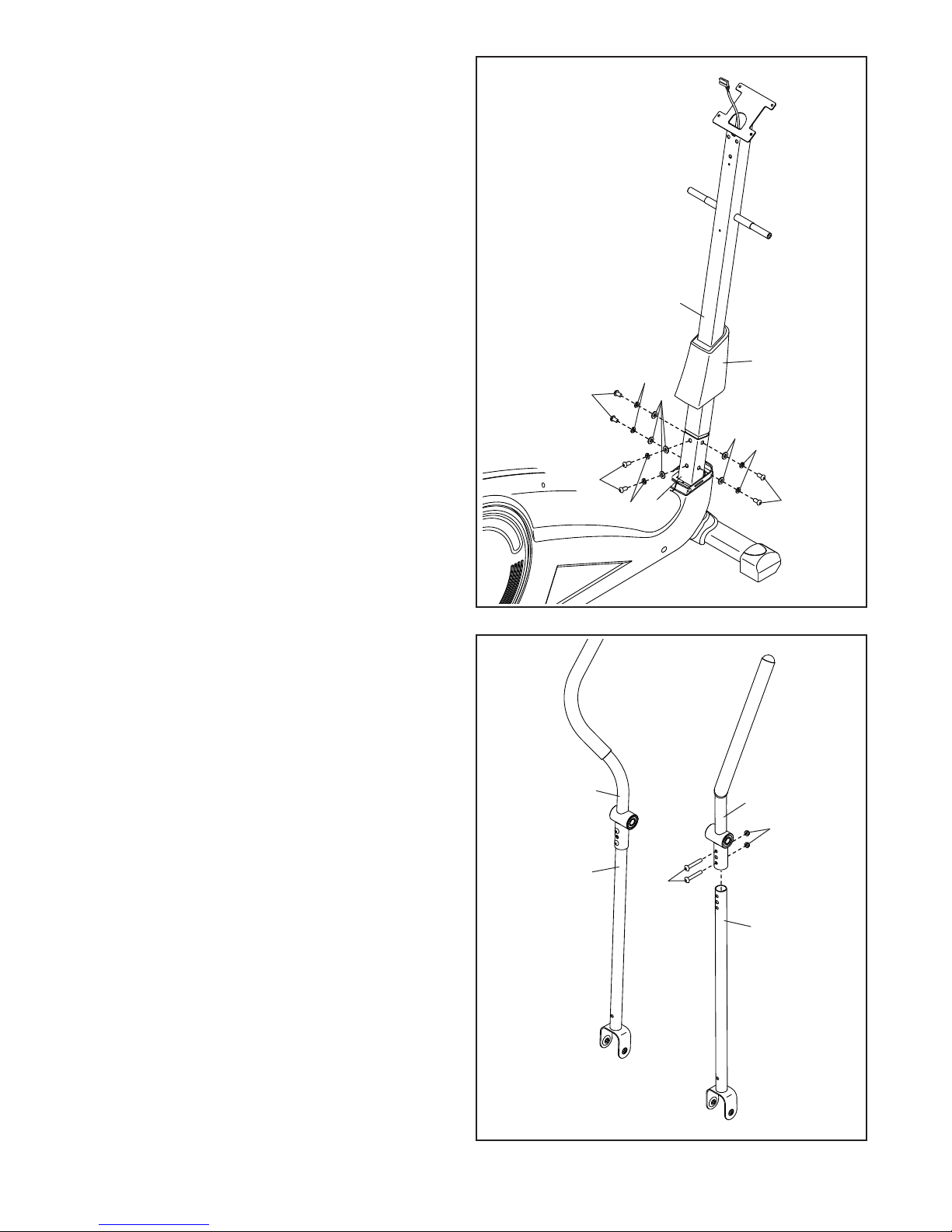

4. Orient the Upright (2) and the Front Shield Cover
(37) as shown. Slide the Front Shield Cover onto
the Upright.
Next, have a second person hold the Upright (2)
near the Frame (1). Connect the Upper Wire (42)
to the Lower Wire (90).
3. While a second person lifts the rear of the Frame
(1), attach the Rear Stabilizer (70) to the Frame
with two M8 x 92mm Screws (74).

8
62
62
62
64
64
64
82
82
9
6
6
8
5. Tip: Avoid pinching the wires. Insert the
Upright (2) into the Frame (1). Tip: Have a sec-
ond person hold the Front Shield Cover (37)
out of the way.
Attach the Upright (2) with six M8 x 20mm
Screws (62), six M8 Split Washers (64), and
six M8 Washers (82); do not fully tighten the
Screws yet.
Then, slide the Front Shield Cover (37)
downward; do not press the Front Shield
Cover into place yet.
5
Avoid pinching
the wires
80
79
6
6. Identify the Right Upper Body Arm (9), orient
it as shown, and slide it onto an Upper Body
Leg (6).
Attach the Right Upper Body Arm (9) with
two M8 x 43mm Bolts (79) and two M8
Locknuts (80).
Repeat this step for the Left Upper Body
Arm (8).
2
1
37

9
8
14
49
13
12
82
64
83
8. Identify the Right Pedal (13) and the Right Pedal
Arm (49), and orient them as shown.
Attach the Right Pedal (13) to the Right Pedal
Arm (49) with three M8 x 45mm Screws (83),
three M8 Split Washers (64), and three M8
Washers (82); start all the Screws, and then
tighten them.
Attach the Left Pedal (12) to the Left Pedal
Arm (14) in the same way.
68
65 64
62
7
2

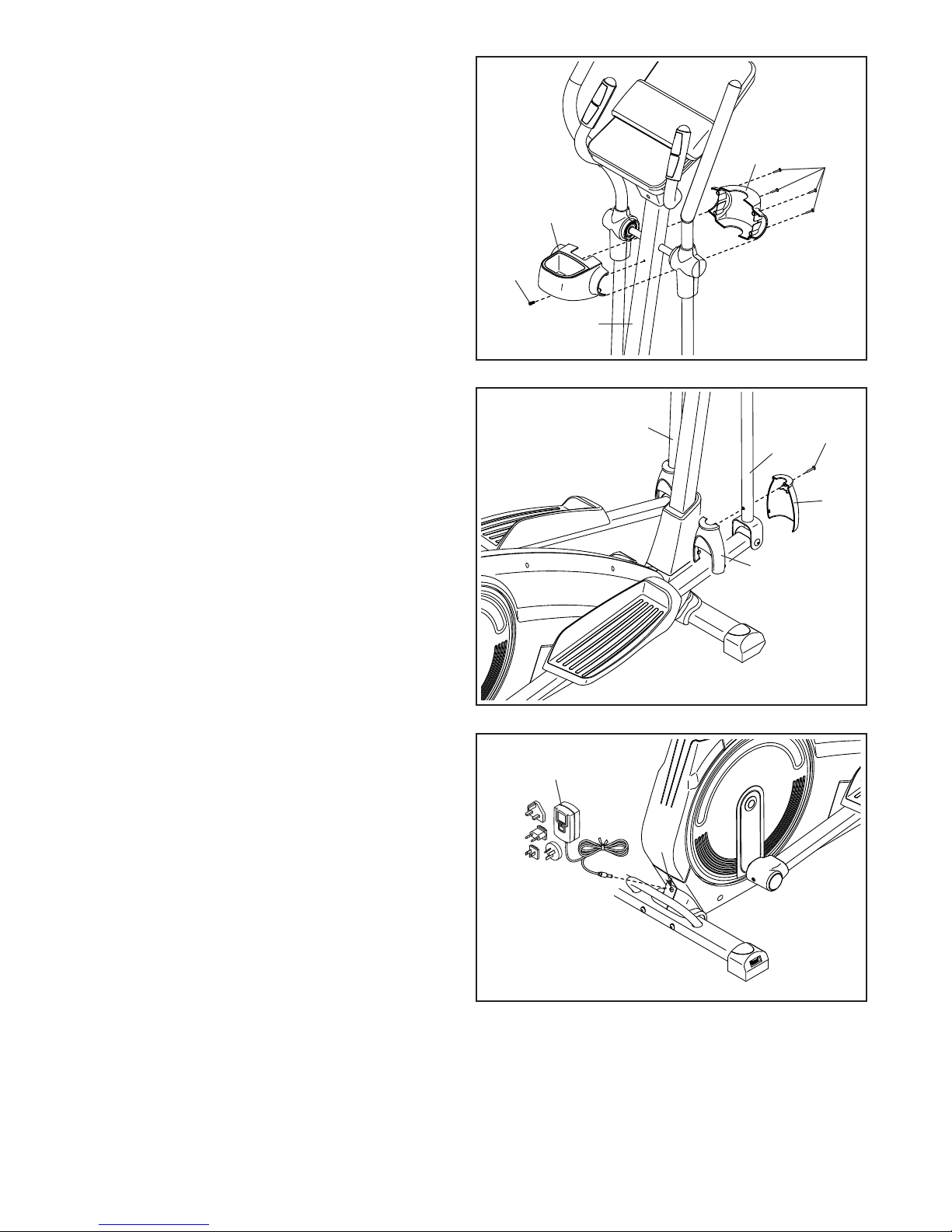

7. Slide a Medium Wave Washer (68) (only one
is shown) onto each side of the axle on the
Upright (2).
Next, slide the Left and Right Upper Body
Arms (8, 9) onto the left and right sides of the
Upright (2).
Attach the Right Upper Body Arm (9) with an
M8 x 20mm Screw (62), an M8 Split Washer
(64), and an M8 Large Washer (65); do not fully
tighten the Screw yet.
Attach the Left Upper Body Arm (8) in the
same way.
9
8

10
6
6
49
81
88
82
80
14
37
10
10. Slide a Small Wave Washer (88) onto an
M8 x 86mm Bolt (81).
While a second person holds the front end of the
Right Pedal Arm (49) inside the bracket on the
right Upper Body Leg (6), insert the M8 x 86mm
Bolt (81) through both parts.
Then, tighten an M8 Locknut (80) with an
M8 Washer (82) onto the M8 x 86mm Bolt (81).
Repeat this step to attach the Left Pedal Arm
(14) to the left Upper Body Leg (6).
See assembly step 5. Tighten the six
M8 x 20mm Screws (62). Then, press the Front
Shield Cover (37) into place.
See assembly step 7. Tighten the two
M8 x 20mm Screws (62).
30
84
9
9. Attach the Right Pedal Arm (49) to the right
Crank Arm (25) with an M8 x 20mm Screw (62),
an M8 Split Washer (64), an M8 Large Washer
(65), and a Pedal Arm Spacer (34).
Then, attach a Pedal Arm Cover (30) to the Right
Pedal Arm (49) with an M5 x 8mm Screw (84).
Repeat this step for the Left Pedal Arm (14).
62
64
34
65
25
14
49

11
11
28
2
39
62 64 61
12
11. Have a second person hold the Handlebar (39)
near the Upright (2). Locate the Pulse Wire
(28) extending from the Handlebar, and route
the Pulse Wire upward through the Upright as
shown.
Tip: Avoid pinching the Pulse Wire (28).
Attach the Handlebar (39) to the Upright (2) with
three M8 x 20mm Screws (62), three M8 Split
Washers (64), and three M8 Small Washers (61);
start all the Screws, and then tighten them.
55
7
12. Attach the Handlebar Cover (7) to the Upright (2)
with an M5 x 15mm Machine Screw (55).
Avoid pinching the
Pulse Wire (28)
2
13
4
53
28
42
13. While a second person holds the Console (4)
near the Upright (2), plug the Upper Wire (42)
and the Pulse Wire (28) into the receptacles on
the Console. The connectors on the Upper
Wire and the Pulse Wire should slide easily
into the receptacles and snap into place. If a
connector does not slide easily into a receptacle,
turn the connector and try again. If you do not
connect the connectors properly, the Console
may become damaged when you use the
elliptical.
Insert the excess wires into the Upright (2).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Upright with four M4 x 16mm
Screws (53); start all the Screws, and then
tighten them.
Avoid pinching
the wires
2

12
14. Attach the Tablet Holder (15) to the Console (4)
with four M4 x 15mm Screws (43); start all the
Screws, and then tighten them.
14
415
43
15
55
32
15. Attach the Console Cover (32) to the Upright (2)
with an M5 x 15mm Machine Screw (55).
2
16. Identify the Right Front and Rear Pivot Covers
(19, 22), and orient them as shown.
Press the Right Front and Rear Pivot Covers
(19, 22) together around the Right Upper Body
Arm (9). Then, attach them with an M4 x 20mm
Screw (50).
Repeat this step for the Left Upper Body
Arm (8).
50
22
19
91
85 9
8
16

13
17. Identify the Rear and Front Upright Covers
(3, 16), and orient them as shown.
Press the Rear and Front Upright Covers (3, 16)
together around the Upright (2). Then, attach
them with an M5 x 15mm Machine Screw (55)
and four M4 x 20mm Screws (50); start all the
Screws, and then tighten them.
50
16
55
3
2
17
18. Identify a Front Leg Cover (20) and a Rear Leg
Cover (21), and orient them as shown.
Press the Front and Rear Leg Covers (20, 21)
together around the right Upper Body Leg
(6). Then, attach them with an M4 x 20mm
Screw (50).
Repeat this step for the left Upper Body
Leg (6).
20
6
6
21
50
18
19
20. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.

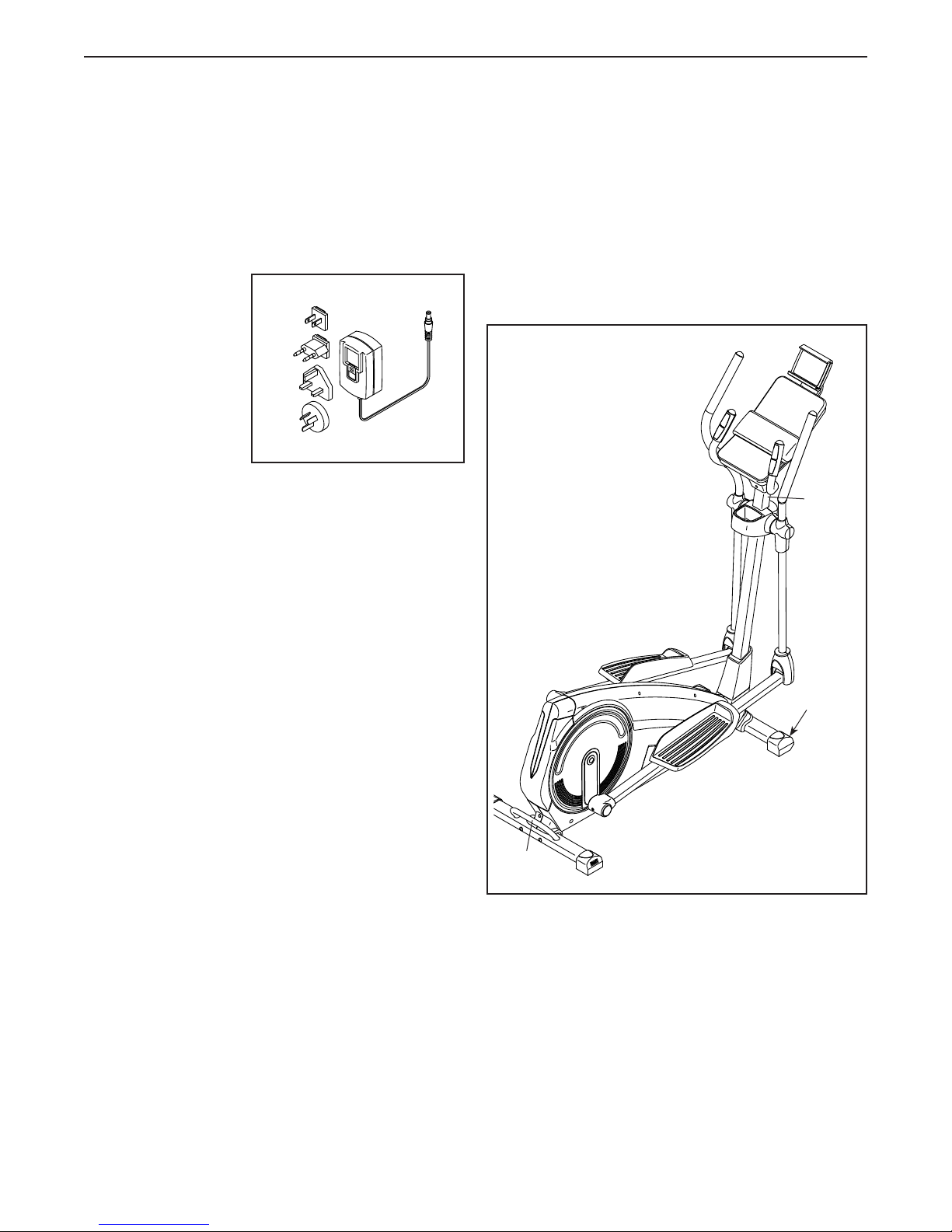

19. Plug the Power Adapter (31) into the Receptacle
(33) on the rear of the elliptical.
Note: To plug the Power Adapter (31) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 14.
31
33

14
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter into the
receptacle on
the frame of the
elliptical. Insert the
appropriate plug
adapter into the
power adapter if
necessary. Then,
plug the power
adapter into an
appropriate outlet
that is properly installed in accordance with all local
codes and ordinances.
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright (A), and place one foot against one
of the front wheels (B). Pull on the upright and have a
second person lift the handle (C) on the rear stabilizer
until the elliptical will roll on the wheels. Carefully move
the elliptical to the desired location, and then lower it to
the floor.
A
C
B

15
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars (A) or the
upper body arms (B) and step onto the pedal (C) that is
in the lowest position. Then, step onto the other pedal.
Push the pedals (C) until they begin to move with a
continuous motion. Note: The crank discs (D) can
turn in either direction. It is recommended that you
move the crank discs in the direction shown by the
arrow; however, for variety, you can turn the crank
discs in the opposite direction.
To dismount the elliptical, wait until the pedals (C)
come to a complete stop. Note: The elliptical does
not have a free wheel; the pedals will continue to
move until the flywheel stops. When the pedals are
stationary, step off the highest pedal first. Then, step
off the lowest pedal.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your floor
during use, turn one
or both of the dials
(A) on the level-
ing feet until the
rocking motion is
eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder is designed for use
with most full-size tablets. Do not place any other
electronic device or object in the tablet holder.
To insert a tab-
let into the tablet
holder (A), set the
bottom edge of the
tablet in the tray.
Then, pull the clip
over the top edge
of the tablet. Make
sure that the tablet
is firmly secured
in the tablet holder. Rotate the tablet holder to the
desired angle. Reverse these actions to remove the
tablet from the tablet holder.
C
D
B
A
A
A
A

16
CONSOLE DIAGRAM FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button.
While you exercise, the console will display continu-
ous exercise feedback. You can also measure your
heart rate using the handgrip heart rate monitor or
a compatible heart rate monitor. See page 21 for
information about purchasing an optional chest
heart rate monitor.
You can also connect your tablet to the console and
use the iFit®Bluetooth Tablet app to record and track
your workout information.
The console also offers a selection of onboard
workouts. Each workout automatically changes the
resistance of the pedals as it guides you through an
effective workout.
You can even connect your personal audio player to
the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 17. To use an
onboard workout, see page 19. To connect your
tablet to the console, see page 20. To connect
your heart rate monitor to the console, see page
20. To use the sound system, see page 21. To
change console settings, see page 21.
Note: If there is a sheet of plastic on the display,
remove the plastic.
Note: The console can display speed and distance in
either miles or kilometers. To change the unit of mea-
surement, press the Standard/Metric button repeatedly.
For simplicity, all instructions in this section refer to
miles.
Giant
ELNI69016
EBNI59016
NTIVEL69016
NTIVEX59016

17
HOW TO USE THE MANUAL MODE
1. Turn on the console.
Begin pedaling or press any button on the console
to turn on the console.
When you turn on the console, the display will turn
on, a tone will sound, and the console will be ready
for use.
2. Select the manual mode.
Press the Manual Control button to select the
manual mode.
3. Change the resistance of the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the Quick Resistance increase and
decrease buttons or by pressing one of the num-
bered Quick Resistance buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
4. Follow your progress with the displays.
The display can show the following workout
information:
Calories (flame icon)—When the manual mode
is selected, this display will show the approximate
number of calories you have burned. When an
onboard workout is selected, this display will show
either the approximate number of calories remain-
ing to be burned or the approximate number of
calories you have burned.
Calories per Hour (Cals/Hr)—This display will
show the approximate number of calories you are
burning per hour.
Distance—This display will show the distance that
you have pedaled in miles (mi) or kilometers (km).
Pulse (BPM)—This display will show your heart
rate in beats per minute (bpm) when you use the
handgrip heart rate monitor or the optional chest
heart rate monitor (see step 5).
Pulse Average (BPM AVG)—This display will
show your average heart rate in beats per minute
(bpm) when you use the handgrip heart rate moni-
tor or the optional chest heart rate monitor (see
step 5).
Resistance—This display will show the resistance
level of the pedals for a few seconds each time the
resistance level changes.
RPM—This display will show your pedaling speed
in revolutions per minute (rpm).
RPM Average (RPM AVG)—This display will show
your average pedaling speed in revolutions per
minute (rpm).
Speed—This display will show your pedaling
speed in miles per hour or kilometers per hour.
To change the unit of measurement, press the
Standard/Metric button repeatedly.
Time—When the manual mode is selected, this
display will show the elapsed time. When an
onboard workout is selected, this display will show
either the time remaining in the workout or the
elapsed time.
Watts—This display will show your approximate
power output in watts.
Average Watts (AVG)—This display will show your
approximate average power output in watts for the
workout.

18
Scan Mode and Priority
Mode—The calories and watts
displays will appear in an
alternating cycle (scan mode).
To select either the calories
display or the watts display for continuous display
(priority mode), press the increase or decrease
button next to the Enter button repeatedly until
the desired display appears. To return to the scan
mode, press the increase button repeatedly until
the word SCAN appears.
Press the Home button to exit the workout and
return to the main menu. If necessary, press the
Home button again.
Press the End/Summary button to end the work-
out and view a workout summary. The workout
summary will appear in the displays for several
seconds.
Change the volume level of
the console by pressing the
volume increase and decrease
buttons.
5. Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip heart rate monitor or an optional chest
heart rate monitor (see page 21 for infor-
mation about the optional chest heart rate
monitor). Note: The console is compatible with
BLUETOOTH®Smart heart rate monitors.
Note: If you use both heart rate monitors at the
same time, the chest heart rate monitor will
have priority.
If there are
sheets of plas-
tic on the metal
contacts (A) on
the handgrip
heart rate moni-
tor, remove the
plastic. To mea-
sure your heart
rate, hold the handgrip heart rate monitor with your
palms resting against the contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will
appear in the display. For the most accurate
heart rate reading, hold the contacts for at least
15 seconds.
6. Turn on the fan if desired.
The fan has several speed
settings, including an auto
mode. While the auto mode
is selected, the speed of the
fan will automatically increase or decrease as your
exercise intensity increases or decreases. Press
the fan increase and decrease buttons repeatedly
to select a fan speed or to turn off the fan.
Note: If the pedals do not move for about 30
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the display will pause.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
A

19
HOW TO USE AN ONBOARD WORKOUT
1. Turn on the console.
Begin pedaling or press any button on the console
to turn on the console.
When you turn on the console, the display will turn
on, a tone will sound, and the console will be ready
for use.
2. Select an onboard workout.
To select an onboard workout, press the desired
Workout Apps button repeatedly until the desired
workout appears in the display.
When you select an onboard workout, the display
will show the name of the workout and the dura-
tion of the workout or the number of calories to be
burned.
The maximum speed and the maximum resistance
level for the workout will also appear in the display.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute segments.
One resistance level and one target speed are
programmed for each segment. Note: The same
resistance level and/or target speed may be pro-
grammed for consecutive segments.
At the end of each segment of the workout, a
series of tones will sound. If a different resistance
level and/or target speed is programmed for the
next segment, the resistance level and/or target
speed will appear in the display to alert you. The
resistance of the pedals will then change.
As you exercise, keep your pedaling speed near
the target speed for the current segment.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Quick Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To pause the workout at any time,
stop pedaling. The time will flash in the display. To
resume the workout, simply resume pedaling.
To end the workout, press the End/Summary but-
ton. A summary of the workout will appear in the
displays for several seconds.
4. Follow your progress with the displays.
See step 4 on page 17.
5. Measure your heart rate if desired.
See step 5 on page 18.
6. Turn on the fan if desired.
See step 6 on page 18
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 18.

20
HOW TO CONNECT YOUR TABLET TO THE
CONSOLE
The console supports BLUETOOTH connections to
tablets via the iFit Bluetooth Tablet app and to compat-
ible heart rate monitors. Note: Other BLUETOOTH
connections are not supported.
1. Download and install the iFit Bluetooth Tablet
app on your tablet.
On your iOS®or Android™ tablet, open the App
Store℠ or the Google Play™ store, search for
the free iFit Bluetooth Tablet app, and then install
the app on your tablet. Make sure that the
BLUETOOTH option is enabled on your tablet.
Then, open the iFit Bluetooth Tablet app and follow
the instructions to set up an iFit account and cus-
tomize settings.
2. Connect your heart rate monitor to the console
if desired.
If you are connecting both your heart rate monitor
and your tablet to the console, you must connect
your heart rate monitor before you connect
your tablet. See HOW TO CONNECT YOUR
HEART RATE MONITOR TO THE CONSOLE
page 20.
3. Connect your tablet to the console.
Press the Bluetooth Smart button on the console;
the console pairing number will appear in the
display. Then, follow the instructions in the iFit
Bluetooth Tablet app to connect your tablet to the
console.
When a connection is established, the LED on the
console will turn solid blue.
4. Record and track your workout information.
Follow the instructions in the iFit Bluetooth Tablet
app to record and track your workout information.
5. Disconnect your tablet from the console if
desired.
To disconnect your tablet from the console, first
select the disconnect option in the iFit Bluetooth
Tablet app. Then, press and hold the Bluetooth
Smart button on the console until the LED on the
console turns solid green.
Note: All BLUETOOTH connections between
the console and other devices (including any
tablets, heart rate monitors, and so forth) will be
disconnected.
HOW TO CONNECT YOUR HEART RATE MONITOR
TO THE CONSOLE
The console is compatible with all BLUETOOTH Smart
heart rate monitors.
To connect your BLUETOOTH Smart heart rate moni-
tor to the console, press the Bluetooth Smart button on
the console; the console pairing number will appear in
the display. When a connection is established, the LED
on the console will flash red twice.
Note: If there is more than one compatible heart rate
monitor near the console, the console will connect to
the heart rate monitor with the strongest signal.
To disconnect your heart rate monitor from the console,
press and hold the Bluetooth Smart button on the con-
sole until the LED on the console turns solid green.
Note: All BLUETOOTH connections between the
console and other devices (including any tablets, heart
rate monitors, and so forth) will be disconnected.
