OAKWORKS antigua ATRC User manual

INSTRUCTION MANUAL
OAKWORKS®

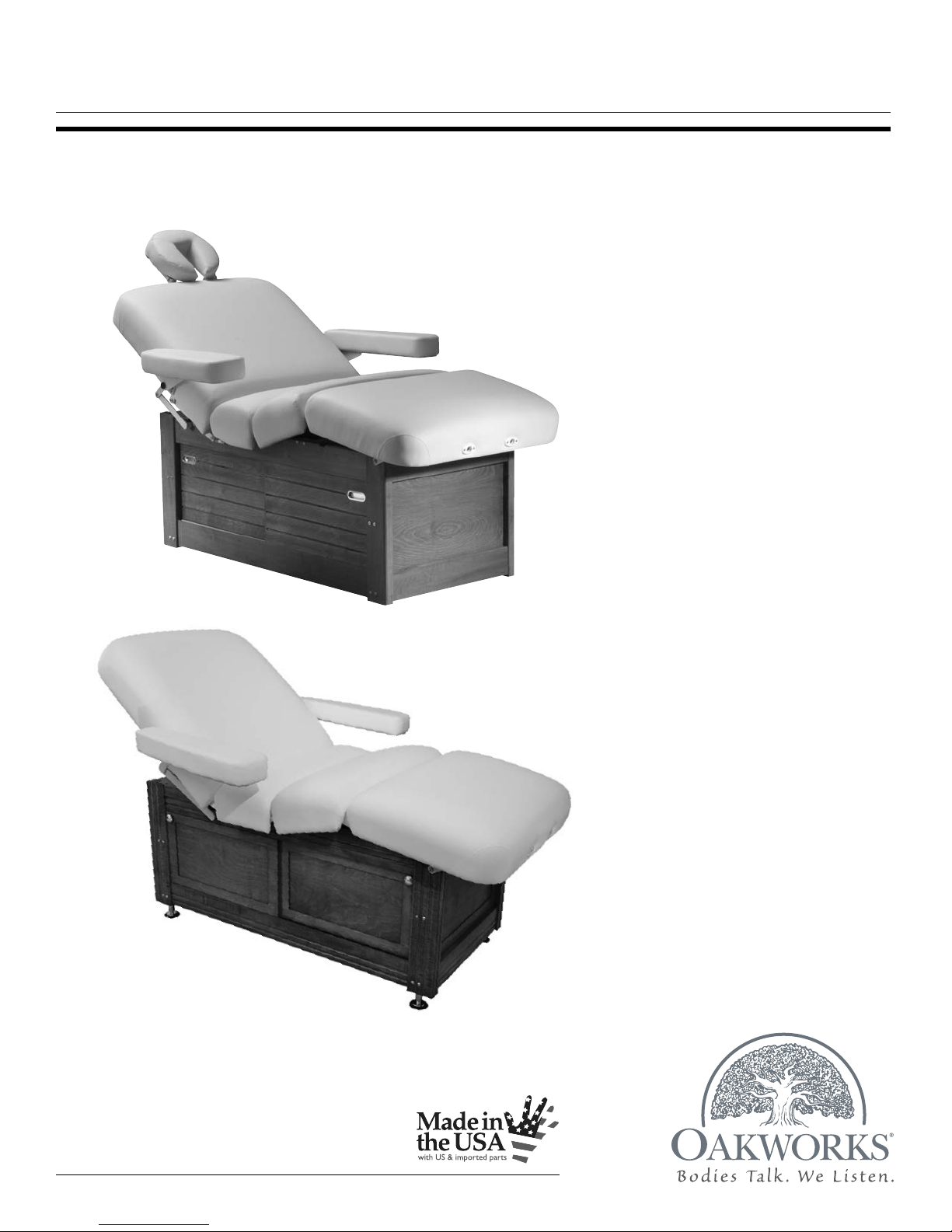

Antigua
Antigua
AVAILABLE WITH:
• ROUND CORNER FLAT TOP
• BACKREST TOP
• ELECTRIC FLEX TOP (SHOWN HERE)
Antigua Colonial
AVAILABLE WITH:
• ROUND CORNER FLAT TOP
• BACKREST TOP
• ELECTRIC FLEX TOP (SHOWN HERE)
• STANDARD WOOD DOOR
(SHOWN HERE)
• OPTIONAL ACRYLIC DOOR
GRASS OR LEAF PATTERN

TAB TEXT HERE
© 2007 OAKWORKS®, Inc.
Manual Part # MMMNST0011
Edition 1, English May 2007
Edition 2, English January 2009
All rights are reserved. No part
of this document may be
photocopied, reproduced or
translated to another language
without prior written consent
of OAKWORKS®, Inc.
OAKWORKS®is a registered
trademark of OAKWORKS®, Inc.
Notice
The information contained in this
document is subject to change
without notice and should not
be construed as a commitment by
OAKWORKS®, Inc.
OAKWORKS®, Inc. assumes no
responsibility for any errors that
may appear in this document nor
does it make expressed or implied
warranty of any kind with regard
to this material, including, but not
limited to, the implied warranties
of merchantability and fitness for
a particular purpose.
OAKWORKS®, Inc. shall not be liable
for incidental or consequential
damages in connection with or
arising out of the furnishing,
performance, or use of this
document and the program
material which it describes.

TABLE OF CONTENTS
TABLE OF CONTENTS
Symbol Identification .......................................................................... pg ii
Warnings .............................................................................................. pg iii
Grounding Instructions ......................................................................... pg v
Introduction .......................................................................................... pg 1
Section I: Product Description
Antigua™ ....................................................................... pg 2
Section II: Installation

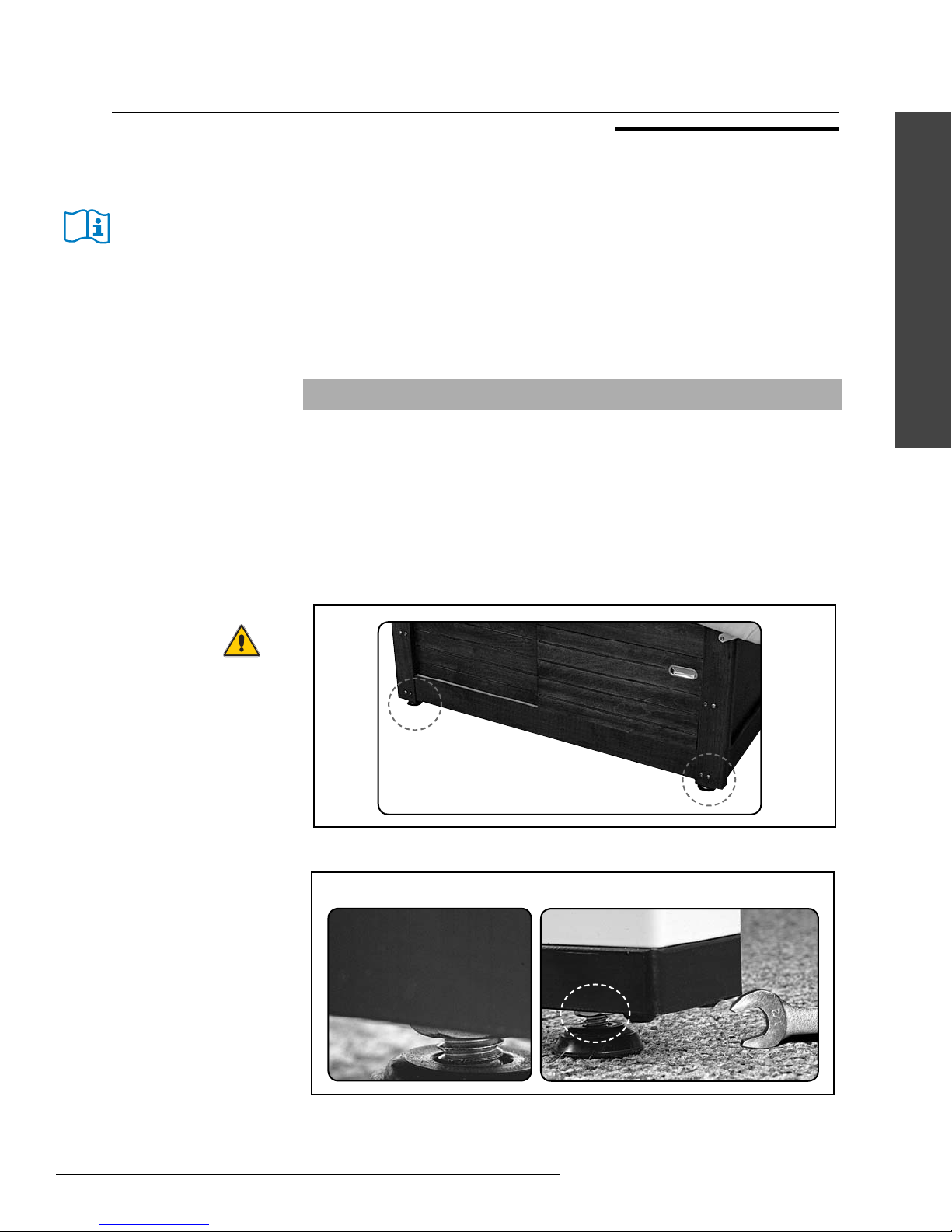

Leveling Instructions ....................................................... pg 4
Section III: Directions for Use

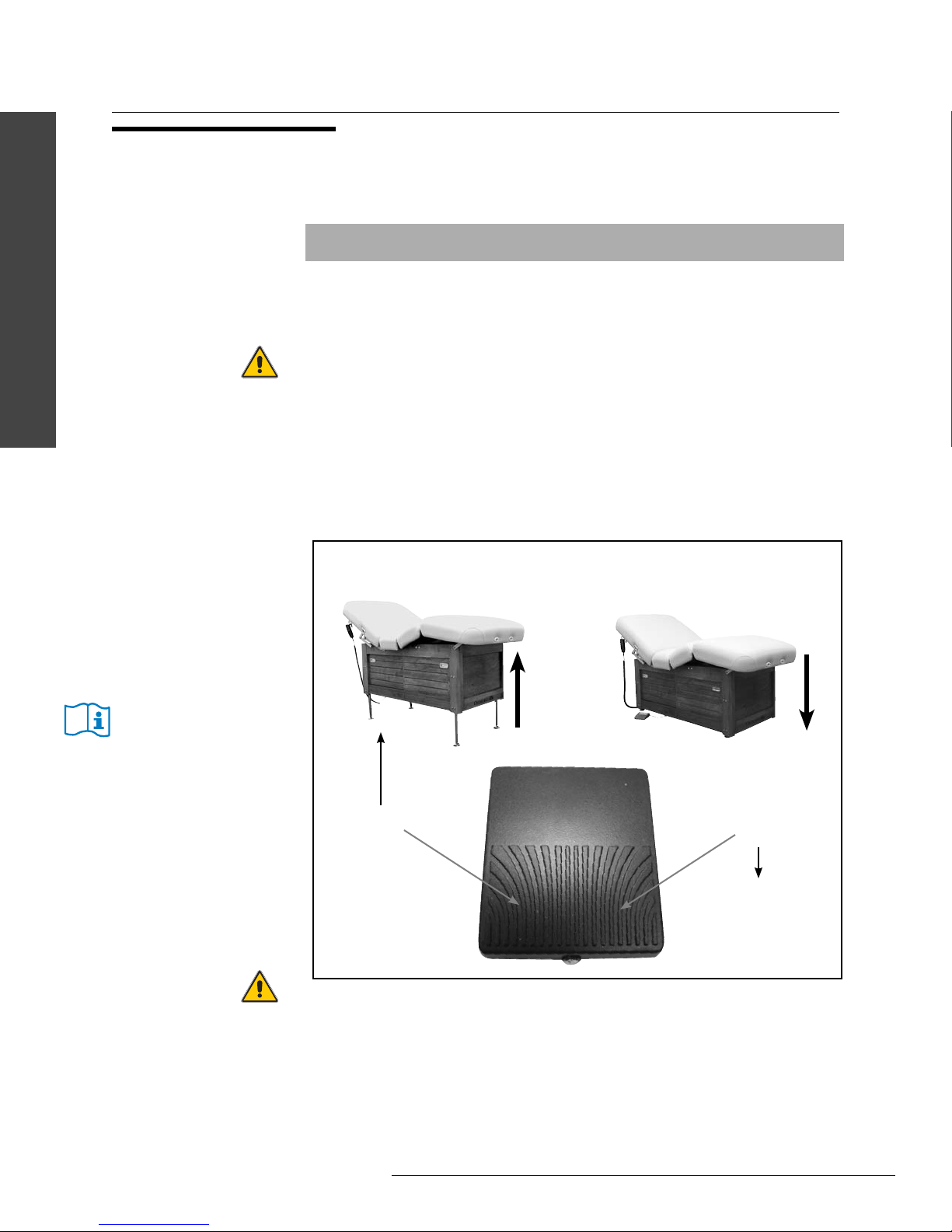

Foot Control ............................................................................ pg 5
Hand Control ............................................................................ pg 6
Under-Table Cabinet .......................................................... pg 7
Side Arm Rests ................................................................. pg 10
QuickLock™Face Rest ........................................................ pg 12
Accessory Option: Table Extender ................................ pg 14
Moving the Antigua™ .............................................. pg 14
Section IV: Troubleshooting
If Table Will Not Change Height or Position .............. pg 15
Section V: Care & Cleaning ................................................................. pg 16
Section VI: Product Identification ...................................................... pg 17
Section VII: Table Specifications......................................................... pg 18
Section VIII: List of Parts ................................................................... pg 19
Section IX: Warranty .................................................................... pg 20
Contact Information ................................................................. back cover
i
TABLE OF CONTENTS

SYMBOL IDENTIFICATION
ii

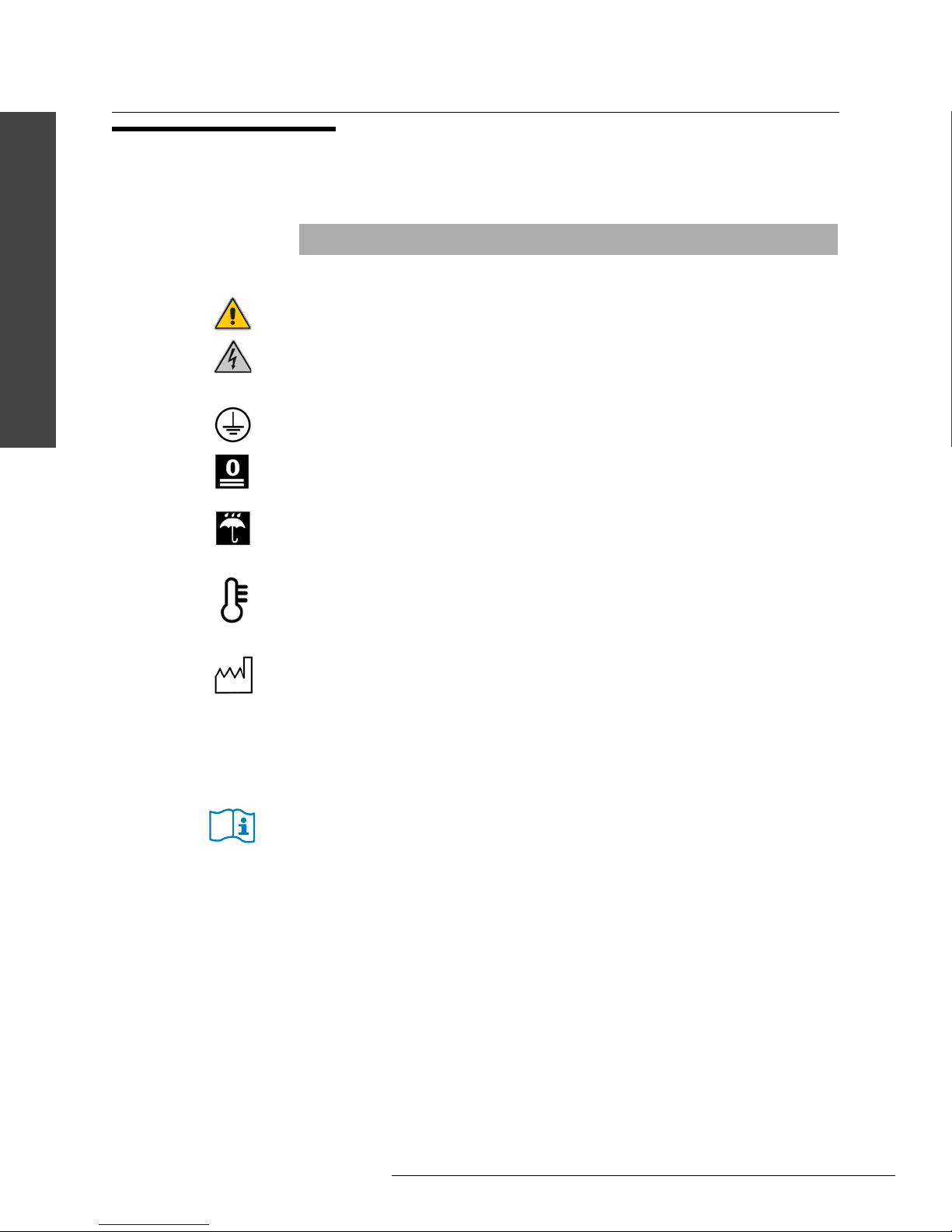

SYMBOL IDENTIFICATION
SYMBOL
IDENTIFICATION
SYMBOL IDENTIFICATION
This symbol, when used in documentation on this product, represents a cau-
tion. Be sure to read and comply with all precautions and warnings.
This symbol, when used in documentation on this product, indicates danger
and warns against an electrical shock hazard. Be sure to observe and
comply with all warnings and instructions.
This symbol, when used in documentation on this product, indicates a
Protective Earth (Ground) Terminal.
This symbol when used in documentation on this product, warns that dur-
ing transport there should be no stacking of containers.
This symbol, when used in documentation on this product, indicates that
the product should be protected from moisture. The humidity specifications
for Transport & Storage are listed on page 18.
This symbol, when used in documentation on this product indicates that
information is given regarding the recommended temperature limits
during transport and storing. The specifications for these limits are listed
on page 18.
This symbol, when used in documentation on this product, indicates the
date of manufacture of the device.
This symbol, when used in documentation on this product indicates
alternating current (AC).
This symbol, when used in documentation on this product, indicates direct
current (DC).
This symbol, when used in documentation on this product, indicates
that instructional information is included. All instructions should be
read carefully and completely before using the equipment.
~
----

WARNINGS & SAFETY INSTRUCTIONS
Improper use of this device can cause injury. Be sure to read all
operating instructions prior to use to prevent injury to operator or client.
Electrical Shock Hazard. To reduce the risk of electric shock, always
disconnect the table from the electrical outlet before moving the table
or doing any maintenance or troubleshooting procedures. Never use
this equipment if it has a damaged cord or plug. Use this equipment
only for its intended use as described in these instructions. Do not use
any attachment or accessories not recommended by the manufacturer.
To reduce the risk of burns, fire, electrical shock or injury:
•The power supply/control module is located under the top and beneath
the base. Refer servicing to qualified personnel and follow manual
instructions when doing any authorized troubleshooting. Before doing
any work on the unit, disconnect the power cord from the power outlet.
•Before cleaning with any liquid cleaner be sure to un-plug the power cord
from the power outlet. Do not operate the table in standing water.
•Before moving the table, disconnect the power cord from the power outlet
and secure the electrical cord, hand control and foot control out of the
way for moving.
•Risk of Electrical Shock. – Connect this table to a properly grounded outlet
only. See Grounding Instructions.
•Use this furnishing only for its intended use as described in these
instructions. Do not use attachments not recommended by the manufacturer.
•Never operate this table if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return
the table to a service center for examination and repair.
•Keep the cord away from heated surfaces.
•Do not use outdoors.
•Do not operate where aerosol (spray) products are being used or where
oxygen is being administered.
•Maximum shelf load weight: 200 lbs. (91kg.)
Risk of Injury – Children should never be near the table when in use.
Never drop or insert any object into any opening.
iii
WARNINGS & IMPORTANT SAFETY INSTRUCTIONS
WARNINGS & IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
DANGER
READ AND
SAVE THESE
INSTRUCTIONS
WARNING
WARNING
WARNING

WARNINGS & SAFETY INSTRUCTIONS
iv
WARNINGS & IMPORTANT SAFETY INSTRUCTIONS
WARNINGS & IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS(CONT.)

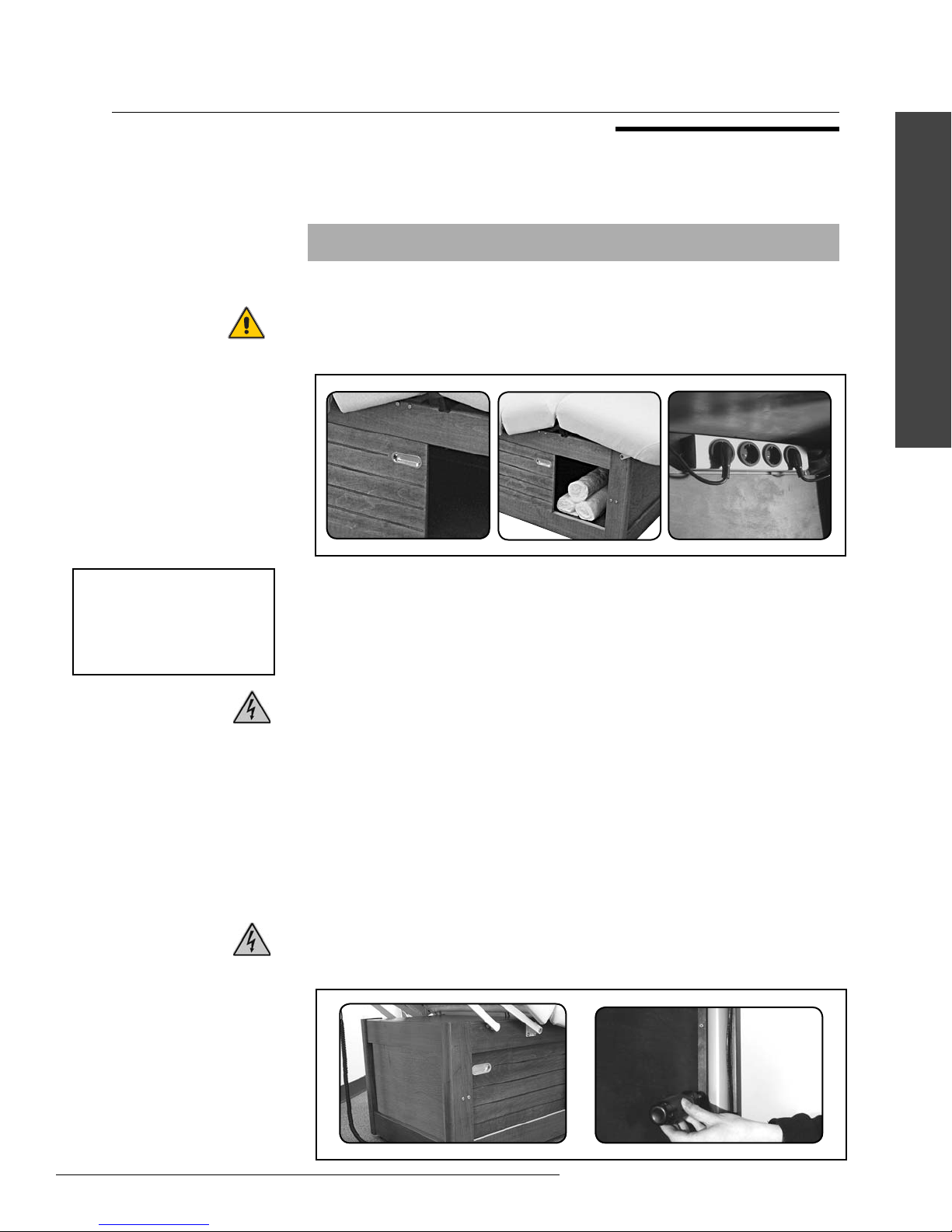

This product is equipped with an interior accessory outlet. The total
electrical load of equipment plugged into this set of outlets is not to
exceed 750 watts.
Close supervision is necessary when this furnishing is used by, or near,
children, invalids or disabled persons. DO NOT leave children alone or allow
them to operate the controls. Keep controls out of reach of children. DO NOT
allow children to crawl into the cabinet or under the table.
Be certain that the table is completely lowered without any tilt being
present prior to discharging an ambulatory patient. The patient may
lose balance and fall. Do not leave clients unattended when table is set at
its highest level.
The table weighs as much as 200 lbs. DO NOT lift or move the unit
without using proper safely procedures or equipment. DO NOT turn
the Antigua™on its side for any reason. To do so could cause damage
to the base and will void the warranty. There are no serviceable items that
require this action. Never lift the table by grasping the table top as the
table top is not designed to hold the weight of the base and you could
damage the table.
When operating the Antigua™controls and making any and all adjust-
ments to the table, move hands and feet away from the working mecha-
nism of the table. Use care when opening the doors all the way
so that you do not pinch or injure your fingers. Either arm rest can be
repositioned to allow a client to get on and off the Antigua™easily. When
making adjustments to the arm rests make certain that the client’s arms
are away from the working mechanism.
DO NOT sit on the Arm Rests, the elevated Back Rest or Leg Rest. DO NOT
place excess weight on the Side Arm Rests. DO NOT use them in assisting
the client on and off the Antigua™.

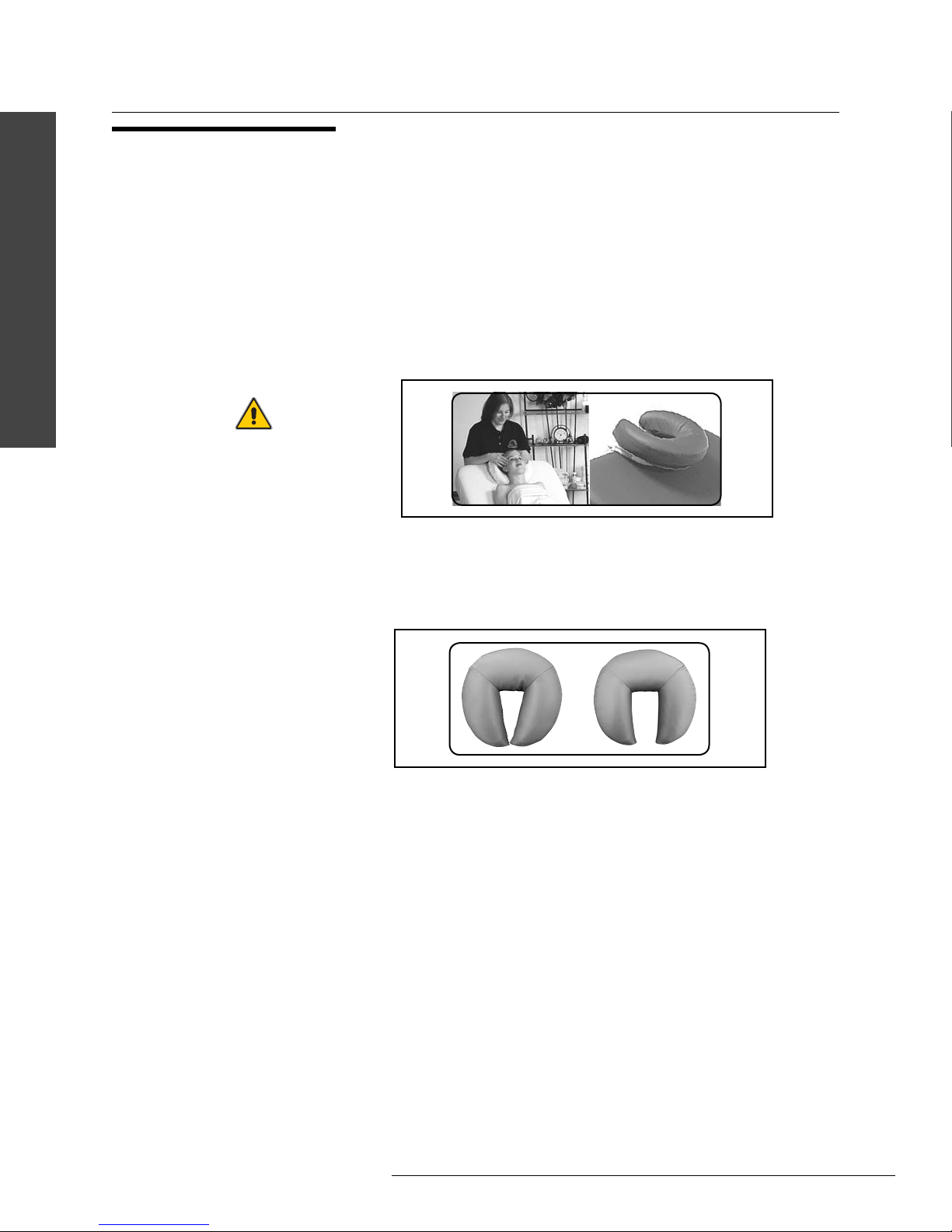

DO NOT put excessive weight or pressure on the QuickLock™Face Rest.
Excessive pressure can cause premature failure of the QuickLock™Face
Rest. Do Not extend the dowels of the Face Rest further than 3” from the
table edge to ensure a stable connection.
DO NOT use the hand control and the foot control simultaneously as this
can cause damage to one or both units.
DO NOT store or place anything on the cabinet hood under the backrest as
this can cause damage to top and/or hood and will void the warranty.
Maximum Working Load Rating (client and accessories): 550 lbs. (249 kg.)
READ AND
SAVE THESE
INSTRUCTIONS
WARNING
WARNING
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION

WARNINGS & SAFETY INSTRUCTIONS
v
WARNINGS & IMPORTANT SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
GROUNDING
INSTRUCTIONS
WARNINGS & IMPORTANT SAFETY INSTRUCTIONS

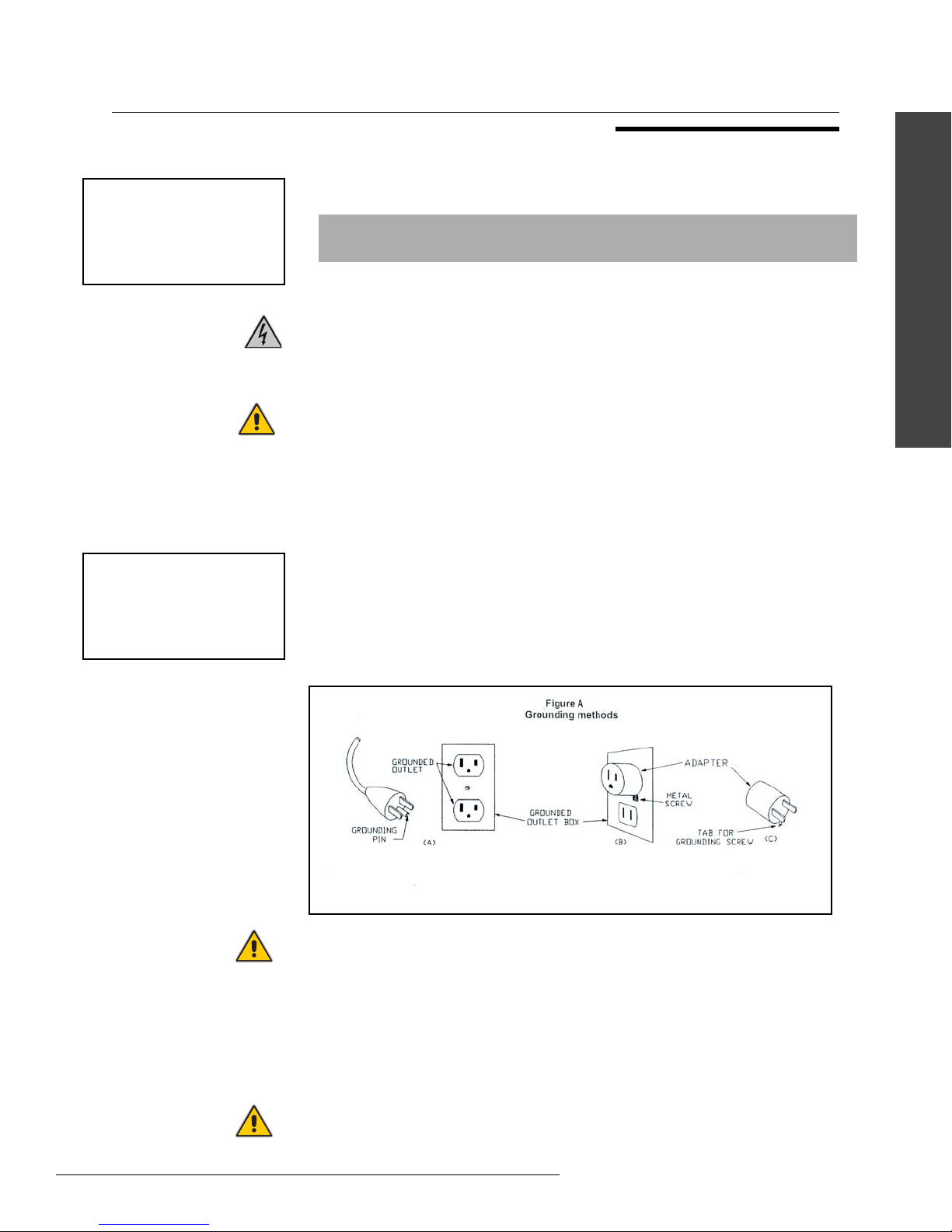

This product must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electrical current to reduce
the risk of electric shock. This product is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances. See U.S. sample below.
This product is manufactured for use on a nominal 120-volt circuit for the
United States and a nominal 220-volt circuit for use in Europe. The plug has
a grounding pin in a pattern that varies by country as shown in the Product
Identification section of this manual. Make sure that the product is connected
to an outlet having the same configuration as the plug.
G• To remove the accessories from the cabinet: Turn the accessory controls
to the ‘off’ position and then disconnect the unit from the interior
power source by removing the plug from the outlet.
When moving the table: Turn the accessory controls to the ‘off’
position, disconnect the table from the exterior power source by
removing the table plug from the outlet.
Plug table into an outlet that is surge protected to a level of 750J or higher.
Failure to do this may void all or part of the warranty.
Correct Implementation Incorrect Implementation
READ AND
SAVE THESE
INSTRUCTIONS
READ AND
SAVE THESE
INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS(CONT.)
DANGER-Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician
or service man if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product - if it will not
fit the outlet, have a proper outlet installed by a qualified electrician.
To reduce the risk of electric shock, this furnishing has a polarized plug
(one blade is wider than the other). This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified electrician to install the proper outlet.
Do not change the plug in any way.
No adapter should be used with this product.
WARNING
CAUTION
CAUTION
CAUTION

INTRODUCTION
1
INTRODUCTION
INTRODUCTION
Antigua™
OAKWORKS®Antigua™offers a variety of positioning capabilities for massage
therapists and skincare professionals of all specialties. On this multifunctional
professional model table the practitioner can perform numerous protocols
with ease and comfort. The fully electric Antigua™is especially effective
when professional protocols require specific positioning for the client,
guest or patient. While the client receives comfortable, relaxing support,
the comfort level of the therapeutic professional is enhanced by superior
ergonomics.
The Antigua™ should not be used in any other manner than that described
within this manual. Use of any unnecessary force or unauthorized procedures
could result in injury to practitioner, client or equipment.
Antigua™
The Antigua™raises, lowers and tilts your clients to the optimal working
height easily with added features provided by an electronically adjustable
flextop. The variety of height and reclining positions align the Antigua™top
so your client’s body is at the optimum level for any number of treatments.
It features a single hand control and a foot control to make the precise
adjustments to height, back and knee rest positions to really make it a
custom fit to each client and practitioner.
The cabinet offers an in-cabinet plug-in option to accommodate hot towel
cabinets, placing them right at your fingertips. The large cabinet holds stacks
of towels and other equipment without interfering with the lifts. The doors
slide handily to a fully-open position for ease of access.
The Antigua™’s bed is built on a solid hardwood frame for optimum
strength. The beautiful wood surround makes the Antigua™look like custom-
designed, high-end furniture. You will rely on the strength, but all you
will see is the beauty. We’ve gone to great lengths to hide the wiring on
the Antigua™, for a streamlined glamour that will accentuate your decor as
well as provide ergonomic benefits and comfort to serve you and your
client.

PRODUCT DESCRIPTION
2
PRODUCT DESCRIPTION
PRODUCT
DESCRIPTION
Antigua™-
Model ATRC
Model ATF3
Model ATBR Total Lifting Capacity:
550 lbs. Maximum Working Load
• Quiet height adjustments with the touch of a button
accommodates practitioners and estheticians of all sizes
• Electronically adjustable top, controlled by a
multifunctional hand control, allows you to
effortlessly change your clients position while
they relax on the table
• Ergonomically designed access top allows the seated
practitioner total ergonomic access to the client’s
head region, reducing strain and fatigue
• Four maintenance-free hydraulic cylinders are
powered by a whisper quiet motor to power the
electric lift feature
• Powered back rest and leg rest make adjustments
easy when a client is on the table
• Hardwood frame provides optimum strength.
• Cabinet base has an optional opening at the head
end of the table for towels or an optional hot towel
warmer.
•Two (2) sliding doors on both sides of the table allow for
convenient ease of use of the storage area.
Antigua™
Colonial
MODEL ATRCCO
MODEL ATF3CO
MODEL ATBRCO

PRODUCT DESCRIPTION
3
PRODUCT DESCRIPTION
TABLE SPECS* :
• Height *: 25” - 35” (standard), 21” - 31” (optional)
• Width: 29” or 31”
• Length: 72” Flex Top and Backrest Top
73” Flat Top
• Lift Capacity: 550 lbs Maximum Working Load
• Weight: 200 lbs.
• Top: Electronically Controlled Flex Top
Electronically Controlled Backrest Top
Round Corner Flat Top
• Electronics: 1 Hand Control & 1 Foot Control
• Padding: Aero·Cel™System
• Upholstery: Ultratouch II or TerraTouch™
• Cabinetry: Wood/Maple
For electrical specs, see Specifications Chart
* measurements are determined from floor to top of seat pad using
standard padding; these measurements can be affected by natural
material variations in padding
** published weight may differ due to options chosen, natural
material variations and padding density
Antigua™-
Model ATRC
Model ATF3
Model ATBR
Self Adjusting
Removable
Arm Rests (2)
(optional)
Hand
Control (1)
Sliding Cabinet doors / 2
(access both sides)
Upholstered
Top
QuickLock™
Face Rest
(optional)
Back Rest
Fully Enclosed
Cabinet Base
Accessory
Outlets (2)
Vertical
Hydraulic
Lift Columns (4)
Leg Rest
Seat
PRODUCT DESCRIPTION
Foot
Control (1)
Antigua™
Colonial
MODEL ATRCCO
MODEL ATF3CO
MODEL ATBRCO

INSTALLATION
4
INSTALLATION
INSTALLATION - LEVELING INSTRUCTIONS
The Antigua™ comes completely assembled and ready to use. Plug the cord
into a functioning outlet that is rated for the table.
Arrange the power cord and control cords so that they will not create a trip-
ping hazard. Place the controls in a safe location where they are convenient
and accessible. Keep the controls out of the way of all table mechanisms.
LEVELING INSTRUCTIONS:
If Table Will Not Sit Flat on the Floor:
The Antigua™is equipped with Leveler Feet that adjust to level the table
on uneven floors. To adjust the Leveler Feet to suit common floor
differences you will need to use a 1 /2” open-end wrench or an adjust-
able wrench. Adjust each leg individually in turn by adjusting the height
of each leveler foot until the unit rests level and steady. This adjust-
ment will not effect the function of the table.
The table weighs as much
as 200 lbs. DO NOT lift or
move the unit without using
proper safely procedures
or equipment. DO NOT turn
the Antigua™on its side for
any reason. To do so could
cause damage to the base
and will void the warranty.
There are no serviceable
items that require this action.
Never lift the table by grasp-
ing the table top as the
table top is not designed to
hold the weight of the base
and you could damage the
table.
• Leveling Feet
When operating the
Antigua™ controls be
sure to observe all cautions
and warnings given in the
manual to prevent injury to
both operator and client.
IMPORTANT

1/2” Open-end Wrench
Leveler Foot
CAUTION

DIRECTIONS FOR USE
5
DIRECTIONS FOR USE
• Adjusting Height of the Antigua™ using the Foot Control
ADJUSTING HEIGHT OF THE TABLE:
The OAKWORKS®Antigua™comes complete with a multifunctional hand
control that operates the backrest and leg rest positioning functions as
well as a foot control that operates the height. The lifting motor is
equipped with a thermal overload limiter. It has a 10% duty cycle, 2
minutes operating and 18 minutes off
Foot Controls:
Operate the foot control as shown below to raise or lower the height
of the Antigua™. The foot control allows the therapist to adjust the
height function separately from the other functions found on the hand
control whenever needed. When operating the table’s controls, be sure
to follow all cautions and warnings as given in the manual.
Antigua™
When operating the
Antigua™controls be
sure to observe all cautions
and warnings given in the
manual to prevent injury to
both operator and client.
When operating the
Antigua™controls and making
any and all adjustments to the
table, move hands, feet and
controls away from any work-
ing mechanisms of the table.
Children must be supervised
when around this equipment
by a responsible adult. Do not
leave children alone or allow
them to operate the controls.
Do not allow children to crawl
into the cabinet or under the
table.
DIRECTIONS FOR USE
• Foot Control
DO NOT use the hand
control and the foot control
simultaneously as this can
cause damage to one or
both units.
IMPORTANT

Foot Control (1):
(used only to change height of table)
UP
To move the table
position higher, press
down on the left
side of the foot
control
To move the table
position lower, press
down on the right
side of the foot
control
DOWN
CAUTION
CAUTION

DIRECTIONS FOR USE

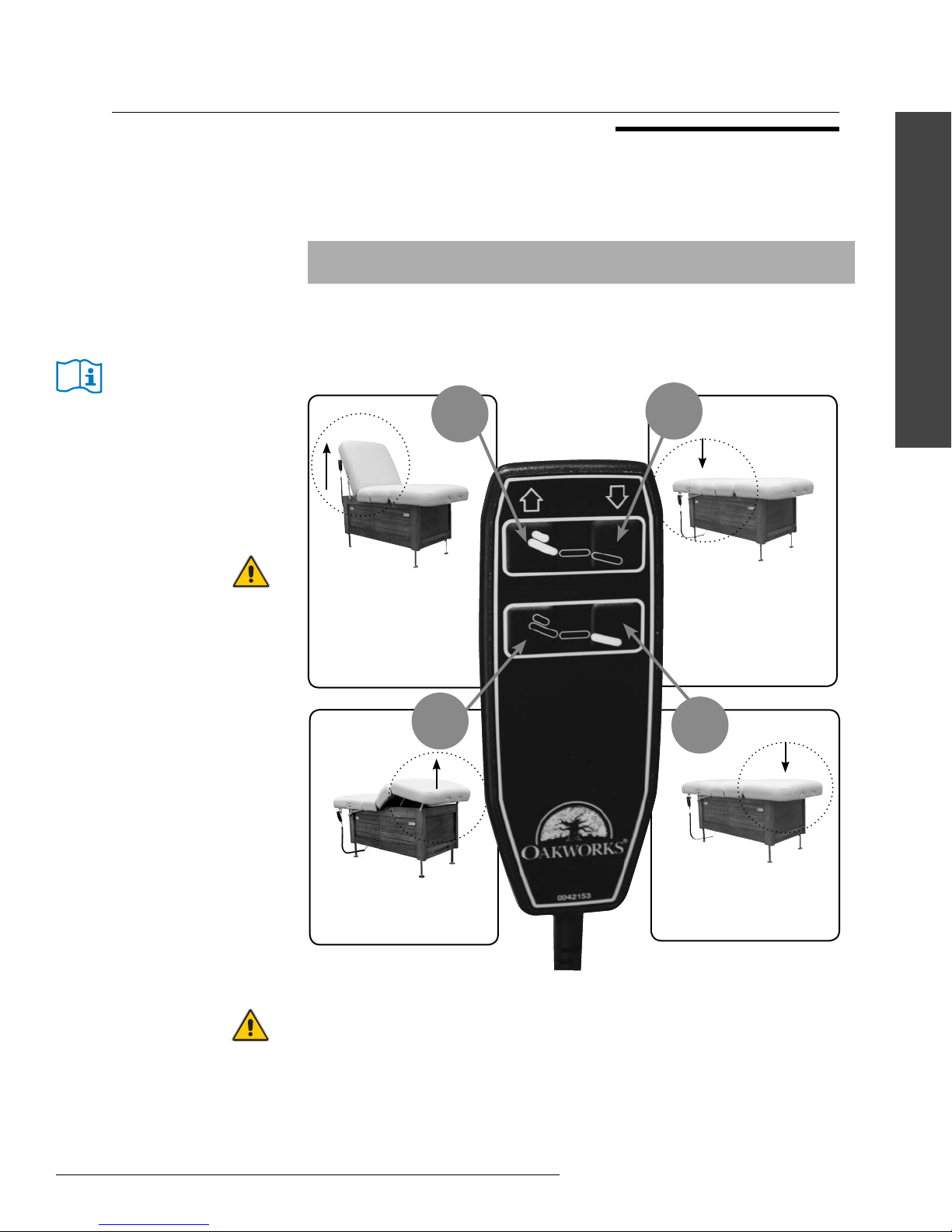

Hand Control: 4 positioning Buttons
The Hand Control on the Antigua™operates all the customizable positioning
of the backrest, seat and leg rest of the top.
6
DIRECTIONS FOR USE
• Adjusting Height and Top Positions
of the Antigua™using the Hand Control
Antigua™
Leg Rest UP Control:
- elevates leg rest
Leg Rest DOWN
Control:
- lowers leg rest
to level position
Do not sit on the elevated
Back Rest or Leg Rest.
Press and hold the appropriate button until the position desired is
achieved and then release. The arm rests will adjust automatically to
provide the most in comfort and ergonomics while staying parallel
to the floor, no matter what the position.
• Hand Control
DIRECTIONS FOR USE
Back Rest
Control:
- activates
backrest down
to level position
Children must be supervised
when around this equipment
by a responsible adult. Do not
leave children alone or allow
them to operate the controls.
Do not allow children to crawl
into the cabinet or under the
table.
Back Rest
Control:
- activates
backrest
When operating the
Antigua™ controls be
sure to observe all cautions
and warnings given in the
manual to prevent injury to
both operator and client.
DO NOT use the hand
control and the foot control
simultaneously as this can
cause damage to one or
both units.
IMPORTANT

HAND CONTROL OPERATIONS
12
34
CAUTION
CAUTION

DIRECTIONS FOR USE
To Access the Storage in the Under Table Cabinet:
The Antigua™has a fully integrated wood cabinet and base. The large
under-table cabinet provides storage for stacks of towels and other
equipment without interfering with the lift capacity of the table.
There are two (2) sliding doors on both sides of the table. The doors
slide all the way open.
The doors on the under-table cabinet are placed in a slide track for ease
of movement. The doors, two (2) on each side, slide independently
along this track with slight pressure on the
The cabinet hood area under the backrest top is not designed for stor-
age or as an area to hold accessories while with a client. DO NOT use
this area for holding anything. Damage can occur to the table, especially
when commands that are accessed by the hand control are activated.
Placing anything on this area will prohibit movement of the backrest and
can cause damage to the table or the object and will void the warranty.
7
DIRECTIONS FOR USE
• Important Safety Note/ Antigua™ • Antigua™ Under-Table Cabinet
DIRECTIONS FOR USE
DO NOT store or place
anything on the cabinet hood
under the backrest as this can
cause damage to the top
and/or hood.
IMPORTANT
IMPORTANT SAFETY NOTE • Antigua™
• Under-Table
Cabinet
Use care when opening
the doors all the way so
that you do not pinch or
injure your fingers.
Children must always be
supervised when around this
equipment by a responsible
adult. Do not leave children
alone or allow them to operate
the controls. Do not allow
children to crawl into the
cabinet or under the table.
NOT FOR STORAGE!
Track
UNDER-TABLE CABINET
CAUTION
CAUTION

DANGER
DANGER
CAUTION
DIRECTIONS FOR USE
To Access the Storage in the Under Table Cabinet: (cont)
handles found at the top of each door. They will open until they meet
the other side of the cabinet and stop. Slide the door shut to open the
other side.
The Antigua™ offers an in-cabinet power strip to accommodate electric
hot towel warmer or other electric devices. This allows you to store the
unit inside with no excess cords to get in the way. With it plugged in,
your towels stay warm and within easy reach, yet are still out of the way.
You will find the plug inside the cabinet at the foot end of the Antigua™.
To access the interior plug and insert the Hot Towel cabi
at head end of table:
The Antigua™ has a removable panel at the head end of the cabinet
to allow the placement of an electric hot towel warmer or other electric
devices inside the cabinet. Before any work is started, unplug the
power cord from the receptacle. To remove this panel unscrew and
remove the 4 screws from the panel retaining strips found on both sides
of the head end of the interior of the cabinet. Once these screws are
removed, push the bottom of the panel inside the cabinet and then
angle the panel to remove it from the opening. Place the screws and
the panel in storage in case of future need to reinstall the panel.
To re-install the panel, unplug and remove any appliances from the
cabinet, angle the panel into the opening and fit the panel into place.
Position the screws into the retaining strips and tighten. Do not over-
tighten the screws.
8
DIRECTIONS FOR USE
• Antigua™Under-Table Cabinet
DIRECTIONS FOR USE
• Under-Table
Cabinet (cont)
This product is equipped
with an interior accessory
outlet. Disconnect all power
cords from the interior
power outlet (found within
the cabinet) after use.
The total electrical load of
equipment plugged into this
set of outlets is not to exceed
1080 watts.
Use care when opening the
doors all the way so that you do
not pinch or injure your fingers.
Children must always be super-
vised when around this equipment
by a responsible adult. Do not
leave children alone or allow them
to operate the controls. Do not
allow children to crawl into the
cabinet or under the table. Keep
controls out of reach of children.
Screws
found inside
cabinet
holding
retaining strips
UNDER-TABLE CABINET (CONTINUED)
READ AND
SAVE THESE
INSTRUCTIONS
This product is equipped
with an interior 120-volt 60Hz
accessory outlet. Disconnect
all power cords from the
interior power outlet (found
within the cabinet) after
use. The total electrical load
of equipment plugged into
this set of outlets is not to
exceed 1000 watts.

DIRECTIONS FOR USE
Plug in the towel warmer and slide it inside being careful to move any
excess cord inside the wooden cabinet.
To access the interior plug for use with optional accessory
appliances:
For the times when an optional electrical appliance such as a facial
massager is used the Antigua™ comes equipped with an opening to
allow the cord of the appliance to pass through the cabinet and access
the interior outlet, thus giving you complete power without the safety
hazard and distraction of loose cords in the working area.
9
DIRECTIONS FOR USE
• Antigua™under table cabinet
DIRECTIONS FOR USE
UNDER-TABLE CABINET (cont)
Be sure to read all
cautions, warnings
and instructions given
in the manual to prevent
injury to both operator
and client.
• Under-Table
Cabinet (cont)
IMPORTANT
Note: Appearance of outlets will
vary depending on country of use.

CAUTION
DIRECTIONS FOP USE
• Use & Adjustment of the Antigua™Arm Rests
DIRECTIONS FOR USE
Though the arm rests adjust automatically to remain parallel to the
floor in any position, there will still be times when you will need to
move an arm rest out of the way or remove them altogether. We
recommend that you raise the arm rest out of the way to allow a client to
get on or off the table. They are designed to be strong and will take a
reasonable amount of weight but they are not designed to be used to
sustain a person’s weight when getting on or off the table.
To Adjust the Arm Rest:
Before asking a client to mount or dismount from the table we recommend
that you move the arm rest out of the way. The arm rests are easy to move
and manually adjust. First position the tabletop with the backrest in
the upright position and all other section flat. Take hold of the arm
rest firmly and raise the arm rest up and out of the way with a steady
swing until the arm rest is in the highest upright position (see images
below). Hold it in place until your client has mounted (or dismounted)
and then actively move it back into the resting position where it will
proceed to move automatically with the table top.
The arm rest is now set and will adjust automatically as you position the cli-
ent for whatever procedure is needed.
There will be times when removal of the arm rests will be needed. This
feature is helpful when doing massage or helping someone get on or
off the Antigua™. This can be done easily and storage is conveniently
located in the under-table cabinet. They are then at hand when you are
ready to re-install.
To Remove the Arm Rest:
The arm rest frame has a notched connection to the interior of the the
table top which allows it to move automatically when the table top
changes position. (cont.)
DIRECTIONS FOR USE
SIDE ARMRESTS:
Be sure to read all
cautions, warnings
and instructions given
in the manual to prevent
injury to both operator
and client.
• Side Arm Rests
Adjusting the Side Arm Rest
Do not place excess
weight on the Side Arm
Rests. Do not use them in
assisting the client on and
off the Antigua™.
Either Arm Rest can be
repositioned to allow a
client to get on and off
the Antigua™easily.
When making adjustments
the arm rests make certain
that the client’s arms are
away from the working
mechanism.
Do not sit on the Arm Rests.
IMPORTANT

10

DIRECTIONS FOR USE
11
DIRECTIONS FOR USE
• Use & Adjustment of the Antigua™Arm Rests
DIRECTIONS FOR USE
To remove one or both arm rests just take hold of the base of the arm
rest at the metal frame and somewhere on the cushion. Holding securely,
rotate the arm rest while at the same time pulling slightly away from
the table. You will feel the notched connection slide out as you rotate
the arm rest. When you feel this you can then slide the entire arm rest
out of the connection hole very easily. Store it safely inside the under-
table cabinet until ready for installation.
Re-attach the armrest by sliding the arm rest frame into the hole on the
tabletop and rotating it until you feel the notch slip into place. Push it
in securely and allow the arm rest to rest in the parallel position. This
resets the arm rest in the proper position for the automatic adjustment
feature to be activated.
Do not place excess weight
on the Side Arm Rests. DO
NOT use them in assisting
the client on and off the
Antigua™.
Either arm rest can be
repositioned to allow a
client to get on and off the
Antigua™easily.
When making adjustments
to the arm rests make
certain that the client’s
arms are away from the
working mechanism.
Do not sit on the Arm Rests.
SIDE ARM RESTS: (CONT.)
• Side Arm Rests
(cont.)
IMPORTANT

Removing the Side Arm Rests
A. hand soak bowl installation
B. hand soak bowl removal
C. Manicure surface installation
If you have purchased the optional manicure arm rest please follow the
same standard installation and removal instructions as above.
OPTIONAL MANICURE ARM RESTS:
ABC
CAUTION

ACCESSORY OPTIONS
Important Safety Note: Maximum
Distance from edge of table = 3”
QuickLock™FACE REST:
• Accessory Option:
QuickLock™
Face Rest
* U.S. Patent #5,177,823
Do not put excessive weight
or pressure on the face rest.
Excessive pressure can cause
premature failure of the
QuickLock™Face Rest.
Double articulating action provides nearly limitless positioning options
with the QuickLock™Face Rest.The adjustable pad takes pressure off
sensitive facial areas while providing superb support. The QuickLock™
Face Rest can be used in both prone and supine positioning and folds
out of the way when not in use. Adjustments are made easily by loosen-
ing the cam locks, adjusting for height and angle and then locking the
cam locks into that position. The Antigua™has outlets at the head of the
table for a variety of uses and outlets at the other end that work as well
for additional procedures.
Attaching the QuickLock™Face Rest / Head & Foot End Outlets:
When attaching the QuickLock™Face Rest to the head or foot end by
using the provided outlets, just slide the frame dowels into the outlets
being sure to keep the 1st cam lock within 3” of the table to ensure a stable
connection.
To remove the QuickLock™Face Rest, just pull the frame from the outlet
until it comes free. Set it safely aside or store it inside the under-table
cabinet until needed.
3”
QuickLock™Face Rest Important Safety Note: Maximum
Distance from edge of table = 3”
Be sure to read all
cautions, warnings
and instructions given
in the manual to prevent
injury to both operator
and client.
IMPORTANT

DIRECTIONS FOR USE
12
ACCESSORY OPTIONS
• QuickLock™Face Rest
outlets
CAUTION

ACCESSORY OPTIONS
13
ACCESSORY OPTIONS
• QuickLock™ Face Rest
Tips for Great Positioning using the QuickLock™Face Rest:
• To use the face rest with your clients supine, rotate the face rest
pad so that the thick part of the pad supports your client’s cervical
region. Adjusting the height and angle of the face rest gives your
clients perfectly comfortable support.
• The face pad is flexible so that you can bring the open ends together
or spread them apart to achieve the most comfortable support for
any size face. To avoid your client’s chin from hitting the spacebar,
make sure the pad is narrow enough to support their whole face.
• For appropriate cervical flexion, use the cam locks to adjust the
downward angle of the face rest, making sure that the surface of
the face rest pad at the chin is not lower than the surface of the table.
• Accessory Option:
QuickLock™
Face Rest (cont.)
* U.S. Patent #5,177,823
Do not put excessive weight
or pressure on the face rest.
Excessive pressure can cause
premature failure of the
QuickLock™Face Rest
DIRECTIONS FOR USE
CAUTION
