OAKWORKS Clodagh Virgo User manual

V i r go ™
INSTRUCTION MANUAL
www.oakworks.com · 717.235.6807

© Copyright 2009
Oakworks®, Inc.
Printed in U.S.A.
All rights are reserved. No
part of this document may be
photocopied, reproduced or
translated to another language
without prior written consent
of Oakworks®, Inc.
Oakworks®is a registered
trademark of Oakworks®, Inc.
Notice
The information contained in this document is
subject to change without notice and should not
be construed as a commitment by Oakworks®, Inc.
Oakworks®, Inc. assumes no responsibility for
any errors that may appear in this document nor
does it make expressed or implied warranty of
any kind with regard to this material, including,
but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Oakworks®, Inc. shall not be liable for incidental
or consequential damages in connection with
or arising out of the furnishing, performance, or
use of this document and the program material
which it describes.

WARNINGS / SYMBOLS
1
TABLE OF CONTENTS
TABLE OF CONTENTS
TABLE OF CONTENTS
Symbol Identification .................................................................................... pg 2
Warnings & Safety Instructions ..................................................................... pg 3
Grounding Instructions .................................................................................. pg 5
Product Description & Table Specs ............................................................. pg 6
Assembly & Installation .................................................................................. pg 7
Installation & Leveling Instructions ............................................................... pg 8
Directions for Use
Adjusting Height........................................................................... pg 9
Adjusting Backrest........................................................................... pg 9
QuickLock™ Face Rest & Head Rest........................................ pg 10
Moving your Table ......................................................................................... pg 11
Troubleshooting - If Table Will Not Change Height .................................... pg 11
Care & Cleaning ........................................................................................... pg 12
Power Lead Plugs ........................................................................................... pg 13
Electrical Specifications & Accessory Part Numbers ................................. pg 14
Warranty information ..................................................................................... pg 15
Contact Information .......................................................................... back cover

2
SYMBOL IDENTIFICATION
WARNINGS
SYMBOL IDENTIFICATION
SYMBOL IDENTIFICATION
This symbol, when used in this manual and on product labels, represents a caution. Be
sure to read and comply with all precautions and warnings.
This symbol, when used in documentation on this product, indicates danger and warns
against an electrical shock hazard. Be sure to observe and comply with all warnings and
instructions.
This symbol, when used in documentation on this product, indicates a Protective
Earth (Ground) Terminal.
This symbol when used in documentation on this product, warns that during transport
there should be no stacking of containers.
This symbol, when used in documentation on this product, indicates that the product
should be protected from moisture. The humidity specifications for Transport &
Storage are listed in the back of this manual.
This symbol, when used in documentation on this product, indicates that information
is given regarding the recommended temperature limits during transport and storing.
The specifications for these limits are listed in the back of this manual.
This symbol, when used in documentation on this product, indicates the date of
manufacture of the device.
This symbol, when used in documentation on this product, indicates alternating
current (AC).
This symbol, when used in documentation on this product, indicates direct current
(DC).
This symbol, when used in documentation on this product, indicates that
instructional information is included. All instructions should be read carefully and
completely before using the equipment.
~
----

3
SAFETY INSTRUCTIONS
Improper use of this device can cause injury. Be sure to read all
operating instructions prior to use to prevent injury to operator or client.
Electrical Shock Hazard.
To reduce the risk of electric shock, always disconnect the table from
the electrical outlet before moving the table or doing any maintenance
or troubleshooting procedures. Never use this equipment if it has a
damaged cord or plug. Use this equipment only for its intended use as
described in these instructions. Do not use any attachment or accessories
not recommended by the manufacturer.
To reduce the risk of burns, fire, electrical shock (electric model only)
or injury:
 •The power supply/control module is located under the top. Refer
servicing to qualified personnel and follow manual instructions
when doing any authorized troubleshooting. Before doing any work on
the unit, disconnect the power cord from the power outlet.
 •Beforecleaningwithanyliquidcleanerbesuretoun-plugthepowercord
from the power outlet. Do not operate the table in standing water.
 •Beforemovingthetable,disconnectthepowercordfromthepoweroutlet
and secure the electrical cord and foot control out of the way for moving.
 •RiskofElectricalShock.–Connectthistabletoaproperlygroundedoutlet
only. See Grounding Instructions.
 •Usethisfurnishingonlyforitsintendeduseasdescribedinthese
instructions. Do not use attachments not recommended by the manufacturer.
 •Neveroperatethistableifithasadamagedcordorplug,ifitisnotworking
properly, if it has been dropped or damaged, or dropped into water. Return
the table to a service center for examination and repair.
 •Keepthecordawayfromheatedsurfaces.
 •Donotuseoutdoors.
 •Donotoperatewhereaerosol(spray)productsarebeingusedorwhere 
oxygen is being administered.
RiskofInjury–Keepchildrenfrommovingtop.
Never drop or insert any object into any opening.
WARNINGS & CAUTIONS
SAFETY INSTRUCTIONS
WARNING

4
WARNINGS / SAFETY
WARNINGS
WARNINGS & SAFETY INSTRUCTIONS
WARNINGS & SAFETY INSTRUCTIONS
Closesupervisionisnecessarywhenthisfurnishingisusedby,ornear,
children, invalids or disabled persons. DO NOT leave children alone or allow
themtooperatethecontrols.Keepcontrolsoutofreachofchildren.DO NOT
allow children to crawl under the table.
Be certain that the table is completely lowered prior to discharging an
ambulatory patient. The patient may lose balance and fall. Do not leave
clients unattended when table is set at its highest level.
The table weighs as much as 200 lbs. DO NOT lift or move the unit
without using proper safely procedures or equipment. DO NOT turn
the table on its side for any reason. To do so could cause damage to
the base and will void the warranty. There are no serviceable items that
require this action. Never lift the table by grasping the table top as the
table top is not designed to hold the weight of the base and you could
damage the table.
When operating the Virgo controls and making any and all adjustments to
the table, move hands and feet away from the working mechanism of the
table.
DO NOT put excessive weight or pressure on the QuickLock™Face Rest.
Excessive pressure can cause premature failure of the QuickLock™Face
Rest. Do Not extend the dowels of the Face Rest further than 3” from the
table edge to ensure a stable connection.
Maximum Working Load Rating (client and accessories): 400 lbs.
Plug table into an outlet that is surge protected to a level of 750J or higher.
Failure to do this may void all or part of the warranty.
Every 3 months check nuts & bolts and physical connection points. Tighten as
needed.
WARNING
CAUTION

5
GROUNDING
GROUNDING INSTRUCTIONS (ELECTRIC MODEL ONLY)
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electrical current to reduce
the risk of electric shock. This product is equipped with a cord having an
equipment-groundingconductorandagroundingplug.Theplug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances. See U.S. sample below.

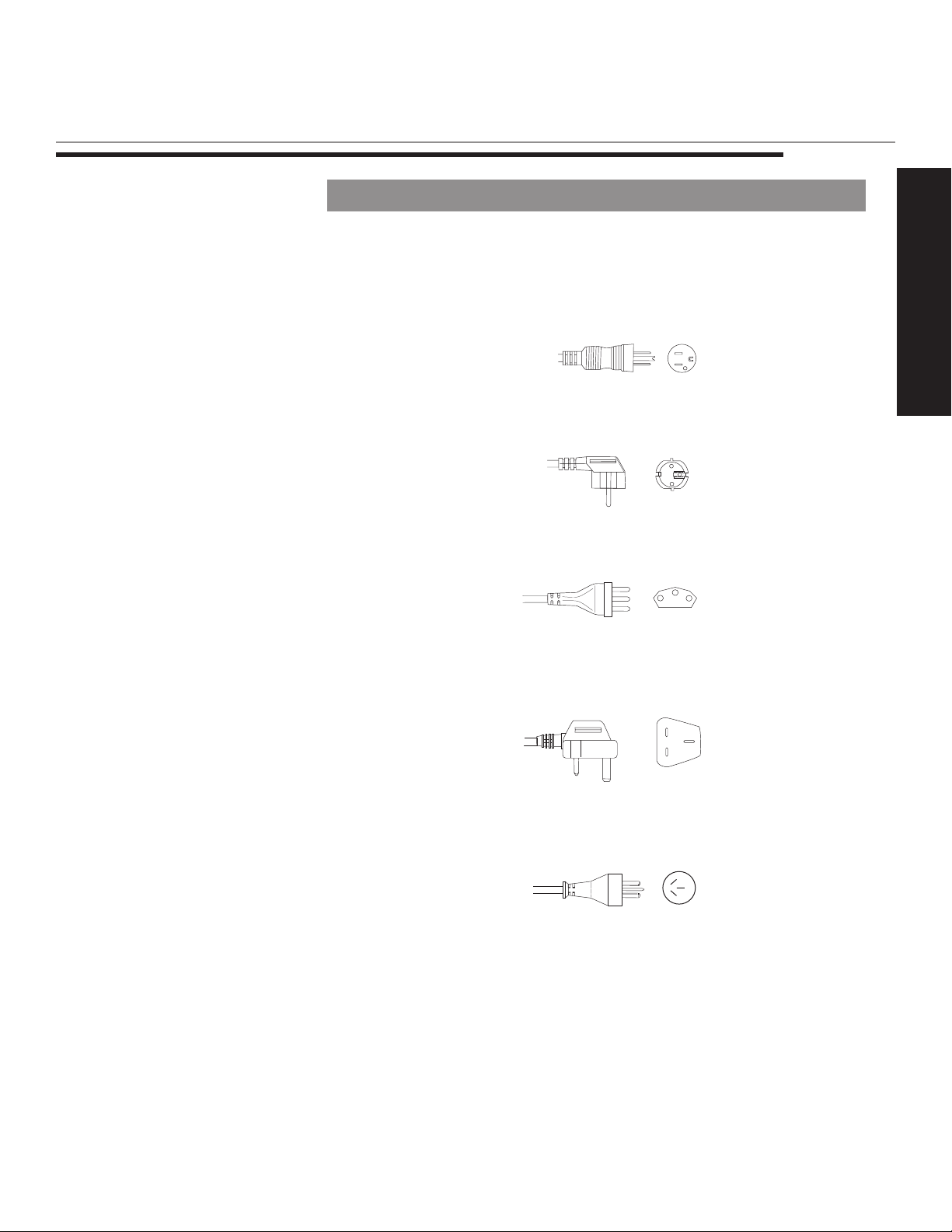

Thisproductismanufacturedforuseonanominal120-voltcircuitforthe
UnitedStatesandanominal220-voltcircuitforuseinEurope.Theplughas
a grounding pin in a pattern that varies by country as shown in the Product
Identification section of this manual. Make sure that the product is connected
to an outlet having the same configuration as the plug.
DANGER-Improperconnectionoftheequipment-groundingconductor
canresultinariskofelectricshock.Checkwithaqualifiedelectrician
or service man if you are in doubt as to whether the product is properly
grounded.Donotmodifytheplugprovidedwiththeproduct-ifitwillnot
fit the outlet, have a proper outlet installed by a qualified electrician.
To reduce the risk of electric shock, this furnishing has a polarized plug
(one blade is wider than the other). This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified electrician to install the proper outlet.
Do not change the plug in any way.
CAUTION
READ AND
SAVE THESE
INSTRUCTIONS
IMPORTANT
Correct Implementation Incorrect Implementation
Figure A Figure B


PRODUCT DESCRIPTION
Flat top
TABLE SPECIFICATIONS
 • HeightRange: 24”-34”(61-86cm)
 • Width: 29”or31”(74cmor79cm)
 • Length: 73”(185cm)
 • LiftCapacity: 400lbs.(182kg.)
 • Weight: 200lbs.(91kg.)
 • ShippingWeight: 250lbs.(114kg.)
 • Top: RectangularFlatTop,orManualBackrestTop
 • Base: MaplewoodbasewithWood,ButcherBlockorSpringLegs
Available with fully electric lift or with manual hand crank
 • Padding: 4”Aero·Cel™(standard),6”Aero·Cel™available
 • Upholstery: TerraTouch™(standard)
Forelectricalspecs,seeSpecificationsChart
* measurements are determined from floor to top of seat pad using standard padding; these measurements
can be affected by natural material variations in padding
 ** publishedweightmaydifferduetooptionschosen,naturalmaterialvariationsandpaddingdensity
PRODUCT DESCRIPTION
Maple base with
custom inlay stripe
Butcher block
leg design
Spring leg
design with
Backrest Top
6
PRODUCT DESCRIPTION
Foot Control
Shown with
additional
accessories;
QuickLock™
Face Rest with
Boiance™
Crescent

7
INSTALLATION
INSTALLATION
ASSEMBLY & INSTALLATION
INSTALLATION
It is recommended to have 2 or more people assist with moving the table.
PARTS
INCLUDED:
1 - Wrench 8 - Washers 8 - Nylock
Nuts
1 - Table
4 - Main Legs
(depending on
style specified)
Locate the pack of legs &
hardware and set aside.
step 1
Finish removing all packing
material, leaving the corner
blocks in place.
step 2
Place the leg bolt through
the metal corner bracket in
one corner of the table skirt.
step 3
Place a flat washer and nut
on each bolt. Hand tighten,
making sure that the leg
fits securely into the corner
of the skirt.
step 4
Using the included wrench,
tighten all nuts securely.
Repeat on remaining corners,
installing the remaining three
leg assemblies to the skirt.
step 5
Plug in the
table & using
the foot control, press the up (right)
pedal to raise the base & legs so
the cardboard blocks can be easily
removed. Lower the base & legs back
down and unplug the table.
step 6

8
Plug the cord into a functioning outlet that is rated for the table.
(Electric models only)
Arrange the power cord and foot switch (electric model only) so that they will
not create a tripping hazard. Place the controls in a safe location where they
areconvenientandaccessible.Keepthecontrolsoutofthewayofalltable
mechanisms.
INSTALLATION
INSTALLATION
INSTALLATION
IfTableWillNotSitFlatontheFloor:
The Virgo™is equipped with Leveler Feet that adjust to level the table
on uneven floors. To adjust the Leveler Feet to suit common floor
differences you will need to use a 1 /2”open-endwrenchoranadjust-
able wrench. Adjust each leg individually in turn by adjusting the height
of each leveler foot until the unit rests level and steady. This adjust-
ment will not effect the function of the table.
LEVELING INSTRUCTIONS
CAUTION
The table weighs as much
as 200 lbs. DO NOT lift or
move the unit without using
proper safely procedures
or equipment. DO NOT turn
the table on its side for any
reason. To do so could
cause damage to the base
and will void the warranty.
There are no serviceable
items that require this action.
Never lift the table by grasp-
ing the table top as the
table top is not designed to
hold the weight of the base
and you could damage the
table.
IMPORTANT
8
1/2”Open-endWrench

9
DIRECTIONS FOR USE
DIRECTIONS FOR USE
The oakworks®Virgo™ comes complete with a foot control or manual hand crank
that operates the height with ease.
Height Control - Electric Model
Operate the foot control as shown below to raise or lower the height of the table.
When operating the table’s controls, be sure to observe all cautions and warnings as
given in the manual.
ADJUSTING HEIGHT OF THE TABLE
CAUTION
CAUTION
When operating the
controls and making any
and all adjustments to the
table,movehandsand
feet away from the working
mechanism of the table.
Children must be supervised
when around this equipment
by a responsible adult. Do
not leave children alone
or allow them to operate
the controls. Do not allow
children to crawl under the
table.
FootControl:usedtochangeheight
UP DOWN
BACKREST TOP OPERATION (IF APPLICABLE)
To raise the backrest,
lift the table top at the
head end of the table.
Raise backrest to the
desired height and
release. Backrest sup-
port arm will lock in
the nearest slot in the
side rail.
support arm
side rail
To lower the backrest,
lift the backrest slightly,
lift and hold the support
arm out of the slot and
lower the backrest to the
desired position.

Be sure to use either the face rest or head rest for all treatments that require your client
to lay flat. Double articulating action provides nearly limitless positioning options with
the QuickLock™ Face Rest. The adjustable pad takes pressure off sensitive facial areas
while providing superb support. The QuickLock™ Face Rest can be used in both
prone and supine positioning and folds out of the way when not in use. Adjustments
are made easily by loosening the cam locks, adjusting for height and angle and then
locking the cam locks into that position.
AttachingtheQuickLock™FaceRest:
When attaching the QuickLock™ Face Rest, just slide the frame dowels into the holes
in the head rest end of the table. Be sure to keep the 1st cam lock within 3” of the
table to ensure a stable connection. To remove the QuickLock™ Face Rest, just pull
the frame from the table until it comes free. Set it safely aside.
QUICKLOCK™ FACE REST & HEAD REST
DIRECTIONS FOR USE
Do Not extend the dowels
of the Face Rest further than
3”fromthetableedgeto
ensure a stable connection.
* U.S. Patent #5,177,823
SAFETY NOTE:
CAUTION
Do not put excessive weight
or pressure on the face rest.
Excessive pressure can cause
premature failure of the
QuickLock™Face Rest.
Be sure to read all
 cautions,warnings 
and instructions given
in the manual to
prevent injury to both
operator and client.
10
DIRECTIONS FOR USE
QUICKLOCK™ FACE REST:
ImportantSafetyNote:
MaximumDistancefromedgeoftable=3”
outlets
Tips for Great Positioning using the QuickLock™FaceRest:
 • The face pad is flexible so that you can bring the open ends together
or spread them apart to achieve the most comfortable support for
any size face. To avoid your client’s chin from hitting the spacebar,
make sure the pad is narrow enough to support their whole face.
 • Forappropriatecervicalflexion,usethecamlockstoadjustthe
downward angle of the face rest, making sure that the surface of
the face rest pad at the chin is not lower than the surface of the table.

11
DIRECTIONS FOR USE
MOVING THE VIRGO™
DIRECTIONS FOR USE
Before doing any work on the
table,disconnectthepower
cord from the power outlet
and secure the electrical
cord,(electrictableonly)and
foot controls for moving.
The table weighs as much
as 200 lbs. DO NOT lift or
move the unit without using
proper safety procedures
or equipment. DO NOT turn
the table on its side for any
reason. To do so could
cause damage to the base
and will void the warranty.
There are no serviceable
items that require this action.
Never lift the table by grasp-
ing the table top as the
table top is not designed to
hold the weight of the base
and you could damage the
table.
at low height range
Grasp
at base
corner
The Virgo™ weighs approximately 200 lbs. You will need 4 people
working together if it is necessary to move the table. Never lift the table
by grasping the table top as the table top is not designed to hold the
weight of the base and you could damage the table and the electronics
that run the tabletop.
If you need to move the table, place one person at each corner of the
table. Have each person firmly grasp the wooden base at the bottom
and lift the table from the base. As when moving any piece of heavy
equipment, bend at the knee and lift with your legs beneath you and
not with your back. Be aware and use proper, safe procedures for
moving a table of this size to prevent injury to yourself or the table.
We strongly recommend that a flatbed dolly be used that can hold the
entire table if moving the table involves any distance.
CAUTION
CAUTION
Ifthe AntiguA™wIll not change heIght or posItIon:
 •Unplug the power cable from the wall outlet.
 •Make sure that all male and female connectors are firmly
pushed into each other. Even a slight misconnection can
cause a possible malfunction.
  •Plugtheunitbackintothewallandcheckthecontrols 
again. If one or more of the controls still do not work,
   contactCustomerServiceat800-558-8850toarrange
replacement/repair.
IF THE VIRGO™ WILL NOT CHANGE HEIGHT
(ELECTRIC MODEL ONLY)

12
CARE & CLEANING
CARE & CLEANING
IMPORTANT
CAUTION
Before cleaning with any
liquid cleaner be sure to un-
plug the power cord from the
power outlet. Do not operate
the table in standing water.
Be sure to read all
 cautions,warnings 
and instructions given
in the manual to prevent
injury to both operator
and client.
UPHOLSTERY
• Use only a mild solution of 4:1 diluted non-alcohol cleaner such as 409®, Fantastik®
or some other non-abrasive cleaner to wipe down the metal and wooden surfaces.
Apply with a damp (not wet) lint-free cloth. Be sure excess liquid does not drip
onto, or into, any of the electrical controls or mechanisms. Be sure that the unit is
unplugged before cleaning these areas. Wipe these areas dry carefully with a lint free
cloth.
• Electronic and/or manual lift mechanisms require no general maintenance or
lubrication. Hydraulic units may require yearly maintenance.
• If the table will be out of use for an extended period of time, the power cord
should be unplugged from the receptacle. To prevent inadvertent damage to the
plug or cord, the cable should be coiled and secured with a wire tie or rubber band.
• The wooden cabinetry of the equipment can be polished with any polish approved
for wooden surfaces. Spray, or pour the polish onto a soft cloth and be careful not
to get it onto other surfaces.
• It is important to visually inspect your table on a quarterly basis to ensure all
components are working properly and safely. Be sure to tighten all bolts to be sure
they are secure. Over time they may work their way loose, leading to an unsafe
condition.
•
• Thefacerestandtableextendershouldberemovedwhennotinuse.
These items should be stored in a cool, dry place.
BASE & CONTROLS
ACCESSORIES
CLEAN your upholstered items when needed using a mild solution of
4:1 diluted non-alcohol cleaner such as Formula 409®, Fantastik®, or
Green Windex®
DISINFECT your fabric with Protex, MadaCide, MadaWipe, Accell
TB, Virox®(Canada), or a diluted 1/10 bleach solution. Dry immediately
after cleaning to remove excess cleaning solution.
DO NOT use citrus based cleaners or other strong cleaners, such as alcohol,
acetone, higher concentrations of bleach or other products that contain
high concentrations of these substances.
DO NOT expose the fabric to temperatures below 32°F/0°C or above
95°F/35°C.
DO NOT expose the fabric to direct sunlight, adhesives, liquids, or
abrasive materials.
FAILURE TO FOLLOW RECOMMENDATIONS WILL
VOID THE WARRANTY ON THE FABRIC.

13
PART IDENTIFICATION
PART IDENTIFICATION
POWER LEAD PLUGS
POWER LEAD PLUGS
OakworkPart#: Voltage(AC) PowerCordPlug
7791 120v 60 Hz 3 prong grounded
North America
7791-03 220v50Hz ContinentalPlug;
Europe/Italy
7791-04 220v50Hz Swissplug;Switzerland
7791-02 220v50Hz Britishplug;
UnitedKingdom
7791-06 220v50Hz AustralianPlug;Australia
IMPORTANT
these parts are for
identification only;
they are not field
serviceable items.

14
SPECIFICATIONS
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
DesignedFor: North America Europe Japan/Korea
Voltage/Current Service
Current Draw
Input Frequency
Power Consumption
Table Actuator Voltage
Electric Shock Protection
Mode of Operation
120 VAC/20 amps
4.1 Amps
60 Hz
500 W
24 VDC
220 VAC/10 amps
2.1 Amps
50 Hz
500 W
24 VDC
100 VAC/20 amps
4.9 Amps
50/60 Hz
500 W
24 VDC
Class I Equipment
Continuous Operation
@ 10% Duty Cycle
Class I Equipment
Continuous Operation
@ 10% Duty Cycle
Class I Equipment
Continuous Operation
@ 10% Duty Cycle
Part No. Accessory Description
0301 Table Extender
QuickLock™FaceRest(2parts) 
2837(B)2838(V) -Platform(1)   
2410-03 -CrescentFaceRestPad(1)
PERMISSIBLE ENVIRONMENTAL CONDITIONS
Conditions Temperature Humidity Atmospheric Pressure
Normal Use 50°(10°C)to104°(40°C) 20% to 60% RH 98 to 105 kPa
Storage & Transport -20°(-29°C)to135°(57°C) 20% to 95% RH 98 to 105 kPa
PERMISSIBLE ENVIRONMENTAL CONDITIONS

15
WARRANTY
WARRANTY
WARRANTY
For full warranty details, please visit www.oakworks.com
Allwarrantiesarelimitedtofactory-providedreplacementparts,
factory repair or replacement, at the discretion of Oakworks®.
Allwarrantiesexcludedamagecausedbyimproperset-up,accident,
abuse, misuse, neglect, use for other than intended purpose or reasonable
wear such as tears in the upholstery.
Allwarrantiesareinvalidatedbynon-factorymodificationsand
unauthorized repairs, which will immediately terminate all liability
by Oakworks®for the product or damages caused by its use.
Thebuyeranditscustomersshallberesponsibleforproperset-up
and use of the products as well as any supervision required for
safety. In no event shall Oakworks®be liable for any special, indirect,
consequential, incidental, exemplary or punitive damages or costs. Use
ofnon-approvedcleaningsolutionsvoidstheguaranteeonallfabrics.
The warranties set forth herein are the sole and exclusive warranties
provided by oakworks®. There are no other warranties, representations or
guarantees provided by Oakworks®either expressed or implied,
including warranties of merchantability and fitness for a particular purpose.
Warranty valid with proof of purchase.

16
THIS PAGE INTENTIONALLY LEFT BLANK

17
THIS PAGE INTENTIONALLY LEFT BLANK

Manual Part Number MMMNST0014-EN
Revision: A
Revision date: 04/24/2015
Edition 1, English
Printed in USA
INSTRUCTION MANUAL
CONTACT INFORMATION:
Oakworks®Inc.
923 East Wellspring Road
New Freedom, PA 17349
Phone:717-235-6807
FAX:717-235-6798
www.oakworks.com
V i r go ™
