OAKWORKS Clodagh Leo User manual

Leo ™
INSTRUCTION MANUAL
www.oakworks.com · 717.235.6807

© Copyright 2012
Oakworks®, Inc.
Printed in U.S.A.
All rights are reserved. No
part of this document may be
photocopied, reproduced or
translated to another language
without prior written consent
of Oakworks®, Inc.
Oakworks®is a registered
trademark of Oakworks®, Inc.
Notice
The information contained in this document is
subject to change without notice and should not
be construed as a commitment by Oakworks®, Inc.
Oakworks®, Inc. assumes no responsibility for
any errors that may appear in this document nor
does it make expressed or implied warranty of
any kind with regard to this material, including,
but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Oakworks®, Inc. shall not be liable for incidental
or consequential damages in connection with
or arising out of the furnishing, performance, or
use of this document and the program material
which it describes.

WARNINGS / SYMBOLS
1
TABLE OF CONTENTS
TABLE OF CONTENTS
TABLE OF CONTENTS
Symbol Identification ............................................................................................... 2
Warnings & Safety Instructions ............................................................................... 3
Grounding Instructions ............................................................................................ 5
Product Description & Table Specs ....................................................................... 6
Installation & Leveling Instructions ......................................................................... 7
Directions for Use
Daily Cycling .......................................................................................... 8
Adjusting Height and Top.................................................................... 9
Important Safety Note............................................................................................. 10
Table key switch .................................................................................. 10
Side Arm Rests .......................................................................................................... 11
QuickLock Face Rest............................................................................................... 12
Moving your Table ................................................................................................. 13
Troubleshooting -
If Table Will Not Change Height ........................................................ 13
If Table is Making Noise During Height Adjustment.......................... 13
Care & Cleaning .................................................................................................... 14
Power Lead Plugs ................................................................................................... 15
Part Numbers............................................................................................................ 15
Electrical Specifications .......................................................................................... 16
Warranty information .............................................................................................. 17
Contact Information ..............................................................................back cover

2
SYMBOL IDENTIFICATION
WARNINGS
SYMBOL IDENTIFICATION
SYMBOL IDENTIFICATION
This symbol, when used in this manual and on product labels, represents a caution. Be
sure to read and comply with all precautions and warnings.
This symbol, when used in documentation on this product, indicates danger and warns
against an electrical shock hazard. Be sure to observe and comply with all warnings and
instructions.
This symbol, when used in documentation on this product, indicates a Protective
Earth (Ground) Terminal.
This symbol when used in documentation on this product, warns that during transport
there should be no stacking of containers.
This symbol, when used in documentation on this product, indicates that the product
should be protected from moisture. The humidity specifications for Transport &
Storage are listed in the back of this manual.
This symbol, when used in documentation on this product, indicates that information
is given regarding the recommended temperature limits during transport and storing.
The specifications for these limits are listed in the back of this manual.
This symbol, when used in documentation on this product, indicates the date of
manufacture of the device.
This symbol, when used in documentation on this product, indicates alternating
current (AC).
This symbol, when used in documentation on this product, indicates direct current
(DC).
This symbol, when used in documentation on this product, indicates that
instructional information is included. All instructions should be read carefully and
completely before using the equipment.
~
----

3
WARNINGS / SAFETY
Improper use of this device can cause injury. Be sure to read all
operating instructions prior to use to prevent injury to operator or client.
Electrical Shock Hazard.
To reduce the risk of electric shock, always disconnect the table from
the electrical outlet before moving the table or doing any maintenance
or troubleshooting procedures. Never use this equipment if it has a
damaged cord or plug. Use this equipment only for its intended use as
described in these instructions. Do not use any attachment or accessories
not recommended by the manufacturer.
To reduce the risk of burns, fire, electrical shock (electric model only)
or injury:
 •The power supply/control module is located under the top. Refer
servicing to qualified personnel and follow manual instructions
when doing any authorized troubleshooting. Before doing any work on
the unit, disconnect the power cord from the power outlet.
 •Beforecleaningwithanyliquidcleanerbesuretoun-plugthepowercord
from the power outlet. Do not operate the table in standing water.
 •Beforemovingthetable,disconnectthepowercordfromthepoweroutlet
and secure the electrical cord and foot control out of the way for moving.
 •RiskofElectricalShock.–Connectthistabletoaproperlygroundedoutlet
only. See Grounding Instructions.
 •Usethisfurnishingonlyforitsintendeduseasdescribedinthese
instructions. Do not use attachments not recommended by the manufacturer.
 •Neveroperatethistableifithasadamagedcordorplug,ifitisnotworking
properly, if it has been dropped or damaged, or dropped into water. Return
the table to a service center for examination and repair.
 •Keepthecordawayfromheatedsurfaces.
 •Donotuseoutdoors.
 •Donotoperatewhereaerosol(spray)productsarebeingusedorwhere 
oxygen is being administered.
 •Maximumshelfloadweight:200lbs.(91kg.)
RiskofInjury–Childrenshouldneverbenearthetablewheninuse.
Never drop or insert any object into any opening.
WARNINGS & SAFETY INSTRUCTIONS
WARNINGS & SAFETY INSTRUCTIONS
READ AND
SAVE THESE
INSTRUCTIONS
DANGER
WARNING

4
WARNINGS / SAFETY
WARNINGS
WARNINGS & SAFETY INSTRUCTIONS
WARNINGS & SAFETY INSTRUCTIONS
This product is equipped with an interior accessory outlet. The total
electrical load of equipment plugged into this set of outlets is not to
exceed840watts.
Closesupervisionisnecessarywhenthisfurnishingisusedby,ornear,
children, invalids or disabled persons. DO NOT leave children alone or allow
themtooperatethecontrols.Keepcontrolsoutofreachofchildren.DO NOT
allow children to crawl under the table.

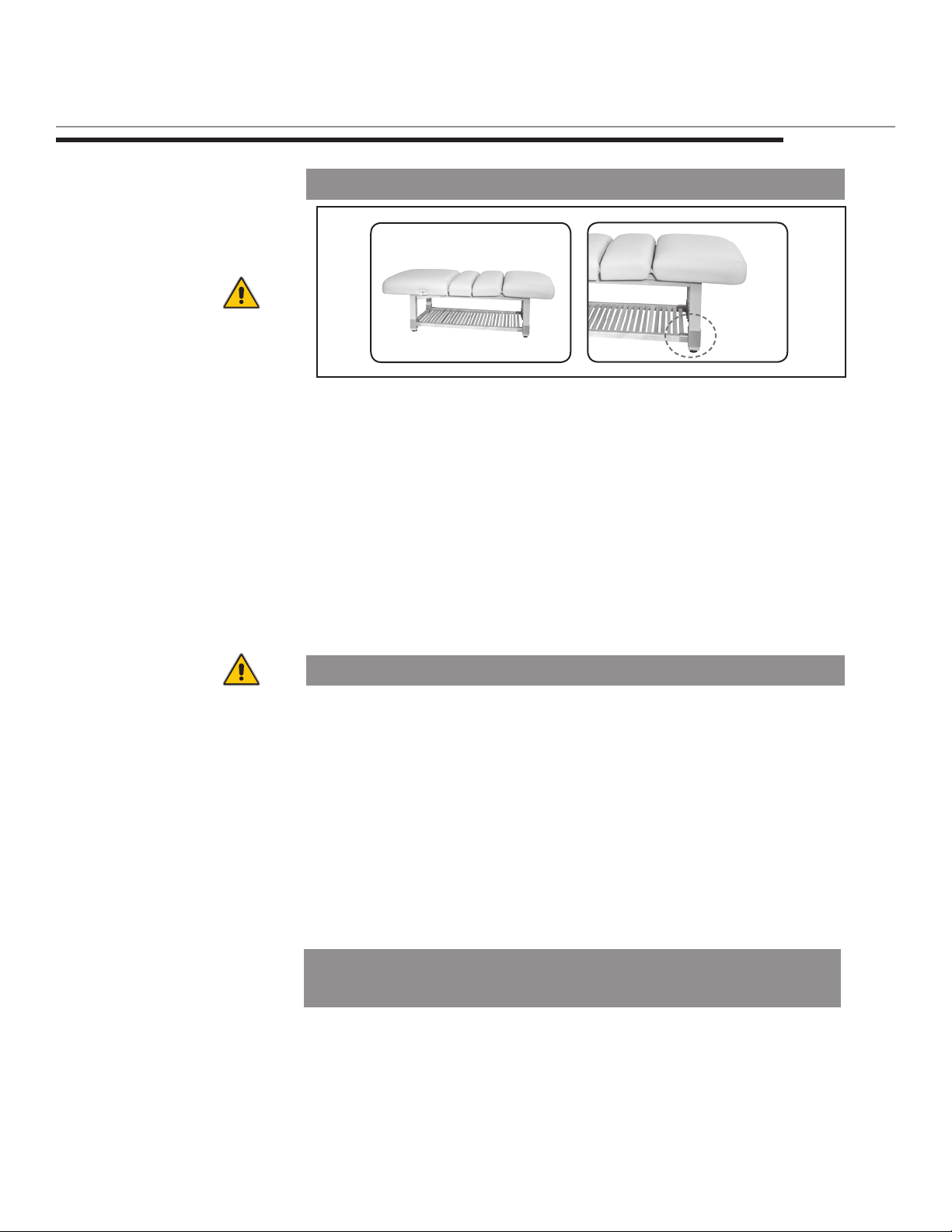

Be certain that the table is completely lowered prior to discharging an
ambulatory patient. The patient may lose balance and fall. Do not leave
clients unattended when table is set at its highest level.
Thetableweighsasmuchas200lbs.DO NOT lift or move the unit
without using proper safely procedures or equipment. DO NOT turn
the table on its side for any reason. To do so could cause damage to
the base and will void the warranty. There are no serviceable items that
require this action. Never lift the table by grasping the table top as the
table top is not designed to hold the weight of the base and you could
damage the table.
When operating the controls and making any and all adjustments to the
table, move hands and feet away from the working mechanism of the table.
The optional arm rests can be repositioned to allow a client to get on and off
the table easily. When making adjustments to the arm rests, make certain
that the client’s arms are away from the working mechanism.
DO NOT sit on arm rests, the elevated backrest or leg rest. DO NOT put
excessive weight on the side arm rests. DO NOT use them in assisting the
client on and off the table.

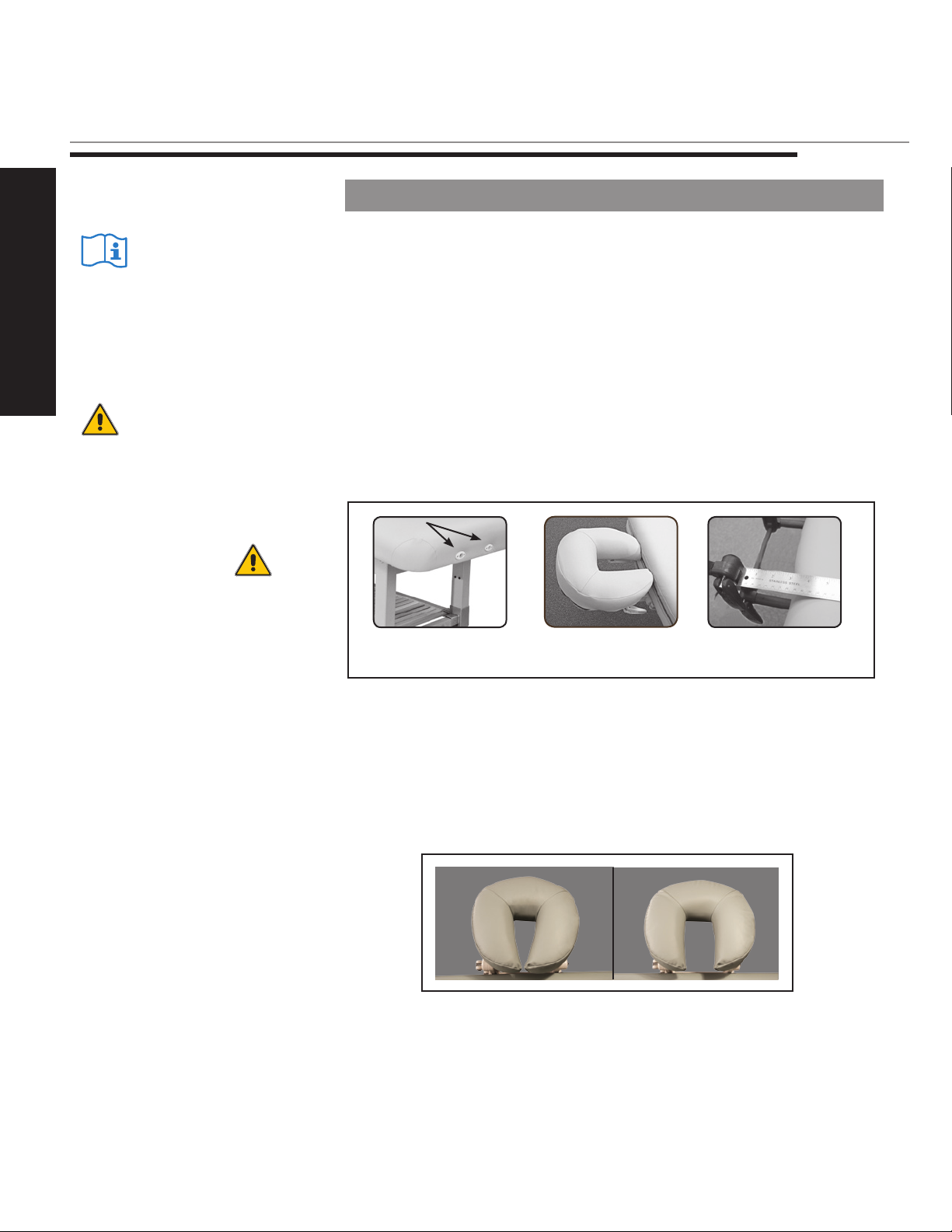

DO NOT put excessive weight or pressure on the QuickLock™Face Rest.
Excessive pressure can cause premature failure of the QuickLock™Face
Rest. Do Not extend the dowels of the Face Rest further than 3” from the
table edge to ensure a stable connection.
DO NOT use the hand control and foot control simultaneously as this can
cause damage to one or both units.
DO NOT store or place anything on the cabinet hood under the backrest as
this can cause damage to the top and or hood and will void the warranty.
MaximumWorkingLoadRating(clientandaccessories):500lbs.(227kg.)
Plugtableintoanoutletthatissurgeprotectedtoalevelof750Jorhigher.
Failure to do this may void all or part of the warranty.
Every 3 months check nuts & bolts and physical connection points. Tighten as
needed.
READ AND
SAVE THESE
INSTRUCTIONS
WARNING
CAUTION

5
GROUNDING
GROUNDING INSTRUCTIONS (ELECTRIC MODEL ONLY)
WARNINGS & SAFETY INSTRUCTIONS (CONTINUED)
GROUNDING INSTRUCTIONS

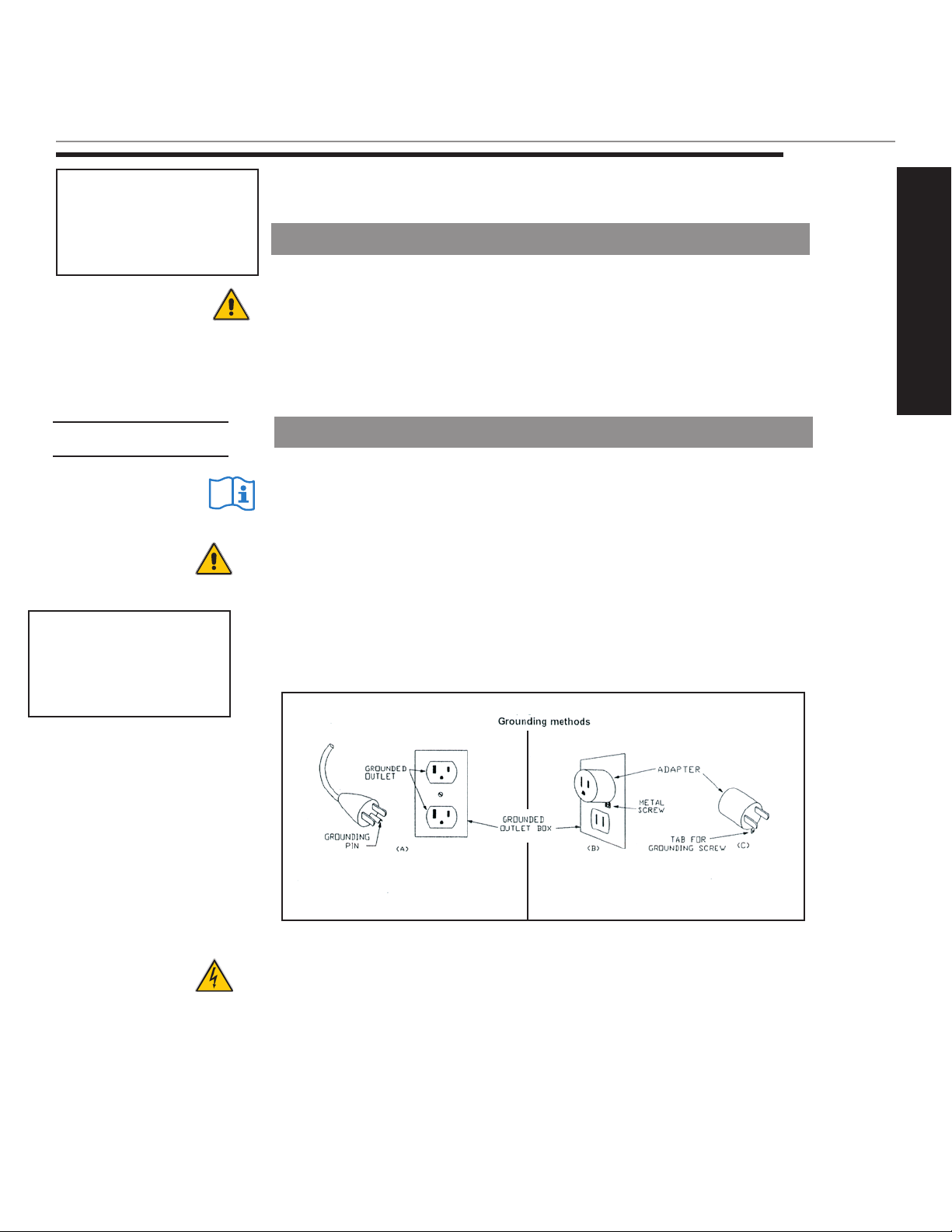

This product must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electrical current to reduce
the risk of electric shock. This product is equipped with a cord having an
equipment-groundingconductorandagroundingplug.Theplug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances. See U.S. example below.
Thisproductismanufacturedforuseonanominal120-voltcircuitforthe
UnitedStatesandanominal220-voltcircuitforuseinEurope.Theplughas
a grounding pin in a pattern that varies by country as shown in the Product
Identificationsectionofthismanual.Makesurethattheproduct is connected
to an outlet having the same configuration as the plug.
DANGER-Improperconnectionoftheequipment-groundingconductor
canresultinariskofelectricshock.Checkwithaqualifiedelectrician
or service man if you are in doubt as to whether the product is properly
grounded.Donotmodifytheplugprovidedwiththeproduct-ifitwillnot
fit the outlet, have a proper outlet installed by a qualified electrician.
To reduce the risk of electric shock, this furnishing has a polarized plug
(one blade is wider than the other). This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified electrician to install the proper outlet.
Do not change the plug in any way.
No adapter should be used with this product.
IMPORTANT
WARNINGS & SAFETY INSTRUCTIONS
To remove the accessories from the shelf: Turn the accessory controls
to the off position and then disconnect the unit from the interior power
source by removing the plug from the outlet.
When moving the table: Turn the accessory controls to their off posi-
tion, disconnect the table from the exterior power source by removing
the table plug from the outlet.
READ AND
SAVE THESE
INSTRUCTIONS
READ AND
SAVE THESE
INSTRUCTIONS
GROUNDING
INSTRUCTIONS
CAUTION
CAUTION
DANGER
Correct Implementation Incorrect Implementation
Grounded Not Grounded


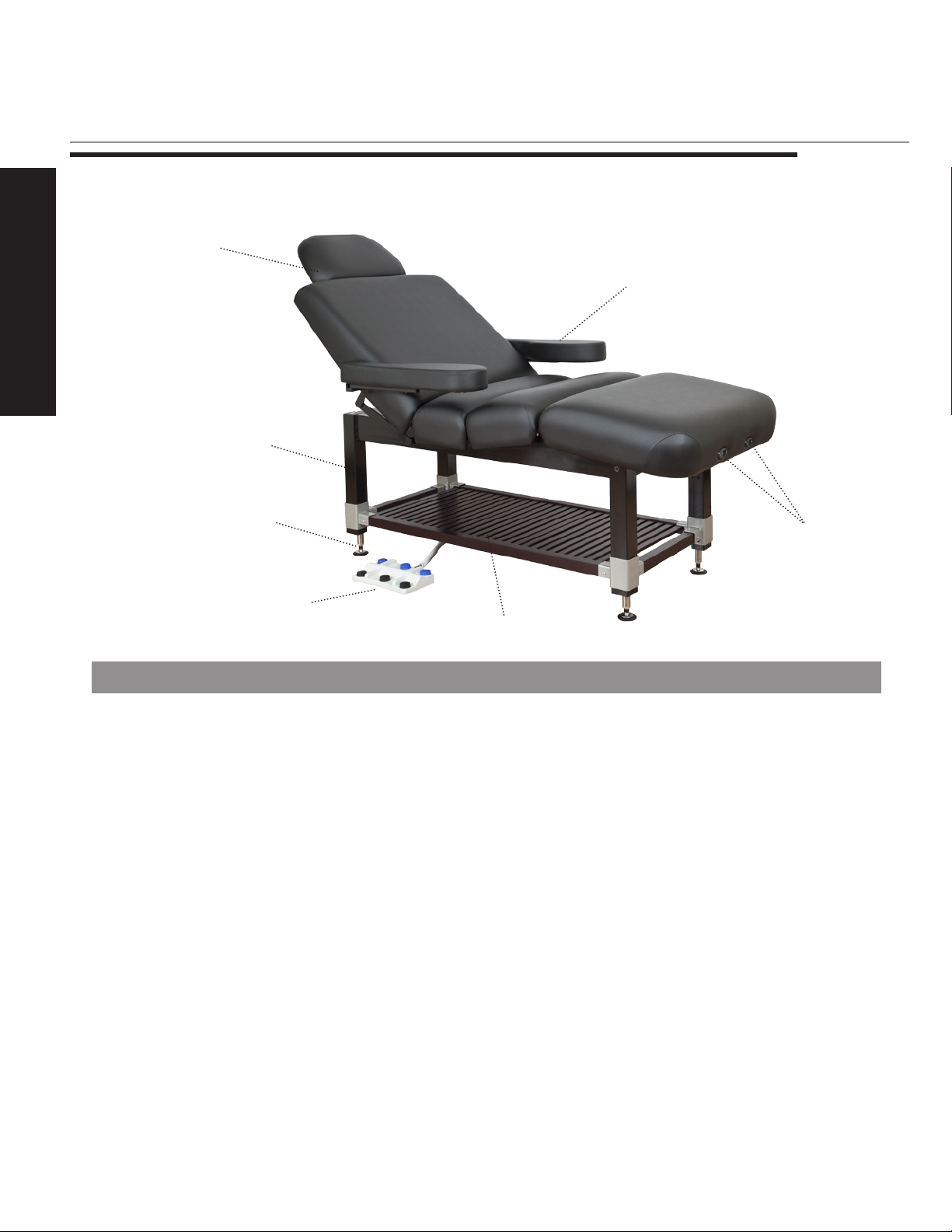

PRODUCT DESCRIPTION
TABLE SPECIFICATIONS
 • HeightRange: 25”-35”(64-89cm)
 • Width: 29”or31”(74cmor79cm)
 • Length: 72”(183cm)
 • LiftCapacity: 500lbs.(227kg.)
 • Weight: 232lbs.(105kg.)
 • ShippingWeight: 320lbs.(145kg.)
 • Top: ElectronicallyControlledFlexTop
 • Base: MetalFrameBasewithshelfandelectricheightadjustment
 • Electronics: 1FootControl
 • Padding: 4”Aero·Cel™(standard),6”Aero·Cel™available
 • Upholstery: TerraTouch™(standard),UltraTouch™available
Forelectricalspecs,seeSpecificationsChart
* measurements are determined from floor to top of seat pad using standard padding; these measurements
can be affected by natural material variations in padding
 ** publishedweightmaydifferduetooptionschosen,naturalmaterialvariationsandpaddingdensity
PRODUCT DESCRIPTION
Storage shelf
6
PRODUCT DESCRIPTION
Accessory
outlets (2)
Hydraulic Lift
Columns (4)
Powder
Coated
Steel Base
Foot
Control (1)
Universal
TableExtender
(optional accessory) Self Adjusting
Removable
Arm Rests (2)
(optional)

7
INSTALLATION
INSTALLATION
ASSEMBLY & INSTALLATION
INSTALLATION
The table comes completely assembled and ready to use. Plug the cord into
a functioning outlet that is rated for the table.
Arrange the power cord and foot switch so that they will not create a tripping
hazard. Place the controls in a safe location where they are convenient and
accessible.Keepthecontrolsoutofthewayofalltablemechanisms.
INSTALLATION
IfTableWillNotSitFlatontheFloor:
The table is equipped with Leveler Feet that adjust to level the table on
uneven floors. To adjust the Leveler Feet to suit common floor dif-
ferences you will need to use a 1 /2”open-endwrenchoranadjustable
wrench. Adjust each leg individually in turn by adjusting the height of
each leveler foot until the unit rests level and steady. This adjustment
willnoteffectthefunctionofthetable.Thefeetcanbeadjustedout1/2”.
LEVELING INSTRUCTIONS
The table weighs as much
as 232 lbs. (105 kg) DO NOT
lift or move the unit without
using proper safely proce-
dures or equipment. DO
NOT turn the table on its side
for any reason. To do so
could cause damage to the
base and will void the warran-
ty. There are no serviceable
items that require this action.
Never lift the table by grasp-
ing the table top as the
table top is not designed to
hold the weight of the base
and you could damage the
table.
IMPORTANT
8
Use1/2”Open-end
Wrench to adjust
Leveler Foot
When operating the table’s
controls be sure to observe
all cautions and warnings
given in the manual to pre-
vent injury to both operator
and client.
CAUTION

DIRECTIONS FOR USE
8
DIRECTIONS FOR USE
DIRECTIONS FOR USE
When operating the
controls and making any
and all adjustments to the
table,movehandsand
feet away from the working
mechanism of the table.
Children must be supervised
when around this equipment
by a responsible adult. Do
not leave children alone
or allow them to operate
the controls. Do not allow
children to crawl under the
table.
CAUTION
DAILY CYCLING
The oakworks®Leo™ uses hydraulics and hydraulic fluids to adjust the
tableheight.Maintainingthequietoperationofyourtablerequiresthat
youfullycycleyourtable(up&down)twiceperday.Cyclingofthe
table will maintain the lubrication within the hydraulic cylinders for
continued smooth and quiet operation. When not possible, we
recommend that you cycle the table (up & down) four times at least
once per week.

9
BackRestControl:
activates backrest
DIRECTIONS FOR USE
DIRECTIONS FOR USE
ADJUSTING THE HEIGHT AND TOP
When operating the table’s
controls be sure to observe
all cautions and warnings
given in the manual to pre-
vent injury to both operator
and client.
DO NOT sit on the elevated
backrest or leg rest.
Children must be supervised
when around this equipment
by a responsible adult. Do
not leave children alone
or allow them to operate
the controls. Do not allow
children to crawl under the
table.
Press and hold the appropriate button until the position desired is
achieved and then release. The arm rests will adjust automatically to
provide the most in comfort and ergonomics while staying parallel
to the floor, no matter what the position.
CAUTION
 BackRestControl:
activates backrest down
to level position
Leg Rest
DOWNControl:
lowers leg rest to level position
Leg Rest
UPControl:
elevates leg rest
HeightUPControl:
raises table height
HeightDOWNControl:
lowers table height
24
5
3
6
1

10
CAUTION
DIRECTIONS FOR USE
DIRECTIONS FOR USE
The cabinet hood area under the backrest top is not designed for stor-
age or as an area to hold accessories while with a client. DO NOT use
this area for holding anything. Damage can occur to the table, especially
when commands that are accessed by the foot control are activated.
Placing anything on this area will prohibit movement of the backrest and
can cause damage to the table or the object and will void the warranty.
DO NOT store or place
anything on the cabinet hood
under the backrest as this can
cause damage to the top
and/or hood.
Children must always be
supervised when around this
equipment by a responsible
adult. Do not leave children
alone or allow them to operate
the controls. Do not allow
children to crawl onto the
shelf or under the table.
NOT FOR STORAGE!
IMPORTANT SAFETY NOTE
UNDER TABLE SHELF
The table has a fully integrated
woodshelf.Thelargeunder-table
shelf provides storage for stacks of
towels and other equipment without
interfering with the lift capacity of
the table.
MaximumShelfloadweight:
200lbs.(91kg.)
READ AND
SAVE THESE
INSTRUCTIONS
This product is equipped
with an interior 120-volt 60Hz
accessory outlet. Disconnect
all power cords from the
interior power outlet (found
within the cabinet) after
use. The total electrical load
of equipment plugged into
this set of outlets is not to
exceed1000watts.
CAUTION
DANGER
TABLE KEYSWITCH
A table keyswitch is located on
the base leg at the head end of
the table. This key switch will
lock-outthetableandprevent
all motions. It should be used
to prevent unauthorized use.
Remove the key if children have
the opportunity to access the
table without adult supervision.

11
DIRECTIONS FOR USE
DIRECTIONS FOR USE
OPTIONAL ACCESSORY
AVAILABLE ON SALON TOP ONLY
Manicure Arm RestsAdjustable Side Arm Rests
1.Insertendofarmrestinto
hole in backrest while holding
armrestat60°angle.
2.Pushendallthewayintoholeanddroparmrestintohorizontal
position. Tug slightly to make sure the armrest is fully locked to
the table (for patient safety).
To remove the arm rest, simply reverse the procedure above.
TO INSTALL THE ARM REST:
The arm rests adjust automatically as the table’s back support moves to remain parallel to the floor in any position.
They are designed to be strong and will take a reasonable amount of weight, but they are not designed to be used to
sustain a person’s weight when getting on or off the table.
CAUTION: Do not use the arm rest
for customer weight support during the
mounting or dismounting of the table.
The arm rest is not designed to support
the patient’s weight.
The arm rest height is adjusted to level at the factory. When in use, some of the new
parts will wear, and you may see some sagging of the arm rest over time. If the arm
rest is too low the height can easily be adjusted using the enclosed Allen wrench.
1.Loosenbottom2setscrews
(turncounter-clockwise).
2.Turnsidesetscrewin(clock-
wise) while lightly raising the arm
rest with your other hand (to make
the adjustment easier).
3. When you have achieved the desired
height, tighten the two bottom set screws
(turn clockwise).
1.Loosenbottom2setscrews
(turncounter-clockwise).
2.Turnsidesetscrewout(turn
counter-clockwise).
3. When you have achieved the desired
height, tighten the two bottom set screws
(turn clockwise).
To Raise the Arm Rest
To Lower the Arm Rest
TO LEVEL THE ARM REST:
ARM REST INSTALLATION AND ADJUSTMENT INSTRUCTIONS

12
DIRECTIONS FOR USE
DIRECTIONS FOR USE
Be sure to use either the face rest or head rest for all treatments that require your client
to lay flat. Double articulating action provides nearly limitless positioning options with
the QuickLock™ Face Rest. The adjustable pad takes pressure off sensitive facial areas
while providing superb support. The QuickLock™ Face Rest can be used in both
prone and supine positioning and folds out of the way when not in use. Adjustments
are made easily by loosening the cam locks, adjusting for height and angle and then
locking the cam locks into that position.
AttachingtheQuickLock™FaceRest:
When attaching the QuickLock™ Face Rest, just slide the frame dowels into the holes
in the head rest end of the table. Be sure to keep the 1st cam lock within 3” of the
table to ensure a stable connection. To remove the QuickLock™ Face Rest, just pull
the frame from the table until it comes free. Set it safely aside.
QUICKLOCK™ FACE REST & HEAD REST
DoNotextendthedowels
of the Face Rest further than
3”fromthetableedgeto
ensure a stable connection.
* U.S. Patent #5,177,823
SAFETY NOTE
Be sure to read all
 cautions,warnings 
and instructions given
in the manual to
prevent injury to both
operator and client.
DIRECTIONS FOR USE QUICKLOCK™ FACE REST:
ImportantSafetyNote:
MaximumDistancefromedgeoftable=3”
outlets
Tips for Great Positioning using the QuickLock™FaceRest:
 • The face pad is flexible so that you can bring the open ends together
or spread them apart to achieve the most comfortable support for
any size face. To avoid your client’s chin from hitting the spacebar,
make sure the pad is narrow enough to support their whole face.
 • Forappropriatecervicalflexion,usethecamlockstoadjustthe
downward angle of the face rest, making sure that the surface of
the face rest pad at the chin is not lower than the surface of the table.
B
CAUTION
Donotputexcessiveweight
or pressure on the face rest.
Excessivepressurecancause
premature failure of the
QuickLock™Face Rest.

DIRECTIONS FOR USE
13
CAUTION
MOVING THE LEO™
DIRECTIONS FOR USE
Before doing any work on the
table,disconnectthepower
cord from the power outlet
and secure the electrical
cord,andfootcontrolsfor
moving.
The table weighs as much
as 232 lbs. DO NOT lift or
move the unit without using
proper safety procedures
or equipment. DO NOT
turn the table on its side for
any reason. To do so could
cause damage to the base
and will void the warranty.
There are no serviceable
items that require this action.
Never lift the table by grasping
the table top as the table
top is not designed to hold
the weight of the base and
you could damage the table.
at low height range
Grasp
at base
corner
TheLeo™weighsapproximately232lbs.(105kg)Youwillneed4people
working together if it is necessary to move the table. Never lift the table by
grasping the table top as the table top is not designed to hold the weight
of the base and you could damage the table and the electronics that run
the tabletop.
If you need to move the table, place one person at each corner of the
table. Have each person firmly grasp the metal leg at the bottom and lift
the table from the base. As when moving any piece of heavy equipment,
bend at the knee and lift with your legs beneath you and not with your
back. Be aware and use proper, safe procedures for
moving a table of this size to prevent injury to yourself or the table.
We strongly recommend that a flatbed dolly be used that can hold the
entire table if moving the table involves any distance.
• Check that the keyswitch inside the table is in the “on” position.
• Checktheoutlettobesurethatithaspowerandthatthepower
cable is plugged in. Try all buttons on the foot control to see if any
work. If any work, then possibly there is a loose connection or a
faulty controller.
• Unplug the power cable from the wall outlet.
• Makesurethatallmaleandfemaleconnectorsarefirmly
pushed into each other. Even a slight misconnection can
cause a possible malfunction.
• Plug the unit back into the wall and check the controls again.
If one or more of the controls still do not work, contact
CustomerServiceat800-558-8850toarrangereplacement/repair.
IF THE LEO™ WILL NOT CHANGE HEIGHT
CAUTION
IF THE LEO™ IS MAKING NOISE
DURING HEIGHT ADJUSTMENT
If you hear squealing or a pop during the height adjustment, this may
be related to lack of lubrication in the hydraulic cylinders. We recom-
mend that you immediately cycle the table fully up/down at least four
times.Ifthisdoesnotwork,thenletthemotorcooldownforatleast30
minutes and repeat the procedure. The table should return to its normal
quiet mode. Refer to “DIRECTIONSFORUSE; Important for continued
quiet operation.”

CARE & CLEANING
CARE & CLEANING
14
IMPORTANT
Before cleaning with any
liquid cleaner be sure to un-
plug the power cord from the
power outlet. Do not operate
the table in standing water.
Be sure to read all
 cautions,warnings 
and instructions given
in the manual to prevent
injury to both operator
and client.
8
CAUTION
UPHOLSTERY
In order to maintain your product’s quality and ensure the life of your upholstery, we
have tested several preventative steps you can take to protect the upholstery fabric on
your table and accessories.
Here are a few suggestions in caring for your upholstery fabric:
• DO NOT store your table or upholstery fabric-covered accessories in temperatures
below 32°F/0°C or above 95°F/35°C. Extreme hot and cold temperatures will
damage the upholstery fabric. Some potential results are cold-cracking, brittleness
and upholstery fabric stretching. And, always keep your table away from heaters,
electrical appliances and direct sunlight.
• We recommend cleaning your upholstery fabric to protect it against oil stains and
dirt which will cause cracking and permanent stains over time. Clean your uphol-
stered items when needed using a mild solution of 4:1 diluted non-alcohol cleaner
such as Formula 409®, Fantastik®, Green Windex®or some other non-abrasive
cleaner. For disinfecting purposes you may use Protex, MadaCide, Accell TB,
Virox®(Canada) or a diluted 1/100 bleach solution. Dry the table immediately after
cleaning to remove excess cleaning solution. Using citrus based cleaners or other
strong cleaners, such as alcohol, acetone, higher concentrations of bleach or other
products that contain high concentrations of these substances, can shorten the life
of your fabric, or discolor it.
Note: Damage caused by cleaners will not be covered under the warranty.
• Protect your table and accessories with sheets and fleeces. We offer both fitted
sheets and thick fleeces that protect your upholstery fabric against oil stains while
offering comfortable softness to your clients. You can also preserve your face rest
and bolsters with covers and fleeces.
• Use only a mild solution of 4:1 diluted non-alcohol cleaner such as 409®, Fantastik®
or some other non-abrasive cleaner to wipe down the metal and wooden surfaces.
Apply with a damp (not wet) lint-free cloth. Be sure excess liquid does not drip
onto, or into, any of the electrical controls or mechanisms. Be sure that the unit is
unplugged before cleaning these areas. Wipe these areas dry carefully with a lint free
cloth.
• Electronic and/or manual lift mechanisms require no general maintenance or
lubrication. Hydraulic units may require yearly maintenance.
• If the table will be out of use for an extended period of time, the power cord
should be unplugged from the receptacle. To prevent inadvertent damage to the
plug or cord, the cable should be coiled and secured with a wire tie or rubber band.
• The wooden cabinetry of the equipment can be polished with any polish approved
for wooden surfaces. Spray, or pour the polish onto a soft cloth and be careful not
to get it onto other surfaces.
• It is important to visually inspect your table on a quarterly basis to ensure all
components are working properly and safely. Be sure to tighten all bolts to be sure
they are secure. Over time they may work their way loose, leading to an unsafe
condition.
•
• Thefacerestandtableextendershouldberemovedwhennotinuse.
These items should be stored in a cool, dry place.
BASE & CONTROLS
ACCESSORIES

SPECIFICATIONS
SPECIFICATIONS
15
PRODUCT
IDENTIFICATION POWER LEAD PLUGS
kPart#: Voltage (AC) Power Cord Plug
7791   120v60Hz  3pronggrounded NorthAmerica
    220v50Hz  ContinentalPlug; Europe/Italy
    220v50Hz  Swissplug;  Switzerland
    220v50Hz  Britishplug;  UnitedKingdom
7791-06  220v50Hz  AustralianPlug; Australia
IMPORTANT
these parts are for
identification only;
they are not field
serviceable items.
PARTS
PART NO. DESCRIPTION
64649-110 ControlBox-U.S.
64649-220 ControlBox-European
64984 Lift Actuator
7009-3 Table Top Actuator
64973-1 Hydraulic Lift Unit
TBD 6PedalFootControl
2083-5 US Power Strip
ACCESSORIES
PART NO. DESCRIPTION
60777-WT,BK QuickLock Face Rest
Platform
2410 Face Rest Pad
18020 Standard Arm Rest
18035 ManicureArmRest
2825 Table Extender
3608-5 MiniatureHotTowel
Cabinet-U.S.
11349-01,02 Paper Roll Holder

16
SPECIFICATIONS
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
DesignedFor: North America Europe Japan/Korea
Voltage/Current Service
Input Frequency
Power Consumption
Table Actuator Voltage
Electric Shock Protection
Mode of Operation
120 VAC/2.9 amps
60 Hz
TBD
24 VDC
220 VAC/1.6 amps
50 Hz
TBD
24 VDC
100 VAC/3.5 amps
50/60 Hz
TBD
24 VDC
Class I Equipment
Continuous Operation
@ 10% Duty Cycle
Class I Equipment
Continuous Operation
@ 10% Duty Cycle
Class I Equipment
Continuous Operation
@ 10% Duty Cycle
Storage &
Transport
Temperature:32º-100ºF0º-38ºCHumidity:60%relativehumidityPressure:nolimitationsknown
Duringtransport,DONOTstackcontainers.
ETL listed Complieswith: UL962,CAN/CSAC22.2No.68-09,
 EN60335-1,EN60335-2-32
SPECIFICATIONS & WARRANTY

17
WARRANTY
WARRANTY
For full warranty details, please visit www.oakworks.com
Allwarrantiesarelimitedtofactory-providedreplacementparts,factoryrepairorreplacement,atthe
discretion of Oakworks®.
Allwarrantiesexcludedamagecausedbyimproperset-up,accident,abuse, misuse, neglect, use for other
than intended purpose or reasonable wear such as tears in the upholstery.
Allwarrantiesareinvalidatedbynon-factorymodificationsand
unauthorized repairs, which will immediately terminate all liability by Oakworks®for the product or
damages caused by its use.
Thebuyeranditscustomersshallberesponsibleforproperset-up and use of the products as well as any
supervision required for safety. In no event shall Oakworks®be liable for any special, indirect, conse-
quential, incidental,exemplaryorpunitivedamagesorcosts.Useofnon-approvedcleaningsolutionsvoids
the guarantee on all fabrics.
The warranties set forth herein are the sole and exclusive warranties
provided by oakworks®. There are no other warranties, representations or guarantees provided by
Oakworks®either expressed or implied, including warranties of merchantability and fitness for a particular
purpose.
Warranty valid with proof of purchase.
WARRANTY

Part No.: MMMNST0029-EN
Revision: A
Revision Date: 04/24/2015
INSTRUCTION MANUAL
CONTACT INFORMATION:
Oakworks®Inc.
923EastWellspringRoad  
NewFreedom,PA17349
Phone:717-235-6807
FAX:717-235-6798
www.oakworks.com
Leo ™
Complies with:
UL 962
CAN/CSA C22.2 No. 68-09
EN60335-1
EN60335-2-32
3034177
European Compliance for CE Information:
Emergo Europe
Molenstraat 15
The Hague, 2513 BH Netherlands
[email protected]
www.oakworks.com · 717.235.6807
