OAKWORKS Seychelle Series User manual

www.oakworks.com · 717.235.6807
OAKWORKS®
Treatment Tables
USER MANUAL
Powerline Series
Seychelle™ Series

© Copyright 2007
OAKWORKS®, Inc.
Printed in USA
All rights are reserved. No part
of this document may be
photocopied, reproduced or
translated to another language
without prior written consent
of OAKWORKS®, Inc.
OAKWORKS®is a registered
trademark of OAKWORKS®, Inc.
Notice
The information contained in this
document is subject to change
without notice and should not
be construed as a commitment by
OAKWORKS®, Inc.
OAKWORKS®, Inc. assumes no
responsibility for any errors that
may appear in this document nor
does it make expressed or implied
warranty of any kind with regard
to this material, including, but not
limited to, the implied warranties
of merchantability and fitness for
a particular purpose.
OAKWORKS®, Inc. shall not be
liable for incidental or consequen-
tial damages in connection with or
arising out of the furnishing, per-
formance, or use of this document
and the program material which it
describes.

Product Use Description .....................................................................................................1
Important Safety Instructions .............................................................................................1
Product Description & Photo
Powerline Series .........................................................................................................2-3
Seychelle Series...........................................................................................................4-5
Installation
Table Assembly..............................................................................................................6
Inset Shelf.......................................................................................................................6
Directions for Use
Paper Roll Holder Use ................................................................................................. 7
Wave Backrest Use ....................................................................................................... 7
Table Extender.............................................................................................................. 7
QuickLock Face Rest .................................................................................................... 8
Cleaning & Disinfection .....................................................................................................9
Inspections & Maintenance ..............................................................................................9
Warranty Information ..........................................................................................................9
Model Number & Serial Number ....................................................................................10
Specifications
Product Specifications ............................................................................................... 11
Environmental Conditions ....................................................................................... 11
Contact Information ......................................................................................... back cover
TABLE OF CONTENTS

PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS
1
CAUTION
READ AND SAVE THESE INSTRUCTIONS
This symbol, when used in this manual and on product labels, represents a caution warning. Be
sure to read and comply with all precautions and warnings.
The Backrest section is not designed to support the entire weight of the patient. Do not sit on
the Backrest section.
The table is designed to be a stand alone table. This table must not be modified or incorporated
into any other equipment.
There are potential pinch points around and underneath the tabletop. It is the responsibil-
ity of the operator of this equipment to insure that bystanders are not in the area below or
around this equipment during operation.
Proper operation of this equipment is very important for the safety of the operator, patient,
and any other individuals in the area of this equipment. Directions for use of this equipment
are described in this manual. The operator should read these sections carefully.
Do not use outdoors.
Use this furnishing only for its intended use as described in this manual. Do not use attachments not
recommended by Oakworks.
Weight Limit: (patient and accessories) 500 lbs./227 kg. Do not exceed.
PRODUCT USE DESCRIPTION
The Oakworks Powerline & SeychelleTM Tables are used to support the patient during exam-
inations and procedures. They are intended to be operated by a professional in a exam/
treatment environment. No special training is required but a review of the following manual
is important for the safety of the operator and patient. The professional should read and
understand this entire manual before use with a patient. There are no known contradictions
to the use of this equipment.
IMPORTANT SAFETY INSTRUCTIONS

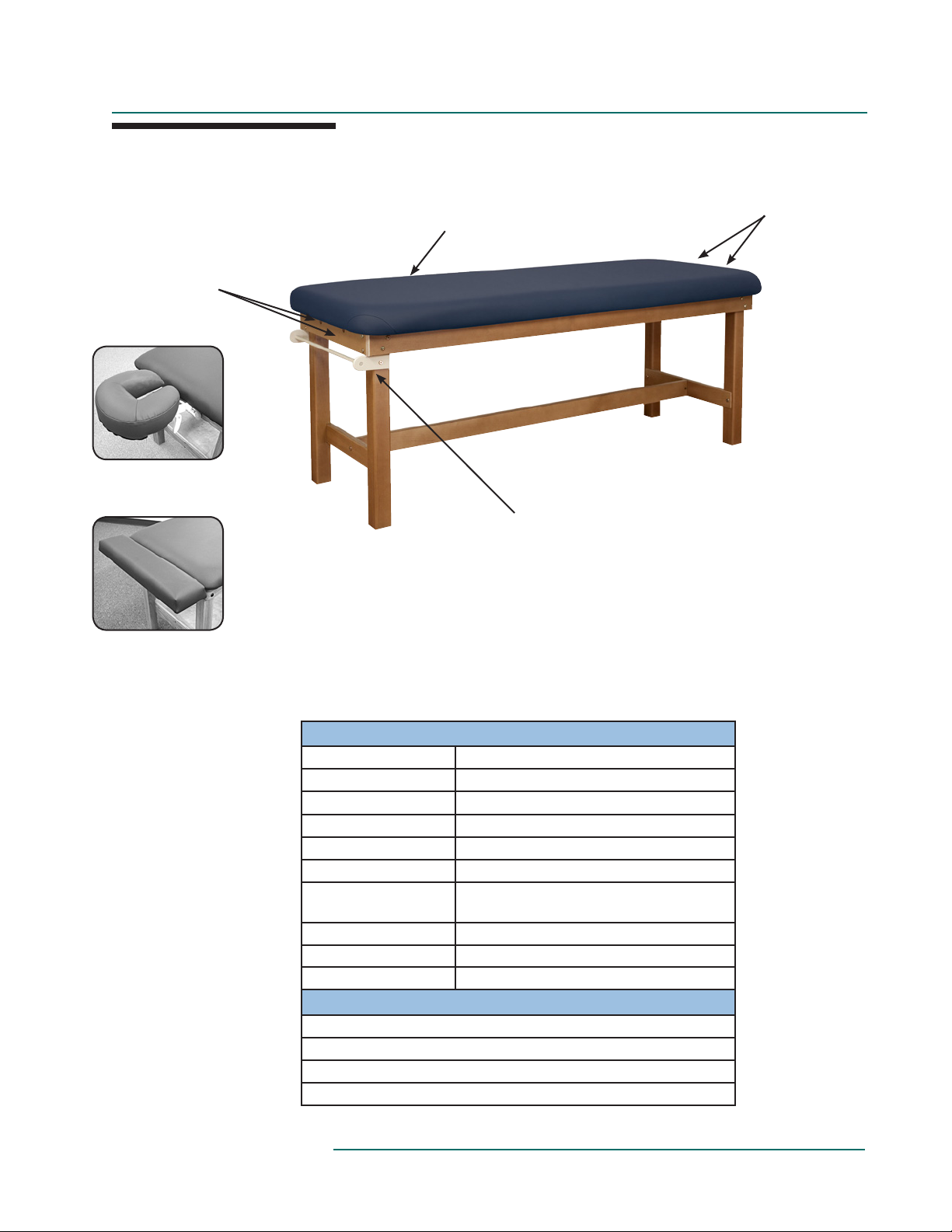

Powerline Flat Top
2
PRODUCT DESCRIPTION
Upholstered Top
Accessory outlets
Paper Roll Holder
Accessory outlets
Table Extender
(accessory)
QuickLock Face
Rest (accessory)
STANDARD SPECIFICATIONS
Height Range Fixed 30” (76 cm.)
Table Capacity 500 lbs. (226 kg.) (patient and accessories)
Widths 27” (69 cm.) or 30” (76 cm.)
Length 72” (183 cm.)
Padding 2.5” (6 cm.) Semi-Firm
Upholstery Terra Touch™
Paper Roll Holder Accommodates up to 21” (53 cm.) rolls
(roll not included)
Table Weight*90 lbs. (41 kg.)
Warranty 3 year parts, 1 year labor
Safety Listings CE marked, FDA
OPTIONS & ACCESORIES
QuickLock Face Rest
Table Extender
Inset Shelf (adds 25 lbs. (11 kg.))
Padding - 1.75” (4 cm.) Firm Response

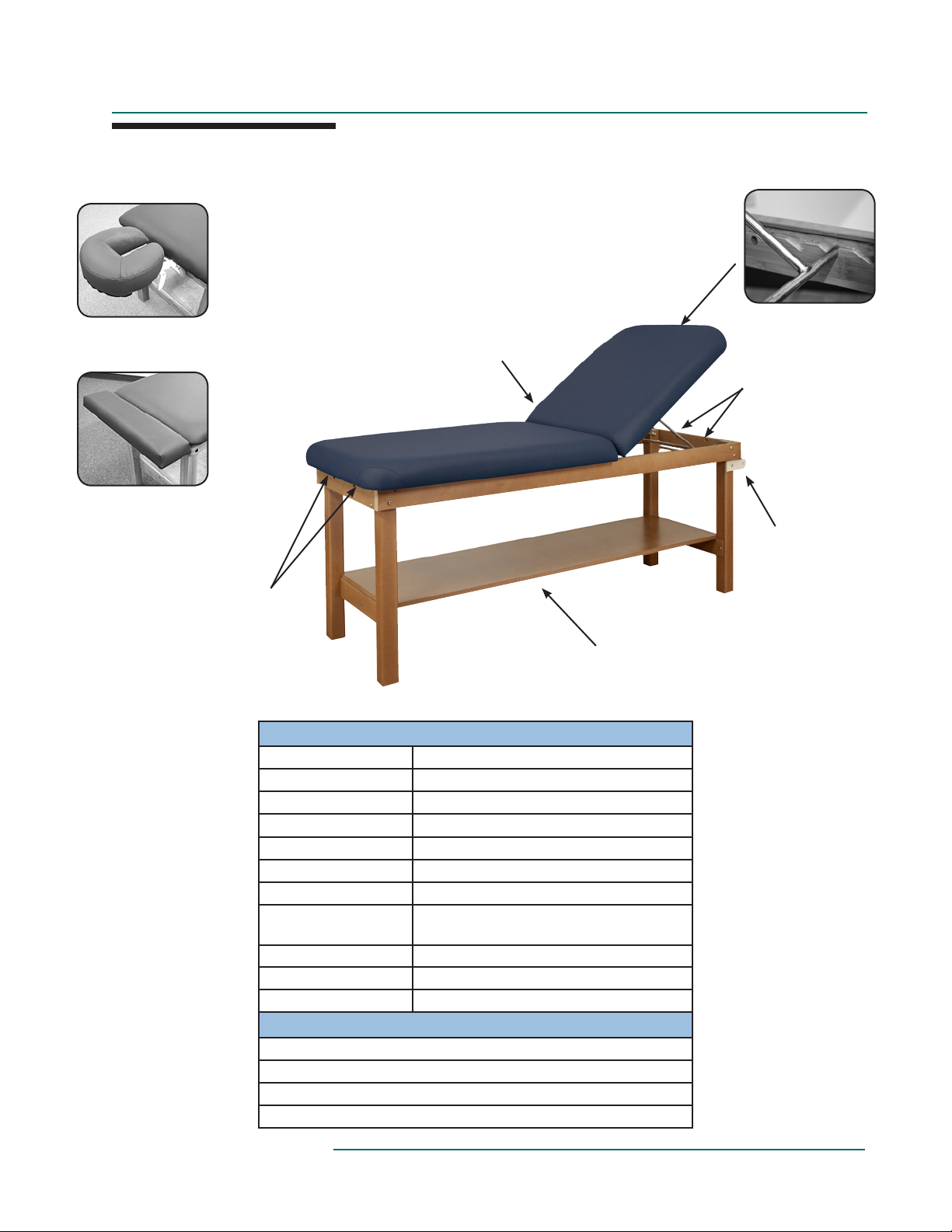

Powerline Wave Backrest
3
PRODUCT DESCRIPTION
Upholstered Top
Accessory outlets
Inset Shelf (option)
Accessory outlets
Table Extender
(accessory)
QuickLock Face
Rest (accessory)
STANDARD SPECIFICATIONS
Table Height Fixed 30” (76 cm.)
Wave Backrest Manual 0-60º, 6 set positions
Table Capacity 500 lbs. (226 kg.) (patient and accessories)
Widths 27” (69 cm.) or 30” (76 cm.)
Length 72” (183 cm.)
Padding 2.5” (6 cm.) Semi-Firm
Upholstery Terra Touch™
Paper Roll Holder Accommodates up to 21” (53 cm.) rolls
(roll not included)
Table Weight*90 lbs. (41 kg.)
Warranty 3 year parts, 1 year labor
Safety Listings CE marked, FDA
OPTIONS & ACCESORIES
QuickLock Face Rest
Table Extender
Inset Shelf (adds 25 lbs. (11 kg.))
Padding - 1.75” (4 cm.) Firm Response
Paper Roll
Holder
Wave Backrest

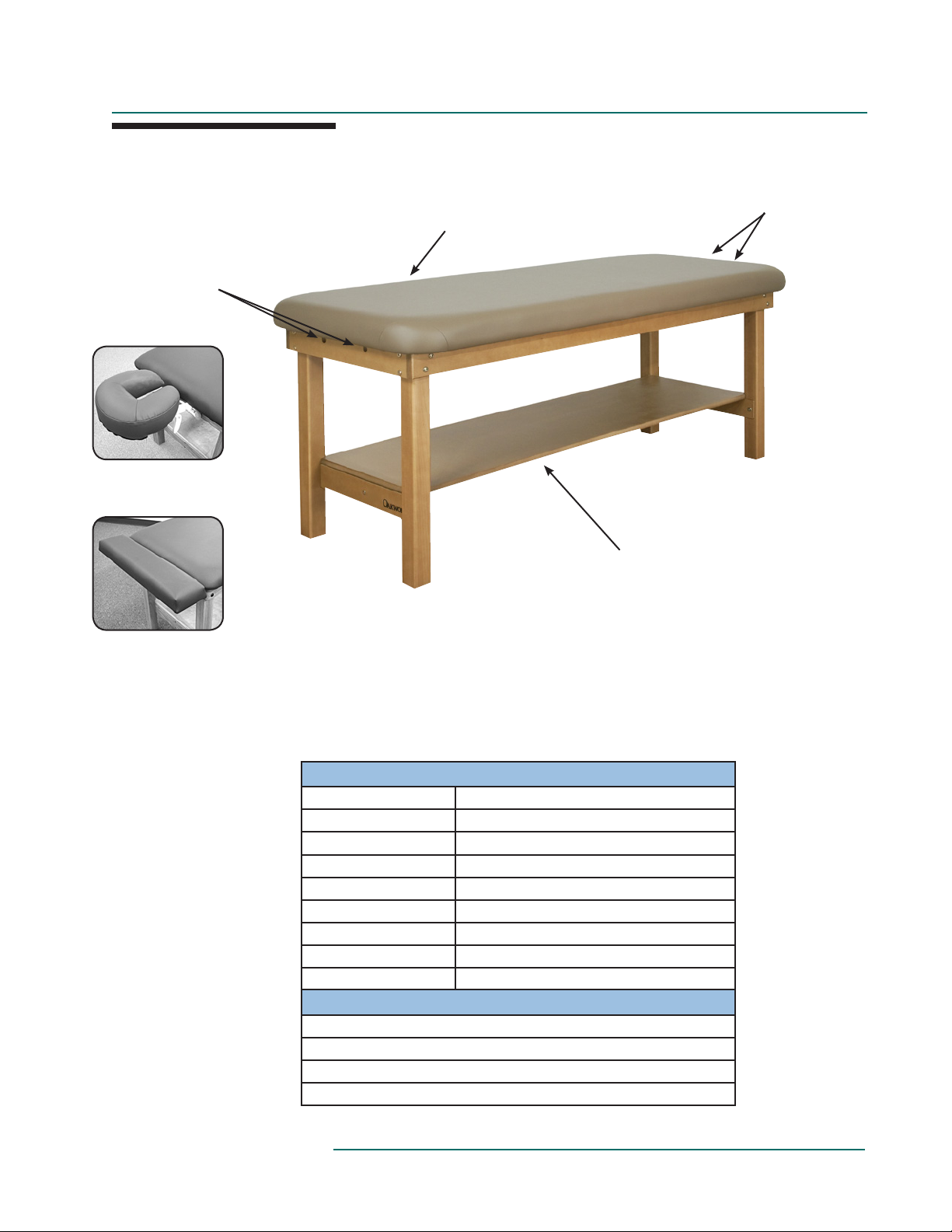

Seychelle Flat Top
4
PRODUCT DESCRIPTION
Upholstered Top
Accessory outlets
Inset Shelf (option)
Accessory outlets
Table Extender
(accessory)
QuickLock Face
Rest (accessory)
STANDARD SPECIFICATIONS
Height Range Fixed 30” (76 cm.)
Table Capacity 500 lbs. (226 kg.) (patient and accessories)
Widths 27” (69 cm.) or 30” (76 cm.)
Length 72” (183 cm.)
Padding 3” (8 cm.) Comfort
Upholstery Terra Touch™
Table Weight*90 lbs. (41 kg.)
Warranty 3 year parts, 1 year labor
Safety Listings CE marked
OPTIONS & ACCESORIES
QuickLock Face Rest
Table Extender
Inset Shelf (adds 25 lbs. (11 kg.))
Padding - 4” (10 cm.) Comfort

Seychelle Wave Backrest
5
PRODUCT DESCRIPTION
Upholstered Top
Accessory outlets
Inset Shelf (option)
Accessory outlets
Table Extender
(accessory)
QuickLock Face
Rest (accessory)
STANDARD SPECIFICATIONS
Table Height Fixed 30” (76 cm.)
Wave Backrest Manual 0-60º, 6 set positions
Table Capacity 500 lbs. (226 kg.) (patient and accessories)
Widths 27” (69 cm.) or 30” (76 cm.)
Length 72” (183 cm.)
Padding 3” (8 cm.) Comfort
Upholstery Terra Touch™
Table Weight*90 lbs. (41 kg.)
Warranty 3 year parts, 1 year labor
Safety Listings CE marked
OPTIONS & ACCESORIES
QuickLock Face Rest
Table Extender
Inset Shelf (adds 25 lbs. (11 kg.))
Padding - 4” (10 cm.) Comfort
Wave Backrest

6
NOTE: Retighten all bolts after 4 weeks; the wood will naturally experience slight shrinkage,
which can cause the bolts to loosen.

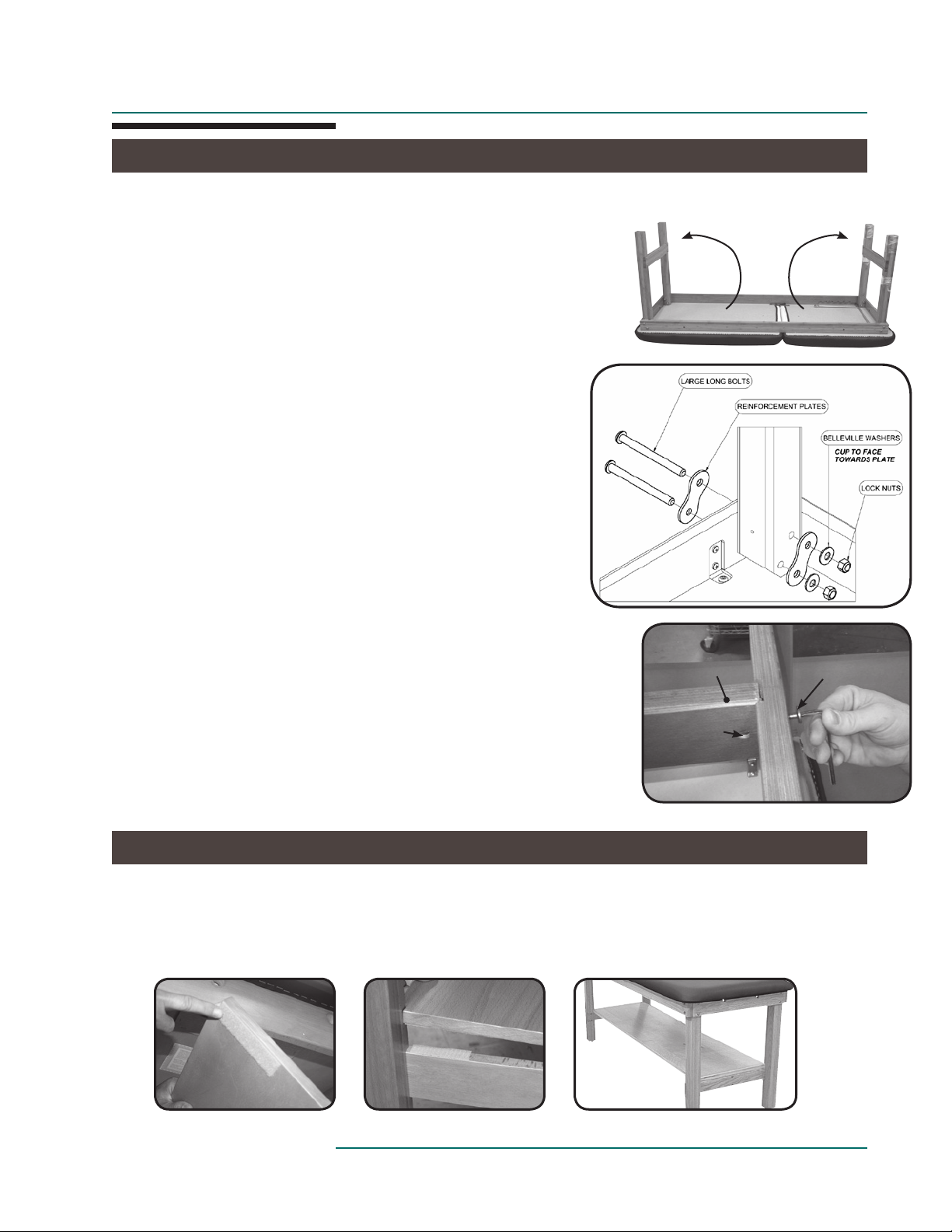

The tables are shipped complete in one box. Follow the step
below to fully assemble the table:
1. Remove the table from the box and place it down on the floor
with the top down. Remove all hardware and the Leg Brace.
2. Unfold the legs to a vertical position and remove any protective
wrappings.
3. Install the Long Large Bolts, Plates, Washers and nuts, as
shown, one bolt on each leg. Using the Large Allen Wrench and
Open End Wrench, tighten every bolt/nut connection -- 8 total --
as tight as possible.
4. Install the barrel nut into the Leg Brace being sure the screw slit
is horizontal. Install the Short Bolt through the leg rail. Start the bolt into
the barrel nut using your fingers first. After the bolt has started, tighten the
bolt using the small Allen Wrench. Make sure the Leg Brace is flush with
the adjoining rails while tightening bolts. Repeat on opposite end of the
Leg Brace.
5. Turn your table right side up. Get up on the table and rock back and
forth to check that all bolts are tight. The table should be very stiff. If
not, check and tighten the bolts as necessary with the supplied tools.
INSTALLATION
TABLE ASSEMBLY
Barrel Nut
Short Bolt
Leg Brace
SHELF ATTACHMENT
If you have ordered a shelf, drop the shelf into place with the finished side up. The shelf has groves at
both ends that enable it to be held firmly in place by the legs. If necessary, the shelf can be further sta-
bilized by installing the enclosed Velcro™ strips. Place strips on each corner of the shelf’s bottom side,
and on each end of the rails. Make sure not to mismatch Velcro™ strips; place all “hook” or all “loop”
pieces on either the rail or shelf.
LEG HARDWARE
8 -Reinforcement Plates
8 - Belleville Washers
4 - Long Large Bolts
4 - Lock Nuts
SUPPLIED PARTS:
LEG BRACE
1 - Wood Leg Brace
2 - Short Bolts
2 - Barrel Nuts
TOOLS
1 - Large Allen Wrench
1 - Small Allen Wrench
1 - Open End Wrench

7
DIRECTIONS FOR USE
PAPER ROLL HOLDER USE
After the table is set-up,
locate the hole in the leg.
Using the supplied
screw & allen wrench,
secure the paper roll
holder bracket into
place. Repeat step for
the opposite side.
Locate the wooden
dowel & feed it thru
your paper roll. Place
the wooden dowel
notch in the hole locat-
ed in the paper roll
holder bracket.
To secure the wooden
dowel on the other
side, pull out the
paper roll holder
bracket slightly &
insert the notch into
the hole.
WAVE BACKREST USE
TO RAISE THE BACKREST
Lift the backrest to the desired height and
release. The Backrest support arm will lock in
the nearest slot in the side rail.
TO LOWER THE BACKREST
Lift the backrest slightly, lift and hold the
support arm out of the slot and lower the
backrest to the desired position.
TABLE EXTENDER
CAUTION Do not put excessive weight or pressure on the table extender.
The Table Extender lengthens
the table for your tallest clients
and can improve access to your
patient.
Unfold the dowels and insert
into the outlets.
Locate the Accessory attach-
ment outlets.
CAUTION Do not adjust the Backrest with a patient on the table.

8
DIRECTIONS FOR USE

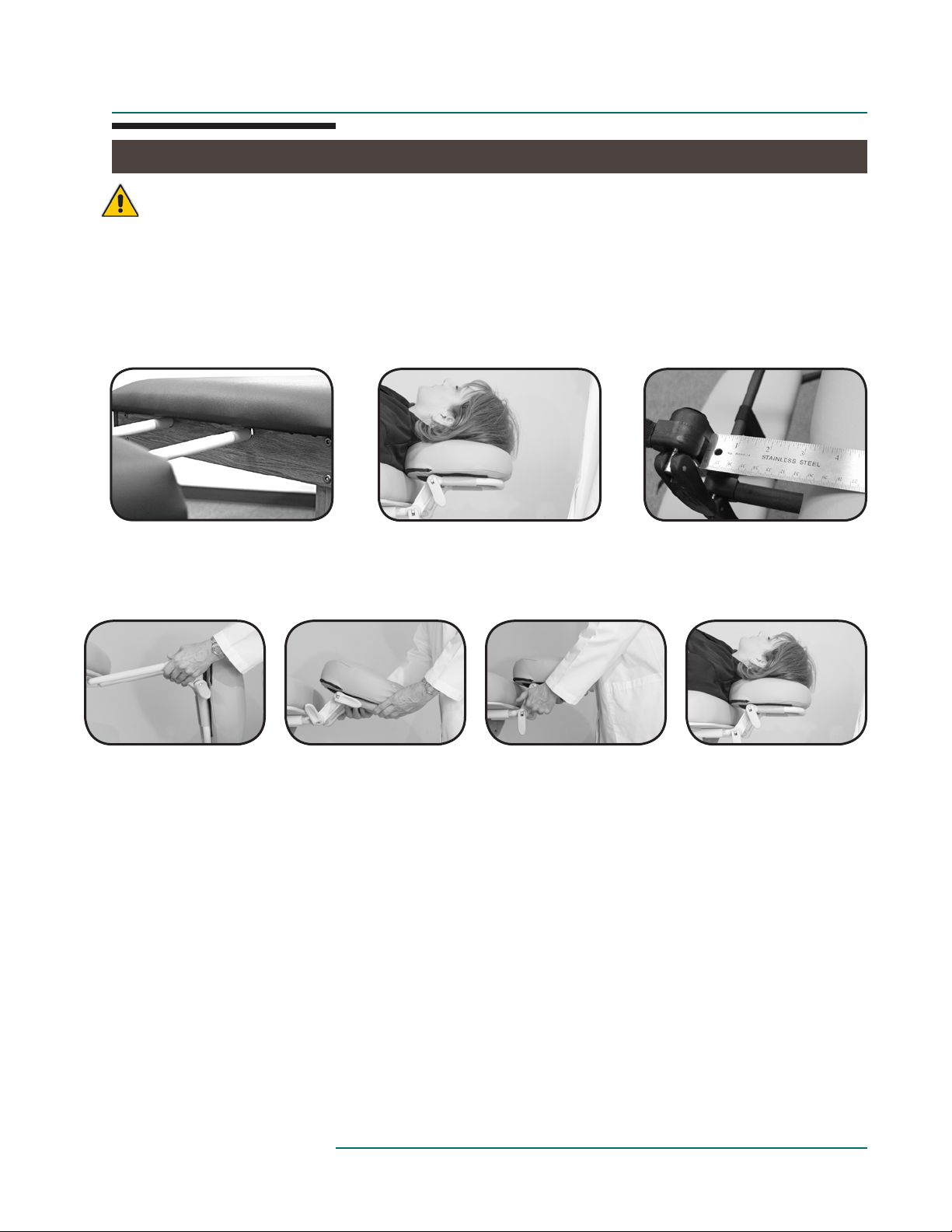

Double articulating action provides nearly limitless positioning options with the QuickLock™ Face
Rest. The adjustable pad takes pressure off sensitive facial areas while providing superb support. The
QuickLock™Face Rest can be used in both prone and supine positioning and folds out of the way
when not in use. Adjustments are made easily by loosening the cam locks, adjusting for height and
angle and then locking the cam locks into the desired position.
Important Safety Note:
Maximum Distance from edge
of Table Top= 3” (7.6 cm.)
QuickLock™
Face Rest
Insert dowels into
Accessory attachment out-
lets.
Loosen Cam Locks &
adjust face rest into place.
The Face Rest can be used
for either prone or supine
positioning.
Tighten the Cam Locks.
QUICKLOCK FACE REST * U.S. Patent #5,177,823
CAUTION Do not put excessive weight or pressure on the Quicklock Face Rest. Do not extend the
dowels of the Quicklock Face Rest 3” (7.6 cm.) from the table top. The Maximum Weight
Capacity for the QuickLock Face Rest is 25 lbs. (11 kg.)

9
CLEANING & DISINFECTION / INSPECTIONS / WARRANTY
CLEANING & DISINFECTION
Use a 10% sodium hypochlorite (bleach) solution or Recommended Disinfectants on all surfaces. Clean all sides
of each upholstered section. Follow the directions on the disinfectant and wipe off excess.
Recommended Disinfectants
Protex, MadaCide, Accell TB, Virox®
Note: Damage caused by unapproved substances will not be covered under the warranty.
DO NOT use citrus based cleaners or other strong cleaners, such as alcohol, acetone, higher concentrations of
bleach or other products that contain high concentrations of these substances.
DO NOT expose the fabric to temperatures below 50°F/10°C or above 104°F/40°C.
DO NOT expose the fabric to direct sunlight, adhesives, liquids, or abrasive materials.
INSPECTIONS & MAINTENANCE
RECOMMENDED REGULAR INSPECTIONS (monthly or local standard)
• Visually inspect components for obvious damage that could cause problems during operation.
RECOMMENDED PERIODIC INSPECTIONS (yearly or local standard)
• Visually inspect components for obvious damage that could cause problems during operation.
• Check for abnormal noises.
• Replace any missing or illegible labels.
• Check that all fasteners are present and fastened securely.
• Clean unusual buildup of dirt on the table and/or parts of the table not normally cleaned on a regular
basis.
• Check for tears or cracks in the upholstery.
MAINTENANCE
• Retighten all bolts after 4 weeks; the wood will naturally experience slight shrinkage, which can cause the
bolts to loosen.
• Oakworks tables/chairs are designed and built to provide many years of dependable service. Please fol-
low local regulations and laws when disposing of the components used in this table.
WARRANTY
View complete warranty details at www.oakworks.com

10
MODEL NUMBER & SERIAL NUMBER
MODEL & SERIAL NUMBERS
MODEL NUMBER DESCRIPTION
Model Number
Serial Number
Model Numbers and Serial Numbers always start with a letter.
The model number and
serial number are located
under the top of the table.
PWMPBRXXXXXXFRTT XX XX
Table
PW=Powerline Series
SE=Seychelle Series
Base
To p
FT=Flat Top
BR=Wave Backrest
Table Width
Minimum Table Height
Table Top Length
Padding
FR=1.75” (4 cm.) Firm Response
SF=2.5” (6 cm.) Semi-Firm
PL=3” (8 cm.) Comfort
AC=4” (10 cm.) Comfort
Fabric:TerraTouch
Not Used
Options
16796025 PWMPBR303072SFTTZZAS
Ser#: PWK1565022
PWK Powerline Backrest 30 x 30 x 72 FR/TT/XX
TTSKYBLUE 01/04/2013 Order#:654321
Notes: Sample Product Label

11
SPECIFICATIONS
PRODUCT SPECIFICATIONS
Weight 90-115 lbs. (41-52) kg.
Shipping Weight 105-130 lbs. (48-59 kg.)
Weight Limit 500 lbs. (226 kg.)
ENVIRONMENTAL CONDITIONS
Conditions Temperature Humidity Atmospheric Pressure
Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa
Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 105 kPa

12
THIS PAGE IS INTENTIONALLY LEFT BLANK

Manual Part Number MMMNST0005-EN
Revision level: D
English, Printed in USA
CONTACT INFORMATION:
Oakworks®Inc.
923 East Wellspring Road
New Freedom, PA 17349
Phone: [phone]
FAX: [phone]
www.oakworks.com
made in the USA
with US & imported parts
OAKWORKS®
Treatment Tables
USER MANUAL
For user manuals & instructional videos
related to your product, please visit
http://www.oakworks.com/manuals.asp
