Thank you for purchasing OGAWA OmKnee leg massager. Please
read the Safety Precautions carefully before using the leg massager.
The Safety Precautions are divided into ‘warnings’ and ‘attention’ in
terms of the degree of danger. This book should be kept available
for future reference after reading.
Ogawa Foot Massager.indd 2 6/13/2014 5:28:56 PM

3
Safety Instructions
a) Important safety instructions
●To ensure a safe and proper operation, please consult the instruction manual
carefully before using this product.
●Use this product only as described in this manual.
●Always unplug this product from the electrical outlet immediately after use and before
cleaning.
●Do not use this product if you have sensitive skin, neuropathy or poor circulation.
Don't let children 8 years old and above or people with reduced physical, sensory or
mental disabilities use without proper supervision. Improper use may be dangerous.
●Do not operate this product under a blanket or when covered. Over-heating can
occur and cause fire, electric shock or injury.
●Do not cover this product in order to avoid electrical faults or damages due to
excessively high motor temperature.
●Stop the massage immediately if you feel any discomfort.
●Never operate this product if it has been dropped, has a damaged cord or plug;
experiences a malfunction, or if it has been dropped in water. Please contact an
authorized service centre to do the necessary check and repair.
●Do not use the components that are not recommended by OGAWA.
●Do not insert any objects into any openings in the product.
●If you want to cut off the power supply, please make sure you have turned off all the
operating controls, as well as remove the power plug from the socket.
●Please do not use this product as a medical device. If you need a professional
diagnosis or treatment, please consult a professional medical person.
b) Operating Environment Precautions
●Do not use this massager in humid or extremely dusty environments to avoid
malfunction.
●Do not use this massager at a temperature above 40 degree centigrade.
●Do not use this massager outdoors.
●Avoid placing or operating this massager in direct sunlight or near a heating
appliance, stove.
Ogawa Foot Massager.indd 3 6/13/2014 5:28:56 PM

4
c) User precautions
●Make sure that this product is far away from any hot surfaces.
●Please consult your doctor before use for those who have the following diseases:
■Those who have heart disease, malignant tumor, back pain, spinal scoliosis,
hypertension, osteoporosis, etc.
■Those who are pregnant or having a menstrual period.
■Those who have a physical discomfort, fever, a swelling or inflammation, bruises,
allergies, etc.
■Those who are warned by the doctor not to do any massage to avoid injury or
physical discomforts such as blood clots (thrombosis), severe aneurysm, acute
venous tumor, all kinds of skin inflammation, infectious skin disease (including
subcutaneous tissue inflammation), etc.
■Warnings: Do not use the massager together with the following medical
instruments.
1) Those who are using a pacemaker or other implantable medical equipment.
2) Those who are using an artificial heart.
3) Those who are wearing an electrocardiograph for similar medical equipment.
Otherwise it will cause malfunction for those medical equipment, putting the user’s life
in danger.
d) Precautions for power supply
●Do not turn on the switch when your hands are wet.
●Do not immerse in or spray water or liquid on the control power switch.
e) Cord/Plug Precautions
●Do not connect or remove the plug with wet hands. Otherwise you will suffer an
electric shock or a product malfunction.
●Do not pull the wires when you pull out the power plug. Please hold the plug itself.
●As the default operating time is 15 minutes, all the functions will stop working after 15
minutes. Please unplug this product from the electrical outlet immediately after use.
●Keep the cord away from hot surfaces.
●Do not place the power plug under the product or any heavy items.
Safety Instructions
Ogawa Foot Massager.indd 4Ogawa Foot Massager.indd 4 6/13/2014 5:28:56 PM6/13/2014 5:28:56 PM

5
Safety Instructions
●Do not wind the power plug around the product lest it should be damaged and cause
an electric shock or fire.
●Do not operate this product if it has a damaged cord or plug.
●Do not use this product if the power socket is loose.
●Do not carry this product by its supply cord or use the cord as a handle.
●When the power plug is damaged, please call the service centre or an authorized
technical person for the necessary check and maintenance.
Attention
●Do not fall asleep while massager is on.
●Do not use this product while you are drunk or physically uncomfortable.
●Don’t stand on the product or put a heavy weight on it.
●Do not use this product for more than 30 minutes.
●Do not use this product if the cloth cover is worn out.
●Do not use this product within an hour before or after a meal.
●When you are using the rollover function, when the flip angle has reached its
maximum, please do not continue to flip hard, or it may damage the product.
●When you are using the product at a low room temperature, do not suddenly use
the heat function. You can adjust the room temperature to normal room temperature,
before starting the heat function.
●When moving this product from a low temperature storage place to a warmer setting,
it may cause malfunction due to water vapor gathered in the components. Set the
product in a normal room temperature for one hour before using it.
●Do not use this product continuously if you find any components damaged or the
product in an abnormal condition.
●When current interruption occurs during your massage, try to avoid further damage
due to sudden power restoration.
●Stop using the product if there is thunder and lightning.
●Do not allow children to play with the appliance.
●Cleaning or maintenance shall not be made by children without supervision.
●The appliance have heated surface. Person insensitive to heat must careful when
using the appliance.
Ogawa Foot Massager.indd 5 6/13/2014 5:28:56 PM

6
Warranty Claims
1. Warranty is not transferable.
2. This warranty is effective only if the product is purchased from OGAWA.
3. Proof of purchase (original receipt) is required for all warranty repairs.
4. All implied warranties, including but not limited to these implied warranties of
fitness and merchantability, are limited to the duration stated in the warranty policy.
5. Damage due to misuse, improper treatment and unauthorized modification and
repair are not covered by this warranty.
6. Warranty does not cover accessories and attachments which do not belong to the
massage unit.
7. Warranty is not effective to rental, business, commercial, institutional or other non-
residential users.
8. All services covered by this warranty must be approved by OGAWA and repaired
by authorized technicians only.
9. If replacement parts for defective materials are not available, OGAWA reserves the
right to make substitution in lieu of repair or replacement.
Ogawa Foot Massager.indd 6Ogawa Foot Massager.indd 6 6/13/2014 5:28:56 PM6/13/2014 5:28:56 PM

7

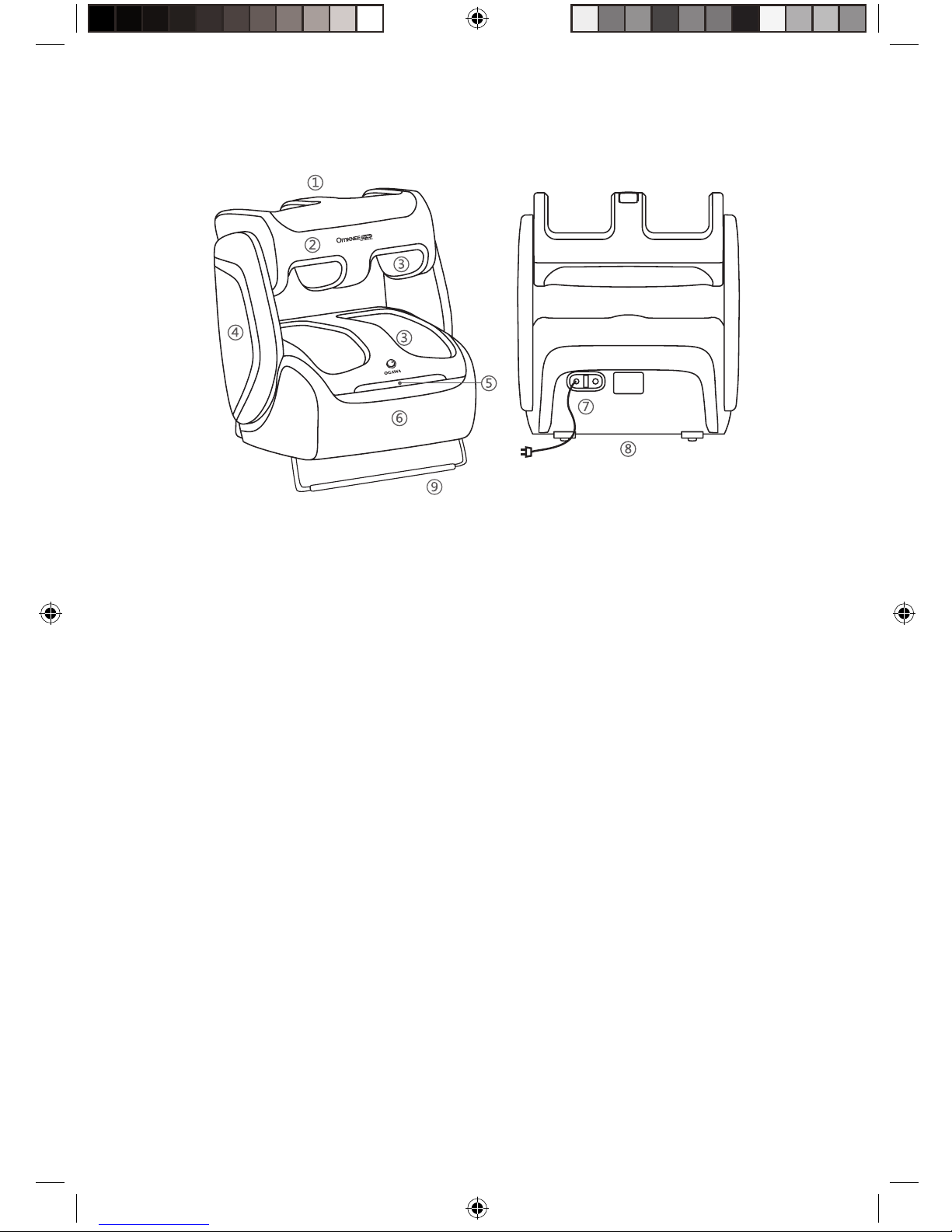

Product Parts
1 Touch screen panel
2 Rollover-style leg massage area
3 Detachable fabric cover
4 Side cover
5 Decorative plate
6 Feet massage area
7 Power switch
8 Four sets of transportation wheels on the ground
9 Stand
Ogawa Foot Massager.indd 7 6/13/2014 5:28:56 PM

8
Product Features And Operation Illustrations
●Specially designed for knee care; U-style wrapped air compressing massage with a
comfortable warm heating function, to help relieve knee pains and discomfort.
●Rotate it as you wish,– this is the first developed innovative rotation structure with
225° rotation space/11 adjustment levels, enabling you to enjoy it freely.
●New programmes: Tone/Revive/OmKNEE/Reflexology programmes are designed for
different groups, to protect your legs, relieve your pressure, and ease your body and
mind.
●Personalized lifting adjustment design, and 46mm automatic lifting function to satisfy
different-height groups.
Product operation illustrations
Leg part Knee part
Remarks: If you would like to adjust a different angle in the process of massage,
please make sure you have first turned off all the functions, before moving out your legs
and then doing the necessary adjustment.
Ogawa Foot Massager.indd 8Ogawa Foot Massager.indd 8 6/13/2014 5:28:57 PM6/13/2014 5:28:57 PM

9
Product Operation Guide
Illustration for touch screen control panel
Leg part Knee part
1
Power switch
Turn the power supply on or off, the yellow light should start to blink once the power is
switched on; press the power key once again. When the blue light is on, all the other key
functions will start to work.
2
Intensity key
Control the intensity of the massage. When the product starts working, we can adjust the
intensity accordingly (the default level is medium)
Intensity illustration: green light means weak / blue light means medium / red light means
strong.
Ogawa Foot Massager.indd 9Ogawa Foot Massager.indd 9 6/13/2014 5:28:57 PM6/13/2014 5:28:57 PM

10
Product Operation Guide
3
Keys for Parts Option
“Feet” Air pressure and sole rolling massage for feet; enable the foot
massage with the blue indicator light on;
“Legs” Air pressure massage for legs; enable the leg massage with the
blue indicator light on;
“Knees” Air pressure massage for knees; enable the leg massage with the
blue indicator light on;
4
Up/Down Keys
“Up” Turn up the leg massage region; a short buzz for the highest point;
“Down” Turn down the leg massage region; a short buzz for the lowest
point;
5
Mode Keys
“Tone” Air pressure massage for legs; when enabled, the blue indicator
light is on;
“Revive” Multi-site massage; when enabled, the blue indicator light is on;
“OmKNEE” Heating air pressure massage for knees; when enabled, the
blue indicator light is on;
“Reflexology” Kneading massage for soles; when enabled, the blue indicator
light is on;
6
Heating Key
Control the heating function. The heating effect is controlled separately; when enabled,
the red or blue indicator light is on;
Ogawa Foot Massager.indd 10Ogawa Foot Massager.indd 10 6/13/2014 5:28:57 PM6/13/2014 5:28:57 PM

11
Product Operation Guide
a) Instructions before use
Please store this product in a dry place, do not expose the product to direct sunlight. Put
the carpet under the product to minimize the working noise.
b) How to use it
This product uses only the AC 120V , 60Hz power supply.
Make sure your indoor voltage fits this specification
parameter.
●Connect the AC power cord to the socket.
●Turn on the power switch at the back of product
to “I”, when the red light is on, the yellow light
on control panel blinks, the product is in standby
mode.
1. Before plugging in the socket, make sure turn the main power switch to “0”
●Choose your desired massage area to begin the massage.
clockwise
(knee part)
counterclockwise
(leg part)
(Remarks: Product rollover angle is limited to 11 levels of adjustment, and a 225 degree
rotation. Once it reaches the peak point, please turn it gently and continuously, to avoid
product damage.)
Do not insert or remove
the plug with a wet hand
Ogawa Foot Massager.indd 11 6/13/2014 5:28:57 PM

12
Product Operation Guide
●Place your legs in the product, before pressing the switch key on screen. When
the blue light is on, the other functions will follow. According to the indicators on the
control panel, you can choose different massage modes.
Area selection button : Choose the corresponding massage area key. When the blue
light is on, three options can be selected; Press once again, to
turn off the function.
Auto Program buttons : Choose the corresponding mode key. When the blue light is
on, it is at medium level. The heat function can also be
controlled. Three options can be selected.
Up/Down button : Pressing Up or Down key to adjust the angle you need. When
the angle reaches its peak or lowest point, the buzzer will
sound to warn you.
●When you start the massage, the product will be countdown in 15minutes. After
15 minutes, the massage function is turned off, and it will recover to standby mode.
●When the product is on standby, press the main switch “0” to cut off the power.
●Transportation wheels
There are transportation wheels installed at the base of the product. This is for moving
and storage. Please hold the two sides of the product tightly, before moving the product
around.
Ogawa Foot Massager.indd 12 6/13/2014 5:28:57 PM

13
Product Maintenance
a) Storage
●Please store it in the packing carton, and put in a safe, dry, well-ventilated, and
shaded place.
●Do not twist the power plug.
●Do not hang the power wire and pull the product.
●Avoid sharp items from destroying the surface of the product.
●Please don’t store the machine under direct sunlight or in places of high temperature.
b) Clean
●Before cleaning, make sure that the power
cord is unplugged from the electrical outlet
and that the machine is completely cool.
●Use a damp cloth to clean the product.
Ensure the product is completely dry before
reuse.
●The detachable fabric cloth can be washed
in a normal washing way.
*Attention
●Make sure not to use benzene or thinner and other corrosive detergents to clean the
product.
c) Maintenance
●Keep the product clean and store in a dry environment.
●When the product is not in use for a long time, please put a dustproof cover on the
product.
Removable
cloth cover
Ogawa Foot Massager.indd 13Ogawa Foot Massager.indd 13 6/13/2014 5:28:57 PM6/13/2014 5:28:57 PM

Troubleshooting
If you meet the following problems, please referring to the following solutions. If the
product is still malfunctioning or doesn’t work, please send the product to our service
centre or an authorized technician for the necessary checks and repair.
Conditions Possible reason Solutions
It doesn’t work
1. Plug isn’t connected
correctly to the socket.
2. The power switch at the
back is off.
3. Switch key on control
panel isn’t on.
4. The fuse blows out.
1. Push the plug firmly into the
socket.
2. Switch on the power switch
at the back of the product.
3. Switch on the on/off key on
the panel.
4. Insert a tooth pick in the
small hole of “fuse” under
the switch power, before
taking out the fuse.
Stop working
suddenly
1. The power switch is off.
2. Massage time is over
15 minutes.
3. If it is working for a
long time, the motor will
be protected against
overheating.
4. If you put heavy
pressure on the rollers
and the rollers do not
work well.
1. Check that the power plug is
connected well.
2. Restart the power supply
switch.
3. After the product is cooled
down, please restart the ON/
OFF power.
4. Switch off the power supply,
and turn it on again.
Product Specifications
Product name OmKNEE Therapy, Total Foot Reflexology
Model number of the product OGCF2002A
V, 60HZ021CAegatloV
Power consumption 115W
setunim51remiT
14
Ogawa Foot Massager.indd 15 6/13/2014 5:28:57 PM

Ogawa Foot Massager.indd 16 6/13/2014 5:28:57 PM
WARRANTY REGISTRATION FORM
Product Serial No. (located on product)
Purchase price Model No.
First Name Last Name
Address
City State Zip
Phone
Email
Please mail to:
OGAWA USA INC.
14515 E Don Julian Rd
City of Industry CA 91746
Tel: [phone]
Fax: [phone]
15
