Ogawa MODA sofa User manual

User Manual
OS 3008A 使用手册
Ogawa OZ0968.indd 1 3/5/2015 5:57:53 PM

User Manual
OS 3008 A 使用手册
Ogawa OZ0968.indd 1 3/5/2015 5:57:53 PM

2
CONTENTS
30snoitcurtsnIytefaS
50smialCytnarraW
60seirosseccA&tinUniaM
70margaiDrellortnoC
80Button Name and Fucntion
90Product Installation
21Operation GuidetcudorP
31Display
Product Maintenance 41
51Trouble Shooting
S
i.
ii
.
If
c
o
ii
i
i
v
Ogawa OZ0968.indd 2 3/5/2015 5:57:53 PM
Product Specification
Contact us
15
16

3
Safety Instructions
i. Usage environment
●Do not use the appliance in a wet condition or dusty environment as this may
result in malfunction or electric shock.
●Place the appliance in a safe location.
●Do not expose the appliance to a heater or direct sunlight.
ii. Health precautions
If you are experiencing health complications or conditions as stated below, please
consult your doctor before use:
- Suffering from heart disease.
- Pregnancy.
- Any health concerns.
iii. When the product should not be used
●If the use exceeds 15 minutes at one time.
●This unit should not be used by children or invalids without adult supervision.
●Before sleeping.
●If the fabric cover is torn.
●If water is accidentally spilled onto the appliance.
●If the user feels abnormal or severe pain during the massage.
●If the user detects any malfunction or other abnormal conditions during
operation.
●If there is lightning.
iv. Caution and warning
●Unplug the appliance from the outlet when not in use.
●Do not use any attachments that are not recommended by OGAWA.
●Do not operate this appliance if it has a damaged cord or plug. Please return
the unit to OGAWA Service Center for examination and repairs.
●Do not insert your hands or any foreign matters into the massager’s vents and
gaps.
●Handle heated surfaces carefully. The unattended use of the heated surfaces
by children or invalids may be dangerous.
●This product is only intended for personal use only. Commercial use is
prohibited.
Ogawa OZ0968.indd 3 3/5/2015 5:57:53 PM
●This product is only intended for personal use only. Commercial use is prohibited.

4
Safety Instructions
●Do not cover the appliance during operation. As this may result in malfunction
or fire.
●Do not crush the appliance and avoid any sharp folds.
V. Note
●This appliance can be used by children at the age of 8 or above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge under guidance or if they have been informed of the risks involved
and instructions concerning use of the appliance in a safe way.
●Children shall not play on the appliance.
●Cleaning and maintenance shall not be performed by children without
supervision.
●To ensure safe and proper use of the appliance, do not operate it before reading
this user manual carefully first.
●Extensive usage could lead to excessive heating and a shorter product
lifespan. Should this occur, discontinue the use and allow the unit to cool before
operating again.
●It is normal to hear the noises during use, because they are resulted from
vibration of product.
●For people under medication or with a medical condition, please consult your
doctor before use. Please do not use the product if you are not feeling well.
●If the appliance is used in a cold room, do not increase the room temperature
abruptly. It is advised that the temperature is gradually increased to a normal
level.
●If the appliance is stored in a cold place and being taken into a warm environment,
please wait one hour before use to get the optimum massaging level.
●Do not remove the cover of the appliance. Mishandling the internal components
may result in malfunction or electric shock.
●Do not connect or disconnect the power plug from the electrical outlet with wet
hands.
●Do not use the appliance if the electrical outlet is loose.
●If damaged, the supply cord must be repaired by the manufacturer, after-sales
service provider or qualified persons in similar field so as to avoid a hazard.
●The appliance has a heated surface. Persons insensitive to heat must be
careful when using the appliance.
Maximum user weight is 120Kg.
Ogawa OZ0968.indd 4 3/5/2015 5:57:53 PM
●
●The appliance has a heated surface. Persons insensitive to heat must be careful
when using the appliance.

5
Safety Instructions
●The appliance is only to be used with power supply provided.
●The appliance can be used by children aged from 8 years and above and persons
Ogawa OZ0968.indd 4 3/5/2015 5:57:53 PM
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction conerning use of
the appliance in a safe way and understand the hazards involved.
●Children shall not play with the appliance.
●Cleaning and user maintenance shall not be made by children without supervision.
Warranty Claims
1. Warranty is not transferable.
2. This warranty is effective only if the product is purchased from OGAWA.
3. Proof of purchase (original receipt) is required for all warranty repairs.
4. All implied warranties, including but not limited to these implied warranties of fitness
and merchantability, are limited to the duration stated in the warranty policy.
5. Damage due to misuse, improper treatment and unauthorized modification and
repair are not covered by this warranty.
6. Warranty does not cover accessories and attachments which do not belong to the
massage unit.
7. Warranty is not effective to rental, business, commercial, institutional or other non-
residential users.
8. All services covered by this warranty must be approved by OGAWA and repaired by
authorized technicians only.
9. If replacement parts for defective materials are not available, OGAWA reserves the
right to make substitution in lieu of repair or replacement.

6

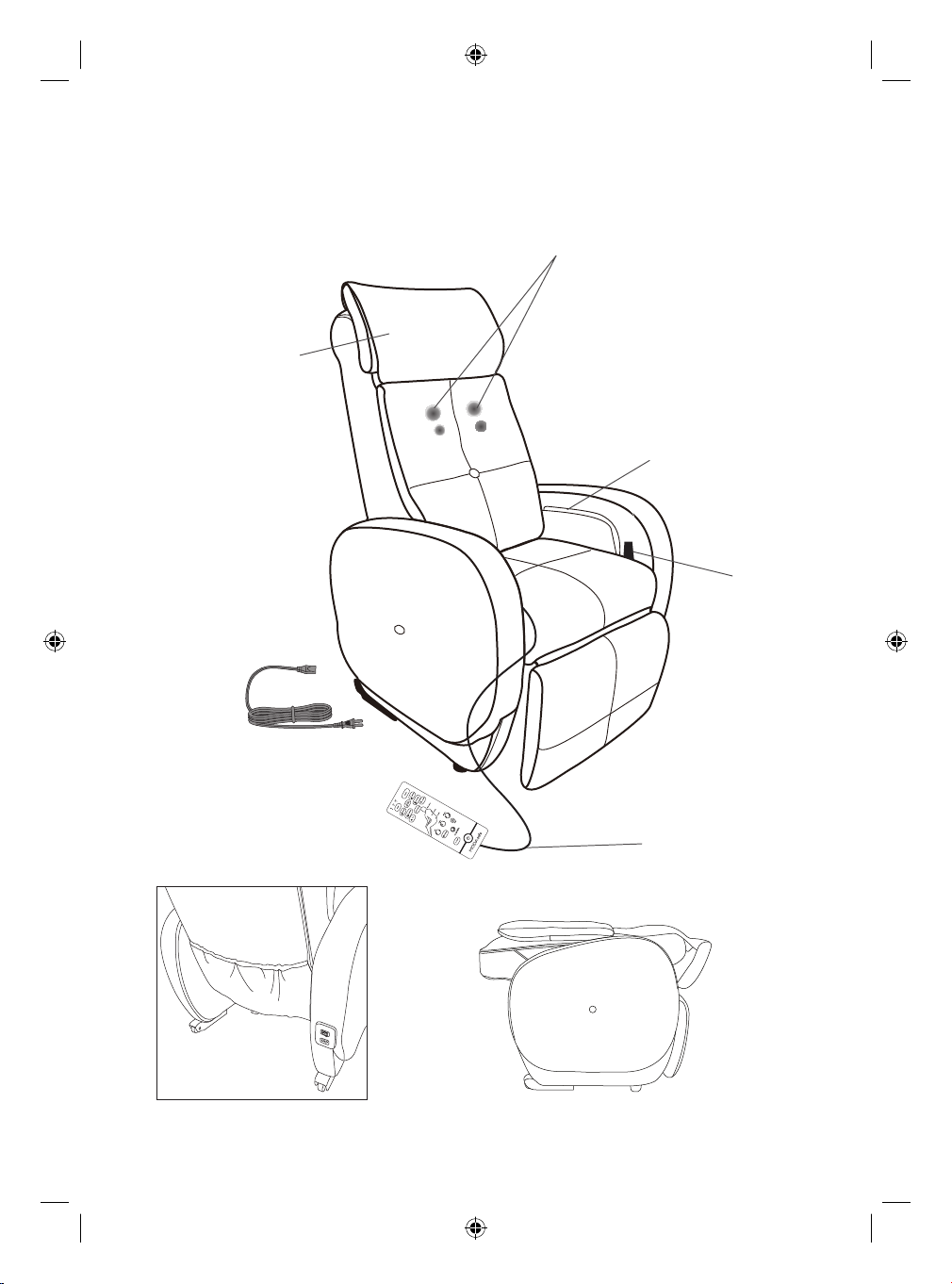

Main Unit & Accessories
massage head
air bag
handle
controller
storage
pocket
cable
detachable
backrest flap
Ogawa OZ0968.indd 6 3/5/2015 5:57:53 PM

7

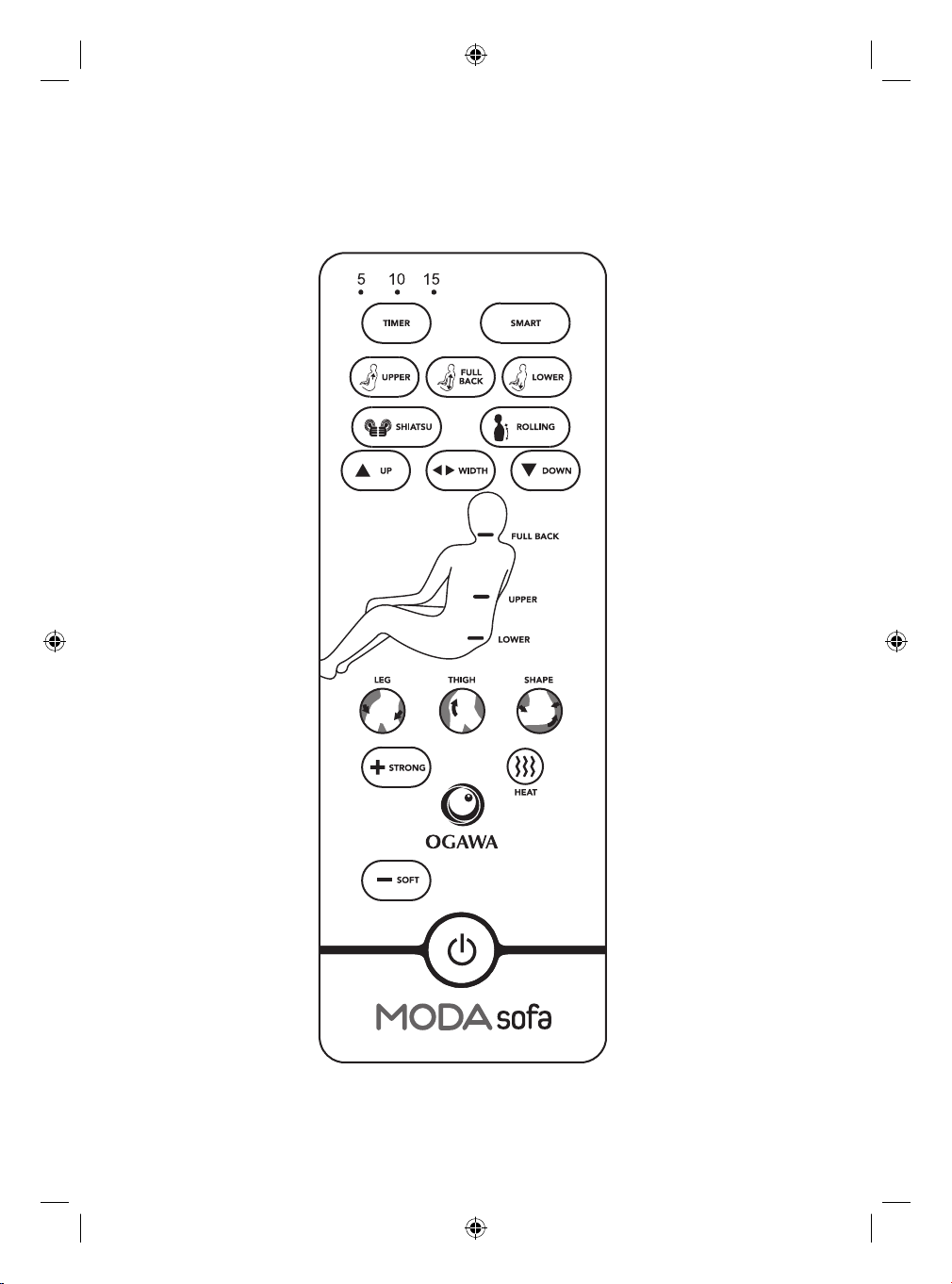

Controller Diagram
Ogawa OZ0968.indd 7 3/5/2015 5:57:53 PM

1. Timer - use to select massage time
Ogawa OZ0968.indd 3 3/5/2015 5:57:53 PM
2. Smart - for back and thigh massage
3. Area - use to select massage area
4. Shiatsu - use for back shiatsu massage
5. Rolling - for back and thigh massage
6. Width - use to select massage head width
7. Up/Down - use to select massage position
8. Let - Leg massage program
9. Thigh - thigh massage program
10. Shape - leg and thigh massage program
11. Intensity - air bag pressure selection
12. Heat - controller button for heat at back
13. Power - button to ON/OFF machine
Button Name and Function
8

9
8.indd 22 3/5/2015 5:57:55 PM

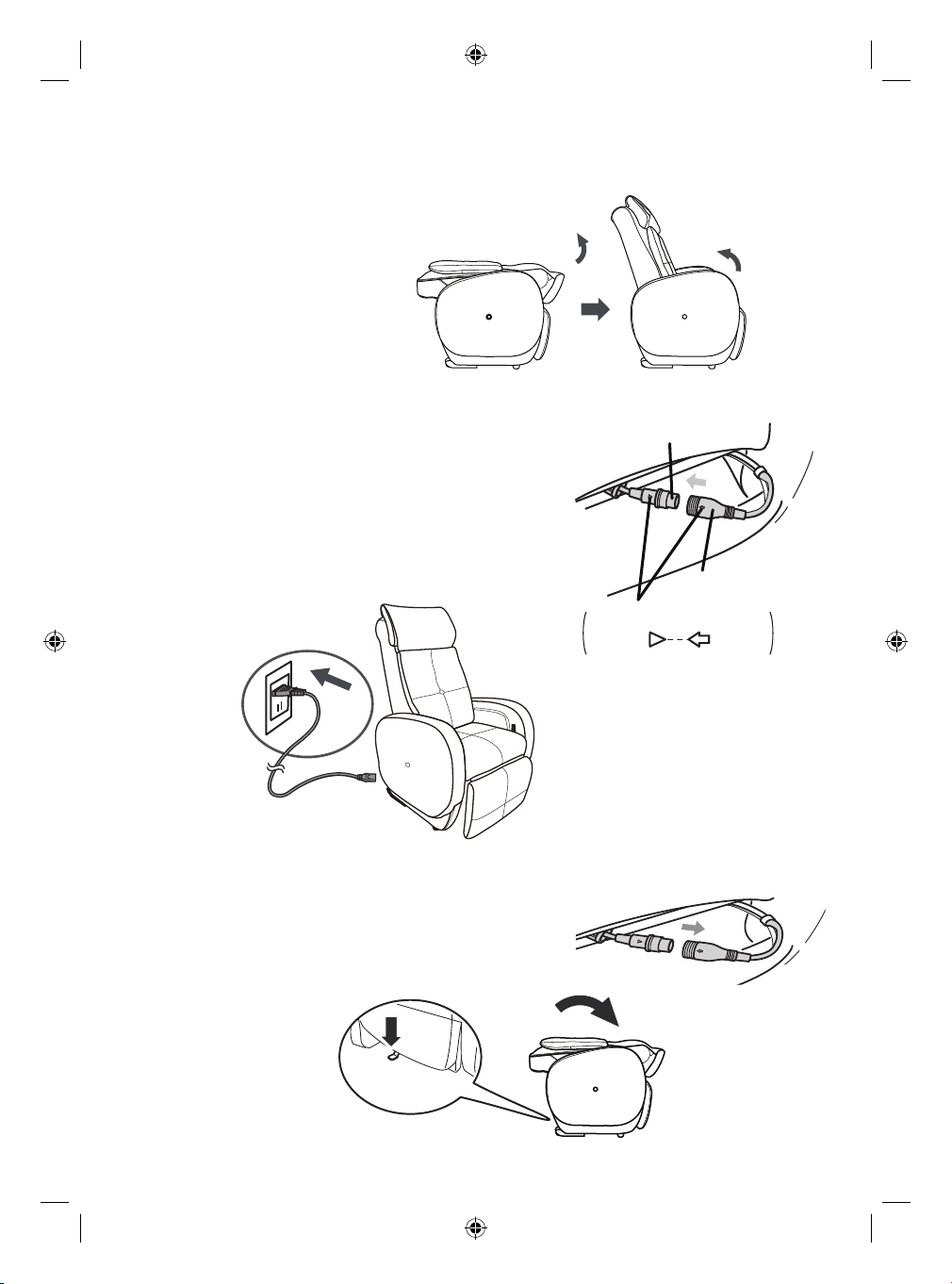

Product Installation
Step 1. Lift up the brackrest, Make sure the backrest was lock
（locking sound “ka”）
<backrest>
<plug on back>
plug on body
proper connection
Step 2. Assemble the connection by follow
the indication
Caution: Unproper connection will cause
machine unoperated.
Step 3. Plug in socket.
as picture
Back rest storage
Caution: Make sure the massage head is return to bottom
positon before dismantel. Remove the plug.
1. Remove the connection
2. Press the button to release
the backrest as picture

10
Product Operation Guide
1. [ Power ]
Insert power plug into electric outlet. Turn on the power. If the roller are not
at bottom position, the light of the [Power] button will flash and the rollers
will return to the bottom position. Press [Power] button, light will on and start
countdown of 15 minute. Press [Power] second time, the unit will stop
2. [ Timer ]
Press [Shiatsu] to switch on the shiatsu massage. Press again the stop
Each massage is set for 15 minute, each time button was press, the time
3. [ SMART ]
Press [ SAMRT ] button, whole body, shiatsu, heat , thigh and leg massage.
P
1
.
2
.
3
.
4
.
5
.
6
.
Ogawa OZ0968.indd 8 3/5/2015 5:57:53 PM
air pressure in low level for 15 minute. [Heat] and [Intensity] can be press to
switch off or change level. If other button is press(except width), [SMART]
will be off and proceed to the related function. Press [SMART] again to turn
off this program.
Back massage
1 . [ Shiatsu]
shiatsu massage.
Long pres [Up] button, massage head will move upward and stop when
2. [ Up / Down ]
button is elease.
Long pres [Down] button, massage head will move upward and stop when
button is release.
Press [Rolling] button, rolling massage will activate. Press [Rolling] button
again, rolling massage will stop.
3. [ Rolling ]
4. [ Width ]
Width only will be function under rolling mode.
During rolling, each time when [Width] is press, massage head turn to provide
different width.
will change in cycle 5-10-15. The light in each location will on.
functioning and the light is off.

11
5. [ Full Back ] , [Upper] , [Lower]
[Full Back],[Upper],[Lower] button is to select the massage area. If none of the
button is press, machine default as full back, if none of [Shiatsu], [Rolling] button
is press, machine will default as shiatsu. Press [Full Back] button, button light will
on and massage head move all location. Press [Upper] button, button light will on
6. [ Heating ]
Press [Leg] button, button light will on, masage on leg and hip.
and massage head move only upper half. Press [Lower] button, button light will
P
1
.
2
.
3
.
4
.
5
.
6
.
3/5/2015 5:57:53 PM
Heating only function when shiatsu, rolling is activated. Press [Heating] button,
heating will start. Press again to stop it.
Air pressure massage
1. [ Leg ]
2. [ Thigh ]
on and massage head move only lower half.
Press [Thigh] button, button light will on, masage on thigh.
Caution:
-Please use backrest flap if found the massage is too strong.
-For new user, please select low air intensity.
-After use, press power button to off the machine. Once the massage head had
3. [ Shape]
Press [Shape] button, button light will on, air bag on hip and thigh will exhange
massage.
4. [ +Strong ] [-Soft ]
Use to select air pressure intensity. Default as low pressure. Last setting will
be memory if [Power] button not press to off.
back to the origin.
Product Operation Guide

handle
Product Operation Guide

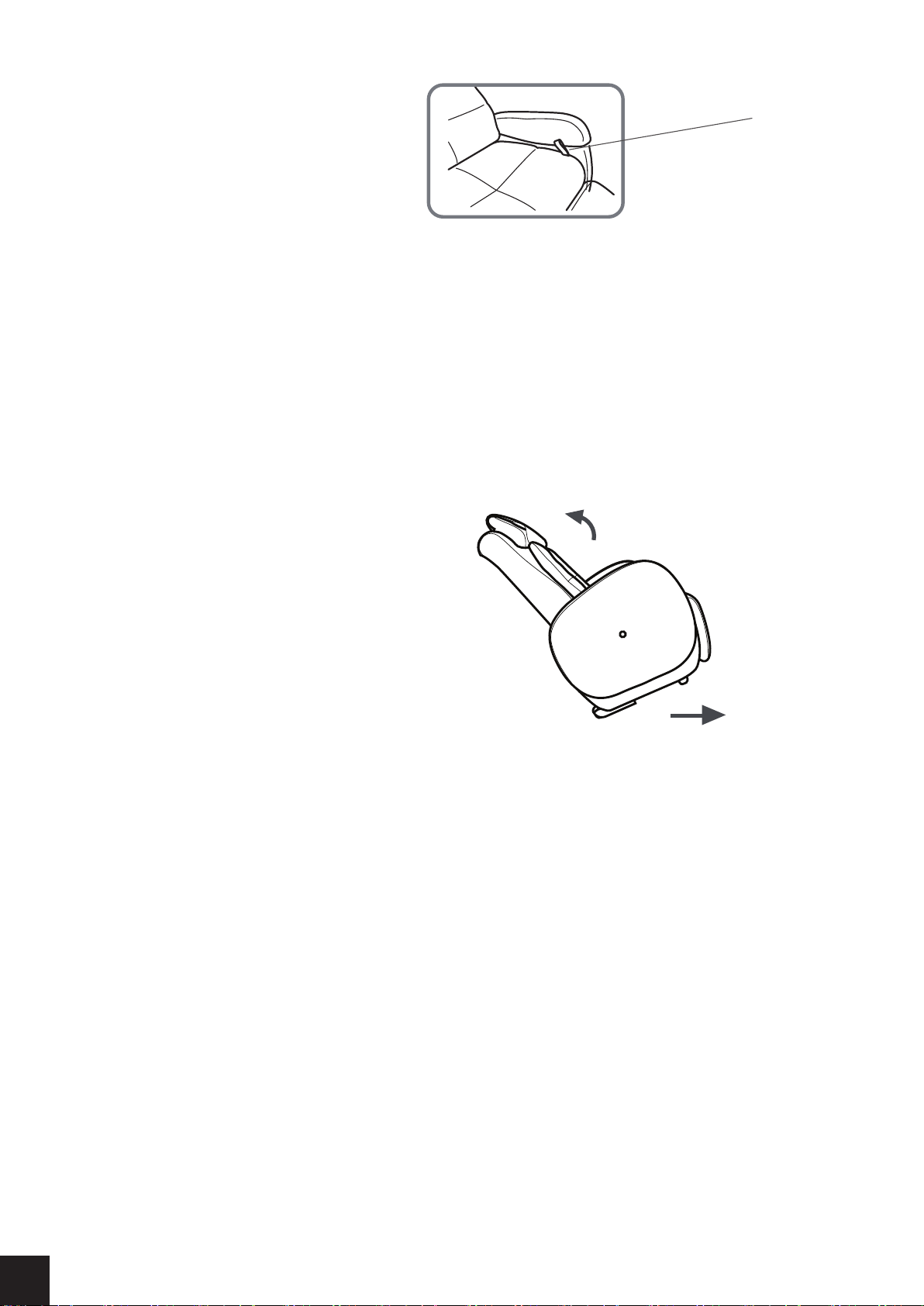

5. Backrest angle control
Backrest incline decline angle can be adjust.
A. Decline:
Before decline, please make sure no distrurbance behind chair. Pull up handle,
6. Relocation:
lay down backrest.
Pull up handle, backrest will back to the origin position.
Design with roller at rear bottom. To shift, press down chair as picture and pull.
B. Incline:
Caution：
-Please use backrest flap if found the massage is to strong.
-For new user, please select low air intensity.
-After use, press power button to off the machine.
Once the masage head had back to the origin,remove the
power plug from machine.
12

13
P
T
O
●
●
●
●
T
O
●
●
●
●
●
C
A
●
●
●
●
●
Display
1. Shiatsu and rolling massaging programs can relax your back.
2. Fixed-position massaging function provides Shiatsu of specific position.
3. Heat function can increase the Shiatsu and Rolling effect and improve blood
circulation.
4. Easy to use remote controller.
5. Auto shut-off after 15 minutes.
6. LED light indicators.
Effects by using the appliance
1. Relieves the muscle ache and pain.
2. Relieves the tension and reduce the stress.
3. Improves blood circulation.
When you do not use the product, press the [Power] button, and please don’t cut off
the power immediately until the rollers have resumed to the bottom and the indicator
light is off.
Press the [Power] button after use and the massager will stop operating. Massage
roller will resume to their original position. Unplug the appliance from power outlet.
Ogawa OZ0968.indd 12 3/5/2015 5:57:54 PM

14
Product Maintenance
TO STORE
●Keep massager in a safe, dry and cool place.
●Keep away the massager from sharp edges or pointy objects that might cut or
puncture the product’s fabric surface.
●Do not wrap the power cord around the unit.
TO CLEAN
●Unplug the unit and allow it to cool before cleaning.
●Clean only with a soft, slightly damp sponge.
●Keep the appliance away from water or any liquid.
●Avoid using abrasive cleaners, brushes, gasoline, kerosene, glass/furniture polish or
paint thinner to clean the product.
CAUTION
●Do not lean on the dual massage mechanism in the cushion when adjusting your
body position to avoid tears on the products cushion surface.
●Do not jam or force any part of your body against the moving massage mechanism.
●Only gentle force should be exerted against the unit in order to eliminate any risk of
injury.
●Do not attempt to repair the product, please contact ‘OGAWA Service Center’ for any
servicing required.
o
d
Ogawa OZ0968.indd 13 3/5/2015 5:57:54 PM

15
Troubleshooting
Symptoms Solutions
Not operating. ●Use the product when electricity is restored.
●Reconnect the power cord.
●Turn on the power switch.
No heating after pressing
the heat switch.
●Press the ‘shiatsu’ switch before turning
the ‘Heat’ switch.
●Press the ‘Rolling’ switch before turning on the
‘Heat’ switch.
During operation, the controller
is working but the massager is
not working.
●The massager could be overheated after
prolonged use. It will automatically cool down
to resume its normal condition. Please turn off
the power and stop using the massager for 30
to 50 minutes to facilitate heat dissipation of the
engine.
Back massage function does
not work.
●Turn on the power switch.
●Reconnect the power cord.
Sudden stop. ●Use the product when electricity is restored.
●Reconnect the power cord.
Product Specifications
Product Name MODA sofa
Model number of the product OS 3008A
Power source 220-240V
zH06~05ycneuqerF
Power consumption
Dimension (Length/width/height)
Incline: 1350*680*880 (mm)
C
Ogawa OZ0968.indd 14 3/5/2015 5:57:54 PM
72W
Decline:880*680*1020 (mm)
33KG
Weight

16
e
e
e
Contact Us
31/F,YHC Tower,1 Sheung Yuet Road
Kowloon Bay
Kowloon
Hong Kong
Ogawa OZ0968.indd 15 3/5/2015 5:57:54 PM
27 Tampines Industrial Avenue 5,
T5 @ Tampines
Singapore 528623

17
目录
91明说全安
20限权修保
12件附及件部要主
22明说器控手
32部件名称及功能
42产品的安装
72品操作说明产
82性能指示
92品保养产
30
疑难解答
安
i.
ii
.
以
ii
i
i
v
Ogawa OZ0968.indd 16 3/5/2015 5:57:54 PM
产品规格
联系我们 31
30

18
安全说明
i. 使用环境
●请勿在潮湿或灰尘密集的环境下使用本产品，以免导致触电或机器故障
●请将本产品存放在安全的地方。
●请勿将此产品暴露于热源或阳光直射下。
ii. 健康注意事项
以下人士，请在使用前先咨询医生的意见：
- 心脏病患者
- 怀孕
- 身体不适者
iii. 以下情况请勿使用本产品
●当一次使用本产品超过15分钟时。
●小孩或残病人士在无人监督的情况下。
●睡前。
●产品外层破损。
●液体泼溅到产品上。
●使用过程中感到不寻常或剧烈疼痛。
●使用中过程中发觉任何机件故障或不寻常状况。
●打雷时
iv. 警告
●没有使用时，请拔下电源插头。
●请勿使用非OGAWA提供的配件。
●当电源线或插头损坏时，请勿使用并及时联系OGAWA服务中心进行维修检
查。
Ogawa OZ0968.indd 17 3/5/2015 5:57:54 PM
本产品仅为个人使用，禁止用于商业用途。●

19
安全说明
●请勿将手或任何异物塞入按摩器间隙中。
●请务必谨慎使用按摩器的导热功能，勿用于对热能反应较为迟钝的皮肤上及血
液循环不良的部位。请问让儿童或身心功能障碍者自行使用导热功能。
●本产品仅为个人使用，禁止用于商业用途。
●请勿在使用中覆盖本产品，以免引起故障或火灾。
●请勿挤压或用尖锐物刮破本产品
v. 注意
●8岁及大于该年龄的儿童，肢体不健全、感官或者精神上有障碍或缺乏相关知
识经验的人必须在被告知相关风险以及正确使用方法，并在有人指导并监督的
情况下使用该产品。
●儿童不能在产品上玩耍。
●儿童必须在有监管的条件下才能对该产品进行清洁及维护。
●为确保安全及正确使用，使用前请务必详细参阅本说明书。
●过度使用可能会导致产品过热或缩短产品寿命，重复使用时，须让产品冷却一
段时间后再使用。
●使用时发出的声响属正常，这是由产品振动而产生的。
●正在接受药物或医疗治疗者，请在使用前咨询医师。若您感觉不适，请勿使用
本产品。
●如果在低温室中使用，请勿骤然升高温度。建议将温度逐渐升高调整到正常温
度后。
●若将产品存放于低温或高温的环境中，建议您在一小时后才进行使用本产品以
达到最佳的按摩体验
●请勿拆卸本产品。触碰内部机件可能导致故障或触电意外。
●请勿用潮湿的手安插或拔出电源插头。
●当电源插座有松动时，请勿使用。
●如果电源线破损，必须由该产品的制造商、售后服务提供商或者由类似有资质
的个人维修，以避免不良后果的产生。
●该产品有加热表面，对于热不敏感的人必须小心使用。
保
1
.
2
.
3
.
4
.
5
.
6
.
7
.
8
.
9
.
Ogawa OZ0968.indd 18 3/5/2015 5:57:54 PM
最高机芯承受用户重量是120公斤。
●
●该设备具有加热表面。对热不敏感的人一定要小心使用设备。
