Oki OKIPOS 426S User manual

OKIPOS 426S
45470001EE Rev.1

|
2OKIPOS 426S
Document Title and Part Number
OKIPOS 426S User’s Guide
P/N 45470001EE
Disclaimer
Every effort has been made to ensure that the information in this document is complete,
accurate, and up-to-date. Oki Data assumes no responsibility for the results of errors or
omissions beyond its control. Oki Data also cannot guarantee that changes in software and
equipment made by other manufacturers and referred to in this document will not affect the
applicability of the information in it. Mention of software products manufactured by other
companies does not necessarily constitute endorsement by Oki Data.
Copyright Information
Copyright 2012 by Oki Data. All Rights Reserved
First Edition: October, 2012
Written and produced by the Oki Data Training and Publications Department.
Contact Information
Refer to "Oki Contact Details" on the last page.

|
User’s Guide: English 3
Contents
1. Setting Up the Printer..................................................................................... 6
1.1 Select a Location.......................................................................................................... 6
1.2 Where to install your printer.......................................................................................... 6
1.3 Unpacking................................................................................................................... 7
1.4 Installing the Printer..................................................................................................... 8
1.4.1 Remove the Shipping Restraints................................................................................. 9
1.4.2 Connecting the Computer ........................................................................................10
1.4.3 Connecting the Cash Drawer ....................................................................................10
1.4.4 Connecting the Power..............................................................................................10
1.4.5 Installing the Ribbon Cartridge .................................................................................11
1.5 Installing the Paper .....................................................................................................14
1.5.1 Roll paper..............................................................................................................15
1.5.1.1 Adjusting the Roll Paper Guide .............................................................................15
1.5.1.2 Loading the Roll Paper ........................................................................................17
1.5.1.3 Adjusting the Roll Paper Near End Sensing Position .................................................18
1.5.2 Cut-Sheet Paper (Slip).............................................................................................19
1.5.2.1 Loading the Cut-Sheet Paper (Slip) .......................................................................19
1.5.3 Cut-Sheet Paper (Validation/Stub) ............................................................................20
1.5.3.1 Loading the Cut-Sheet Paper (Validation/Stub).......................................................20
1.5.4 Sprocket Paper (Tractor).........................................................................................23
1.5.4.1 Loading the Sprocket Paper (Tractor) ....................................................................23
2. Using the Printer .......................................................................................... 27
2.1 Operation Panel Functions ............................................................................................27
2.1.1 Switching Functions ................................................................................................28
2.1.2 LED Function..........................................................................................................29
2.2 Local Functions...........................................................................................................30
2.2.1 Types....................................................................................................................30
2.2.2 Starting.................................................................................................................31
2.3 Menu Function (Receipt) ..............................................................................................32
2.3.1 Menu List...............................................................................................................32
2.3.2 How to Operate ......................................................................................................34
2.4 Hex Dump Function (Receipt) .......................................................................................35
2.4.1 Print Format...........................................................................................................35
2.4.2 How to Print...........................................................................................................35
3. Maintenance................................................................................................. 36
3.1 Replacing the Ribbon Cartridge .....................................................................................36
3.2 Replacing the Roll Paper...............................................................................................39
3.3 Clearing Paper Jams ....................................................................................................40
4. Troubleshooting and Repair.......................................................................... 44
4.1 Alarm Indication for a Failure........................................................................................44
4.1.1 Details of Alarm Indications .....................................................................................45
4.1.2 LED Indication........................................................................................................46
5. Specications ............................................................................................... 47
5.1 Introduction ...............................................................................................................47
5.1.1 Scope of Application................................................................................................47
5.1.2 Characteristics .......................................................................................................47
5.1.3 Conguration .........................................................................................................49

|
4OKIPOS 426S
5.2 General Specications..................................................................................................50
5.2.1 Power Requirements ...............................................................................................50
5.2.2 Environmental Conditions ........................................................................................50
5.2.3 Agency Approvals ...................................................................................................50
5.3 Communication Interface Specications .........................................................................51
5.3.1 USB Interface ........................................................................................................51
5.3.2 Cash Drawer connector............................................................................................52
5.4 Physical Characteristics................................................................................................53
5.4.1 Printhead...............................................................................................................53
5.4.2 Printer ..................................................................................................................53
5.5 Logical Characteristics .................................................................................................54
5.5.1 Print Direction ........................................................................................................54
5.5.2 Selectable Character Pitches ....................................................................................54
5.5.3 Maximum Number of Characters per Line...................................................................54
5.5.4 Font Size/Cell Size ..................................................................................................55
5.5.5 Line Feed Pitches....................................................................................................55
5.6 Printer Performance.....................................................................................................55
5.6.1 Print Speed............................................................................................................55
5.6.2 Line Feed Speed .....................................................................................................55
5.7 Media Specications ....................................................................................................56
5.7.1 Cut-Sheet Paper (Slip/Validation)..............................................................................56
5.7.2 Cut-Sheet Paper (Counterfoil/Stub)...........................................................................56
5.7.3 Roll Paper ..............................................................................................................56
5.7.4 Sprocket Paper (Tractor)..........................................................................................57
5.7.5 Appendix: Media Specications................................................................................58
5.7.5.1 Cut-Sheet Paper (Slip/Validation) .........................................................................58
5.7.5.2 Roll paper .........................................................................................................67
5.7.5.3 Sprocket Paper (Tractor) .....................................................................................69
5.8 Paper Feed Specications .............................................................................................78
5.8.1 Paper feed methods/Paths .......................................................................................78
5.8.2 Paper Positioning Restrictions ...................................................................................78
5.8.3 Paper Tear-off ........................................................................................................78
5.8.4 Paper End Detection................................................................................................78
5.9 Ribbon Specications...................................................................................................79
5.10 Reliability .................................................................................................................79
6. Command Description .................................................................................. 80
6.1 Control Code List ........................................................................................................80
6.1.1 Function Code ........................................................................................................80
6.1.2 ESC Sequence........................................................................................................81
6.1.3 FS Sequence..........................................................................................................83
6.1.4 GS Sequence .........................................................................................................83
6.2 Character Set .............................................................................................................84
6.2.1 Code table .............................................................................................................84
6.2.1.1 USA..................................................................................................................84
6.2.1.2 Canada-French ..................................................................................................85
6.2.1.3 Multilingual........................................................................................................86
6.2.1.4 Portugal............................................................................................................87
6.2.1.5 Norway.............................................................................................................88
6.2.1.6 BRASCII ...........................................................................................................89
6.2.1.7 Abicomp ...........................................................................................................90
6.2.1.8 Multilingual 858 .................................................................................................91
6.2.1.9 ISO 8859/15 .....................................................................................................92
6.2.1.10 International character set table.........................................................................93

|
User’s Guide: English 5
7. Using the Unitool Printer Driver ................................................................... 94
7.1 Setting Slip Paper in the Paper Tray ...............................................................................94
7.1.1 Using Registered Paper Icons ...................................................................................95
7.1.2 Using Custom Size..................................................................................................98
7.1.2.1 Using Paper Size that is less than 187.96 mm (7.4") in Width...................................98
7.1.2.2 Using Paper Size that is 187.96 mm (7.4") or more and
less than 215.9 mm (8.5") in width ....................................................................103
7.2 About the Validation Printing Area ...............................................................................104
7.3 Setting Tractor Paper in the Tractor Unit .......................................................................107
7.4 Orientation...............................................................................................................107
8. Oki contact details...................................................................................... 108

|
6OKIPOS 426S
1. Setting Up the Printer
1.1 Select a Location
• Firm, level surface capable of supporting approximately 7kg (15.4 lbs).
• Clearance to open cover
• At least 100mm (4 inches) additional clearance on both sides for adequate ventilation
• Nearby power source
• Room temperature: 5° to 40° C (41° to 104° F)
• Relative humidity: 20 to 80%
• Away from direct sunlight
• Do not place the printer near a heater.
• Do not place it in a location with abrupt temperature changes.
• Do not let condensation develop on the printer.
• Do not place it in a dirty location.
• Do not place it near a device with abrupt consumption power uctuations.
• Do not place it near a device producing any noise.
• Do not place it near an object discharging static electricity (i.e., on a carpet).
• Do not place it near a location where it is subjected to any impacts or vibrations.
• Do not place it near a strong magnetic eld or source of corrosive gas.
1.2 Where to install your printer
Install your printer on as at and stable a desk as possible. Also, make sure that the following
installation space is reserved for services such as operation, daily check and replacement of supplies
to maintain the performance of your printer.
1 Approximately 100mm
2 50mm or less
3 750mm
4 600mm or more
1 1
2
4
3

|
User’s Guide: English 7

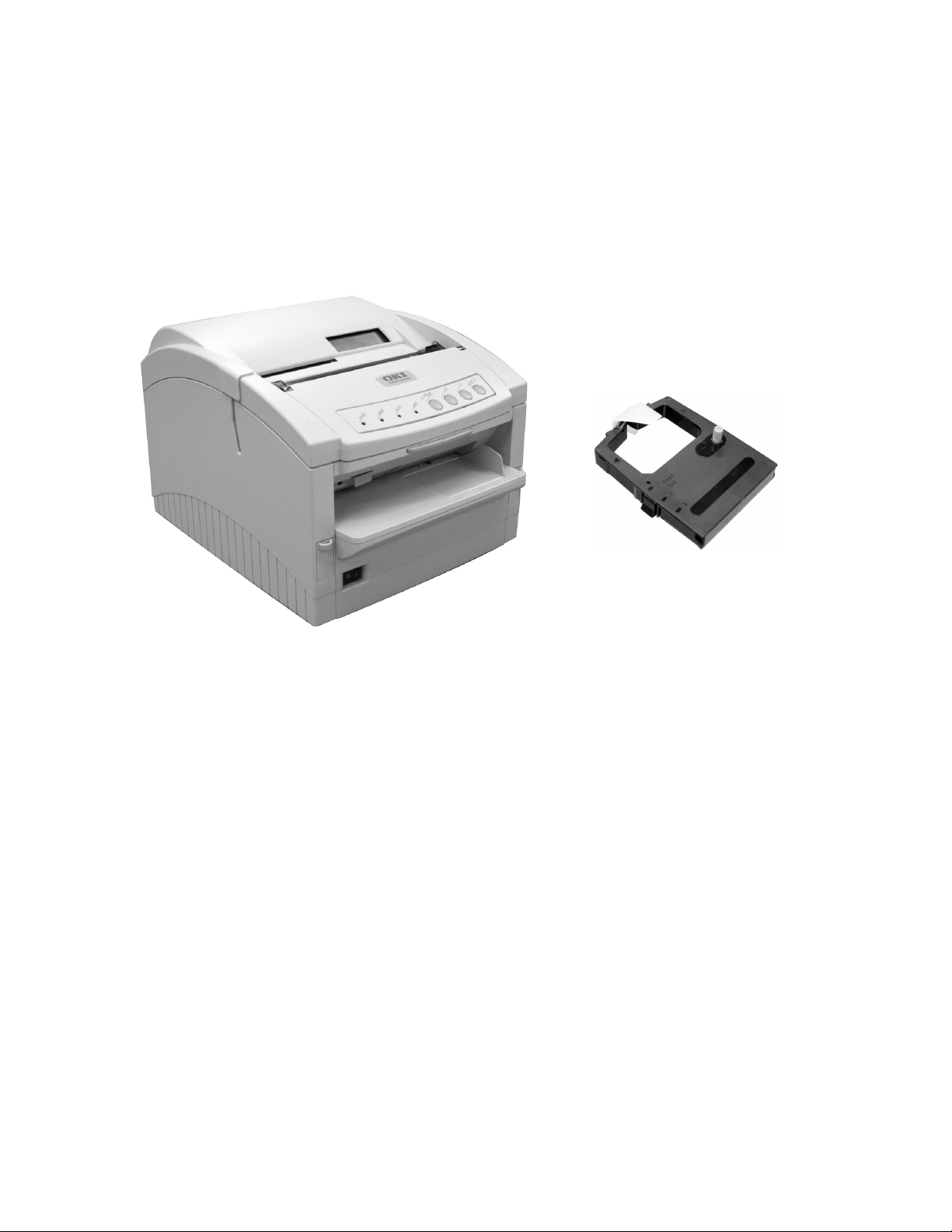

1.3 Unpacking
Getting Started
Check the contents:
1 Printer
2 Ribbon Cartridge
If anything is missing or damaged, contact your dealer immediately.
1
2

|
8OKIPOS 426S
1.4 Installing the Printer
Getting to Know the OKIPOS 426S
12
54 3
1 Printer Cover
2 Control Panel
3 Paper Guide
4 Cover Open Bar
5 ON/OFF Switch

|
User’s Guide: English 9
1.4.1 Remove the Shipping Restraints
Important! Save the shipping restraints and packing materials in case you ever need to
ship the printer.
1. Remove the ve pieces of shipping tape.
2. Press the Cover open bar and open the printer cover.
3. Remove the two printhead shipping restraints and red rubber, and detach the two pieces of tape.
1 Printer Cover
2 Shipping Restraint
3 Control Panel
4 Red Rubber
3
2
4
1

|
10 OKIPOS 426S
1.4.2 Connecting the Computer
This printer supports USB 2.0 Full speed interface when the interface board is installed in the printer.
1. Check to be sure that the printer’s power is OFF.
2. Connect the interface cable to the connector shown below.
1.4.3 Connecting the Cash Drawer
1. Check to be sure that the printer’s power is OFF.
2. Insert the cable connector from the Cash Drawer to the area indicated by DM above until you
hear a clicking sound.
1.4.4 Connecting the Power
1. Attach the power cord to the back of the printer.
2. Plug the opposite end into a suitable grounded outlet.

|
User’s Guide: English 11
1.4.5 Installing the Ribbon Cartridge

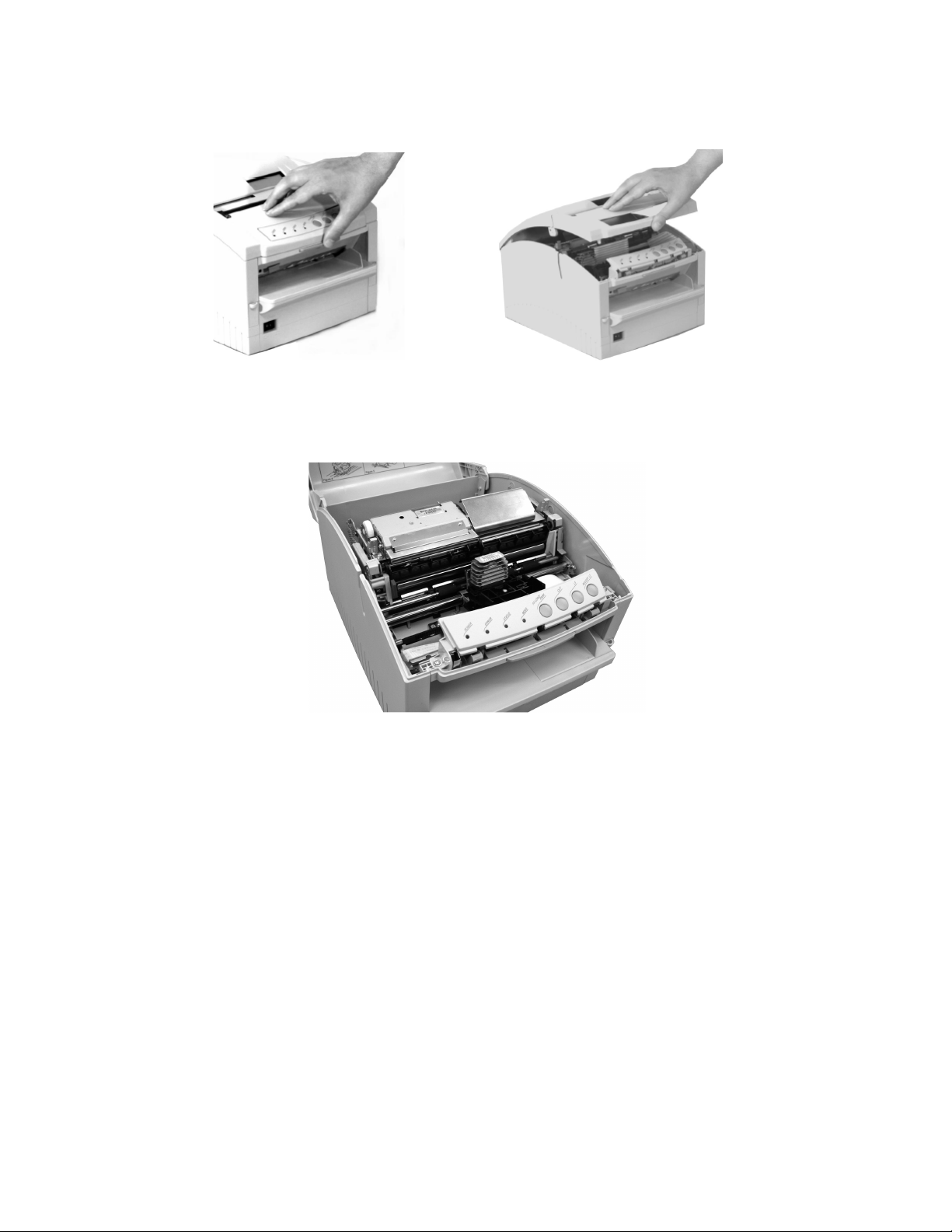

1. Make sure the printer is turned OFF.
2. Press the Cover open bar and open the printer cover.
3. Center the printhead.

|
12 OKIPOS 426S
4. Unpack the ribbon cartridge.
Important! Do NOT remove the ribbon shield from the ribbon!
1 Ribbon Shield
2 Take-up Knob
3 Grip Points
5. Install the new ribbon cartridge.
1) Hold the ribbon cartridge as shown below.
2) Fit the grooves in the at end of the cartridge over the posts on the ribbon plate.
2
1
3

|
User’s Guide: English 13

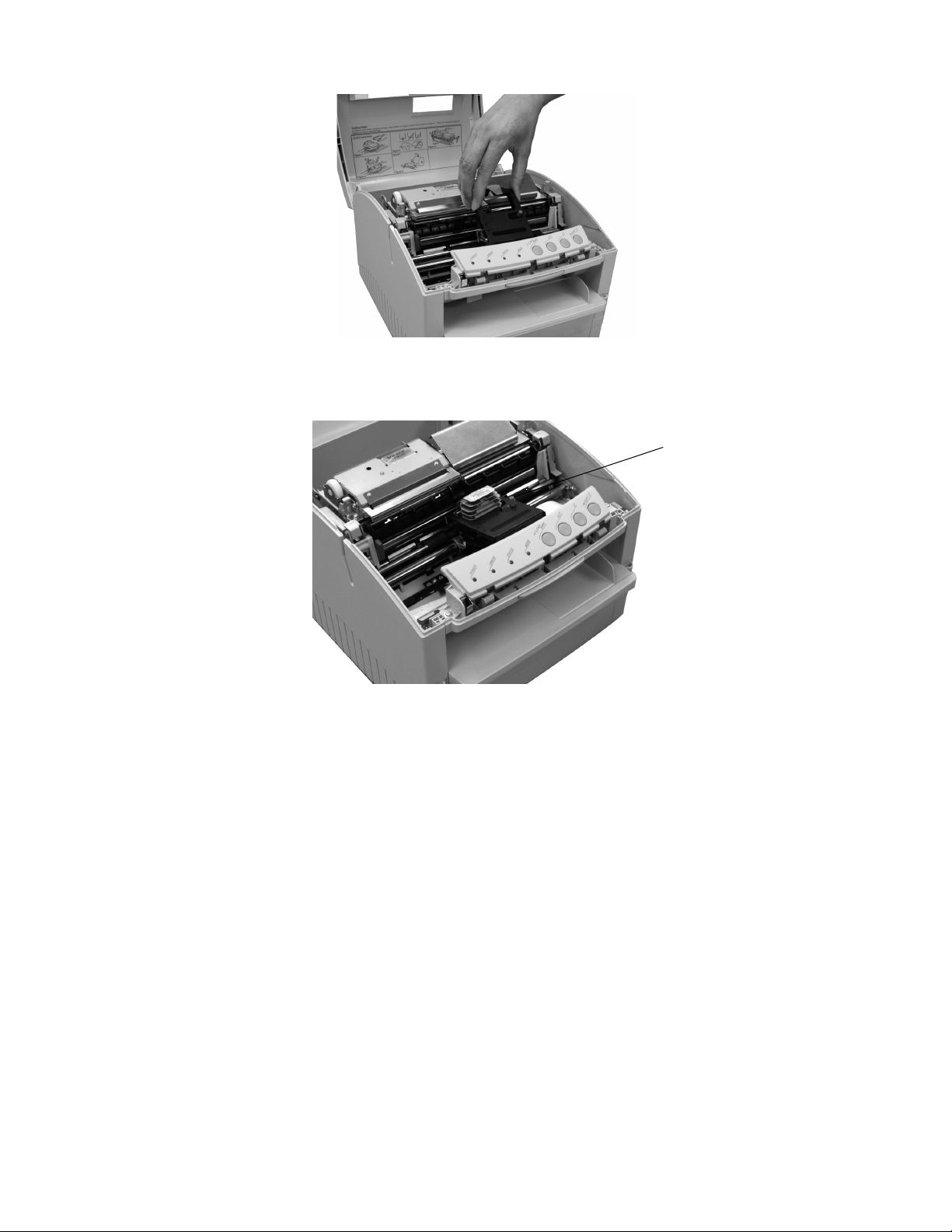

3) Lower the front of the cartridge over the printhead until it snaps into place.
4) Turn the knob (1) in the direction of the arrow on the cartridge to take up the ribbon slack.
1

|
14 OKIPOS 426S
1.5 Installing the Paper
Paper Specications
Maximum thickness: 0.3 mm (0.012 inches)
Media Type Width Length Weight Number
of copies Thickness Diameter
Cut-Sheet
Paper
(Sip/
Validation)
Note 1
Single part
(slip) 105 to
215.9mm
(4.13” to
8.5”)
70 to 297mm
(2.76” to
11.7”)
52 to 105
g/m2
(14 to 28lb)
- 0.065 to
0.13mm
(0.0026” to
0.005”)
-
Single part
(validation) 105 to
215.9mm
(4.13” to
8.5”)
70 to 297mm
(2.76” to
11.7”)
65 to 81
g/m2
(17 to 21lb)
- 0.08 to
0.1mm
(0.0031” to
0.0039”)
-
Multi part
carbon lined
or pressure
sensitive
(slip)
105 to
215.9mm
(4.13” to
8.5”)
70 to 297mm
(2.76” to
11.7”)
34 to 40
g/m2
(9 to 11lb)
Original
plus 4
copies
0.3mm
max.
(0.012”
max)
-
Cut-Sheet
paper
(counterfoil/
stub)
Single part
only 70mm or more
(2.76” or
more )
40mm or
more
(1.57” or
more)
65 to 81
g/m2
(17 to 21lb)
- 0.08 to
0.1mm
(0.0031” to
0.0039”)
-
Roll paper
Note 2 Multi part pressure
sensitive
69.5mm/
76.2mm
±0.5mm
(2.73 ”/3”
±0.02”)
- 52 to 81
g/m2
(14 to 21lb)
Original
plus 1
copy
0.18mm
max.
(0.007”
max)
101.6mm
max.
(4” max)
Sprocket
Paper
(Tractor)
Note 3
Single part 76.2 to
215.9mm
(3” to 8.5”)
76.2 to
355.6mm
(3” to 14”)
52 to 81
g/m2
(14 to 21lb)
- 0.065 to
0.1mm
(0.0026” to
0.0039”)
-
Multi part
carbon
lined or
pressure
sensitive
76.2 to
215.9mm
(3” to 8.5”)
76.2 to
355.6mm
(3” to 14”)
34 to 40
g/m2
(9 to 11lb)
Original
plus 3
copies
0.27mm
max.
(0.0l” max)
-
Multi part
interleaf 76.2 to 215.9mm
(3” to 8.5”)
76.2 to
355.6mm
(3” to 14”)
38 to 45
g/m2
(10 to 12lb)
Original
plus 2
copies
0.27mm
max.
(0.01”
max)
-
Note 1: All part must be glued at the top. Multipart is slip only.
Note 2: The standard paper weight is 57g/m2 (15lb) for the rst sheet and 45 g/m2(12lb)
for the second sheet of multipart paper.
Note 3: Multiple part paper should be fastened by spot-pasting or crimpling on both sides
and should be free of wrinkles.

|
User’s Guide: English 15
1.5.1 Roll paper
1.5.1.1 Adjusting the Roll Paper Guide
1. Adjust paper guide A (1) to the paper width.
Paper width: 2.75 inches (69.5 mm) or 3.00 inches (76.2 mm)
1) When the printer is shipped, the paper width is set for wide roll paper (3 inch or 76.2 mm
width).
2) To use narrow roll paper (2.73 inch or 69.5 mm width), hold up the roll paper guide and move
it to the left to insert into the hole (1) at the lower frame.
3) The gure below shows the proper guide position for narrow roll paper (2.73 inch or 69.5mm
width).
(To return the guide to the position for wide roll paper, reverse step 2).
1
1

|
16 OKIPOS 426S
2. Adjust paper guide B to the paper width.
1) Pull out the set paper in arrow direction (a) and push it in the arrow direction (b) until it stops
or until it touches the inside of the Guide-Rear edge (1).
2) Keeping the paper in position, turn the adjusting screw counter-clockwise to release the paper
guide B (2) and adjust it to t the roll paper edge. After paper width adjustment, turn the
screw (3) clockwise to fasten the paper guide B.
3
2
1
B
A

|
User’s Guide: English 17
1.5.1.2 Loading the Roll Paper
Use roll paper that matches the specications.
Note: The printer must be turned on before installing the roll paper.

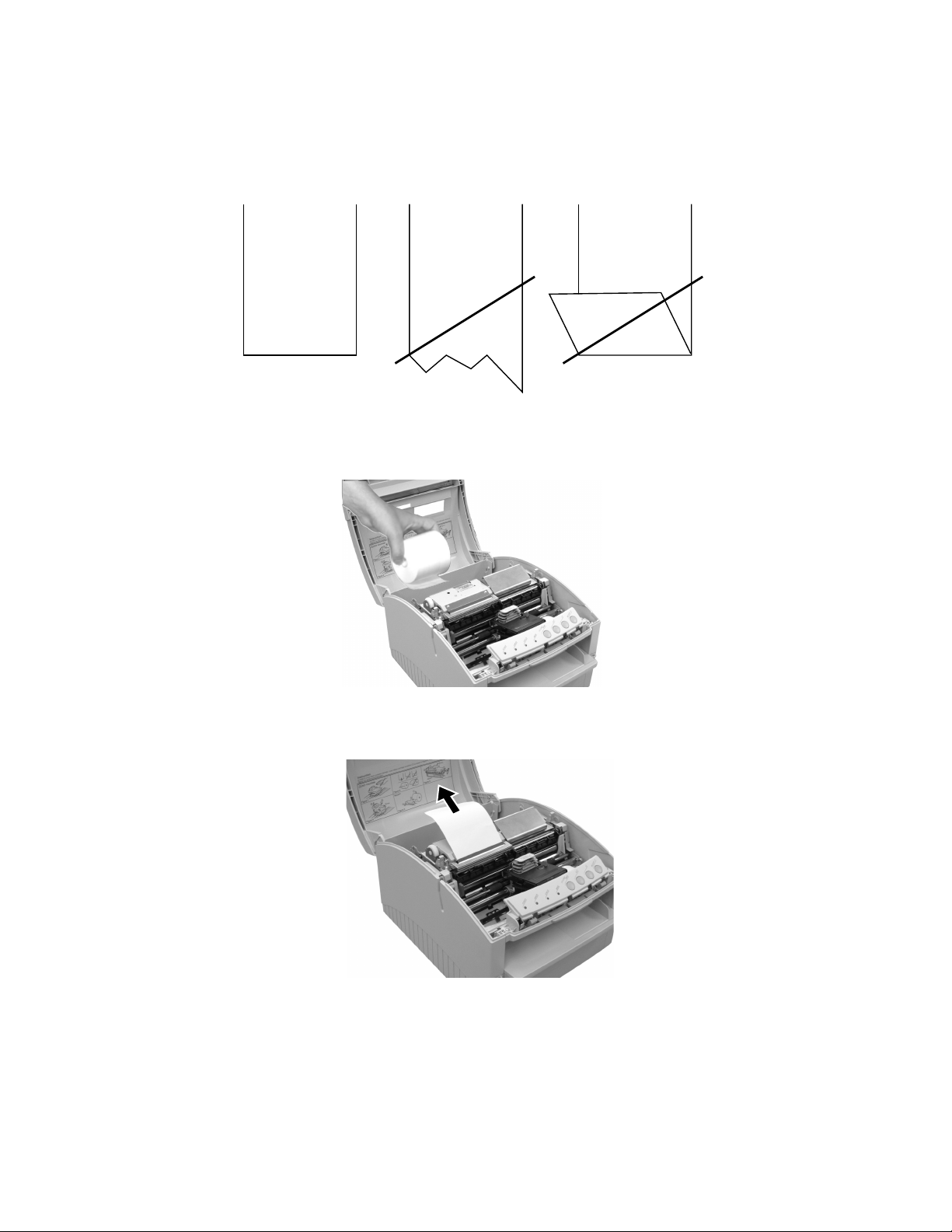

1. Fold the paper so it is exactly straight and even (1), and will not tear off jaggedly (2).
2. Turn on the printer and open the printer cover.
3. Insert the roll paper as shown below.
4. Insert the tip of the paper into the paper inlet as far as it will go, and feed the roll paper until the
paper comes out from the top of the printer.
12 2
5. Close the printer cover.

|
18 OKIPOS 426S
1.5.1.3 Adjusting the Roll Paper Near End Sensing Position
The paper near end detector detects when the paper is almost gone by measuring the diameter of
the Roll paper.
If you want to change the amount of paper remaining when the printer stops printing, follow the
steps below to adjust the paper near end detector.
Note:If the inner diameter of the Roll paper core is more than 26mm (1.02 inch), the Roll
paper near end detector may not work properly.
1. Open the printer cover.
2 Determine the point on the Roll paper at which you want the near end detector to be triggered.
Then measure the distance A shown in the illustration.
Note:There may be some difference between the measured distance A and the actual
sensing position.
3. Find the corresponding adjustment position number from the table below.
Distance A Adjustment position number
4 mm (0.16") #1
6 mm (0.24") #2
8 mm (0.32") #3
11 mm (0.43") #4
19 mm (0.75") #5
26 mm (1.02") #6
Note:Above values are applicable when the inside diameter at the core of the Roll paper
is 10mm.
4. Loosen the detector screw with a coin or screwdriver.
5. Set the detector scale to the position you determined from the table by moving the detector
screw up or down. The numbers #1, #2, #3... are not marked on the detector scale.
6. Secure the detector screw; then close the printer cover.
Distance A
1
2
3
4

|
User’s Guide: English 19
1.5.2 Cut-Sheet Paper (Slip)
1.5.2.1 Loading the Cut-Sheet Paper (Slip)
Use the paper that matches the specications.
Note:The printer must be turned on before loading the paper.
1. Turn on the printer.

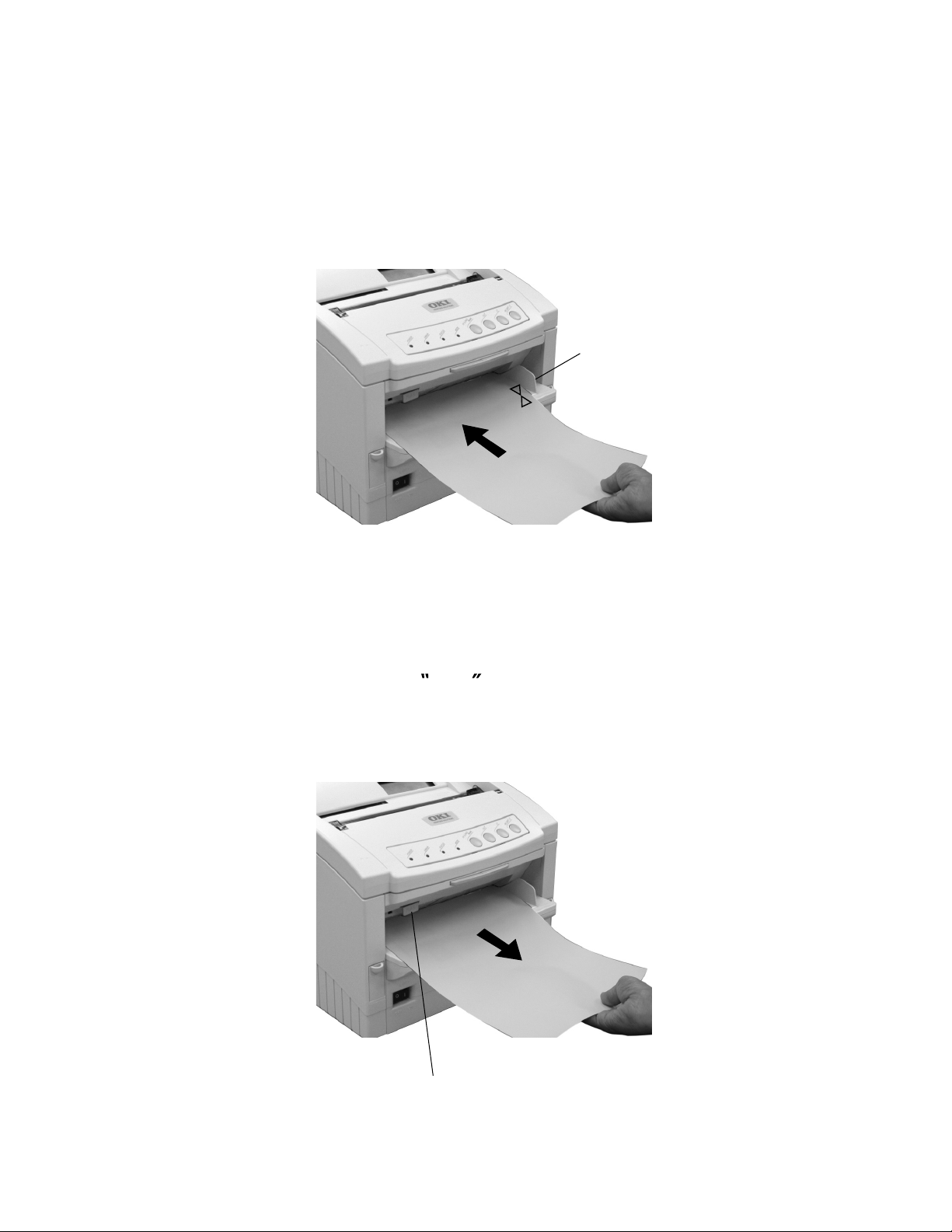

2. Insert the paper as shown below, while butting the right edge of the paper against the paper
guide.
3. Printer feed the paper until the top of form of the paper is reached.
Note:If cut sheet paper is set askew, remove the paper following the procedure below
and reset it:
1. Pull the lever (1) (marked PULL ).
2. Pull out the paper in the direction of the arrow.
3. Reset the paper.
1
1

|
20 OKIPOS 426S
1.5.3 Cut-Sheet Paper (Validation/Stub)
1.5.3.1 Loading the Cut-Sheet Paper (Validation/Stub)
Use the paper that matches the specications.
Note:The printer must be turned on before loading the paper.
1. Turn on the printer.

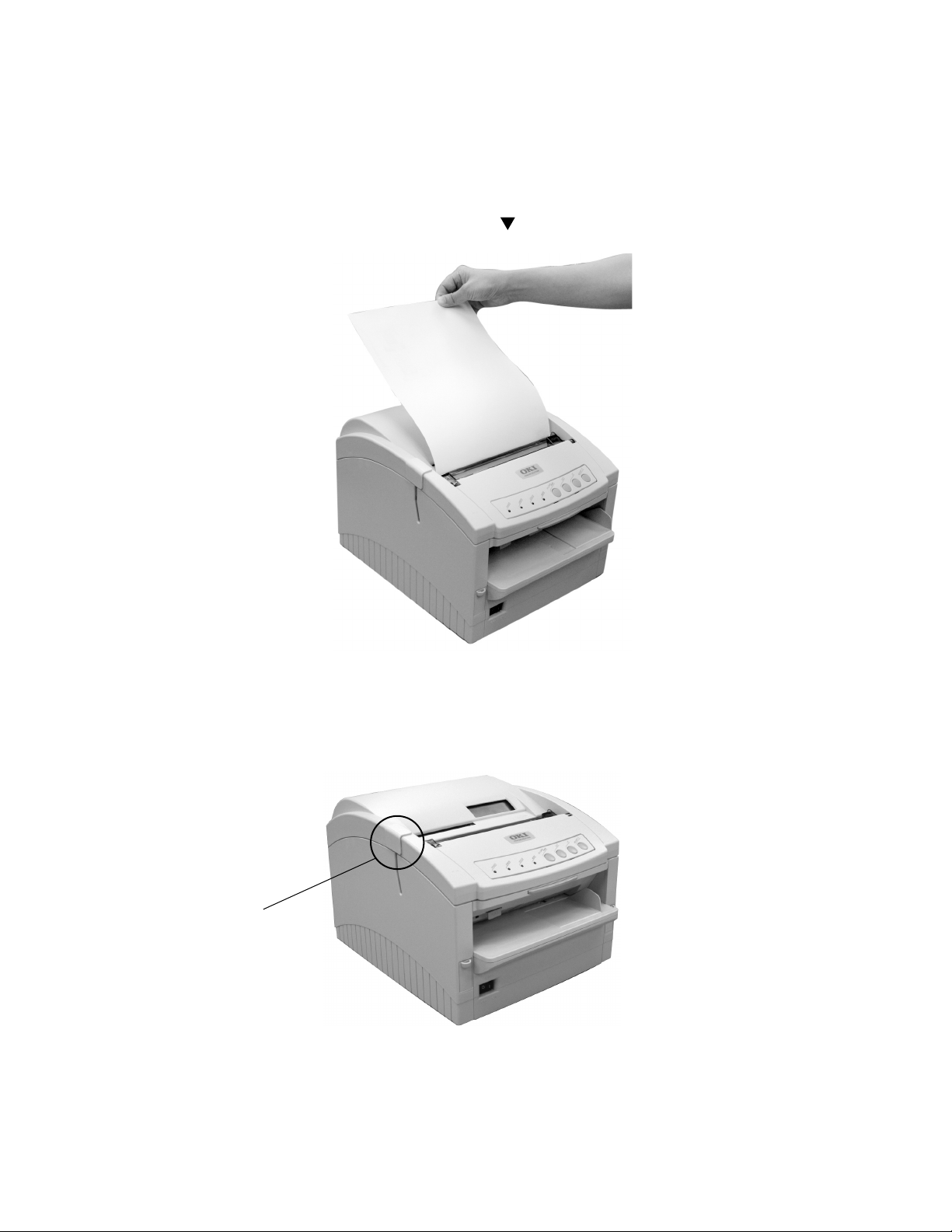

2. With the right edge of the paper positioned at the “ ” mark on the Cover Top, insert the paper.
Note:To feed paper along the long edge, remove the Piece (1) on the left side of the
printer cover and set the paper.
1
