Olympia CI 200 User manual

Carbon Monoxide Alarm
CI 200
Operating Manual
11/2018 en v1.0

2CO ALARM CI 200
Contents
What to do if the CO detectors raise an alarm . . . . . . . . . . . . . . . . . . . . . . . 4
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Important Information on Preventive Measures . . . . . . . . . . . . . . . . . . . . 10
Notes on Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Elements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Interconnecting the CO alarms without an alarm system . . . . . . . . . . . . 12
Setting Up With an Alarm System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Registering CO alarms on the alarm system. . . . . . . . . . . . . . . . . . . . . . . . 13
In the Event of an Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Signalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Changing the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Normal mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3CO ALARM CI 200
Fault mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Alarm mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Mute mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Low Battery Charge Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
End of Service Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
CO Alarm Function Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
What You Also Need to Know . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Symptoms Following Carbon Monoxide Poisoning. . . . . . . . . . . . . . . . . . 22
Reaction Times of the CO Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Information on Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Information on Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Regular Maintenance and Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4CO ALARM CI 200
What to do if the CO detectors raise an alarm
Danger! Risk of asphyxation through carbon
monoxide! Carbon monoxide is a highly ammable,
invisible, odourless gas. Take every alarm seriously.
■Keep calm.
■Always assume that it is a real emergency situation.
■Open doors and windows to ventilate areas aected.
■Clear the source of the danger where this is immediately obvious and you
do not put your own life at risk.
■You and others at risk must move away from the danger area.
■Inform the re service and wait for any instructions.
■Do not enter the building or residence in which the carbon monoxide alarm
has been triggered until the re service has inspected the aected area.
■Take advantage of medical help for persons suering from headache,
drowsiness, nausea or other symptoms which indicate carbon monoxide
poisoning.

5CO ALARM CI 200
Intended Use
Read the operating manual thoroughly and observe the information contained
when using the device. Keep the operating manual close by for future refer-
ence.
The CI 200 carbon monoxide alarm - subsequently referred to simply as the CO alarm
- serves for the detection of dierent concentrations of carbon monoxide indoors and
to issue a loud acoustic signal if it is detected.
If triggered, the CO alarm sends a radio signal which can be received by alarm systems
in the Protect and ProHome series or other CO alarms. The alarm system and/or other
CO alarms then also issue an alarm.
A condition for complying with the intended use is that the equipment is installed cor-
rectly and the information in the manual is observed and maintained. Any other use
is considered unintended use. Unauthorised modications or reconstructions are not
permitted and could cause damage to the product.
The CO alarm is not intended for use in industrial environments, business oces,
boats, caravans and camping vans.

6CO ALARM CI 200
Package Contents
Please check the contents of the package carefully. If anything is missing or has been
damaged during transport, DO NOT put the smoke detector into operation!
1 CO alarm, CI 200
Assembly material (screws, dowels)
2 batteries (alkaline, AA, 1.5V)
Operating manual

7CO ALARM CI 200
Safety Instructions
The following safety information applies to the entire document. Read and observe all
the safety information to protect yourself and the environment from any harm.
Warning! Carbon monoxide can have fatal eects. Carbon
monoxide concentrations in the blood interfere with the
capability of the body's oxygen supply. Depending on the
concentration level, carbon monoxide can have fatal
eects within minutes.
Warning! Carbon monoxide is a highly ammable, invisi-
ble, odourless gas. Take every alarm seriously. Avoid
producing sparks or ames should you hear the alarm! If
the alarm is triggered, do not smoke or light a candle. Do
not switch on any lights and do not unplug any electrical
connections.
Warning! NEVER complete any repairs to the device
yourself. Contact our Service department. The device does
not contain any parts which the user needs to repair or
service.

8CO ALARM CI 200
Warning! Risk of suocation! Children can swallow small
parts, packaging and protective foils. Keep the device and
packaging out of reach of children.
Warning! Risk to health from batteries! Keep batteries out of
reach of children. Do not swallow batteries. If any type of
battery or round cell is swallowed, seek medical attention
immediately.
Caution! Risk of property damage through the use of
inappropriate batteries! The use of inappropriate batteries
can cause a loss of function of the device. Only use batter-
ies of the type described in Section Technical Data.
Caution! Hearing damage through loud alarm signal! The
alarm signal is loud and could cause hearing damage. Only
use the product in the recommended installation loca-
tions. Do not test the product close to your ears. Do not
remain in the vicinity of the acoustic alarm for a longer
period when it has been triggered.

9CO ALARM CI 200
Caution! Risk of property damage through environmental
inuences! Prevent environmental inuences such as
exposure to smoke, dust, vibration, chemicals, moisture,
heat and direct sunlight.
Important! For technical reasons, the sensors must not
be operated in excess of ten years. As result of chemical
wear of the sensor, the CO alarm does not work properly
after the service life of ten years specied. Replace the
device after ten years even if the outer appearance does
not indicate any signs of wear. Avoid direct contact with
vapours emanating from adhesives, paints and cleaning
agents to prevent the sensor ageing or deteriorating more
quickly.

10 CO ALARM CI 200
Important Information on Preventive Measures
Throughout this operating manual, carbon monoxide is abbreviated to CO.
■The CO alarm does not detect smoke, re or gases other than CO. Install other ap-
propriate alarms to provide protection from smoke or heat development.
■The most frequent sources of CO development are gas devices, vehicle engines, elec-
tricity generators, heat-producing appliances, such as ovens or replaces, which do not
work properly or are not used correctly and the use of grilling devices in closed rooms.
■Have gas thermostats, gas boilers and other devices and heaters run on gas, as
well as air supplies and exhausts, serviced at regular intervals by specialists.
Notes on Use
■The CO alarms can be used individually or when connected to each other.
■Alternatively, the CO alarms can be connected to each other via the base unit of
the Protect or ProHome alarm system.
■The CO alarms only monitor a limited area! Therefore, install a sucient number of
CO alarms to ensure optimum protection.
■The CO alarms only work with properly charged, correctly installed batteries.
■The CO alarms must not be operated with rechargeable batteries.
■The CO alarms must not be painted over and the air vents must not be covered.
■It should be possible to hear the CO alarms in the entire living area.
■People under the inuence of alcohol, medication or drugs may not be alerted/
woken by the alarm signal.

11CO ALARM CI 200
Operating Elements
1
4
5
8
7
6
2
3
1Alarm signal LED (red) 5Battery compartment cover
2Fault signal LED (yellow) 6Assembly ttings
3Operating signal LED (green) 7Battery compartment
4Button (for connection, muting and
function test) 8Closing lock

12 CO ALARM CI 200
Interconnecting the CO alarms without an alarm system
The CO alarms can be connected to each other directly via radio signals. This ensures that,
should one of the alarms be triggered, all the CO alarms connected are also triggered. We
recommend connecting the CO alarms to each other before actually assembling the CO
alarms.
Warning! Hearing damage through loud alarm signal! The
alarm signal is loud and could cause hearing damage. Do
not test the product close to your ears. Use appropriate
ear protectors when connecting the CO alarms.
1 Insert two appropriate batteries in the battery compartment of all the CO alarms
provided. Pay attention that the batteries are inserted the right way around.
2 Press the button (4) on one of the CO alarms (master device) three times in succes-
sion.
3 The operating signal LED (3) lights up continuously. The main device is ready for
connection.
4 Press the button (4) on one of the other CO alarms three times in succession. An
acoustic signal is issued and the CO alarm is connected to the main device.
5 Repeat the connection procedure for all the other CO alarms.

13CO ALARM CI 200
Setting Up With an Alarm System
Registering CO alarms on the alarm system
One of the CO alarms must be registered as the master device on an alarm system from
the Protect or ProHome series. The master device should be installed centrally and in
transmission range of the alarm system.
Warning! Hearing damage through loud alarm signal! The
alarm signal is loud and could cause hearing damage. Do
not test the product close to your ears. Use appropriate
ear protectors when connecting the CO alarms.
1 Select the Register menu option on the alarm system.
2 Insert two appropriate batteries in the battery compartment of one of the CO
alarms (master device). Pay attention that the batteries are inserted the right way
around.
3 The base unit display indicates that registration has been completed successfully
on the alarm system and the CO alarm issues an acoustic signal to conrm the
process.
4 Connect further CO alarms to the master device (see Interconnecting the CO alarms
without an alarm system on Page 12).
Complete a function test following registration!
Press the button (4). The function of the alarm signal, signal LEDs and, where appropri-
ate, connected devices are tested.

14 CO ALARM CI 200
In the Event of an Alarm
Signalling

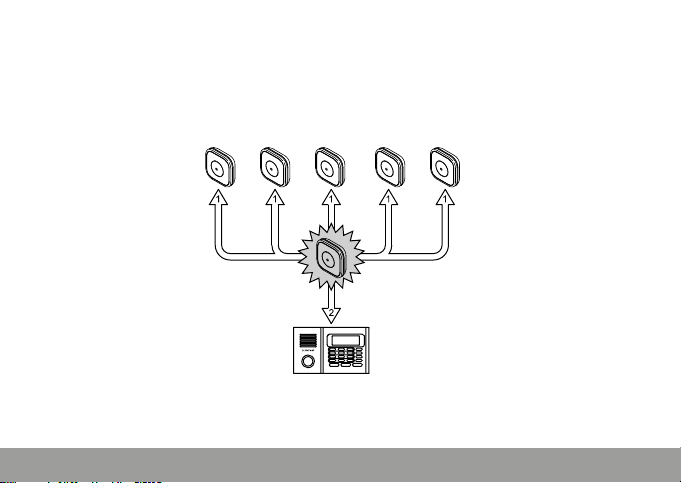

The gure illustrates the sequence of the notication of alarms when a CO alarm is
triggered.
If you have linked the CO alarms to each other without an alarm system, notication
occurs accordingly without an alarm system.
The secondary devices (slaves)issuing the alarm are switched o automatically after
10minutes independent of the master device.

15CO ALARM CI 200
Installation
Appropriate Installation Locations
A CO alarm monitors a circular area with a diameter of about 4.5 meters.
Therefore, install
■one CO alarm in every bedroom,
■one CO alarm in every room with a heating appliance (pay particular attention to
the information below),
■at the height at which most people breath
(also applies for rooms without a heating appliance).
Although carbon monoxide has a similar density to the ambient air, it is normally
expelled as part of a hot gas mixture and therefore tends to ascend until it cools
down.
Assemble CO alarms in rooms containing a heating appliance
■at least 300mm from a wall and 150mm from the ceiling,
■at a distance of between 1 and 3m to potential sources of carbon monoxide

16 CO ALARM CI 200
Inappropriate Installation Locations
The CO alarm must not be installed
■near a window or door because fresh air owing in could cause a delay in alarms
being triggered,
■in the direct vicinity of a cooking area,
■in closed containers or concealed areas,
■in the vicinity of extractor fans,
■in wet or damp areas,
■directly above sources of heat,
■outside the approved ambient conditions (see Technical Data on Page25).

17CO ALARM CI 200
Changing the Battery
If you hear two signal tones, it indicates that the batteries in a CO alarm are almost emp-
ty. Change the battery in the CO alarm concerned within 30 days.
1 Remove the CO alarm from its tting.
2 Change the batteries (observe correct polarity!).
3 Replace the CO alarm on the tting.
When the CO alarm is connected to an alarm system, the alarm system base unit also
indicates low battery power in the display.
4 On completing the work, initiate a function test on the CO alarm.

18 CO ALARM CI 200
Installation Steps
When assembling the CO alarm, pay attention to maintaining at least 100cm distance to
doors, windows or ventilation ducts.
Warning! Risk of serious injuries through damaging cables
or pipes! During installation, pay attention to the possibili-
ty of cables and pipes running in the walls and ceilings. We
are not deemed liable for installation errors. In case of
doubt, contact a specialist!
1 Ensure that there are no electric cables, gas or water pipes near the installation
location.
2 Drill two holes, about 30mm apart, at the intended installation location.
3 If necessary, insert dowels in the drill holes and insert the screws enclosed in the
product package in the holes so that the CO alarm can be mounted by hooking the
screw heads in the ttings on the rear side.
4 Install the CO alarm by mounting the ttings on the rear side on the screw heads.
5 Disassembly of the CO alarm is performed in the reverse sequence.

19CO ALARM CI 200
Normal mode
When operated below the threshold value, the CO alarm is in Normal mode.
The operating signal LED (3) ashes every 30 seconds. No acoustic alert signal is issued.
Fault mode
If a malfunction has occurred which impairs the functionality of the CO alarm, the CO
alarm signals a device fault.
The CO alarm issues a short acoustic signal every 30 seconds; the fault signal LED (2)
ashes accordingly.
Check the function of the CO alarm or change the CO alarm.
Alarm mode
If the CO alarm detects a critical concentration of carbon monoxide, it issues an alarm.
The CO alarm issues four short acoustic signals followed by a 5 second pause. The alarm
signal LED (1) ashes accordingly.
Other CO alarms linked in the network also issue an acoustic signal after the initial CO
alarm has been triggered. The signal issued by the linked CO alarms corresponds to that
issued by the initial CO alarm triggered. However, the operating signal LED (3) ashes in
the case of the linked CO alarms.

20 CO ALARM CI 200
Mute mode
1 Press the button (4) to mute an acoustic alarm. Mute mode remains active for 5
minutes.
The alarm signal LED (1) ashes four times followed by a 5 second pause. Other CO
alarms linked in the network are also muted after Mute mode has been activated.
Warning! Carbon monoxide is a highly ammable, invisi-
ble, odourless gas. Take every alarm seriously. Follow the
instructions provided in Section In the Event of an Alarm
on Page14.
Low Battery Charge Warning
The CO alarm automatically detects and signals a low battery charge.
In this case, the CO alarm issues two short acoustic signals every 30 seconds. The fault
signal LED (2) ashes accordingly. The CO alarm continues to operate without any limita-
tions during this period.
1 Change the batteries in the CO alarm within 30days, install new ones of the same
type.
Further information is available in Section Changing the Battery on Page 17.
