Omcan PH-CN-0014 User manual

Patio Heater
Model PH-CN-0014
Item 43595
Instruction Manual
Revised - 04/18/2018 Factory CSA
approved.
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: [email protected]
www.omcan.com

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 7
-------------------------------------------------------------------------- 7
-------------------------------------------------------------------------------------- 7 - 10
-------------------------------------------------------------------------------------- 11 - 13
--------------------------------------------------------------------------------- 14 - 15
----------------------------------------------------------------------------- 15 - 16
---------------------------------------------------------------------------- 16 - 17
------------------------------------------------------------------------------------------------- 18
---------------------------------------------------------------------------- 19
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
Troubleshooting
Parts Breakdown
Notes
Warranty Registration
Model PH-CN-0014

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
Safety and Warranty
General Information
WARNING
PLEASE READ THE USER MANUAL CAREFULLY BEFORE OPERATING THE MACHINE
This manual has been prepared to enable the correct installation, regulation and maintenance of the unit. It
is therefore of basic importance that the warnings contained in this booklet are carefully read as they supply
essential indications regarding the safety of the installation, use and maintenance. The appliance must be
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.

5
Safety and Warranty
installed, tested and serviced by qualied personnel only. Any adjustment whatsoever not expressly authorized
and in disrespect of this manual voids the warranty. Observe all existing local regulations at the time of
installation. Check that the characteristics of the electric grid correspond to the data given on the serial plate
of the appliance. The packing materials (plastic bags, polystyrene, nails, etc.) as potential hazards, must be
kept out of the reach of children and properly recycled according to the existing local regulations. For repairs
contact Omcan and request the use of original spare parts. If in doubt do not use the appliance and contact
Omcan. Not following the above conditions could risk the safety of those using the unit.
FOR YOUR SAFETY
Improper instillation, adjustment, alteration, service or maintenance can cause serious injury or property
damage. Keep heater away from areas where ammable liquids, gasoline, vapors or explosives are stored
or used. Gas leaks may cause a re or explosion which can cause damage to property, serious bodily injury
or death. Follow all leak-checking procedure before operating this unit highlighted in Step 8. If you smell gas:
shut off gas to appliance, extinguish any open ame and if odor continues, contact your gas supplier or local
re department. This unit consumes air provide 1 inch² of opening for fresh air for each 1,000 Btu/Hr Input
(2.22mm² / Wof Input). Never use open ame to check for leaks. Fuel systems must be installed by qualied
and licensed personnel. Please contact your local gas supplier for these services.
• Always maintain at least 18” clearance (top) and 24” clearance (side) from combustible materials.
• Always place the heater on a hard a hard leveled surface.
• Do not use if the wind velocity is greater than 10 miles per hour.
• Unit will operate at reduced efciency below 40°F (5°C).
• It is normal for the heater to make hissing sounds at the start. This will decrease as the heater warms up.
• Keep sprinklers and other water sources away from burner and controls.
• Always use extreme caution when near the heater. Young children and pets should be supervised carefully
when they are near the heater. Do not hand clothing or ammable materials on or near the heater. To avoid
burns or clothing catching on re, alert both children and adults to the hazards of high temperatures.
• Certain materials or items are susceptible to damage due to radiant heat when stored under heater.
• Do not alter heater in any manner.
• Inspect heater before each use. If a damaged part is detected, do not operate the heater until an original
Omcan replacement part has been properly installed. Use of unauthorized parts will void warranty and
create an unsafe condition.
• Prior to operating heater, replace any guards or protective devices removed from servicing.
• During operation, the surface of the heater of the burner assembly is very hot and should not be touched
• After shutdown, do not touch burner assembly until heater has completely cooled down (approximately 45
minutes after use.)
• The appliance and its individual shut off valve must be disconnected from the gas supply pipping system
during any pressure testing. The system should be tested in the pressure in excess of 1/2 psig (3.5kpa).
• The appliance must be isolated from the gas supply piping system by closing its individual manual shut off
valve during any pressure testing of the gas supply piping system at test pressure equal to or less than 1/2
psig (3.5kpa).
• Always perform a leak test on ga connections whenever heater is serviced. Never use a ame to test for
leaks. Do not smoke while performing a test leak.
• Caution: It is essential to keep the heater’s valve compartment, burners and circulating air passage clean.

6
Safety and Warranty
• Small insects can enter the burner tube or other openings of the heater. These obstructions can lead to gas
ow problems. Before operating the unit for the rst time, be sure to check for obstructions that may have
occurred during shipment.
• Inspect heater before each use and have it inspected annually by a qualied service person.
• Carbon deposits may create a re hazard. Keep dome and emitter clean at all times.
• Do not clean heater with combustible or corrosive cleaners. Use warm, soap water.
• Do not paint radiant screen, control panel or top canopy reector.
CAUTION:
Liquid propane (LP) gas is ammable and hazardous if handled improperly. Become aware of the
characteristics before using any LP product. LP characteristics include: ammable, explosive, heavier than air-
settles in low areas. In its natural state, propane has no order. For your safety, an odorant is added that smells
like rotten cabbage.
• Contact with liquid LP can cause freeze burns to skin.
• This heater is shipped from the factory for LP gas use only.
• Use only Department of Transportation (DOT) approved “20 lbs.” LP gas cylinders (same commonly used
for gas grills) with Acme Type 1/QCC safety valves. These can valves can be quickly identied by their
external and internal threads.
• The cylinder must be provided with a shutoff valve termination in an LP-gas supply cylinder valve outlet
specied, as applicable, for connection NO. 510 in the standard for compressed Gas Cylinder Valve outlet
and Inlet connections, ANSI/ CGA-V1.
• The cylinder supply system must be arranged for vapor withdrawal.
• The cylinder supply system must include a collar to protect the cylinder valve.
• Never use a cylinder with a damaged body, valve, collar or foot ring.
• When heater is not use, turn Control Valve OFF.
• Always perform a leak test on gas connection whenever a cylinder is connected (see step 8).
Check heater immediately if any following condition exists:
• The smell of gas in conjunction with extreme yellow tipping of burners ames.
• Heater does not reach proper temperature. At temperature less than 40F, heat output will be reduced.
• Heater’s glow is excessively uneven.
• Burner makes popping noises during use. Note: A slight pop is normal when burner is extinguished.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see http://www.omcan.com/warranty.html for complete information.

7
Installation
Technical Specications
Safety and Warranty
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents
list and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
TOOLS REQUIRED FOR ASSEMBLY (NOT INCLUDED)
• Phillips Screwdriver.
• Leak Detection Solution.
Models PH-CN-0014
Material Stainless Steel
Safety Features 100% Burner Shut-Off
Heat Range Up to 20 foot diameter
Inlet Gas Supply Pressure Maximum - 10.5” W.C.
Minimum - 7.0” W.C.
Fuel Use propane or butane gas only
Gas Supply Pressure 120 PSI
Consumption 450g/hr - 870g/hr
Weight 32 lbs. / 14.5 kgs.
Dimensions (DWH) 18” x 32” x 87” / 457 x 813 x 2210mm
Item Number 43595
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

8
Installation
ASSEMBLY INSTRUCTIONS
1. Line up holes on the bracket of wheel assembly (O) with the corresponding holes on base (M), then insert
M8 x 16 mm bolts (BB) through holes. Hand tighten with M8 ange nuts (AA). Be sure the wheel assembly
(O) is parallel to the base (M).
Note: To improve stability, the preassembled bucket (N) can be lled with sand (not included).
2. Attach cylinder housing (H) loosely to base (M) with M5 x 8 mm screws (CC).
3. Open the preassembled door (I) on cylinder housing (H) and place post (J) through the hole on the top.
4. Secure post (J) to cylinder housing (H) using the reinforced ring (NN), M6 x 10 mm bolts (DD) and Φ6
small at washers (EE). Fasten and cover with the deck ring (OO).
5. Slide fastening nut (G) down the post (J) with the rounded side facing down. Next, slide the tightening
spacer (F) down the post (J) with the smaller side facing down. Put the table (E) on the post (J) with the
metallic side facing up.
6. Insert the screw coupler (D) on the post (J), inserting it through the middle of the table (E) on the post
(J). Thread the tightening spacer (F) on the bottom of the table (E) counterclockwise onto the screw
coupler (D). Tighten securely to hold the table (E) to the screw coupler (D). Thread the fastening nut (G)
counterclockwise. Tighten securely to lock in place. Loosen the fastening nut (G) to adjust the position of
the table (E) on the post (J).

9

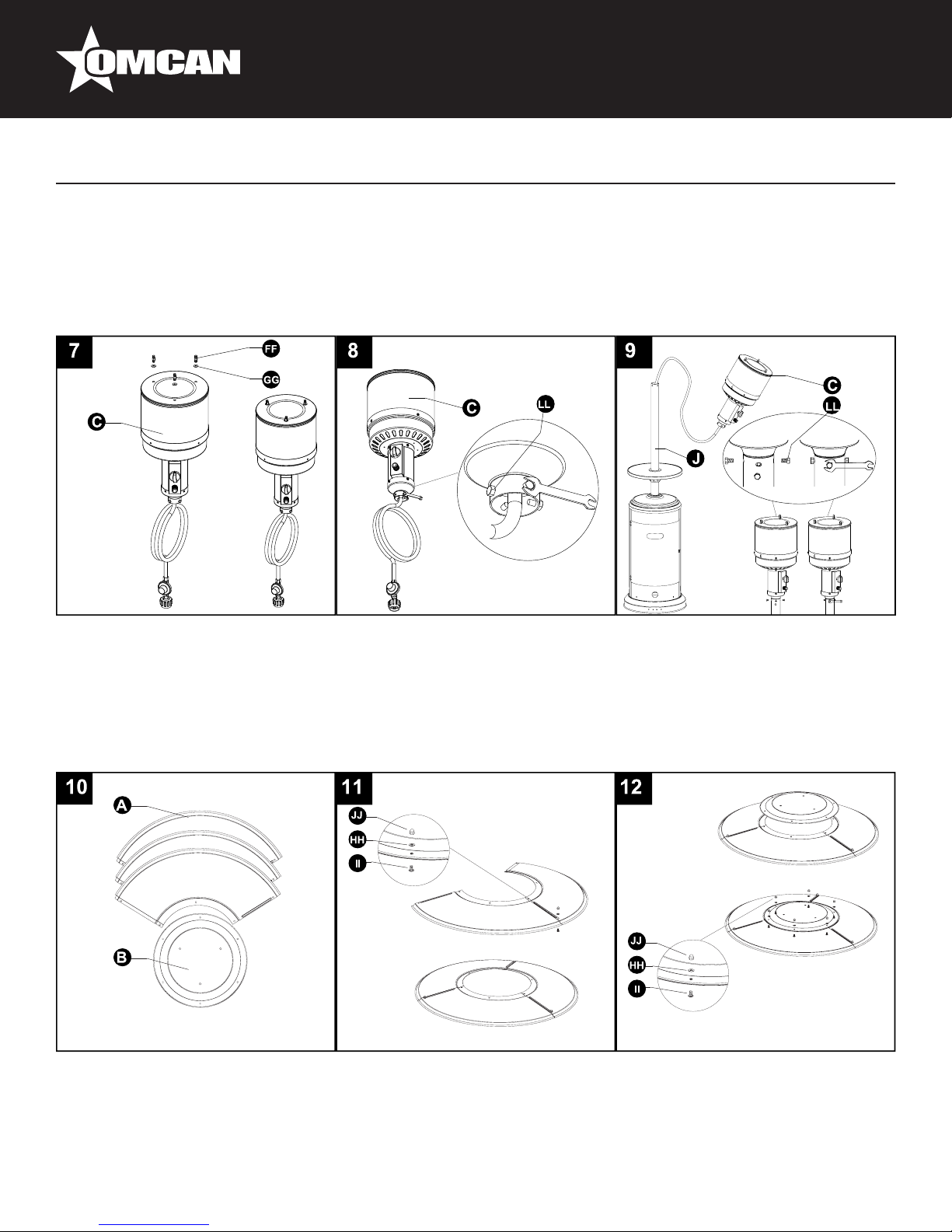

7. Attach reector spacers (FF) and Ø8 washers (GG) to the top of head assembly (C). Tighten the reector
spacers (FF).
8. Unscrew stainless steel bolts (LL) from head assembly (C).
9. Insert hose of head assembly (C) into post (J). Secure head assembly (C) to post (J) with stainless steel
bolts (LL).
Note: The control knob on head assembly (C) should be above the decal on post (J).
10. Remove protective cover from reector panel (A) and reector plate (B).
Note: In order to achieve proper alignment of reector sections, it may be necessary to loosen the
preassembled bolts prior to assembly and retighten once complete.
11. Attach reector panels (A) together using M6 x 10 mm screws (II) and Φ6 washers (HH). Secure loosely
with cap nuts (JJ).
12. Attach reector plate (B) to reector panels (A) using M6 x 10 mm screws (II) and Φ6 washers (HH).
Secure loosely with cap nuts (JJ). Once properly aligned, tighten all screws and the preassembled bolts.
Installation

10
Installation
13. Slide Φ8 washers (GG) over the threaded ends of reectors spacers (FF). Attach reector assembly to
head assembly (C). Place Φ8 washers (GG) over threaded ends of reector spacers (FF) sticking out
through reector assembly and secure with wing nuts (KK).
Note: Do not overtighten.
14. Screw gas hose (K) and regulator (L) onto propane cylinder (not included). Do not cross-thread. Place the
propane cylinder into the cylinder housing (H), then close the door (I).
WARNING: Use a standard 20 lb. propane cylinder only.
A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder
supplier. Never use a propane cylinder with a damaged valve connection.
The propane cylinder must be constructed and marked in accordance with the specications for LP gas
cylinders of the U.S. Department of Transportation (DOT) or the standard for cylinders, spheres and tubes for
transportation of dangerous goods and commission, CAN/CSA-B339.
The cylinder must have a listed overlling prevention device.
The cylinder must have a connection device compatible with the connection for the appliance.
The cylinder used must include a collar to protect the cylinder valve.
Never connect an unregulated propane cylinder to the heater.
• Do not store a spare LP-gas cylinder under or near this appliance.
• Never ll the cylinder beyond 80 percent full.
• Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use. Only install the type
of dust cap on the cylinder valve that is provided with the cylinder valve. Other type of caps or plugs may
result in leakage of propane.

11
Operation
CHECKING FOR LEAKS
WARNING
• Perform all leak tests outdoors.
• Extinguish all open ames.
• NEVER leak test when smoking.
• Do not use the heater until all connections have been leak tested and do not leak.
TO CHECK FOR A LEAK:
1. Make 2-3 oz. leak check solution (one part liquid dishwashing detergent and three parts water).
2. Apply several drops of solution where regulator connects to cylinder and to all hose and valve connections.
3. Make sure all patio heater and light valves are OFF.
4. Turn cylinder valve ON.
If bubbles appear at any connection, there is a leak.
1. Turn cylinder valve OFF.
2. If leak is at regulator/cylinder valve connection:
Disconnect, reconnect, and perform another leak check. Apply the soapy solution to all hose and valve
connections. If you continue to see bubbles after several attempts, cylinder valve is defective and should
be returned to cylinder’s place of purchase.
3. If leak is at hose/regulator connection:
This part is defective and you should contact the customer service department for replacement.
If NO bubbles appear at any connection, the connections are secure.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test.
CAUTION: Do not attempt to operate until you have read and understand all General Safety Information in this
manual and all assembly is complete and leak checks have been performed.
BEFORE TURNING GAS SUPPLY ON
1. Your heater was designed and approved for outdoor use only. Do NOT use it inside a building, garage, or
any other enclosed area.
2. Make sure surrounding areas are free of combustible materials, gasoline, and other ammable vapors or
liquids.
3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and there are no
leaks.
4. Be sure the cylinder cover is clear of debris. Be sure any component removed during assembly or servicing
is replaced and fastened prior to starting.
BEFORE LIGHTING
1. Heater should be thoroughly inspected before each use, and by a qualied service person at least annually.

12
Operation
If relighting a hot heater, always wait at least 5 minutes.
2. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should
be leak tested. If the hose leaks, it must be replaced prior to operation. Only use the replacement hose
assembly specied by manufacturer.
LIGHTING
NOTE: This heater is equipped with a pilot light that allows for safer startups and shutdowns. Pilot must be lit
before main burner can be started.
1. Turn the control knob to the “OFF” position.
2. Fully open LP cylinder valve.
3. Open viewing hole by sliding cover to either side.
4. Push control knob in and rotate to pilot position.
NOTE: For initial start or after any cylinder change, hold control knob in for 2 minutes to purge air from gas
lines before proceeding.
5. Push and release the igniter button until pilot ame is visible through viewing hole.
6. Once the pilot is lit, continue to depress the control knob for 30 seconds.
7. If the pilot does not stay lit, repeat steps 4 to 6.
8. If after repeating steps 4 to 6 unit does not light, then:
- Push in control knob and turn counterclockwise to “PILOT”.
- As you are depressing the control knob, place long stem lighter into the ignition hole on the emitter screen
to light the pilot.
- Repeat step 7.
9. Push in and turn the control knob to the “LOW”, then release control knob. If you want a higher
temperature, push in the control knob and turn counterclockwise to the “HIGH”.
NOTE: If pilot fails to remain lit, all valves should be closed and a waiting period of at least 5 minutes should
pass before attempting to light.
WHEN HEATER IS ON
Emitter screen will become bright red due to intense heat. The color is more visible at night. Burner will display
tongues of blue and yellow ame. These ames should not be yellow or produce thick black smoke, indicating
an obstruction of airow through the burners. The ame should be blue with straight yellow tops. If excessive
yellow ame is detected, turn off heater and consult “Troubleshooting”.
RE-LIGHTING
NOTE: For your safety, control knob cannot be turned OFF without rst depressing control knob in PILOT
position and then rotating it to OFF.
1. Turn control knob to OFF.
2. Wait at least 5 minutes, to let gas dissipate, before attempting to relight pilot.
3. Repeat the “Lighting” steps on prior page.

13
Operation
WARNING: FOR YOUR SAFETY
Heater will be hot after use. Handle with extreme care.
SHUT DOWN
1. Turn control knob clockwise to PILOT. (Normally, burner will make a slight popping sound when
extinguished.) Burner will extinguish but PILOT will remain ON.
2. To extinguish PILOT, depress control knob and continue to turn it clockwise to OFF.
3. Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use.
NOTE: After use, some discoloration of the emitter screen is normal.
OPERATION CHECKLIST
Perform these checks before and after each use.
BEFORE OPERATING:
• I am familiar with entire owner’s manual and understand all precautions noted.
• All components are properly assembled, intact and operable.
• No alterations have been made.
• All gas connections are secure and do not leak.
• Wind velocity is below 10 mph.
• Unit will operate at reduced efciency below 40°F.
• Heater is outdoors (outside any enclosure).
• There is adequate fresh air ventilation.
• Heater is away from gasoline or other ammable liquids or vapors.
• Heater is away from windows, air intake openings, sprinklers and other water sources.
• Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials.
• Heater is on a hard and level surface.
• There are no signs of spider or insect nests.
• All burner passages are clear.
• All air circulation passages are clear.
• Children ARE alerted of the hazards of high surface temperatures.
AFTER OPERATION:
• Gas control is in OFF position.
• Gas tank valve is OFF.
• Disconnect gas line.

14
Maintenance
WARNING - FOR YOUR SAFETY:
• Do NOT touch or move heater for at least 45 minutes after use.
• Reector is hot to the touch.
• Allow reector to cool before touching.
CARE AND MAINTENANCE
• Keep exterior surfaces clean.
• Use warm soapy water for cleaning. Never use ammable or corrosive cleaning agents.
• While cleaning your unit, be sure to keep the area around the burner and pilot assembly dry at all times. Do
not submerge the control valve assembly. If the gas control is submerged in water, do NOT use it. It must
be replaced.
• Keep the appliance area clear and free from combustible materials, gasoline and other ammable vapors
and liquids.
• Do not obstruct the ow of combustion and ventilation air.
• Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
• Air ow must be unobstructed. Keep controls, burner, and circulating air passageways clean.
• Spiders and insects can nest in burner or orices. This dangerous condition can damage heater and render
it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear
away smaller particles.
• Carbon deposits may create a re hazard. Clean dome and burner screen with warm soapy water if any
carbon deposits develop.
NOTE: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal.
Frequently check for corroded areas and repair them promptly.
• Use high-quality automobile wax to help maintain the appearance of the heater. Apply to exterior surfaces
from the pole down. Do not apply to emitter screen or domes.
BETWEEN USES
• Turn Control Knob OFF.
• Disconnect LP source.
• Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet,
hail, snow, dust and debris).
• If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages.
NOTE: Wait until heater is cool before covering.
DURING PERIODS OF EXTENDED INACTIVITY OR WHEN TRANSPORTING
• Turn Control Knob OFF.
• Disconnect LP source and move to a secure, well-ventilated location outdoors.
• Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet,
hail, snow, dust and debris).
• If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages.
Never leave LP cylinder exposed to direct sunlight or excessive heat.
NOTE: Wait until heater is cool before covering.

15
Maintenance
SERVICE
Only a qualied service person should repair gas passages and associated components.
Caution: Always allow heater to cool before attempting service.
Troubleshooting
Problem Cause Solution
Pilot won’t light. Cylinder valve is closed. Open valve.
Blockage in orice or pilot tube. Clean or replace orice or pilot
tube.
Air in gas line. Open gas line and bleed it
(pressing control knob in) for not
more than 1 - 2 minutes or until
you smell gas.
Low gas pressure with cylinder valve
fully open.
Turn cylinder valve OFF and
replace cylinder.
Igniter fails. Use match to light pilot; obtain
new igniter and replace.
Pilot won’t stay lit. Dirt built up around pilot. Clean dirt from around pilot.
Connection between gas valve and
pilot assembly is loose.
Tighten connection and perform
leak check.
Thermocouple is not operating
correctly.
Replace thermocouple.
Burner won’t light. Propane cylinder is frosted over. Wait until the propane cylinder
warms up and becomes unfrosted.
Blockage in orice. Clear blockage.
Control knob is not in ON position. Turn control knob to ON.
Burner ame is low. Gas pressure is low. Turn cylinder valve OFF and
replace cylinder.
Outdoor temperature is less than
40ºF and tank is less than 1/4 full.
Use a full cylinder.
Control knob fully ON. Check burner and orices for
blockage.
Spiders and insects nest in burner or
orices.
Clean burner and orices.
Thick black smoke. Blockage in burner. Remove blockage and clean
burner inside and outside.

16
Item No. Description Position Item No. Description Position Item No. Description Position
63148 Reector Panel with Plate for HSSADSS A + B 63155 Cylinder Housing with Preassembled
Door for HSSADSS H + I 63162 Wheel Kit for HSSADSS O
63150 Head Assembly with Gas Hose and
Regulator for HSSADSS C + K + L 63157 Post for HSSADSS J
63151 Screw Coupler with Table Assembly for
HSSADSS
D + E + F
+ G 63160 Complete Base for HSSADSS M + N
Caution: Use only original Omcan replacement parts. Use of unauthorized parts or modication of parts will
void warranty and create an unsafe condition.
Always allow heater to cool before attempting service.
Troubleshooting
Gas odor with extreme yellow
tipping of ame.
Spiders and insects nest in burner or
orices.
Clean burner and orices.
Heater glow is excessively
uneven.
Spiders and insects nest in burner or
orices.
Clean burner and orices.
Heater makes popping noises. Spiders and insects nest in burner or
orices.
Clean burner and orices.
Carbon build-up. Dirt or lm on reector and burner
screen.
Clean reector and burner screen.
REFERENCE
Item Number Model Number Description Manufacturer Model Number
43595 PH-CN-0014
Patio Heater 87” / 2210mm with Tank Door
and Table One Piece Reector 41000 BTU
Stainless Steel Propane
HSSADSS
Parts Breakdown
Model PH-CN-0014 43595

17
Parts Breakdown
Model PH-CN-0014 43595

18
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________

19
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
www.omcan.com/warrantyregistration.html
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No
Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour diffusion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 3,500 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 3,500 productos con origen a nivel mundial.
Other manuals for PH-CN-0014
1
Table of contents
Other Omcan Patio Heater manuals

Omcan
Omcan PH-CN-0014 User manual

Omcan
Omcan PH-CN-2210-S User manual

Omcan
Omcan 31432 User manual

Omcan
Omcan PH-CN-1100-T User manual

Omcan
Omcan PH-CN-0042-S User manual

Omcan
Omcan PH-CN-1800-C User manual

Omcan
Omcan PH-CN-2270-P User manual

Omcan
Omcan PH-CN-1500 User manual

Omcan
Omcan PH-CN-0045 User manual

Omcan
Omcan PH-CN-1400-P User manual
