Omer 3G.16 CLT-3 Instruction manual

4÷16
360
4÷6 bar
60÷90 psi
0,13
1,26
378x43x148
84,3 dB(A)
93,7 dB(A)
2
<2,5 m/s
3G.16 CLT-3
11543540-3_3G16CLT-3_5 17072018 IV
Egceiridio crhshV, sunthrhshV kai antallaktikwn 2° MeroV
TupoV karfiou
Tipo di punto
Type of fastener
Befestigungselement
Type d’agrafe
Tipo de punto
Tipo de ponto
Type nietjes
Tilspændingstype
Manuale d’uso, manutezione e parti di ricambio Parte 2
Use, maintenance and spare parts manual Part 2
Gebrauchsanweisung, Instandhaltungsrichtlinien und Ersatzteile Teil 2
Manuel d’utilisation, entretien et pièces de rechange Partie 2
Manual de uso, mantenimiento y repuestos Part 2
Manual de utiliza o, manuten o e partes sobresselentes Parte 2çã çã
Handleiding voor gebruik, onderhoud en wisselstukken Deel 2
Brugsanvisning, vedligeholdelse og reservedelslite Del 2
Via Foresto 42 - 31058 SUSEGANA TV ITALY Tel.[phone] Fax [phone] E-mail: [e-mail] www.omer.it
omers.p.a.
Tecnika carakthristika
Diastaseis se mm
Dvnatothta gemistera, svndeteres
Piesh leitovrgias atm.
Katanalosh aera l/xtvphma
Baros kg
Dvnatothta gemistera , svndeteres
Akoustikh piesh sth qesh ceiristou
Dati tecnici Donnèes techniques Dados tècnicos
Technical data Datos tècnicos Technischengegevens
Technische daten Tekniske data
Misure impiegabili mm Mesures utilisable mm Medidas que se podem utilizar mm
Usable lenghts mm Medidas que se pueden amplear mm Te gebruiken engtes in mm
Gebrauchliche Längen mm Brugbare laengder i mm
Capacità caricatore n° punti Capacitè chargeur n° de points Capacitade carregador n° pontos
Magazine capacity No. of fasteners Capacidad cargador n° puntos Capaciteit magazijn in aantal spijkers
Magazinkapazität Nägel Kapacitet af magasin antal klemmme
Pressione d’esercizio Pression de fonctionnement Pressao de trabalho
Working pressure Presiòn de trabajo Werkdruk
Betriebsdruck Arbejds tryk bar
Consumo aria litri/colpo Consommation air litre/coup Consumo ar litro/golpe
Air consumption litres/shot Consumo aire-litros/golpe Luchtverbruik liter/schot
Luftverbrauch Liter/Schlag Luftforbrug liter/skud
Peso kg Poids kg Peso kg
Weight kg Peso kg Gewicht in kg
Gewicht kg Vaegt kg
Dimensioni (AxBxH) mm Dimension mm Dimencoes mm
Dimensions mm Dimensiones mm Afmetingen in mm
Große mm Dimensioner mm
EN 12549 :1999 ISO 11201 :1995
Pressione sonora in pos. operatore Pression acoustique près de l’opérateur Intensidade sonora perto do operador
Sound pressure at the workstation Presiòn sonora en posición encargado Geluidssterkte op de werkplek
Lärmintensität am Arbeitsplatz Lydstyrke på operatorposten
EN 12549 :1999 ISO 3744 :1994
Potenza sonora emessa Puissance acoustique émise Potência sonora emitida
Emitted sound power Potencia sonora emitida Uitgestraalde geluidssterkte
Ausgestrahlte Lärmintensität Udsendt lydstryrke
EN 28662 :1992 ISO 5349 :1986 ISO 8662 -11
Valore medio ponderato di vibrazione Valeur moyenne pondèrèe de vibration Valor medio ponderado de vibracao
sull’impugnatura max.33 colpi mesurèe sur la poignèe max.33 coups medida no punho max.33 golpes
Weighted mean value of vibration Valor medio ponderado de vibracion Gewogen gemiddelde vibratiewaarde
on the grip max.33 shots medida en la empunadura max.33 golp max.33 schot
Mitteler Vibrationswert, am Griff Middelvaerdi af vibrationer pa
gemessen max.33 Schäge handtaget max.33 skud
Akoustikh iscu
Mesos oros metrhshs kradasmon
sth xeirolabh max.33 xtvphma

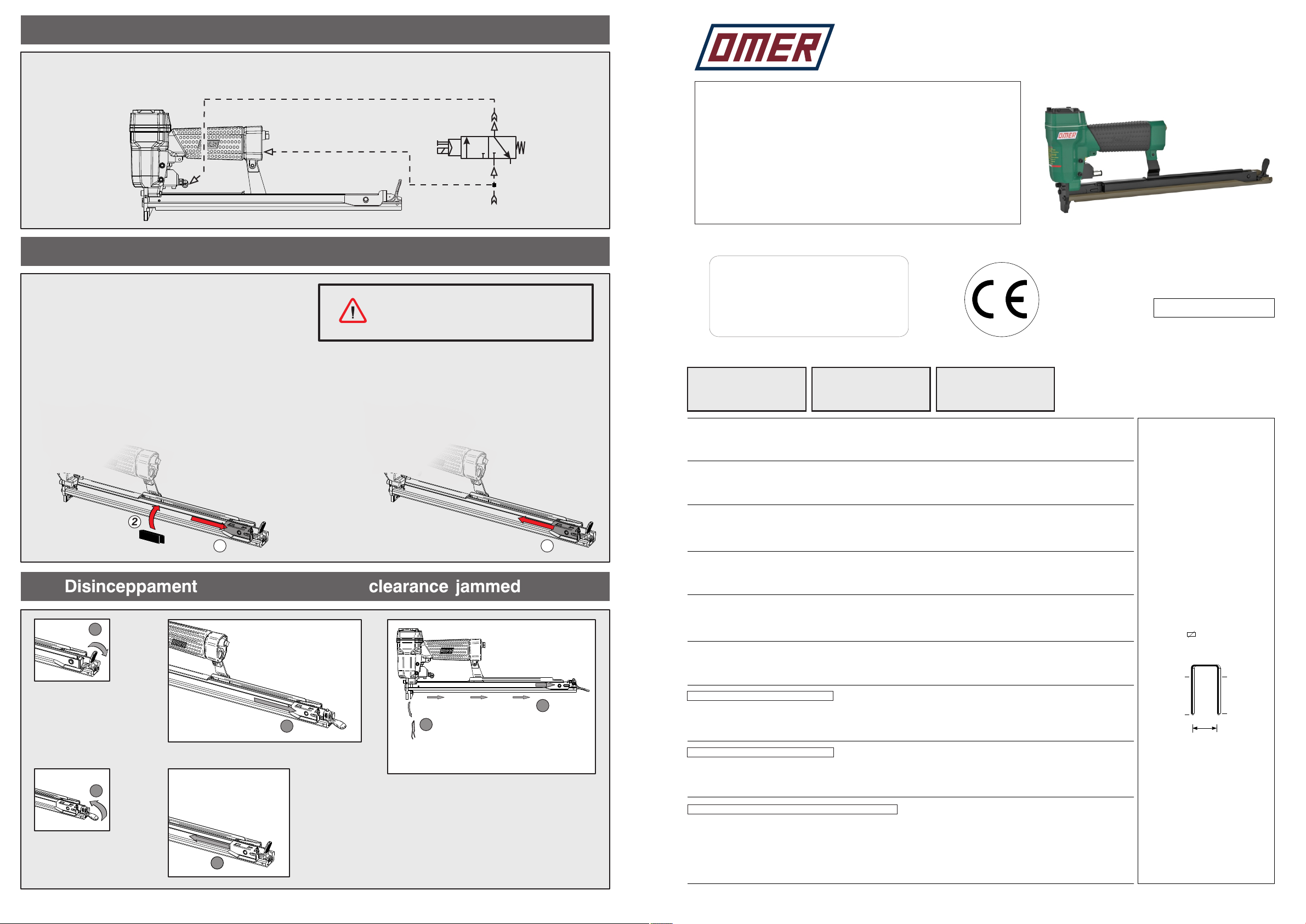

Disinceppamento macchina - Quick clearance jammed nails
2
1 - Arretrare lo spingipunto e agganciarlo al
finecorsa cio farà aprire il carter mobile
Pull the pusher backwards and lock it at
the stop position at the rear of the tool, this
will open the movable hold down
Non azionare MAI la valvola comando durante
il caricamento o il disinceppamento della graffatrice.
NEVER actuate the command valve while loading
or cleaning a jammed stapler.
3 - Rilasciare lo spingipunto
Release the the pusher
1
5
6
2 - Inserire le graffe
Load the magazine with Staple
®
2
1
Collegamento - Connection
Caricamento - Loading
5 ÷ 6,5 bar
A
RP
Collegamento:
Connection:
Valvola 3/2 NC
Valve 3/2 NC
4
3
3
cod. 11543540-3
3G
4
16
5/32"
5/8"
7,8
0,55x0,75
Crown: .350” (3/8")
Thickness: .022"
Width: .030"
Gauge: 23

Cod. Descrizione Description
00.04 O-Ring O-Ring
00.06 O-Ring O-Ring
00.12 O-Ring O-Ring
00.13 O-Ring O-Ring
00.14 O-Ring O-Ring
00.26 O-Ring O-Ring
00.27 O-Ring O-Ring
00.35 O-Ring O-Ring
01.21.1 Guarnizione Gasket
01.21.3 Guarnizione Gasket
01.29 O-Ring O-Ring
01.33 O-Ring O-Ring
03.00 Dado Nut
03.04.5 Vite Screw
03.30 Vite Screw
04.10 Vite Screw
04.12 Vite Screw
04.16 Vite Screw
04.20 Vite Screw
04.25 Vite Screw
04.35 Vite Screw
07.30 Chiave esagonale Hex. bar wrench
09.02 Anello elastico Elastic ring
14.18.1 Spina Pin
17.30.5 Attacco Connection
20.00 Corpo Body
22.07 Testa Head
24.00 Silenziatore Silencer
25.04 Deflettore Exhaust deflector
26.07 Cilindro Cylinder
28.00 Guarnizione Gasket
30.07.3 Pistone Piston
32.05 Ammortizzatore Bumper
39.00 Guarnizione scarico Exhaust gasket
40.04.2 Valvola completa Valve ass’y
45.04 Anello valvola Ring
50.03 Pulsante completo Trigger valve ass’y
50.06.1 Comando a distanza Remote control trigger
52.02 Boccola Bush
54.04 Pulsante Trigger valve
55.06.1 Raccordo Bush
64.05 Carter Hold down
64.05.4 Carter mobile Hold down
66.03 Rondella Washer
77.11.1 Leva Lever
72.13 Reggicaricatore Support
73.00 Perno Pin
74.08 Staffa Support
80.09 Grilletto chiusura Trigger
91.05 Molla Spring
91.08 Molla Spring
90.83.4 Molla Spring
92.01X Molla Spring
93.07 Molla Spring
22.00.43 Battente Driver
52.05.62 Caricatore Magazine
63.05.43 Carrello Slider
72.05.43 Spingipunto Pusher
81.00.80 Controtestina Nose
91.05.43 Testina Nose plate
D01 Boccetta olio Oiler
5478594
Parti di ricambio - Spare parts - Ersatzteile - Pièces de rechange - Piezas de repuesto
- Partes sobresselentes - Wisselstukken - ReservedeleAntallaktika
Guarnizioni - O-Rings - Dichtungen - Joints - Kit O-Rings - Lasticakia - Kit O-Rings - O-ringen - Pakninger
11543540-3_3G16CLT-3_5 17072018 IV
39.00
22.07
28.00
20.00
24.00
92.01X
14.18.1
26.07
00.27
32.05
22.00.43
04.12
04.10
72.13
91.05
73.00
52.05.62
09.02
63.05.43
04.10
93.07
64.05
72.05.43
80.09
04.25
00.14
00.35
00.12
01.33
01.29
00.26
91.05.43
81.00.80
04.20
04.16
40.04.2
45.04
00.35
01.21.3
01.21.1
30.07.3
00.14
UPGRADE NUMBER
INDICE DI MODIFICA
NIVEAU DE MODIFICATION
INDICADOR DE MODIFICA
SERIAL NUMBER
MATRICOLA
MATRICULE
MATRICULA
Parti di ricambio - Spare parts - Ersatzteile - Pièces de rechange - Piezas de repuesto
Antallaktika - Partes sobresselentes - Wisselstukken - Reservedele
Dotazioni - Equipment - Ausrüstung - Équipements - Equipamiento - Parecomena
Equipamento - Uitrusting - Udstyr
07.30 D01
Guarnizioni - O-Rings - Dichtungen - Joints - Kit O-rings - Lasticakia - Kit O-rings - O-ringen - Pakninger
00.70.5
28.00
00.14
00.13
00.06
00.27
01.33
00.26
00.35
01.29
00.12
01.21.1
01.21.3
00.04
03.04.5
77.11.1
74.08
04.12
64.05.4
90.83.4
03.00
66.03
66.03
03.30
50.06.1
17.30.5
55.06.1
00.13
00.04
54.04
91.08
52.02
50.03
00.06
Indice di modifica
Upgrade number 5
cod. 11543540-3
3G.16 CLT-3
3G.16 CLT-3
cod. 11543540-3
04.35
25.04
A richiesta - Upon request
25.04.3
