Safety Light Curtain F3S-Aj

Space-saving, Self-contained Design

Requires No Control Box

HMeets OSHA, Canadian, and worldwide

standards for safeguarding personnel from

moving machinery

HSelf-contained design with no control box

HUL and CSA Listed

HBeam spacing of 10 or 20 mm

(0.39 or 0.79 in)

HProtective height ranges from 140 to 940

mm(5.51to37.0in)

HConnect multiple units for a larger protected

zone

HM12 connector

Ordering Information

JSAFETY LIGHT CURTAINS

Shape, detection distance Beam

spacing

Minimum

detectable

object

No. of

beams

(n)

Protective height Part number

Detection distance:

5 m (16.40 ft.)

Extension cable (required) 10 mm

(0.39 in)

15 mm in

diameter

(0.59 in)





150 mm (5.9 in)

F3S-A161P

Protective

height

Number

Beam spacing

of 10 mm



310 mm (12.2 in)



F3S-A321P

eams

Extension cable (required)

M12 connector



470 mm (18.5 in)



F3S-A481P

(This table continues on the next page.)

onlinecomponents.com

F3S-Aj

jPF3S-Aj

Ordering Information Table -- continued from previous page

Shape, detection distance Beam

spacing

Minimum

detectable

object

No. of

beams

(n)

Protective height Part number

Detection distance:

5 m (16.40 ft.)

Extension cable (required) 20 mm 25 mm in

diameter



140 mm (5.5 in)



F3S-A082P

Protective



300 mm (11.8 in)



F3S-A162P

height

Beam s

acin



460 mm (18.1 in)



F3S-A242P

Number of

beams

of 20 mm



620 mm (24.4 in)



F3S-A322P

Extension cable (required)

M12 connector



780 mm (30.7 in)



F3S-A402P



940 mm (37 in)



F3S-A482P

JEXTENSION CABLES -- EMMITTER AND RECIEVER SET (ORDER SEPARATELY)

Type Appearance Cable length Part number (M12

connector)

Set of 2 cables

Extension

cable

(

air re

uired

)

3 m (9.8 ft) F39-JA1C

(

)

7m(23.0ft) F39-JA2C

10 m (32.8 ft) F39-JA3C

Series connection

cable (required for multiple

units connected together)

200 mm (7.87 in) F39-JA1B

JACCESSORIES

Type Description Specifications Part number

Protective covers Acrylic cover set for emitter

For F3S-A161P, F3S-A02P F39-HA1

and receiver For F3S-A321P, F3S-A162P F39-HA2

For F3S-A481P, F3S-A242P F39-HA3

For F3S-A322P F39-HA4

For F3S-A482PFor F3S-A402P F39-HA5F39-HA6

For F3S-A402P F39-HA6

Safety relays with

Plug-in replaceable relay 6 contacts, 3PST-NO + 3PST-NC, 24 VDC G7S-3A3B-DC24

force-guided contacts Socket for G7S relay DIN track mounting socket P7S-14F

Solder terminals P7S-14A

PCB terminals P7S-14P

Multiple relay unit 3 contacts, 3PST-NO + SPST-NC, 24 VDC G9S-301-DC24

120 VAC G9S-301-AC120

240 VAC G9S-301-AC240

Safety relay unit with M12

connectors for F3S-AjP

3PST-NO, 24 VDC G9SA-300-SC

onlinecomponents.com

F3S-Aj

Specifications

JRATINGS AND PERFORMANCE

Part number F3S-A161P F3S-A321P F3S-A481P F3S-A082P F3S-A162P F3S-A242P F3S-A322P F3S-A402P F3S-A482P

No. of beams 16 32 48 816 24 32 40 48

Protective height 150 mm

(5.91 in)

310 mm

(12.2 in)

470 mm

(18.5 in)

140 mm

(5.51 in)

300 mm

(11.81 in)

460 mm

(18.11 in)

620 mm

(24.41 in)

780 mm

(30.7 in)

940 mm

(37.01 in)

Beam spacing 10 mm (0.39 in) 20 mm (0.79 in)

Optical resolution Non-transparent: 15 mm (0.59 in)

in diameter

Non-transparent: 25 mm (0.98 in) in diameter

Sensing range 0.2 to 5.0 m (7.87 in to 16.40 ft)

Response

ON→OFF 20 ms max.

time OFF→ON 55 ms max. (with stable light)

Supply voltage 24 VDC±10% (ripple range (p-p): 10% max.)

Current consumption 200 mA max. (under no-load conditions)

Light source Infrared LED (860-nm wavelength)

Angle of divergence Within ±2°for the emitter and receiver at a detection distance of at least 3 m as provided by prEN50100-2.

Operating mode Light ON

Control output Two PNP transistor outputs, 300 mA max. load current, and 2 V max. residual voltage (except for voltage drop

due to cord extension)

Multiplex circuitry Using sync line connection (between an emitter and a receiver and between multiple Light Curtains)

No. of serial connections: Up to 3 sets

No. of parallel connections: Up to 4 sets

Total no. of beams: Up to 192 (with mixed serial and parallel connection)

External diagnosis

function

(See Note 1.)

After power ON

External diagnosis input line: Open or 9 to 24 V: Emitting OFF

External diagnosis input line: 0 to 1.5 V: Emitting ON (3 mA max. short-circuit current)

Interference light

search function (See

Note 1.)

Prior to power ON

External diagnosis input line: Open or 9 to 24 V: Interference light search

External diagnosis input line: 0 to 1.5 V: Emitting ON (3 mA max. short-circuit current)

Indicator Emitter Light indicator (orange LED): Lit when emitting, flashing during external diagnosis and interference light

search.

Fault indicator (yellow LED): Lit with emitter lock-out, flashing during emitter OFF-hold and interference light

search. (See Note 2.)

Receiver ON-state indicator (green LED): Lit when receiving light.

OFF-state indicator (red LED): Lit with interrupted light or failure, flashing during interference light

search. (See Note 2.)

Instability indicator (orange LED): Lit with an insufficient light margin and interference light search.

Fault indicator (yellow LED): Lit with receiver lock-out, flashing during receiver OFF hold and interference light

search. (See Note 2.)

Connection method Connector on 400 mm (15.75 in) cables; use extension cables

Protection circuit Output short circuit protection

Ambient Operation -- 1 0 °to 55°C(14°F to 131°F) with no freezing

temp Storage -- 3 0 °to 70°C(--22°F to 158°F) with no freezing

Ambient

Operation 35 to 85% RH (with no condensation)

humidity Storage 35 to 95% RH

(This table continues on the next page.)

Note: 1. The logic (ON/OFF) may differ from that normally used because a safety circuit is used. Be sure to check this carefully.

2. Lock-out: Output status OFF due to unrecoverable failure. OFF-hold: Output status OFF due to temporary failure.

3. In accordance with prEN50100-1

4. The optional extension cord provides the same cable specifications.

(Reference) Resistance: Power line and output line: 66.3 Ω/Km

Sync line: 94.0 Ω/Km

Use a cable of at least the same performance to extend the cable length. The total cable length must be 100 m or less.

onlinecomponents.com

F3S-Aj

jPF3S-Aj

Specifications Table -- continued from previous page

Part number F3S-A161P F3S-A321P F3S-A481P F3S-A082P F3S-A162P F3S-A242P F3S-A322P F3S-A402P F3S-A482P

Ambient

light

intensity

Incan-

descent

lamps

3,000 lx max. (receiver surface light intensity)

Sunlight 10,000 lx max. (receiver surface light intensity)

Insulation resistance 20 MΩmin. at 500 VDC

Stabilization on

powerup

5 seconds

Dielectric strength

voltage

1,000 VAC 50/60 Hz for 1 min

Degree of protection IEC60529 IP64

Vibration resistance Durability: 10 to 55 Hz, double-amplitude: 1.5 mm, X, Y and Z axes: For 2 hours

Operation limit: 10 to 55 Hz, double-amplitude: 0.7 mm, X, Y and Z directions: For 50 min. (See Note 3.)

Shock resistance Durability: 300 m/s2[30 G], X, Y and Z directions: 3 times

Operation limit: 100 m/s2[10 G], X, Y and Z directions: 1,000 times (See Note 3.)

Cable(SeeNote4.) Emitter and receiver: 8 conductors (0.3 mm2x 4 conductors, 0.2 mm2x 4 conductors), external dimension: 6

mm in diameter with spiral shield, allowable bend radius R36 mm, attached cable: 400 mm length

Materials Case: Aluminum

Front cover: PMMA (acrylic resin)

Cable: PVC

Accessories Test rod, mounting brackets (top and bottom), mounting brackets (intermediate) for the F3S-A32 and F3S-A482

only, Instruction Manual

Applicable standard prEN50100-1 TYPE 4 ESPE and prEN50100-2 TYPE 4 AOPD

Note: 1. The logic (ON/OFF) may differ from that normally used because a safety circuit is used. Be sure to check this carefully.

2. Lock-out: Output status OFF due to unrecoverable failure. OFF-hold: Output status OFF due to temporary failure.

3. In accordance with prEN50100-1

4. The optional extension cord provides the same cable specifications.

(Reference) Resistance: Power line and output line: 66.3 Ω/Km

Sync line: 94.0 Ω/Km

Use a cable of at least the same performance to extend the cable length. The total cable length must be 100 m or less.

No. of optical axes

Detection distance

Protective

height

Emitter

Receiver

Beam spacing

JSTANDARDS APPLICABLE TO THE USE OF F3S-A

US Standards

OSHA 29 CFR 1910.212

OSHA 29 CFR 1910.217

ANSI B11.1 to B11.19

ANSI/RIA 15.06

EN Standards

EN954-1 Category B, 1, 2, 3, 4

onlinecomponents.com

F3S-Aj

ineerin

Data

JOPERATING RANGE

F3S-A481P (10-mm beam spacing)

(Parallel to Center Line of Lenses)

Distance Y (mm)

Distance X (m)

F3S-A481P (10-mm beam spacing)

(Perpendicular to Center Line of Lenses)

Distance Y (mm)

Distance X (m)

F3S-A482P (20-mm beam spacing)

(Parallel to Center Line of Lenses)

Distance Y (mm)

Distance X (m)

F3S-A482P (20-mm beam spacing)

(Perpendicular to Center Line of Lenses)

Distance Y (mm)

Distance X (m)

onlinecomponents.com

F3S-Aj

jPF3S-Aj

eration

JCIRCUIT DIAGRAM

This reference diagram focuses on internal circuitry. External device connections indicate functions available, and are not to be used for

installation.

Gray

Gray/Black

Red

Red/

Black

Sync line 1

Sync line 2

Red

Gray/Black

Gray

Main

emitter

circuit

Main

receiver

circuit 1

Brown

Pink

Violet∗1

Blue

External

diagnosis

input∗2

Brown

Blue

Black

Output 1

White

Output 2

Load 1

Load 2

∗3

Red/

Black

Sync line 2

Main

receiver

circuit 2

+24 V

∗1 Master: Connect to 0 V

∗2 Short: Normal light emission

∗3 Cannot be used for NPN output

Slave: Open

Open: External diagnosis

function or interference light

search function

onlinecomponents.com

F3S-Aj

JTIME CHART

The output transistor will be OFF for a maximum of 210 µs, as shown in the following table, in order to perform output circuit self-diagno-

sis when the Light Curtain is receiving light.

The width and number of OFF signals are determined by the number of Light Curtains connected in series. (See the table below.)

Check the input response time of a machine connected to the F3S-AjP carefully to ensure the machine will not malfunction due to the

OFF signal.

Light receiving status

Output transistor

55 ms max.

OFF

9.6ms 20msmax.

Stable light reception

Reception

Interrupted

Number of Light Curtains connected in series 123

Number of pulses per 9.6 ms (number of A)3to4 6to8 9to12

Pulses width at A(µs) 35 to 70 35 to 140 35 to 210

Total sum of pulse widths per 9.6 ms (sum of A:µs) 200 max. 400 max. 600 max.

onlinecomponents.com

F3S-Aj

jPF3S-Aj

Dimensions

Unit: mm (inch)

JSAFETY LIGHT CURTAINS

F3S-Aj

2-φ6.5±0.1

mounting holes

M12 Waterproof connector

17.6

(0.69)

6.5

(0.26)

(1.77)

36.4 ±0.35

(1.43 ±0.14)

31 ±0.3

(1.22 ±0.01)

30 ±0.3

(1.18 ±0.01)

40 ±0.4

(1.57 ±0.02)

400 ±20

(15.75 ±0.79)

70 ±20

(2.76 ±0.79)

14.5

(0.57)

A complete F3S-AjP sys-

tem is shown at left. No sepa-

rate controller is required.

Part number

(Protective height)

B C

(Light Curtain mounting hole center width)

(Full length)

F3S-A161P 150 ±0.3 (5.91 ±0.01) 10 ±0.5 (0.39 ±0.02) 196.4 ±0.55 (7.73 ±0.02) 228.5 ±1.15 (9.00 ±0.05)

F3S-A321P 310 ±0.4 (12.20 ±0.01)

(

)

356.4 ±0.65 (14.03 ±0.03) 388.5 ±1.25 (15.30 ±0.05)

F3S-A481P 470 ±0.5 (18.50 ±0.02) 516.4 ±0.75 (20.33 ±0.03) 548.5 ±1.35 (21.60 ±0.05)

F3S-A082P 140 ±0.3 (5.51 ±0.01) 20 ±0.5 (0.79 ±0.02) 196.4 ±0.55 (7.73 ±0.2) 228.5 ±1.15 (9.00 ±0.05)

F3S-A162P 300 ±0.4 (11.81 ±0.01)

(

)

356.4 ±0.65 (14.03 ±0.03) 388.5 ±1.25 (15.30 ±0.05)

F3S-A242P 460 ±0.5 (18.11 ±0.02) 516.4 ±0.75 (20.33 ±0.03) 548.5 ±1.35 (21.60 ±0.05)

F3S-A322P 620 ±0.6 (24.41 ±0.02) 676.4 ±0.85 (26.63 ±0.03) 708.5 ±1.45 (27.89 ±0.06)

F3S-A402P 780 ±0.6 (30.7 ±0.02) 836.4 ±0.90 (32.93 ±0.04) 868.5 ±1.50 (34.19 ±0.06)

F3S-A482P 940 ±0.6 (37.01 ±0.02) 996.4 ±0.95 (39.23 ±0.04) 1,028.5 ±1.55 (40.49 ±0.06)

onlinecomponents.com

F3S-Aj

Unit: mm (inch)

JMOUNTING BRACKETS

Mounting Brackets (Top and Bottom)

Fixing screw for

bracket (M5x8)∗

Marking for

adjusting

degree

Intermediate shaft

L-shaped bracket

U-shaped bracket

90-degree rotation in either direction is possible

Adjusting degree±10°

∗Attached to the mounting bracket

(0.55) 32.3

(1.27)

9.5

(0.37)

5.5

(0.22)

(1.42) 20

(0.79)

(0.39)

6 (0.24)

30.6

(1.20)

6 (0.24)

7 (0.28)

(0.87)

(0.08)

(0.87)

(0.87) 9 (0.35)

5.5

(0.22)

(1.18)

(1.89)

(0.55)

14.4

(0.57)

6.5

(0.26)

16.5

(0.65)

(0.94)

28.5

(1.12)

(1.02)

20 (0.79)

(1.57) 22

(0.87)

(1.46)

Mounting Brackets (Intermediate)

(Used with the F3S-A322P, F3S-A402P and F3S-A482P only)

Mounting screw for Light Curtain (M6x8)∗

U-shaped intermediate bracket

∗Attached to the mounting bracket

Flat intermediate bracket

Rubber

L-shaped intermediate bracket

Fixing screw for

bracket (M4x10)∗

5.5

(0.22)

(1.42)

7 (0.28)

(0.08)

(0.51)

(0.94)

24 (0.94)

(0.47)

5.5

(0.22)

(0.43)

16 (0.63)

(0.59)

(0.55)

(1.57)

8 (0.31)

13.5

(0.53)

12.5

(0.49)

(0.94)

16 (0.63)

3.2

(0.13)

0.65

(0.03)

0.65

(0.03)

15.5

(0.61)

0.65

(0.03)

3.2

(0.13)

31.3

(1.23)

(1.65) 30

(1.18) 15

(0.59)

onlinecomponents.com

F3S-Aj

jPF3S-Aj

JACCESSORIES

Extension Cables

F39-JA1C (L = 3 m)

F39-JA2C (L = 7 m)

F39-JA3C (L = 10 m)

14.9 dia.

Waterproof connector 6-dia. vinyl -insulated round cable with

four conductors (12/0.18 dia.) and four

conductors (7/0.2 dia.)

Standard length (L): 3, 7, and 10 m

Waterproof connector 6-dia. vinyl -insulated round cable with

four conductors (12/0.18 dia.) and four

conductors (7/0.2 dia.)

Standard length (L): 3, 7, and 10 m

For Emitter

For Receiver

Series Connection Cable

F39-JA1B

6-dia. vinyl -insulated round cable with

four conductors (12/0.18 dia.) and four

conductors (7/0.2 dia.)

Standard length (L): 0.2 m

Protective Covers

F39-HA1

F39-HA2

F39-HA3

F39-HA4

F39-HA5

* L = 185 (F39-HA1)

L = 345 (F39-HA2)

L = 505 (F39-HA3)

L = 664 (F39-HA4)

L = 984 (F39-HA5)

Other manuals for F3S-AP Series

This manual suits for next models

Other Omron Safety Equipment manuals

Omron

Omron Sti F3SJ-A 01TS Series Operating and maintenance instructions

Omron

Omron UM Series User manual

Omron

Omron G9SX-EX041-T Series User manual

Omron

Omron F3SG-PG Series User manual

Omron

Omron MiniSafe 4800 Series User manual

Omron

Omron Sti F3SJ-B P25-01TS Series Operating and maintenance instructions

Omron

Omron F3SJ-A P Series User manual

Omron

Omron F3SN Parts list manual

Omron

Omron F3SN-B P Series User manual

Omron

Omron F3SJ-A P Series User manual

Omron

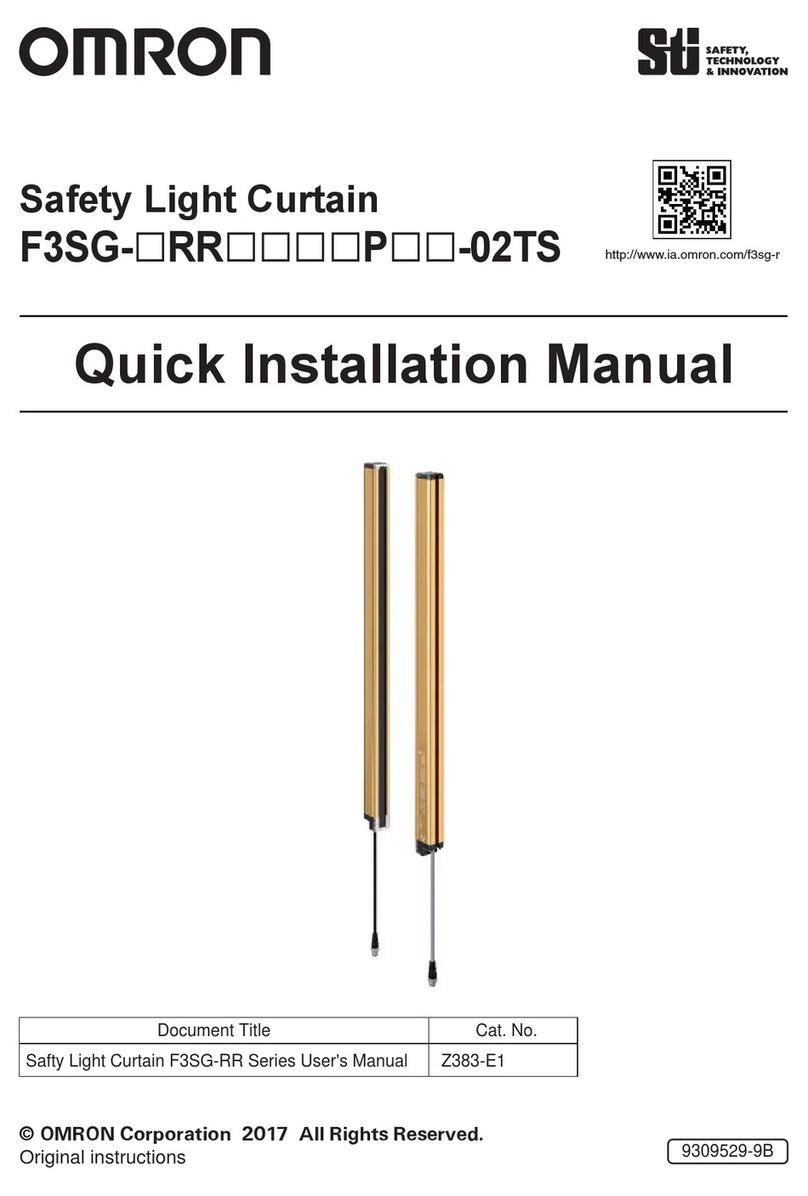

Omron F3SG-*RR Series Operating and maintenance instructions

Omron

Omron Sti F3SJ-B N25-01T Series Operating and maintenance instructions

Omron

Omron V700-L12 User manual

Omron

Omron F3SG RE Series User manual

Omron

Omron Sti F3SJ-B P25-02TS Series Operating and maintenance instructions

Omron

Omron F3SX-N-RR2 User manual

Omron

Omron F3S-AP Series User manual

Omron

Omron Sti F3SJ-A P Series Operating and maintenance instructions

Omron

Omron F3SP-U1P-TGR User manual

Omron

Omron Sti F3SJ-A P Series User manual

Omron

Omron F3SG-SR-K Series Operating and maintenance instructions

Omron

Omron Sti F3SJ-B P25-02TS Series User manual

Omron

Omron MS2800E User manual

Omron

Omron Sti l F3SJ-A P TS Series User manual

Popular Safety Equipment manuals by other brands

Lanex

Lanex PB-20 instruction manual

SKYLOTEC

SKYLOTEC ANCHOR ROPES Instructions for use

Besto

Besto Buoyancy Aid 50N Instructions for use

TEUFELBERGER

TEUFELBERGER NODUS Manufacturer's information and instructions for use

Troy Lee Designs

Troy Lee Designs Tbone Product owners manual

Innova

Innova Xtirpa Instruction and safety manual

bolle SAFETY

bolle SAFETY B810 quick start guide

SHENZHEN FANHAI SANJIANG ELECTRONICS

SHENZHEN FANHAI SANJIANG ELECTRONICS A9060T instruction manual

Hiltron security

Hiltron security POWER8E Installation and use manual

Salewa

Salewa MTN SPIKE user manual

Hatco

Hatco B-950P installation guide

Sitec

Sitec TX MATIC operating manual

TEUFELBERGER

TEUFELBERGER GRIP 12 Manufacturer's information and instructions for use

MSA

MSA PremAire System Operation and instructions

AMC

AMC 1022M Series instruction manual

Trinity

Trinity CASS S3 Assembly manual

CMC

CMC Helitack HotSeat quick guide

ACM

ACM SAFETY D200 Instructions and warnings
