Optex BGS-V2000 Series User manual

Photoelectric Sensor
BGS-V2000 SERIES
AC/DC Type
DC Type
AC/DC Type
BGS-V2000 BGS-V2000T
DC Type
BGS-V2000
INSTRUCTION
MANUAL
¡Confirm if the item meets your needs.
¡Before the use, you should first thoroughly read
¡this manual and operate correctly as mentioned.
¡You should keep this manual at hand for proper use.
SPECIFICATIONS
AC/DC type DC type
Cable type BGS-V2000(T) BGS-V2000(N,P)
Connector type BGS-V2000(CN,CP)
Detection distance 0.5 ~ 2m (*1)
Detecting object Opaque object
Supply voltage 12 ~ 24 VDC +/- 10%
24 ~ 240 VAC +/- 10% 50/60 Hz. 10 ~ 30 VDC +/- 10%
Current consumption 5VA max. 50mA max.
Response time 20ms max. 5ms max.
Hysteresis 15% max. (@ 1m) 5% max. (@ 2m)
Light Source IR LED
Sensitivity adjustment Teaching button
Timer function ON/OFF Delay 1 ~ 10 sec.
Indicator Output indicator: Orange LED, Stable incident indicator: Green LED
Control output Relay output 1c 240 VAC 3A max. NPN/PNP Open collector
30 VDC 3A max. 30 VDC 100 mA max.
Operation mode Light ON Light ON / Dark ON Select by switch
Connection Terminal base Terminal base / M12 connector
Insulation Resistor 20 M ohm min. (500 VDC)
Withstand Voltage 2700 VAC 1 minute
Ambient temp./humidity -25 ~ 55 C / 35 ~ 95% RH
Ambient light Ambient light Sunlight F10,000lx max. Incandescent lamp 3,000 lx max.
Protection category/Material IP67 / Case: ABS, Lens: PC
Weight 110g 95g
*1 0.5m x 0.5m white paper
-----
-----
o
INPUT AND OUTPUT
DIAGRAMS PART IDENTIFICATION
Optex-FA U.S. Sales
Ramco Innovations
[phone]
www.optex-ramco.com
This Series is now Obsolete Contact Ramco @515-225-6933

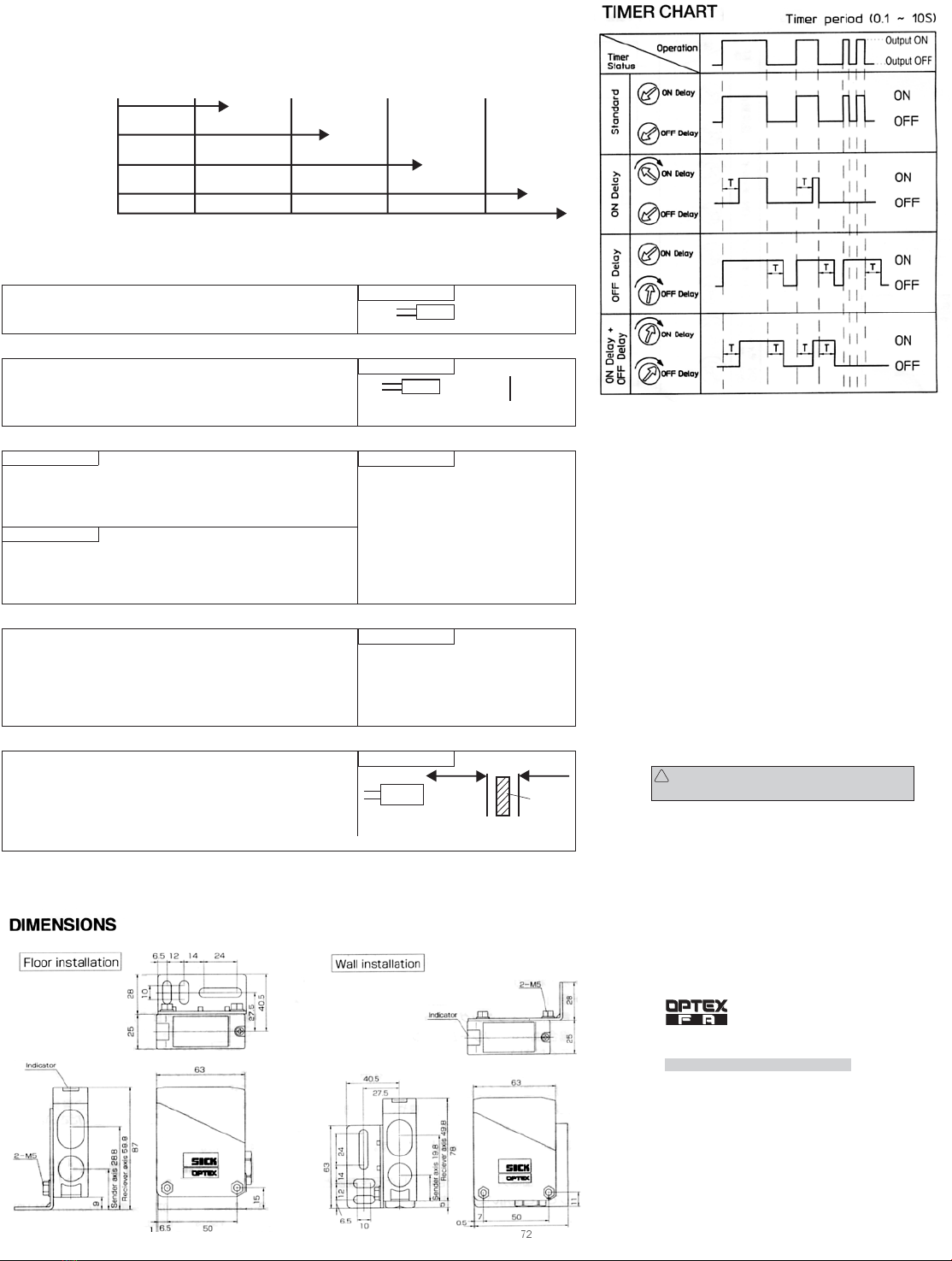

TEACHING PROCEDURE (SENSITIVITY ADJUSTMENT)
1) Depending upon the duration that the TEACHING BUTTON is pressed, the teaching mode can be changed.
Sensitivity is set at Max. in default state.
Indicators flash
once
Max./1-point teaching
First pulse for 2-point teaching
Position teaching
FGS teaching
Seconds
Indicators flash
twice Indicators flash 3 times Indicators flash 4 times
Approx. 1.3 sec. Approx. 3.7 sec. Approx. 6 sec. Approx. 8.3 sec.
2. Press the button (Any duration).
The indicators flash simultaneous 2 times - Complete.
The indicators flash alternately 3 times - Teaching error.
Restart from the first step.
1. Press the button on the background (Without a target present).
2. Release the button after the indicators flash simultaneously 4 times.
3. Teaching is complete.
If the indicators flash alternately 3 times a Teaching error has occurred.
Restart from the first step.
1. Place the object at a location from the sensor where the output
should be ON, and press the button.
2. Release the button after the indicators flash simultaneously 3 times.
3. Teaching is complete (No OK sign appears).
The indicators will flash alternately 3 times if there is a Teaching
error. Restart from the first step.
1. Press the button until the indicators flash simultaneously, 2 times.
After blinking 2 times, release the button.
The first point is stored, and then the sensor turns to the input state
for the second point starting simultaneous blinking of the indicators.
MAX. TEACHING (Max. sensitivity adjustment)
ONE-POINT TEACHING
TWO-POINT TEACHING
POSITION TEACHING
FGS TEACHING (FGS is a function that detecting range can be adjusted as desired, out of the range is suppressed.)
Switching point
Switching point
Switching point
Switching point
Switching point
switching point is adjusted in the front of background.
Light ON ON point in the limit of "a".
Dark ON OFF point in the limit of "a".
Switching point is adjusted at the middle
between the first and second point.
Teaching position of the object is
switching point.
1. Press the button without any objects / background present.
2. Release the button after the indicators flash simultaneously 1 time.
3. Teaching is complete.
1. Press the button on the background (Without a target present).
2. Release the button after the indicators flash simultaneously 1 time.
3. Teaching is complete.
First point
Second point
Back
ground
a
BGS
Note:
1.Releasing the button the indicators will flash simultaneously 1 time, the switching point is not stored
2.In case of a teaching error, the sensor is automatically reset and returns to the function from the previous state.
(Excluding the second point in two point teaching).
PRECAUTIONS
Be careful not to install the sensor at the following
locations, as it may otherwise malfunctions.
Where a lot of dust, vapor, or the like is present.
Where corrosive gas is produced.
Where water, oil or the like flies directly onto the
sensor.
Where strong vibration or shock is caused to the
sensor.
Do not use organic solvent, such as thinner, to
remove contaminants from the body case, lid, and
lens which are all of plastics. Using a dry rag, just
wipe clean.
When a switching regulator is to be used with a
power supply, be such to ground the Frame Ground
Terminal.
Do not use the sensor in a transient state at power
on.(about 100ms)
Do not run sensor cable near a high-voltage lines, or
power lines or put them together in the same
raceway. This warning should be strictly observed to
prevent malfunctions caused by inductive
interference.
Must not use this item as safety equipment
for the purpose of human body protection.
!
v
v
v
v
