Optopol SOCT Copernicus + User manual

Manufacturer:
OPTOPOL Technology Sp z o.o.
ul. Żabia 42
42-400 Zawiercie
POLAND
www.optopol.com
[email protected]l
SOCT Copernicus +
Service Manual
FOR DISTRIBUTORS USE ONLY
Rev 2.7
(30-01-2014)
0197

SOCT Copernicus PLUS - Service Manual
2
CONTENTS
1. Introduction.......................................................................................................................... 5
2. Contact to Optopol Technology ............................................................................................. 5
3. Safety standards ................................................................................................................... 6
4. Maintenance and cleaning .................................................................................................... 9
5. Device Overview ................................................................................................................... 9
6. Technical Data .................................................................................................................... 10
7. Unpacking and Installation.................................................................................................. 11
7.1 Unpacking SOCT Copernicus+ ............................................................................................... 11

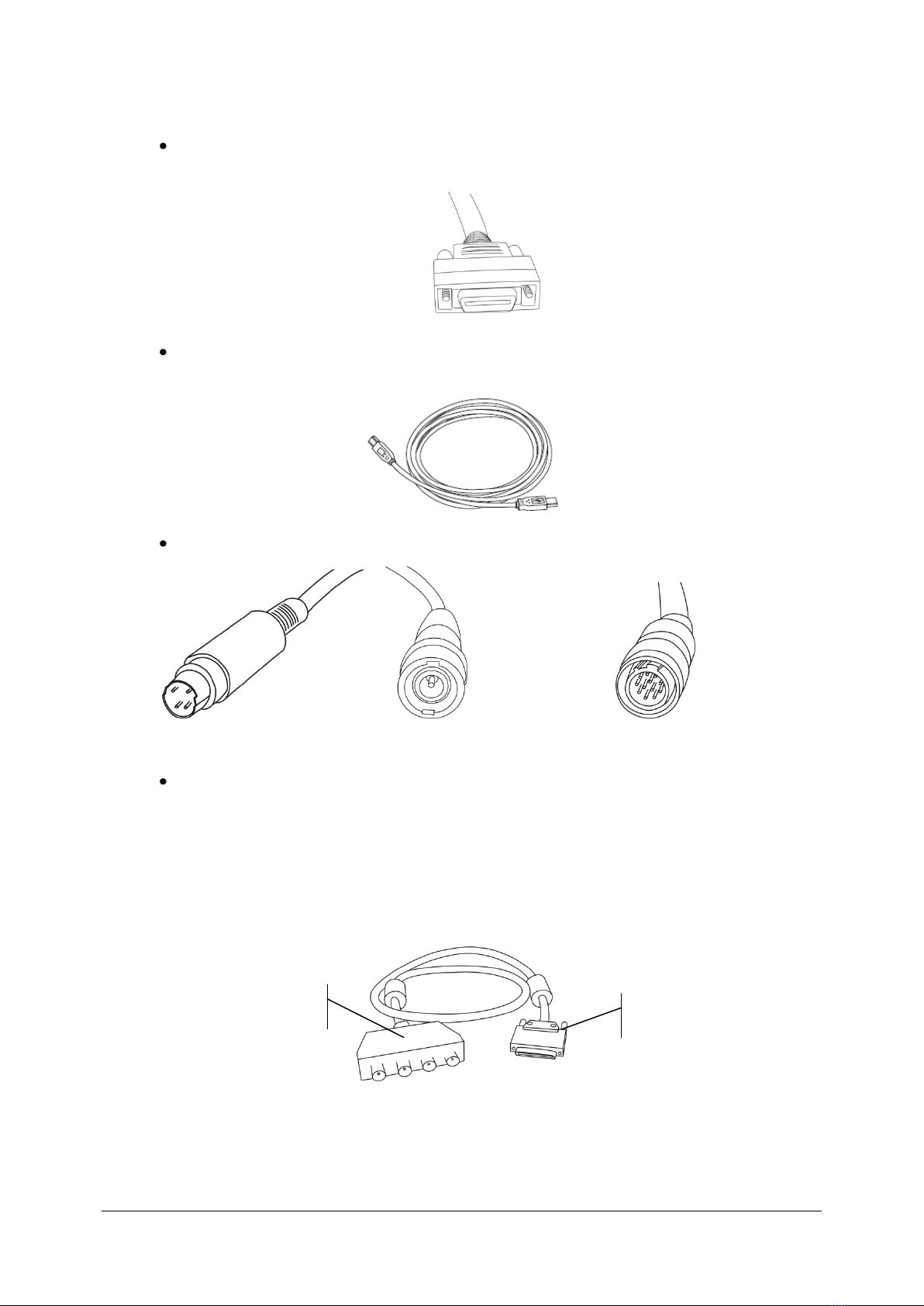

7.2 Connecting cables.................................................................................................................. 12
7.3 Device connection diagram................................................................................................... 15
8. PC installation..................................................................................................................... 16
8.1 Minimum system requirements............................................................................................ 16
8.2 NI Frame Grabber card and WinFast card installation.......................................................... 17
8.3 Drivers installation................................................................................................................. 18

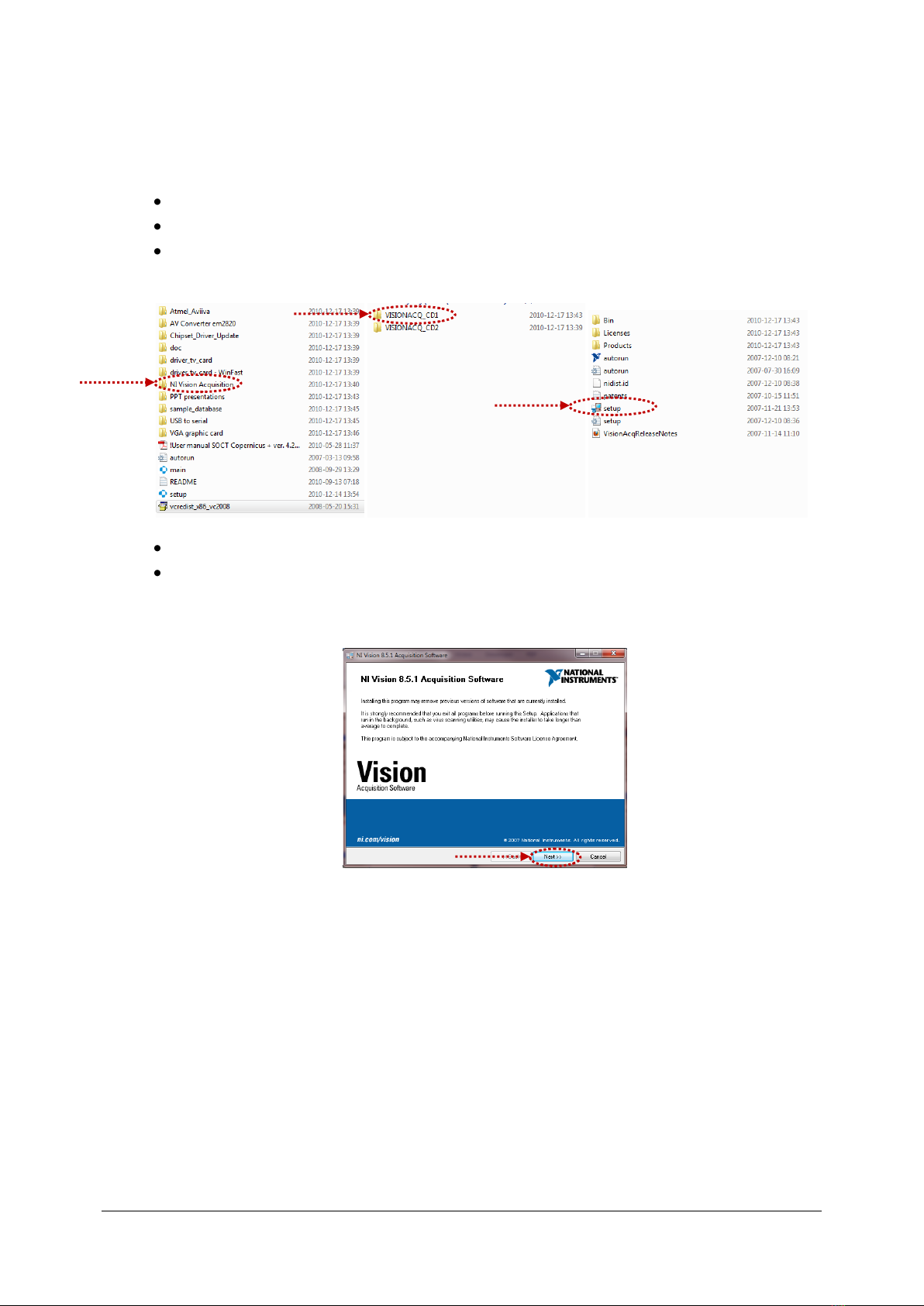

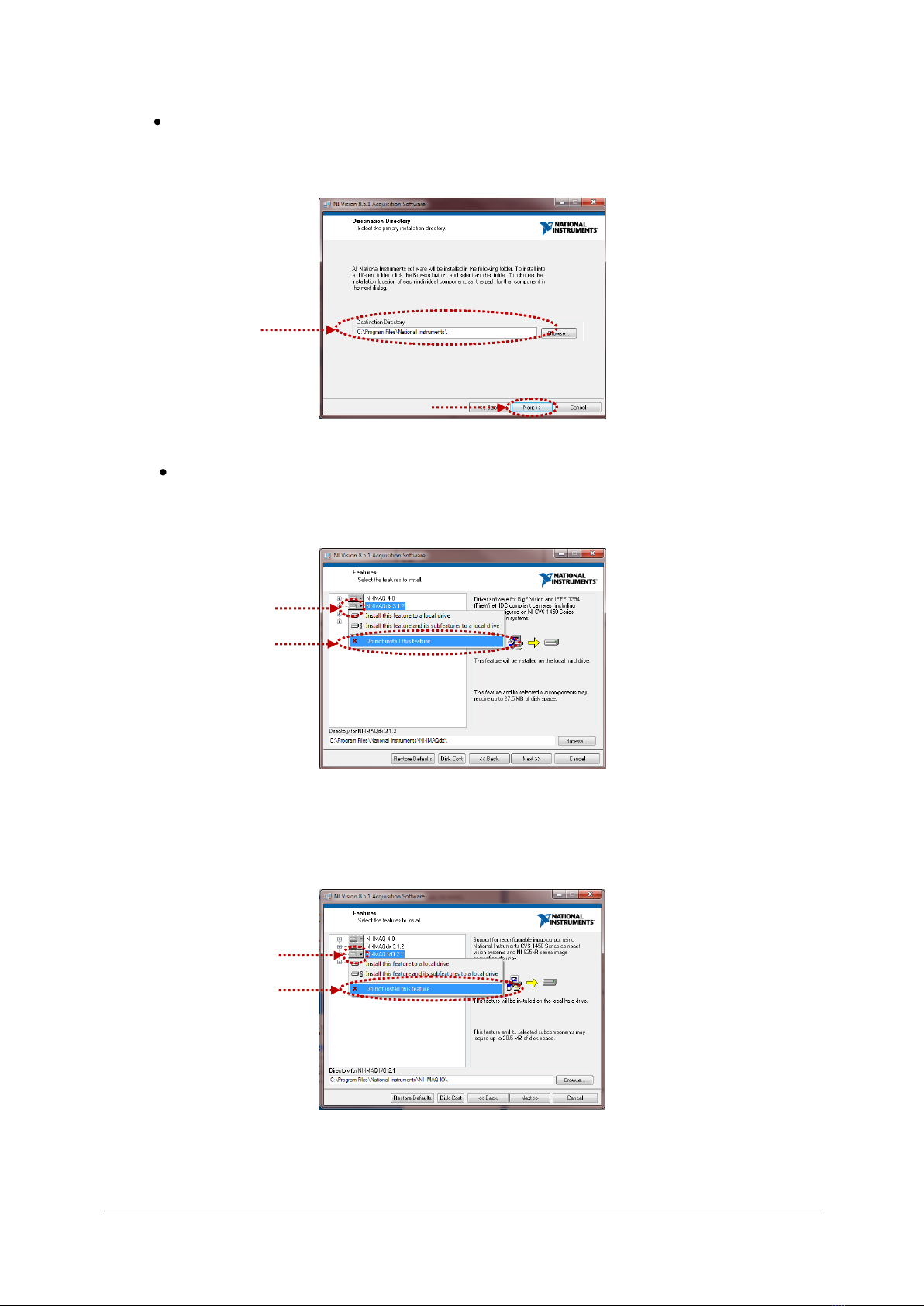

8.3.1 NI Vision Acquisition Software installation ................................................................... 18
8.3.2 USB HUB drivers installation ......................................................................................... 27
8.3.3 WinFast TV Card drivers installation ............................................................................. 29
8.3.4 Microsoft Visual C++ Redistributable installation ......................................................... 32
8.4 SOCT Software installation.................................................................................................... 34
9. Troubleshooting.................................................................................................................. 38
9.1 Mechanical troubleshooting ................................................................................................. 38
9.2 Electronic troubleshooting.................................................................................................... 39
9.3 Optical troubleshooting......................................................................................................... 43

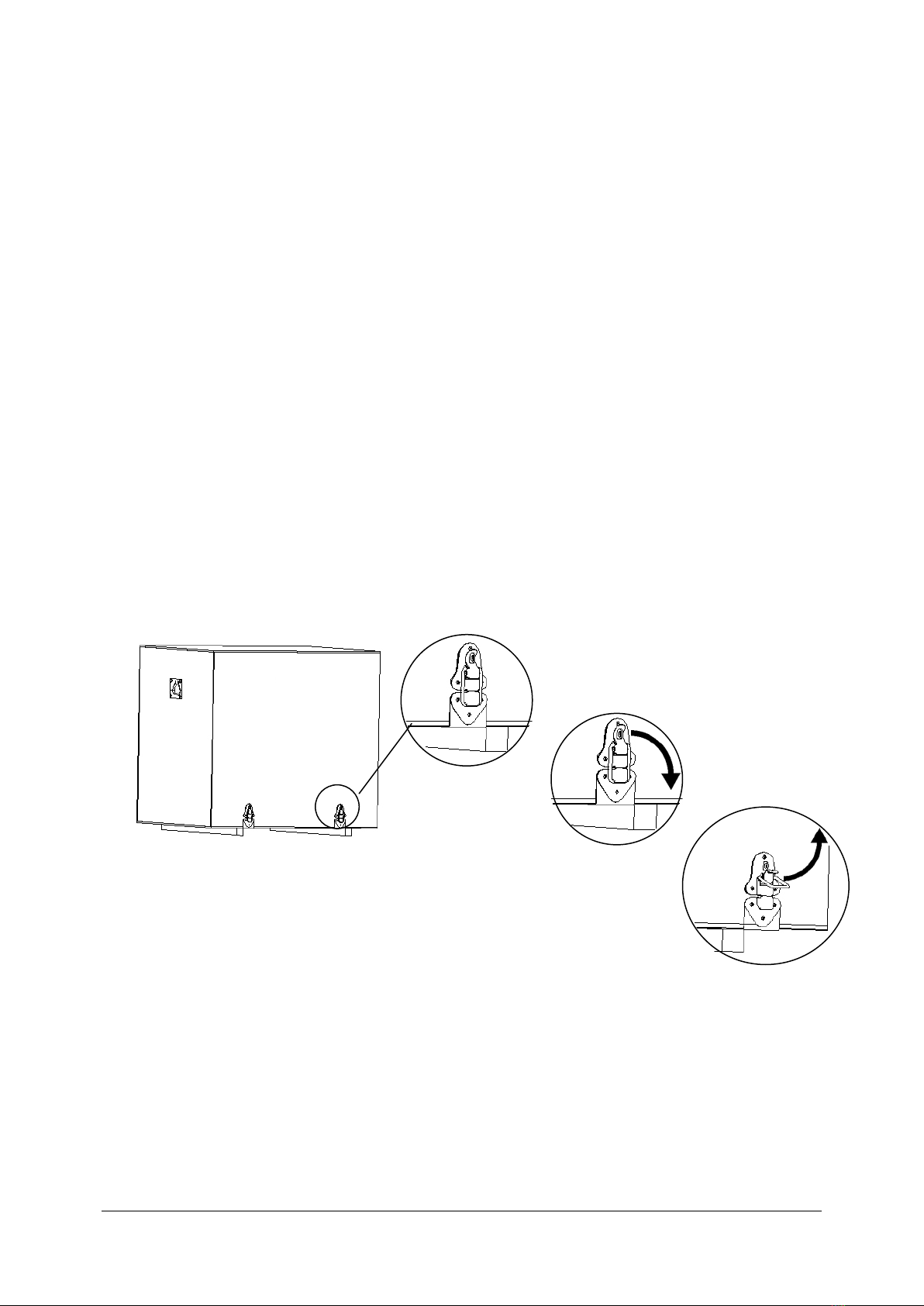

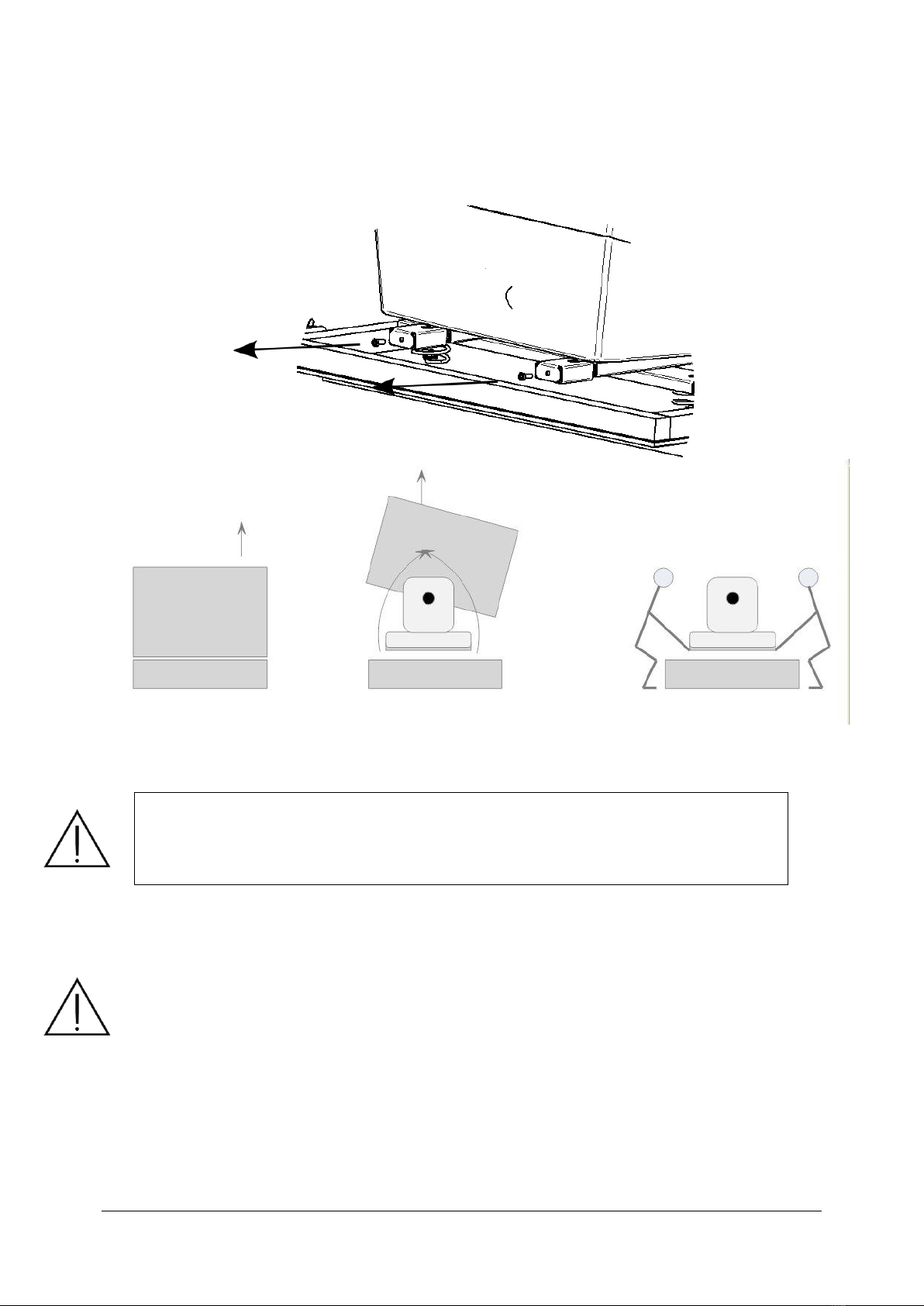

10. Opening and closing the device ........................................................................................... 47
10.1 Opening cover ....................................................................................................................... 47
10.2 Closing cover ......................................................................................................................... 59
11. Movement modules............................................................................................................ 67
11.1.1 Chinrest module .................................................................................................................... 67
11.1.2 Chinrest module replace in devices with serial number higher then 154229/L. .................. 70
11.2 Left-right movement engine ................................................................................................. 72
11.3 Front-backward movement engine....................................................................................... 73
11.4 Up-down movement engine ................................................................................................. 75

SOCT Copernicus PLUS - Service Manual
3
12. Electronics .......................................................................................................................... 80
12.1 Device block scheme ............................................................................................................. 80
12.2 Tools needed to replace electronic components................................................................. 81
12.3 Fuse exchange ...................................................................................................................... 81
12.4.Exchanging switching power supply.......................................................................................... 84
12.4.1.Exchanging switching power supply................................................................................... 84
12.4.2.Exchanging transitional board 151-525. ............................................................................ 86
(For devices from S/N: 154012/I to S/N: 154196/L). .................................................................... 86
12.4.3.Exchanging transitional board 151-527 (For devices from S/N: 154208/L). ..................... 88
12.4.4.Exchanging transitional board from 151-526 (151-525) to 151-527. ................................ 90
(For devices from S/N: 154012/I to S/N: 151207/L). .................................................................... 90
12.5 Main controller Board 151-506 ............................................................................................ 95
12.5.1 Checking correctness of feeding on board 151-506...................................................... 96
12.5.2 Exchanging board 151-506............................................................................................ 97
12.6 Board 151-512....................................................................................................................... 98
12.6.1 Control of feeding on board 151-512............................................................................ 99
12.6.2 Exchanging of board 151-512..................................................................................... 100
12.7 Movement control board 151 –517 ................................................................................... 101
12.7.1 Exchange of board 151 –517 ...................................................................................... 103
12.8 Board 151-126..................................................................................................................... 104
12.8.1 Checking correctness functioning of board 151-126 .................................................. 104
12.8.2 Exchange of board 151 –126 ...................................................................................... 105
12.9 Scanner controlling boards.................................................................................................. 106
12.9.1 Exchange of scanner driver boards ............................................................................. 107
12.10 Exchange of spectrometer servomechanism controller board 151-539............................. 108
12.11 Checking SLED diode ........................................................................................................... 110
12.12 Checking AVIVA camera power supply................................................................................ 111
12.13 Exchanging CL Cables........................................................................................................... 112
12.14 Rear panel............................................................................................................................ 115
12.15 Programming the CPU......................................................................................................... 116
13. Optics ................................................................................................................................121
13.1 Spectrometer adjustments................................................................................................. 121
13.2 No signal in skantest program............................................................................................. 123

SOCT Copernicus PLUS - Service Manual
4
13.3 Defocusing of spectrometer (too wide peak)..................................................................... 125
13.4 Too low spectrum on skantest ........................................................................................... 128
13.5 Too high spectrum on skantest .......................................................................................... 130
13.6 Checking and adjusting power on objective lane............................................................... 131
13.7 Setting fixation point to the centre of the cross ................................................................ 135
13.8 Checking and adjusting the polarization ............................................................................. 144
13.9 Checking, adjusting and exchange of scanners................................................................... 150
13.9.1 Exchanging of scanner Y .............................................................................................. 152
13.9.2 Exchanging scanner X .................................................................................................. 157
13.9.3 Correcting scanner setup. ........................................................................................... 163
13.10 Cleaning optics..................................................................................................................... 167
13.11 Regulation of filter on reference lane ................................................................................. 171
13.12 Checking of SLED output power, checking attenuator........................................................ 174
13.13 Crossing the spectrometer. ................................................................................................. 178
13.14 Spectrometer stability test.................................................................................................. 179
14. FAQ ...................................................................................................................................180
15. Spare parts list...................................................................................................................188
16. Service tools ......................................................................................................................198

SOCT Copernicus PLUS - Service Manual
5
1. Introduction
This Service manual contains technical information about SOCT Copernicus+, troubleshooting of
SOCT Copernicus+, parts and modules exchange procedures, description of calibration procedure.
The information provided in this document has been prepared for trained service technicians.
2. Contact to Optopol Technology
In case of any problems or doubts concerning technical procedures or other information
contained in this manual, please contact one of the following:
Customer Support:
Tel: [phone]
[email protected]l
Technical Support:
Service division
Tel: [phone] ext. 230
[e-mail]
For online support use program:
TeamViewer (http://dane.optopol.com or http://www.teamviewer.com/download/ )
In case when distributor decides send back the device to Optopol Technology Sp z o.o.. have to fill
RMA form and send to [email protected]m.pl in order to assign the RMA number.

SOCT Copernicus PLUS - Service Manual
6
3. Safety standards
The SOCT Copernicus+ system complies with all requirements of the directive 93/42/EEC (MDD -
Medical Devices Directive)
The SOCT Copernicus+ is Type B applied parts, class I protection against electric shock.
Usually SOCT Copernicus+ is a part of larger Medical System, which consists of many other medical
and non- medical devices. Medical system in general and all its components have to fulfill
requirements of IEC 60601-1 standard.
In order to comply with the IEC 60601-1 standard all non Medical Devices must be connected to
the Separating Transformer which is supplied with the SOCT Copernicus+. By connecting the
devices to the Separating Transformer leakage current is reduced to a level which is in line with the
IEC standard.
The Separating Transformer fulfils requirements of IEC 60601-1 standard for medical devices which
has not application part.
The Separating Transformer supply the power for non medical devices connected to electric not
grounded mains in room.
The Separating Transformer can be installed in patient environment in accordance with IEC 60601-
1 standard.
SOCT Copernicus+ is connected to computer using USB cable. This cable is electrically
separated using optocouplers. It provides additional safety, when computer and SOCT
Copernicus+ device are connected to two different power supply sockets with different ground
potentials. Video signal and synchronization signal are transferred to computer using coaxial
cables, which are electrically separated from SOCT Copernicus+ device providing even more
safe solution.
No user serviceable parts inside SOCT Copernicus+ device. Light source is included inside device.
Removing of covers can be done only by Manufacturer or Authorized Personnel.
The maximum power of light radiation available outside covers
Is less than 1020(±3) microwatts providing safe operation of the device.
Objective lens is output of light.
SOCT Copernicus + system can be connected only to power supply socket equipped with
properly connected grounding pin.
Please note that only the PC, monitor and printer are to be connected to the Isolating Transformer.

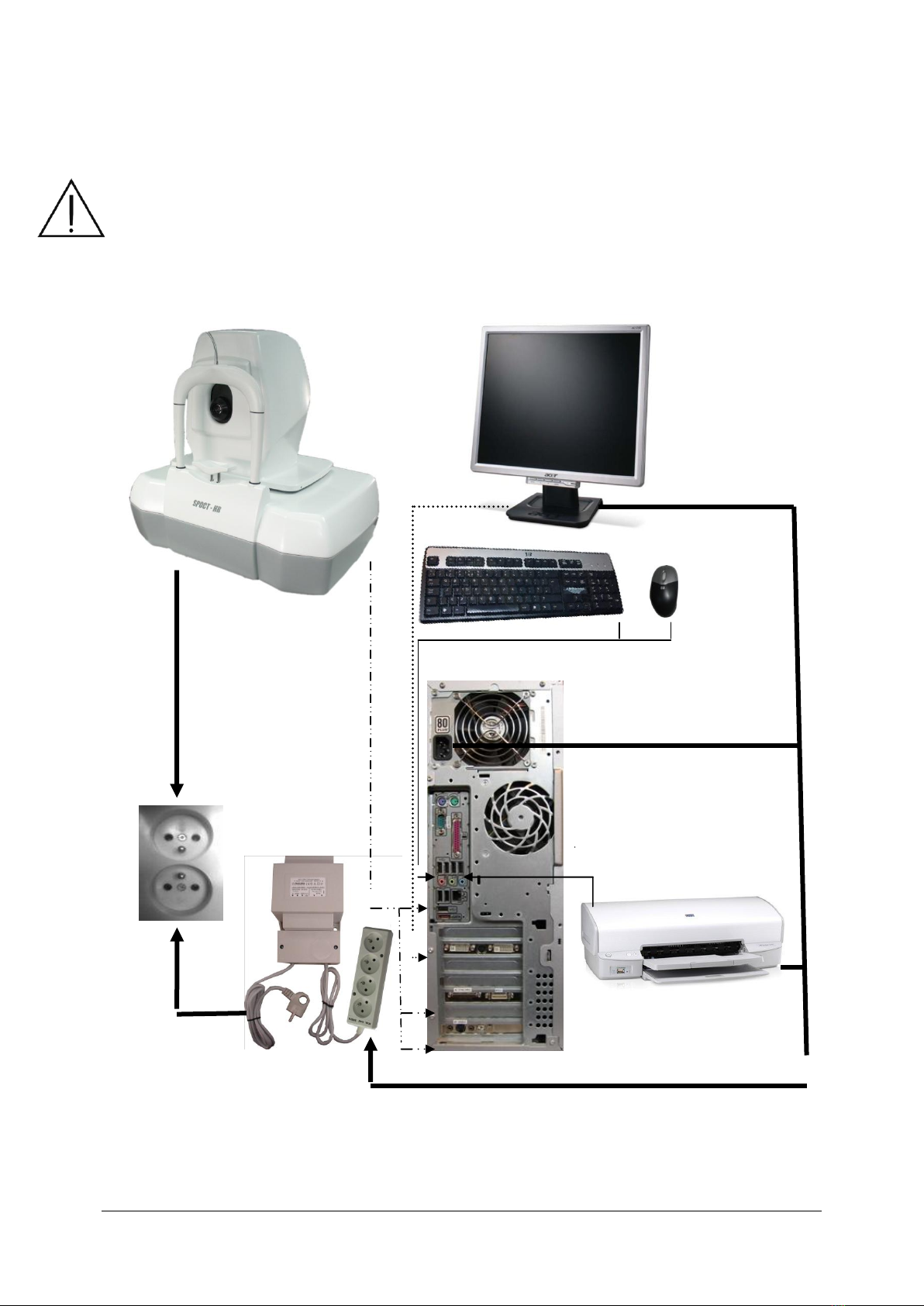

Connecting non medical devices in other way than in point 7.3 Device connection diagram can lead
to electric shock or damage of the devices.
Prohibit connect any non medical or medical devices which are not including with SOCT
Copernicus+ system to the Separating Transformer e.g. lamp, vacuum cleaner etc.
The SOCT Copernicus +must not be connected to the transformer, but directly to power supply
socket equipped with properly connected grounding pin.

SOCT Copernicus PLUS - Service Manual
7

SOCT Copernicus PLUS - Service Manual
8
SOCT Copernicus+ has been classified as CLASS 1 LASER DEVICE
Important!
1) If the whole Medical System has been installed by Manufacturer or Authorized
Personnel of SOCT Copernicus+, the Manufacturer guarantees correct installation and
compliance with all required standards and directives,
2) In case when installation was made not by Manufacturer or Authorized Personnel,
Manufacturer of SOCT Copernicus+ takes NO responsibility for any problems or risks
that could be created by incorrect connection and violation of safety standards,
3) Manufacturer of SOCT Copernicus+takes no responsibility for incorrect medical
diagnose of results and takes no responsibility for the consequences of such incorrect
medical diagnosis.
Warning!
Ignoring safety rules can lead to accidents.
1) If SOCT Copernicus+ and the whole Medical System have been installed by the
Manufacturer or Authorized Personnel, the Manufacturer guarantees the proper
installation and compliance with MDD 93/42 EEC rules,
2) Any computer system or device attached to SOCT Copernicus+ must be MDD compliant
or be plugged only to Separating Transformer. Devices which are not related with
patient examination (e.g. lamp, fan) cannot be connected to Separating Transformer,
3) Multiple portable socket-outlets shall not be placed on the floor.
Warning!
All activities that demand removing main body housing may be performed by Manufacturer or
Authorized Personnel trained by Manufacturer.
Ignoring or disregarding the statements above may lead to danger of death or serious injury.

SOCT Copernicus PLUS - Service Manual
9
4. Maintenance and cleaning
Warning!
a) All maintenance activities can only be made when device is turned off and unplugged
from power supply socket
b) No user serviceable parts inside device. Any covers can be removed only by authorized
service staff.
During the whole period of use, SOCT Copernicus+ does not need any special maintenance
procedures. The outside surfaces of device should be cleaned using mild cleaning solvents.
Only a soft cloth can be used for cleaning. During cleaning it has to be assured, that no water gets
inside the device.
The forehead rest and chinrest are parts that routinely have contact with patient. The forehead and
chin rests should be cleaned between each examination with an alcohol prep swab.
The main lens of the device should not contact the patient's eye. It comes with a lens cap to cover it
when not in use. Lens may touch the eyelashes during normal use. You should clean it to remove
dust and oily smudges occasionally to ensure a true tomogram images are obtained. You may use an
alcohol prep swab or cotton swab dipped in isopropyl alcohol. (You may use dedicated optical lens
cleaner.) Wipe dry with a soft, non-lining cloth or tissue. If the lens inadvertently contacts the
patient's eye, clean it before proceeding with the examination.
Periodically one has to check if there are no mechanical damages to the device, damages to any of
the cables and fuses.
5. Device Overview
SOCT Copernicus+ uses spectral domain optical coherence tomography method to obtain
3-dimensional cross-section images of a human retina. The device produces a laser beam,
which is focused on a human retina. The light that reflects from internal structures of a retina
is then interferometrically analyzed by the device. The raw data is processed by a computer to
obtain images of retina cross-section.

SOCT Copernicus PLUS - Service Manual
10
6. Technical Data
Signal source Super Luminescent Diode (SLED), 830 nm (±2%)
Optical power 1000 µW (950 - 1020 µW)
Signal analysis Spectral domain Optical Coherence Tomography
Scanning speed up to 27’000 measurements per second
Scanning programs Single B-scan
3D visualization
Asterisk
Animation scan (selected number of B-scans in the same
place at a retina)
Single B-scan with blood flow analysis
Axial resolution 5 um in tissue
Transversal resolution ideal 12 um
typical 18 um
Scan width 4 –10 mm
Scan depth 2,5 mm
Power supply 230/115 V 50/60 Hz
Power consumption 150 VA
Fuse ratings 3.15 A 250V
Multiple portable socket-outlet max. load 500 VA

SOCT Copernicus PLUS - Service Manual
11
7. Unpacking and Installation
NOTICE!: Every transportation box is equipped with the shockwatches. If any shockwatch is broken
(red indicator) please contact Optopol Technology Sp. z o.o. and lodge the complaint to the carrier.
SOCT Copernicus+ set consists of following components:
1. SOCT device with one CL cables,
2. USB 2.0 communication cable,
3. Coaxial synchronization/video cable,
4. PC Computer with preinstalled software,
5. Power supply cables and computer accessories.
7.1 Unpacking SOCT Copernicus+
This section describes how to unpack the device shipped from a factory. The SOCT Copernicus+ is
shipped in a special box, which protects it from mechanical damages during transport. Figures below
show how to unpack SOCT from this box. The box has got four latches shown in detail in pictures
below.
Closed latch
Step 1
Step 2
Latch is opened
Transport position of the SOCT Copernicus+ is to be set manually. Head maximum to the left, to the
back and lens down. Then protect handler will fit correctly.

SOCT Copernicus PLUS - Service Manual
12
Now one can remove the cover by lifting it up gently. The SOCT’s Copernicus+ four legs are locked at
two metal rails by clamps. There are only two removable clamps at a side. First remove screws from
the clamps and then remove metal holders. This operation is shown in a figure below.
Now shift SOCT Copernicus+ to the left and then lift it up. Put the SOCT on the flat stable table.
Important!
It is strongly recommended to wait at least one hour before turning the device on for the first
time after delivery. It is very important in case where the delivery was made during low outside
temperatures or high humidity.
7.2 Connecting cables
After unpacking, one should check the whole set for any mechanical damages, cables
damages, etc. In case when any damage is found, don't connect the device and contact
your local distributor.

SOCT Copernicus PLUS - Service Manual
13
To connect the SOCT Copernicus+ to a computer, you need five cables shipped with the device:
Camera link cable –connected to Copernicus + (not detachable),
USB cables, connect to between Copernicus+ (type B) & PC (type A),
Video/synchro cable connected with one plug
Video (to PC) Synchro (BNC to PC) Video/Synchro to SOCT
Adapter cable. This is a short cable with 4 BNC plugs and VHDC plug on the other side.
Synchro cable shown above should be connected to BNC splitter
(T0 port)

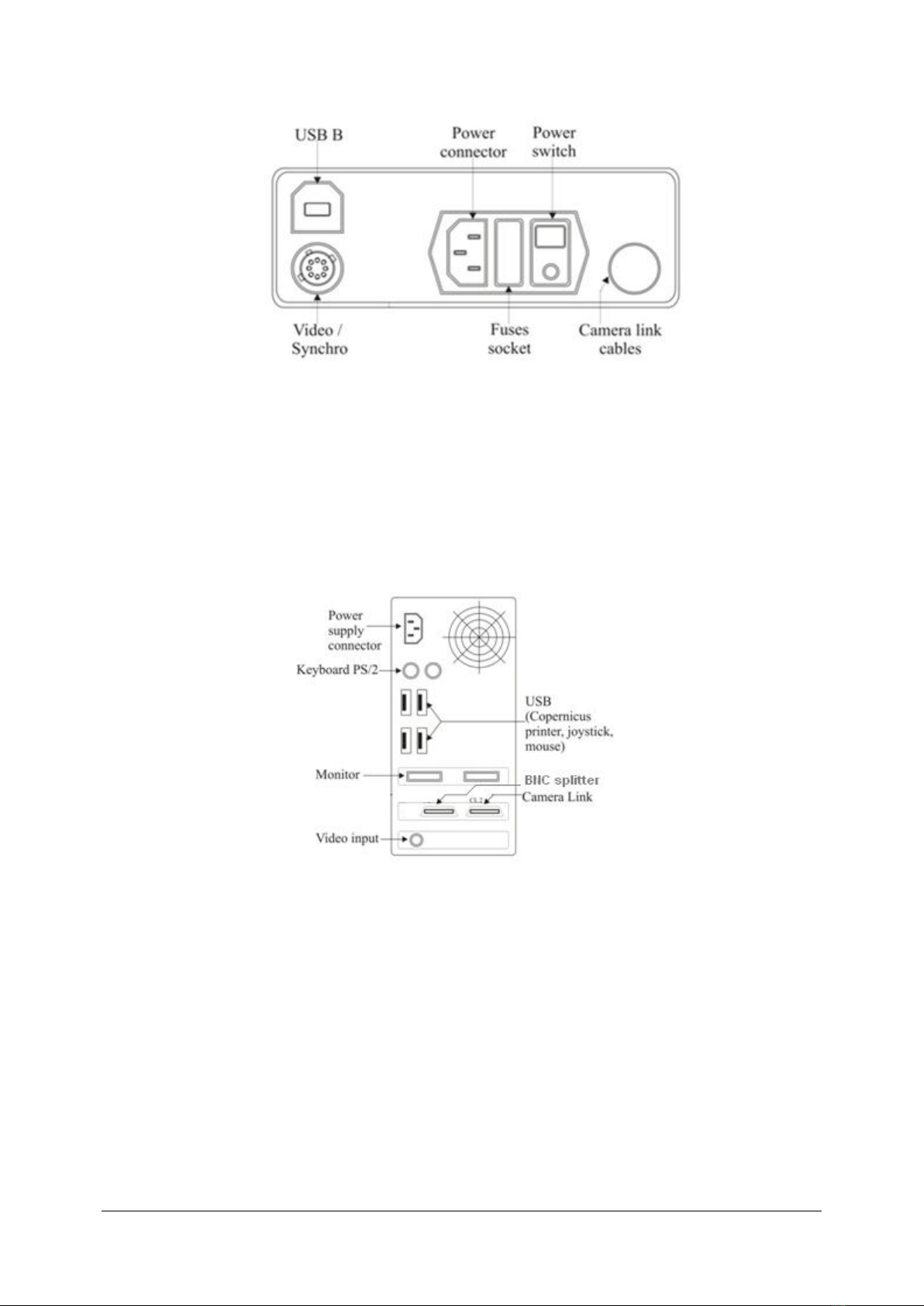

All sockets and plugs are different so it is not possible to connect plugs improperly. Figure
below shows rear panel view of SOCT.
BNC Splitter to
Synchro cable
BNC Splitter to
computer

SOCT Copernicus PLUS - Service Manual
14
First connect all signal cables described above and after that check the connections once again. In the
next step connect power supply cables.
NOTE: Regarding EMC (Electro-magnetic compatibility) standards all signal cables have to be put
together.
Picture on the next page shows how to connect all cables to the computer.

SOCT Copernicus PLUS - Service Manual
15
7.3 Device connection diagram
The SOCT is connected to the PC using USB 2.0 and Video/Synchro cables.
The SOCT must be directly plugged into the mains. Connect the PC, printer and monitor into the
multiple portable socket-outlets, which is directly connected to the Separating Transformer. The
transformer reduces power emission loss from the PC. The Separating Transformer is connected
directly to the mains
IMPORTANT: Always turn computer first and then turn device on.

SOCT Copernicus PLUS - Service Manual
16
8. PC installation
8.1 Minimum system requirements
(Starting on day 22.09.2010)
In order to prepare computer for use with SOCT Copernicus+ you need:
PC computer with operating system installed.
Minimum system requirements:
- Processor: Intel® Xeon W3520 2.66 8MB/1066 QC CPU
- RAM: HP 4 GB (2x2GB) DDR3 –1333 ECC RAM
- Operating system: Windows XP Professional
- HDD: 2 x HP 1.5 TB SATA 7200 HDD (RAID)
- CD/DVD writer HP 16X DVDRW Drive
- Video card: 1024 X 768 resolution
24 bits color depth
512 MB DDR3
OpenGL support (ASUS EAH 5770 CUcore1024 MB)
- Communication: 1 available USB port
- Extension slots 2 available PCI slots
2 available PCI Express (x16)
National Instruments IMAQ PCI-1428 image acquisition card (supplied with SOCT device)
Frame grabbing card (supplied with SOCT device)
SOCT Copernicus+ Installation CD (supplied with SOCT device)
National Instruments installation CD –Disk 1 and 2 (supplied with SOCT device)
Backup and Recovery CD's.

SOCT Copernicus PLUS - Service Manual
17
8.2 NI Frame Grabber card and WinFast card installation

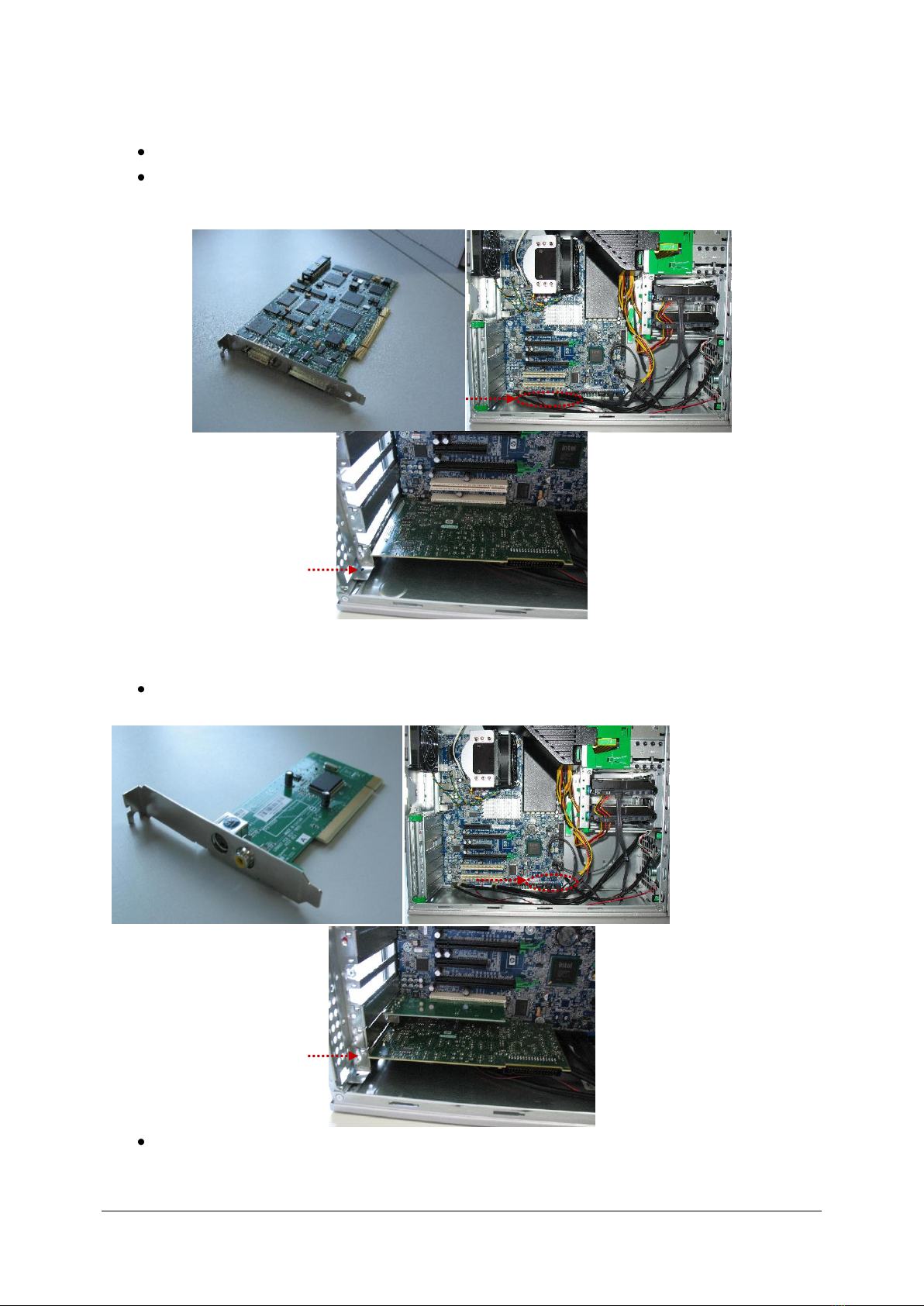

Open the left side cover of a PC.
Plug in the NI Frame Grabber into the PCI slot #2 then secure the card using a screw.
Plug the WinFast Video card into the PCI slot #1 then secure the card using a screw.
Close the PC cover.

SOCT Copernicus PLUS - Service Manual
18
8.3 Drivers installation
8.3.1 NI Vision Acquisition Software installation
Turn the computer on.
Insert a CD disc with SOCT Copernicus+ software to the CD-ROM.
Open the CD and find the NI software files. Disc:\NI Vision Acquisition\VISIONACQ_CD1.
Double click on the setup.exe.
After initialization finishes, press Next>>.

SOCT Copernicus PLUS - Service Manual
19

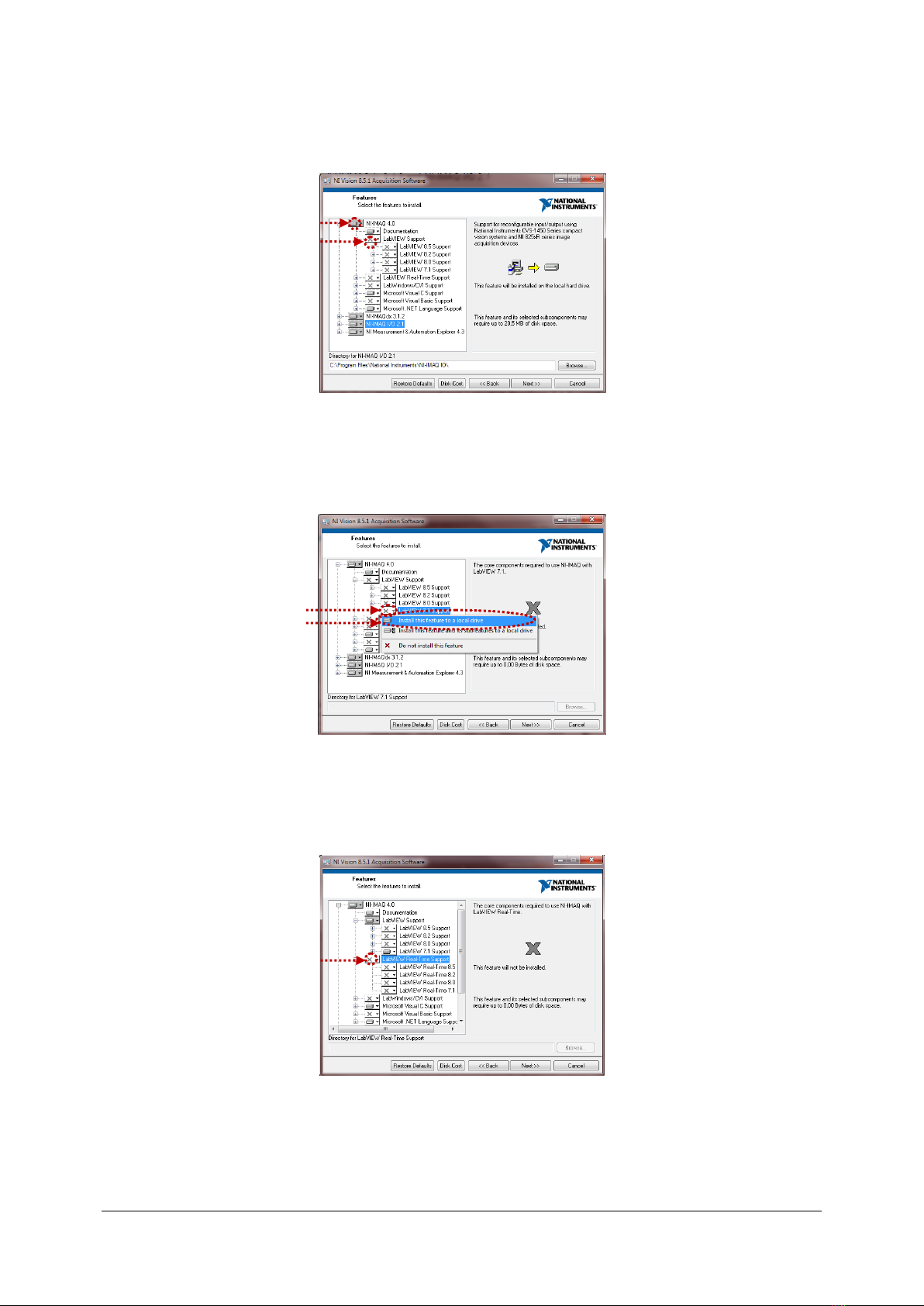

Select primary installation directory, it should be C:\Program files\National Instruments\ then
press Next>>.
Select features to be installed.
- Extend the icon NI-IMAQdx 3.1.2 and select “Do not install this feature”.
- Extend the icon NI-IMAQ I/O 2.1 and select “Do not install this feature”.

SOCT Copernicus PLUS - Service Manual
20
- Extend NI-IMAQ 4.0 and LabVIEW Support.
- Extend the icon LabVIEW 7.1 Support and select “Install this feature to a local drive”.
- Extend LabVIEW Real-Time 7.1 Support.
- Extend the icon LabVIEW Real-Time 7.1 Support and select “Install this feature
