COMBINATION QUARTZ < KWA (GX) >
INSTRUCTION MANUAL
Thank you for your purchase of our product. To ensure prolonged use and opti-
mum performance, please read this Instruction Manual carefully and familiarize
yourself with the terms of the guarantee.
Please keep this Instruction Manual in your hand and refer in time of need.
◆SPECIFICATIONS
(1) (Analog + digital) combination quartz watch
(2) Wrist-worn accuracy (at normal temperature <5°C ~ 35°C>)
Mean monthly rate: ±30sec.
(3) Operating temperature range
0°C ~ +50°C
(4) Display function
<Analog section> Hours/Minutes/Seconds
<Digital section>
Hour/Minute/Second (Switch between12-hour and 24-hour format)
Calendar (Month/Date/Day)
Automatic correction for monthend dates except for a leap year
Alarm
Chime
Stop watch (1/100 second- 60 minutes)
Light
(5) Battery
Silver oxide battery SR927W; 1 piece
(6) Battery life
Approx. 3 years based on the assumed daily use of the light for 3 seconds, the
ALARM sound for 20 seconds and 12 times for chime.
ENGLISH

2
(The watch will keep the specified accuracy for about 3 years when used under
normal conditions after a new power cell has been installed.However, the power
cell life will vary depending on the frequency of use of the ALARM, STOP-
WATCH and other functions.)
* The above specifications are subject to change without notice for improvement.
◆ ILLUMINATION LAMP
Pushing the Button ® turns on the digital display lamp.

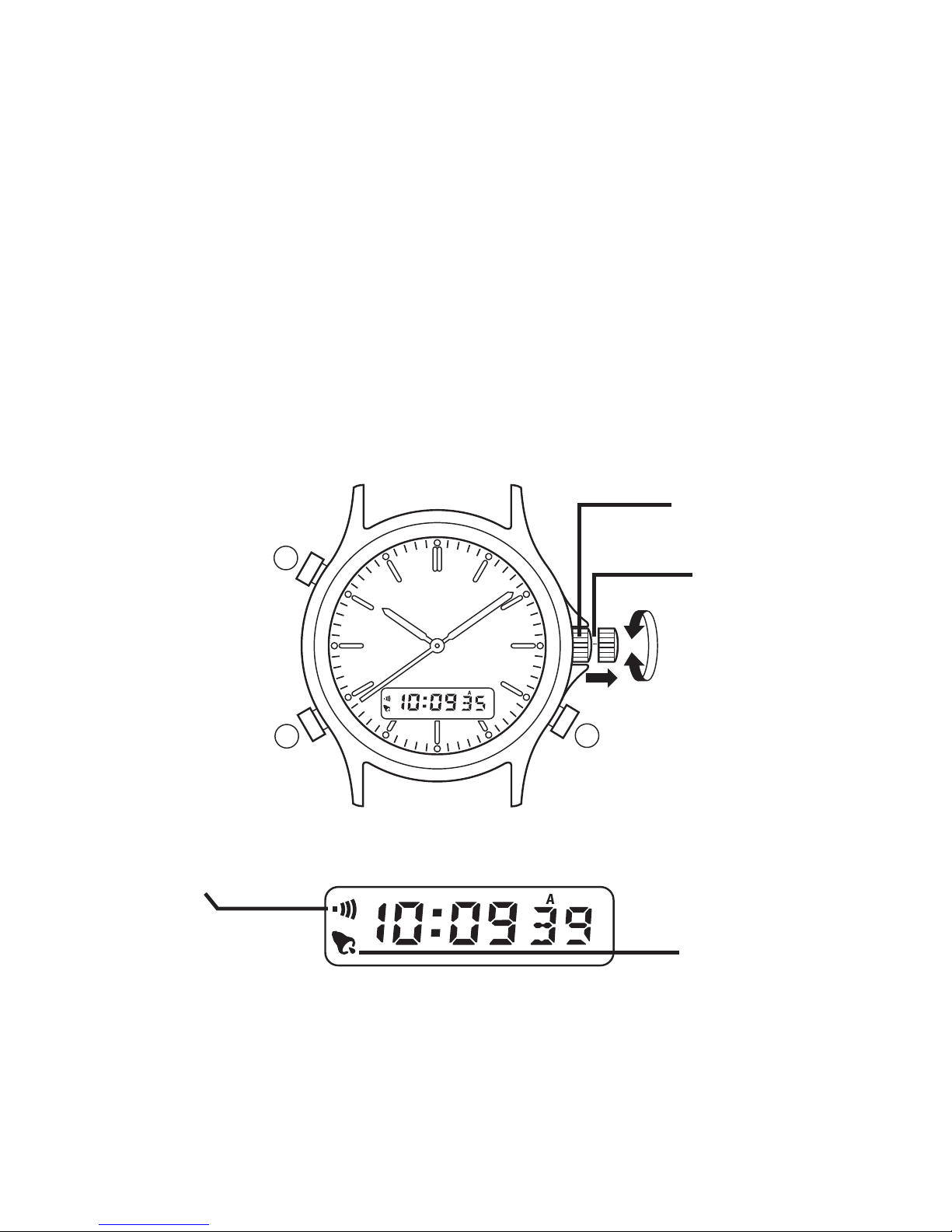

◆NAMES OF PARTS AND THEIR FUNCTIOS
M
SR
Mode change
button
Select button
Normal position
Analog
adjustment
position
Read button
ON mark of Chime
ON mark of Alarm

3
◆SELECTION OF DISPLAY
Time
Calendar
Alarm
Stopwatch
M
M
MM

4
◆SETTING OF TIME ON ANALOG DISPLAY
Pull out the crown and turn it right or left to adjust the time. After that, push the
crown back. Then the watch will start.

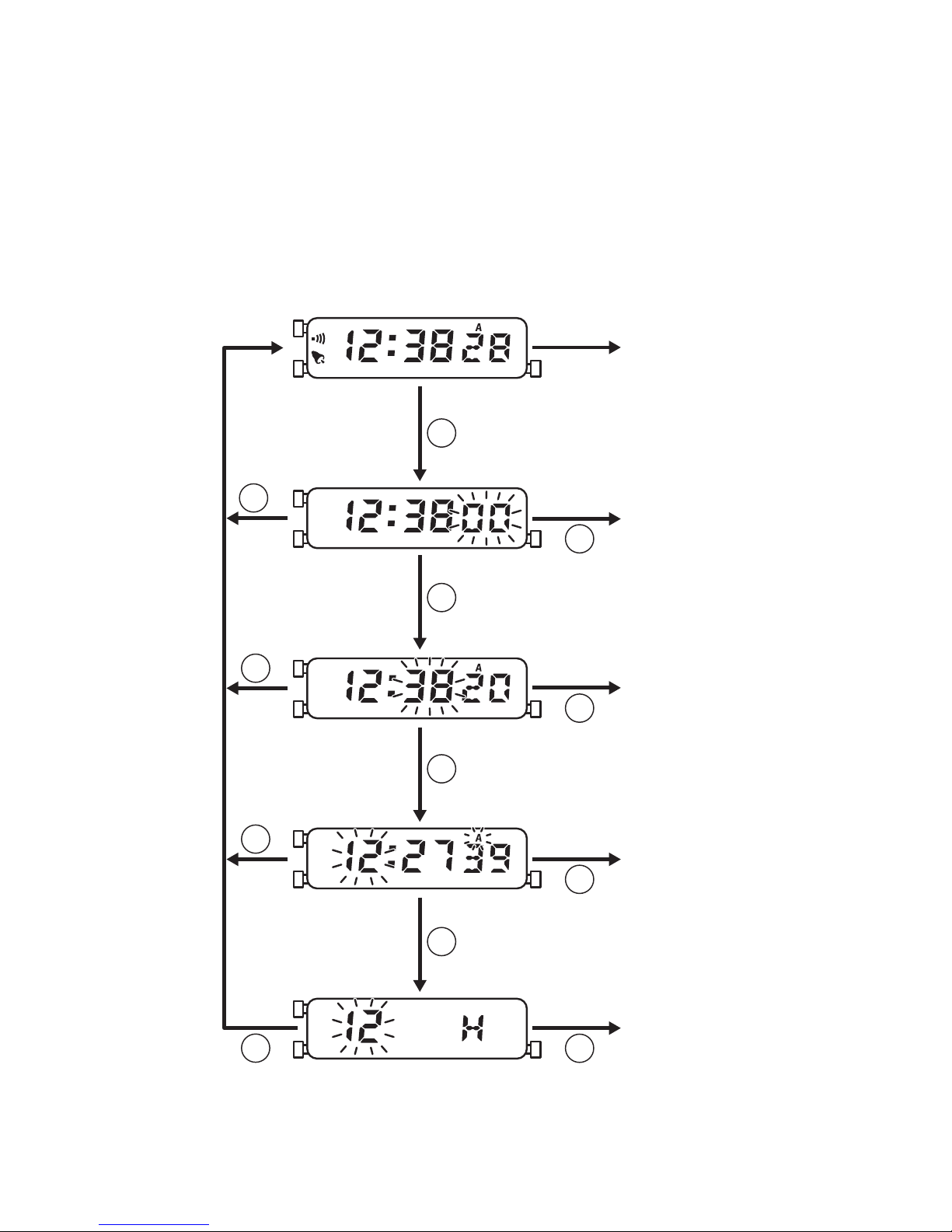

◆SETTING OF TIME ON DIGITAL DISPLAY
M
M
R
R
S
S
S
S
R
R
M
S
Minute
Hour
12H/24H
Selection
Time
Second
(2, 3 sec.)

5

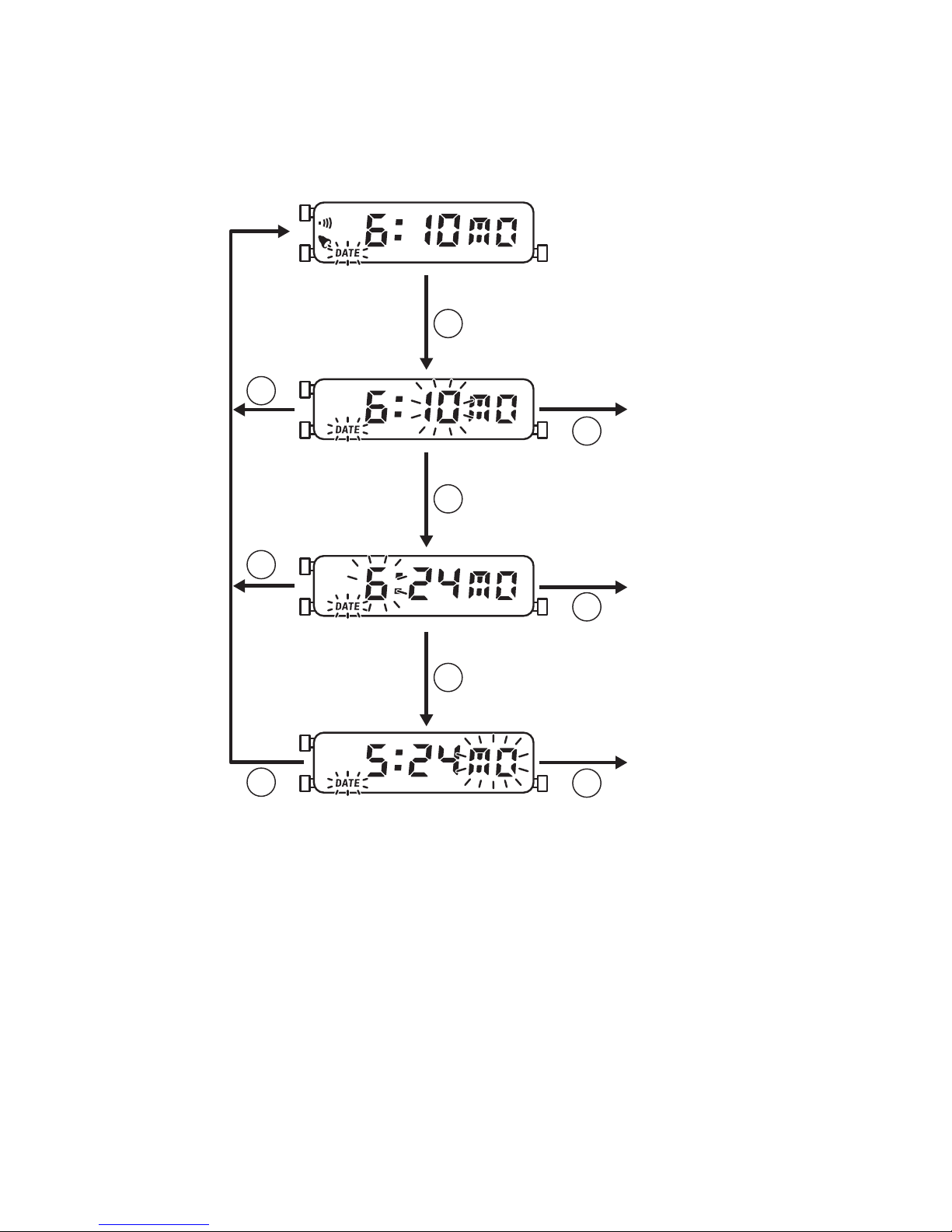

◆SETTING THE CALENDAR
Day
M
R
S
S
S
R
R
M
S
(2, 3 sec.)
Date
Month

6
◆SETTING THE ALARM
ON/OFF
Hour
Minutes
R
S
R
M
SR
S

7
◆SETTING AND CANCELLATION OF CHIME

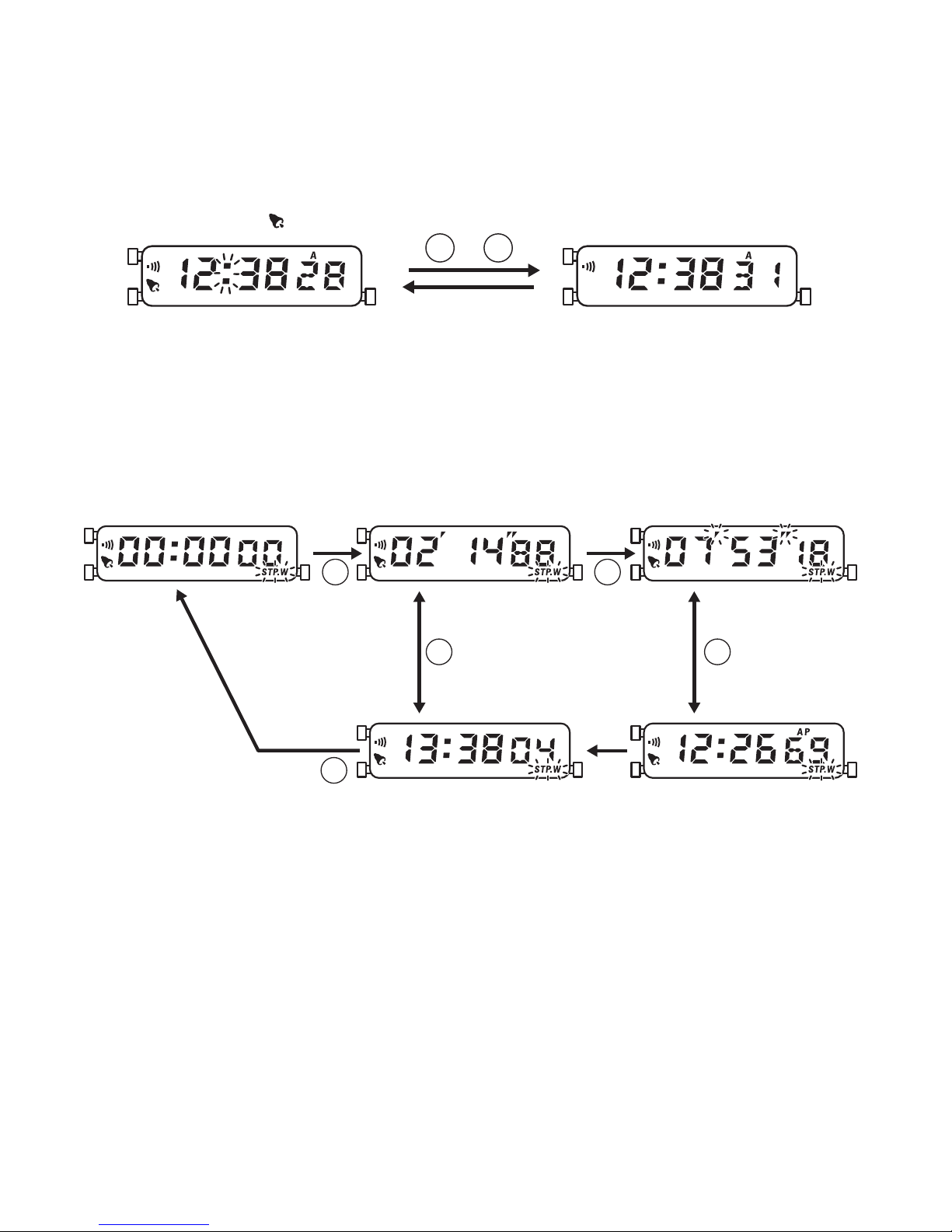

◆STOPWATCH
S R
+
<ON > <OFF>
R
S
R
R R
Reset Timing
Lap Stop
Lap Timing
Stop

8
◆HANDLING THE WATCH
(1) Water resistance
Watches with water resistance are water resistant for daily use (30 m) and can
be worn when washing your face, etc. However, you cannot use it in an under-
water environment.
Watches with reinforced water resistance I are water resistant for daily use (50
m) and can be worn when swimming. However, you cannot use it for any div-
ing activities including skin diving.
Watches with reinforced water resistance II are water resistant for daily use
(100 m, 150 m or 200 m) and can be worn for skin diving activities. However,
you cannot use it for scuba diving using an air tank, saturated diving using
helium gas, etc.
(2) Shock
Remove the watch when you engage in strenuous sports. Light
sports such as golf will not adversely influence the watch.
Avoid violent shocks such as dropping the watch on the floor.
(3) Magnetism
If the watch is left at a location with strong magnetism for an
extended period of time, the components may be magnetized,
resulting in malfunction. Be careful.
The watch may temporarily speed up or slow down when exposed to magne-
tism. Precision is restored when placed away from magnetism. In such a case,
re-adjust the time.
(4) Vibration
The watch may lose precision if subjected to strong vi-
brations such as from riding motorcycles, using jackham-
mers, chain saws, etc.

9

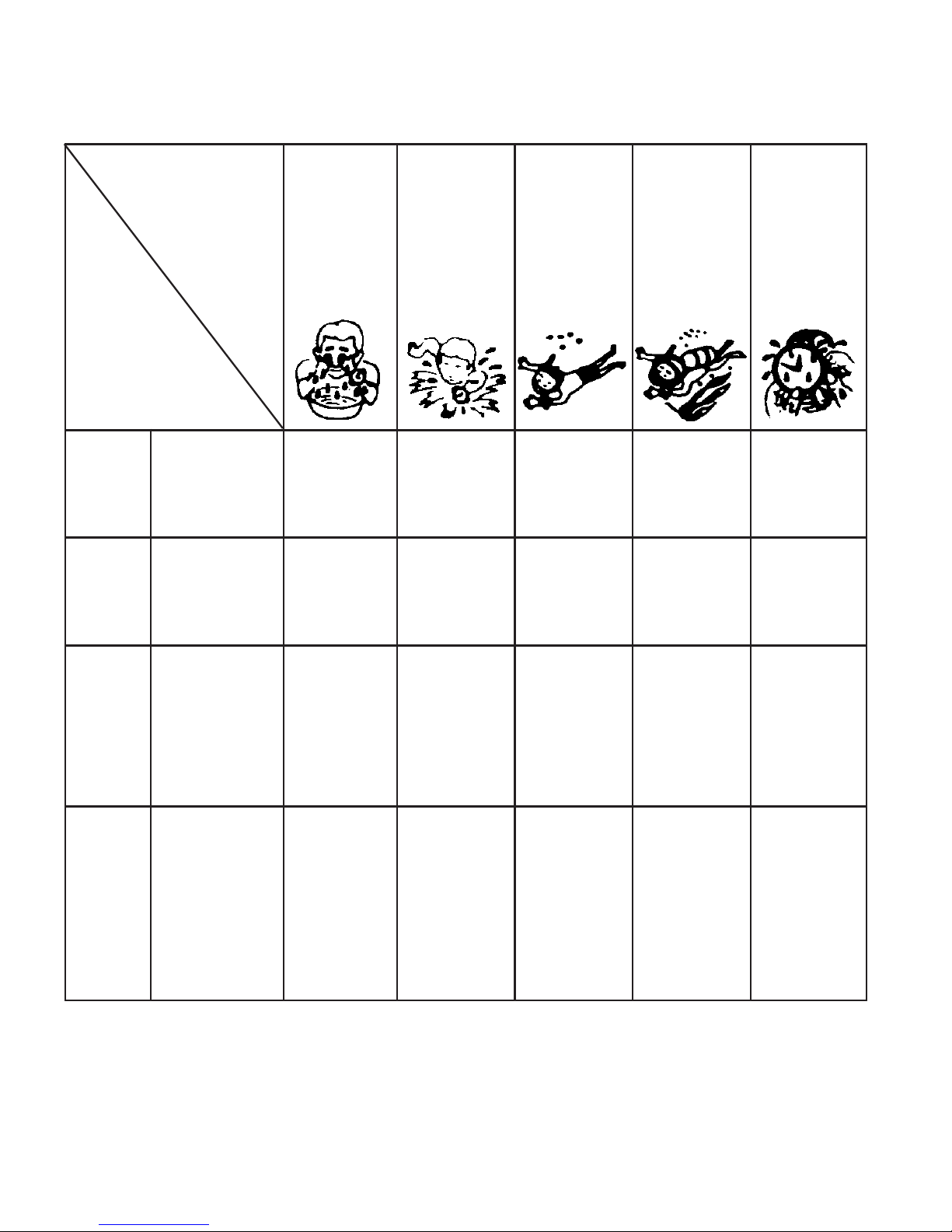

Underwater
operation of
crown and
operation of
crown with
drops of
water on it
Scuba diving
(air tanks are
used)
Skin diving
(air tanks are
not used)
Water sports
such as
swimming
and yachting,
fishing,
farming, car
washing and
exposure to
strong water
currents.
Conditions
of use
Watch with 50M
(5BAR) on back
cover or dial
face along with
WATER
RESISTANT on
back cover of
watchcase.
Non
water
resistant
Watch without
WATER
RESISTANT on
back cover of
watchcase.
Exposure to
small
amounts of
water (face-
washing, rain,
etc.)
Watch with
WATER
RESISTANT on
back cover of
watchcase.
Water
resistant
for daily
life
Rein-
forced
water-
resis-
tance for
daily life I
Rein-
forced
water
resis-
tance for
daily life II
Watch with
100M (10BAR),
150M (15BAR)
200M (20BAR)
on back cover
or dial face
along with
WATER
RESISTANT on
back cover of
watchcase.
Type
⳯⳯⳯⳯⳯
嘷⳯⳯⳯⳯
嘷嘷⳯⳯⳯
嘷嘷嘷⳯⳯
* It is recommended that you use the watch correctly following the above-mentioned scope of
usage after ascertaining water resistance precautions marked on the dial face of the watch or
on the back of the watchcase.

10
(5) Temperature
The watch may malfunction and stop in environments below and above nor-
mal temperatures (5°C to 50°C).
(6) Chemicals, Gases, etc.
Utmost caution must be exercised when coming into contact with gases, mer-
cury, chemicals (paint thinner, gasoline, various solvents, detergents contain-
ing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and
so forth. Such may cause discoloration of the watchcase, watchband, and dial
face. Discoloration, deformation, and damage to various resin-based compo-
nent parts may also occur.
◆REPLACING THE BATTERY
The SEIKO SR927W, Maxell SR927W or SONY SR927W battery that powers
your watch should last approximately 3 years. However, because it is installed
at the factory, the actual life of the battery may be less.
Replace the battery as soon as it runs down to prevent any possible malfunc-
tions.
We recommend taking the watch to your local watch repair shop to replace the
battery.
◆ABOUT “LUMINOUS LIGHT”
Some products use “Luminous Light” for the hands and dials. The “luminous
light” is a safe light-storing paint that does not contain radioactive materials.
◆WATER RESISTANT WATCHBAND
Some products employ leather and nylon bands on which a special treatment
to resist perspiration and water absorption have been applied. Please under-
stand that the water resisting effect of this watchband can be lost depending
on the period and conditions of use.
